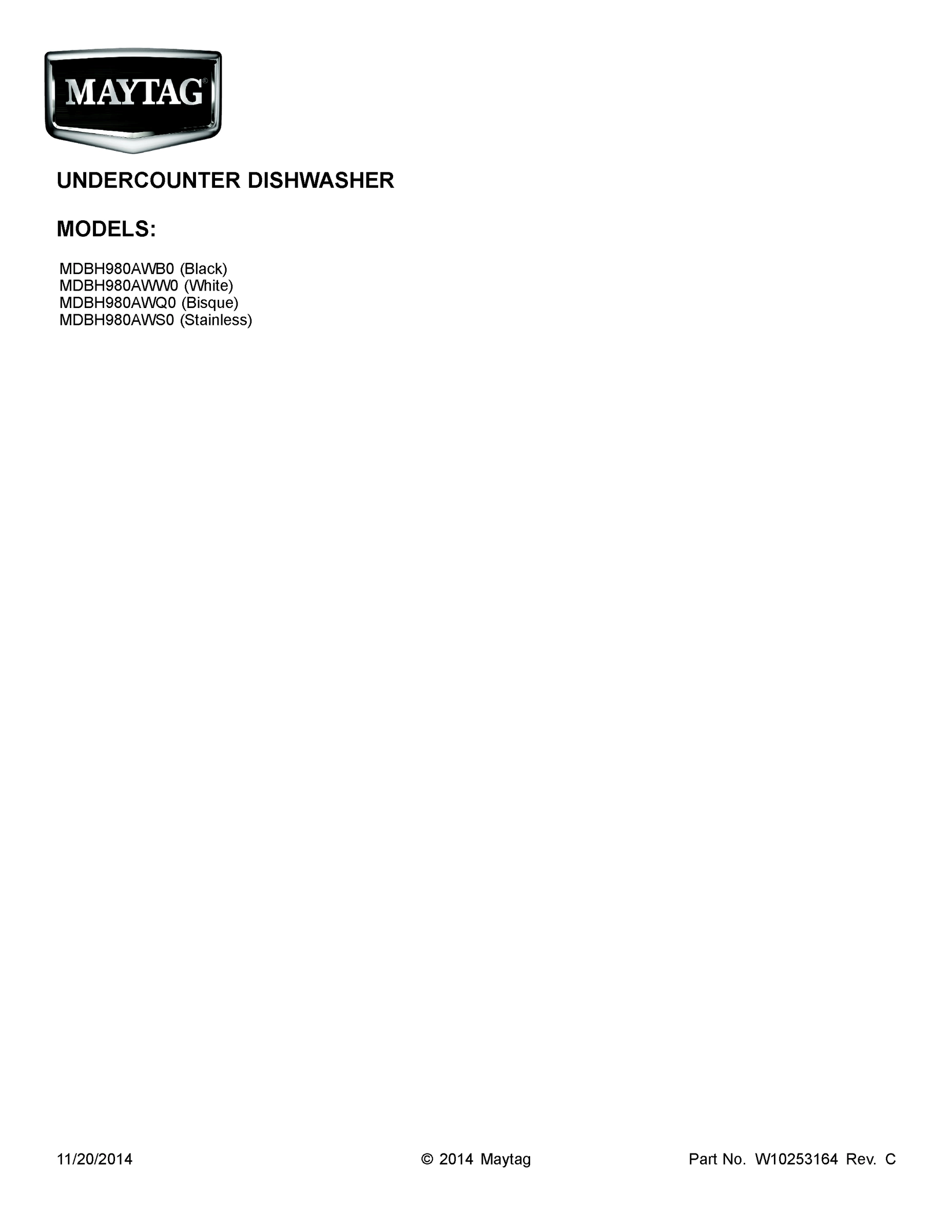

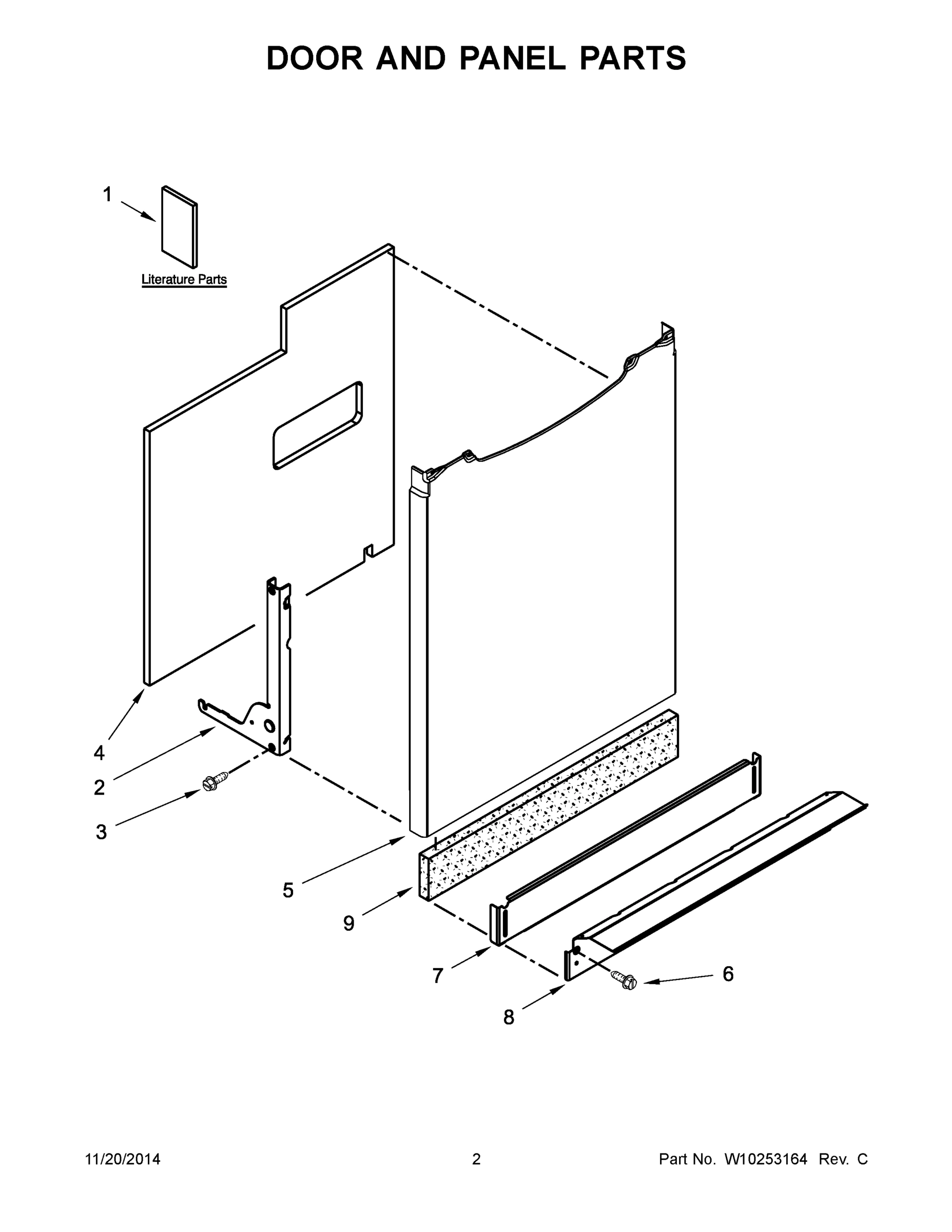

Model Maytag MDBH980AWQ0 DISHWASHER – Common Parts &amp; Diagrams

1

MAY 99002852 MAY 99002852 Contact Us For Availability

1

HARNESS, WIRING MAY 99003308 Contact Us For Availability

1

MAY 99003083 MAY 99003083 Contact Us For Availability

1

MAY W10119337 MAY W10119337 Contact Us For Availability

1

MAY 99002666 MAY 99002666 Contact Us For Availability

1

MAY W10203879 MAY W10203879 Contact Us For Availability

1

FEED TUBE ASSEMBLY MAY 99003081 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

2

WP6-918806 Whirlpool Dishwasher Lower Spray A In Stock WPL WP6-918806 $69.38

2

WP99002643 Whirlpool Dishwasher Bracket Backorder WPL WP99002643 $3.70

2

MAY W10169387 MAY W10169387 Contact Us For Availability

2

MAY 99003771 MAY 99003771 Contact Us For Availability

2

MAY 6-916881 MAY 6-916881 Contact Us For Availability

2

MAY W10166790 MAY W10166790 Contact Us For Availability

2

MAY W10144736 MAY W10144736 Contact Us For Availability

3

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $54.00

3

WP99002150 Whirlpool Dishwasher Air Seal Backorder WPL WP99002150 $4.94

3

MAY 99002753 MAY 99002753 Contact Us For Availability

3

HOUSING, BOARD (BOTTOM) MAY 99002576 Contact Us For Availability

3

MAY W10218606 MAY W10218606 Contact Us For Availability

3

MAY 99003032 MAY 99003032 Contact Us For Availability

3

CLIP, UPPER WASH MANIFOLD (FRONT) MAY 99003072 Contact Us For Availability

4

6-918346 Whirlpool Dishwasher Bracket Backorder WPL 6-918346 $10.76

4

99003071 Whirlpool Dishwasher Upper Wash Mani Backorder WPL 99003071 $10.25

4

MAY 99003243 MAY 99003243 Contact Us For Availability

4

FLOAT HOUSING ASSEMBLY MAY W10205539 Contact Us For Availability

4

DISCHARGE, HOUSING ASSEMBLY MAY 99003145 Contact Us For Availability

4

STATION, DOCKING (WITH FLAPPER) MAY 6-918805 Contact Us For Availability

5

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $82.73

5

WP99002659 Whirlpool Impeller In Stock WPL WP99002659 $31.33

5

MAY 99002751 MAY 99002751 Contact Us For Availability

5

MAY 99003322 MAY 99003322 Contact Us For Availability

5

MAY 6-916979 MAY 6-916979 Contact Us For Availability

5

WASH MANIFOLD ASSEMBLY MAY 99002679 Contact Us For Availability

5

MAY 6-917644 MAY 6-917644 Contact Us For Availability

6

WP99003070 Whirlpool Dishwasher Wash Arm Backorder WPL WP99003070 $33.96

6

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $43.35

6

HOUSING, VENT ASSEMBLY MAY W10190889 Contact Us For Availability

6

FLOAT (SERIES 41, 44, 45, 46) MAY W10130099 Contact Us For Availability

6

MAY 99003688 MAY 99003688 Contact Us For Availability

6

FILTER/FLOWPLATE ASSEMBLY MAY W10192800 Contact Us For Availability

7

12002361 Whirlpool Dishwasher Pump Gasket (wi Backorder WPL 12002361 $46.59

7

WPW10130695 Whirlpool Dishwasher Door Latch A In Stock WPL WPW10130695 $25.66

7

WPY912620 Whirlpool Dishwasher Screw Backorder WPL WPY912620 $2.51

7

INLET, AIR AND WATER MAY 99003028 Contact Us For Availability

7

MAY W10173920 MAY W10173920 Contact Us For Availability

7

MAY W10203871 MAY W10203871 Contact Us For Availability

8

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $10.76

8

WPW10268755 Whirlpool Dishwasher Float Backorder WPL WPW10268755 $34.24

8

MAY 99002608 MAY 99002608 Contact Us For Availability

8

INNER DOOR W/ DAMPER MAY 99003424 Contact Us For Availability

8

MAY 6-918298 MAY 6-918298 Contact Us For Availability

9

BRACKET, DISPENSER MAY 99001465 Contact Us For Availability

9

MAY 99003040 MAY 99003040 Contact Us For Availability

9

MAY 99003687 MAY 99003687 Contact Us For Availability

9

MAY W10120019 MAY W10120019 Contact Us For Availability

9

STOP, TRACK MAY W10169391 Contact Us For Availability

MAY 99002598 MAY 99002598 Contact Us For Availability

MAY 912615 MAY 912615 Contact Us For Availability

MAY 99003697 MAY 99003697 Contact Us For Availability

BASKET, SILVERWARE (SERIES 42 REMOVES HANDLE) MAY 6-918873 Contact Us For Availability

11

WP99002947 Whirlpool Tub Wheel Backorder WPL WP99002947 $6.46

11

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $4.70

11

MAY 99002668 MAY 99002668 Contact Us For Availability

12

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $42.16

12

MAY 99003427 MAY 99003427 Contact Us For Availability

13

WP99003337 Whirlpool Door Seal In Stock WPL WP99003337 $101.09

13

WASH MOTOR ASSEMBLY MAY W10118627 Contact Us For Availability

14

TUB ASSEMBLY (NOT SERVICED) MAY N/P Contact Us For Availability

14

MAY 99003309 MAY 99003309 Contact Us For Availability

15

THERMOSTAT LIMITING MAY 99002633 Contact Us For Availability

15

O-RING MAY 99002857 Contact Us For Availability

16

MAY 99002740 MAY 99002740 Contact Us For Availability

16

MAY W10167658 MAY W10167658 Contact Us For Availability

17

MAY 99002692 MAY 99002692 Contact Us For Availability

17

PUMP, DRAIN MAY W10200518 Contact Us For Availability

18

BRACKET, JUNCTION (NOT SERVICED) BOX MAY 99002637 Contact Us For Availability

18

MAY W10167912 MAY W10167912 Contact Us For Availability

19

MAY 99002665 MAY 99002665 Contact Us For Availability

19

MAY W10143258 MAY W10143258 Contact Us For Availability

20

STRIP, TRIM LEFT MAY W10164700 Contact Us For Availability

20

MAY 99002601 MAY 99002601 Contact Us For Availability

21

MAY 99002638 MAY 99002638 Contact Us For Availability

22

MAY W10117485 MAY W10117485 Contact Us For Availability

22A

MAY W10117484 MAY W10117484 Contact Us For Availability

23

MAY W10174569 MAY W10174569 Contact Us For Availability

23A

MAY W10174581 MAY W10174581 Contact Us For Availability

24

MAY W10164702 MAY W10164702 Contact Us For Availability

25

TRIM, SIDE RIGHT MAY W10164701 Contact Us For Availability

26

GRILL, AIR/WATER INLET MAY 99003078 Contact Us For Availability

27

SCREWR MAY 6-912799 Contact Us For Availability

28

GAP SEAL, TOE KICK (BLACK) MAY W10163633 Contact Us For Availability

28A

GAP SEAL, TOE KICK (WHITE) MAY W10163635 Contact Us For Availability

28B

GAP SEAL, TOE KICK (BISCUIT/BISQUE) MAY W10163634 Contact Us For Availability

29

BRACKET, REAR SUPPORT MAY W10167660 Contact Us For Availability

30

MAY W10167916 MAY W10167916 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability

INSTALLATION KIT, BARRIER KIT MAY 4396277 Contact Us For Availability

KIT, INSTALLATION (INCLUDES 6 FT. FILL HOSE A MAY 4396897RP Contact Us For Availability

INSTALLATION KIT, DRAIN HOSE (6 FT) MAY 4396897RW Contact Us For Availability

MAY 72017 MAY 72017 Contact Us For Availability

MAY 72032 MAY 72032 Contact Us For Availability

INSTALLATION KIT, DRAIN HOSE (12 FT) MAY 8212486 Contact Us For Availability

KIT INSTALLATION (INCLUDES POWER CORD, 6 FT. MAY 8212488RC Contact Us For Availability
