Model Maytag MDBH945AWS41 DISHWASHER – Common Parts & Diagrams

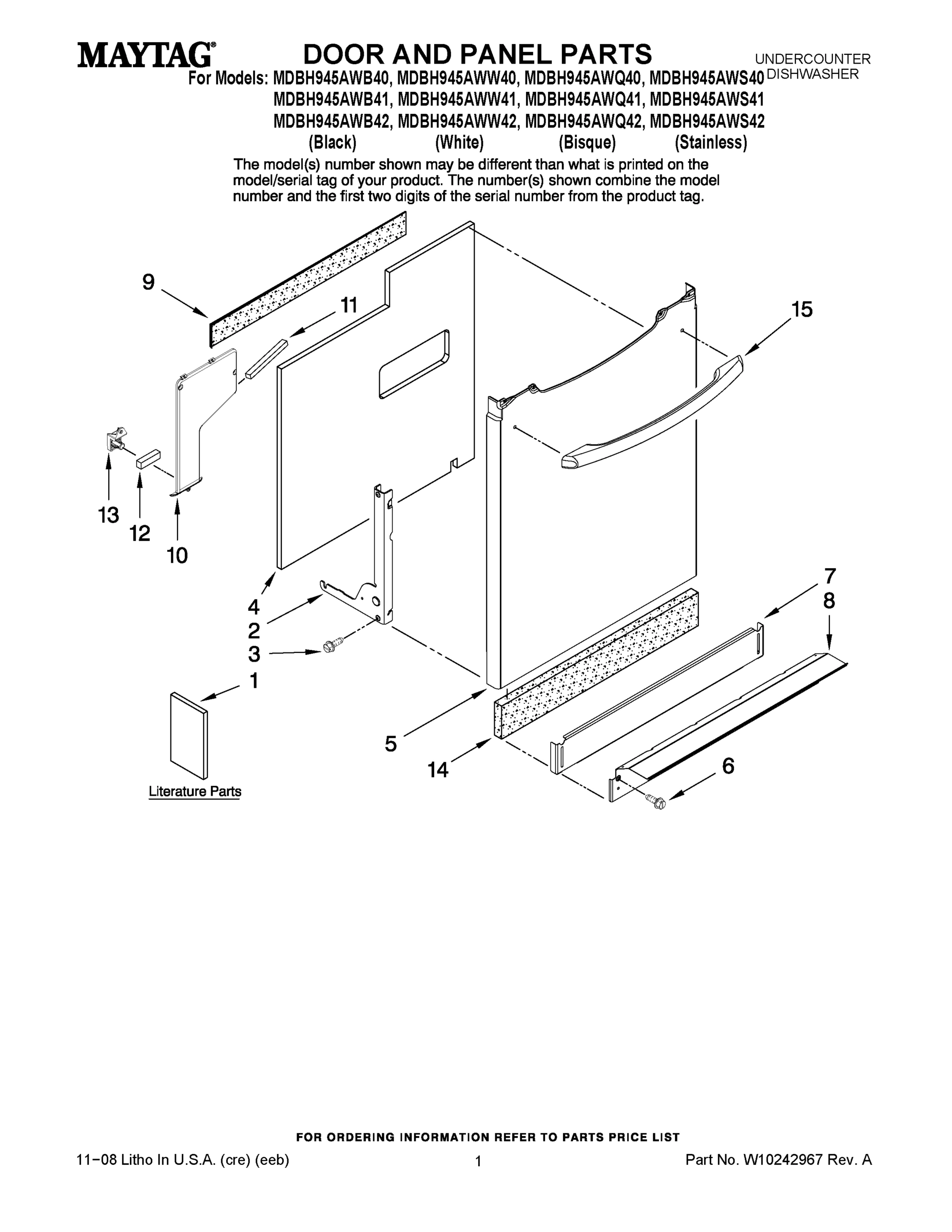

01 - DOOR AND PANEL PARTS

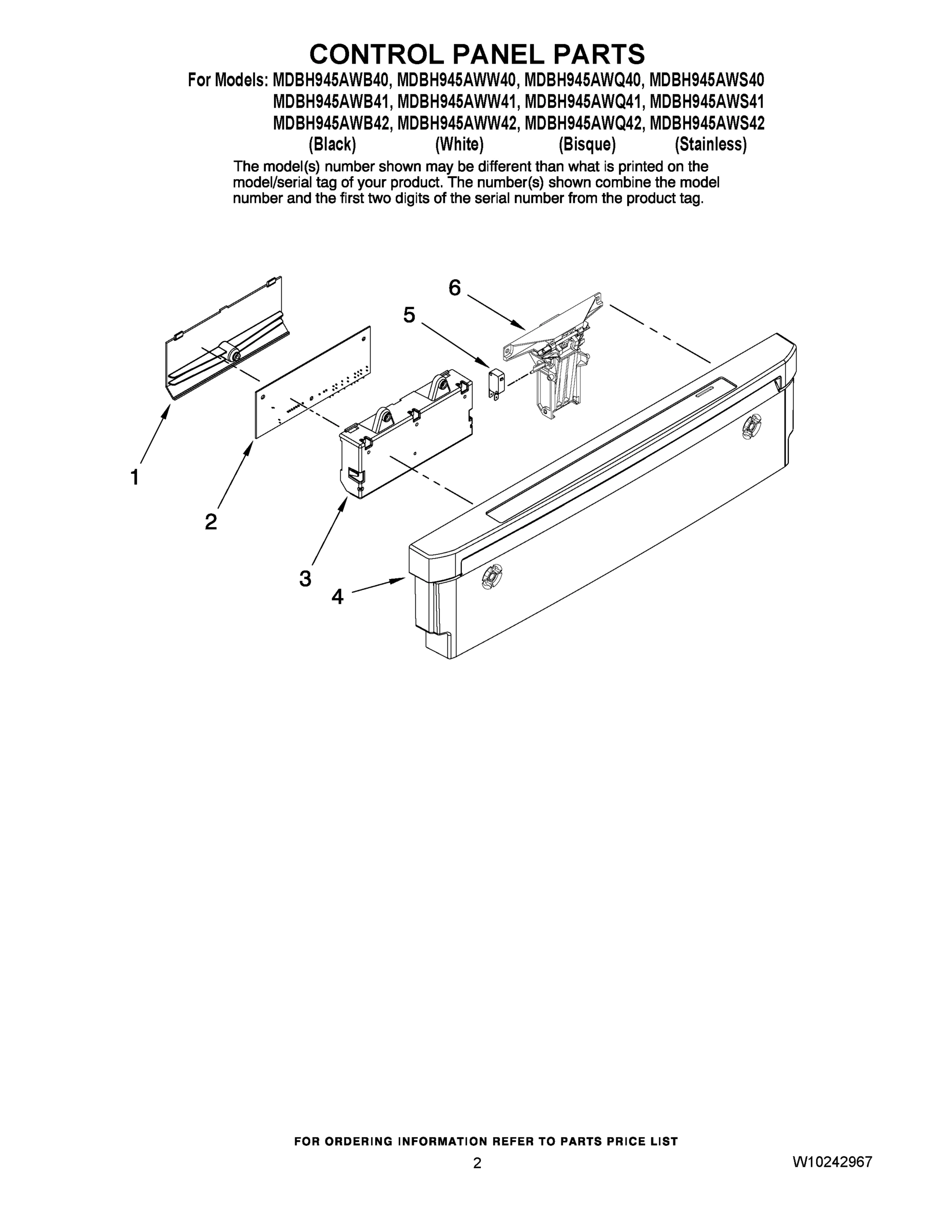

02 - CONTROL PANEL PARTS

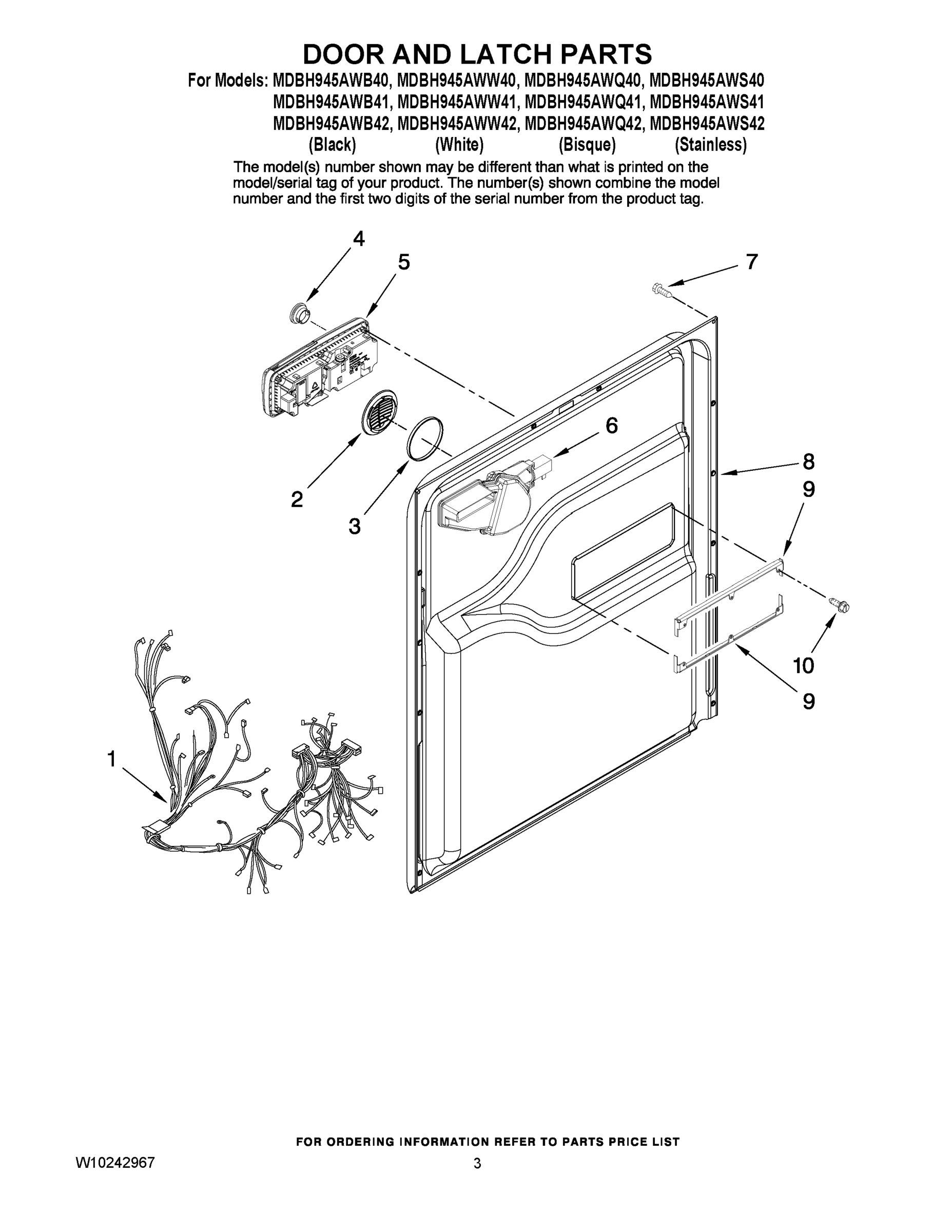

03 - DOOR AND LATCH PARTS

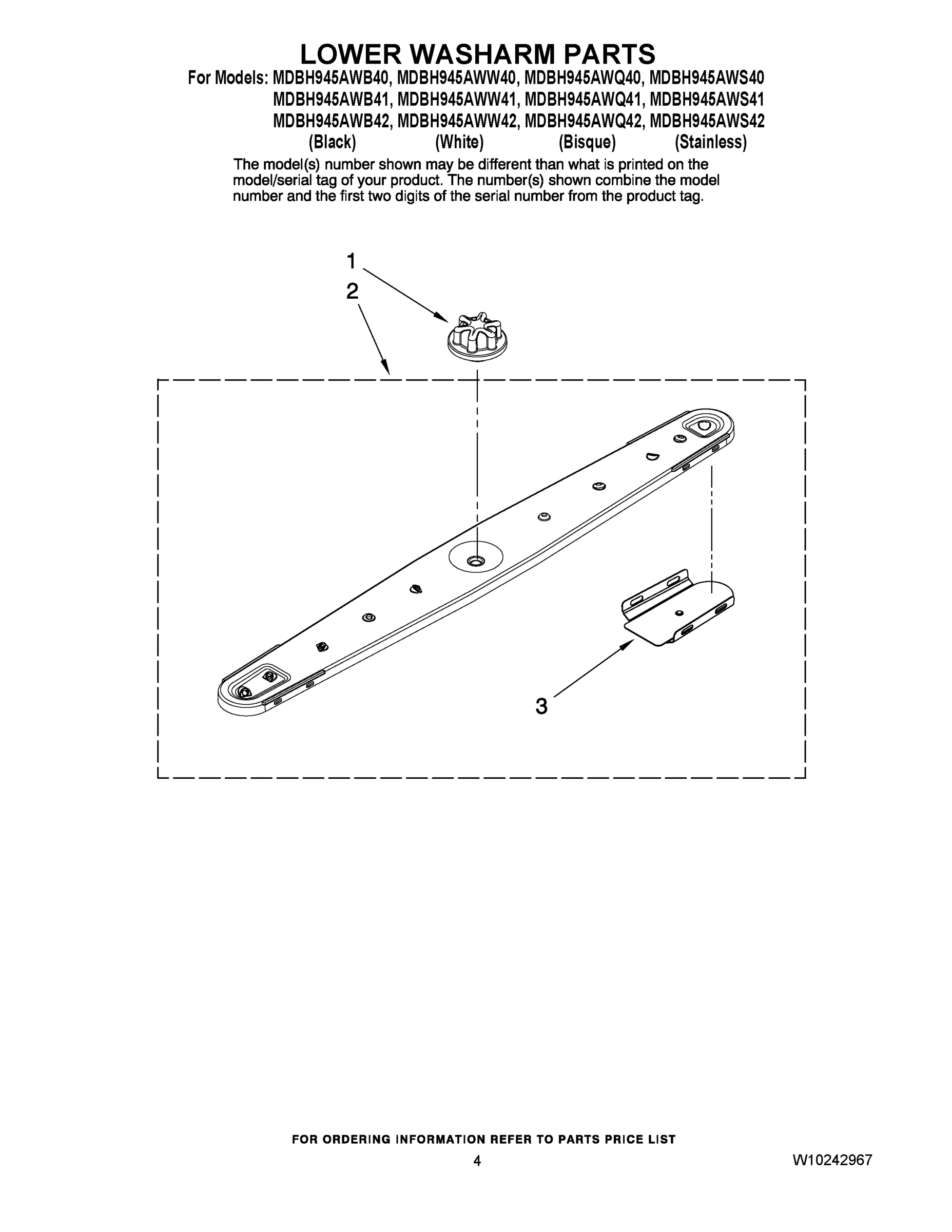

04 - LOWER WASHARM PARTS

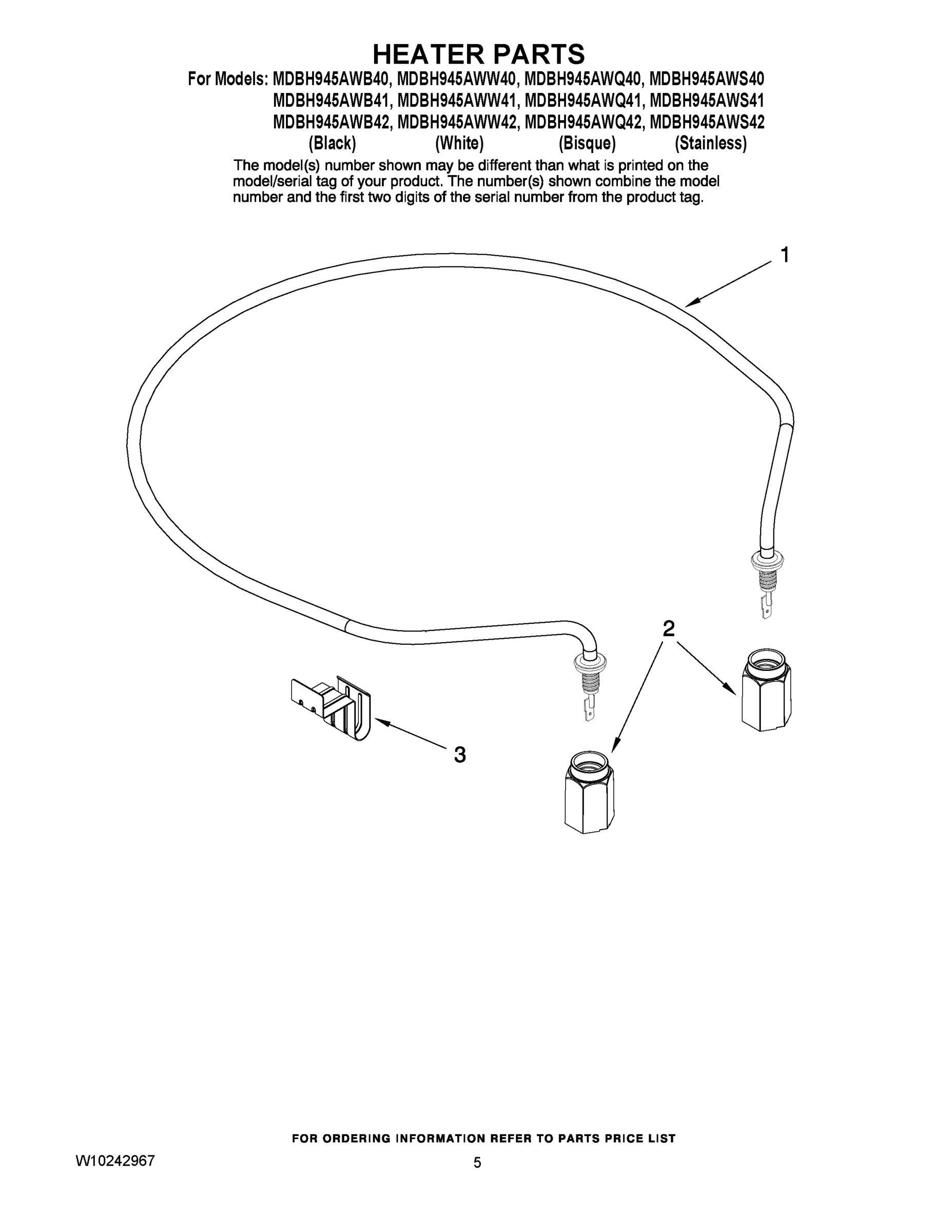

05 - HEATER PARTS

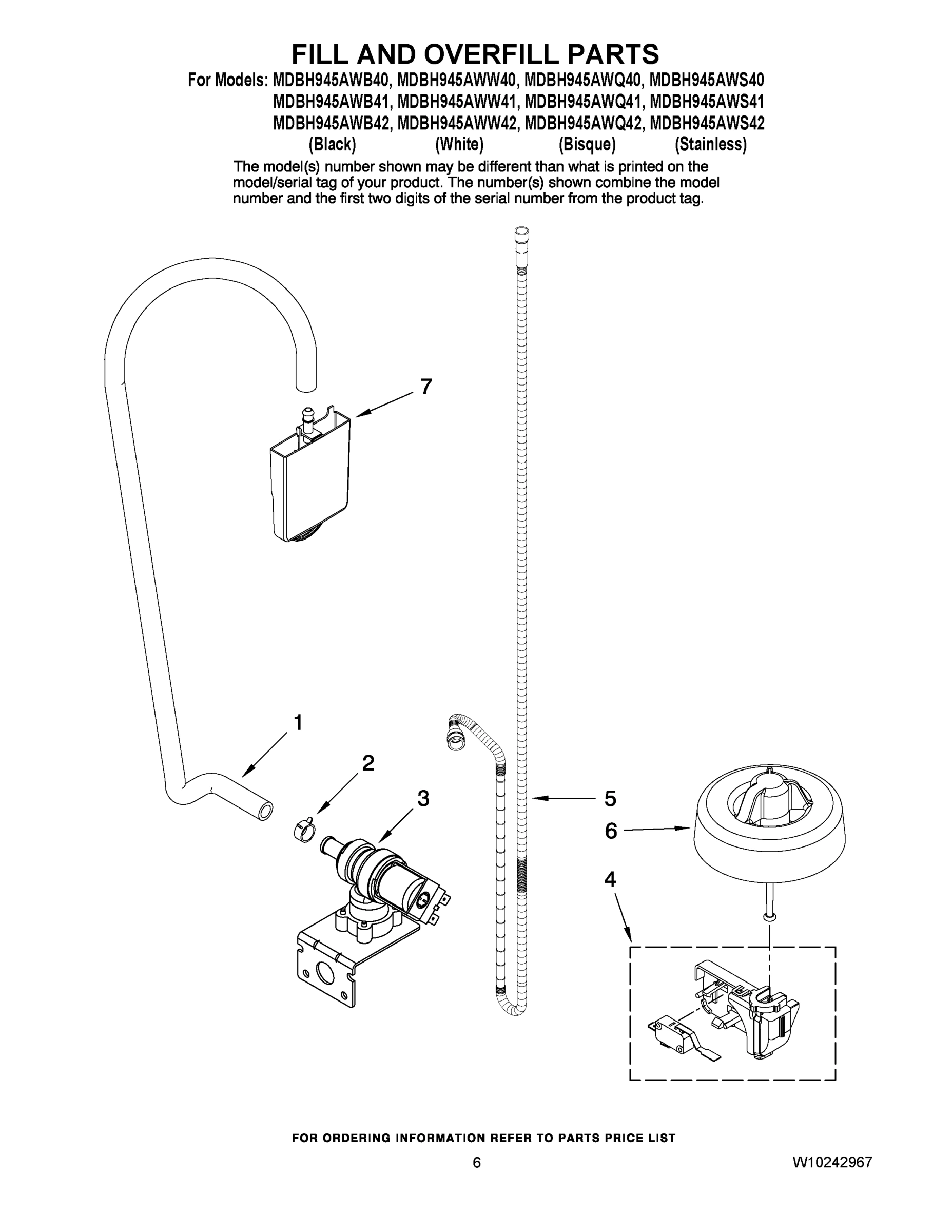

06 - FILL AND OVERFILL PARTS

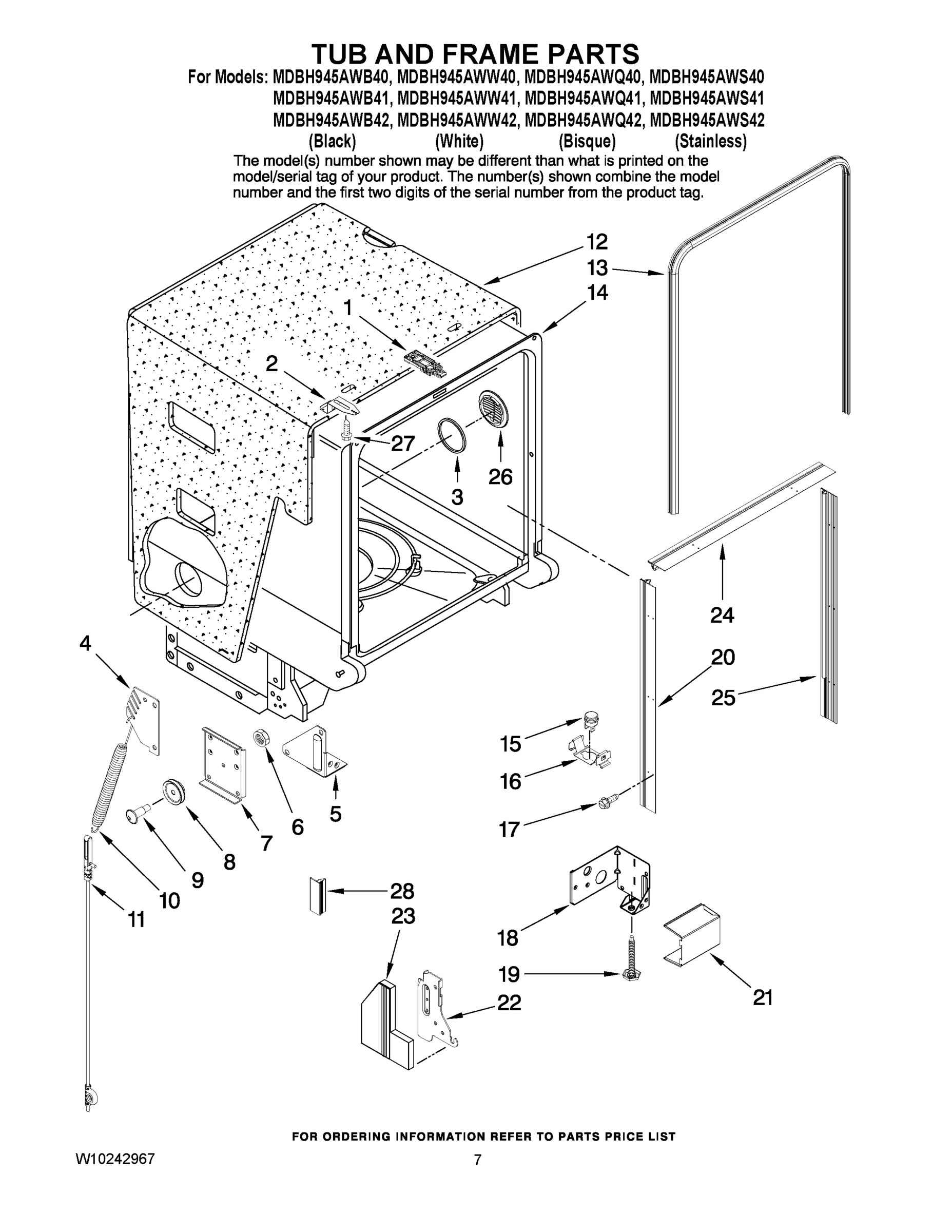

07 - TUB AND FRAME PARTS

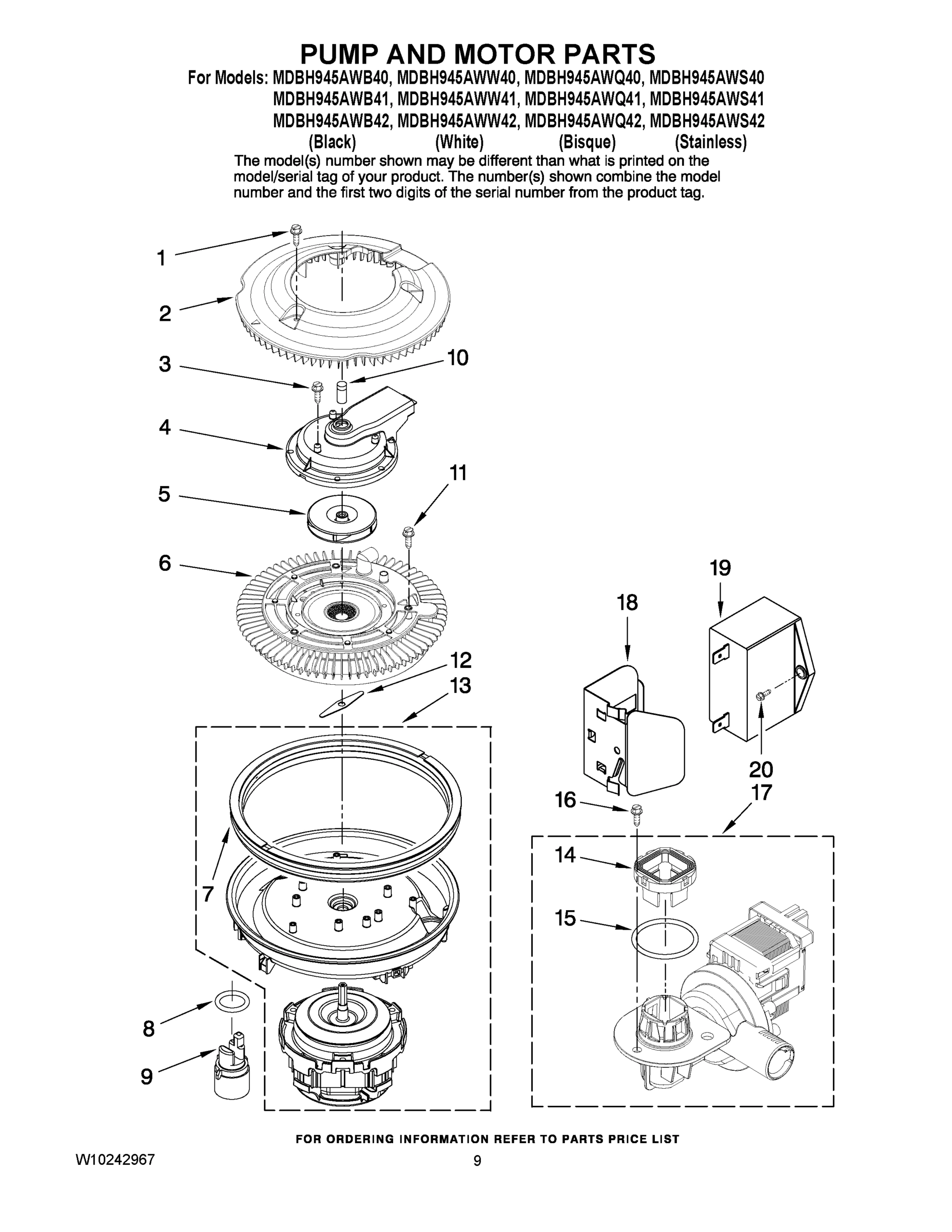

08 - PUMP AND MOTOR PARTS

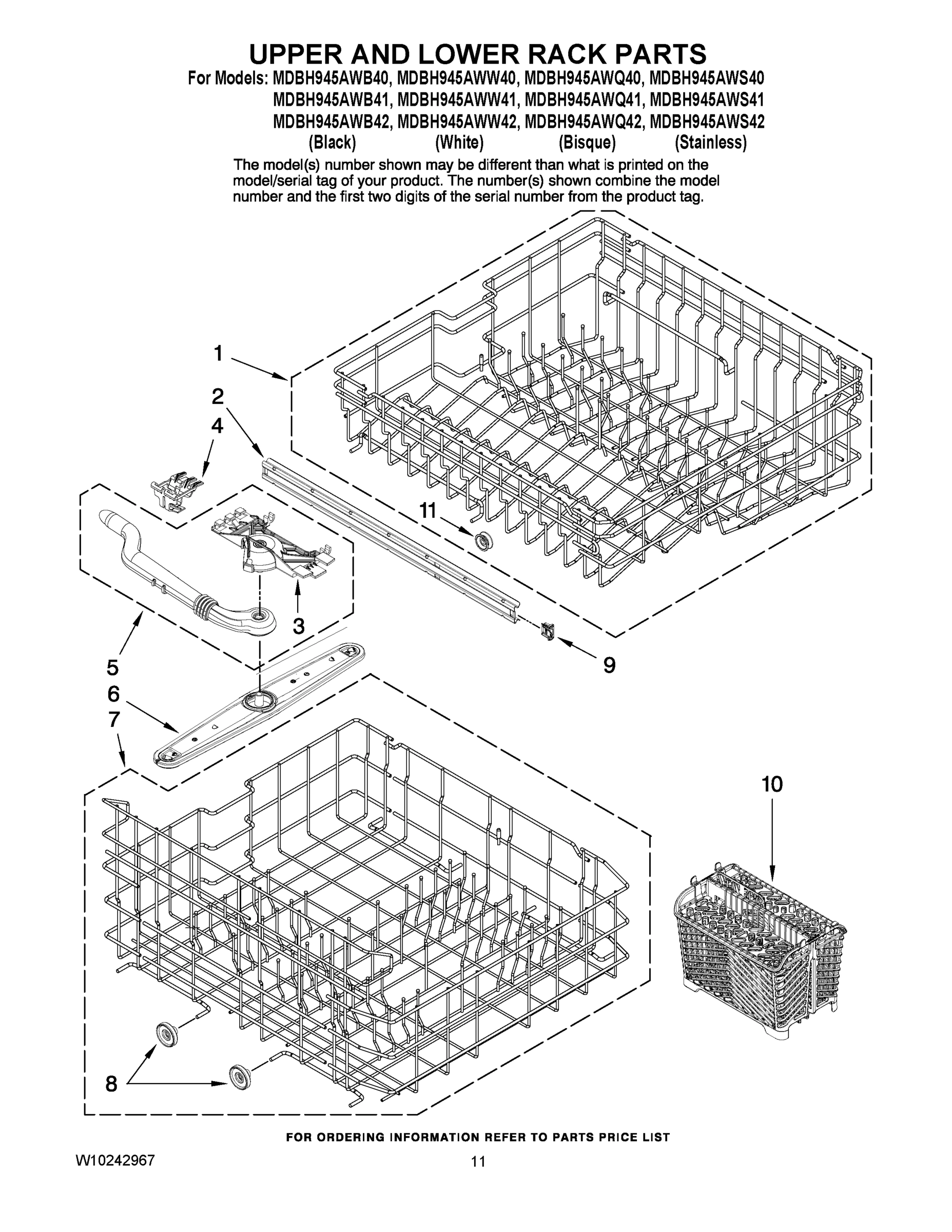

09 - UPPER AND LOWER RACK PARTS

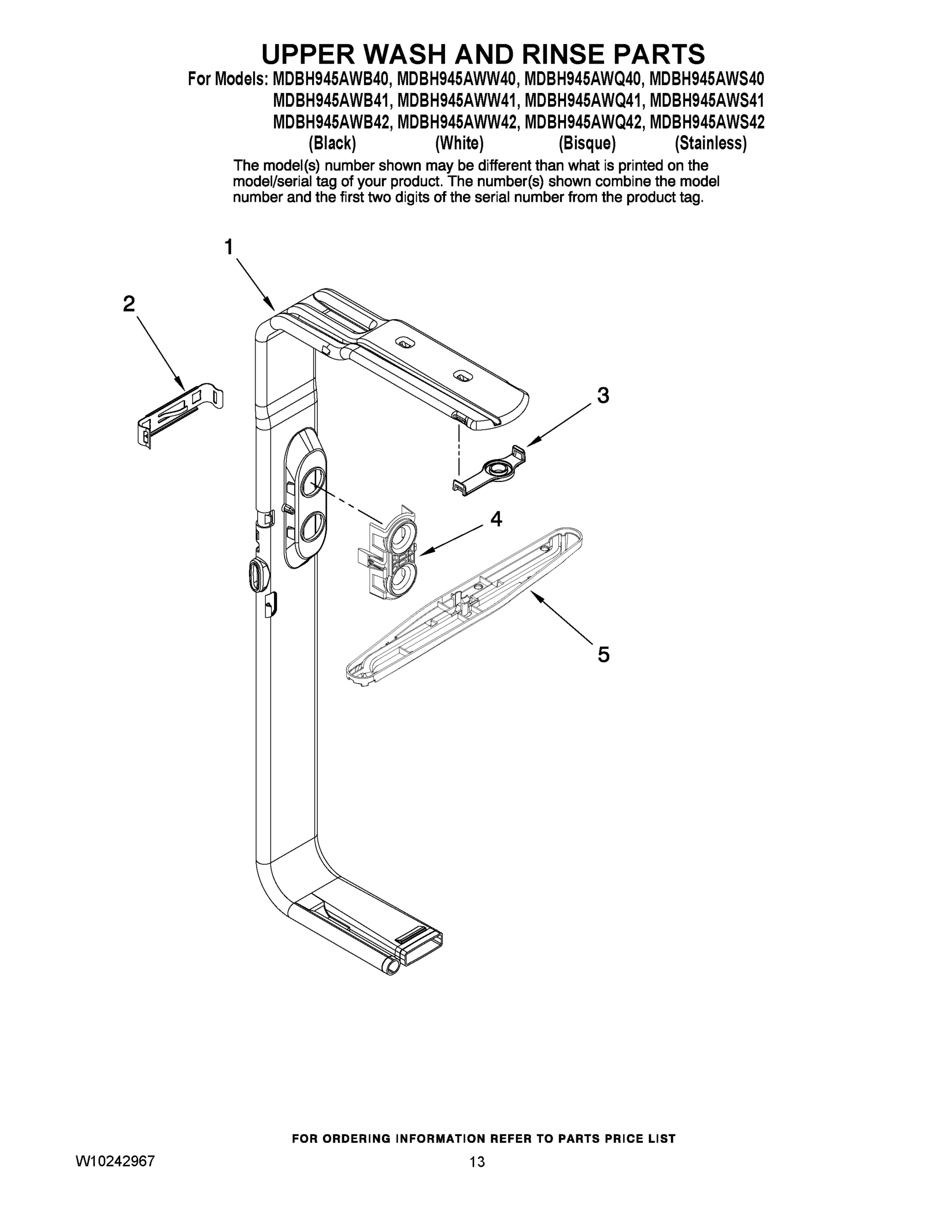

10 - UPPER WASH AND RINSE PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDBH945AWS41 DISHWASHER
1
MAY 99002575 MAY 99002575 Contact Us For Availability
1
MAY 6-919770 MAY 6-919770 Contact Us For Availability
1
MAY 99003083 MAY 99003083 Contact Us For Availability
1
MAY W10119337 MAY W10119337 Contact Us For Availability
1
MAY 99002666 MAY 99002666 Contact Us For Availability
1
MAY W10194030 MAY W10194030 Contact Us For Availability
1
Feed Tube Assembly MAY 99003081 Contact Us For Availability
2
MAY 99002621 MAY 99002621 Contact Us For Availability
2
MAY W10226297 MAY W10226297 Contact Us For Availability
2
MAY W10169387 MAY W10169387 Contact Us For Availability
2
MAY 6-918806 MAY 6-918806 Contact Us For Availability
2
MAY 99003771 MAY 99003771 Contact Us For Availability
2
MAY 6-916881 MAY 6-916881 Contact Us For Availability
2
MAY W10166790 MAY W10166790 Contact Us For Availability
3
Seal, Air/Water Inlet MAY 99002186 Contact Us For Availability
3
MAY W10167918 MAY W10167918 Contact Us For Availability
3
MAY 6-919082 MAY 6-919082 Contact Us For Availability
3
Clip, Upper Wash Manifold (Front) MAY 99003072 Contact Us For Availability
4
MAY W10235718 MAY W10235718 Contact Us For Availability
4
MAY W10235719 MAY W10235719 Contact Us For Availability
4
MAY W10235720 MAY W10235720 Contact Us For Availability
4
MAY W10235721 MAY W10235721 Contact Us For Availability
4
MAY 99003243 MAY 99003243 Contact Us For Availability
4
Switch, Float (Series 41,42) MAY W10130103 Contact Us For Availability
4
Switch, Float (Series 40) MAY W10205539 Contact Us For Availability
4
Discharge, Housing Assembly MAY 99003145 Contact Us For Availability
4
Station, Docking (With Flapper) MAY 6-918805 Contact Us For Availability
5
MAY 99002751 MAY 99002751 Contact Us For Availability
5
MAY 99003322 MAY 99003322 Contact Us For Availability
5
MAY 6-916979 MAY 6-916979 Contact Us For Availability
5
Wash Manifold (Upper) MAY 99003142 Contact Us For Availability
5
MAY 6-917644 MAY 6-917644 Contact Us For Availability
6
MAY W10190889 MAY W10190889 Contact Us For Availability
6
MAY W10130099 MAY W10130099 Contact Us For Availability
6
MAY 99003688 MAY 99003688 Contact Us For Availability
6
MAY W10192800 MAY W10192800 Contact Us For Availability
7
MAY 99002645 MAY 99002645 Contact Us For Availability
7
MAY W10173920 MAY W10173920 Contact Us For Availability
7
MAY 99002663 MAY 99002663 Contact Us For Availability
7
Dishrack, Lower (Incl.Cup Shelf) MAY W10203930 Contact Us For Availability
8
Inner Door W/ Damper MAY 99003424 Contact Us For Availability
9
MAY 99003687 MAY 99003687 Contact Us For Availability
9
MAY W10120019 MAY W10120019 Contact Us For Availability
9
MAY W10169390 MAY W10169390 Contact Us For Availability
10
MAY 912615 MAY 912615 Contact Us For Availability
10
MAY 99003697 MAY 99003697 Contact Us For Availability
10
Basket, Silverware (Series 42 Removes Handle) MAY 6-918873 Contact Us For Availability
11
MAY 99002668 MAY 99002668 Contact Us For Availability
12
MAY 99003427 MAY 99003427 Contact Us For Availability
13
MAY 99002588 MAY 99002588 Contact Us For Availability
13
MAY 6-919963 MAY 6-919963 Contact Us For Availability
14
MAY W10199093 MAY W10199093 Contact Us For Availability
14
MAY 99003309 MAY 99003309 Contact Us For Availability
15
MAY 99002633 MAY 99002633 Contact Us For Availability
15
MAY 99002857 MAY 99002857 Contact Us For Availability
15
MAY W10189705 MAY W10189705 Contact Us For Availability
15
MAY W10189706 MAY W10189706 Contact Us For Availability
15
MAY W10189707 MAY W10189707 Contact Us For Availability
16
MAY 99002740 MAY 99002740 Contact Us For Availability
16
MAY 99002634 MAY 99002634 Contact Us For Availability
17
MAY 99002692 MAY 99002692 Contact Us For Availability
17
MAY W10200518 MAY W10200518 Contact Us For Availability
18
MAY 99002637 MAY 99002637 Contact Us For Availability
18
MAY W10167912 MAY W10167912 Contact Us For Availability
19
MAY 99002665 MAY 99002665 Contact Us For Availability
19
MAY W10143258 MAY W10143258 Contact Us For Availability
20
Strip,Trim Left MAY W10164706 Contact Us For Availability
20
MAY 99002601 MAY 99002601 Contact Us For Availability
21
MAY 99002638 MAY 99002638 Contact Us For Availability
22
MAY W10137495 MAY W10137495 Contact Us For Availability
22
MAY W10137496 MAY W10137496 Contact Us For Availability
23
MAY W10174569 MAY W10174569 Contact Us For Availability
23
MAY W10174581 MAY W10174581 Contact Us For Availability
24
MAY W10164698 MAY W10164698 Contact Us For Availability
25
Strip, Trim Right MAY W10164707 Contact Us For Availability
26
MAY W10169388 MAY W10169388 Contact Us For Availability
27
MAY 6-912799 MAY 6-912799 Contact Us For Availability
28
Gap Seal, Toe Kick (Black) MAY W10163633 Contact Us For Availability
28
Gap Seal, Toe Kick (Bisque) MAY W10163634 Contact Us For Availability
28
Gap Seal, Toe Kick (White) MAY W10163635 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4396277 MAY 4396277 Contact Us For Availability
NI
KIT, INSTALLATION (INCLUDES 6 FT. FILL HOSE A MAY 4396897RP Contact Us For Availability
NI
MAY 4396897RW MAY 4396897RW Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 8212486 MAY 8212486 Contact Us For Availability
NI
KIT INSTALLATION (INCLUDES POWER CORD, 6 FT. MAY 8212488RC Contact Us For Availability
× ![]()
