Model Maytag MDB7851AWW2 DISHWASHER – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL & LATCH PARTS

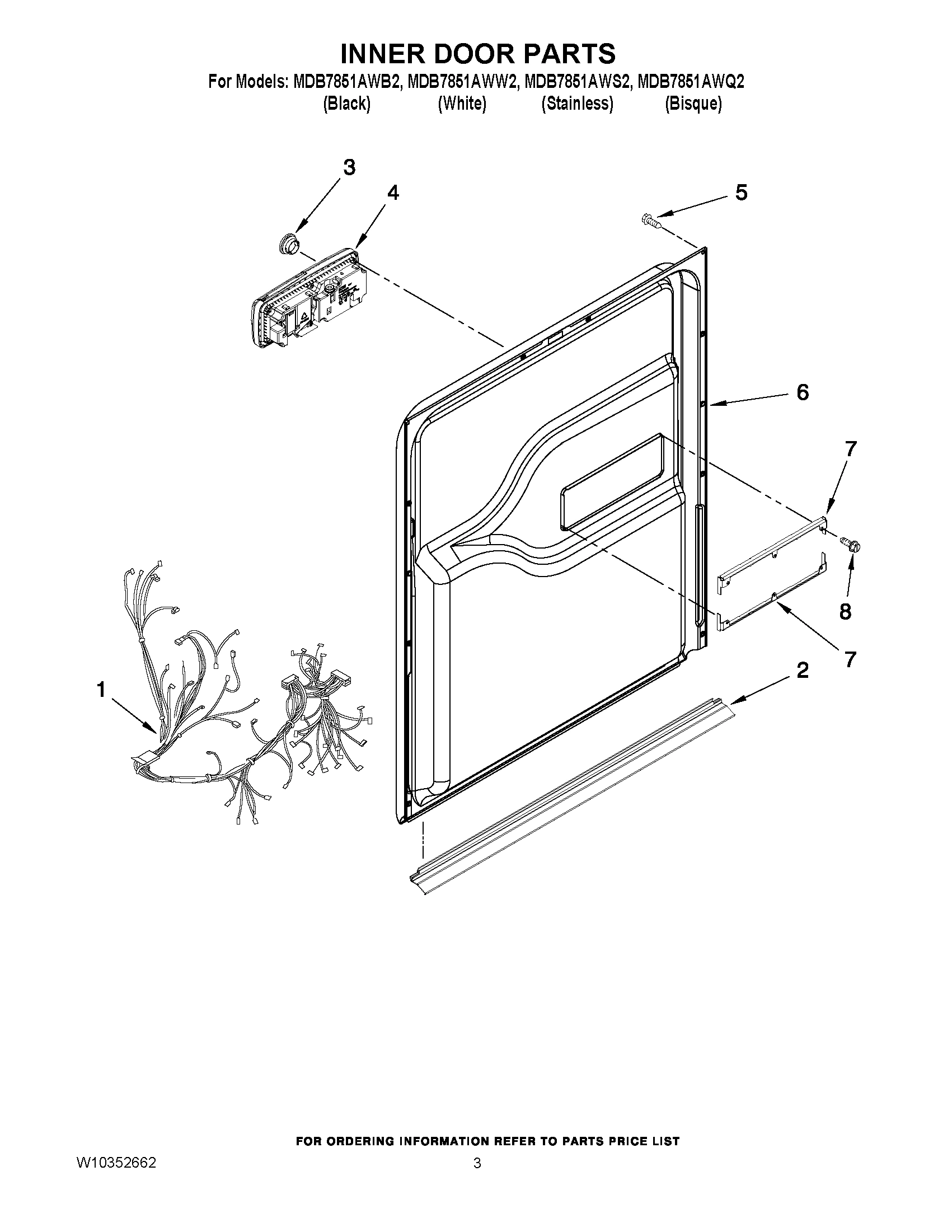

03 - INNER DOOR PARTS

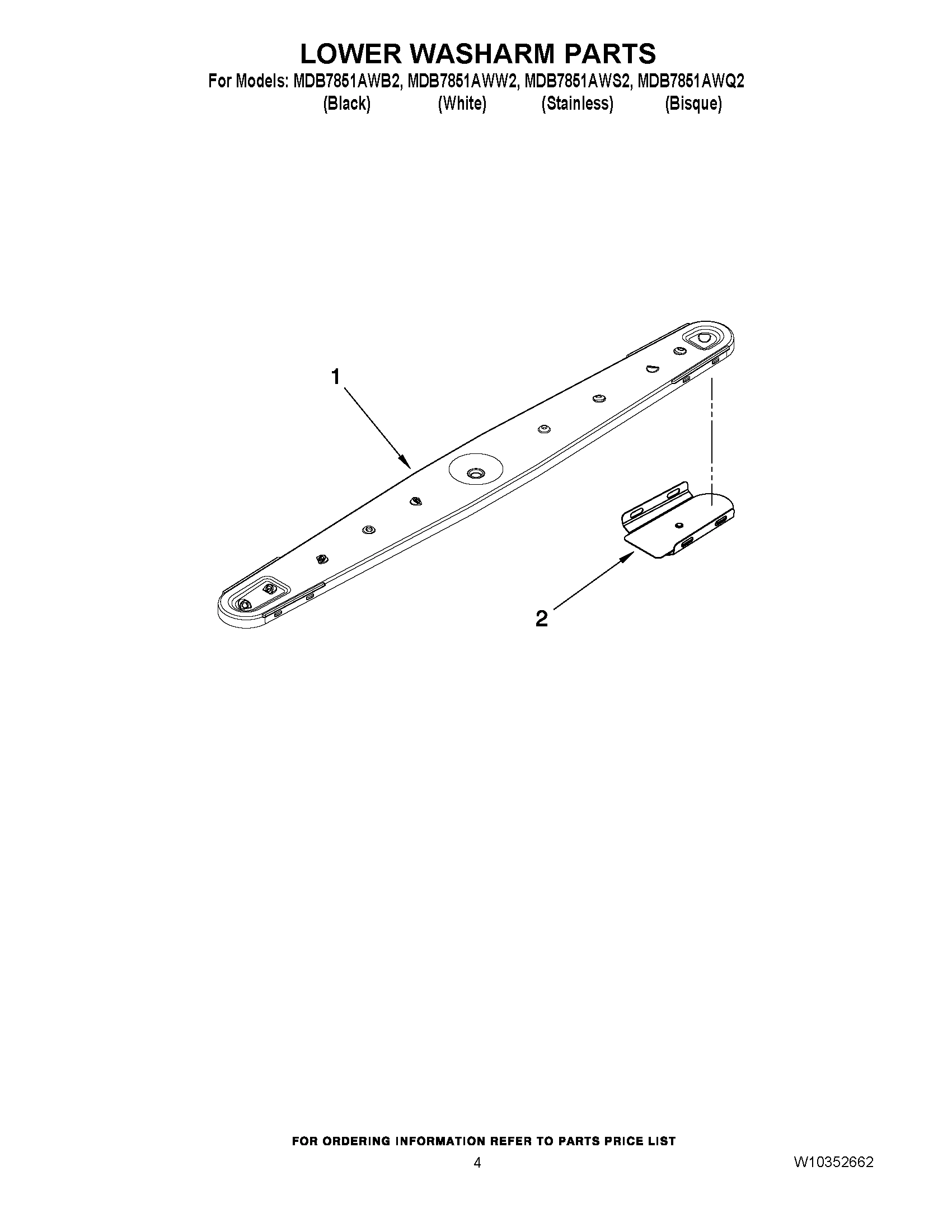

04 - LOWER WASHARM PARTS

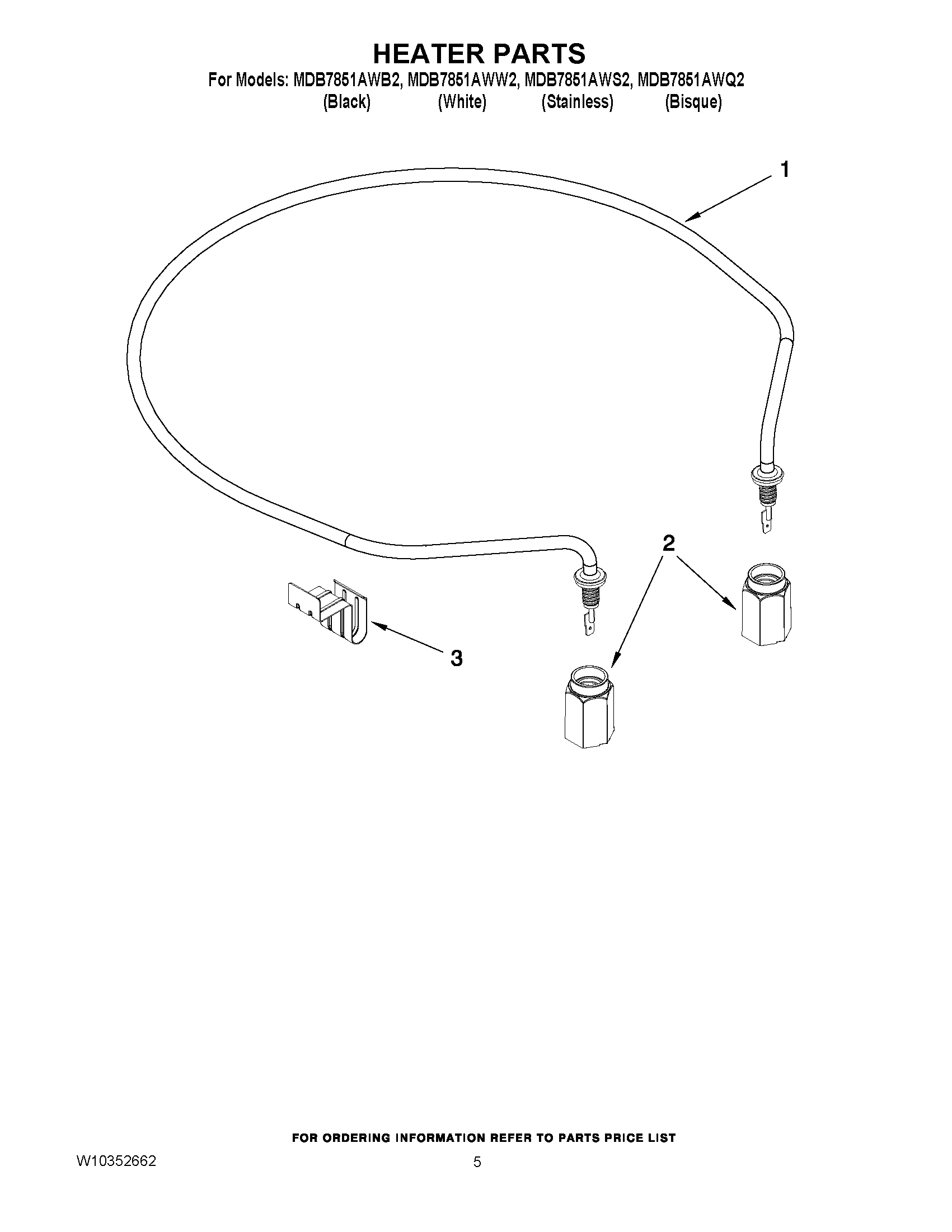

05 - HEATER PARTS

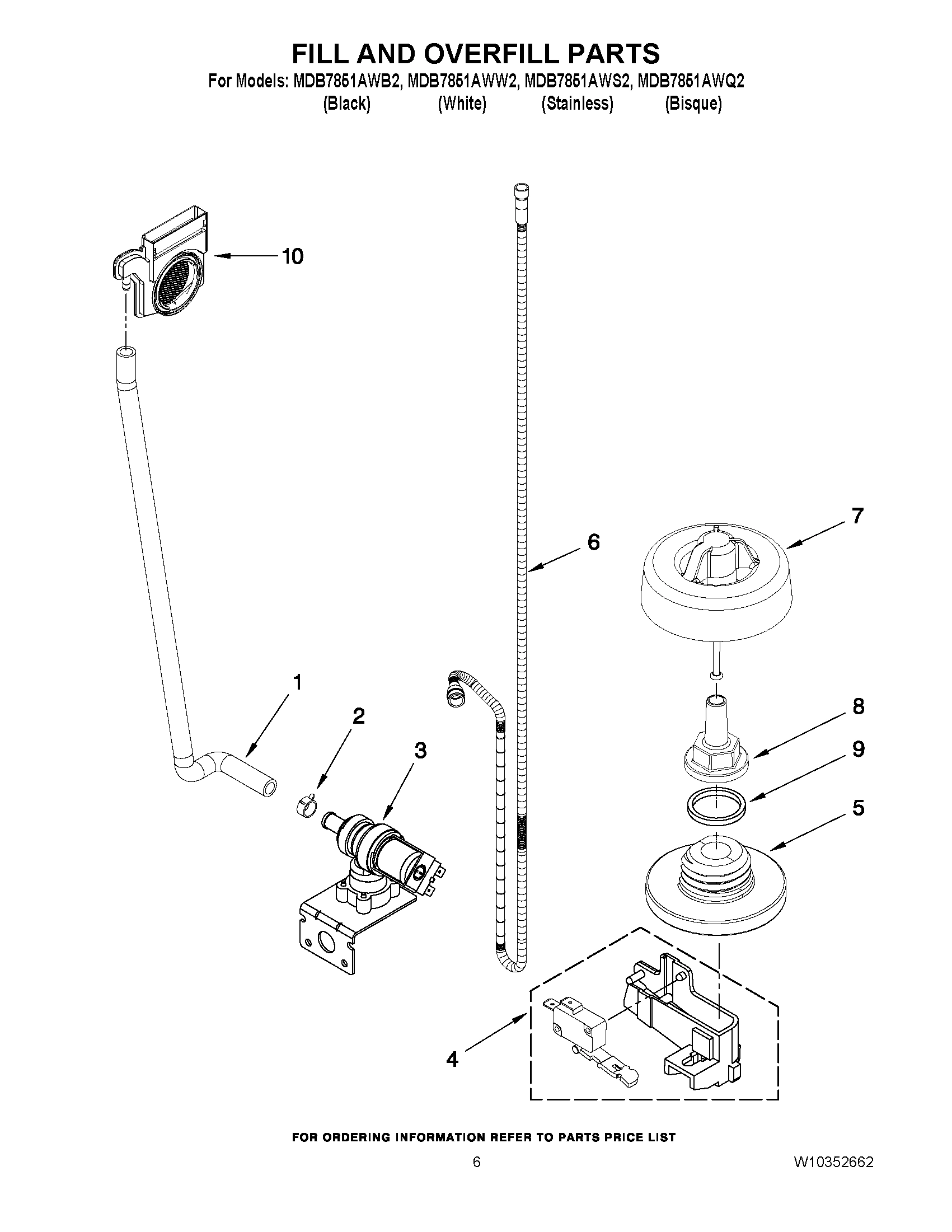

06 - FILL AND OVERFILL PARTS

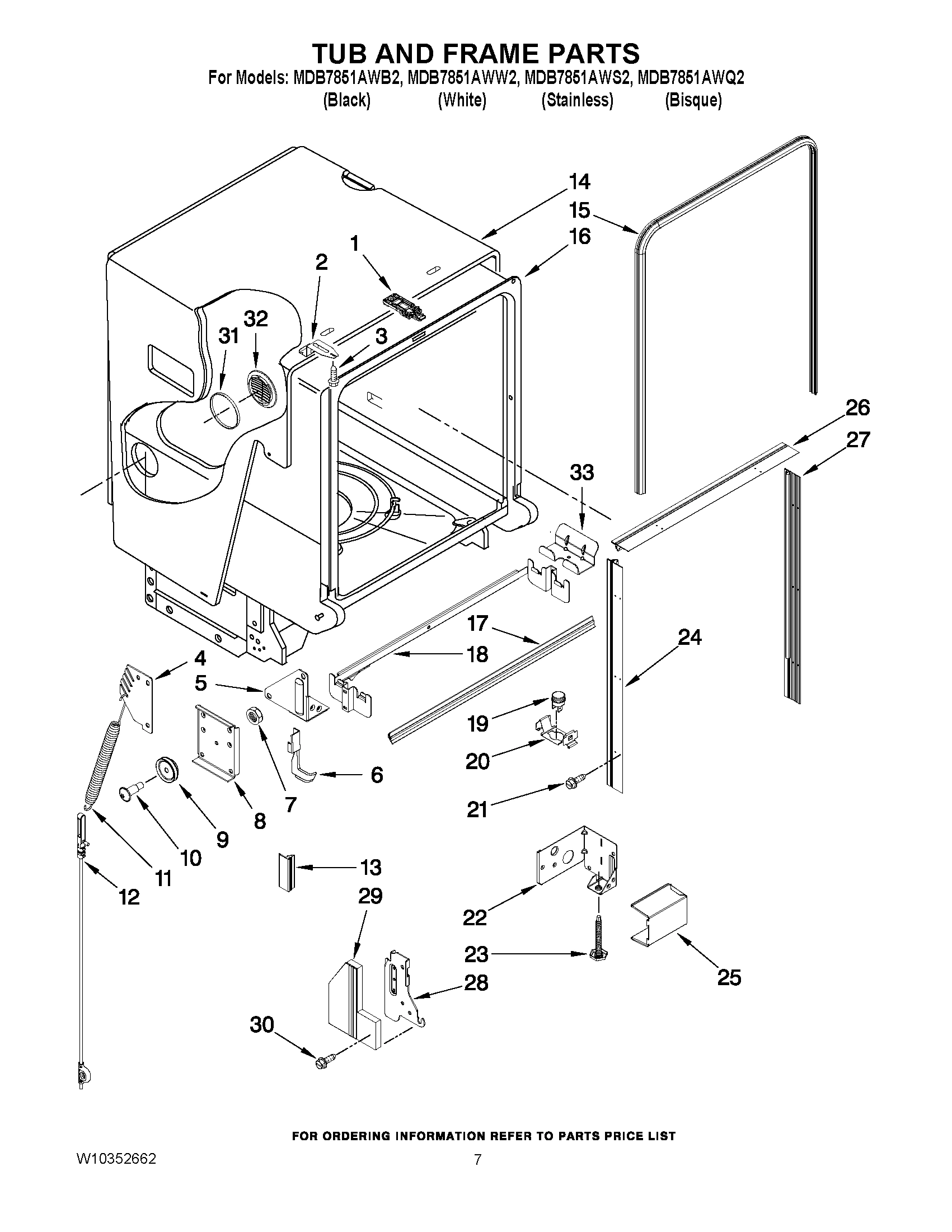

07 - TUB AND FRAME PARTS

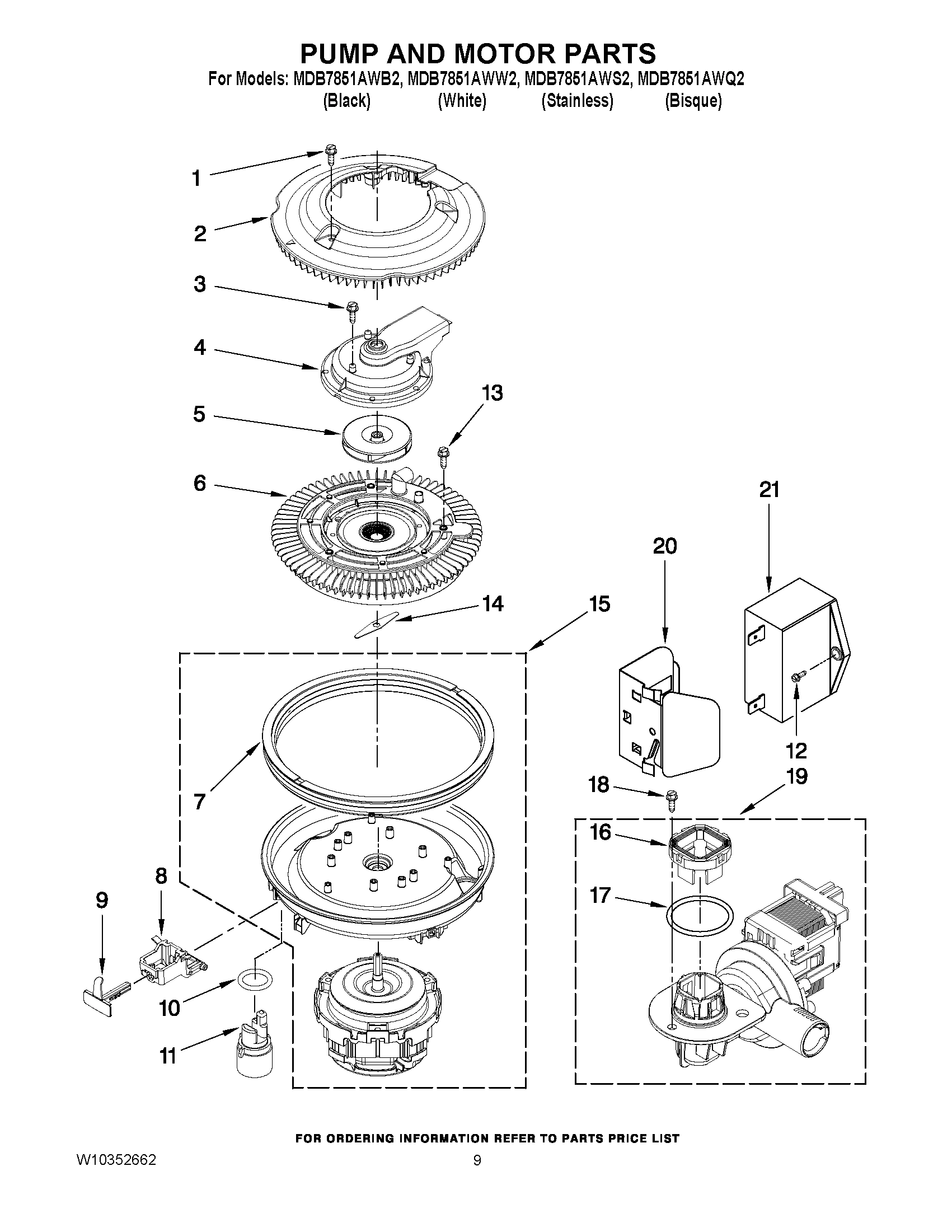

08 - PUMP AND MOTOR PARTS

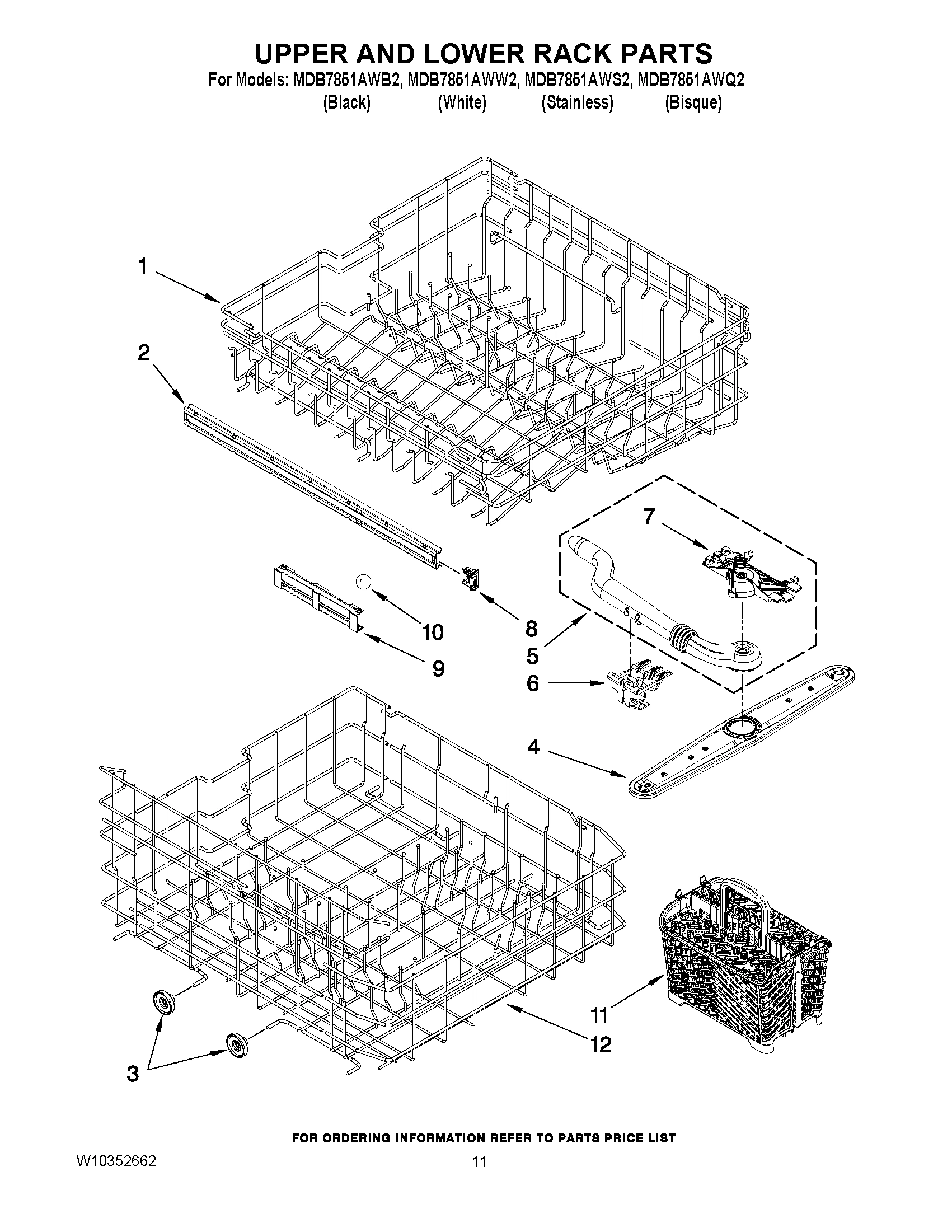

09 - UPPER AND LOWER RACK PARTS

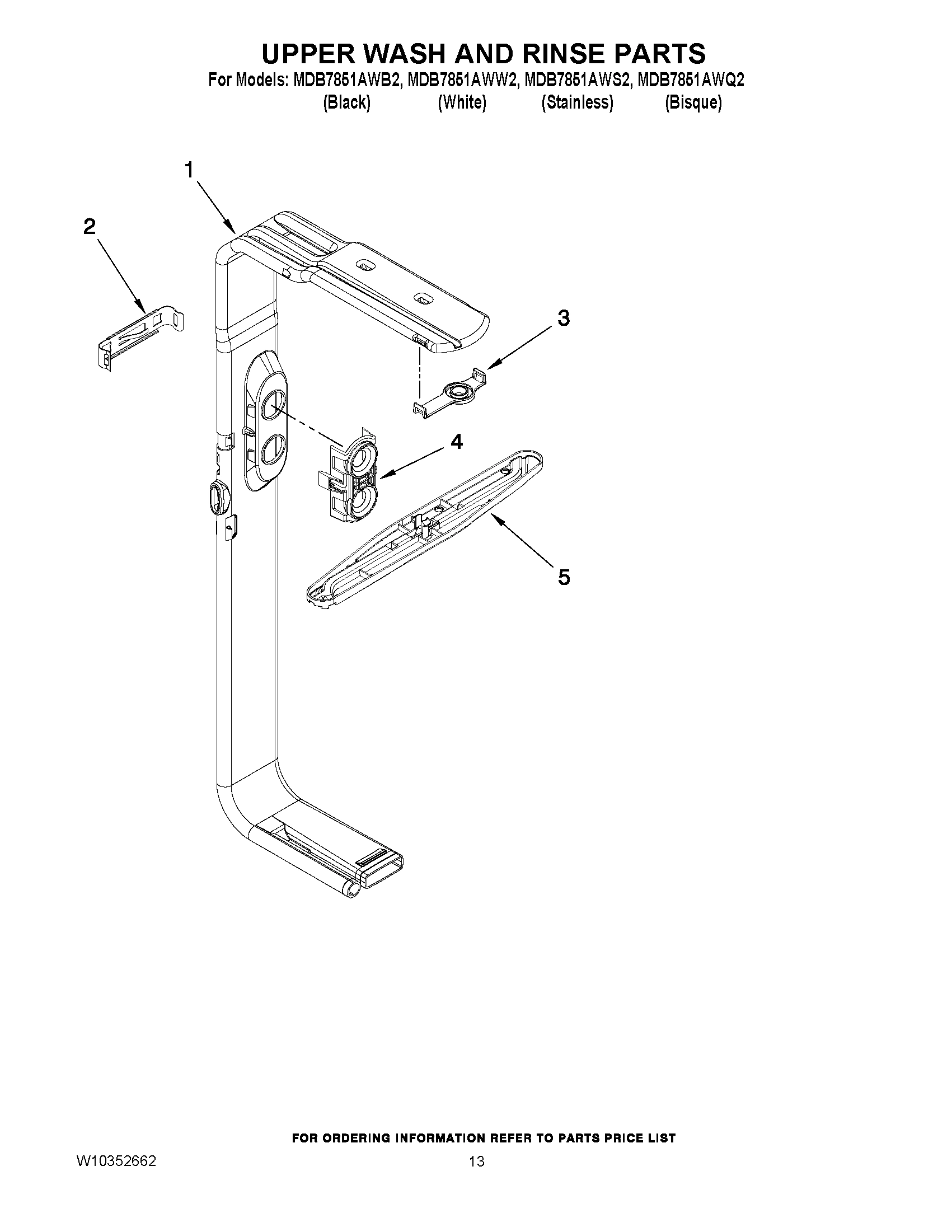

10 - UPPER WASH AND RINSE PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB7851AWW2 DISHWASHER
1
MAY W10237912 MAY W10237912 Contact Us For Availability
1
MAY W10273414 MAY W10273414 Contact Us For Availability
1
MAY W10119337 MAY W10119337 Contact Us For Availability
1
MAY 99002666 MAY 99002666 Contact Us For Availability
1
MAY W10203879 MAY W10203879 Contact Us For Availability
1
Feed Tube Assembly MAY 99003081 Contact Us For Availability
2
Seal, Door (Bottom) MAY 99003045 Contact Us For Availability
2
MAY 99003033 MAY 99003033 Contact Us For Availability
2
MAY W10218606 MAY W10218606 Contact Us For Availability
2
MAY 6-911856 MAY 6-911856 Contact Us For Availability
2
MAY 6-916881 MAY 6-916881 Contact Us For Availability
2
MAY W10166790 MAY W10166790 Contact Us For Availability
2
Rail, Inner MAY W10144736 Contact Us For Availability
3
MAY 99003243 MAY 99003243 Contact Us For Availability
3
Bracket,Htr Sprt MAY 99003032 Contact Us For Availability
3
MAY 6-920534 MAY 6-920534 Contact Us For Availability
3
MAY 6-912799 MAY 6-912799 Contact Us For Availability
3
MAY 99002668 MAY 99002668 Contact Us For Availability
3
MAY 6-918298 MAY 6-918298 Contact Us For Availability
4
MAY W10197309 MAY W10197309 Contact Us For Availability
4
MAY 99003322 MAY 99003322 Contact Us For Availability
4
Housing,Float Assy MAY W10205539 Contact Us For Availability
4
MAY 6-918346 MAY 6-918346 Contact Us For Availability
4
MAY W10212444 MAY W10212444 Contact Us For Availability
4
MAY 99002674 MAY 99002674 Contact Us For Availability
5
MAY W10275768 MAY W10275768 Contact Us For Availability
5
MAY 6-912620 MAY 6-912620 Contact Us For Availability
5
MAY W10130109 MAY W10130109 Contact Us For Availability
5
MAY 6-916979 MAY 6-916979 Contact Us For Availability
5
Wash Manifold Assembly (Upper) MAY 99003142 Contact Us For Availability
5
Wash Arm, Top (with Retainer) MAY 99002911 Contact Us For Availability
6
Trim, Corner Edge (Left) MAY 99003038 Contact Us For Availability
6
MAY W10120976 MAY W10120976 Contact Us For Availability
6
MAY W10192800 MAY W10192800 Contact Us For Availability
7
MAY 99002465 MAY 99002465 Contact Us For Availability
7
MAY W10130099 MAY W10130099 Contact Us For Availability
7
MAY 99003688 MAY 99003688 Contact Us For Availability
7
Clip, Upper Wash Manifold (Front) MAY 99003072 Contact Us For Availability
8
Pad, Foam MAY 99003044 Contact Us For Availability
8
MAY 912615 MAY 912615 Contact Us For Availability
8
MAY W10173920 MAY W10173920 Contact Us For Availability
8
MAY 99003056 MAY 99003056 Contact Us For Availability
8
Stop, Track MAY W10169391 Contact Us For Availability
9
MAY 99003069 MAY 99003069 Contact Us For Availability
9
MAY 99003057 MAY 99003057 Contact Us For Availability
10
INLET, WATER MAY 99003028 Contact Us For Availability
10
MAY 99001194 MAY 99001194 Contact Us For Availability
10
MAY 99003687 MAY 99003687 Contact Us For Availability
11
MAY 99002598 MAY 99002598 Contact Us For Availability
11
MAY W10120019 MAY W10120019 Contact Us For Availability
11
MAY 6-918873 MAY 6-918873 Contact Us For Availability
12
MAY 99002601 MAY 99002601 Contact Us For Availability
12
MAY W10203871 MAY W10203871 Contact Us For Availability
13
Gap Seal, Toe Kick (Black) MAY W10163633 Contact Us For Availability
13
Gap Seal, Toe Kick (White) MAY W10163635 Contact Us For Availability
13
MAY 99002664 MAY 99002664 Contact Us For Availability
14
MAY 6-919353 MAY 6-919353 Contact Us For Availability
15
MAY W10118627 MAY W10118627 Contact Us For Availability
16
TUB ASSEMBLY (NOT SERVICED) MAY N/P Contact Us For Availability
16
MAY 6-919119 MAY 6-919119 Contact Us For Availability
17
MAY 6-917029 MAY 6-917029 Contact Us For Availability
18
MAY 99002740 MAY 99002740 Contact Us For Availability
18
MAY W10167660 MAY W10167660 Contact Us For Availability
19
MAY 99002633 MAY 99002633 Contact Us For Availability
19
MAY W10119816 MAY W10119816 Contact Us For Availability
20
MAY 99001008 MAY 99001008 Contact Us For Availability
20
SHEILD, CAPACITOR MAY W10167912 Contact Us For Availability
21
MAY 99002665 MAY 99002665 Contact Us For Availability
21
MAY 6-917273 MAY 6-917273 Contact Us For Availability
22
MAY 6-917103 MAY 6-917103 Contact Us For Availability
23
MAY W10143258 MAY W10143258 Contact Us For Availability
24
STRIP, TRIM LEFT MAY W10164700 Contact Us For Availability
25
MAY 6-916711 MAY 6-916711 Contact Us For Availability
26
MAY W10164702 MAY W10164702 Contact Us For Availability
27
STRIP, TRIM RIGHT MAY W10167658 Contact Us For Availability
28
MAY W10117484 MAY W10117484 Contact Us For Availability
28
MAY W10117485 MAY W10117485 Contact Us For Availability
29
Backer, Hinge Seal Inlet (Left) MAY W10174569 Contact Us For Availability
29
Backer, Hinge Seal Inlet (Right) MAY W10174581 Contact Us For Availability
32
GRILL, AIR/WATER MAY 6-918397 Contact Us For Availability
33
Clamp,Rear Suprt MAY W10167916 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396897RP MAY 4396897RP Contact Us For Availability
NI
MAY 4396897RW MAY 4396897RW Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 8212486 MAY 8212486 Contact Us For Availability
NI
MAY 8212488RC MAY 8212488RC Contact Us For Availability
× ![]()
