Model Maytag MDB7851AWQ44 DISHWASHER – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL PARTS

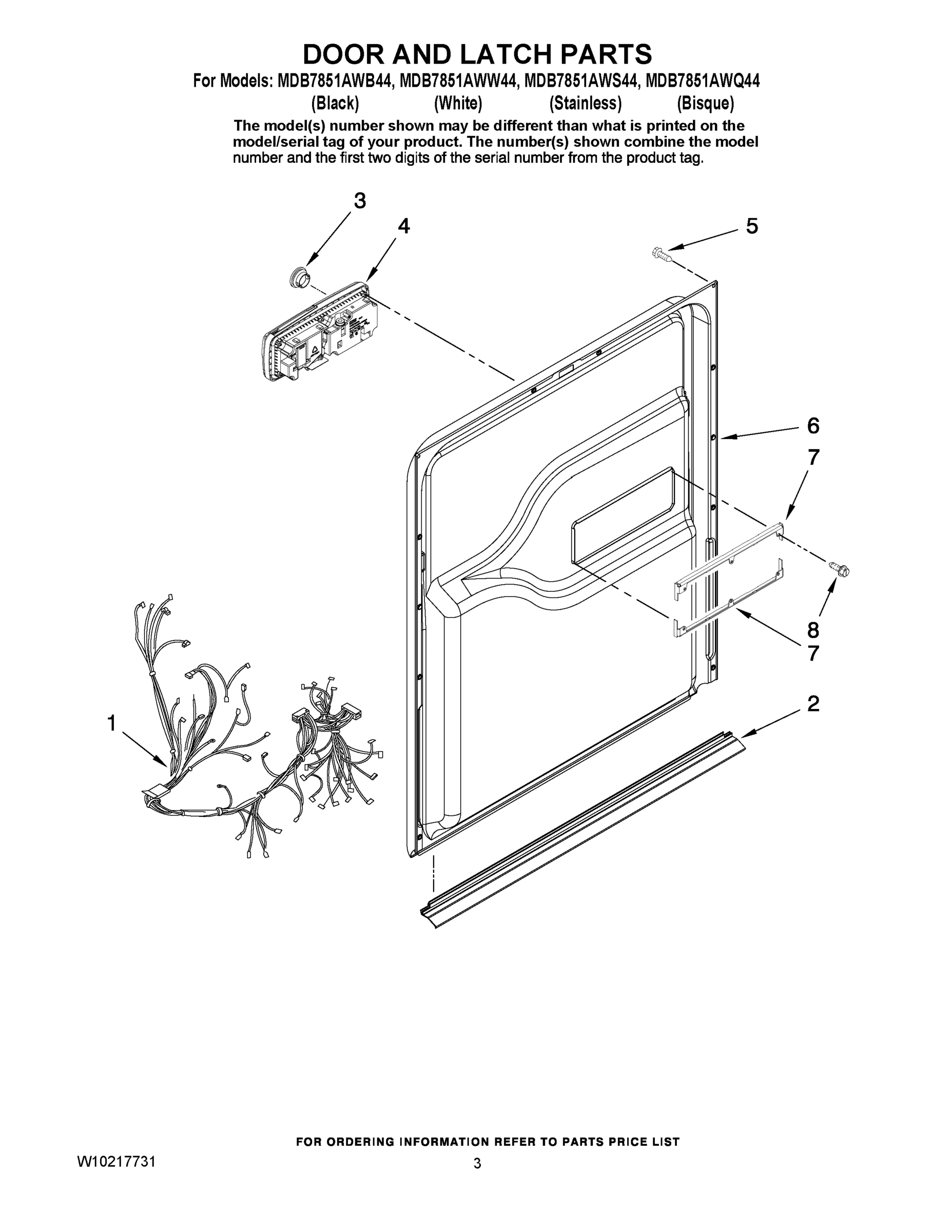

03 - DOOR AND LATCH PARTS

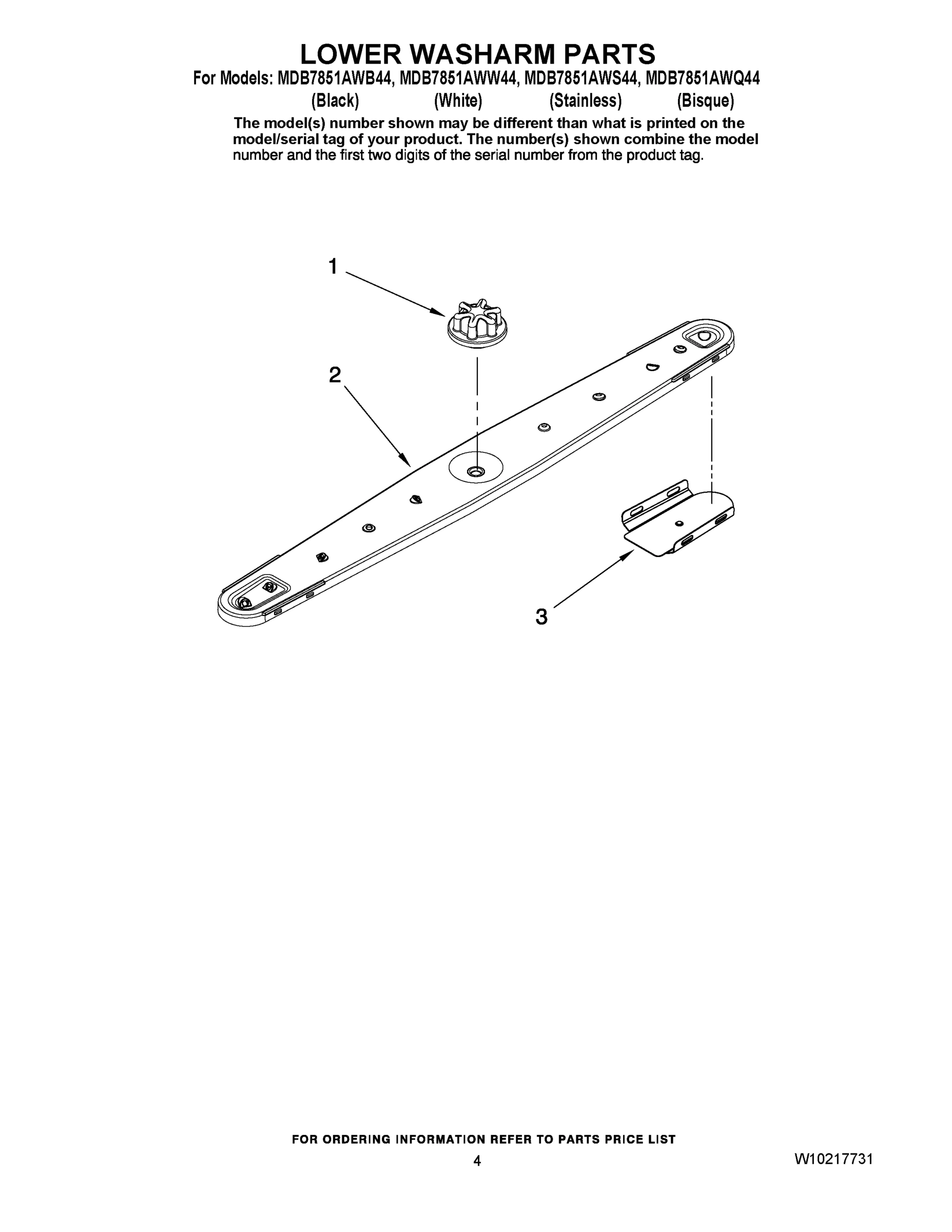

04 - LOWER WASHARM PARTS

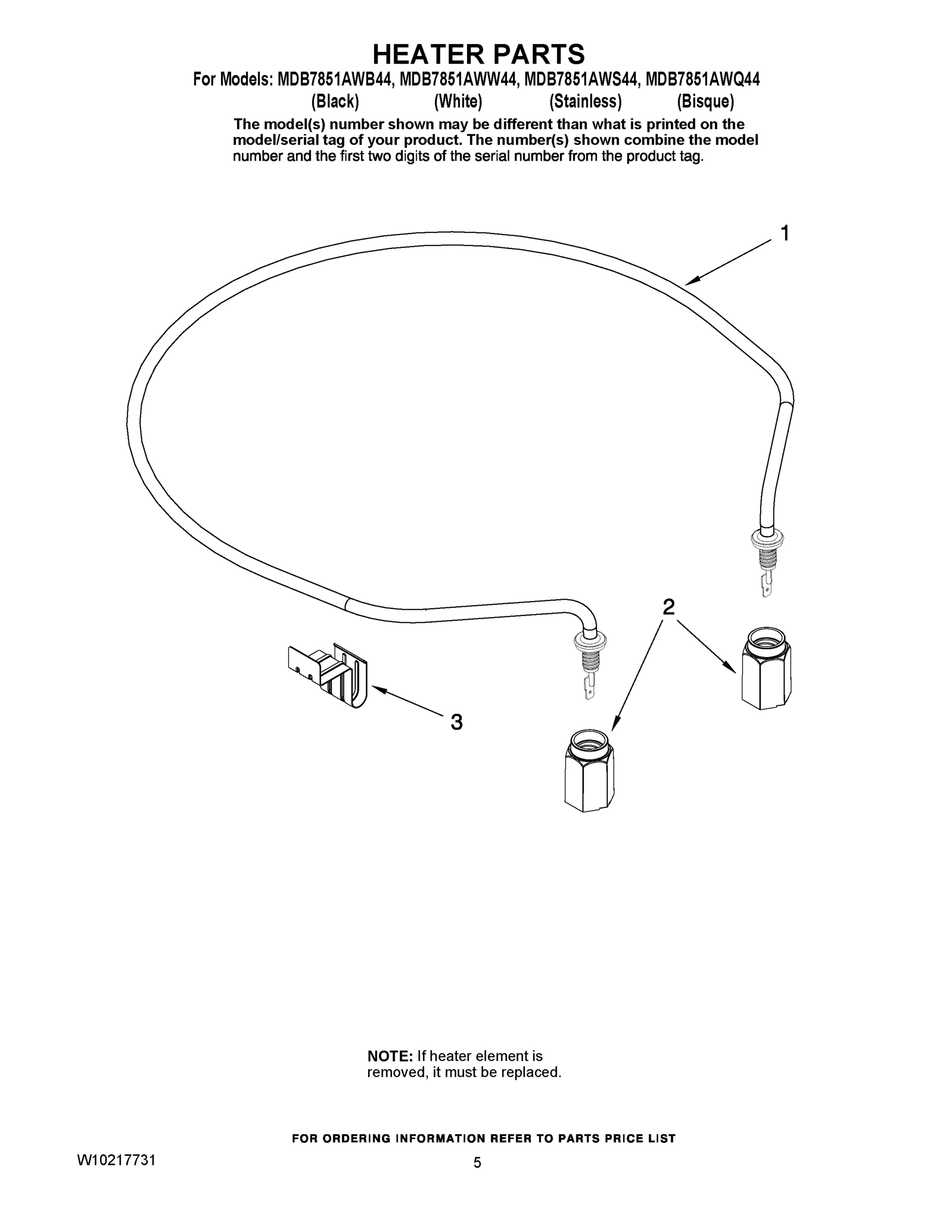

05 - HEATER PARTS

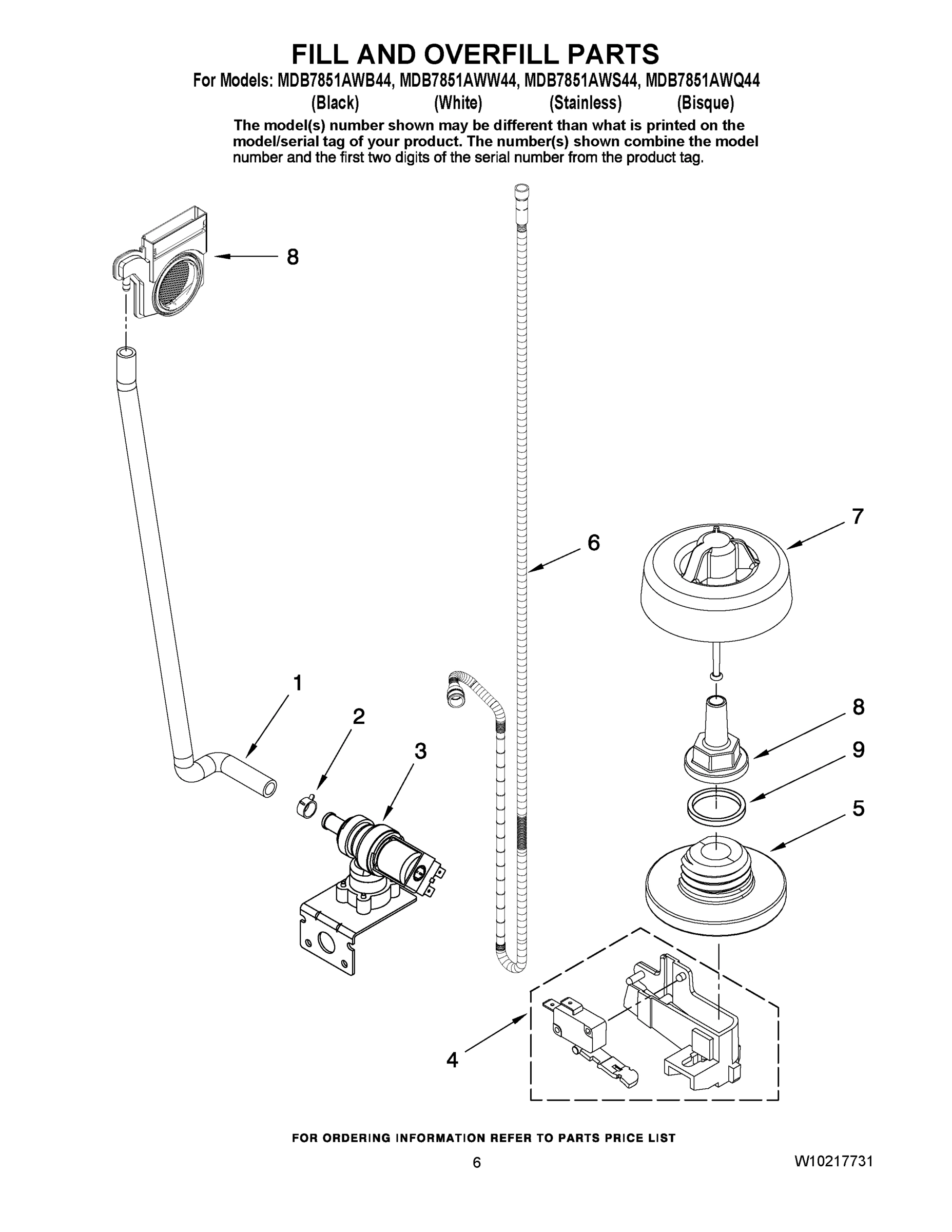

06 - FILL AND OVERFILL PARTS

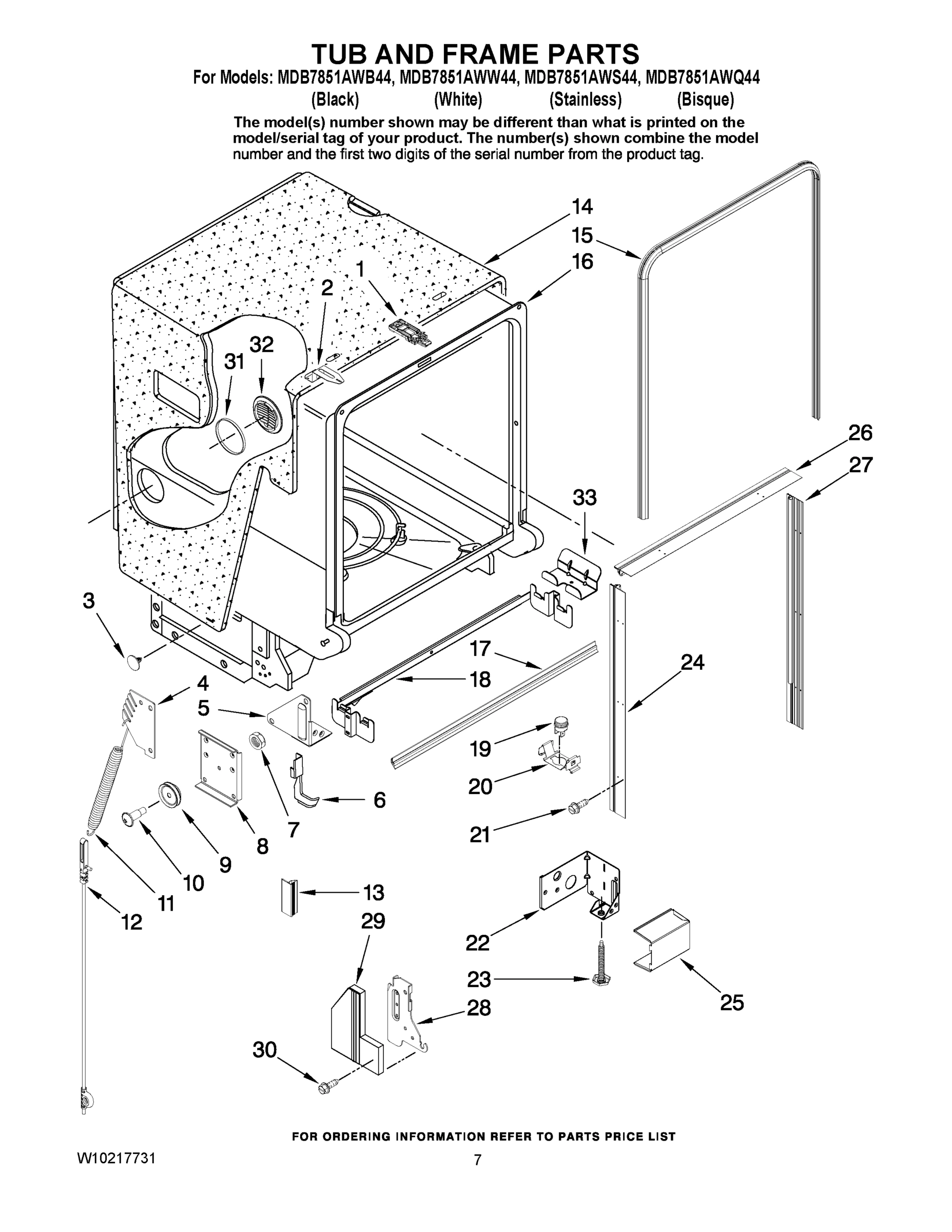

07 - TUB AND FRAME PARTS

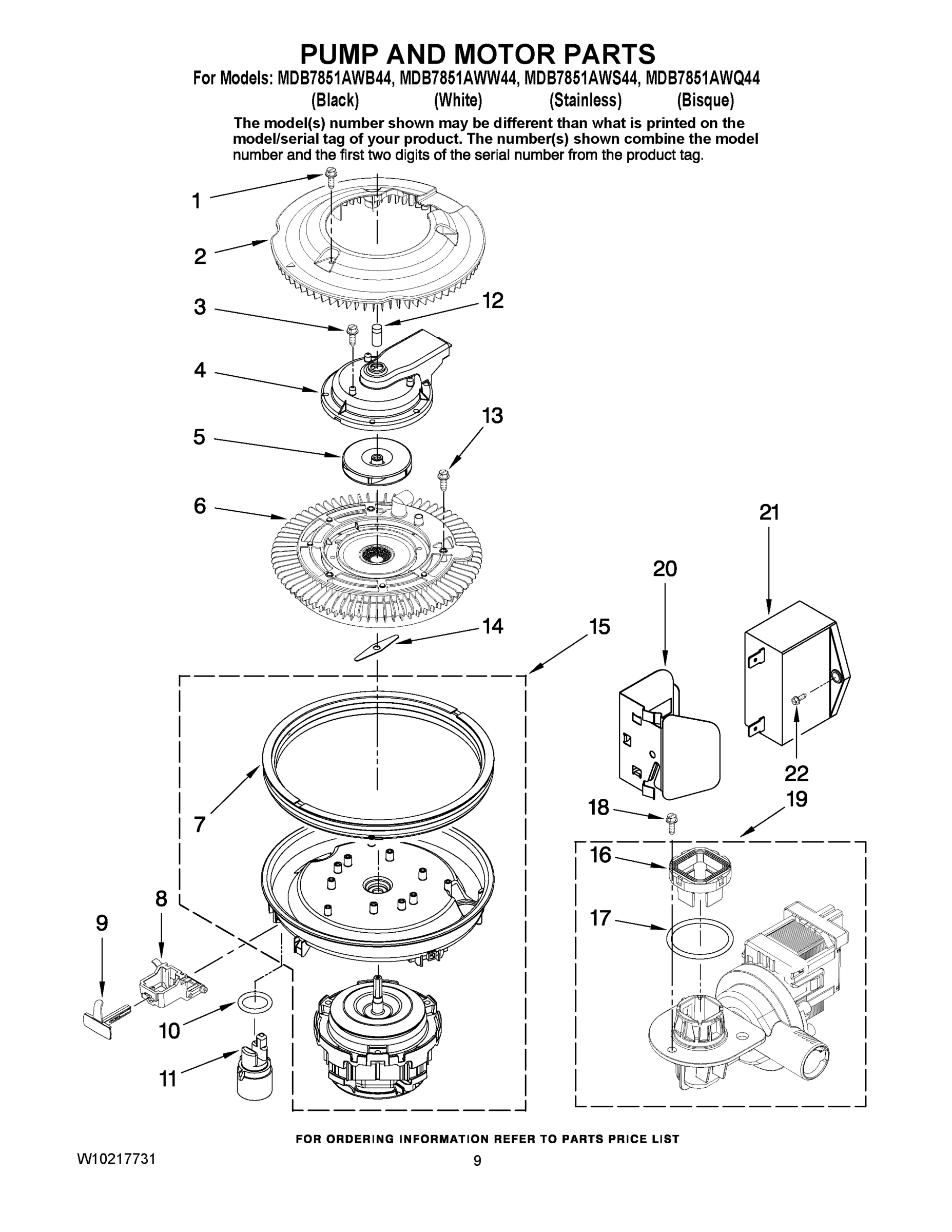

08 - PUMP AND MOTOR PARTS

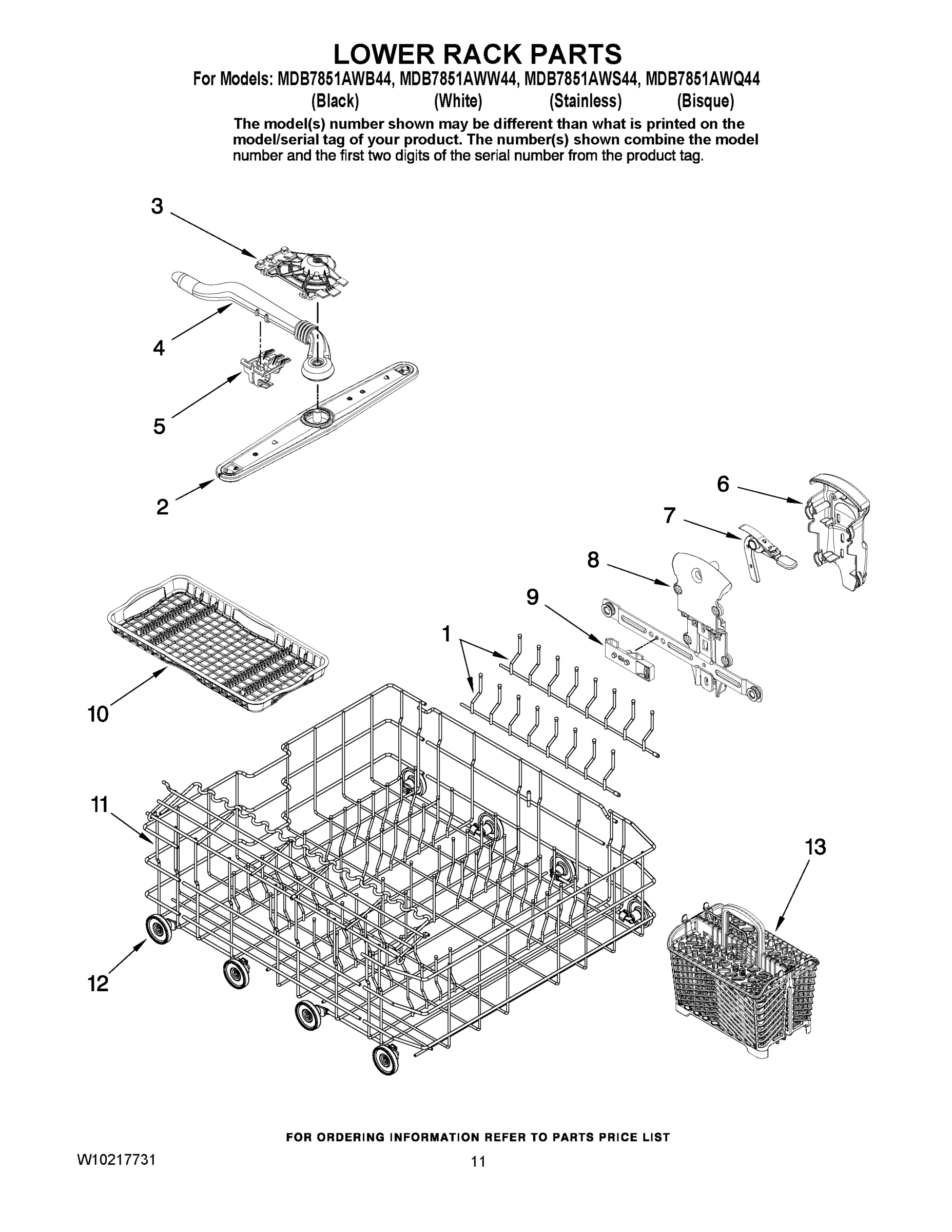

09 - LOWER RACK PARTS

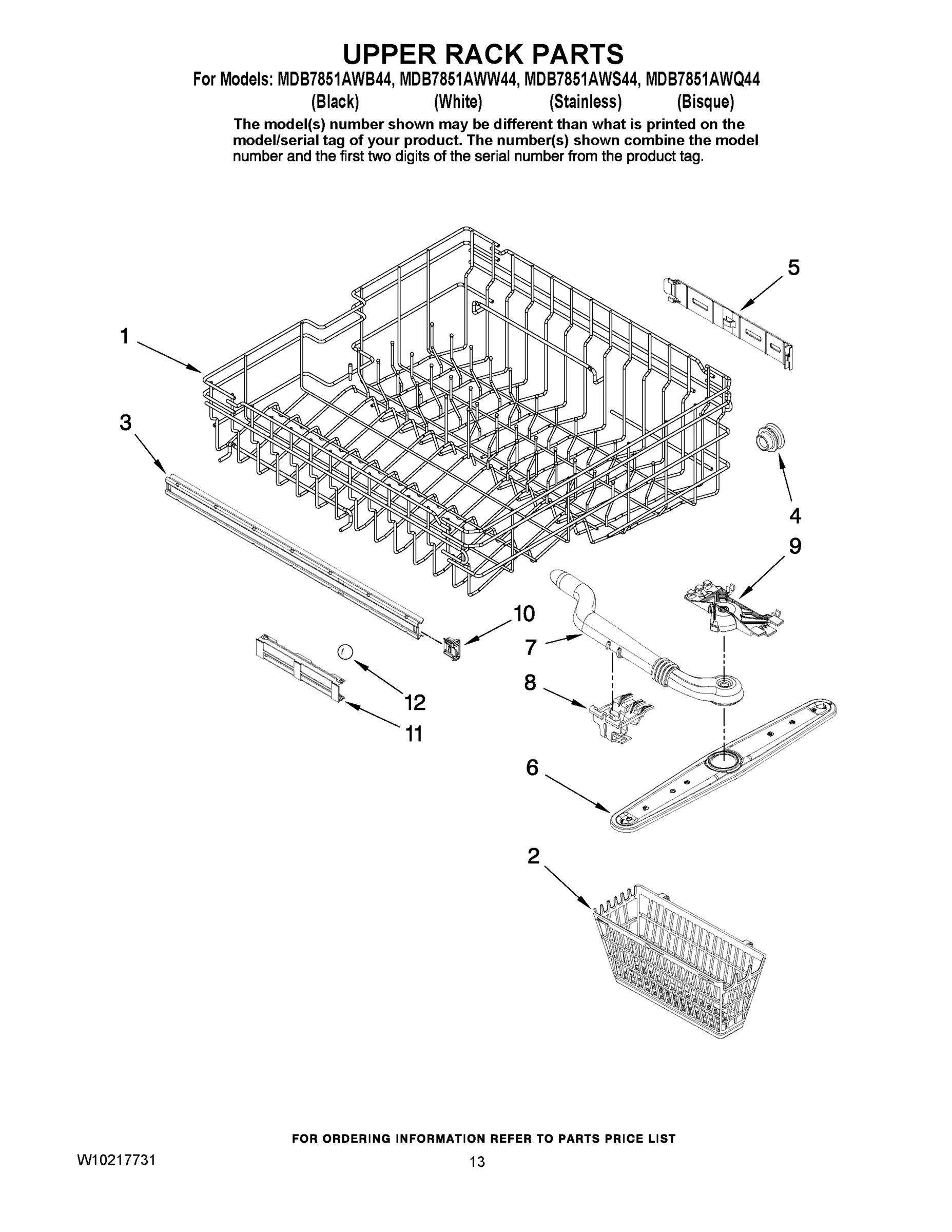

10 - UPPER RACK PARTS

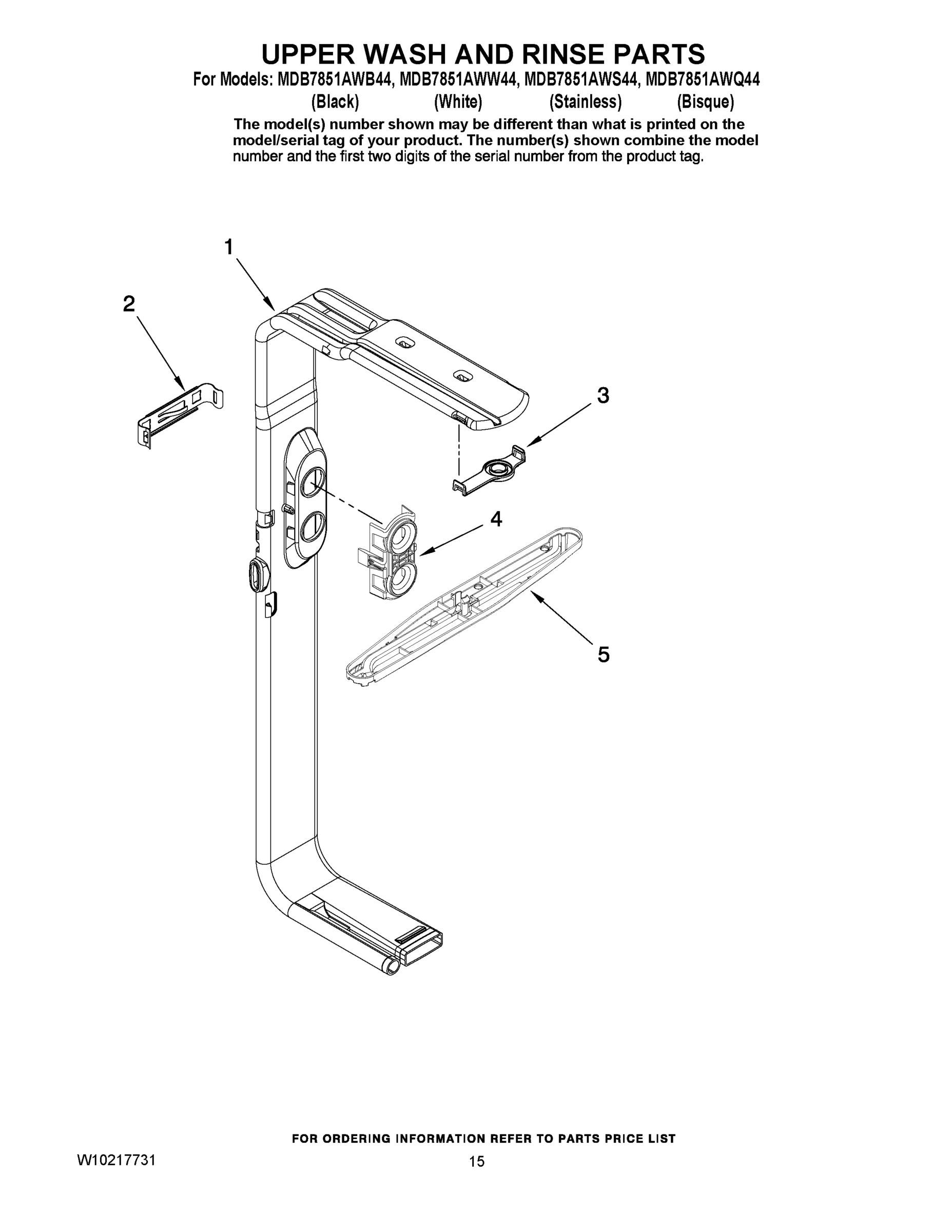

11 - UPPER WASH AND RINSE PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB7851AWQ44 DISHWASHER
1
MAY 99002852 MAY 99002852 Contact Us For Availability
1
MAY 99003083 MAY 99003083 Contact Us For Availability
1
MAY W10119337 MAY W10119337 Contact Us For Availability
1
MAY 99002666 MAY 99002666 Contact Us For Availability
1
Tine, Folding MAY 99003485 Contact Us For Availability
1
MAY W10129045 MAY W10129045 Contact Us For Availability
1
Feed Tube Assembly MAY 99003081 Contact Us For Availability
2
Seal, Door (Bottom) MAY 99003045 Contact Us For Availability
2
WASHARM MAY 99002739 Contact Us For Availability
2
MAY 99003033 MAY 99003033 Contact Us For Availability
2
MAY 99002648 MAY 99002648 Contact Us For Availability
2
MAY 99003468 MAY 99003468 Contact Us For Availability
3
MAY 99002753 MAY 99002753 Contact Us For Availability
3
MAY 99002576 MAY 99002576 Contact Us For Availability
3
MAY W10167918 MAY W10167918 Contact Us For Availability
3
Bracket,Htr Sprt MAY 99003032 Contact Us For Availability
3
MAY 99002640 MAY 99002640 Contact Us For Availability
3
MAY 99002668 MAY 99002668 Contact Us For Availability
3
CLIP, MANIFOLD MAY 99002732 Contact Us For Availability
3
Rail, Inner MAY 99003066 Contact Us For Availability
4
Wheel Assembly MAY 99003147 Contact Us For Availability
4
Housing,Float Assy MAY W10130103 Contact Us For Availability
4
MAY 99002677 MAY 99002677 Contact Us For Availability
4
WASH, MANIFOLD MAY 99002793 Contact Us For Availability
4
MAY 99002674 MAY 99002674 Contact Us For Availability
5
MAY W10130109 MAY W10130109 Contact Us For Availability
5
MAY 99002636 MAY 99002636 Contact Us For Availability
5
CLIP, MANIFOLD MAY 99002944 Contact Us For Availability
5
MAY 99003052 MAY 99003052 Contact Us For Availability
5
MAY 99003053 MAY 99003053 Contact Us For Availability
5
Wash Arm, Top (with Retainer) MAY 99002911 Contact Us For Availability
6
Trim, Corner Edge (Left) MAY 99003038 Contact Us For Availability
6
Trim, Corner Edge (Right) MAY 99003039 Contact Us For Availability
6
Cover, Rack Adjuster MAY 99003011 Contact Us For Availability
6
MAY W10142623 MAY W10142623 Contact Us For Availability
7
MAY W10130099 MAY W10130099 Contact Us For Availability
7
MAY 99003688 MAY 99003688 Contact Us For Availability
7
Wash Manifold Assembly (Upper) MAY 99002679 Contact Us For Availability
8
Pad, Foam MAY 99003044 Contact Us For Availability
8
MAY 912615 MAY 912615 Contact Us For Availability
8
MAY W10173920 MAY W10173920 Contact Us For Availability
8
MAY 99003056 MAY 99003056 Contact Us For Availability
8
MAY 99003587 MAY 99003587 Contact Us For Availability
9
MAY 99002608 MAY 99002608 Contact Us For Availability
9
MAY 99003057 MAY 99003057 Contact Us For Availability
9
MAY 99003020 MAY 99003020 Contact Us For Availability
9
MAY 99003040 MAY 99003040 Contact Us For Availability
9
Clip, Upper Wash Manifold (Front) MAY 99003072 Contact Us For Availability
10
MAY 99001194 MAY 99001194 Contact Us For Availability
10
MAY 99003687 MAY 99003687 Contact Us For Availability
10
MAY 99002748 MAY 99002748 Contact Us For Availability
10
Stop, Track MAY W10169391 Contact Us For Availability
11
MAY 99002598 MAY 99002598 Contact Us For Availability
11
MAY 99003069 MAY 99003069 Contact Us For Availability
11
MAY W10120019 MAY W10120019 Contact Us For Availability
11
PAN RACK ASSY. MAY W10129049 Contact Us For Availability
12
MAY 99003068 MAY 99003068 Contact Us For Availability
12
MAY 99003697 MAY 99003697 Contact Us For Availability
12
MAY W10162840 MAY W10162840 Contact Us For Availability
13
Gap Seal, Toe Kick (Black) MAY 99002701 Contact Us For Availability
13
Gap Seal, Toe Kick (White) MAY 99002703 Contact Us For Availability
13
MAY 99002664 MAY 99002664 Contact Us For Availability
13
MAY 99003268 MAY 99003268 Contact Us For Availability
14
MAY 99003427 MAY 99003427 Contact Us For Availability
15
MAY 6-919963 MAY 6-919963 Contact Us For Availability
15
MAY 99003430 MAY 99003430 Contact Us For Availability
16
MAY W10188999 MAY W10188999 Contact Us For Availability
16
MAY 99003309 MAY 99003309 Contact Us For Availability
17
MAY 99002857 MAY 99002857 Contact Us For Availability
18
MAY 99002740 MAY 99002740 Contact Us For Availability
18
MAY W10167660 MAY W10167660 Contact Us For Availability
19
MAY 99002633 MAY 99002633 Contact Us For Availability
19
MAY W10119816 MAY W10119816 Contact Us For Availability
20
MAY 99001008 MAY 99001008 Contact Us For Availability
20
MAY W10167912 MAY W10167912 Contact Us For Availability
21
MAY 99002665 MAY 99002665 Contact Us For Availability
21
MAY 99002692 MAY 99002692 Contact Us For Availability
22
MAY 99002637 MAY 99002637 Contact Us For Availability
22
MAY 99002601 MAY 99002601 Contact Us For Availability
23
MAY W10143258 MAY W10143258 Contact Us For Availability
24
Strip, Trim MAY 99003034 Contact Us For Availability
25
MAY 99002638 MAY 99002638 Contact Us For Availability
26
Strip, Trim MAY 99003036 Contact Us For Availability
27
Strip, Trim MAY 99003035 Contact Us For Availability
28
MAY W10117484 MAY W10117484 Contact Us For Availability
28
MAY W10117485 MAY W10117485 Contact Us For Availability
29
Backer, Hinge Seal Inlet (Left) MAY W10174569 Contact Us For Availability
29
Backer, Hinge Seal Inlet (Right) MAY W10174581 Contact Us For Availability
32
Grill, Air/Water MAY 99003078 Contact Us For Availability
33
Clamp,Rear Suprt MAY W10167916 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4396277 MAY 4396277 Contact Us For Availability
NI
MAY 4396897RP MAY 4396897RP Contact Us For Availability
NI
MAY 4396897RW MAY 4396897RW Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 8212486 MAY 8212486 Contact Us For Availability
NI
MAY 8212488RC MAY 8212488RC Contact Us For Availability
× ![]()
