Model Maytag MDB6701AWQ1 DISHWASHER – Common Parts & Diagrams

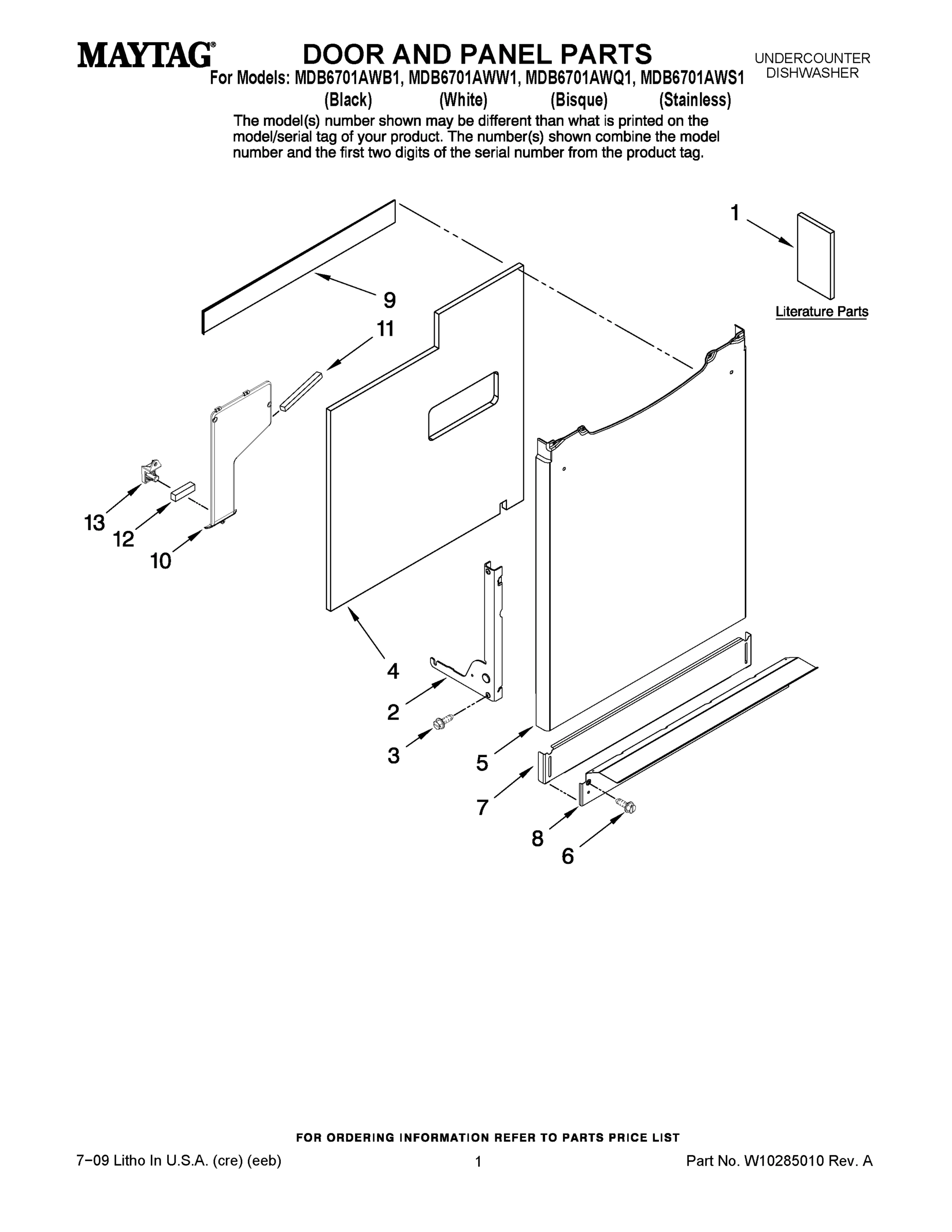

01 - DOOR AND PANEL PARTS

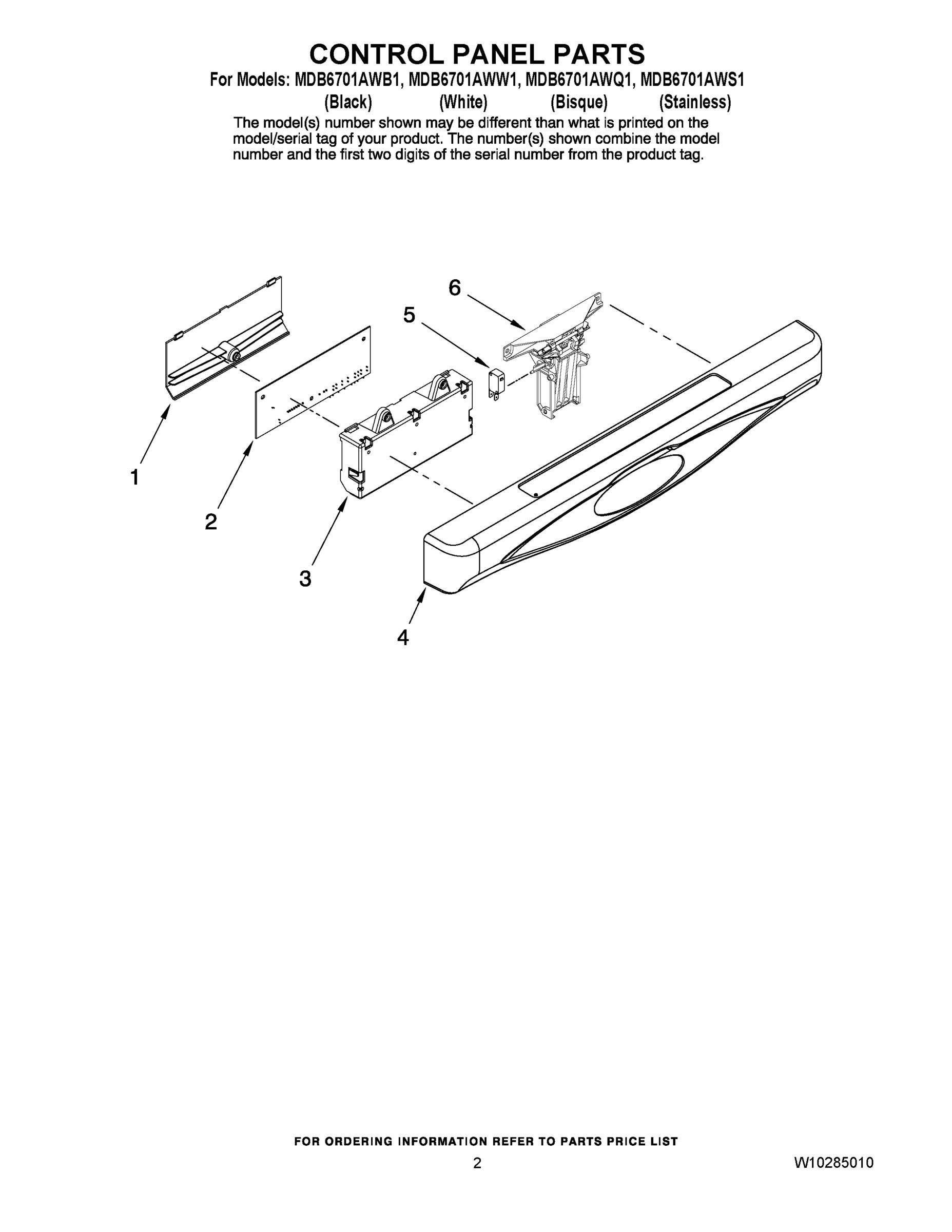

02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS
04 - LOWER WASHARM PARTS
05 - HEATER PARTS
06 - FILL AND OVERFILL PARTS
07 - TUB AND FRAME PARTS
08 - PUMP AND MOTOR PARTS
09 - UPPER AND LOWER RACK PARTS
10 - UPPER WASH AND RINSE PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB6701AWQ1 DISHWASHER
1
MAY W10237911 MAY W10237911 Contact Us For Availability
1
MAY 99003083 MAY 99003083 Contact Us For Availability
1
MAY W10119337 MAY W10119337 Contact Us For Availability
1
MAY 99002666 MAY 99002666 Contact Us For Availability
1
MAY W10203886 MAY W10203886 Contact Us For Availability
1
Feed Tube Assembly MAY 99003081 Contact Us For Availability
2
MAY 99002621 MAY 99002621 Contact Us For Availability
2
MAY W10218837 MAY W10218837 Contact Us For Availability
2
MAY W10169387 MAY W10169387 Contact Us For Availability
2
MAY 99003771 MAY 99003771 Contact Us For Availability
2
MAY 6-916881 MAY 6-916881 Contact Us For Availability
2
MAY W10166790 MAY W10166790 Contact Us For Availability
3
Seal, Air/Water Inlet MAY 99002186 Contact Us For Availability
3
MAY W10218606 MAY W10218606 Contact Us For Availability
3
MAY 99002640 MAY 99002640 Contact Us For Availability
3
Clip, Upper Wash Manifold (Front) MAY 99003072 Contact Us For Availability
4
Panel, Control (Black) MAY 99003382 Contact Us For Availability
4
MAY 99003383 MAY 99003383 Contact Us For Availability
4
Panel, Control (White) MAY 99003384 Contact Us For Availability
4
MAY 99003243 MAY 99003243 Contact Us For Availability
4
Plate, Switch Mounting MAY W10205539 Contact Us For Availability
4
Discharge, Housing Assembly MAY 99003145 Contact Us For Availability
4
Station, Docking (with Flapper) MAY 99003143 Contact Us For Availability
5
MAY 99002751 MAY 99002751 Contact Us For Availability
5
MAY 99003322 MAY 99003322 Contact Us For Availability
5
MAY 99002636 MAY 99002636 Contact Us For Availability
5
Wash Arm, Top (with Retainer) MAY 99002676 Contact Us For Availability
6
MAY 99001194 MAY 99001194 Contact Us For Availability
6
Inlet, Air/Water MAY W10190890 Contact Us For Availability
6
MAY W10202536 MAY W10202536 Contact Us For Availability
6
MAY 99003688 MAY 99003688 Contact Us For Availability
6
MAY W10192800 MAY W10192800 Contact Us For Availability
6
Arm, Wash (Upper) MAY 99002911 Contact Us For Availability
7
MAY 99002645 MAY 99002645 Contact Us For Availability
7
MAY W10173920 MAY W10173920 Contact Us For Availability
7
MAY 99002663 MAY 99002663 Contact Us For Availability
7
MAY W10203871 MAY W10203871 Contact Us For Availability
8
MAY W10170234 MAY W10170234 Contact Us For Availability
9
MAY 99003687 MAY 99003687 Contact Us For Availability
9
MAY W10120019 MAY W10120019 Contact Us For Availability
9
MAY W10169390 MAY W10169390 Contact Us For Availability
10
MAY 912615 MAY 912615 Contact Us For Availability
10
MAY 99003268 MAY 99003268 Contact Us For Availability
11
MAY 99002668 MAY 99002668 Contact Us For Availability
12
MAY W10223013 MAY W10223013 Contact Us For Availability
12
MAY 99003427 MAY 99003427 Contact Us For Availability
12
Basket, Utensil MAY W10171451 Contact Us For Availability
13
MAY 99002588 MAY 99002588 Contact Us For Availability
13
MAY 6-919922 MAY 6-919922 Contact Us For Availability
13
MAY 6-918867 MAY 6-918867 Contact Us For Availability
14
MAY W10170236 MAY W10170236 Contact Us For Availability
14
MAY 99003309 MAY 99003309 Contact Us For Availability
14
COVER, RACK ADJ. MAY 99003191 Contact Us For Availability
15
MAY 99002633 MAY 99002633 Contact Us For Availability
15
MAY 99002857 MAY 99002857 Contact Us For Availability
15
LEVER, RACK ADJ. MAY 99003276 Contact Us For Availability
16
MAY 99002740 MAY 99002740 Contact Us For Availability
16
MAY 99002634 MAY 99002634 Contact Us For Availability
16
MAY W10169392 MAY W10169392 Contact Us For Availability
16
MAY W10169393 MAY W10169393 Contact Us For Availability
17
MAY 99002692 MAY 99002692 Contact Us For Availability
17
MAY W10200518 MAY W10200518 Contact Us For Availability
17
STABLIZER,RACK MAY 99003193 Contact Us For Availability
18
MAY 99002637 MAY 99002637 Contact Us For Availability
18
MAY W10167912 MAY W10167912 Contact Us For Availability
18
CUP, SHELF MAY 99003252 Contact Us For Availability
19
MAY 99002665 MAY 99002665 Contact Us For Availability
19
MAY W10143258 MAY W10143258 Contact Us For Availability
19
MAY W10162608 MAY W10162608 Contact Us For Availability
20
STRIP,TRIM SIDE MAY W10236658 Contact Us For Availability
20
MAY 99002601 MAY 99002601 Contact Us For Availability
20
MAY W10162610 MAY W10162610 Contact Us For Availability
21
MAY 99002638 MAY 99002638 Contact Us For Availability
21
Screw MAY 99003010 Contact Us For Availability
22
MAY W10137495 MAY W10137495 Contact Us For Availability
22
MAY W10137496 MAY W10137496 Contact Us For Availability
24
STRIP, TRIM TOP MAY W10236659 Contact Us For Availability
26
MAY W10169388 MAY W10169388 Contact Us For Availability
27
MAY 6-919082 MAY 6-919082 Contact Us For Availability
28
MAY 6-912799 MAY 6-912799 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
INSTALLATION KIT MOISTURE BARRIER KIT (KIT) MAY 4396277 Contact Us For Availability
NI
KIT, INSTALLATION (INCLUDES 6 FT. FILL HOSE A MAY 4396897RP Contact Us For Availability
NI
INSTALLATION KIT DRAIN HOSE (6 FT.) MAY 4396897RW Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
INSTALLATION KIT DRAIN HOSE (12 FT.) MAY 8212486 Contact Us For Availability
NI
KIT INSTALLATION (INCLUDES POWER CORD, 6 FT. MAY 8212488RC Contact Us For Availability
× ![]()
