Model Maytag MBR1957FEZ02 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

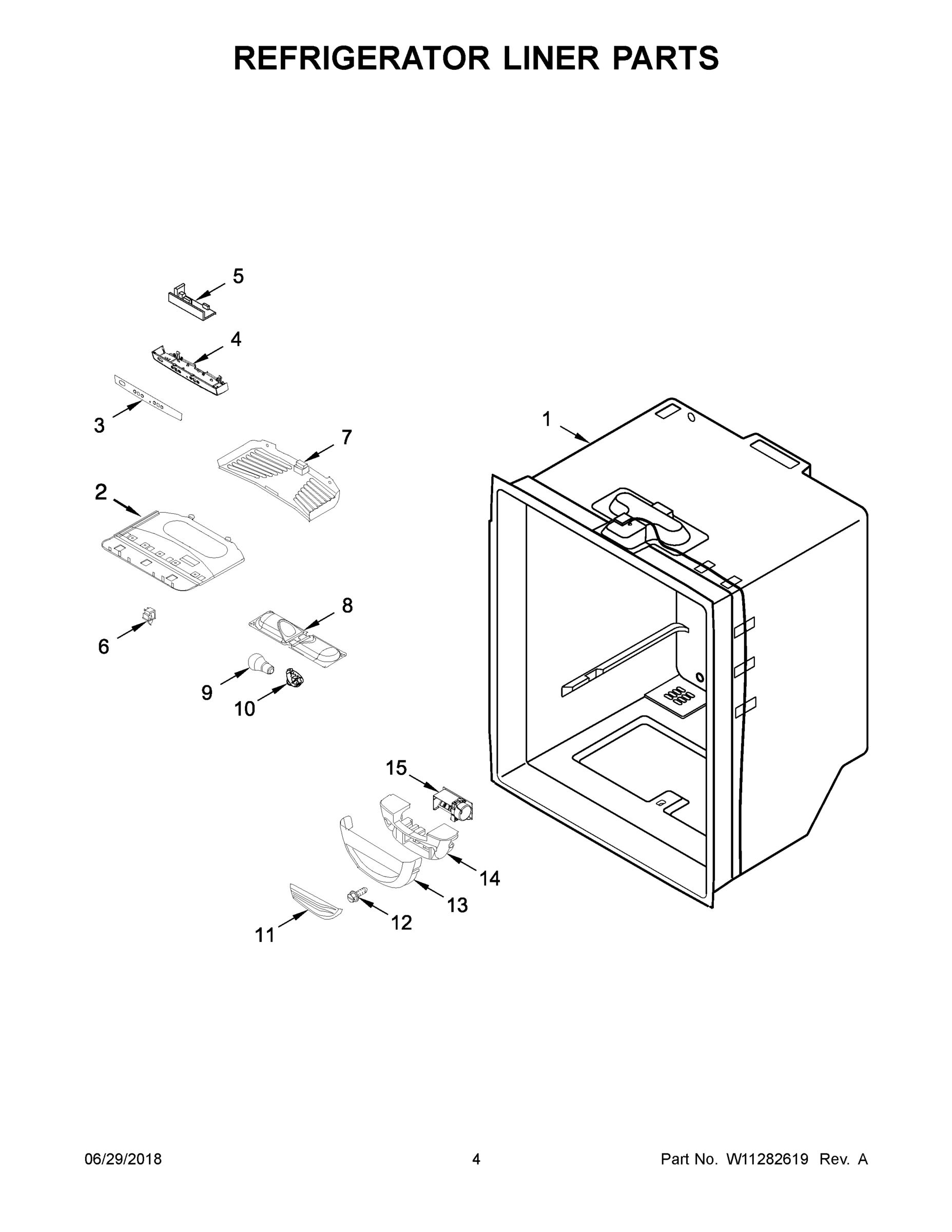

03 - REFRIGERATOR LINER PARTS

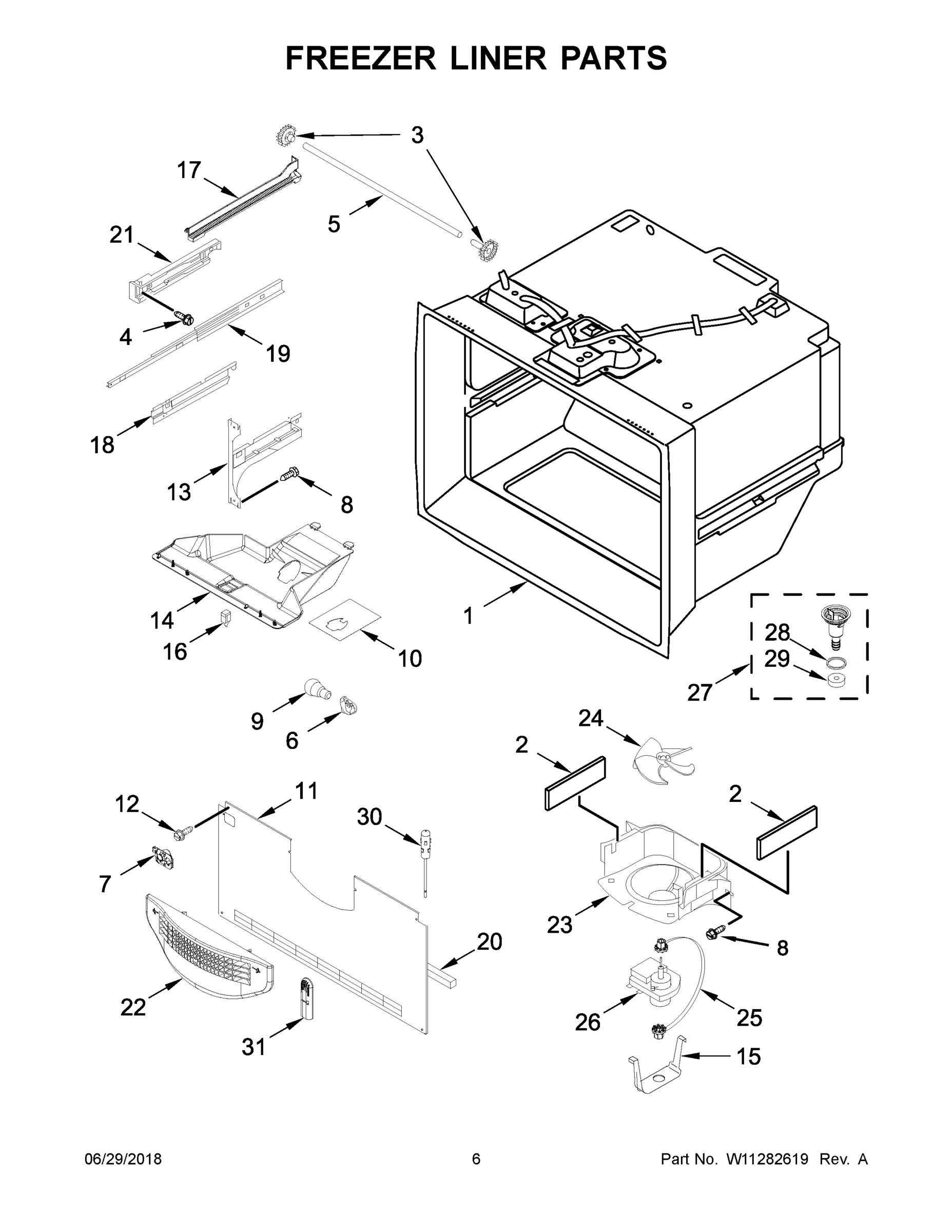

04 - FREEZER LINER PARTS

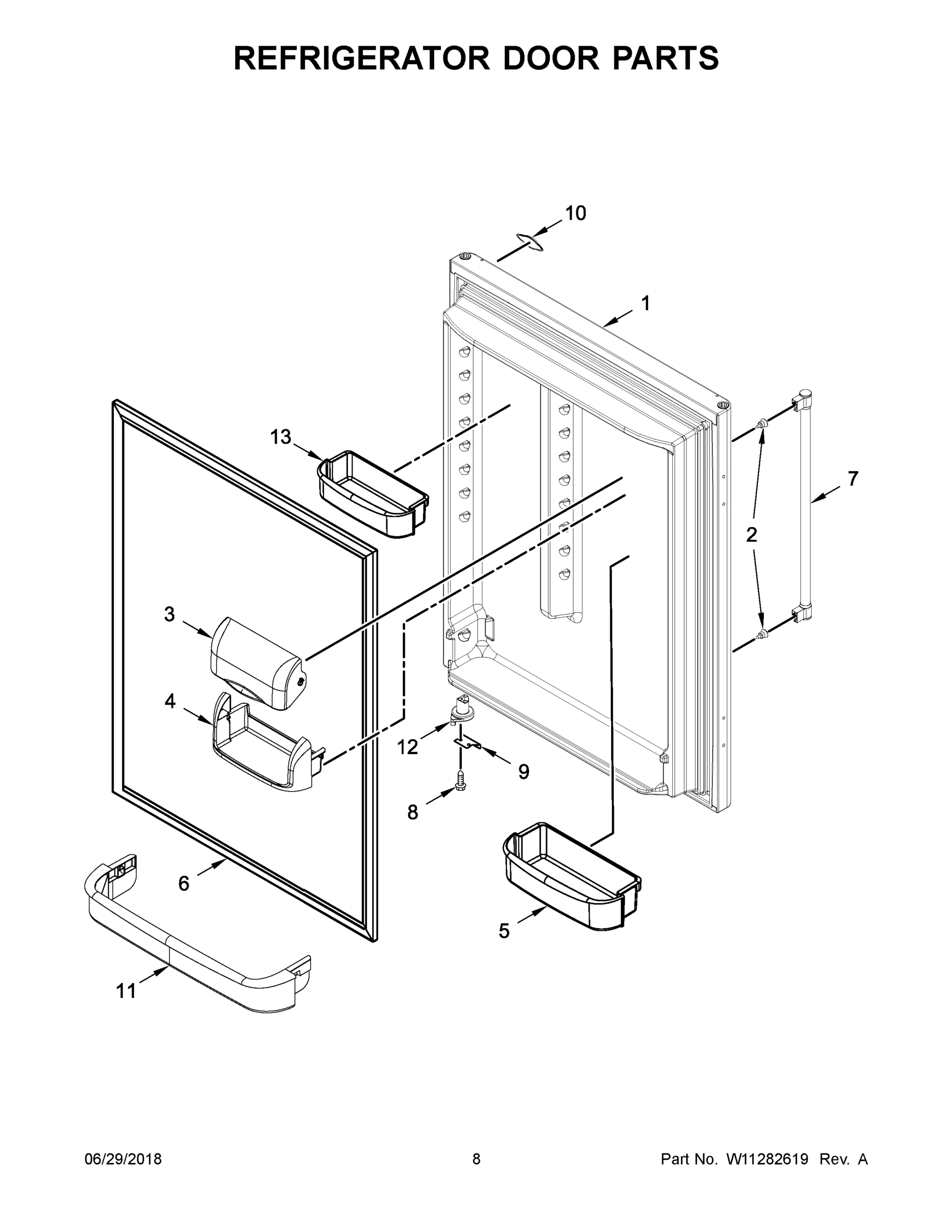

05 - REFRIGERATOR DOOR PARTS

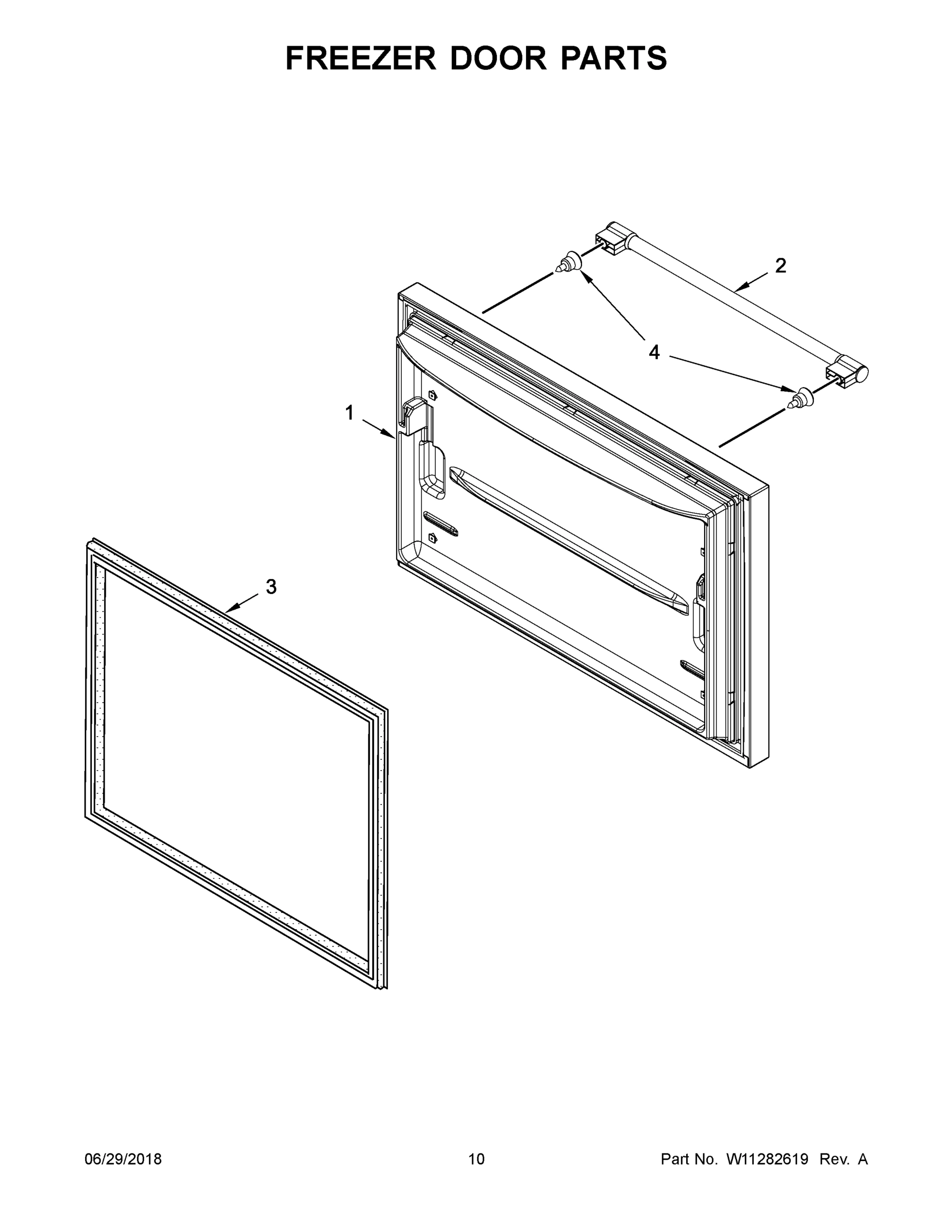

06 - FREEZER DOOR PARTS

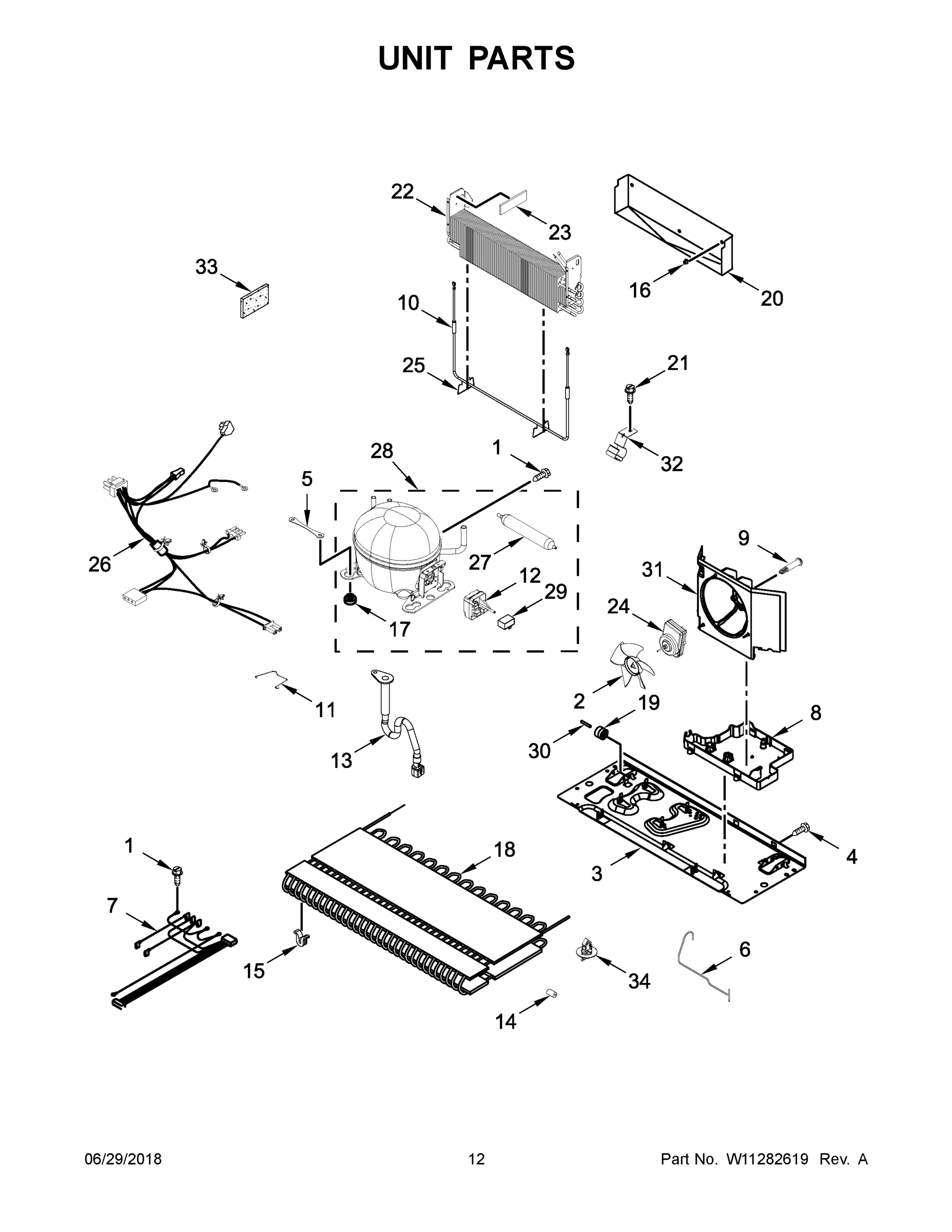

07 - UNIT PARTS

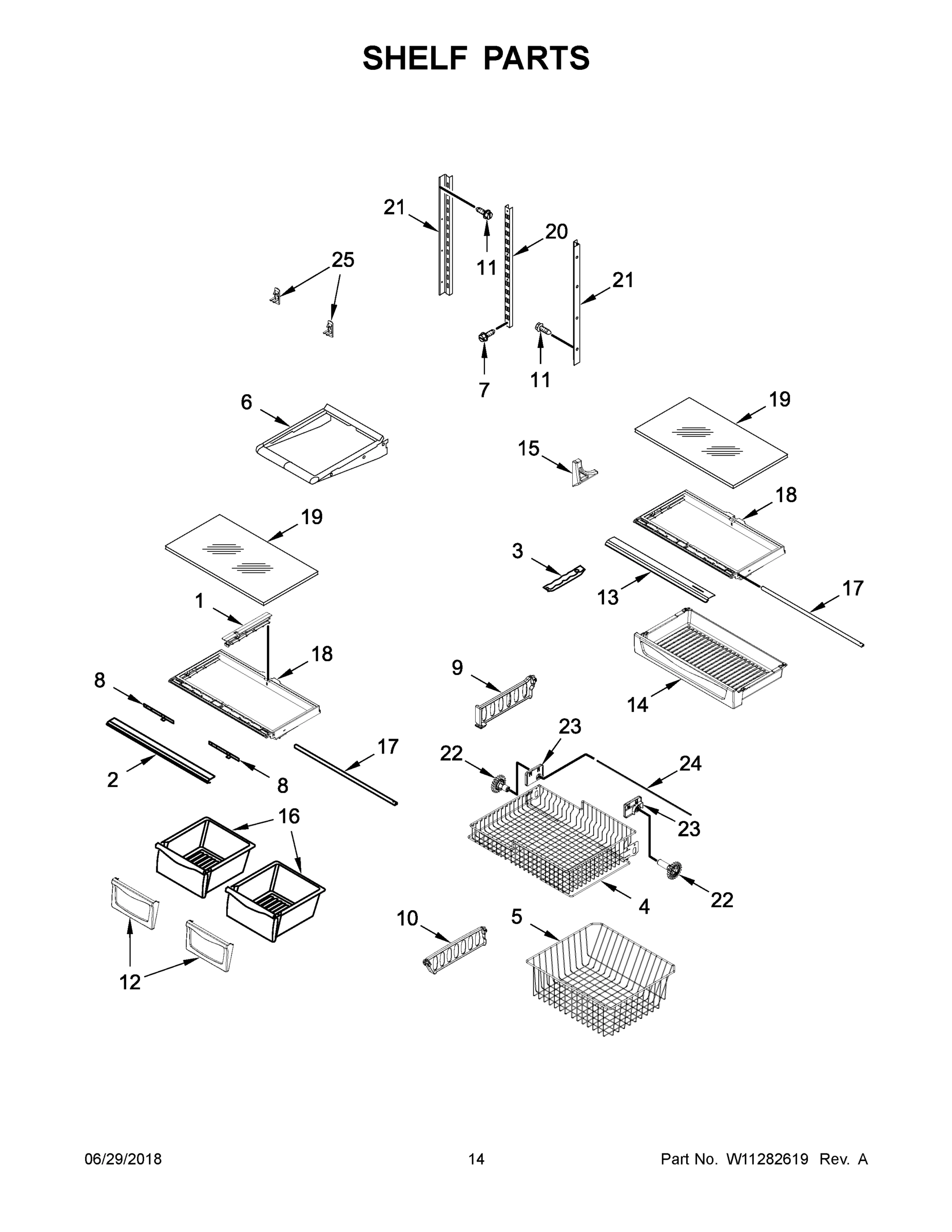

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag MBR1957FEZ02 REFRIGERATOR, BOTTOM MOUNT
1
MAY W11254596 MAY W11254596 Contact Us For Availability
1
MAY W11254582 MAY W11254582 Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
RAIL, CENTER CRISPER MAY W10671238 Contact Us For Availability
1B
TECH SHEET MAY W10517966 Contact Us For Availability
2
MODULE, LIGHT MAY W10464757 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) MAY W10838129 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
TRIM, CRISPER MAY W10231481 Contact Us For Availability
3
COVER, WATER VALVE MAY W10217701 Contact Us For Availability
3
OVERLAY MAY W10593588 Contact Us For Availability
3
DOOR, DAIRY MAY 12804701SP Contact Us For Availability
3
GASKET, DOOR (GREY) MAY W10443312 Contact Us For Availability
3
BASEPAN MAY W10480107 Contact Us For Availability
3
TRACK, DELI DRAWER MAY 12531901 Contact Us For Availability
4
LABEL, FILL TUBE MAY 12249902 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464769 Contact Us For Availability
4
SCREW MAY 12990501 Contact Us For Availability
4
SCREW MAY W10460893 Contact Us For Availability
4
TRAY, DAIRY MAY 12369502SP Contact Us For Availability
4
MAY W11115255 MAY W11115255 Contact Us For Availability
5
MAY W11182229 MAY W11182229 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10503278 Contact Us For Availability
5
SHAFT, RACK MAY W10802329 Contact Us For Availability
5
BUCKET, MEDIUM MAY W10371194 Contact Us For Availability
5
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
5
MAY W11115779 MAY W11115779 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
SWITCH, LIGHT MAY C3680310V Contact Us For Availability
6
GASKET, DOOR (GREY) MAY W10443310 Contact Us For Availability
6
TUBE, DISCHARGE MAY W10294014 Contact Us For Availability
6
SHELF, STATIONARY MAY 12463608 Contact Us For Availability
7
PIN, CENTER HINGE MAY 10351006 Contact Us For Availability
7
MAY W11132917 MAY W11132917 Contact Us For Availability
7
GUIDE, FILL TUBE MAY 12932103 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W11050969 Contact Us For Availability
7
SCREW MAY W10215666 Contact Us For Availability
8
COVER, UNIT MAY W10210978 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
SCREW MAY 12990521 Contact Us For Availability
8
SCREW MAY 12990504 Contact Us For Availability
8
PAN, DRAIN MAY W10655367 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
9
SCREW MAY 12992602 Contact Us For Availability
9
LAMP, LED MAY W10805744 Contact Us For Availability
9
STOP, DOOR (GREY) MAY 10447114 Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY W10241046 Contact Us For Availability
10
COVER, HINGE (GREY) MAY 12477601AP Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
FOIL, HOUSING MAY W10277466 Contact Us For Availability
10
BADGE MAY W10612926 Contact Us For Availability
10
HEATER, EVAPORATOR MAY 12729127 Contact Us For Availability
10
DIVIDER, BASKET (LOWER) MAY W10146440 Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
COVER, EVAPORATOR MAY W10308414 Contact Us For Availability
11
RETAINER, DOOR MAY 12557904 Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
SCREW MAY 12990513 Contact Us For Availability
12
SCREW MAY W10709365 Contact Us For Availability
12
SCREW MAY 12990604 Contact Us For Availability
12
SCREW MAY 12990101 Contact Us For Availability
12
CLOSURE, DOOR (GREY) MAY 12028505AP Contact Us For Availability
12
DEVICE, START MAY W10796752 Contact Us For Availability
12
FRONT, CRISPER MAY 12643602 Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
BRACKET, DOOR (LEFT HAND) MAY W10330991 Contact Us For Availability
13
BUCKET, SMALL MAY W10351081 Contact Us For Availability
13
EXTENSION, DRAIN MAY W10622098 Contact Us For Availability
13
TRIM, PANTRY FRONT MAY W10656984 Contact Us For Availability
13A
BRACKET, DOOR (RIGHT HAND) MAY W10330993 Contact Us For Availability
14
SCREW MAY 12992403 Contact Us For Availability
14
INSULATION, DAMPER MAY 13012402 Contact Us For Availability
14
MODULE, LIGHT MAY W10277025 Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
DRAWER, PANTRY MAY W10328331 Contact Us For Availability
15
HINGE, CENTER (GREY) MAY 12607103AP Contact Us For Availability
15
DAMPER, CONTROL MAY W10594330 Contact Us For Availability
15
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
15
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
15
SUPPORT, CRISPER (LEFT HAND) MAY 12531001 Contact Us For Availability
15A
SUPPORT, CRISPER (RIGHT HAND) MAY 12531002 Contact Us For Availability
16
HINGE, TOP MAY 12566606ED Contact Us For Availability
16
SWITCH, LIGHT MAY 12466105 Contact Us For Availability
16
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
16
PAN, CRISPER MAY 12531305 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
RACK, SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
17
GROMMET MAY 10835903 Contact Us For Availability
17
BRACE, CRISPER COVER MAY 12227302WD Contact Us For Availability
17A
RACK, SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
18
GRILLE, TOE (GREY) MAY W10534165 Contact Us For Availability
18
CRADLE, BASKET (LEFT HAND) MAY W10280608 Contact Us For Availability
18
CONDENSER MAY W10346423 Contact Us For Availability
18
FRAME, CRISPER MAY W10671240 Contact Us For Availability
18A
CRADLE, BASKET (RIGHT HAND) MAY W10280613 Contact Us For Availability
19
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
19
SLIDE, DOOR MAY W10120018 Contact Us For Availability
19
ROLLER MAY 12477102 Contact Us For Availability
19
GLASS, CRISPER COVER MAY 12204823N Contact Us For Availability
19A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189394 Contact Us For Availability
20
TRAY, DRIP MAY W10292801 Contact Us For Availability
20
LADDER, CENTER MAY W10273463 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT HAND) MAY W10284684 Contact Us For Availability
21
SCREW MAY 12992101 Contact Us For Availability
21
LADDER, SIDE MAY W10251970 Contact Us For Availability
21A
ADAPTER, SLIDE (RIGHT HAND) MAY W10284685 Contact Us For Availability
22
GRILLE, FREEZER AIR MAY 13024803 Contact Us For Availability
22
EVAPORATOR MAY W10662565 Contact Us For Availability
22
GEAR, SPUR (LEFT HAND) MAY W10474716 Contact Us For Availability
22A
GEAR, SPUR (RIGHT HAND) MAY W10474715 Contact Us For Availability
23
SHROUD, EVAPORATOR FAN MAY 13057901 Contact Us For Availability
23
GASKET, FOAM MAY A3189397 Contact Us For Availability
23
MOUNT, GEAR (LEFT HAND) MAY W10348259 Contact Us For Availability
23A
MOUNT, GEAR (RIGHT HAND) MAY W10348260 Contact Us For Availability
24
BLADE, FAN MAY 2169142 Contact Us For Availability
24
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
24
SHAFT, RACK MAY W10802340 Contact Us For Availability
25
GROMMET MAY W10121318 Contact Us For Availability
25
HOOK, LADDER MAY 12531802 Contact Us For Availability
26
MOTOR, EVAPORATOR MAY W10128551 Contact Us For Availability
26
HARNESS, UNIT (INCLUDES POWER CORD) MAY W10679216 Contact Us For Availability
27
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
28
SEAL MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10879296 Contact Us For Availability
29
GASKET, DRAIN MAY B8381501 Contact Us For Availability
29
CAPACITOR MAY W10350564 Contact Us For Availability
30
THERMISTOR MAY 12791409SP Contact Us For Availability
30
AXLE, ROLLER MAY 12477202 Contact Us For Availability
31
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
31
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
32
CLIP, DRIER MAY W10281329 Contact Us For Availability
33
SEALER, INSULATION MAY 2169104 Contact Us For Availability
34
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, REFRIGERATOR CONTROL (INCLUDES THERM MAY W10422363 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, EVAPORATOR REPAIR (ALUMIN MAY 799833 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, IC13B MAY W10261234 Contact Us For Availability
× ![]()
