Model Maytag MBL2256KES5 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

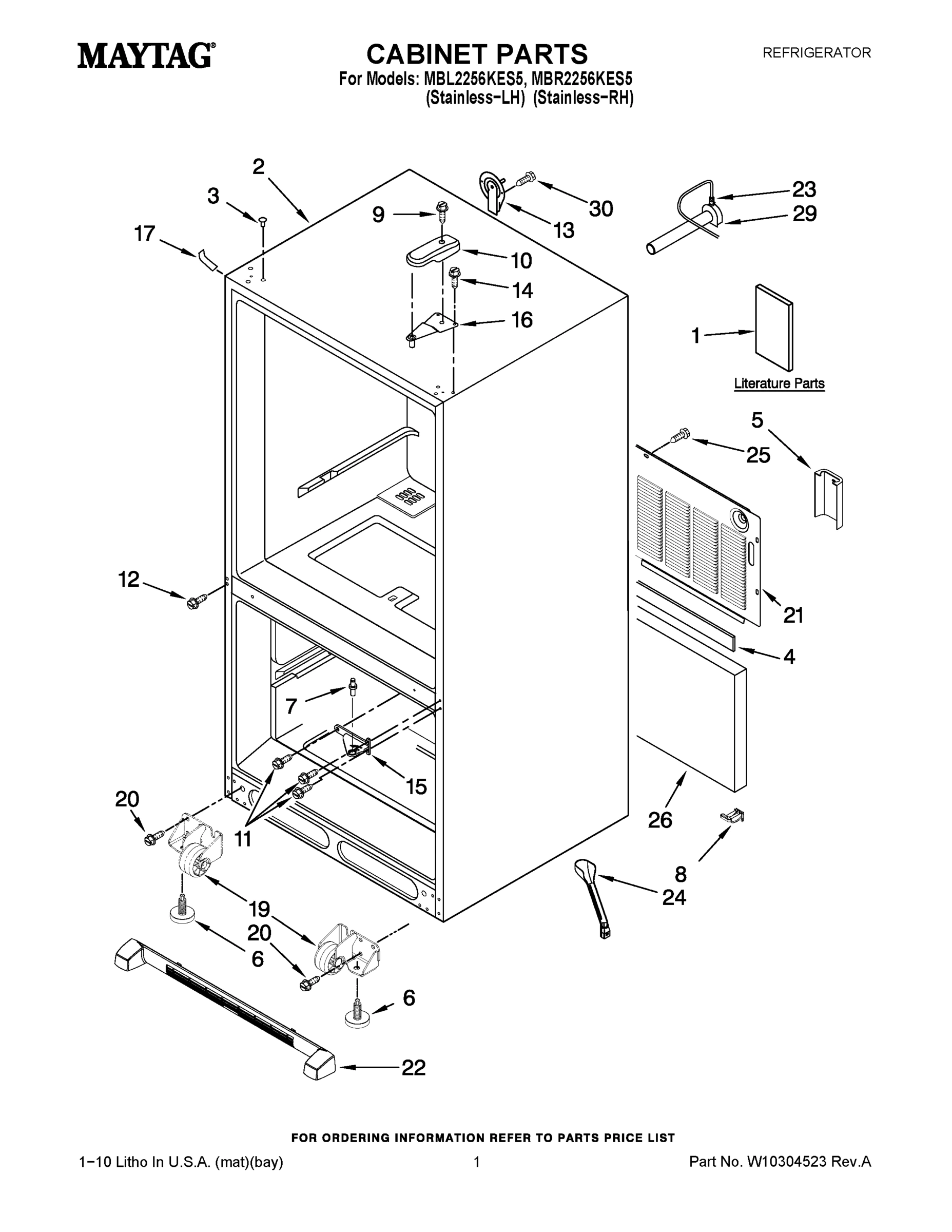

02 - CABINET PARTS

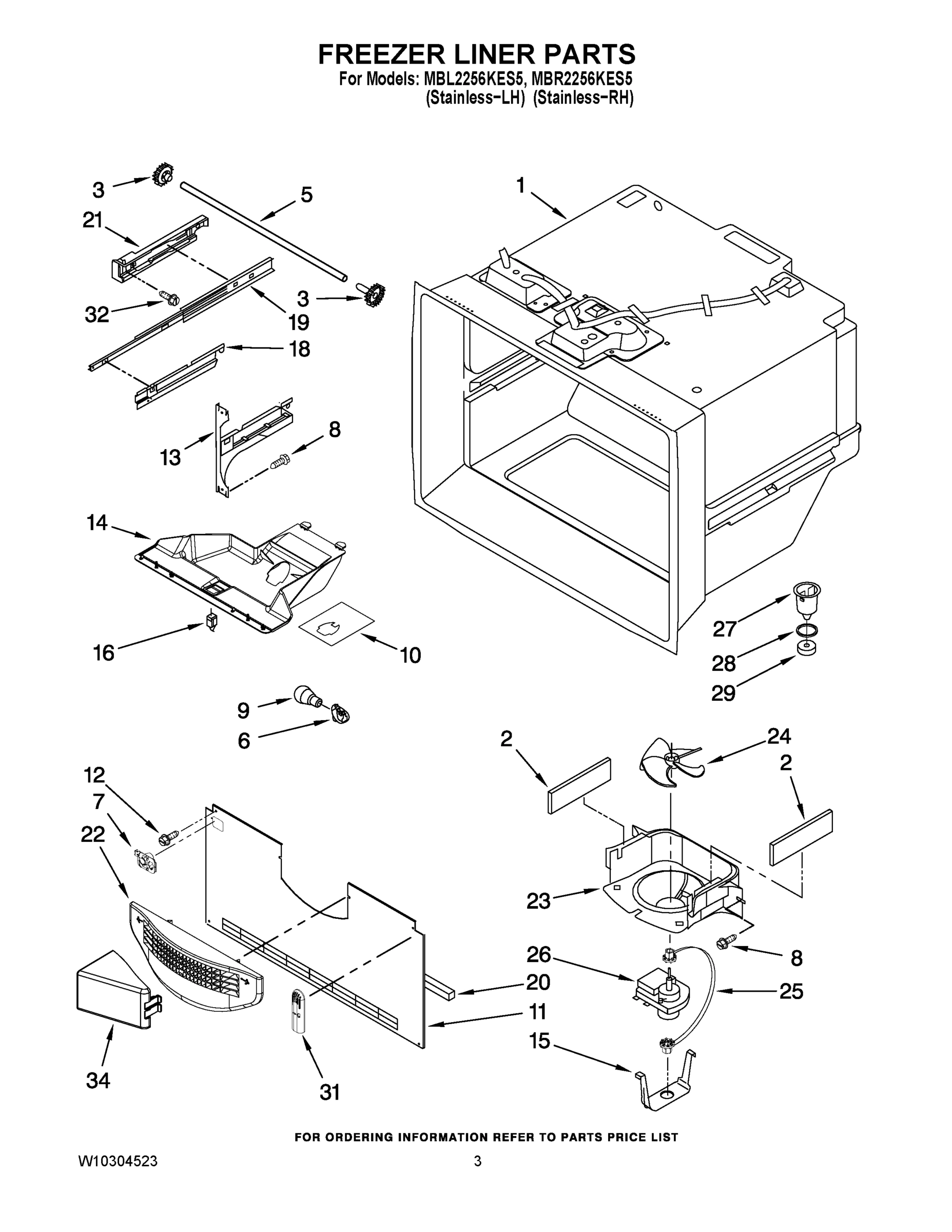

03 - FREEZER LINER PARTS
04 - FREEZER DOOR PARTS
05 - REFRIGERATOR LINER PARTS
06 - REFRIGERATOR DOOR PARTS
07 - UNIT PARTS
08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag MBL2256KES5 REFRIGERATOR, TOP MOUNT
1
DOOR, FREEZER (STAINLESS) MAY 13092262SQ Contact Us For Availability
1
DOOR, REFRIGERATOR (STAINLESS-LH) MAY 13023879SQ Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
RAIL, CENTER CRISPER MAY 12530701 Contact Us For Availability
1A
DOOR, REFRIGERATOR (STAINLESS-RH) MAY 13023876SQ Contact Us For Availability
1B
TECH SHEET MAY W10279329 Contact Us For Availability
2
GASKET, FOAM (2) MAY A3189392 Contact Us For Availability
2
SCREW MAY W10290759 Contact Us For Availability
2
BRACKET, CONTROL AND LIGHTS MAY 12806301 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
TRIM, CRISPER MAY W10231343 Contact Us For Availability
3
PLUG, BUTTON (3) (BLACK) MAY M0310731 Contact Us For Availability
3
GASKET, DOOR (BLACK) MAY W10164037 Contact Us For Availability
3
OVERLAY MAY 12816502N Contact Us For Availability
3
DOOR, DAIRY MAY 12804701SP Contact Us For Availability
3
BASEPAN MAY W10210983 Contact Us For Availability
3
SCREW MAY 12990601N Contact Us For Availability
4
GASKET MAY B5759655 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
HOUSING, ELECTRONIC CONTROL MAY 12806406 Contact Us For Availability
4
TRAY, DAIRY MAY 12369502SP Contact Us For Availability
4
BASKET, FREEZER (UPPER) MAY 12896402 Contact Us For Availability
5
GUARD, WATER VALVE MAY W10208592 Contact Us For Availability
5
SHAFT MAY 12812902WD Contact Us For Availability
5
BOARD, CONTROL MAY 12784415V Contact Us For Availability
5
BUCKET, MEDIUM (4) MAY 12801902V Contact Us For Availability
5
BASKET, FREEZER (LOWER) MAY 13016002 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
MOUNT, HANDLE MAY 13001201 Contact Us For Availability
6
SWITCH, LIGHT MAY C3680310V Contact Us For Availability
6
TUBE, DISCHARGE MAY W10217745 Contact Us For Availability
6
SHELF (4) MAY 12463509 Contact Us For Availability
7
PIN, CENTER HINGE MAY 10351006 Contact Us For Availability
7
GUIDE-FILL TUBE MAY 12932103 Contact Us For Availability
7
COVER, LIGHT MAY 12806501 Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10280423 Contact Us For Availability
7
SCREW MAY 12990515 Contact Us For Availability
8
SWEEP, WATER VALVE MAY W10216614 Contact Us For Availability
8
SCREW (8) MAY 12990521 Contact Us For Availability
8
HOUSING, LIGHT MAY 12806601V Contact Us For Availability
8
GASKET, DOOR (BLACK) MAY W10164035 Contact Us For Availability
8
PAN, DRAIN MAY W10296784 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
9
SCREW MAY 12992602 Contact Us For Availability
9
BULB, LIGHT (2) MAY W10194422V Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10291144 Contact Us For Availability
9
SCREW, SHOULDER MAY W10216919 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY 12693802N Contact Us For Availability
10
COVER, HINGE (BLACK) MAY 12477601B Contact Us For Availability
10
SCREW MAY 12990504 Contact Us For Availability
10
SOCKET, LIGHT (2) MAY 12570701V Contact Us For Availability
10
FOIL, HOUSING MAY W10277466 Contact Us For Availability
10
EVAPORATOR HEATER MAY 12729128 Contact Us For Availability
10
DIVIDER, BASKET (LOWER) MAY 12659608 Contact Us For Availability
11
COVER, EVAPORATOR MAY 12226111 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
STOP, DOOR (BLACK) MAY 10447112 Contact Us For Availability
11
STRAP, BALE MAY W10174384 Contact Us For Availability
11
SCREW MAY 12990513 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
SCREW (2) MAY 12990604 Contact Us For Availability
12
NAMEPLATE MAY W10170766 Contact Us For Availability
12
START PROTECT, COMBO (PRODUCTION) MAY W10197426 Contact Us For Availability
12
PAN, DELI MAY 12656404SP Contact Us For Availability
12A
START PROTECT, COMBO (SERVICE) MAY W10136414 Contact Us For Availability
13
COVER, WATER LINE MAY 12726003 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
RETAINER, REF DOOR MAY 12690502 Contact Us For Availability
13
GLIDE, LEFT MAY 12656601SP Contact Us For Availability
13A
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
14
SCREW (3) MAY 12992403 Contact Us For Availability
14
MODULE, LIGHT MAY W10277025 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
BUSHING (4) (BLACK) MAY 10961006B Contact Us For Availability
14
THERMOSTAT, DEFROST MAY 12639324SP Contact Us For Availability
14
GLIDE, RIGHT MAY 12656602SP Contact Us For Availability
15
HINGE, CENTER (BLACK) MAY 12607104ED Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
CONTROL, DAMPER MAY W10196393 Contact Us For Availability
15
CLOSURE, DOOR (BLACK) MAY 12028505B Contact Us For Availability
15
EXTENSION, BASEPAN MAY W10206337 Contact Us For Availability
15
SCREW, GLIDE (4) MAY 12990302SP Contact Us For Availability
16
HINGE, TOP MAY 12566604ED Contact Us For Availability
16
SWITCH, LIGHT MAY 12466105 Contact Us For Availability
16
PAN, CRISPER MAY 12530505 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
PLUG BUTTON MAY M0310343 Contact Us For Availability
17
GROMMET (4) MAY 10835903SP Contact Us For Availability
17
BRACE, CRISPER MAY 12227303WD Contact Us For Availability
18
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
18
CONDENSER MAY W10135027 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
18A
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
19
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
19
GLASS, CRISPER COVER MAY 12204822 Contact Us For Availability
19A
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
20
SCREW (4) MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189395 Contact Us For Availability
20
TRAY, DRIP MAY W10292802 Contact Us For Availability
20
LADDER, CENTER MAY W10273463 Contact Us For Availability
21
COVER, UNIT MAY W10210979 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT) MAY W10261199 Contact Us For Availability
21
SCREW MAY 12990701 Contact Us For Availability
21
LADDER, SIDE MAY W10251969 Contact Us For Availability
21A
ADAPTER, SLIDE (RIGHT) MAY W10261200 Contact Us For Availability
22
GRILLE, TOE (BLACK) MAY W10236196 Contact Us For Availability
22
COVER, FAN SHROUD MAY 13024803 Contact Us For Availability
22
EVAPORATOR MAY 12726402 Contact Us For Availability
23
CLIP, SPEED MAY M0114003SP Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (RIGHT SIDE) MAY 12225702 Contact Us For Availability
23A
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
24
TUBE, DRAIN MAY W10210988 Contact Us For Availability
24
FAN, EVAPORATOR MAY 2169142 Contact Us For Availability
24
MOTOR, FAN MAY W10239053 Contact Us For Availability
25
GROMMET (2) MAY W10121318 Contact Us For Availability
26
FIBER, ACOUSTIC MAY 12820505 Contact Us For Availability
26
MOTOR, EVAPORATOR MAY W10128551 Contact Us For Availability
26
HARNESS, UNIT MAY W10234024 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. # 28 & 29) MAY D7753903 Contact Us For Availability
27
DRIER MAY W10143759 Contact Us For Availability
28
SEAL MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & MAY W10130129 Contact Us For Availability
29
ELBOW, FILL TUBE MAY 10463203SP Contact Us For Availability
29
GASKET MAY B8381501 Contact Us For Availability
29
CAPACITOR MAY 2264017 Contact Us For Availability
30
AXLE, ROLLER MAY 12477202 Contact Us For Availability
31
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
SCREW (6) MAY 12990501 Contact Us For Availability
34
DIVERTER, AIR MAY W10157765 Contact Us For Availability
34
CLIP, DRIER MAY 10547003 Contact Us For Availability
35
ROLLER (2) MAY 12477102 Contact Us For Availability
36
CLIP, EVAP (2) MAY 10623002 Contact Us For Availability
37
GROMMET (4) MAY W10137529 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED AND OPTIONAL MAY N/P Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY 12868701 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (1/2") MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ACCESSORIES, CLEANER, 10 OZ. (STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER, WHITE MAY 350942 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT (UNCUT)) MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT) MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER (1/4 POUND) MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT.) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1-1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, EVAPORATOR REPAIR (ALUMIN MAY 799833 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
