Model Maytag MBF2258XEB5 REFRIGERATOR – Common Parts & Diagrams

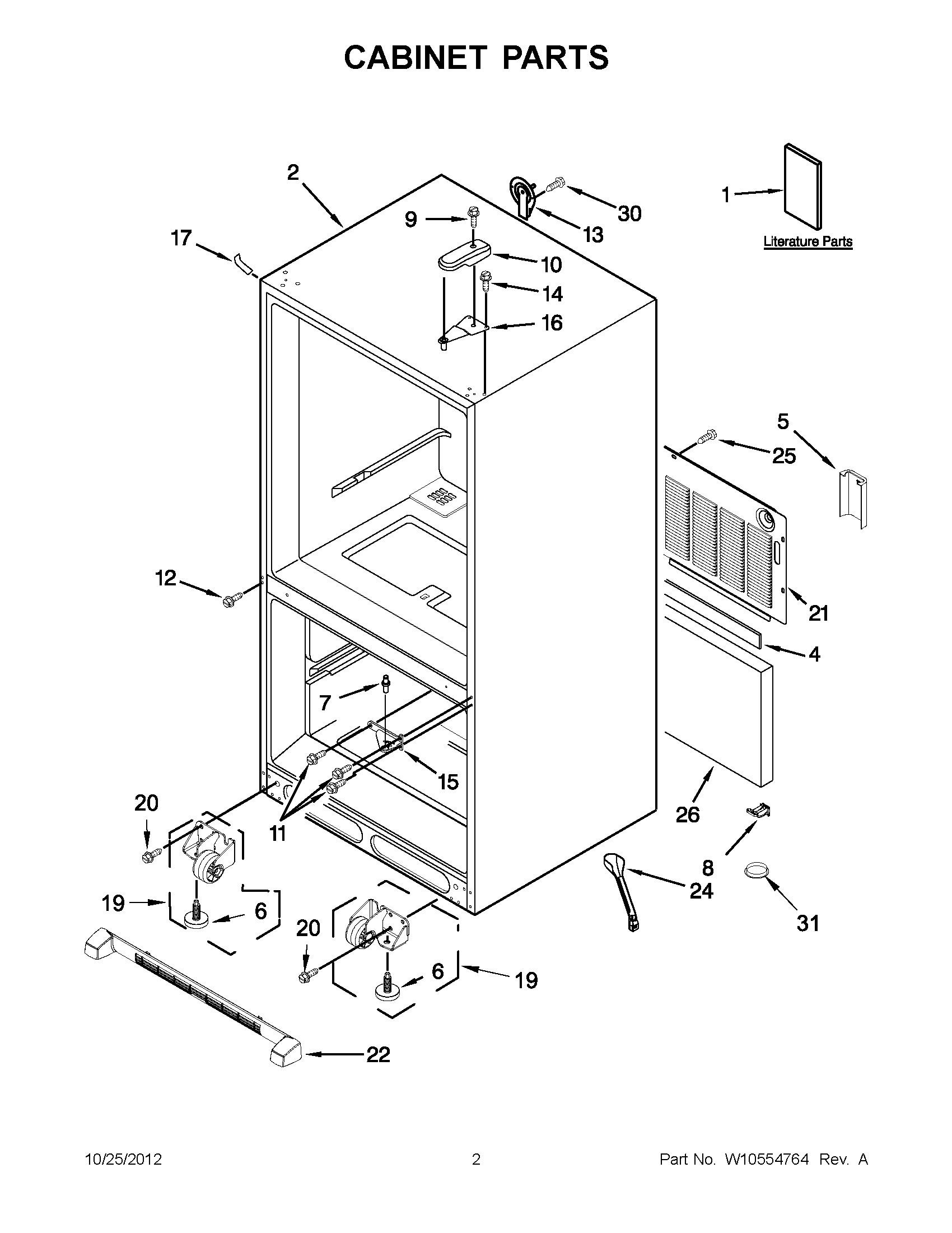

01 - CABINET PARTS

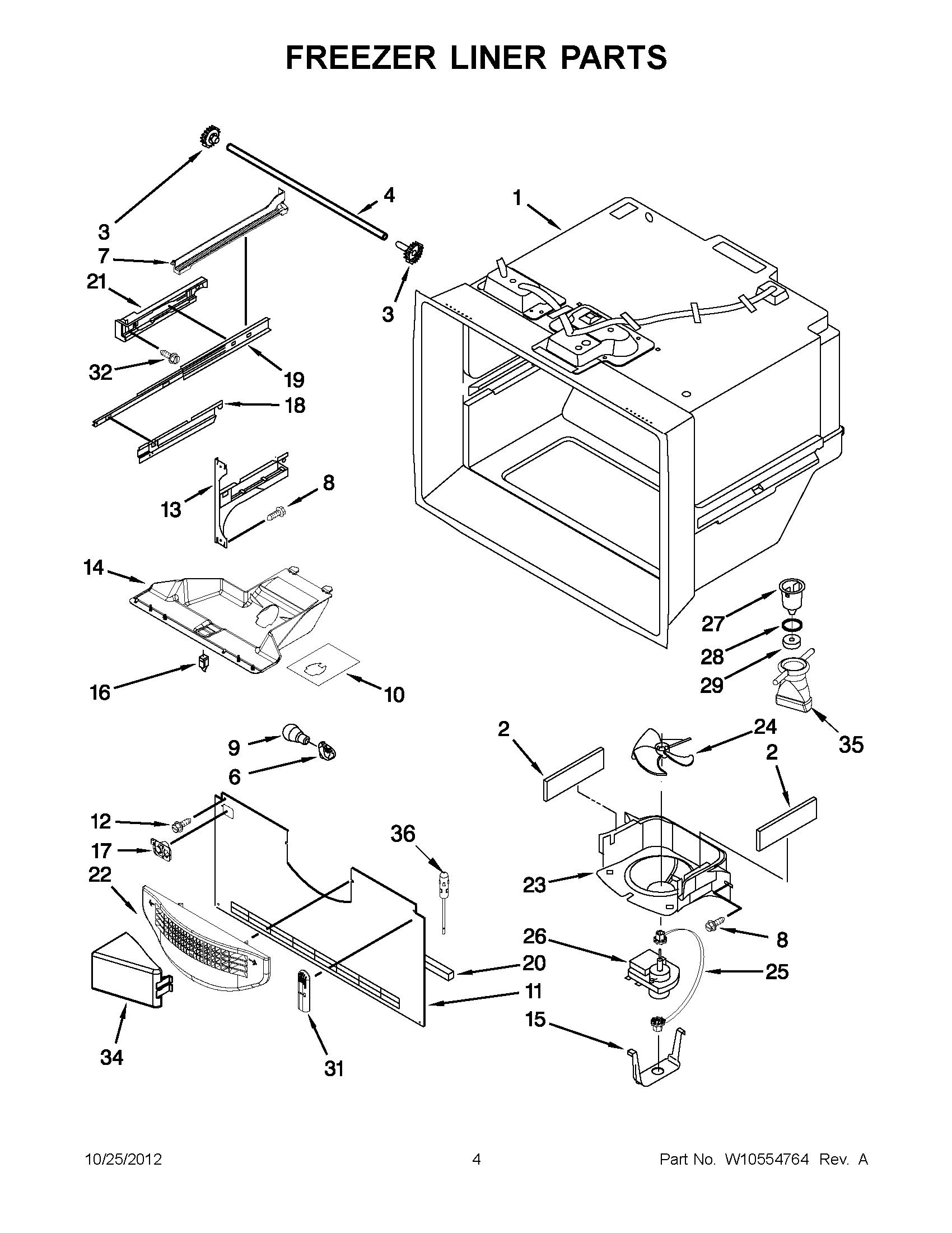

02 - FREEZER LINER PARTS
03 - FREEZER DOOR
04 - REFRIGERATOR LINER PARTS
05 - REFRIGERATOR DOOR
06 - UNIT PARTS
07 - SHELF PARTS
08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MBF2258XEB5 REFRIGERATOR
1
MAY 13109214B MAY 13109214B Contact Us For Availability
1
DOOR, FREEZER (WHITE) MAY 13109214W Contact Us For Availability
1
MAY 13109401B MAY 13109401B Contact Us For Availability
1
DOOR, REFRIGERATOR (WHITE) MAY 13109401W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12530701N MAY 12530701N Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10464757 MAY W10464757 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343N MAY W10231343N Contact Us For Availability
2
MAY B5705333 MAY B5705333 Contact Us For Availability
3
MAY W10436250 MAY W10436250 Contact Us For Availability
3
MAY W10443315 MAY W10443315 Contact Us For Availability
3
MAY W10207257 MAY W10207257 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10480110 MAY W10480110 Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12812902WD MAY 12812902WD Contact Us For Availability
4
MAY W10464769 MAY W10464769 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
BASKET, UPPER MAY W10348238 Contact Us For Availability
4
MAY W10001240 MAY W10001240 Contact Us For Availability
5
MAY W10208592 MAY W10208592 Contact Us For Availability
5
MAY W10503278 MAY W10503278 Contact Us For Availability
5
BUCKET, MEDIUM MAY 12801902 Contact Us For Availability
5
MAY W10503183 MAY W10503183 Contact Us For Availability
5
VALVE, WATER MAY W10420082 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
PLUG-BUTTON (WHITE) MAY 12246607 Contact Us For Availability
6
MAY 12246608 MAY 12246608 Contact Us For Availability
6
MAY W10233570 MAY W10233570 Contact Us For Availability
6
SHELF MAY 12463509V Contact Us For Availability
6
MAY W10512602 MAY W10512602 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
RAIL-SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
7
RAIL-SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10290745 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
MAY W10485986 MAY W10485986 Contact Us For Availability
8
MAY 12990521 MAY 12990521 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY W10436248 MAY W10436248 Contact Us For Availability
8
MAY W10443313 MAY W10443313 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY W10311527 Contact Us For Availability
9
MAY W10252284N MAY W10252284N Contact Us For Availability
9
MAY W10252285N MAY W10252285N Contact Us For Availability
9
BULB, LIGHT MAY W10311505N Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
DIVIDER, UPPER MAY W10241046 Contact Us For Availability
9
ASSEMBLY, MOLD & HEATER MAY W10300025 Contact Us For Availability
10
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
10
MAY 12477601W MAY 12477601W Contact Us For Availability
10
MAY 12990504 MAY 12990504 Contact Us For Availability
10
HOUSING, FOIL MAY W10277466 Contact Us For Availability
10
Socket, Light MAY 12570701V Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
Divider, Lower Basket MAY W10146440 Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
11
MAY W10308415 MAY W10308415 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 10447111 MAY 10447111 Contact Us For Availability
11
Stop, Door (Black) MAY 10447112 Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
EJECTOR, ARM MAY W10318914 Contact Us For Availability
12
MAY 12990101 MAY 12990101 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
NAMEPLATE (STAINLESS) MAY W10170766 Contact Us For Availability
12
START DEVICE, COMBINATION (START RELAY AND OV MAY W10194431 Contact Us For Availability
12
MAY 12656404V MAY 12656404V Contact Us For Availability
12
STRIPPER, ICE MAY W10122563 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY W10330991 MAY W10330991 Contact Us For Availability
13
MAY W10330993 MAY W10330993 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY 12557905 MAY 12557905 Contact Us For Availability
13
MAY 12656601V MAY 12656601V Contact Us For Availability
13
MAY 12656602V MAY 12656602V Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
DAMPER, CONTROL MAY W10196393 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
MAY 12990302V MAY 12990302V Contact Us For Availability
15
MAY W10290336 MAY W10290336 Contact Us For Availability
16
MAY 12566606ED MAY 12566606ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY W10288153 MAY W10288153 Contact Us For Availability
16
MAY 12530505N MAY 12530505N Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12932103 MAY 12932103 Contact Us For Availability
17
CLIP, HANDLE MOUNT MAY 2255411 Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
17
MAY 12227303WD MAY 12227303WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
CRADLE-BASKET (LEFT HAND) MAY W10280608 Contact Us For Availability
18
CRADLE-BASKET (RIGHT HAND) MAY W10280613 Contact Us For Availability
18
MAY W10346420 MAY W10346420 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
18
MAY W10458985 MAY W10458985 Contact Us For Availability
19
ROLLER ASSEMBLY (RIGHT HAND) MAY W10515762 Contact Us For Availability
19
ROLLER ASSEMBLY (LEFT HAND) MAY W10515763 Contact Us For Availability
19
MAY W10488000 MAY W10488000 Contact Us For Availability
19
MAY 12204822N MAY 12204822N Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
GASKET, FOAM MAY A3189395 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER No.20) MAY N/P Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT HAND) MAY W10284684 Contact Us For Availability
21
ADAPTER, SLIDE (RIGHT HAND) MAY W10284685 Contact Us For Availability
21
MAY 12992101 MAY 12992101 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
22
MAY W10236195N MAY W10236195N Contact Us For Availability
22
MAY W10236196N MAY W10236196N Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
EVAPORATOR KIT MAY W10317013 Contact Us For Availability
22
MAY 12812905WD MAY 12812905WD Contact Us For Availability
23
Shroud, Evaporator MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
23
MAY W10149389N MAY W10149389N Contact Us For Availability
23
MAY 10463203 MAY 10463203 Contact Us For Availability
24
TUBE-DRAIN MAY W10344402 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
MOUNT-GEAR (LEFT HAND) MAY W10348259 Contact Us For Availability
24
MOUNT-GEAR (RIGHT HAND) MAY W10348260 Contact Us For Availability
25
MAY W10150583 MAY W10150583 Contact Us For Availability
25
MAY W10474715 MAY W10474715 Contact Us For Availability
25
MAY W10474716 MAY W10474716 Contact Us For Availability
25
MAY W10171529N MAY W10171529N Contact Us For Availability
26
MAY 12820505 MAY 12820505 Contact Us For Availability
26
EVAPORATOR, MOTOR MAY 13062901 Contact Us For Availability
26
HARNESS, UNIT (INCLUDES POWER CORD) MAY W10234024 Contact Us For Availability
26
DIVIDER, UPPER MAY W10311695 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
FRAME, CRISPER MAY 12643702 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10164016 MAY W10164016 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY W10350564 MAY W10350564 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
MAY 12990501 MAY 12990501 Contact Us For Availability
34
MAY W10157765 MAY W10157765 Contact Us For Availability
34
MAY W10281329 MAY W10281329 Contact Us For Availability
35
MAY W10309238 MAY W10309238 Contact Us For Availability
35
ROLLER MAY 12477102 Contact Us For Availability
36
MAY 12791409SP MAY 12791409SP Contact Us For Availability
36
MAY 10623002 MAY 10623002 Contact Us For Availability
37
MAY W10137529 MAY W10137529 Contact Us For Availability
38
MAY W10236396 MAY W10236396 Contact Us For Availability
100
ICEMAKER ASSEMBLY (COMPLETE) MAY W10469286 Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY 12868701 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
