Model Maytag MBF2258FEB00 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

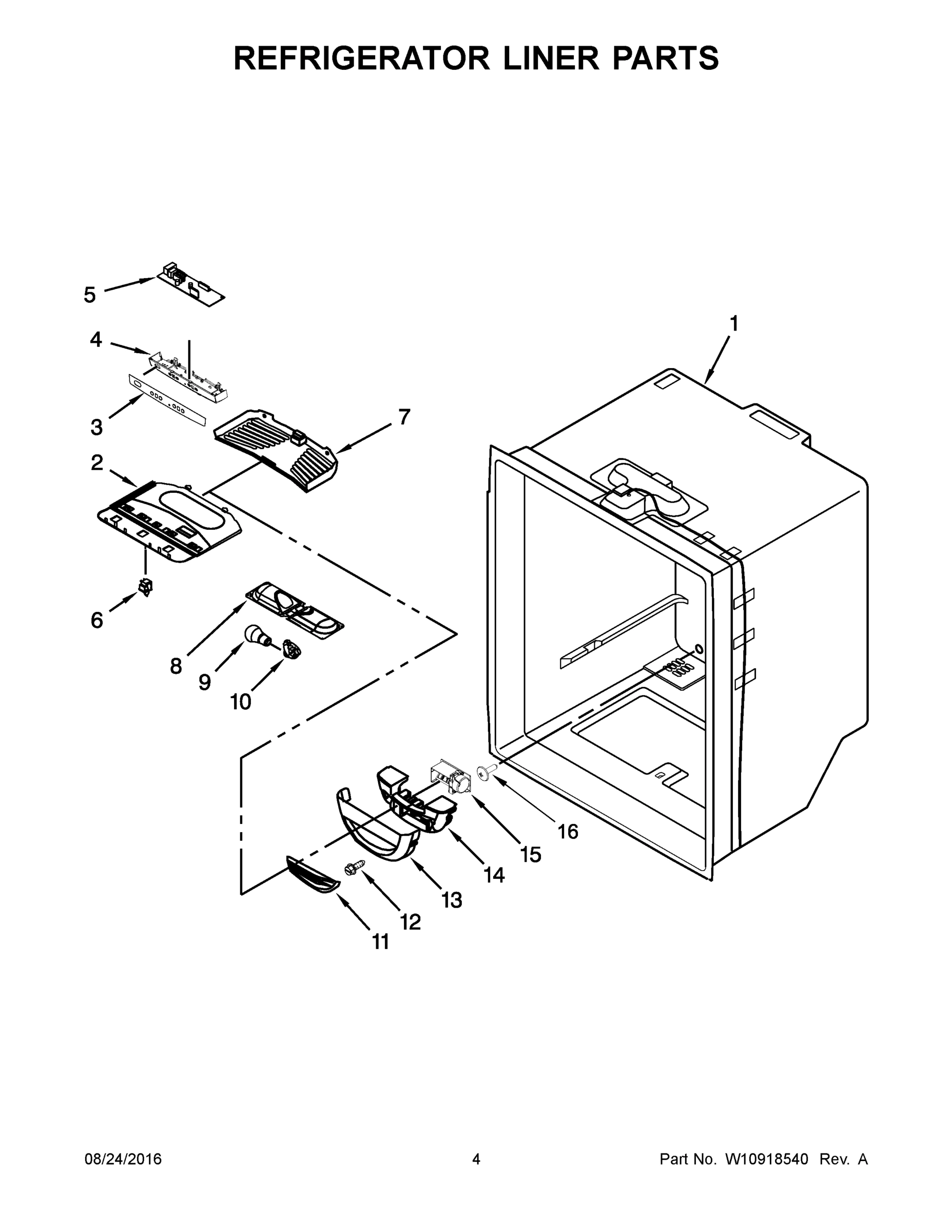

03 - REFRIGERATOR LINER PARTS

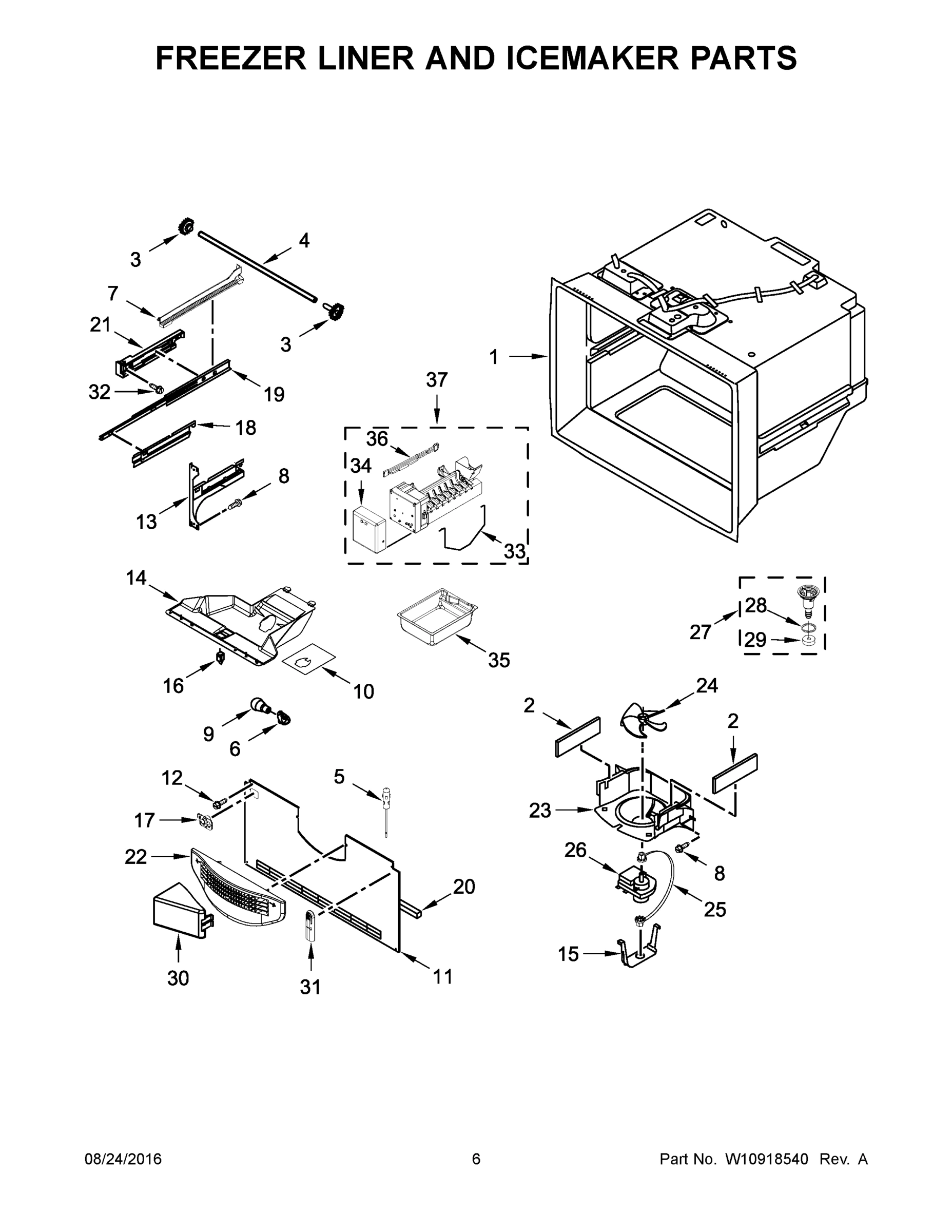

04 - FREEZER LINER AND ICEMAKER PARTS

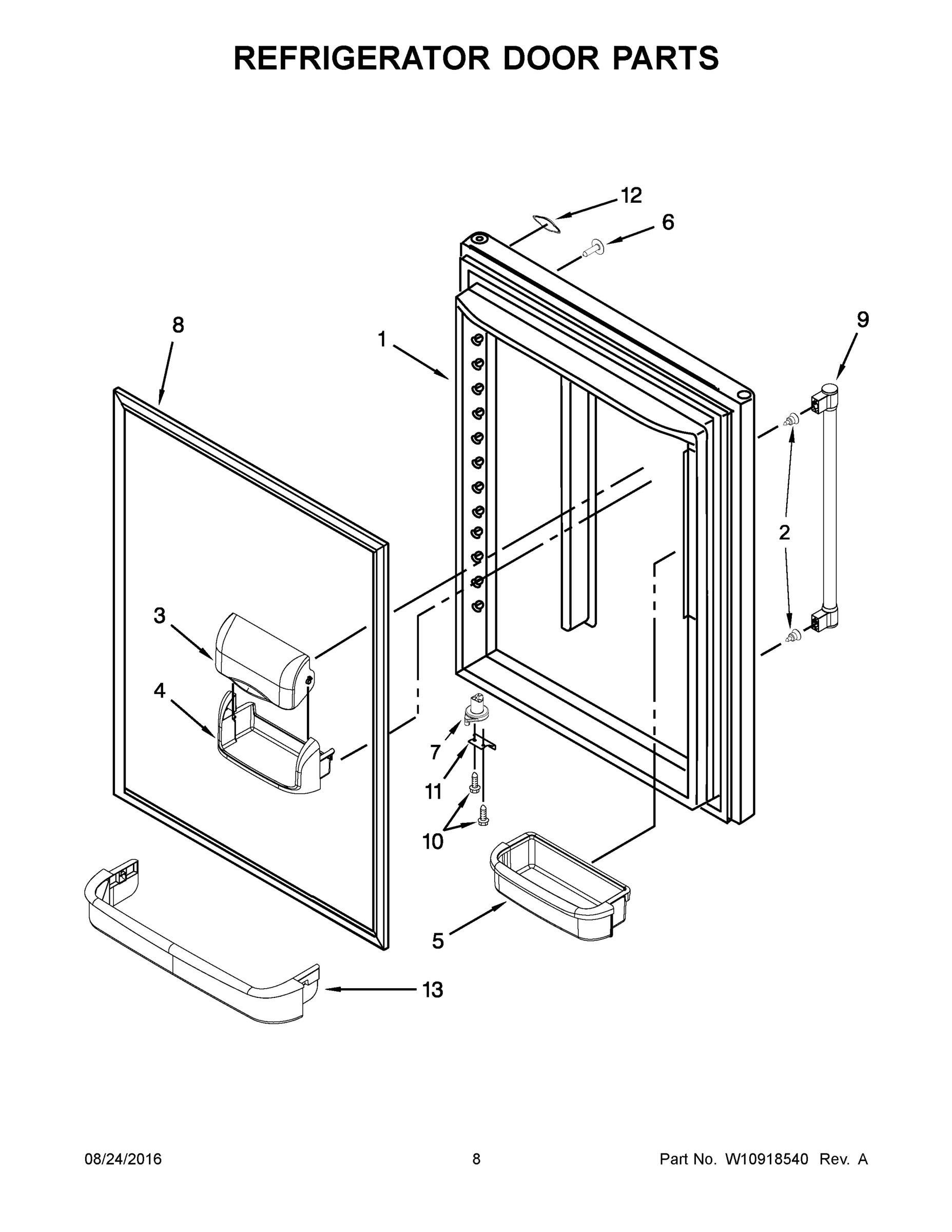

05 - REFRIGERATOR DOOR PARTS

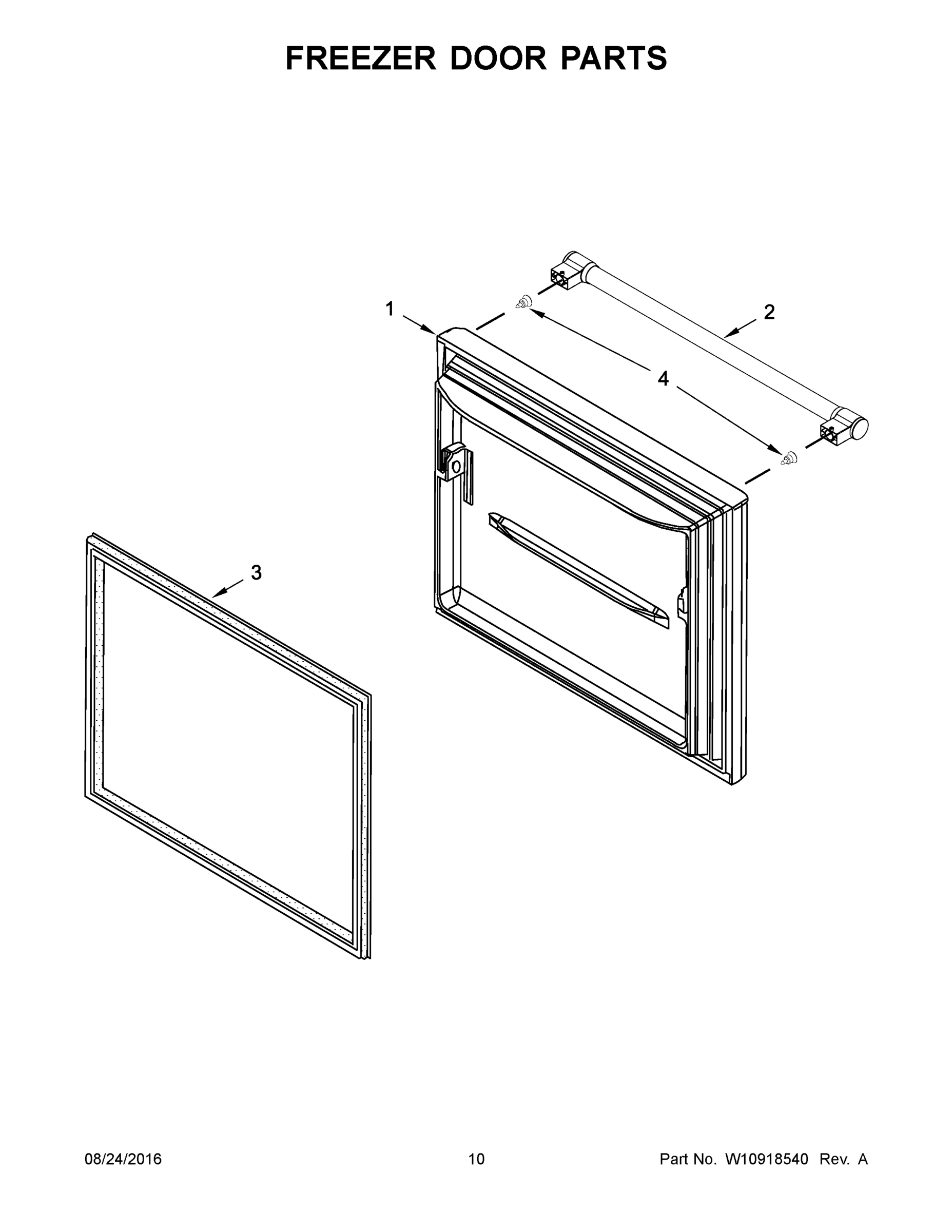

06 - FREEZER DOOR PARTS

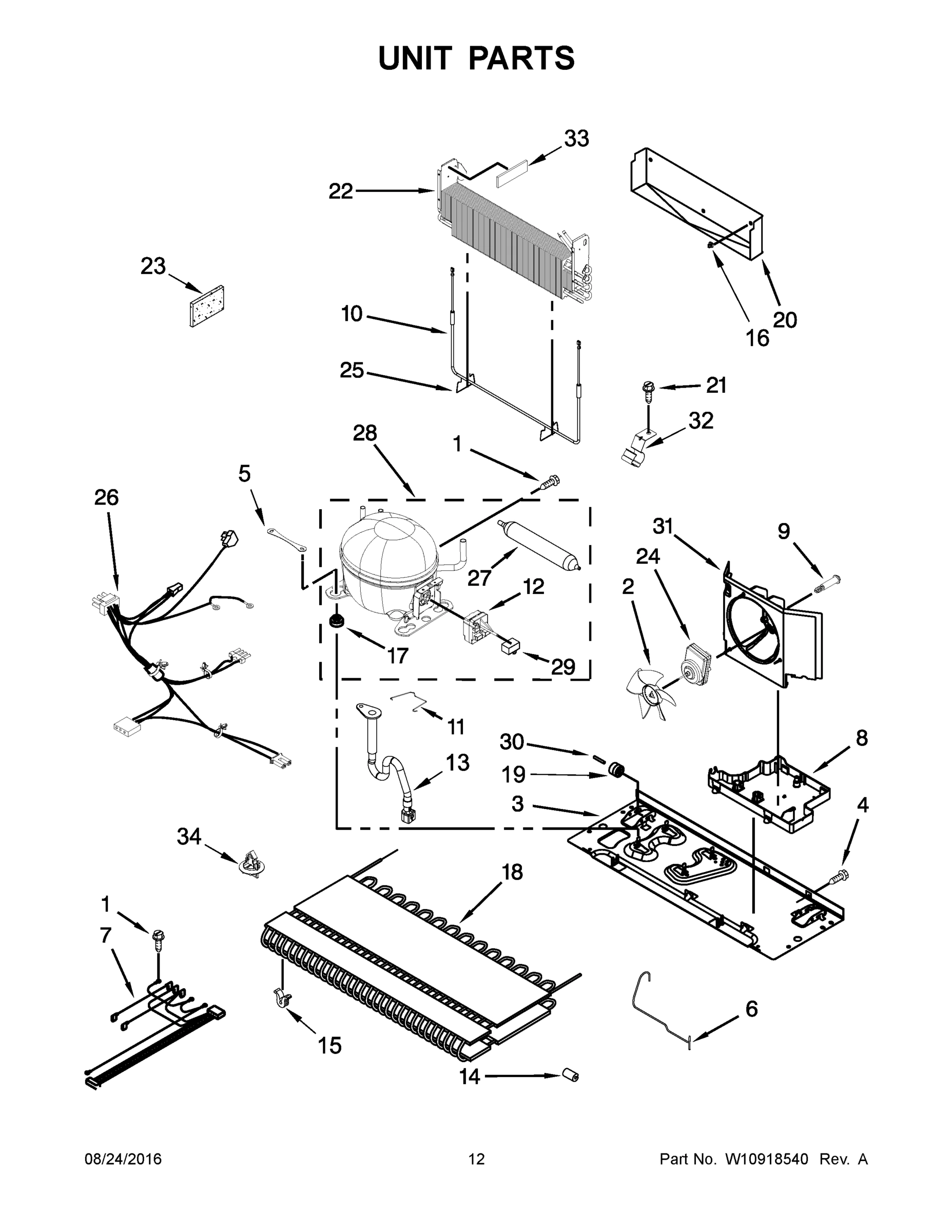

07 - UNIT PARTS

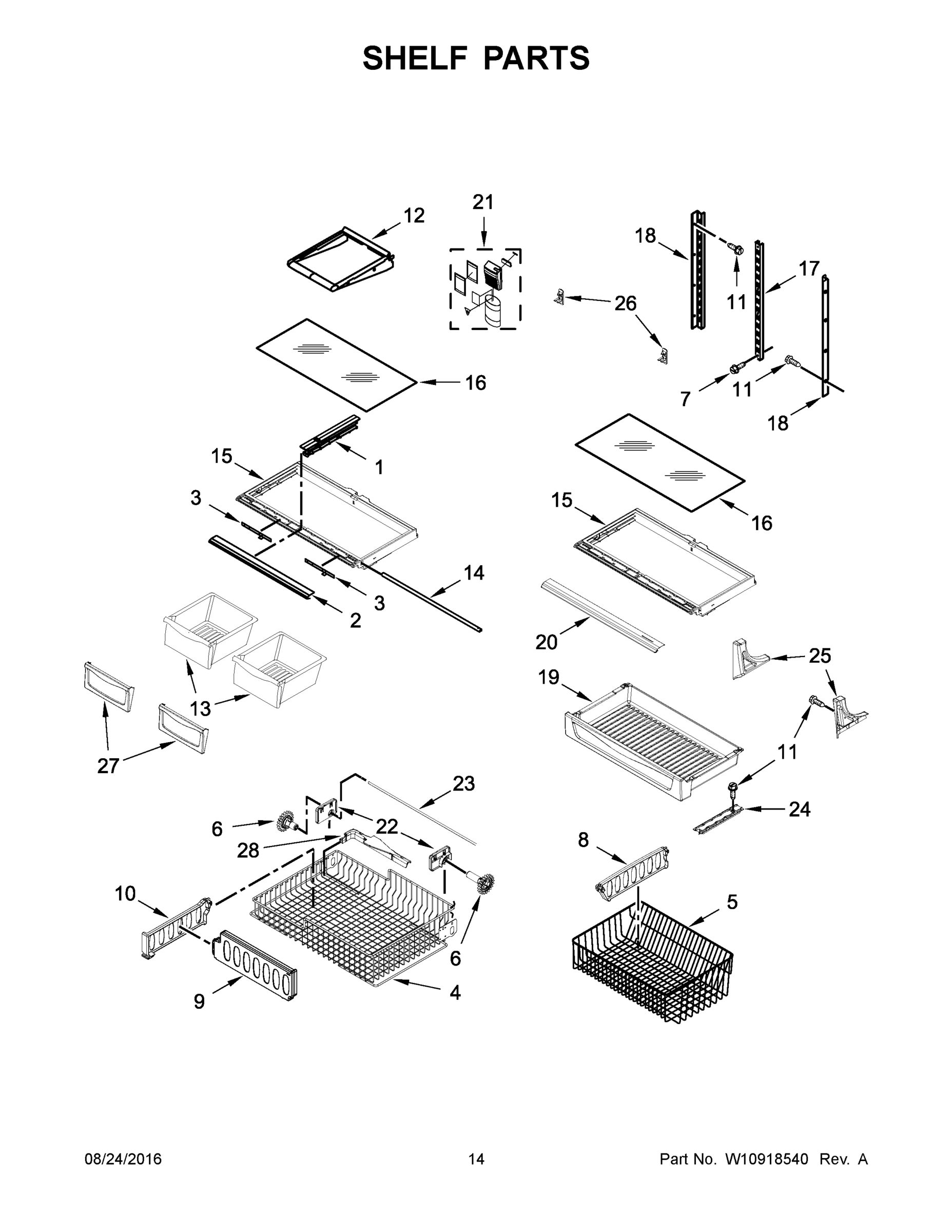

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag MBF2258FEB00 REFRIGERATOR, BOTTOM MOUNT
1
DOOR, REFRIGERATOR (WHITE) MAY 13109401W Contact Us For Availability
1
DOOR, FREEZER (WHITE) MAY 13109214W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY W10671238 MAY W10671238 Contact Us For Availability
1A
MAY 13109401B MAY 13109401B Contact Us For Availability
1A
MAY 13109214B MAY 13109214B Contact Us For Availability
1B
MAY W10517966 MAY W10517966 Contact Us For Availability
2
MAY W10464757 MAY W10464757 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10891378 MAY W10891378 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231482 MAY W10231482 Contact Us For Availability
2A
MAY W10891377 MAY W10891377 Contact Us For Availability
3
MAY W10593588 MAY W10593588 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10571962 MAY W10571962 Contact Us For Availability
3
MAY W10480110 MAY W10480110 Contact Us For Availability
3
MAY 12530805SP MAY 12530805SP Contact Us For Availability
3A
MAY W10436250 MAY W10436250 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10464769 MAY W10464769 Contact Us For Availability
4
MAY W10802331 MAY W10802331 Contact Us For Availability
4
MAY W10460893 MAY W10460893 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10348238 MAY W10348238 Contact Us For Availability
5
MAY W10208592 MAY W10208592 Contact Us For Availability
5
MAY W10503278 MAY W10503278 Contact Us For Availability
5
MAY 12791409SP MAY 12791409SP Contact Us For Availability
5
MAY W10371194 MAY W10371194 Contact Us For Availability
5
MAY W10236396 MAY W10236396 Contact Us For Availability
5
MAY W10503183 MAY W10503183 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
PLUG, BUTTON (WHITE) MAY 12246607 Contact Us For Availability
6
MAY W10233570 MAY W10233570 Contact Us For Availability
6
GEAR, SPUR (LEFT HAND) MAY W10474716 Contact Us For Availability
6A
PLUG, BUTTON (BLACK) MAY 12246608 Contact Us For Availability
6A
GEAR, SPUR (RIGHT HAND) MAY W10474715 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
RAIL, SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
7
MAY 12028505W MAY 12028505W Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10290745 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7A
RAIL, SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
7A
MAY 12028505B MAY 12028505B Contact Us For Availability
8
MAY W10485986 MAY W10485986 Contact Us For Availability
8
MAY 12990521 MAY 12990521 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
GASKET, DOOR (WHITE) MAY W10571964 Contact Us For Availability
8
MAY W10655367 MAY W10655367 Contact Us For Availability
8
MAY W10146440 MAY W10146440 Contact Us For Availability
8A
MAY W10436248 MAY W10436248 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10820003 MAY W10820003 Contact Us For Availability
9
MAY W10622701 MAY W10622701 Contact Us For Availability
9
MAY W10311695 MAY W10311695 Contact Us For Availability
10
MAY 12990504 MAY 12990504 Contact Us For Availability
10
MAY 12477601W MAY 12477601W Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
MAY W10241046 MAY W10241046 Contact Us For Availability
10A
MAY 12477601B MAY 12477601B Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308415 MAY W10308415 Contact Us For Availability
11
MAY 10447111 MAY 10447111 Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11A
STOP, DOOR (BLACK) MAY 10447112 Contact Us For Availability
12
MAY 12990101 MAY 12990101 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
BADGE MAY W10612926 Contact Us For Availability
12
MAY W10796752 MAY W10796752 Contact Us For Availability
12
MAY 12463509 MAY 12463509 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY W10330991 MAY W10330991 Contact Us For Availability
13
MAY 12557905 MAY 12557905 Contact Us For Availability
13
MAY W10622099 MAY W10622099 Contact Us For Availability
13
PAN, CRISPER MAY 12530505SP Contact Us For Availability
13A
MAY W10330993 MAY W10330993 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
MAY 12227303WD MAY 12227303WD Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY W10594330 MAY W10594330 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
MAY W10137529 MAY W10137529 Contact Us For Availability
15
MAY W10671241 MAY W10671241 Contact Us For Availability
15A
MAY 12607104ED MAY 12607104ED Contact Us For Availability
16
MAY 12566606ED MAY 12566606ED Contact Us For Availability
16
PLUG, BUTTON (WHITE) MAY M0310343 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 10623002 MAY 10623002 Contact Us For Availability
16
MAY 12204822 MAY 12204822 Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12932103 MAY 12932103 Contact Us For Availability
17
GROMMET MAY 10835903 Contact Us For Availability
17
MAY W10273463 MAY W10273463 Contact Us For Availability
17A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
18
MAY W10280608 MAY W10280608 Contact Us For Availability
18
MAY W10346420 MAY W10346420 Contact Us For Availability
18
MAY W10251969 MAY W10251969 Contact Us For Availability
18A
MAY W10280613 MAY W10280613 Contact Us For Availability
19
MAY W10515763 MAY W10515763 Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
19
ROLLER MAY 12477102 Contact Us For Availability
19
MAY W10328327 MAY W10328327 Contact Us For Availability
19A
MAY W10515762 MAY W10515762 Contact Us For Availability
20
MAY W10709365 MAY W10709365 Contact Us For Availability
20
GASKET, FOAM MAY A3189395 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
20
MAY W10656986 MAY W10656986 Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
MAY W10284684 MAY W10284684 Contact Us For Availability
21
MAY 12992101 MAY 12992101 Contact Us For Availability
21
MAY W10596756 MAY W10596756 Contact Us For Availability
21A
MAY W10284685 MAY W10284685 Contact Us For Availability
22
MAY W10534161 MAY W10534161 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY W10669254 MAY W10669254 Contact Us For Availability
22
MAY W10348259 MAY W10348259 Contact Us For Availability
22A
MAY W10534162 MAY W10534162 Contact Us For Availability
22A
MAY W10348260 MAY W10348260 Contact Us For Availability
23
MAY B5705333 MAY B5705333 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
SEALER, INSULATION MAY 2169104 Contact Us For Availability
23
MAY W10802339 MAY W10802339 Contact Us For Availability
24
MAY W10498976 MAY W10498976 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10609117 MAY W10609117 Contact Us For Availability
24
MAY 12531901 MAY 12531901 Contact Us For Availability
25
MAY A3223101 MAY A3223101 Contact Us For Availability
25
MAY W10150583 MAY W10150583 Contact Us For Availability
25
SUPPORT, PANTRY (LEFT HAND) MAY 12531001 Contact Us For Availability
25A
SUPPORT, PANTRY (RIGHT HAND) MAY 12531002 Contact Us For Availability
26
MAY M0114003 MAY M0114003 Contact Us For Availability
26
MAY 13062901 MAY 13062901 Contact Us For Availability
26
MAY W10679216 MAY W10679216 Contact Us For Availability
26
MAY 12531802 MAY 12531802 Contact Us For Availability
27
MAY 10463203 MAY 10463203 Contact Us For Availability
27
MAY W10662407 MAY W10662407 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
FRAME, CRISPER PAN MAY 12643702SP Contact Us For Availability
28
CLAMP, TUBE MAY M0108107 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10485433 MAY W10485433 Contact Us For Availability
28
MAY W10149389N MAY W10149389N Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY W10350564 MAY W10350564 Contact Us For Availability
30
MAY W10157765 MAY W10157765 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
MAY W10189184 MAY W10189184 Contact Us For Availability
32
MAY 12990501 MAY 12990501 Contact Us For Availability
32
MAY W10281329 MAY W10281329 Contact Us For Availability
33
ARM, SHUT OFF MAY W10202524 Contact Us For Availability
33
MAY A3189397 MAY A3189397 Contact Us For Availability
34
MAY W10289690 MAY W10289690 Contact Us For Availability
34
MAY W10815863 MAY W10815863 Contact Us For Availability
35
MAY W10740448N MAY W10740448N Contact Us For Availability
36
MAY W10793621 MAY W10793621 Contact Us For Availability
37
MAY W10793298 MAY W10793298 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, REFRIGERATOR CONTROL (INCLUDES THERM MAY W10422363 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, EVAPORATOR REPAIR (ALUMIN MAY 799833 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
