Model Maytag MBF1958XES3 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

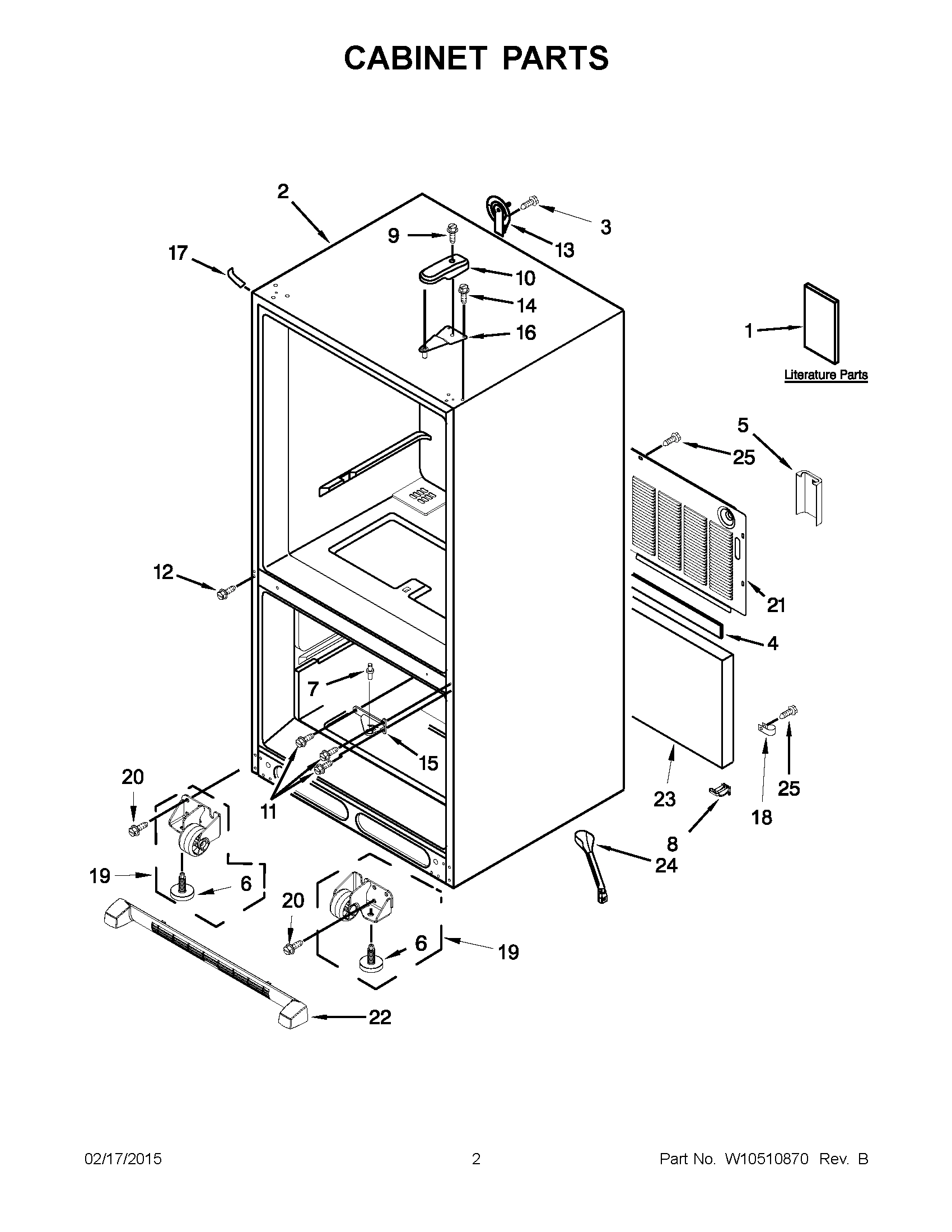

02 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS
04 - FREEZER LINER PARTS
05 - REFRIGERATOR DOOR PARTS
06 - FREEZER DOOR PARTS
07 - UNIT PARTS
08 - SHELF PARTS
09 - ICEMAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MBF1958XES3 REFRIGERATOR
1
MAY 13109402W MAY 13109402W Contact Us For Availability
1
MAY 13109220W MAY 13109220W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12530701N MAY 12530701N Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1A
DOOR, REFRIGERATOR (BLACK) MAY 13109402B Contact Us For Availability
1A
DOOR, FREEZER (BLACK) MAY 13109220B Contact Us For Availability
1B
MAY W10475386 MAY W10475386 Contact Us For Availability
1B
DOOR, REFRIGERATOR (STAINLESS) MAY 13107537S Contact Us For Availability
1B
DOOR, FREEZER (STAINLESS) MAY 13109223S Contact Us For Availability
2
MAY W10464757 MAY W10464757 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
PLUG, BUTTON (WHITE) MAY 12246607 Contact Us For Availability
2
MAY W10252284N MAY W10252284N Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231339 MAY W10231339 Contact Us For Availability
2
MAY W10449192 MAY W10449192 Contact Us For Availability
2A
PLUG, BUTTON (BLACK) MAY 12246608 Contact Us For Availability
2A
MAY W10252285N MAY W10252285N Contact Us For Availability
2B
MAY 12246610 MAY 12246610 Contact Us For Availability
2B
MAY W10252288N MAY W10252288N Contact Us For Availability
3
MAY W10207257 MAY W10207257 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10443311 MAY W10443311 Contact Us For Availability
3
MAY W10480107 MAY W10480107 Contact Us For Availability
3
MAY 12643602 MAY 12643602 Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
3A
MAY W10436247 MAY W10436247 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10464769 MAY W10464769 Contact Us For Availability
4
MAY W10157765 MAY W10157765 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10288153 MAY W10288153 Contact Us For Availability
4
MAY W10348236 MAY W10348236 Contact Us For Availability
4
MAY W10171529 MAY W10171529 Contact Us For Availability
5
MAY W10208592 MAY W10208592 Contact Us For Availability
5
MAY W10503278 MAY W10503278 Contact Us For Availability
5
SHAFT, RACK MAY 12812901WD Contact Us For Availability
5
BUCKET, MEDIUM MAY 12801902V Contact Us For Availability
5
MAY W10137529 MAY W10137529 Contact Us For Availability
5
MAY W10146449 MAY W10146449 Contact Us For Availability
5
VALVE, WATER MAY W10420082 Contact Us For Availability
5A
BUCKET, SMALL MAY 12801901V Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
MAY C3680310 MAY C3680310 Contact Us For Availability
6
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
6
CLIP, HANDLE MOUNT MAY 2255411 Contact Us For Availability
6
MAY W10294014 MAY W10294014 Contact Us For Availability
6
MAY 12463608 MAY 12463608 Contact Us For Availability
6
MAY W10378255 MAY W10378255 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
RAIL, SIDE (LEFT HAND) MAY W10284694 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10290745 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7
MAY W10377174 MAY W10377174 Contact Us For Availability
7A
RAIL, SIDE (RIGHT HAND) MAY W10284695 Contact Us For Availability
8
MAY W10216614 MAY W10216614 Contact Us For Availability
8
MAY 12990521 MAY 12990521 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY W10443309 MAY W10443309 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
8A
MAY W10436245 MAY W10436245 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
DAMPER, CONTROL MAY W10196393 Contact Us For Availability
9
BULB, LIGHT MAY W10311527 Contact Us For Availability
9
SCREW MAY W10216919 Contact Us For Availability
9
MAY W10241046 MAY W10241046 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER MAY W10300025 Contact Us For Availability
10
MAY 12990504 MAY 12990504 Contact Us For Availability
10
MAY 12477601W MAY 12477601W Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
HEATER, EVAPORATOR MAY 12729127 Contact Us For Availability
10
MAY W10146440 MAY W10146440 Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
10A
MAY 12477601B MAY 12477601B Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308414 MAY W10308414 Contact Us For Availability
11
MAY 10447111 MAY 10447111 Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
11A
STOP, DOOR (BLACK) MAY 10447112 Contact Us For Availability
12
MAY 12990101 MAY 12990101 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY W10170766 MAY W10170766 Contact Us For Availability
12
MAY W10330834 MAY W10330834 Contact Us For Availability
12
MAY 12656504V MAY 12656504V Contact Us For Availability
12
STRIPPER, ICE MAY W10122563 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY W10330994 MAY W10330994 Contact Us For Availability
13
MAY 12557904 MAY 12557904 Contact Us For Availability
13
MAY 10623002 MAY 10623002 Contact Us For Availability
13
MAY 12656601V MAY 12656601V Contact Us For Availability
13
MAY 10463203 MAY 10463203 Contact Us For Availability
13A
MAY W10330995 MAY W10330995 Contact Us For Availability
13A
MAY 12656602V MAY 12656602V Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MAY 12028505W MAY 12028505W Contact Us For Availability
14
ROLLER MAY 12477102 Contact Us For Availability
14
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
14A
MAY 12028505B MAY 12028505B Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 2255743N MAY 2255743N Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
MAY W10281329 MAY W10281329 Contact Us For Availability
15
MAY 12990302V MAY 12990302V Contact Us For Availability
15
MAY W10290336 MAY W10290336 Contact Us For Availability
15A
MAY 12607104ED MAY 12607104ED Contact Us For Availability
16
MAY 12566606ED MAY 12566606ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
16
MAY 12531305 MAY 12531305 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12932103 MAY 12932103 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
17
MAY 12227302WD MAY 12227302WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
17A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
18
CLAMP, TUBE MAY M0108107 Contact Us For Availability
18
MAY W10280608 MAY W10280608 Contact Us For Availability
18
MAY W10346423 MAY W10346423 Contact Us For Availability
18
MAY 12530901SP MAY 12530901SP Contact Us For Availability
18
MAY W10458985 MAY W10458985 Contact Us For Availability
18A
MAY W10280613 MAY W10280613 Contact Us For Availability
19
ASSEMBLY, ROLLER (LEFT HAND) MAY W10275850 Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
19
MAY W10189184 MAY W10189184 Contact Us For Availability
19
MAY 12204823N MAY 12204823N Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
19A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10275849 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY A3189397 MAY A3189397 Contact Us For Availability
20
MAY W10292801 MAY W10292801 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER #20) MAY N/P Contact Us For Availability
21
MAY W10210978 MAY W10210978 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT HAND) MAY W10284684 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251970 MAY W10251970 Contact Us For Availability
21A
ADAPTER, SLIDE (RIGHT HAND) MAY W10284685 Contact Us For Availability
22
MAY W10236649 MAY W10236649 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY W10317012 MAY W10317012 Contact Us For Availability
22
MAY 12812906WD MAY 12812906WD Contact Us For Availability
22
MAY W10001240 MAY W10001240 Contact Us For Availability
22A
MAY W10236650 MAY W10236650 Contact Us For Availability
23
MAY 12820505 MAY 12820505 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
MAY W10149389N MAY W10149389N Contact Us For Availability
23A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
24
MAY W10210987 MAY W10210987 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
MAY W10348259 MAY W10348259 Contact Us For Availability
24A
MAY W10348260 MAY W10348260 Contact Us For Availability
25
MAY W10150583 MAY W10150583 Contact Us For Availability
25
MAY W10474716 MAY W10474716 Contact Us For Availability
25A
MAY W10474715 MAY W10474715 Contact Us For Availability
26
MAY 13062901 MAY 13062901 Contact Us For Availability
26
HARNESS, UNIT (INCLUDES POWER CORD) MAY W10234024 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
DRIER MAY W10143759 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10445422 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
100
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10469286 Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY 12868701 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, EVAPORATOR REPAIR (ALUMIN MAY 799833 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
