Model Maytag MBF1952VEW1 REFRIGERATOR – Common Parts & Diagrams

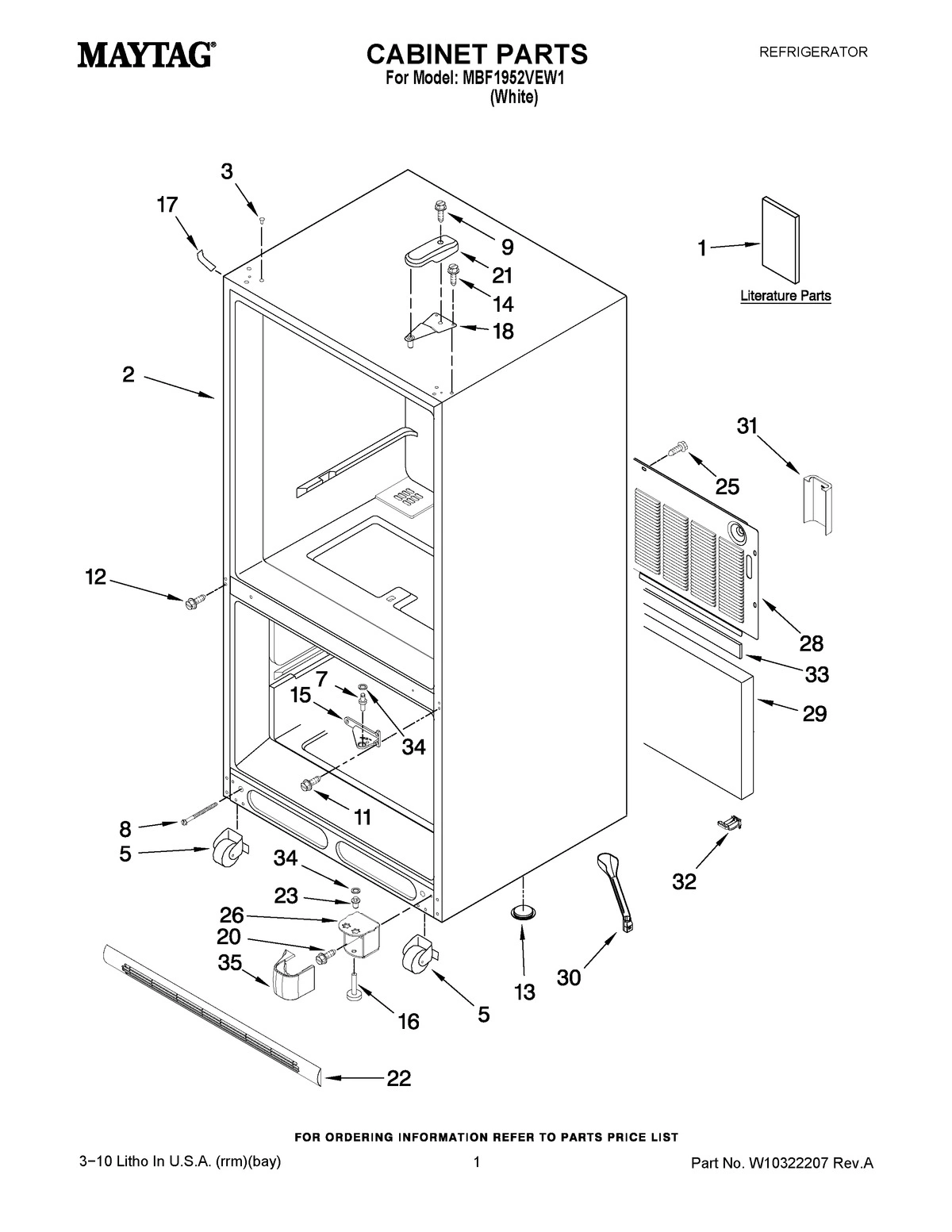

01 - CABINET PARTS

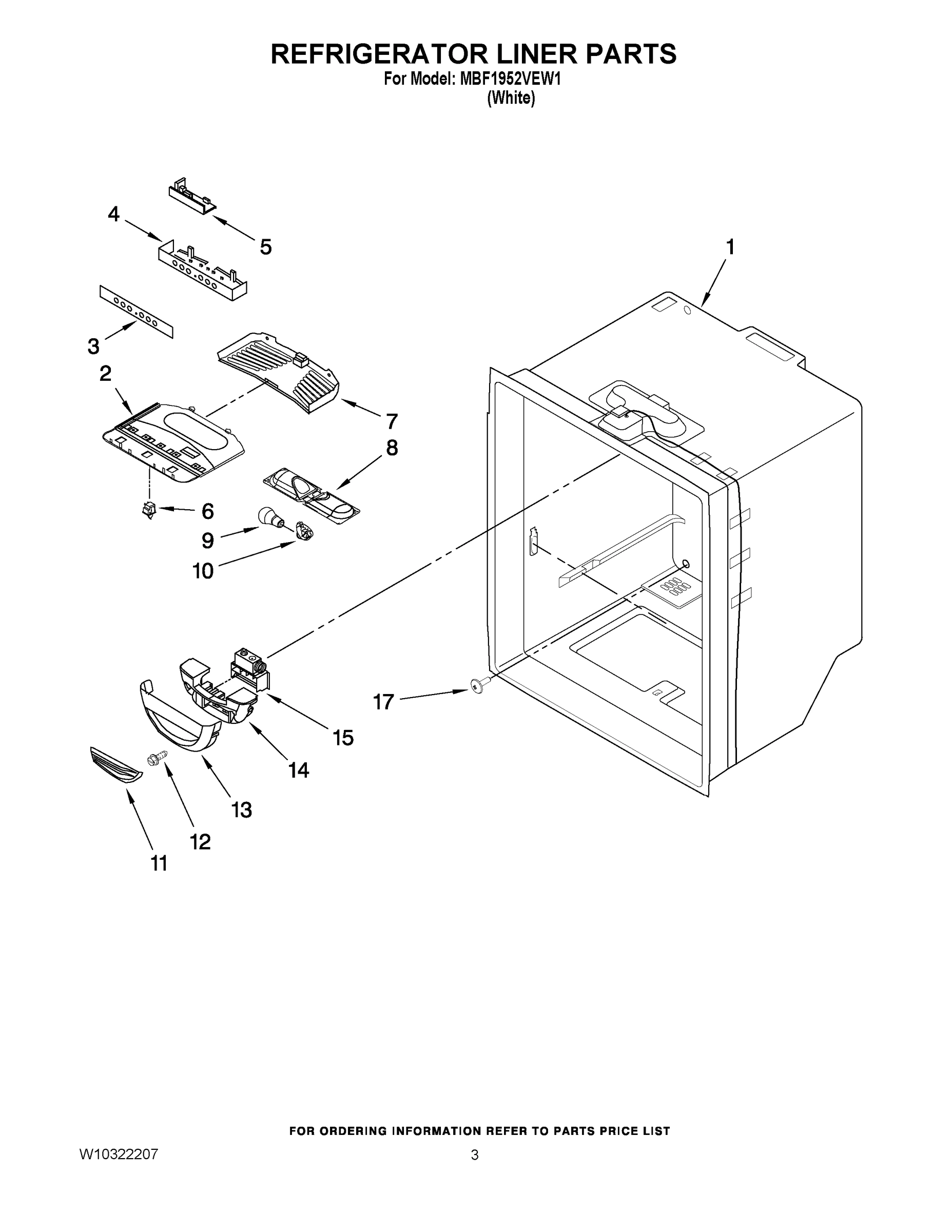

02 - REFRIGERATOR LINER PARTS

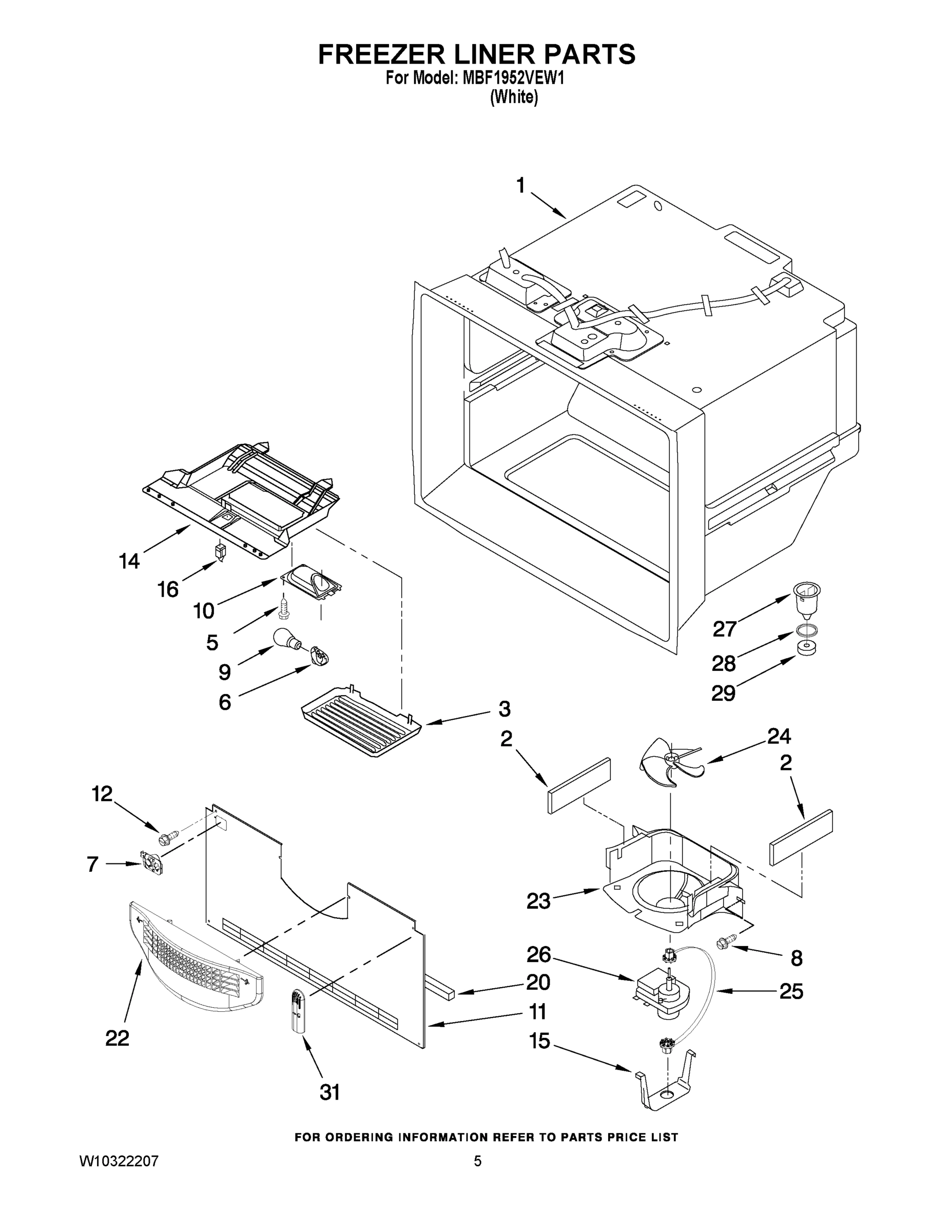

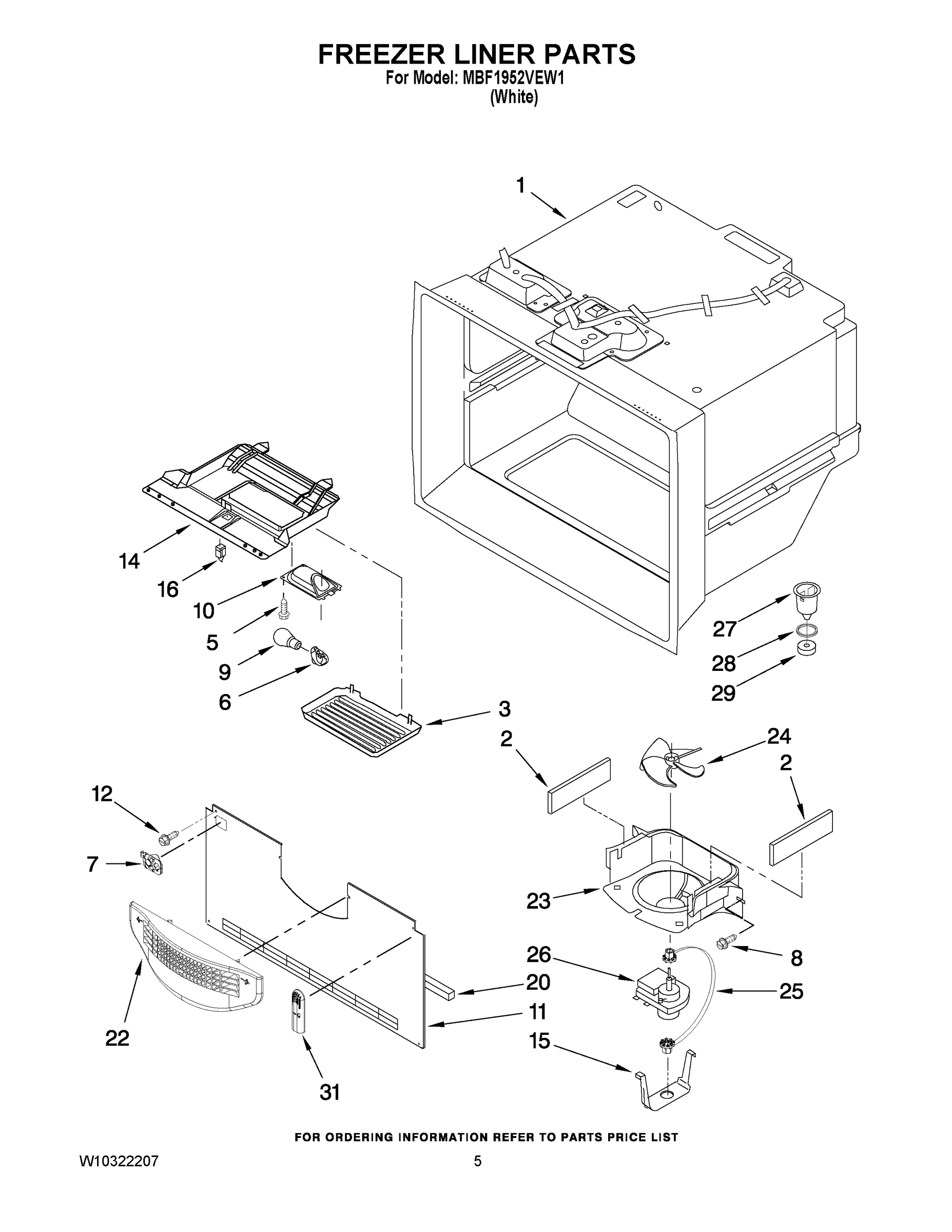

03 - FREEZER LINER PARTS

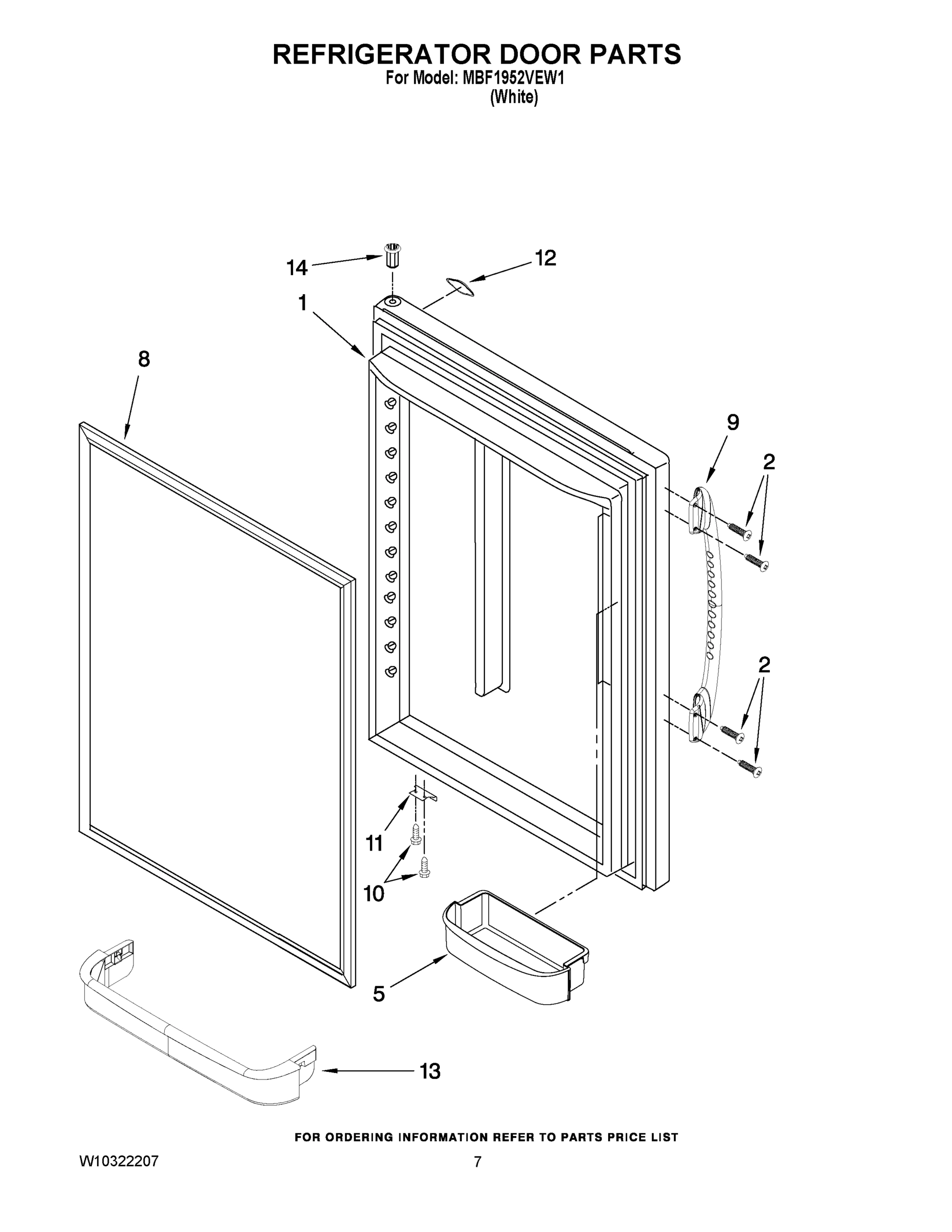

04 - REFRIGERATOR DOOR PARTS

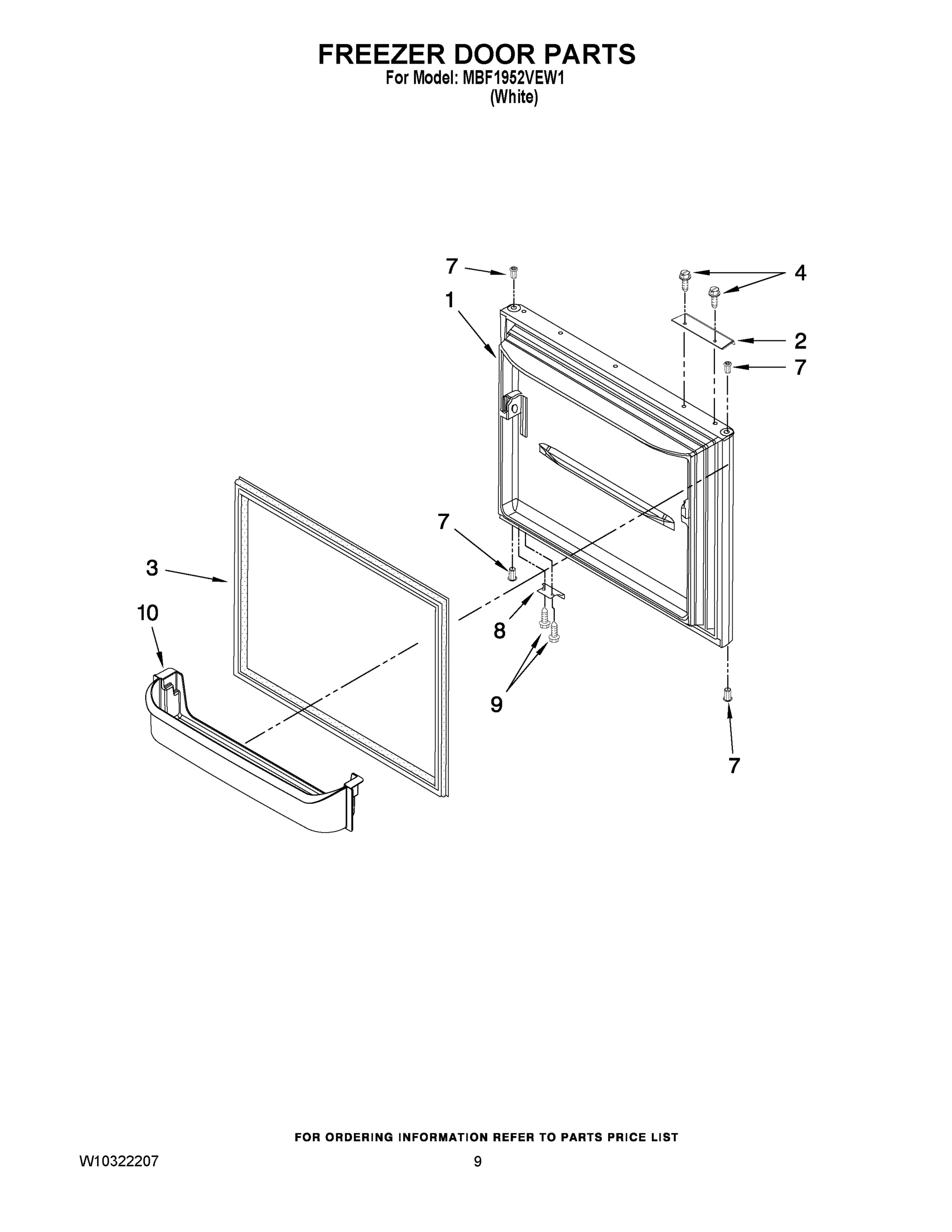

05 - FREEZER DOOR PARTS

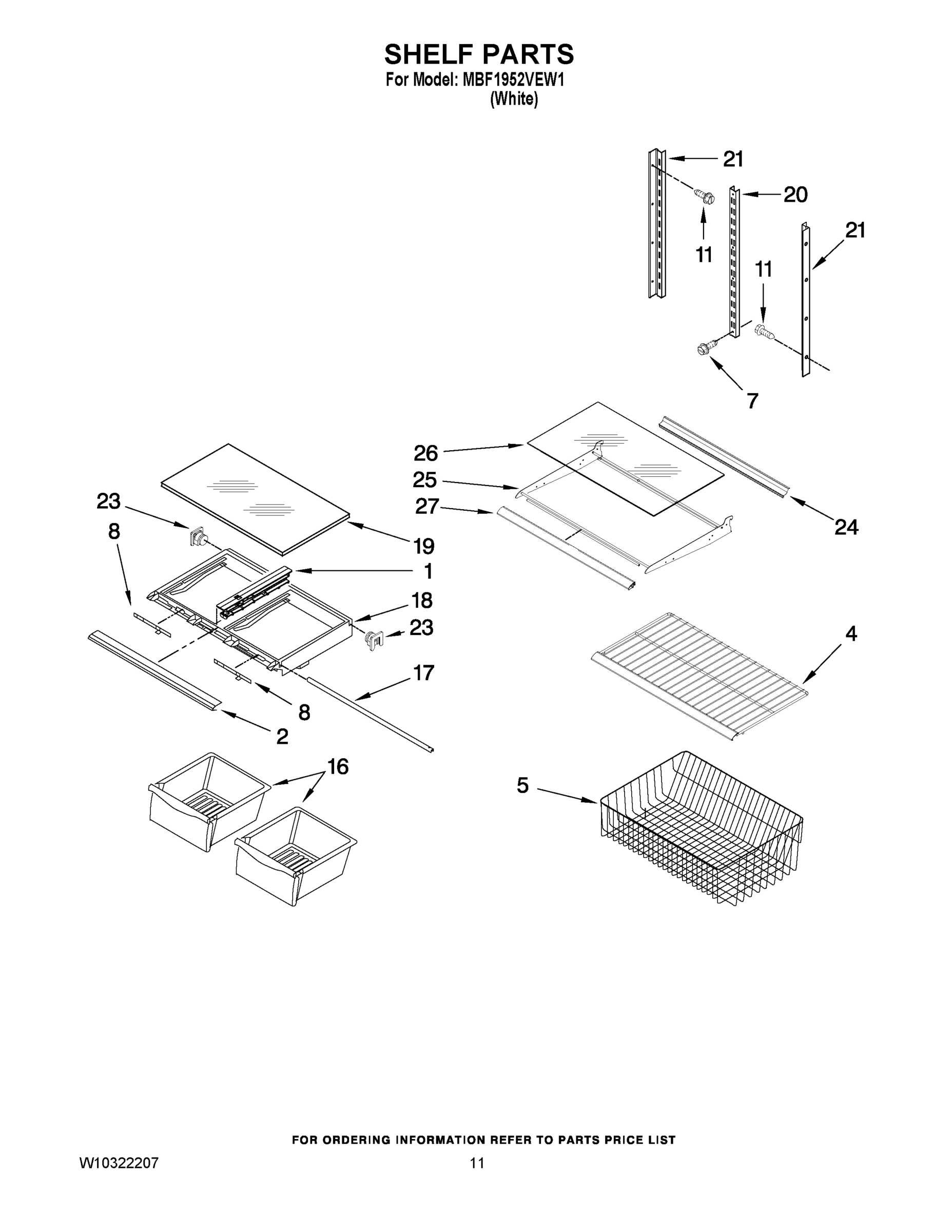

06 - SHELF PARTS

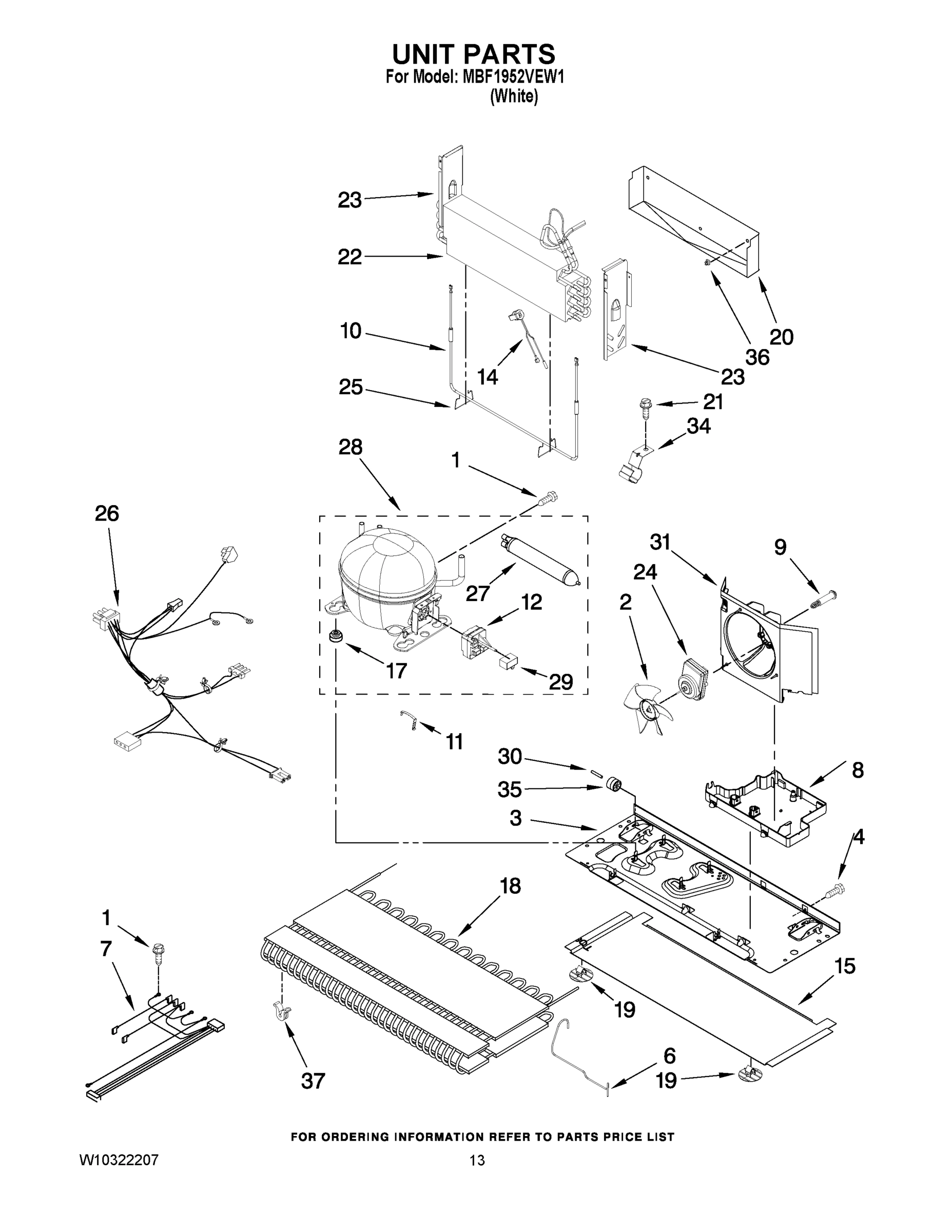

07 - UNIT PARTS

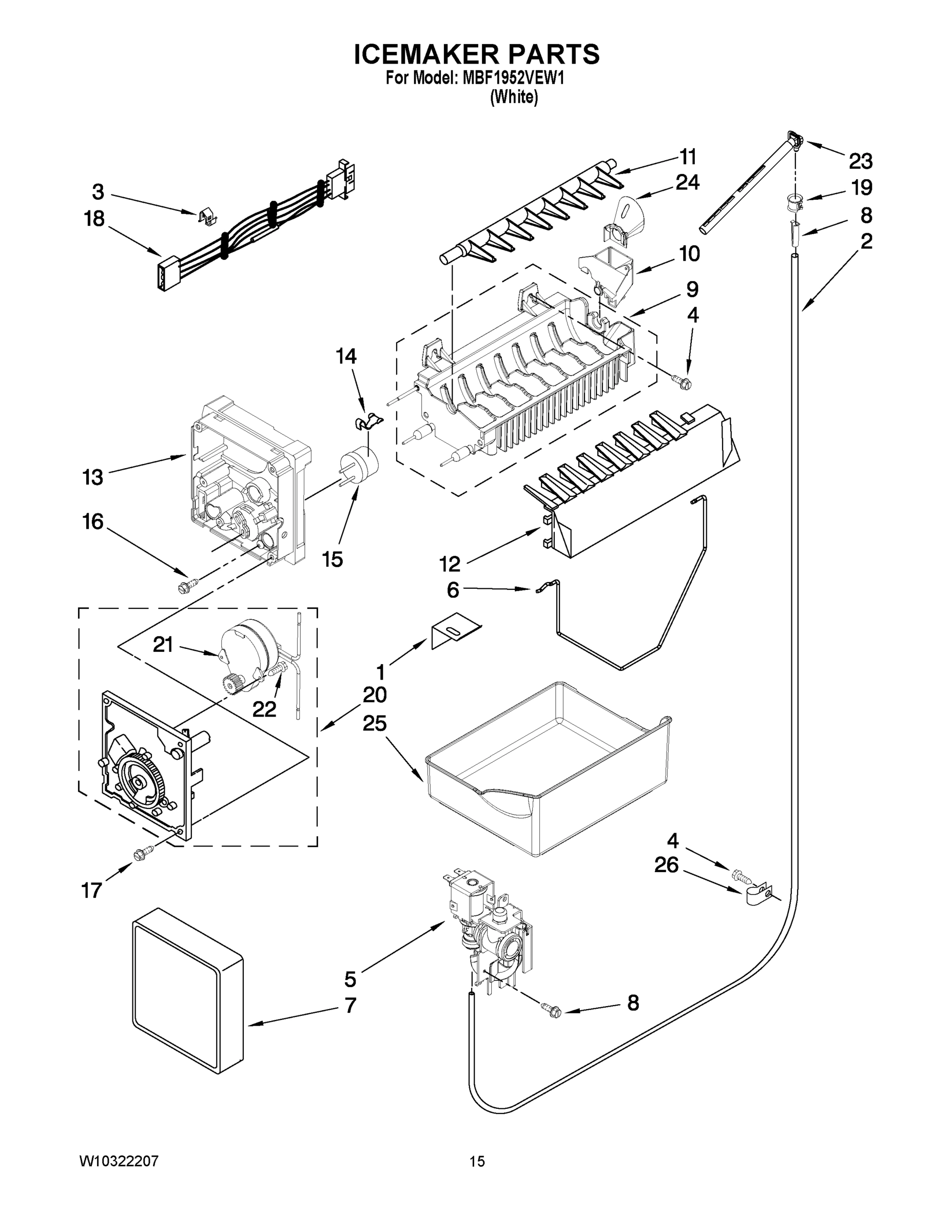

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MBF1952VEW1 REFRIGERATOR
1
MAY 12658529WQ MAY 12658529WQ Contact Us For Availability
1
DOOR, FREEZER (WHITE) MAY 13024224WQ Contact Us For Availability
1
Rail, Center Crisper MAY 12530701 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
GASKET, FOAM (2) (INCLUDES RH & LH) MAY A3189392 Contact Us For Availability
2
SCREW, HANDLE MAY 12990203SP Contact Us For Availability
2
MAY 12610803W MAY 12610803W Contact Us For Availability
2
MAY W10231481 MAY W10231481 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
3
MAY M0310729 MAY M0310729 Contact Us For Availability
3
Overlay MAY W10207257 Contact Us For Availability
3
COVER-FZ LIGHT MAY 12804901 Contact Us For Availability
3
MAY W10164032 MAY W10164032 Contact Us For Availability
3
MAY W10210982 MAY W10210982 Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
SCREW, HANDLE MAY 12990301 Contact Us For Availability
4
MAY 12476801 MAY 12476801 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
MAY 12580304 MAY 12580304 Contact Us For Availability
5
MAY 12868513 MAY 12868513 Contact Us For Availability
5
MAY 12991603V MAY 12991603V Contact Us For Availability
5
BUCKET, DOOR (SMALL (2)) MAY 12557202 Contact Us For Availability
5
BUCKET, DOOR (MEDIUM (2)) MAY 12557204V Contact Us For Availability
5
MAY W10219716 MAY W10219716 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
Socket, Light MAY 12570701V Contact Us For Availability
6
MAY W10217744 MAY W10217744 Contact Us For Availability
6
ARM-SHUT OFF MAY W10202524 Contact Us For Availability
7
MAY 10351005 MAY 10351005 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12932103 MAY 12932103 Contact Us For Availability
7
BUSHING (4) (WHITE) MAY 10961006W Contact Us For Availability
7
Screw MAY 12990515 Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10292244 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
Bolt, Adjusting (Rear) MAY 12606103 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door (White) MAY W10164030 Contact Us For Availability
8
MAY 10447111 MAY 10447111 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY 2255743N MAY 2255743N Contact Us For Availability
9
MAY 12990504 MAY 12990504 Contact Us For Availability
9
MAY 12781004W MAY 12781004W Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
FOIL, HOUSING MAY 12476401V Contact Us For Availability
10
RETAINER, DOOR SHELF MAY 12737501 Contact Us For Availability
10
MAY 12729127 MAY 12729127 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
Screw (3) MAY 12992201 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308414 MAY W10308414 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
MAY 2320150 MAY 2320150 Contact Us For Availability
12
MAY W10136414 MAY W10136414 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY 12690501 MAY 12690501 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12805001 MAY 12805001 Contact Us For Availability
14
MAY 12639324SP MAY 12639324SP Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY W10196393 MAY W10196393 Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10206336 MAY W10206336 Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC MAY 628397 Contact Us For Availability
16
Foot Brake (2) MAY 10354002 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12531305 MAY 12531305 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
BRACE, CRISPER MAY 12227302WD Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY 12566606ED MAY 12566606ED Contact Us For Availability
18
MAY 12530901SP MAY 12530901SP Contact Us For Availability
18
MAY W10135028 MAY W10135028 Contact Us For Availability
18
MAY D7813011 MAY D7813011 Contact Us For Availability
19
GLASS, CRISPER COVER MAY 12204823 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189397 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
MAY W10292801 MAY W10292801 Contact Us For Availability
20
MODULE ASSEMBLY (INCLUDES ITEMS 21& 22) MAY W10223929 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER No.20) MAY N/P Contact Us For Availability
21
MAY 12477601W MAY 12477601W Contact Us For Availability
21
MAY W10251970 MAY W10251970 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
MAY 12734404W MAY 12734404W Contact Us For Availability
22
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
22
MAY 12726401 MAY 12726401 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
MAY 10200802 MAY 10200802 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY 10463203SP MAY 10463203SP Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
TRIM, REAR MAY 10946012V Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
Grommet (2) MAY W10121318 Contact Us For Availability
25
FRAME, SHELF MAY 10460116V Contact Us For Availability
25
MAY 12695001V MAY 12695001V Contact Us For Availability
26
MAY 12465002WD MAY 12465002WD Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
GLASS, SHELF MAY 12204808V Contact Us For Availability
26
MAY W10234024 MAY W10234024 Contact Us For Availability
26
MAY M0108107 MAY M0108107 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. No. 28 & 29) MAY D7753903 Contact Us For Availability
27
TRIM-FRONT, MAY W10231328K Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY W10210978 MAY W10210978 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 2 MAY W10130129 Contact Us For Availability
29
Insulation, Sound MAY 12820505 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
30
MAY W10210987 MAY W10210987 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
GUARD-WATER VALVE MAY W10208592 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
MAY W10216614 MAY W10216614 Contact Us For Availability
33
MAY B5759655 MAY B5759655 Contact Us For Availability
34
MAY M0274057 MAY M0274057 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
MAY 12561901W MAY 12561901W Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
100
MAY W10190978 MAY W10190978 Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES TH MAY 12868701 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
