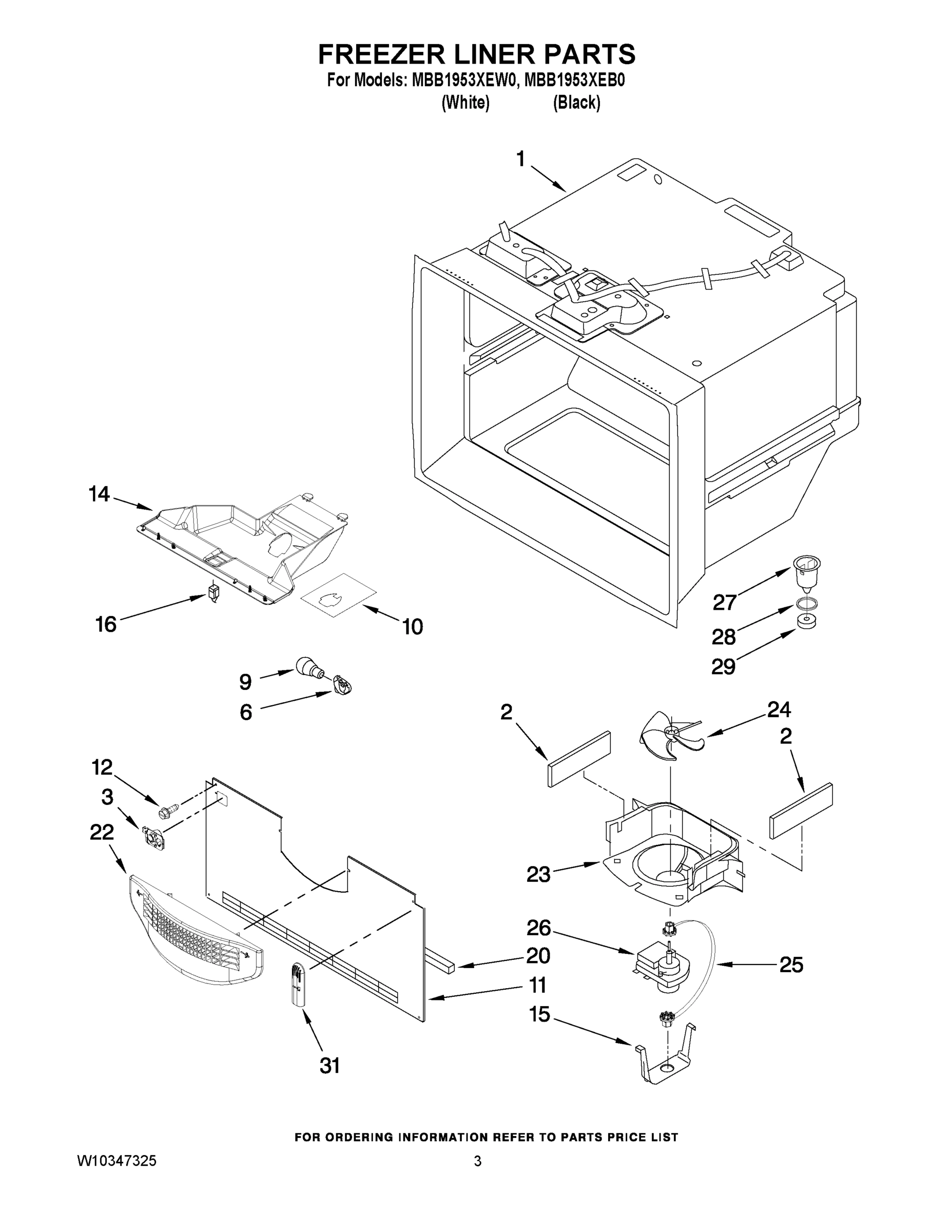

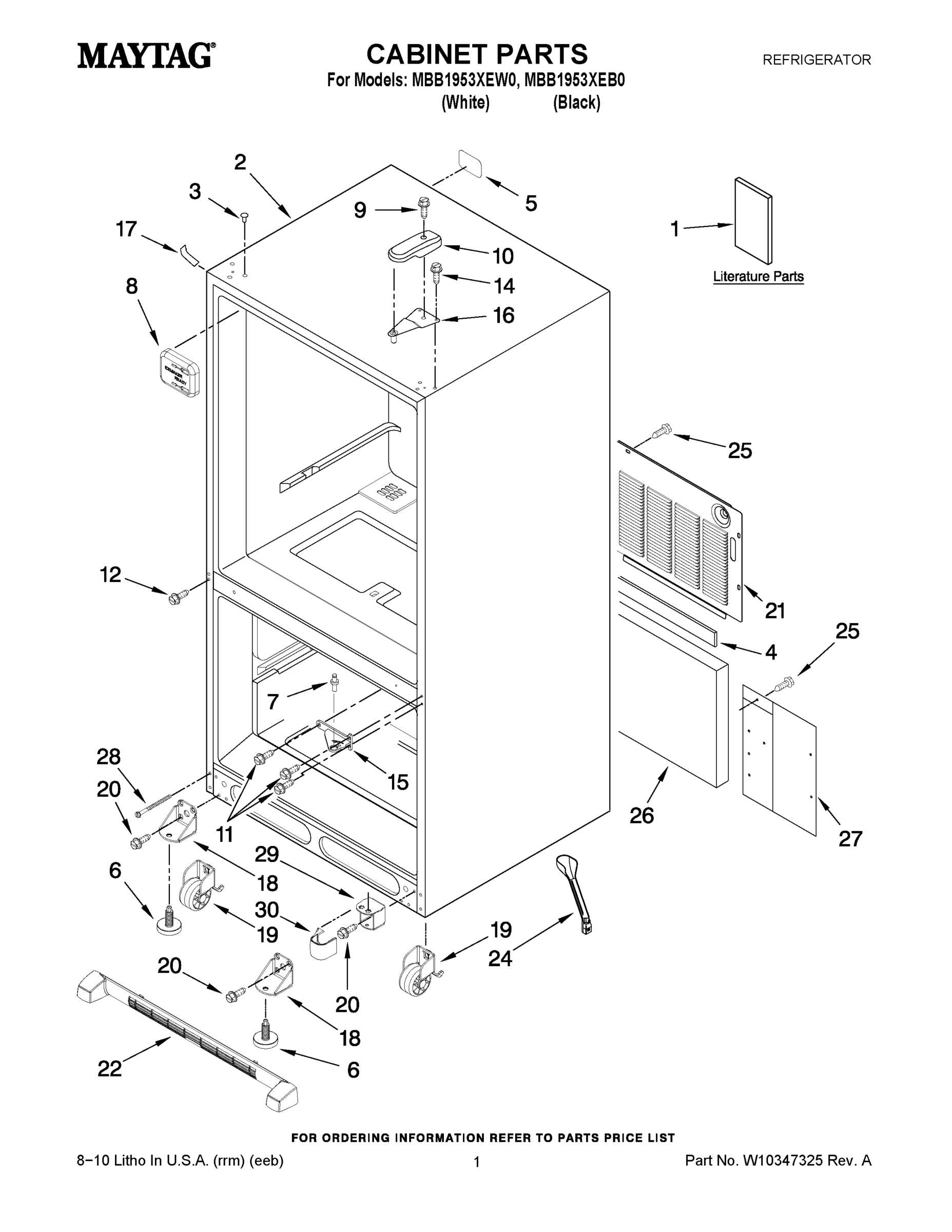

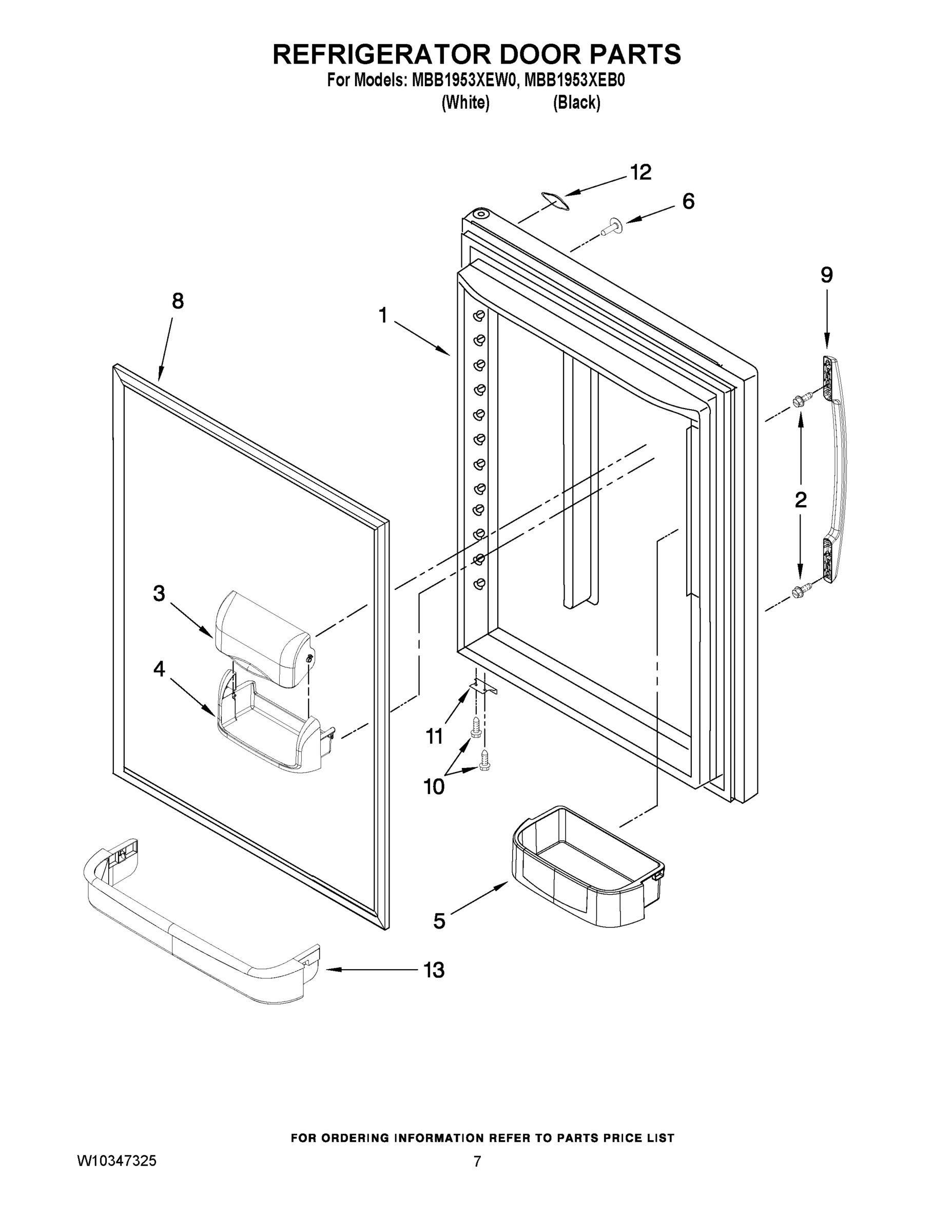

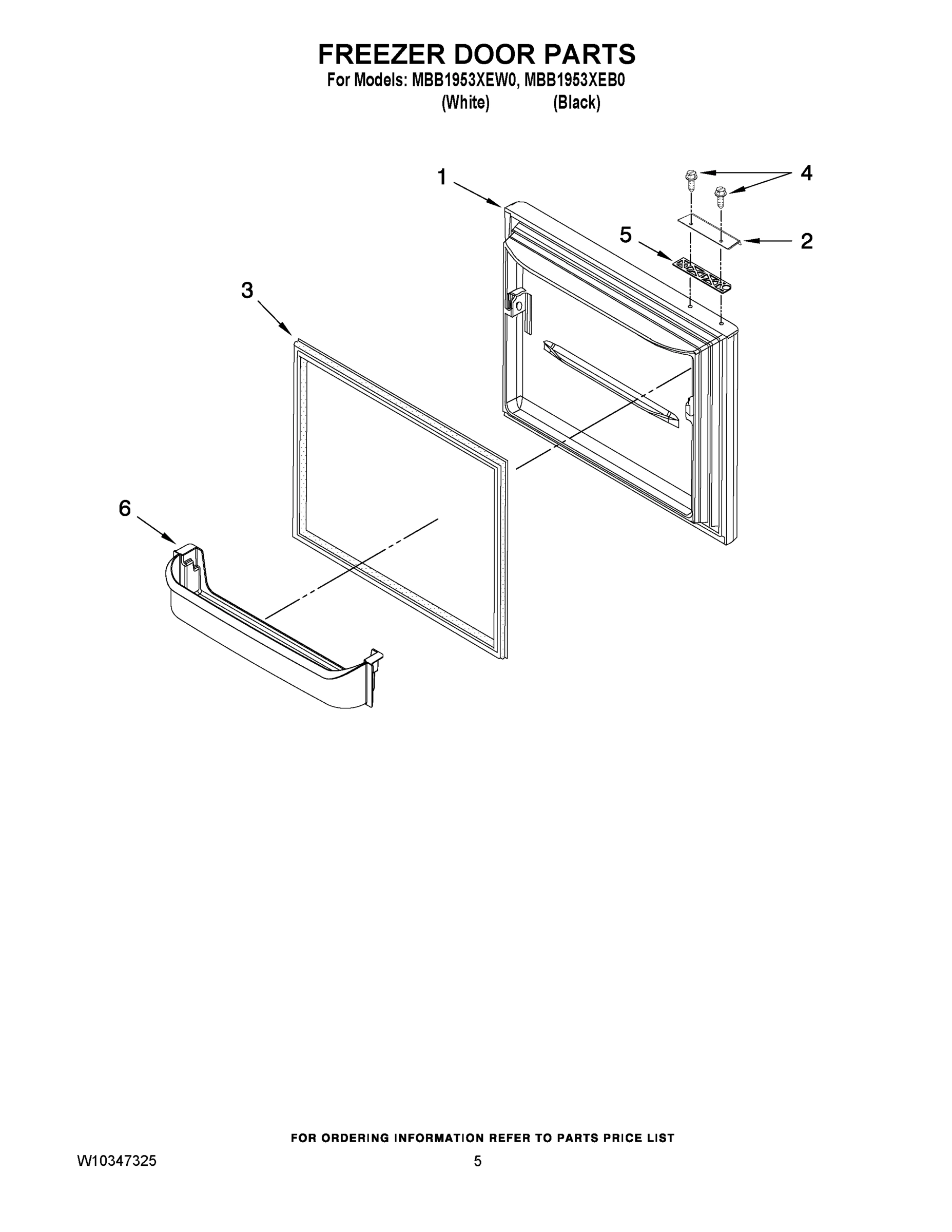

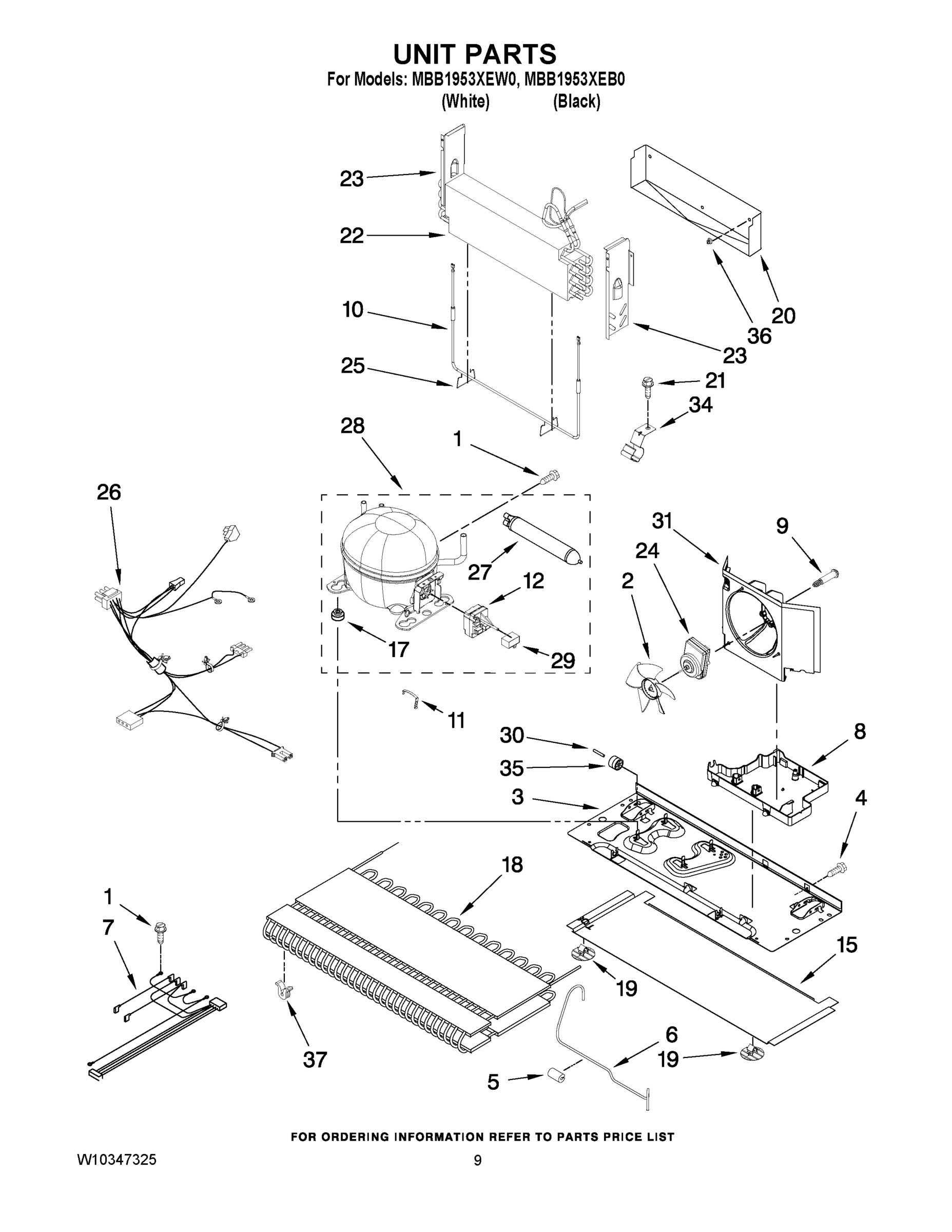

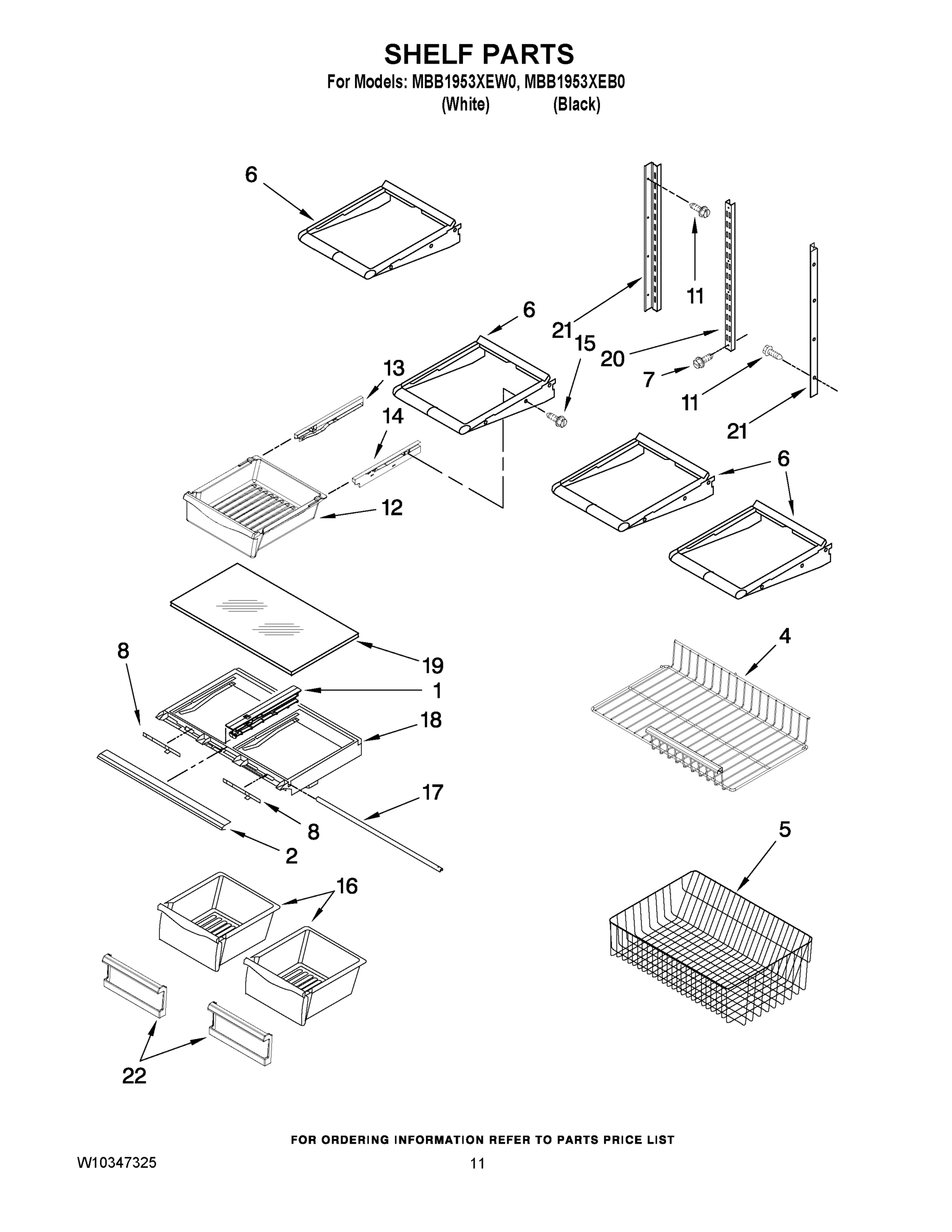

Model Whirlpool MBB1953XEW0 REFRIGERATOR – Common Parts &amp; Diagrams

1

DOOR, FREEZER (BLACK) WPL 13024224B Contact Us For Availability

1

DOOR, FREEZER (WHITE) WPL 13024224W Contact Us For Availability

2

W10738327 Whirlpool Refrigerator Handle Backorder WPL W10738327 $54.50

2

W10738329 Whirlpool Refrigerator Handle Backorder WPL W10738329 $55.68

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $39.44

2

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.65

2

TRIM, CRISPER WPL W10231339 Contact Us For Availability

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $64.11

3

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $224.68

3

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $124.04

3

Overlay WPL W10207257 Contact Us For Availability

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

4

B5759655 Whirlpool Refrigerator Gasket Backorder WPL B5759655 $7.81

4

W11240743 Whirlpool Refrigerator Screw Backorder WPL W11240743 $9.75

4

SHELF, STATIONARY WPL 12476801 Contact Us For Availability

5

12647901B Whirlpool Refrigerator Spacer Backorder WPL 12647901B $8.69

5

12647901W Whirlpool Spacer Backorder WPL 12647901W $9.02

5

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

6

67003397 Whirlpool Refrigerator Door Retainer Backorder WPL 67003397 $57.81

6

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $133.70

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

Tube, Discharge WPL W10217744 Contact Us For Availability

7

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.75

7

W11260592 Whirlpool Refrigerator Wire Harness In Stock WPL W11260592 $32.46

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $61.07

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.10

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $31.40

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.94

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.94

WP12729127 Whirlpool Refrigerator Heater In Stock WPL WP12729127 $73.03

11

W11092534 Whirlpool Refrigerator Clip Backorder WPL W11092534 $4.46

11

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP2320150 Whirlpool Refrigerator Start Device In Stock WPL WP2320150 $63.98

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.55

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $32.53

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $63.69

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $42.80

14

W11750607 Whirlpool Insulation Backorder WPL W11750607 $20.70

14

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $59.16

CLIP, EVAP. MOTOR WPL 13058002 No Longer Available

W10206336 Whirlpool Refrigerator Extension Backorder WPL W10206336 $29.65

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $28.46

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $53.74

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $75.12

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.30

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.94

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.94

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $38.99

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

18

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $33.81

18

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $102.91

19

W10206339 Whirlpool Fastener Backorder WPL W10206339 $4.78

19

Roller Assembly WPL 12580304 Contact Us For Availability

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.51

20

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.57

20

TRAY, DRIP WPL W10292801 Contact Us For Availability

21

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $85.85

21

W10251970 Whirlpool Refrigerator Ladder Backorder WPL W10251970 $12.11

21

Screw WPL 12992101 Contact Us For Availability

22

GRILLE, TOE (BLACK) WPL 12734404B Contact Us For Availability

22

GRILLE, TOE (WHITE) WPL 12734404W Contact Us For Availability

22

Evaporator WPL 12726401 Contact Us For Availability

23

DAM (LEFT SIDE) WPL 12225602 Contact Us For Availability

23

Dam (Right Side) WPL 12225702 Contact Us For Availability

24

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $22.05

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $53.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $30.88

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $37.53

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $187.82

26

Fiber, Acoustic WPL 12820505 Contact Us For Availability

27

W11684617 Whirlpool Valve Cover Backorder WPL W11684617 $7.53

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

28

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.93

28

COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 2 WPL W10130129 Contact Us For Availability

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

29

HINGE-BOTTOM WH. WPL 12465002WD Contact Us For Availability

29

HINGE-BOTTOM BLK. WPL 12465005ED Contact Us For Availability

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.76

30

COVER-HINGE BLK. WPL 12561901B Contact Us For Availability

30

COVER-HINGE WH. WPL 12561901W Contact Us For Availability

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $30.95

34

W10281329 Whirlpool Clamp Backorder WPL W10281329 $6.70

35

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $10.94

36

Clip, Evap (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.76

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

285006 Whirlpool Spray In Stock WPL 285006 $44.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.52

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.52

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

W11762633 Whirlpool Icemaker In Stock WPL W11762633 $164.71

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (5.25 OZS. (R-134A)) WPL NP Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 799833 Contact Us For Availability
