Model Maytag MBB1952HEB10 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

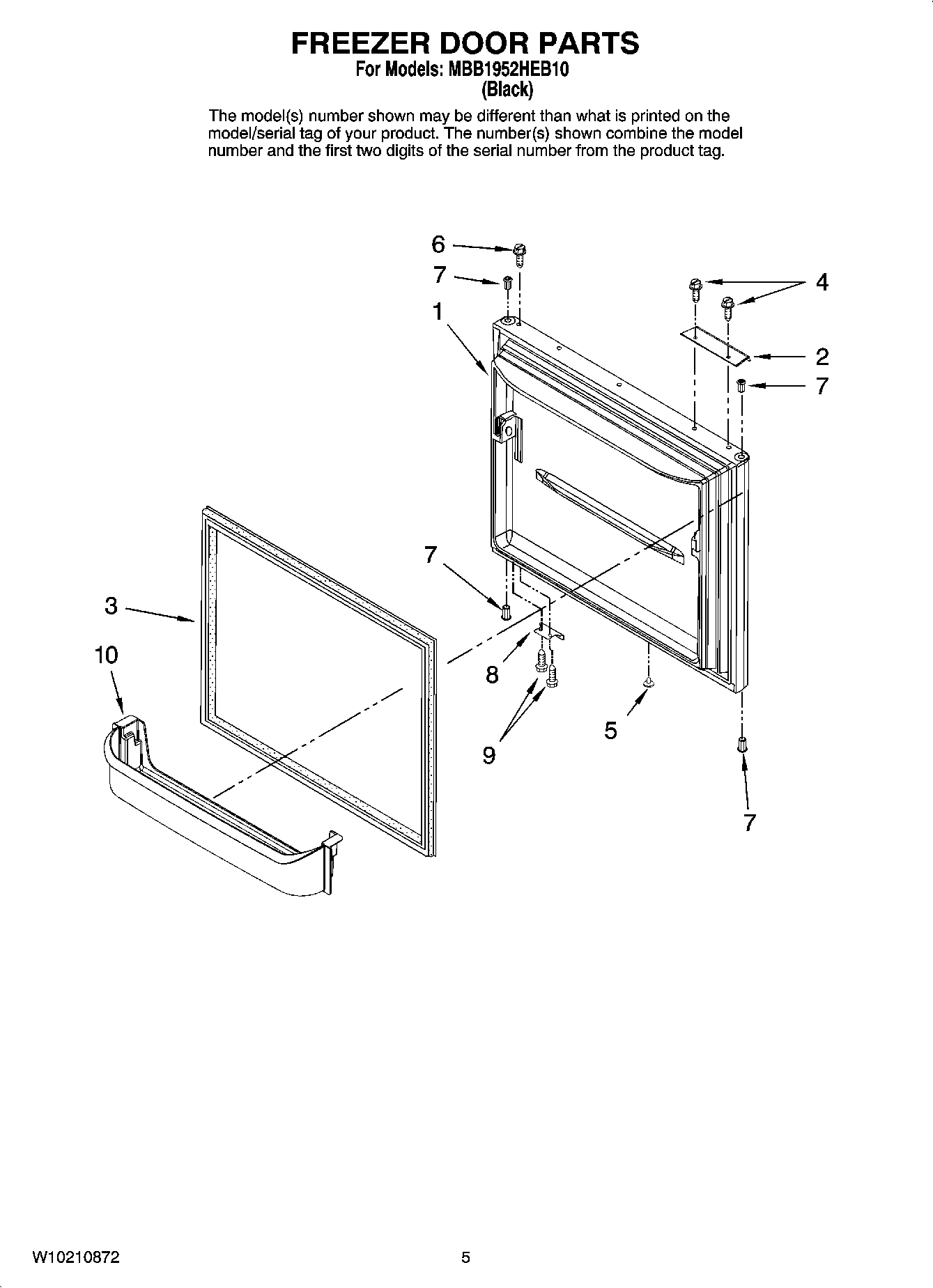

03 - FREEZER DOOR PARTS

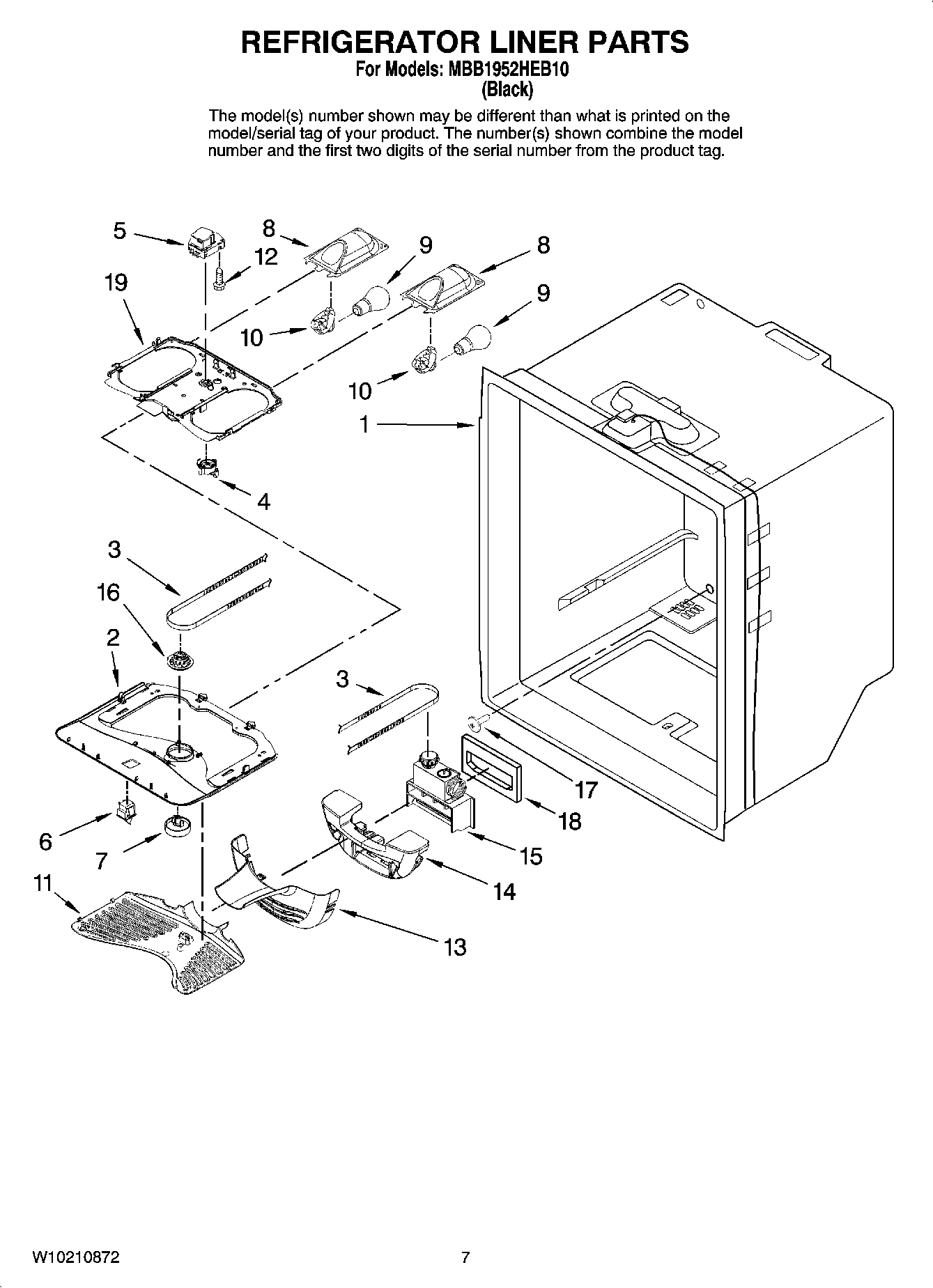

04 - REFRIGERATOR LINER PARTS

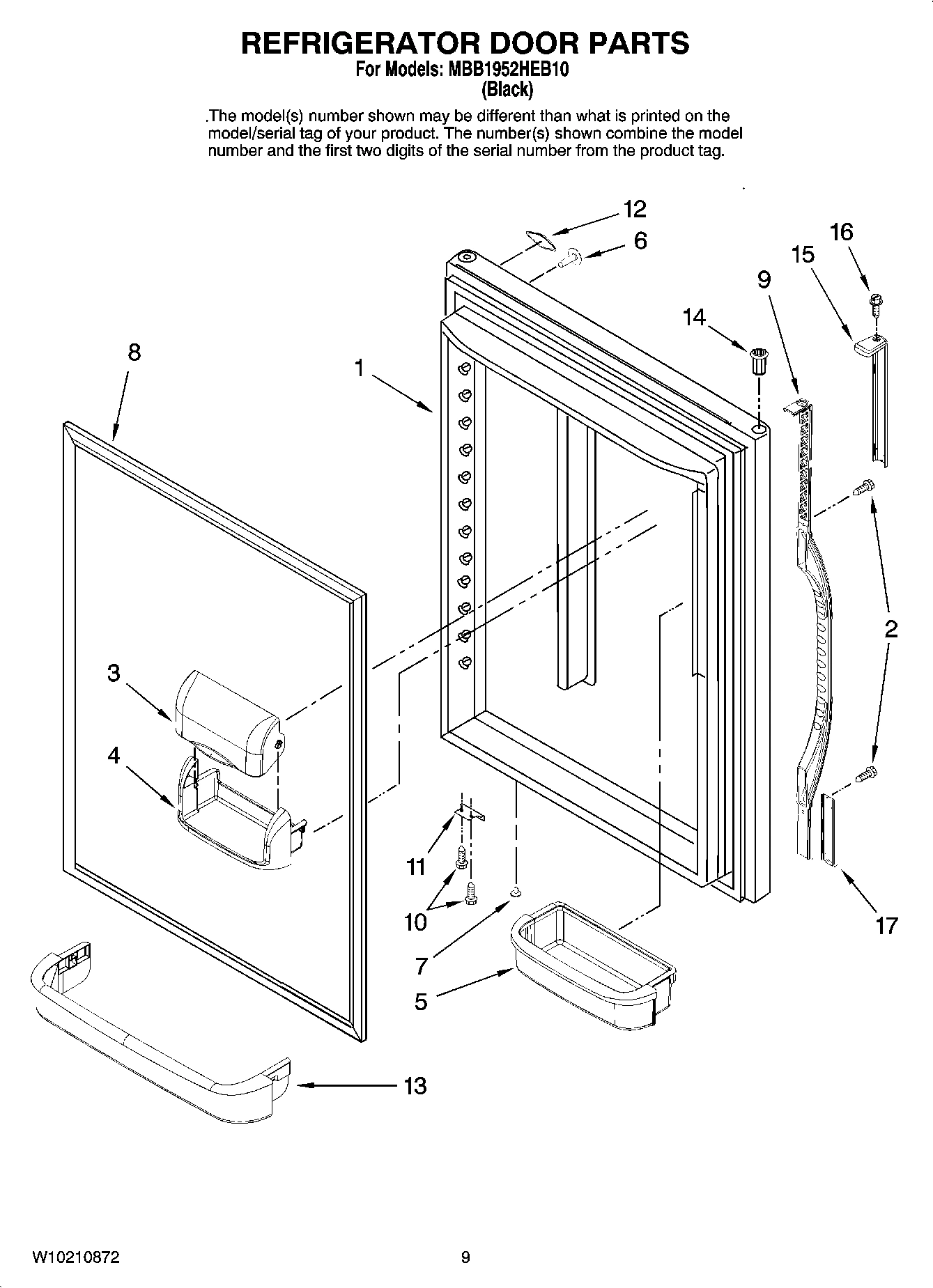

05 - REFRIGERATOR DOOR PARTS

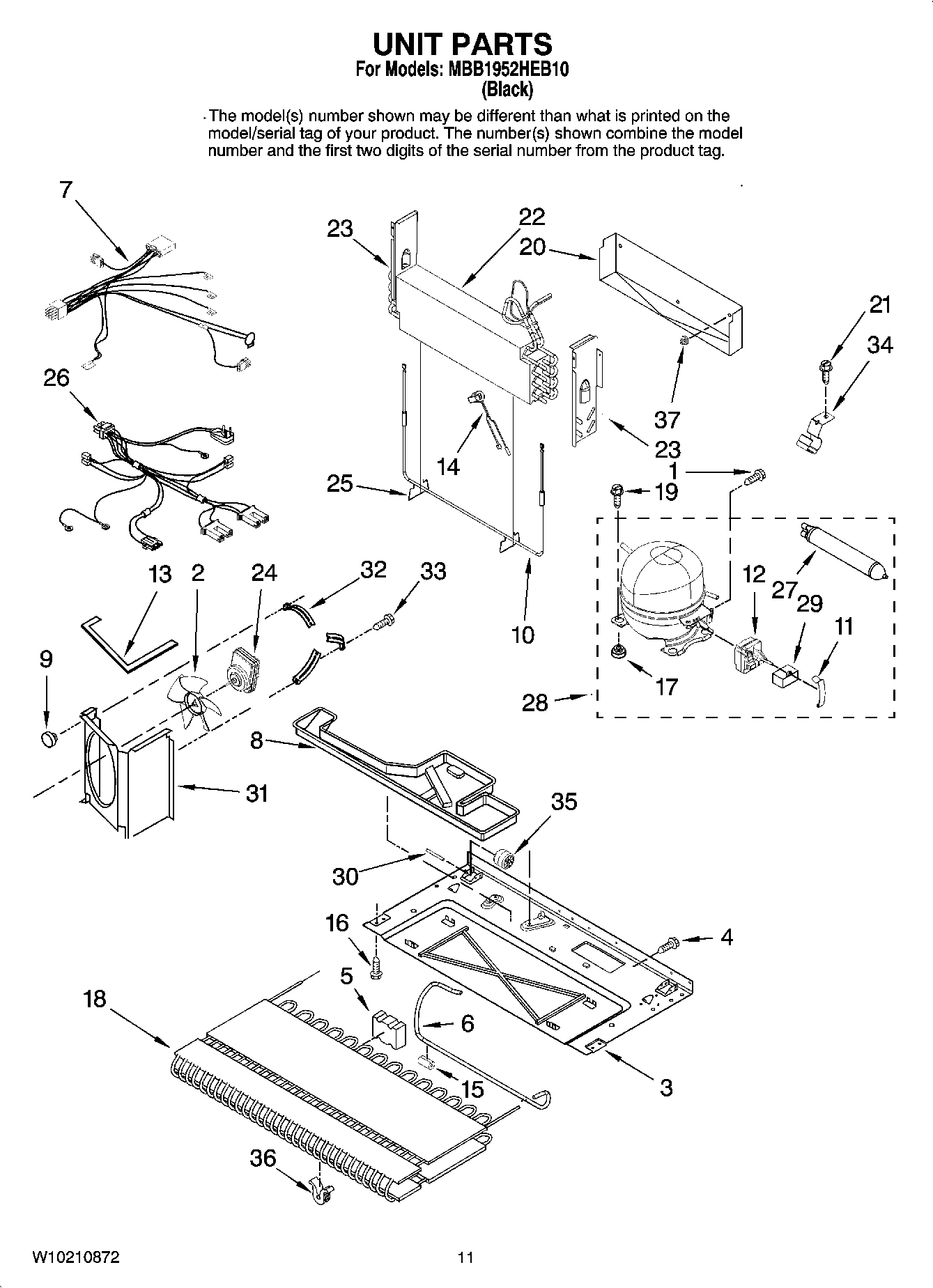

06 - UNIT PARTS

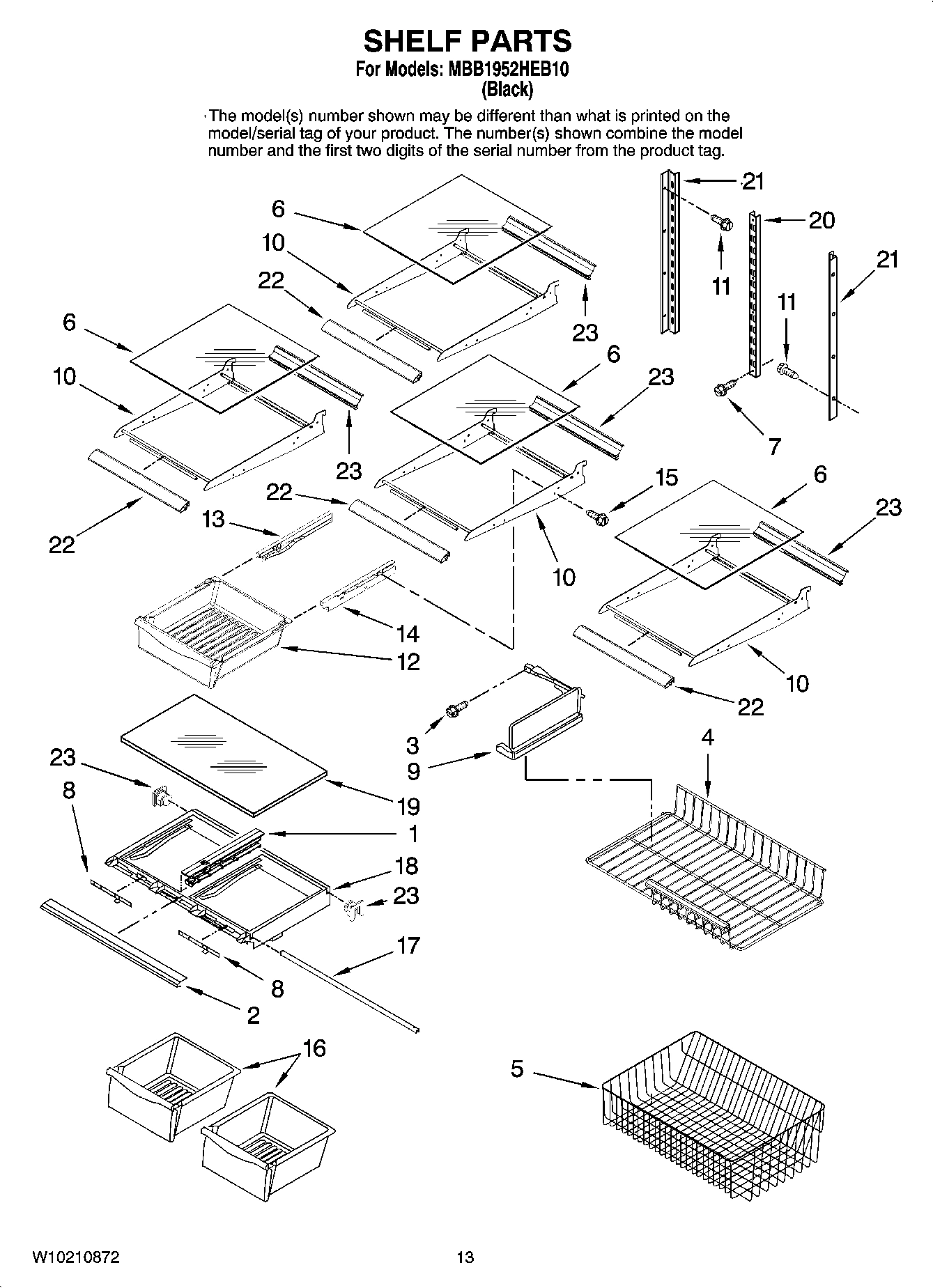

07 - SHELF PARTS, OPTIONAL PARTS
Common parts from model Maytag MBB1952HEB10 REFRIGERATOR
1
MAY 67006433 MAY 67006433 Contact Us For Availability
2
MAY 67003879 MAY 67003879 Contact Us For Availability
2
MAY 67002083 MAY 67002083 Contact Us For Availability
2
Screw-Handle (2) MAY 67006682 Contact Us For Availability
2
MAY W10156818 MAY W10156818 Contact Us For Availability
3
MAY 67001040 MAY 67001040 Contact Us For Availability
3
MAY 12601104 MAY 12601104 Contact Us For Availability
3
MAY 67006608 MAY 67006608 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
Shelf-Freezer MAY 67006231 Contact Us For Availability
5
MAY 67005491 MAY 67005491 Contact Us For Availability
5
MAY W10143565 MAY W10143565 Contact Us For Availability
6
Clip, Grille MAY 12627302 Contact Us For Availability
6
MAY C3680310 MAY C3680310 Contact Us For Availability
6
MAY W10183705 MAY W10183705 Contact Us For Availability
6
MAY 12204808 MAY 12204808 Contact Us For Availability
7
MAY W10119855 MAY W10119855 Contact Us For Availability
8
MAY W10164031 MAY W10164031 Contact Us For Availability
8
MAY 67004713 MAY 67004713 Contact Us For Availability
8
MAY 67005864 MAY 67005864 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
MAY 67003130 MAY 67003130 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
Socket, Light (2) MAY Y12570701 Contact Us For Availability
10
MAY 67003400 MAY 67003400 Contact Us For Availability
11
MAY 67002301 MAY 67002301 Contact Us For Availability
11
MAY W10131991 MAY W10131991 Contact Us For Availability
11
MAY 67006400 MAY 67006400 Contact Us For Availability
12
MAY 12990514 MAY 12990514 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
MAY W10174592 MAY W10174592 Contact Us For Availability
13
MAY 67003878 MAY 67003878 Contact Us For Availability
13
MAY 12690501 MAY 12690501 Contact Us For Availability
14
MAY 67003803 MAY 67003803 Contact Us For Availability
15
MAY 67003410 MAY 67003410 Contact Us For Availability
15
Trim, Handle-Top (Black) MAY 67005132 Contact Us For Availability
16
MAY 12248201 MAY 12248201 Contact Us For Availability
16
MAY 67006573 MAY 67006573 Contact Us For Availability
17
Plug Button White MAY M0310343 Contact Us For Availability
17
Trim-Handle, Bottom (Black) MAY 67005138 Contact Us For Availability
17
MAY W10169124 MAY W10169124 Contact Us For Availability
18
MAY 67001038 MAY 67001038 Contact Us For Availability
18
MAY W10135028 MAY W10135028 Contact Us For Availability
19
PAN, TIMER/LIGHT HOUSING MAY 67002085 Contact Us For Availability
19
Screw MAY 67006432 Contact Us For Availability
20
MAY 67002286 MAY 67002286 Contact Us For Availability
20
MAY 67001133 MAY 67001133 Contact Us For Availability
21
SCREW MAY 67006737 Contact Us For Availability
21
MAY 67001302 MAY 67001302 Contact Us For Availability
22
MAY 12002051 MAY 12002051 Contact Us For Availability
22
Grille, Toe (Includes Clips) (Black) MAY 67003843 Contact Us For Availability
22
MAY 10459930 MAY 10459930 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
23
Trim, Rear Shelf MAY 10946012 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
26
MAY 13060302 MAY 13060302 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
Compressor (Includes items 11,12,17,27,29) MAY W10130129 Contact Us For Availability
29
Cover, Lw Hinge (Black) MAY 12561901B Contact Us For Availability
29
Capacitor MAY 67005562 Contact Us For Availability
31
MAY 12575309 MAY 12575309 Contact Us For Availability
32
MAY 67004953 MAY 67004953 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
36
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
37
MAY 10623002 MAY 10623002 Contact Us For Availability
NI
MAY 67001043 MAY 67001043 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
