Model Maytag MAT25DAAAW WASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - TOP

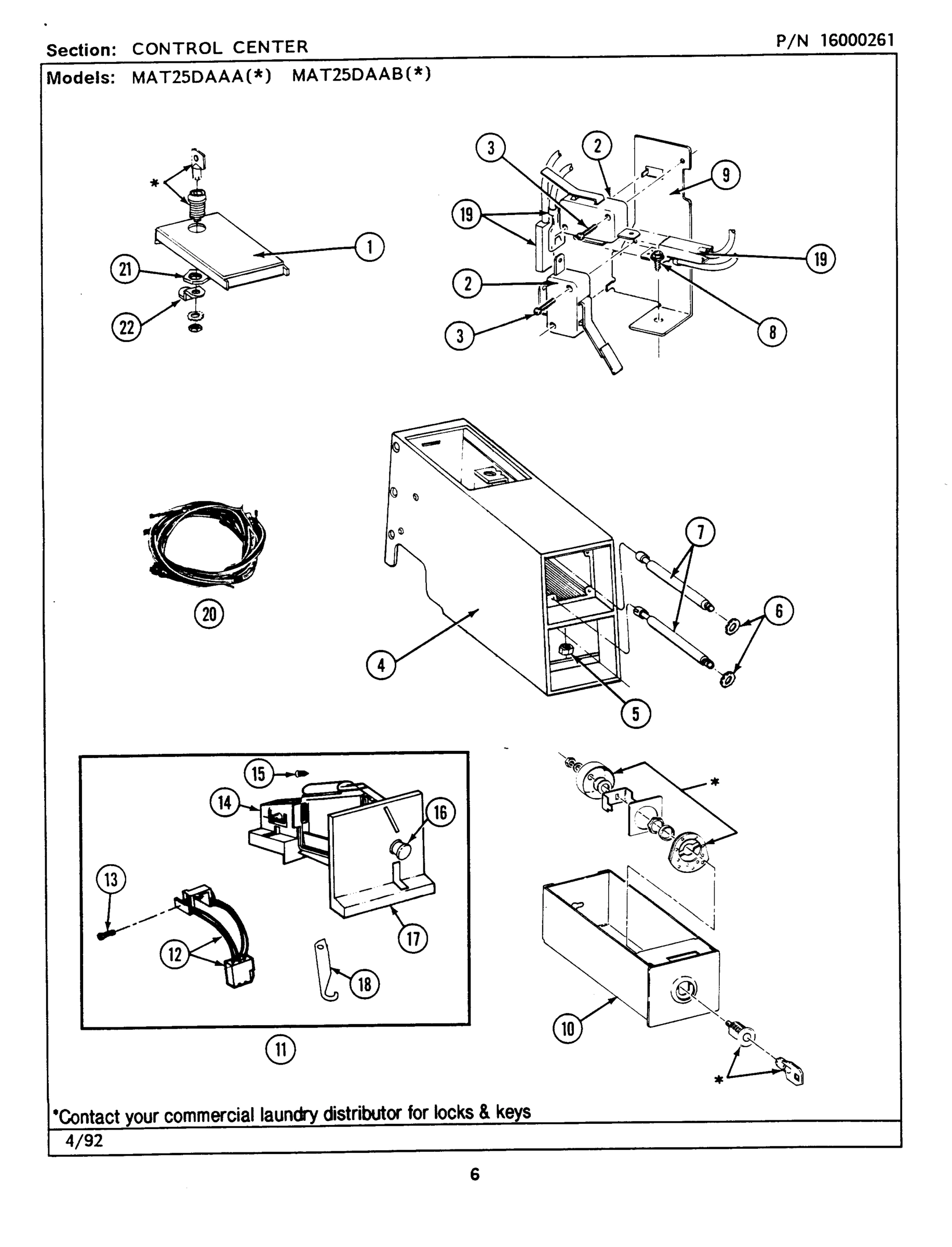

03 - CONTROL CENTER

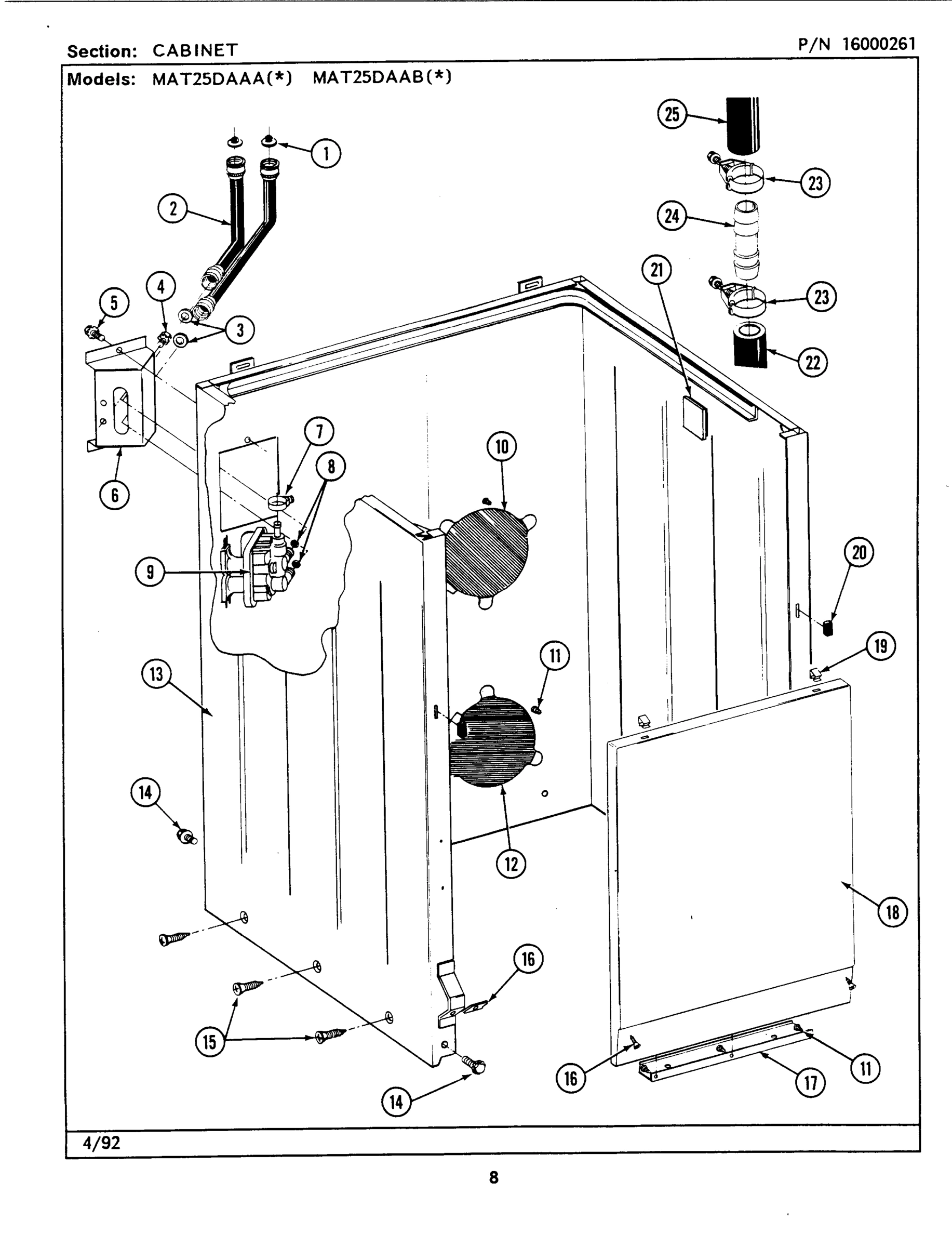

04 - CABINET

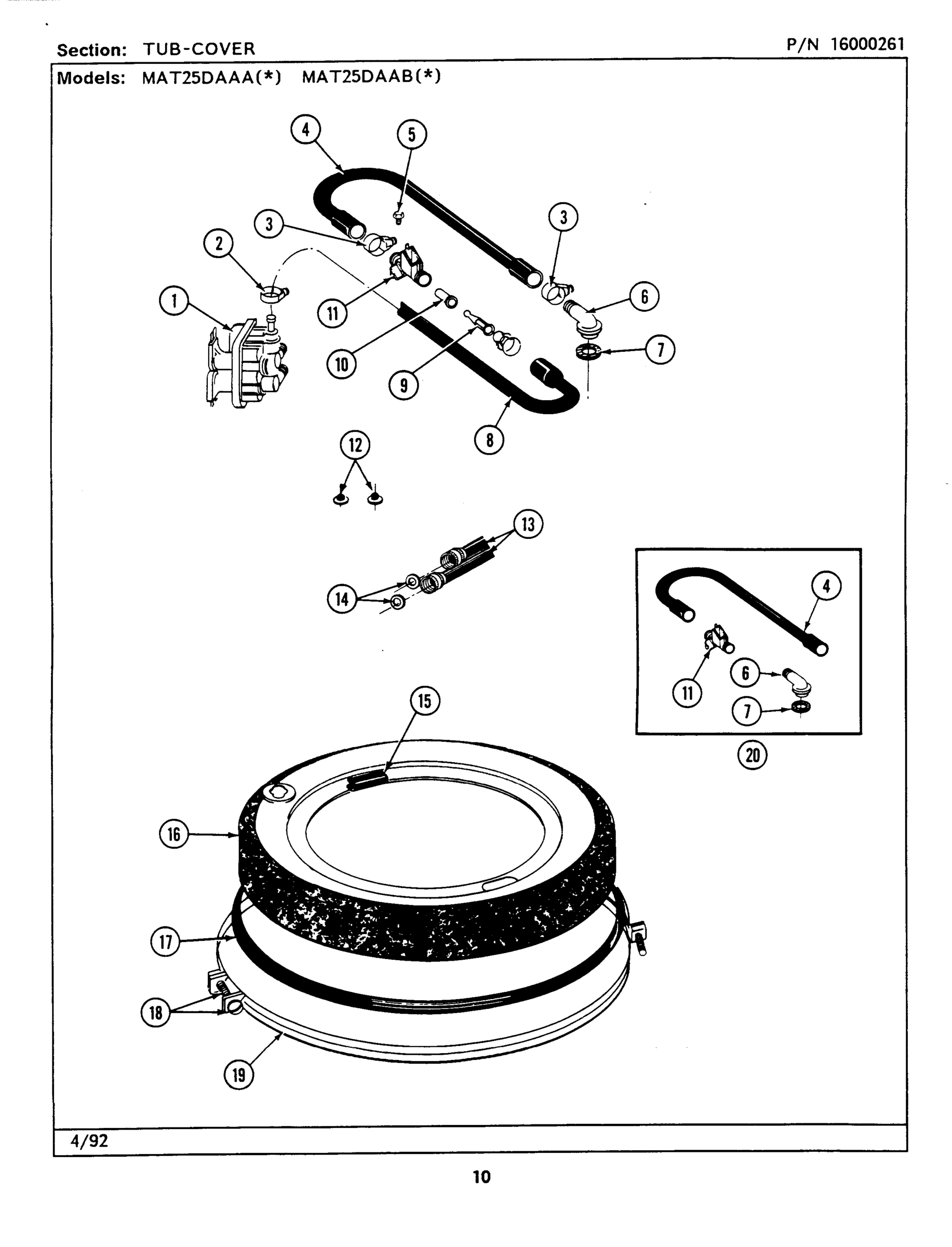

05 - TUB

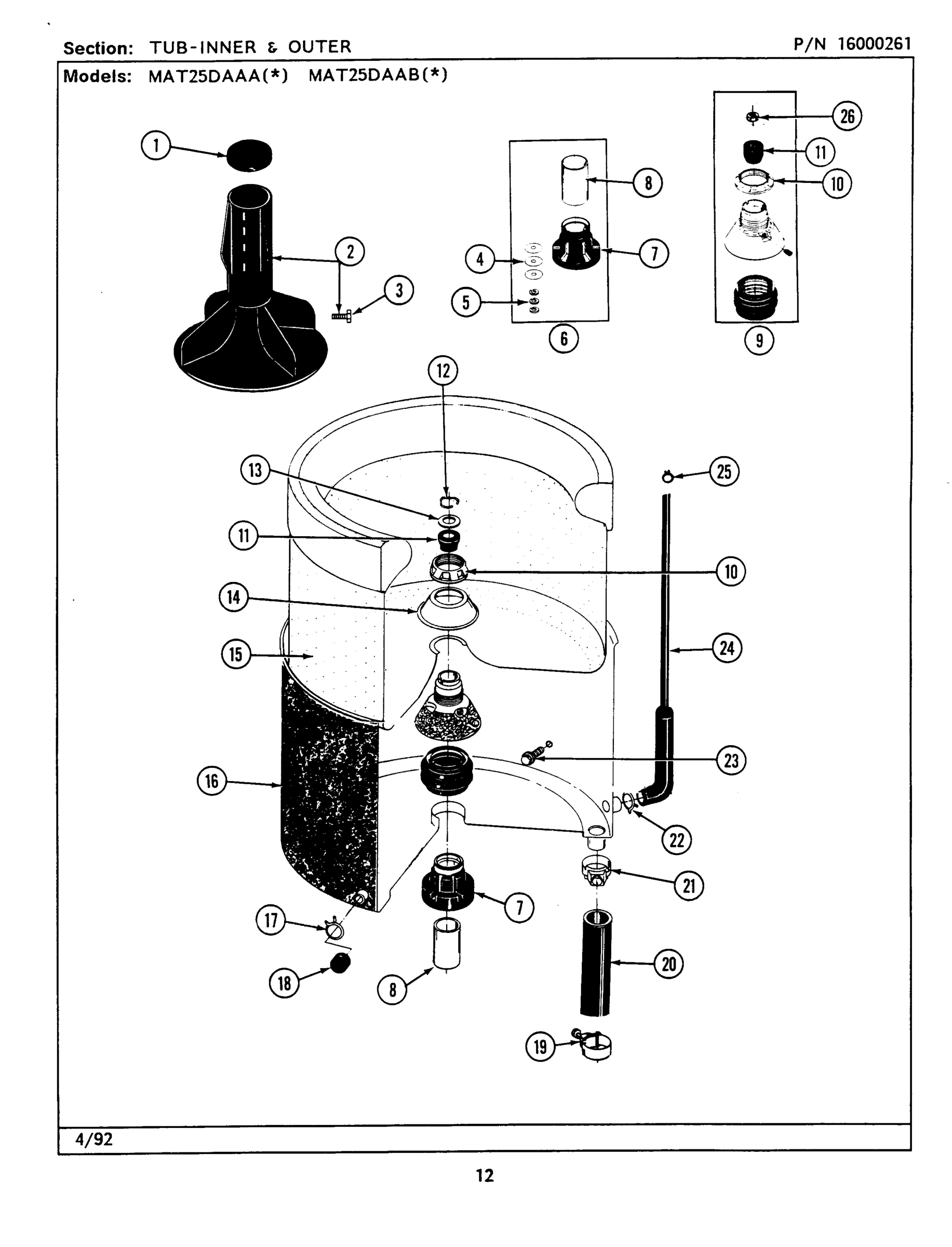

06 - TUB-INNER & OUTER

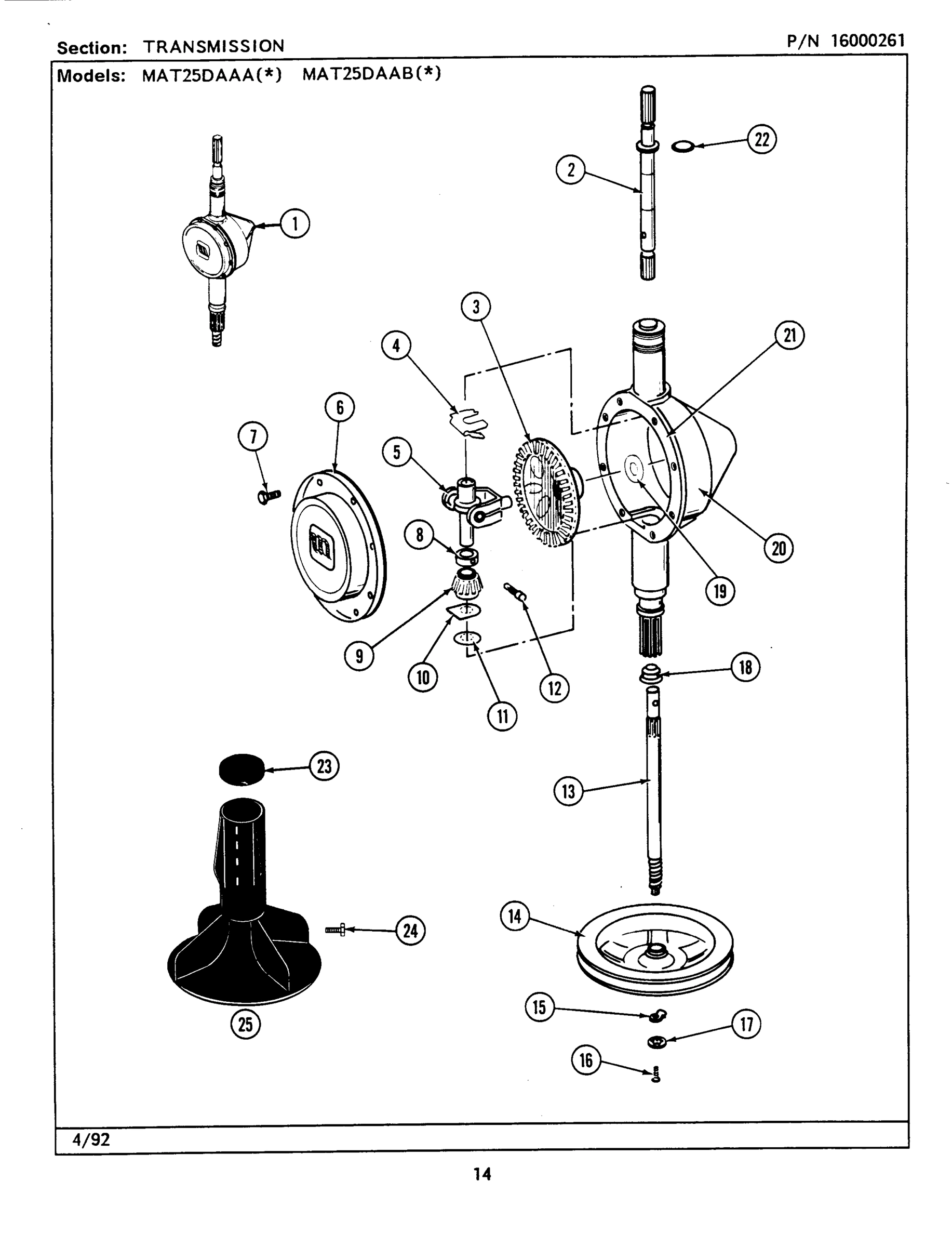

07 - TRANSMISSION

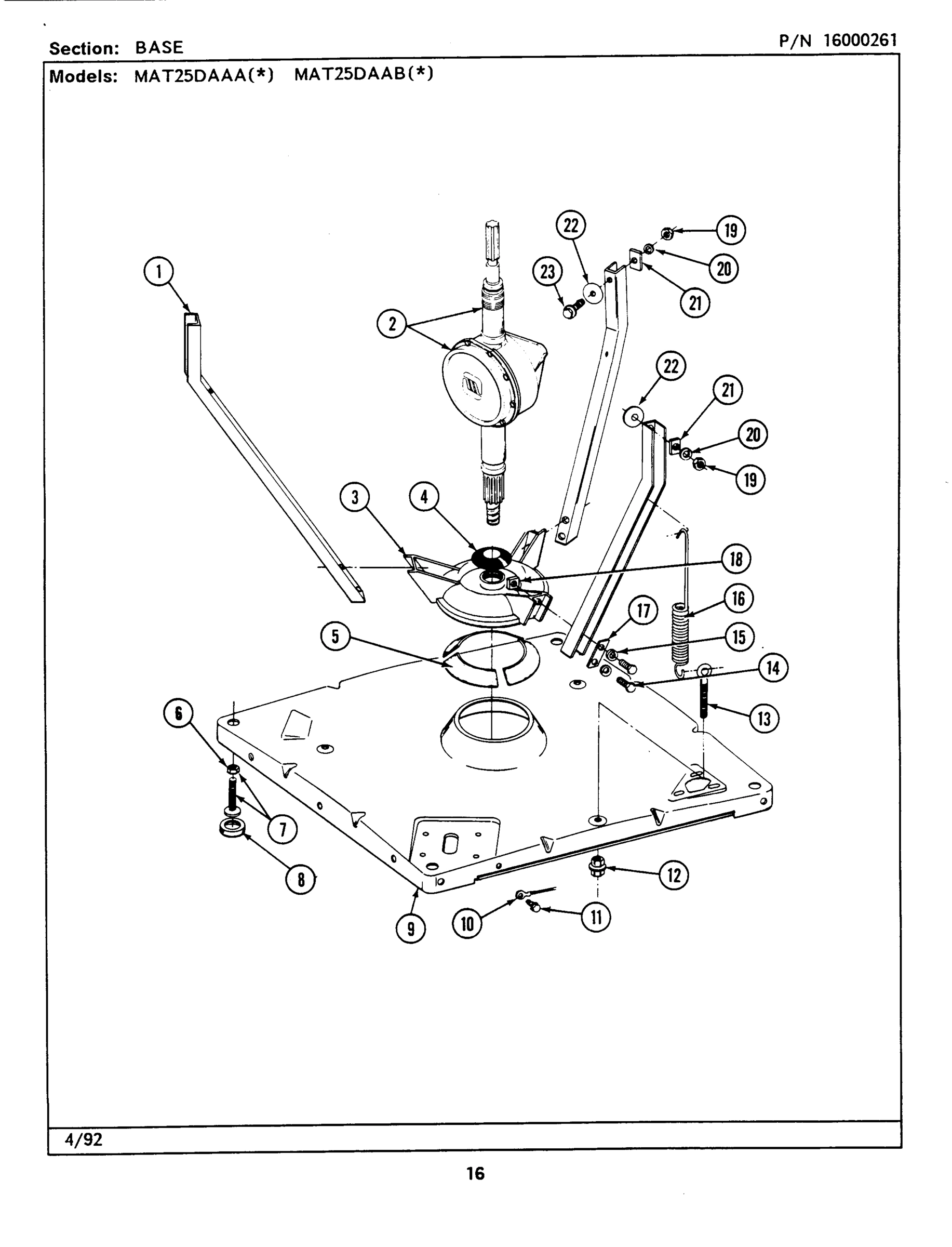

08 - BASE

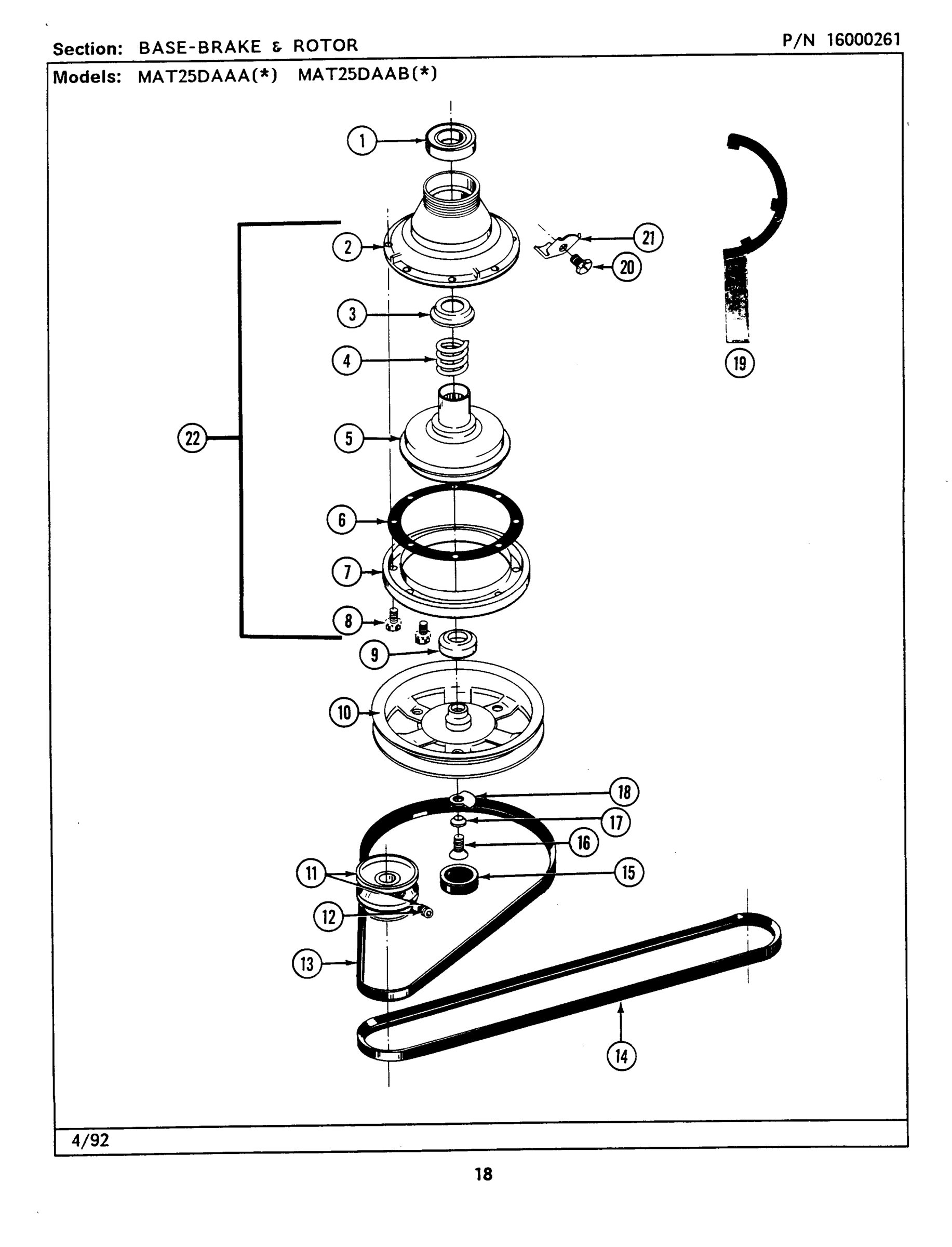

09 - BASE/BRAKE & ROTOR

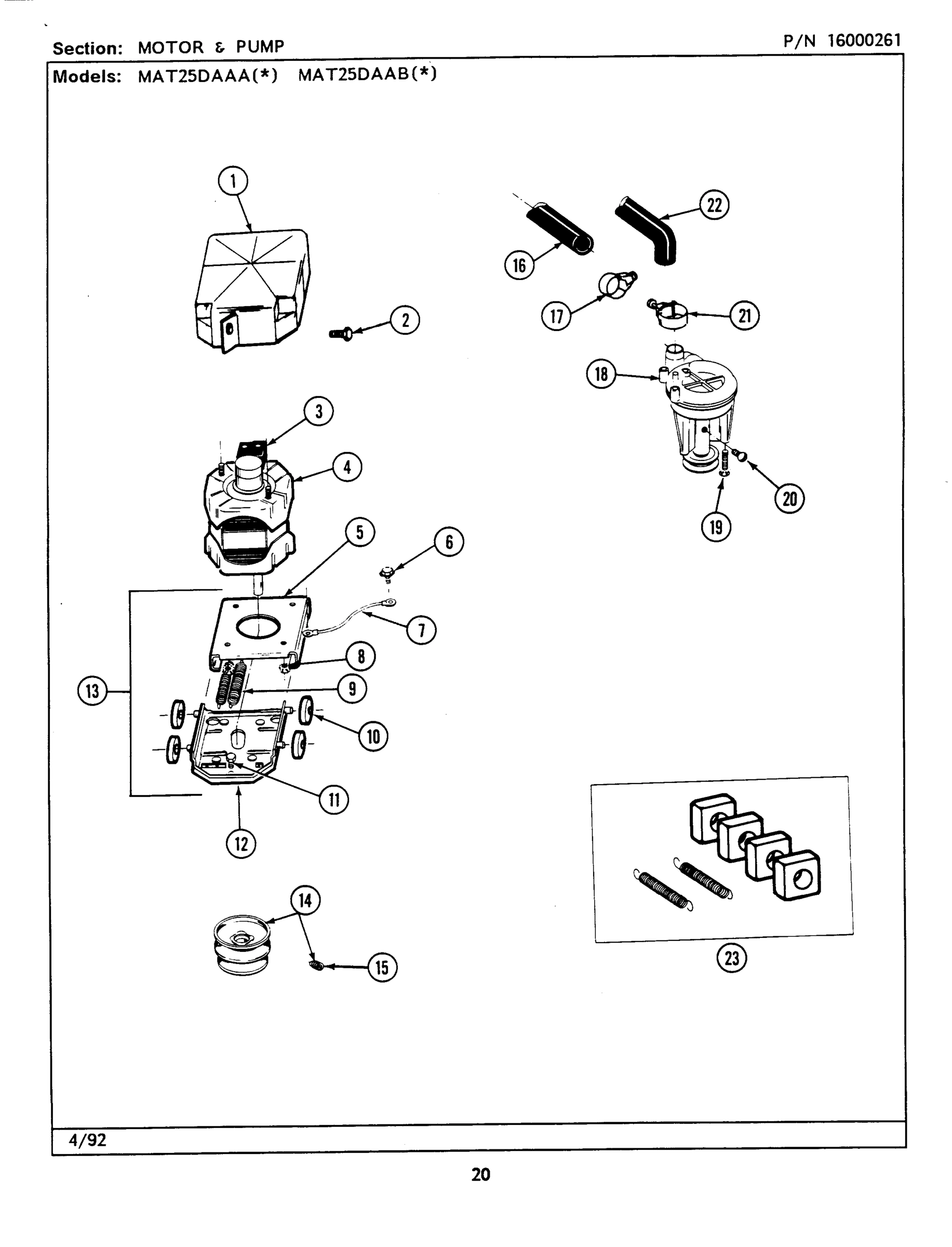

10 - MOTOR & PUMP
Common parts from model Maytag MAT25DAAAW WASHER
001
MAY 203188 MAY 203188 Contact Us For Availability
001
MAY 203188L MAY 203188L Contact Us For Availability
001
(H. WHEAT) MAY 203188M Contact Us For Availability
001
MAY 213100 MAY 213100 Contact Us For Availability
001
BEARING, BALL MAY Y200720 Contact Us For Availability
001
MAY 215098 MAY 215098 Contact Us For Availability
002
TRANSMISSION (COMPLETE) MAY 206708 Contact Us For Availability
002
MAY 207153 MAY 207153 Contact Us For Availability
002
MAY 211045 MAY 211045 Contact Us For Availability
003
MAY 203725 MAY 203725 Contact Us For Availability
003
WASHER MAY Y013783 Contact Us For Availability
003
SCREW, SENSOR SWITCHES MAY 912012 Contact Us For Availability
003
SWITCH, MOTOR EXTERNAL START MAY NLA Contact Us For Availability
003
MAY 206713 MAY 206713 Contact Us For Availability
003
MAY 211039 MAY 211039 Contact Us For Availability
003
SWITCH, MOTOR EXTERNAL START (PRODUCT ID. No. MAY 205132 Contact Us For Availability
003
(PRODUCTION ID No. 2-1664-8, MAY 205133 Contact Us For Availability
003
(PRODUCTION ID No. 2-1664-11, MAY 206505 Contact Us For Availability
004
CASE, CONTROL CENTER (WHT) MAY 207940 Contact Us For Availability
004
(ALM) MAY 207940L Contact Us For Availability
004
DEFLECTOR, WATER MAY 211028 Contact Us For Availability
004
MAY 211041 MAY 211041 Contact Us For Availability
005
SWITCH, PRESSURE MAY 203970 Contact Us For Availability
005
SCREW, BRACKET MAY 212276 Contact Us For Availability
005
SCREW MAY 312620 Contact Us For Availability
005
TORQUE BLOCK & YOKE MAY 206685 Contact Us For Availability
005
MAY 201126 MAY 201126 Contact Us For Availability
005
MOTOR MOUNT ASSEMBLY (UPPER) MAY 214956 Contact Us For Availability
006
TUBE, INJECTOR MAY 215235 Contact Us For Availability
006
WASHER, LOCK MAY 910181 Contact Us For Availability
006
MAY 214812 MAY 214812 Contact Us For Availability
006
MAY 206628 MAY 206628 Contact Us For Availability
006
SCREW MAY 210186 Contact Us For Availability
006
MAY 211042 MAY 211042 Contact Us For Availability
007
MAY 213035 MAY 213035 Contact Us For Availability
007
MAY 215417 MAY 215417 Contact Us For Availability
007
MAY Y302699 MAY Y302699 Contact Us For Availability
007
MAY 211043 MAY 211043 Contact Us For Availability
007
GROUND WIRE MAY 901220 Contact Us For Availability
008
LINER, BEARING MAY 211130 Contact Us For Availability
008
COLLAR (LWR) MAY 215415 Contact Us For Availability
009
MAY 200835 MAY 200835 Contact Us For Availability
009
MAY 204012 MAY 204012 Contact Us For Availability
009
BASE W/DAMPER PADS MAY 203274 Contact Us For Availability
010
BOX, COIN CAMLOCK (WHT) MAY 207912 Contact Us For Availability
010
(ALM) MAY 207912L Contact Us For Availability
010
MAY 211059 MAY 211059 Contact Us For Availability
010
GROUND WIRE MAY 204807 Contact Us For Availability
010
ROLLER KIT (4 W/LUBE) MAY Y204998 Contact Us For Availability
011
MAY 207948 MAY 207948 Contact Us For Availability
011
SCREW MAY Y313561 Contact Us For Availability
012
SWITCH, OPTIC MAY 206799 Contact Us For Availability
012
MAY Y015667 MAY Y015667 Contact Us For Availability
012
WASHER, SCREEN MAY 200961 Contact Us For Availability
012
PLATE, COVER (W/HOLE) MAY 212985 Contact Us For Availability
012
MOTOR MOUNT ASSEMBLY (LOWER) MAY 205908 Contact Us For Availability
013
MAY 204968 MAY 204968 Contact Us For Availability
013
MOTOR MOUNT ASSY. COMPLETE MAY 205999 Contact Us For Availability
013
HOSE, 5 FT (W/STRAIGHT ENDS) MAY 205828 Contact Us For Availability
013
EYEBOLT MAY 213120 Contact Us For Availability
014
WASHER, CLAMPING NUT MAY 211210 Contact Us For Availability
014
MAY 207947 MAY 207947 Contact Us For Availability
014
(25 CENTS-CANADA) MAY 207949 Contact Us For Availability
014
MAY 200816 MAY 200816 Contact Us For Availability
015
BUMPER, UNBALANCE MAY 215232 Contact Us For Availability
015
WASHER, LOCK MAY 911852 Contact Us For Availability
015
SCREW, SET MAY Y053241 Contact Us For Availability
016
SCREW & FASTENER ASSEMBLY MAY 204439 Contact Us For Availability
016
PLUNGER, LID SWITCH MAY 216255 Contact Us For Availability
016
MAY 216009 MAY 216009 Contact Us For Availability
016
HOSE, PUMP MAY 215057 Contact Us For Availability
016
COVER, TUB MAY 206380 Contact Us For Availability
016
MAY 205486 MAY 205486 Contact Us For Availability
016
SPRING, CENTERING MAY 213054 Contact Us For Availability
017
PLATE, MOUNTING (25 CENTS) MAY 216010 Contact Us For Availability
017
MAY 213846 MAY 213846 Contact Us For Availability
017
CLAMP, HOSE MAY 200461 Contact Us For Availability
017
WASHER, DOUBLE BRACE MAY 213073 Contact Us For Availability
018
CAP, SPOUT MAY 214725 Contact Us For Availability
018
GROMMET MAY 211881 Contact Us For Availability
018
MAY 216011 MAY 216011 Contact Us For Availability
018
PANEL, FRONT (WHT) MAY 212998 Contact Us For Availability
018
(ALM) MAY 212998L Contact Us For Availability
018
MAY 206602 MAY 206602 Contact Us For Availability
018
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
018
MAY 202203 MAY 202203 Contact Us For Availability
019
HARNESS, WIRE (SENSOR SWT.) MAY 208045 Contact Us For Availability
019
SPRING, FASTENER MAY 212982 Contact Us For Availability
019
MAY 215394 MAY 215394 Contact Us For Availability
019
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
019
TOOL, BRAKE PACKAGE MAY Y038315 Contact Us For Availability
020
SWITCH, LID MAY 206415 Contact Us For Availability
020
HARNESS, WIRE (MAIN) MAY 208044 Contact Us For Availability
020
SPACER MAY 214376 Contact Us For Availability
020
MAY 206683 MAY 206683 Contact Us For Availability
020
MAY Y054867 MAY Y054867 Contact Us For Availability
020
MAY 206625 MAY 206625 Contact Us For Availability
020
BOLT, SEMS RETAINING CLIP MAY 213326 Contact Us For Availability
020
MAY Y015408 MAY Y015408 Contact Us For Availability
021
SCREW MAY 213501 Contact Us For Availability
021
PAD, BUMPER MAY 215058 Contact Us For Availability
021
CLAMP, HOSE MAY 200900 Contact Us For Availability
021
SEALANT, SILASTIC ADHESIVE MAY Y058700 Contact Us For Availability
021
WASHER MAY 212979 Contact Us For Availability
022
MAY 210690 MAY 210690 Contact Us For Availability
022
HOSE, DRAIN (4 FT.) MAY 214768 Contact Us For Availability
022
MAY 211100 MAY 211100 Contact Us For Availability
022
BRAKE PACKAGE MAY 201190 Contact Us For Availability
023
CAP, AGITATOR (BLK) MAY 215532 Contact Us For Availability
024
SCREW & WASHER ASSEMBLY MAY 206478 Contact Us For Availability
024
AIR DOME & TUBE MAY 212942 Contact Us For Availability
025
AGITATOR (W/LOCK SCREW-BLK) MAY 207119 Contact Us For Availability
026
RING, STOP MAY Y015494 Contact Us For Availability
× ![]()
