Model Maytag MAT25CSAAL WASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - TOP

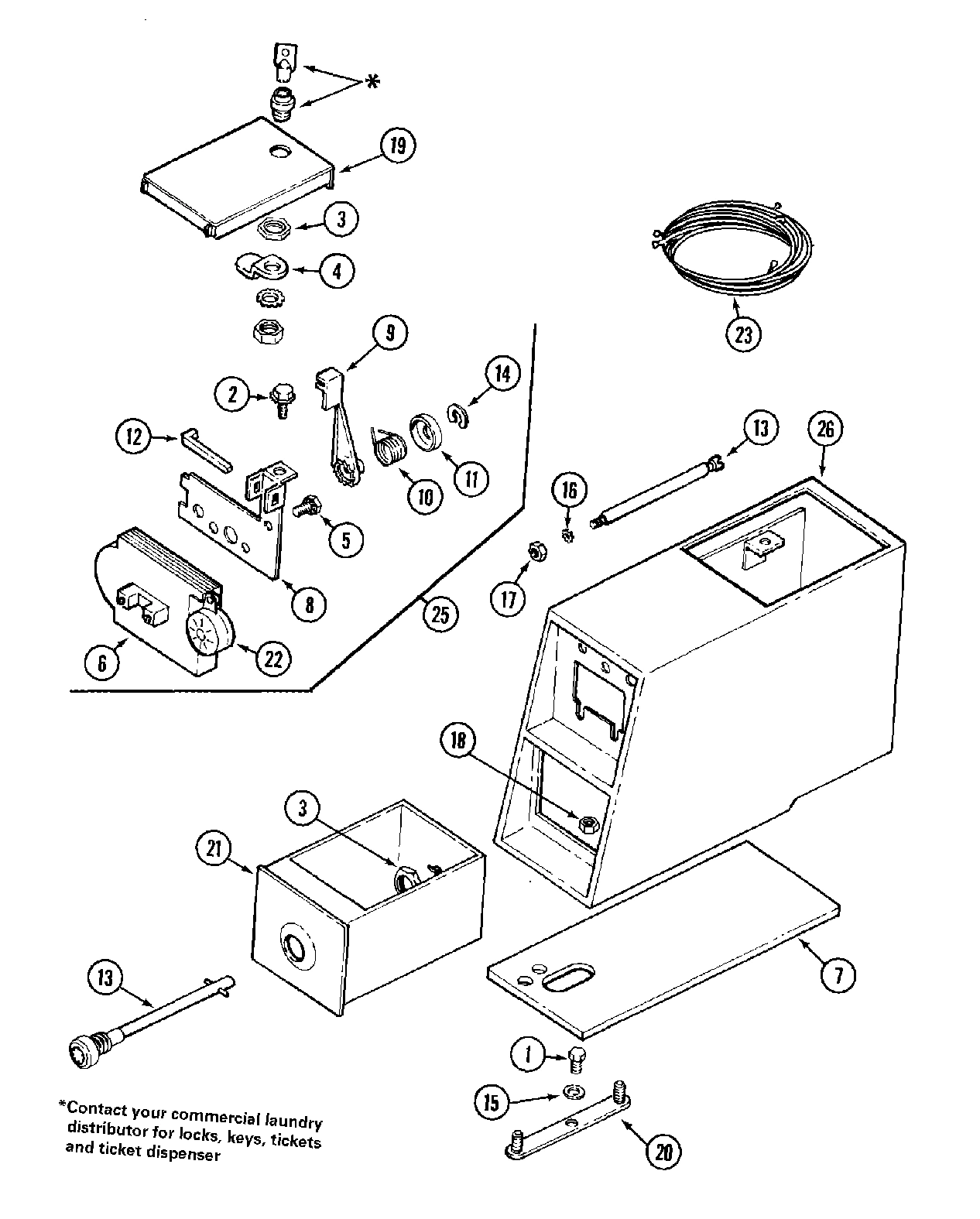

03 - CS CONTROL CENTER

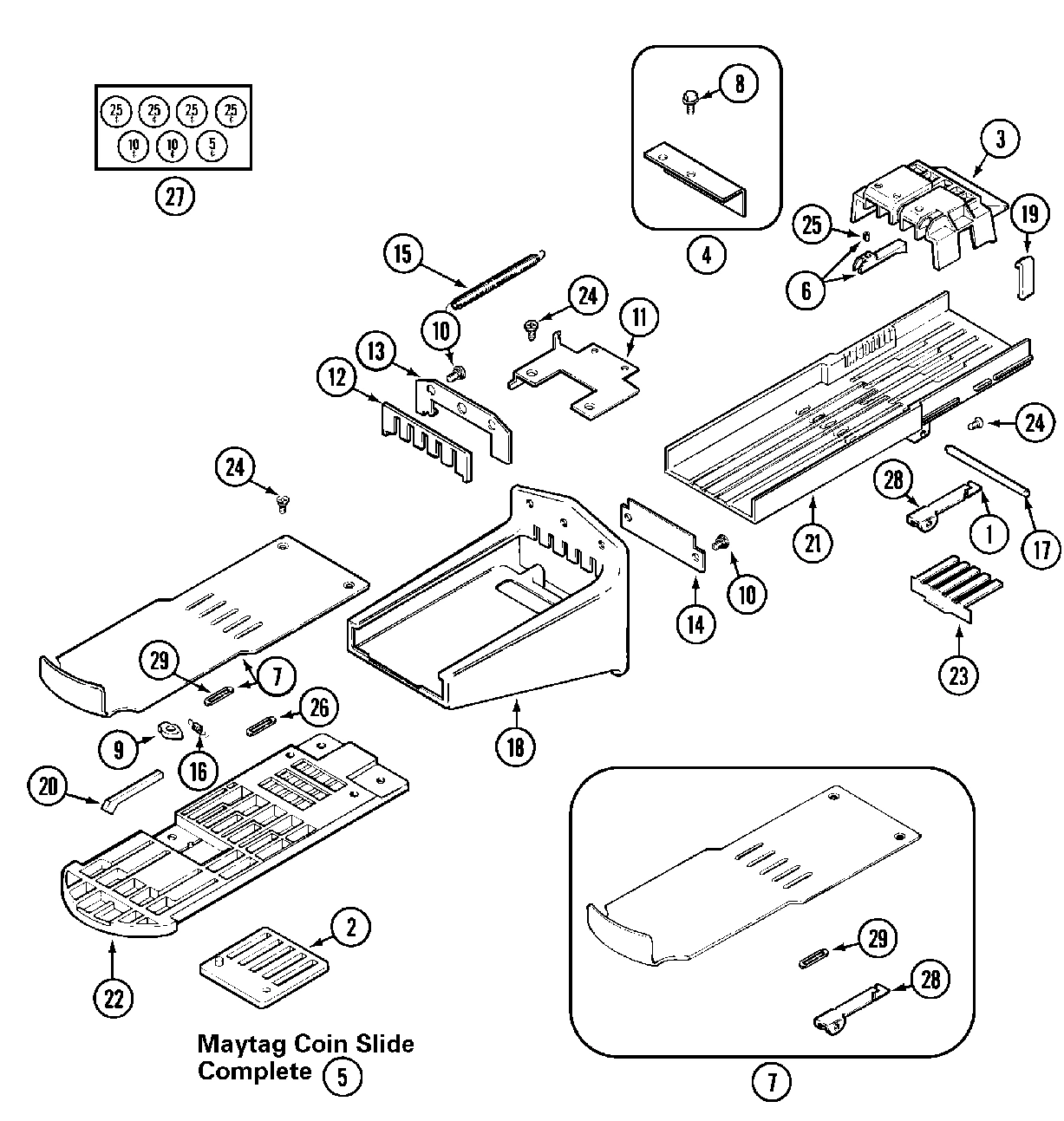

04 - COIN SLIDE

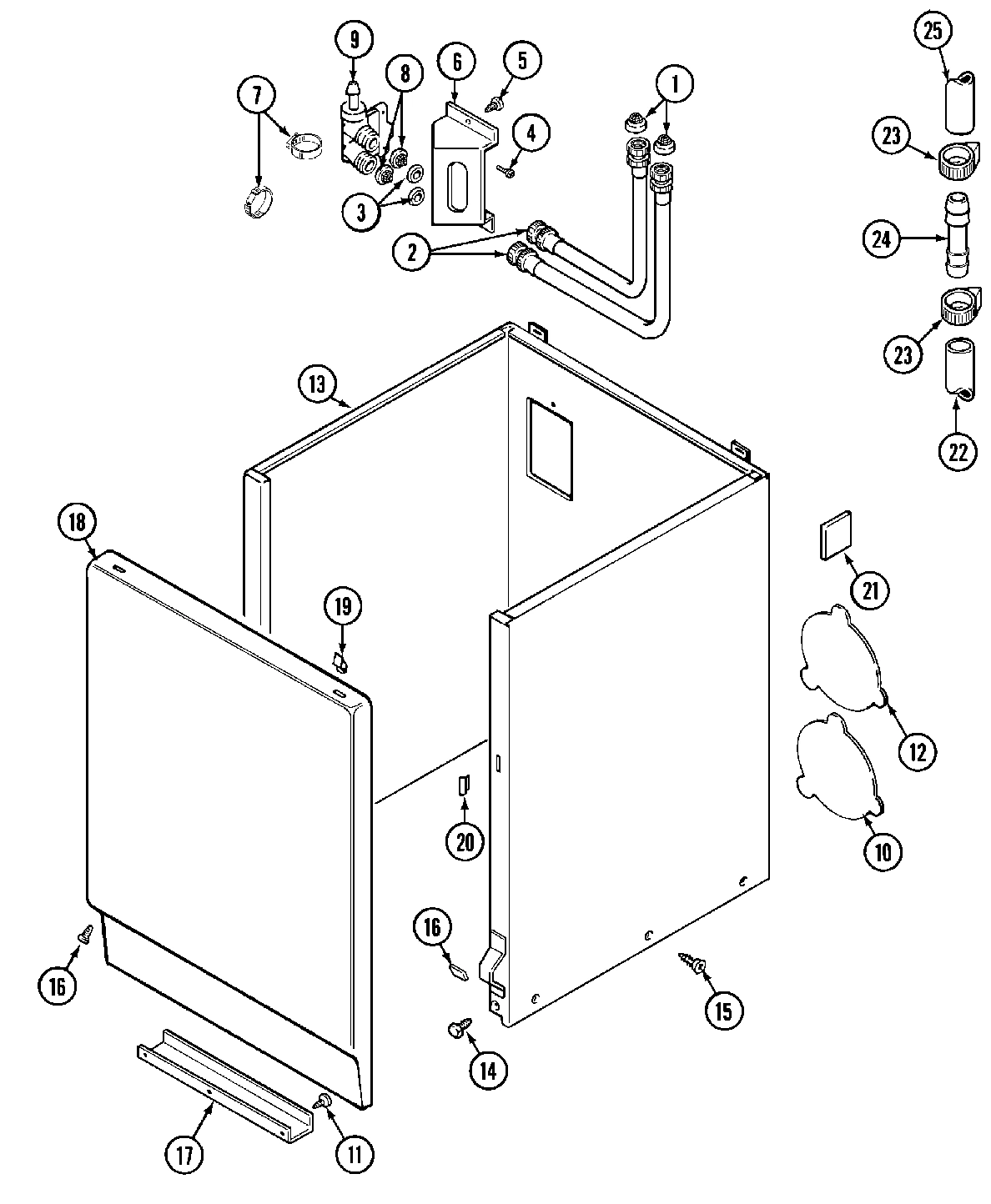

05 - CABINET

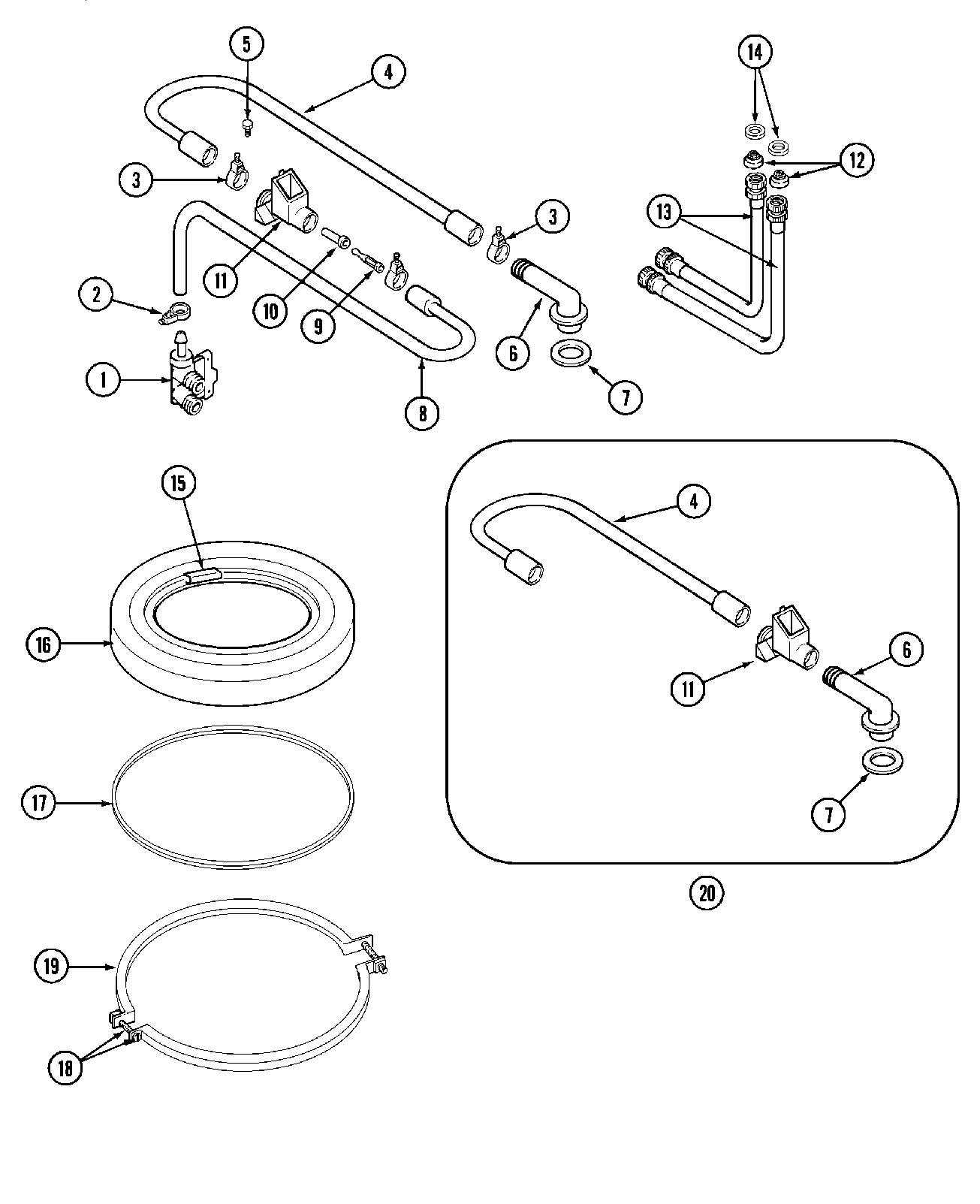

06 - TUB COVER

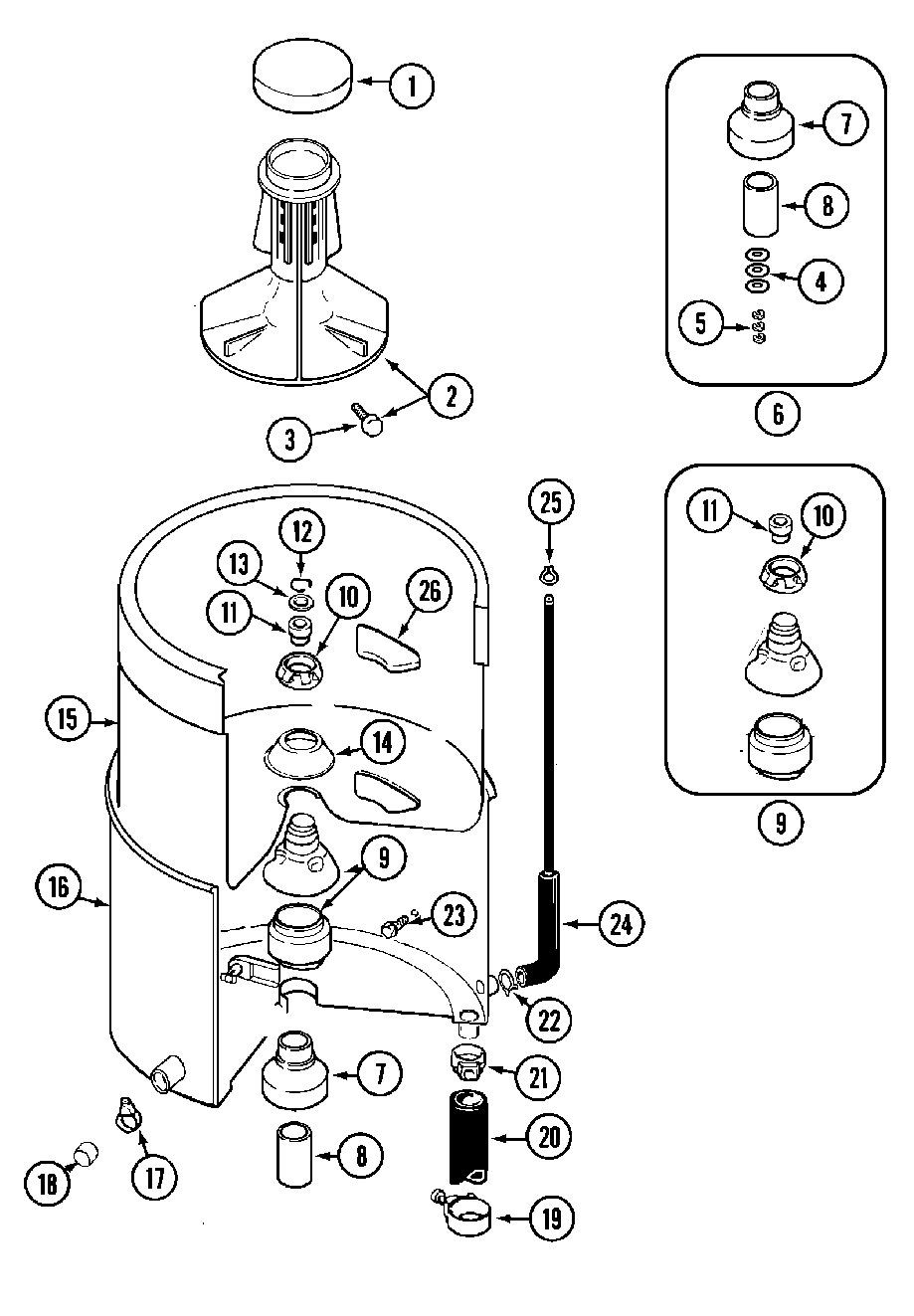

07 - TUB

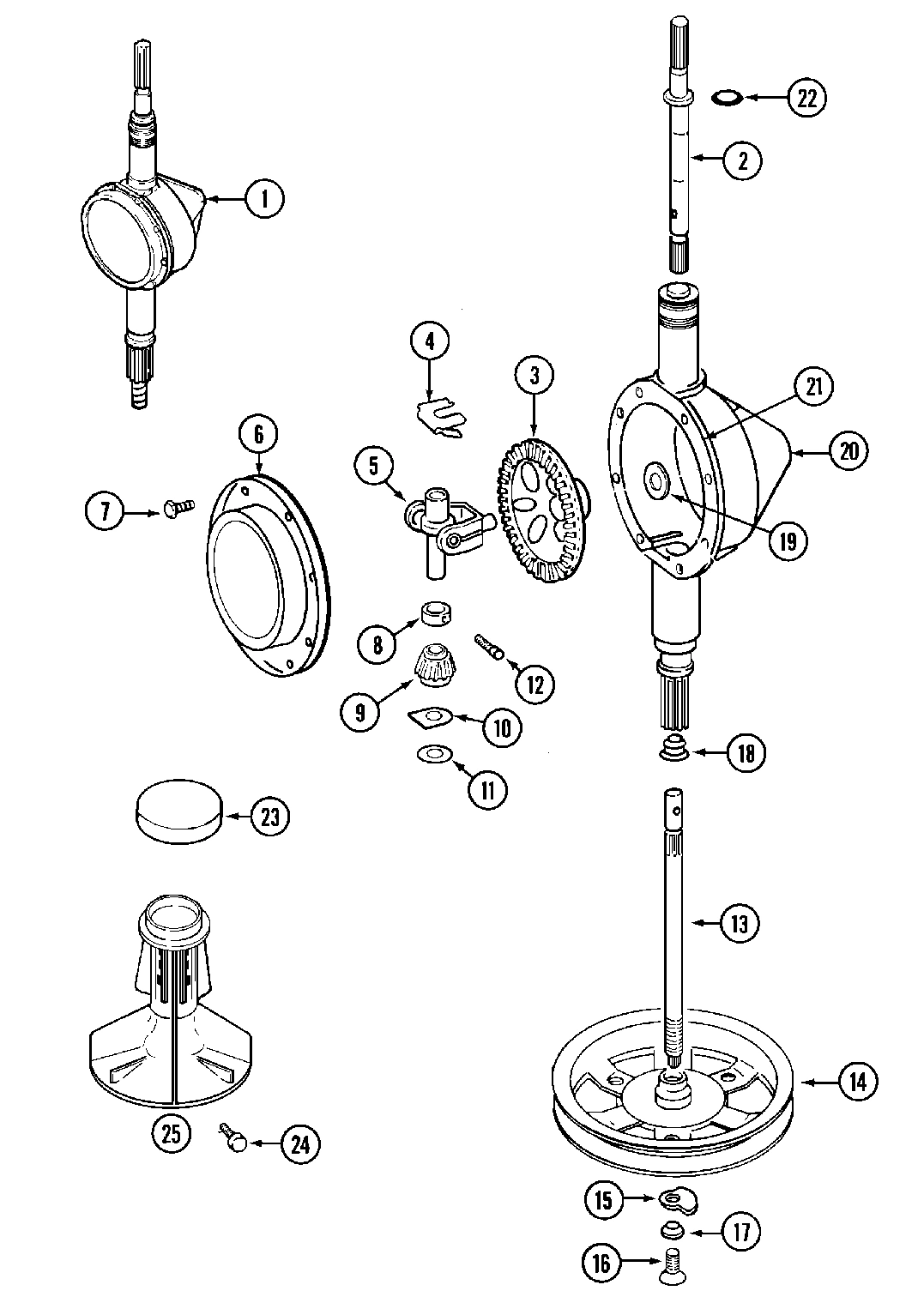

08 - TRANSMISSION

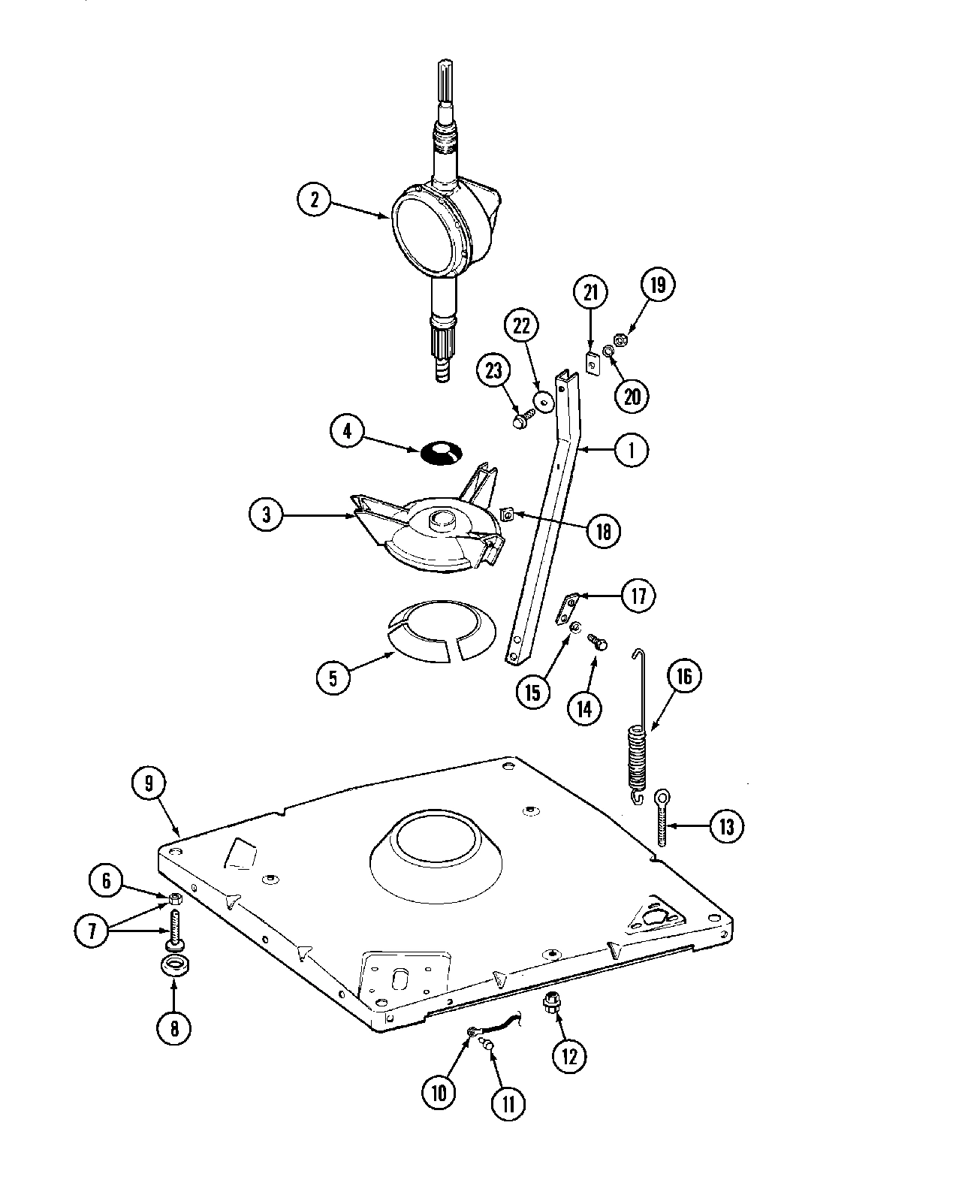

09 - BASE

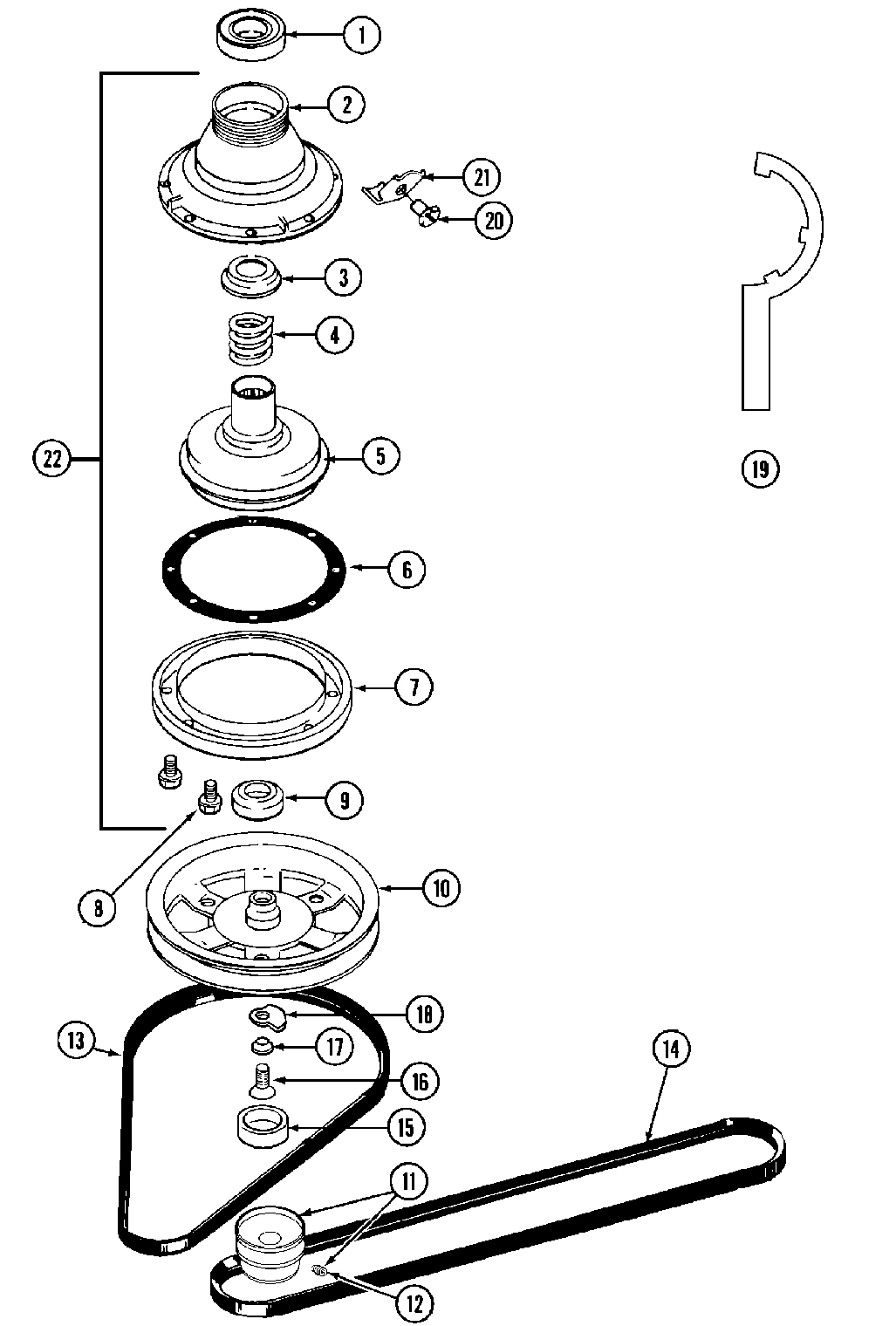

10 - BASE/BRAKE & ROTOR

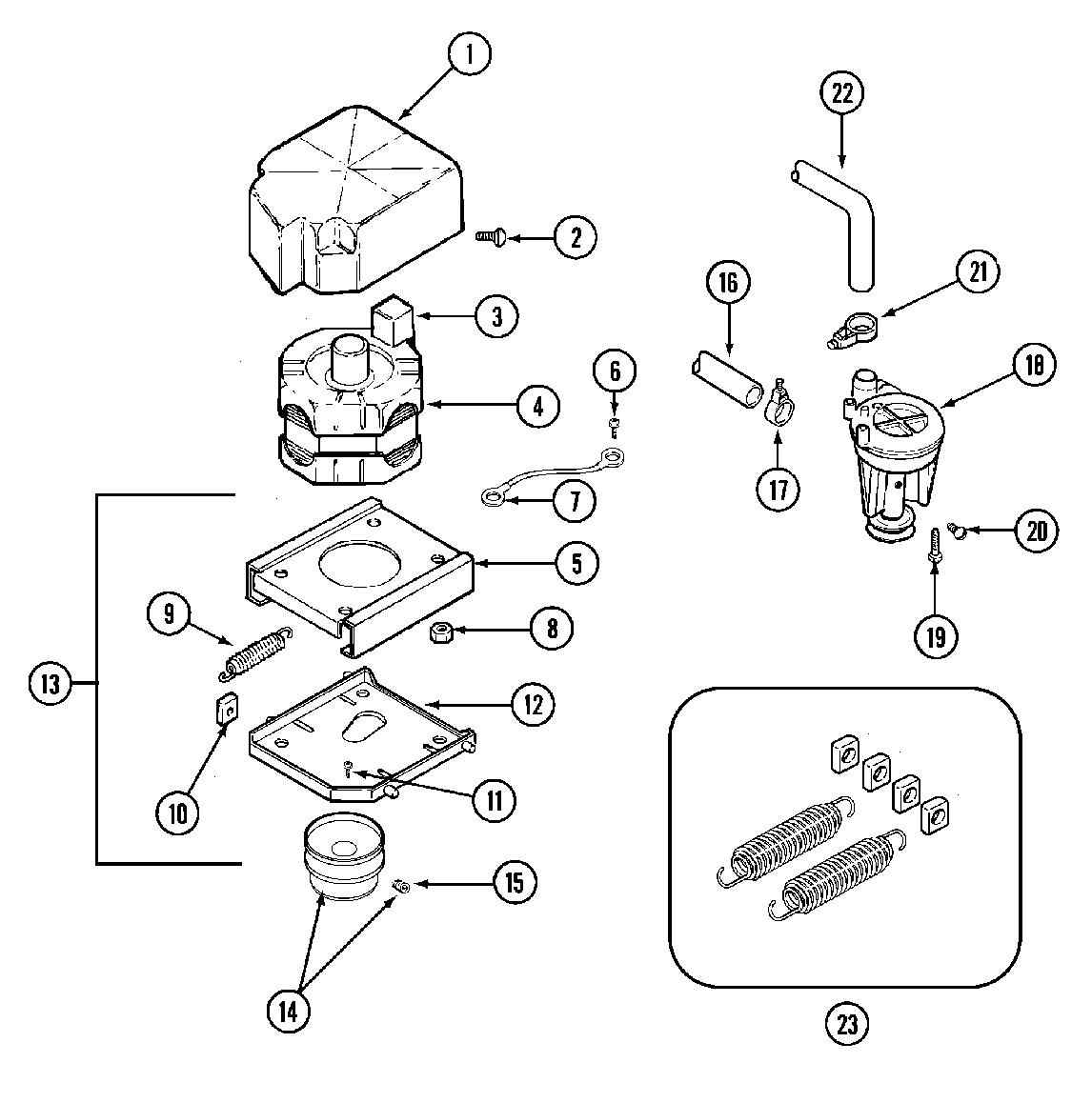

11 - MOTOR & PUMP
Common parts from model Maytag MAT25CSAAL WASHER
001
MAY 203970 MAY 203970 Contact Us For Availability
001
GAGE ARM ASSEMBLY (LWR) MAY 205343 Contact Us For Availability
001
MAY 213100 MAY 213100 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
001
MAY 215098 MAY 215098 Contact Us For Availability
002
MAY 205350 MAY 205350 Contact Us For Availability
002
MAY 206708 MAY 206708 Contact Us For Availability
002
MAY 207153 MAY 207153 Contact Us For Availability
002
MAY 211045 MAY 211045 Contact Us For Availability
003
MAY 203725 MAY 203725 Contact Us For Availability
003
(PROD. ID NOS. 2-1664-8 MAY NLA Contact Us For Availability
003
MAY 206713 MAY 206713 Contact Us For Availability
003
MAY 211039 MAY 211039 Contact Us For Availability
003
SWITCH, MOTOR START (PRODUCTION ID NOS. 2-166 MAY 205132 Contact Us For Availability
003
& 2-5463) MAY 205133 Contact Us For Availability
003
2-1664-13, 2-5463-1) MAY 206505 Contact Us For Availability
004
COIN SLIDE ACTUATOR KIT MAY 205469 Contact Us For Availability
004
MAY 211028 MAY 211028 Contact Us For Availability
004
MAY 211041 MAY 211041 Contact Us For Availability
005
MAY 212276 MAY 212276 Contact Us For Availability
005
SCREW, SEMS (No.10-16 X 1/2``) MAY 312620 Contact Us For Availability
005
MAY 206685 MAY 206685 Contact Us For Availability
005
MAY 201126 MAY 201126 Contact Us For Availability
005
MAY 214956 MAY 214956 Contact Us For Availability
006
TUBE, INJECTOR MAY 215235 Contact Us For Availability
006
MAY 214812 MAY 214812 Contact Us For Availability
006
MAY 206628 MAY 206628 Contact Us For Availability
006
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
006
MAY 211042 MAY 211042 Contact Us For Availability
007
SEAL, INJECTOR TUBE MAY 215233 Contact Us For Availability
007
MAY 206152 MAY 206152 Contact Us For Availability
007
MAY 215417 MAY 215417 Contact Us For Availability
007
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
007
MAY 211043 MAY 211043 Contact Us For Availability
007
MAY 901220 MAY 901220 Contact Us For Availability
008
MAY 211130 MAY 211130 Contact Us For Availability
008
COLLAR (LWR) MAY 215415 Contact Us For Availability
009
MAY 200835 MAY 200835 Contact Us For Availability
009
ARM, RATCHET MAY 214572 Contact Us For Availability
009
MAY 204012 MAY 204012 Contact Us For Availability
009
BASE W/DAMPER PADS MAY 203274 Contact Us For Availability
010
MAY 211059 MAY 211059 Contact Us For Availability
010
GROUND WIRE, SUPP. PLTE MAY 204807 Contact Us For Availability
010
MAY Y204998 MAY Y204998 Contact Us For Availability
011
MAY Y313561 MAY Y313561 Contact Us For Availability
012
MAY Y015667 MAY Y015667 Contact Us For Availability
012
GATE, COIN OPENING MAY 214578 Contact Us For Availability
012
MAY 200961 MAY 200961 Contact Us For Availability
012
MAY 212985 MAY 212985 Contact Us For Availability
012
MAY 205908 MAY 205908 Contact Us For Availability
013
PLUNGER & BRACKET ASSEMBLY--W MAY 204968 Contact Us For Availability
013
MAY 215559 MAY 215559 Contact Us For Availability
013
MOTOR MOUNT ASSY. COMPLETE MAY 205999 Contact Us For Availability
013
INLET HOSE ASSEMBLY MAY 205828 Contact Us For Availability
013
EYE BOLT, CENTER SPRING MAY 213120 Contact Us For Availability
014
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
014
WASHER, CLAMPING NUT (STNLS) MAY 211210 Contact Us For Availability
014
MAY 200816 MAY 200816 Contact Us For Availability
015
MAY 910309 MAY 910309 Contact Us For Availability
015
SPRING, RETURN MAY 214581 Contact Us For Availability
015
BUMPER, UNBALANCE MAY 215232 Contact Us For Availability
015
MAY 911852 MAY 911852 Contact Us For Availability
015
MAY Y053241 MAY Y053241 Contact Us For Availability
016
SCREW & FASTNER ASSEMBLY MAY 204439 Contact Us For Availability
016
PLUNGER, LID SWITCH MAY 216255 Contact Us For Availability
016
PLUNGER, LID SWITCH MAY 213718 Contact Us For Availability
016
WASHER, LOCK MAY 910387 Contact Us For Availability
016
SPRING, RATCHET ARM MAY 214582 Contact Us For Availability
016
MAY 215057 MAY 215057 Contact Us For Availability
016
COVER, TUB MAY 206380 Contact Us For Availability
016
MAY 205486 MAY 205486 Contact Us For Availability
016
CENTERING SPRING MAY 213054 Contact Us For Availability
017
MAY 213846 MAY 213846 Contact Us For Availability
017
MAY 200461 MAY 200461 Contact Us For Availability
017
WASHER, DOUBLE BRACE MAY 213073 Contact Us For Availability
018
CAP, SPOUT (OUTER TUB) MAY 214725 Contact Us For Availability
018
HOUSING, COIN SLIDE MAY 214584 Contact Us For Availability
018
PANEL, FRONT (WHT) MAY 212998 Contact Us For Availability
018
(ALM) MAY 212998L Contact Us For Availability
018
SEAL, LIP (CNTR SHAFT) MAY 206602 Contact Us For Availability
018
NUT, BRACE MAY Y052785 Contact Us For Availability
018
MAY 202203 MAY 202203 Contact Us For Availability
019
MAY 203188 MAY 203188 Contact Us For Availability
019
MAY 203188L MAY 203188L Contact Us For Availability
019
(H. WHEAT) MAY 203188M Contact Us For Availability
019
CLIP, SPRING MAY 214589 Contact Us For Availability
019
MAY 212982 MAY 212982 Contact Us For Availability
019
MAY 215394 MAY 215394 Contact Us For Availability
019
NUT, BRACE MAY Y052734 Contact Us For Availability
019
MAY Y038315 MAY Y038315 Contact Us For Availability
020
MAY 214376 MAY 214376 Contact Us For Availability
020
MAY 206683 MAY 206683 Contact Us For Availability
020
MAY Y054867 MAY Y054867 Contact Us For Availability
020
MAY 206625 MAY 206625 Contact Us For Availability
020
BOLT, RETAINING CLIP MAY 213326 Contact Us For Availability
020
MAY Y015408 MAY Y015408 Contact Us For Availability
021
VAULT, COIN (WHT) MAY 207913 Contact Us For Availability
021
INSERT, HOUSING BASE MAY 214594 Contact Us For Availability
021
MAY 215058 MAY 215058 Contact Us For Availability
021
MAY 200900 MAY 200900 Contact Us For Availability
021
SILASTIC, ADHESIVE SEALANT MAY Y058700 Contact Us For Availability
021
MAY 212979 MAY 212979 Contact Us For Availability
022
MAY 210690 MAY 210690 Contact Us For Availability
022
MOTOR, TIMER (120-60) MAY 205448 Contact Us For Availability
022
HOSE, DRAIN (4 FOOT) MAY 214768 Contact Us For Availability
022
MAY 211100 MAY 211100 Contact Us For Availability
022
MAY 201190 MAY 201190 Contact Us For Availability
023
CAP, AGITATOR (BLK) MAY 215532 Contact Us For Availability
023
MAY 207161 MAY 207161 Contact Us For Availability
023
SPRING, GAGE ARM (LWR) MAY 214596 Contact Us For Availability
024
MAY 206886 MAY 206886 Contact Us For Availability
024
MAY 214597 MAY 214597 Contact Us For Availability
024
SCREW & WASHER MAY 206478 Contact Us For Availability
024
AIR DOME & TUBE MAY 212942 Contact Us For Availability
025
TIMER & ACUTATOR ASSEMBLY MAY 206917 Contact Us For Availability
025
MAY 207119 MAY 207119 Contact Us For Availability
026
MAY 215980 MAY 215980 Contact Us For Availability
026
COIN METER ASSEMBLY (WHT) MAY 206956 Contact Us For Availability
026
(ALM) MAY 206956L Contact Us For Availability
026
(H. WHEAT) MAY 206956M Contact Us For Availability
027
DECAL, COINAGE MAY 214648 Contact Us For Availability
× ![]()
