Model Maytag MAT12PDLAQ WASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - CONTROL CENTER

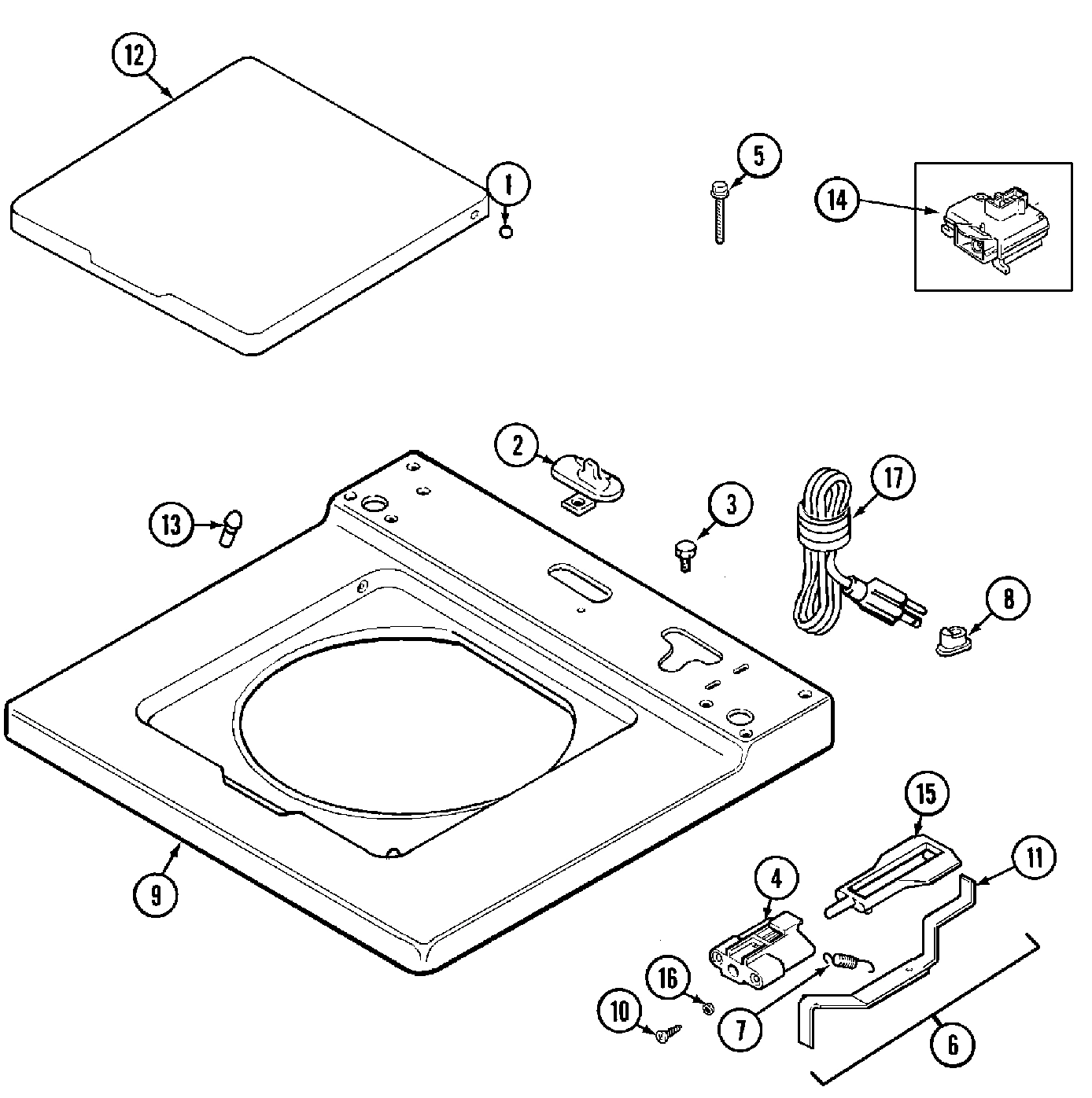

03 - TOP

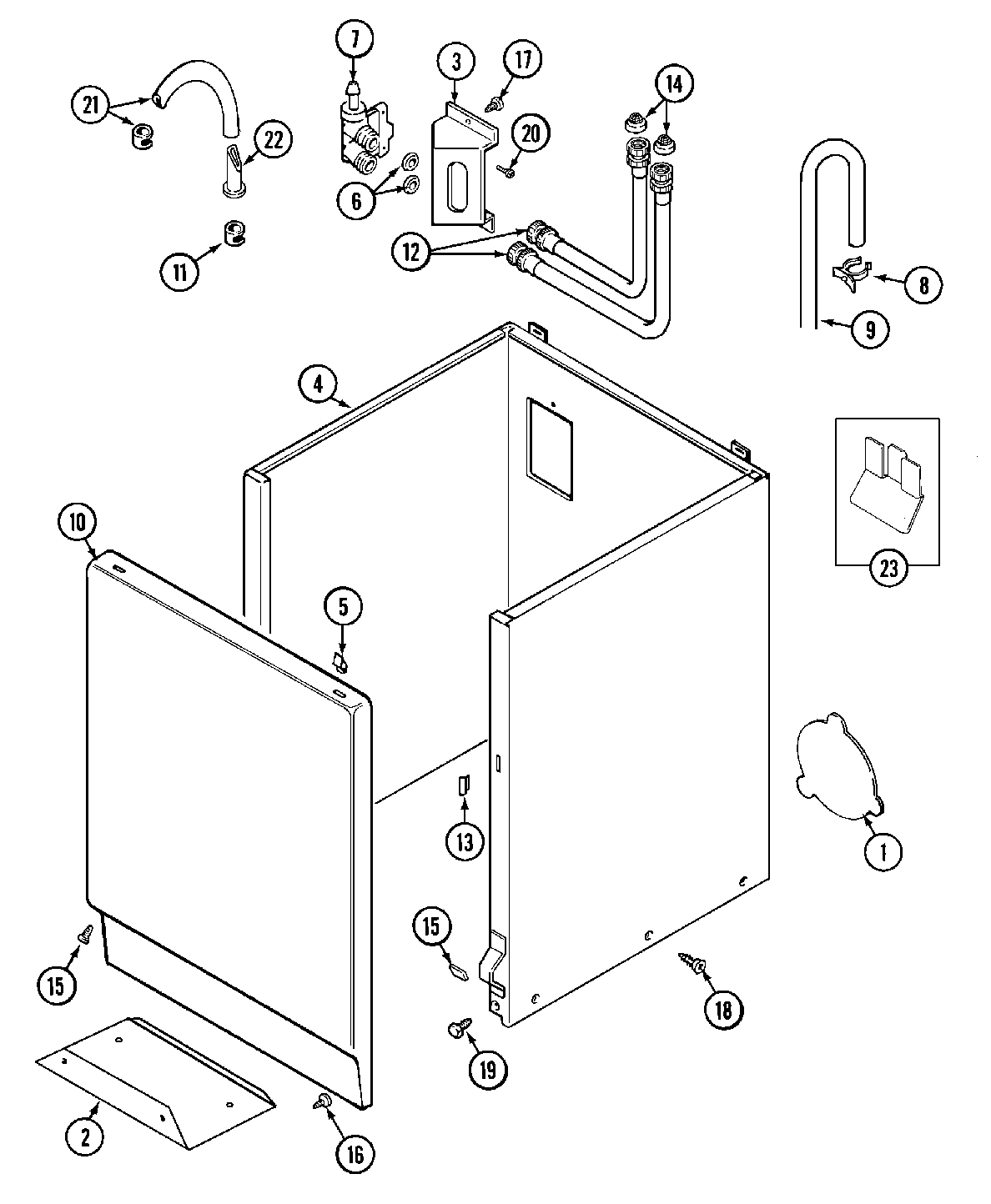

04 - CABINET

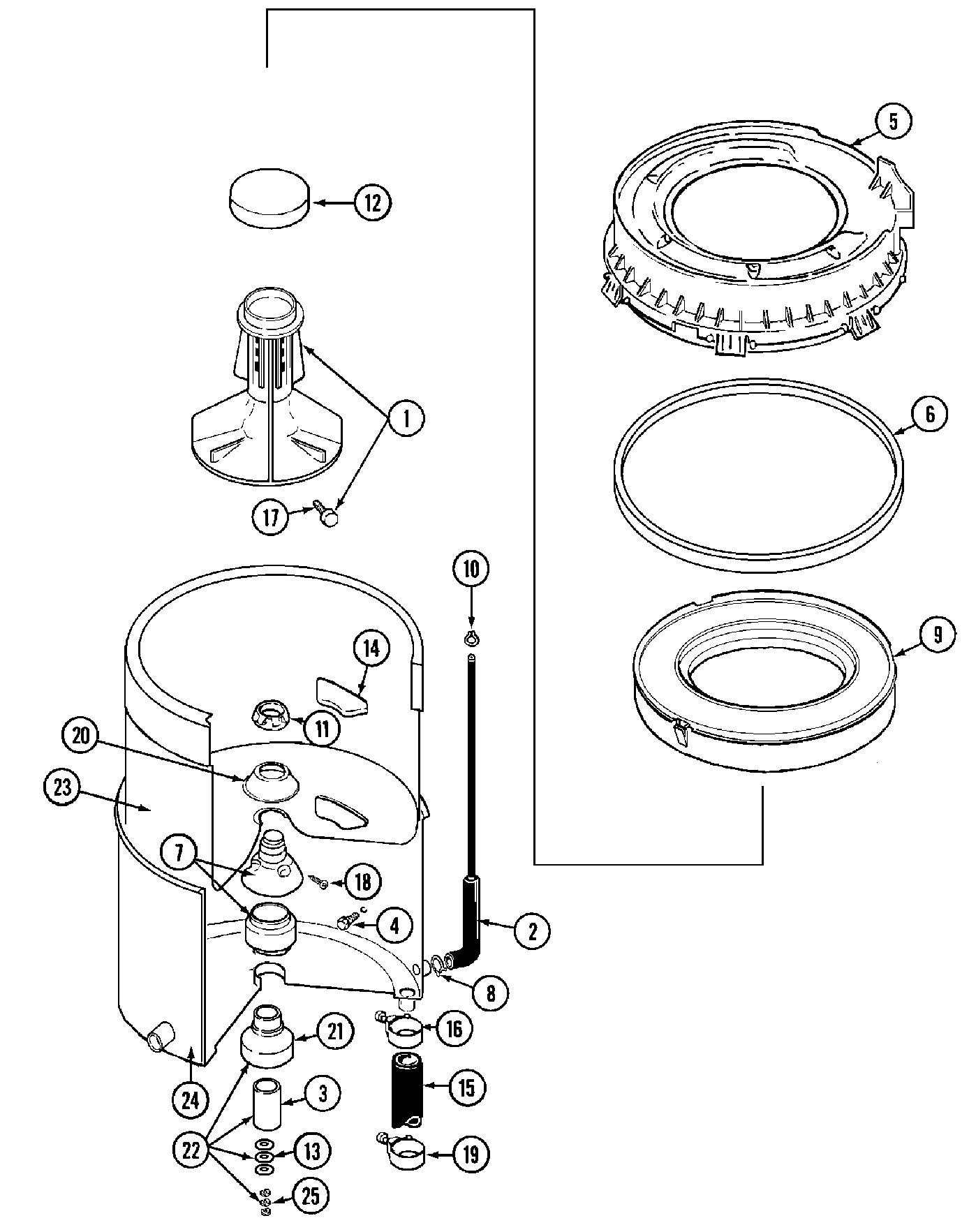

05 - TUB

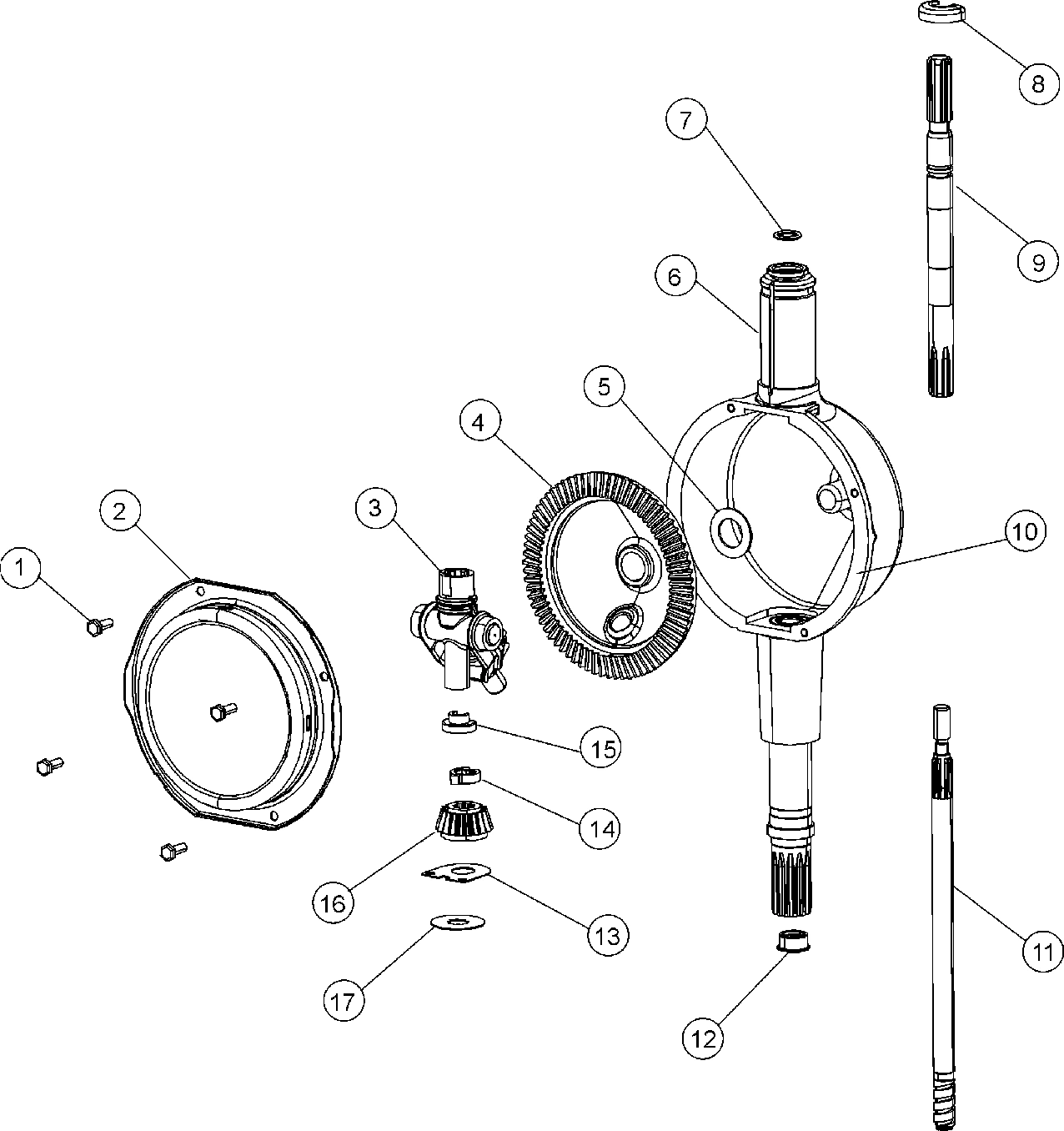

06 - TRANSMISSION

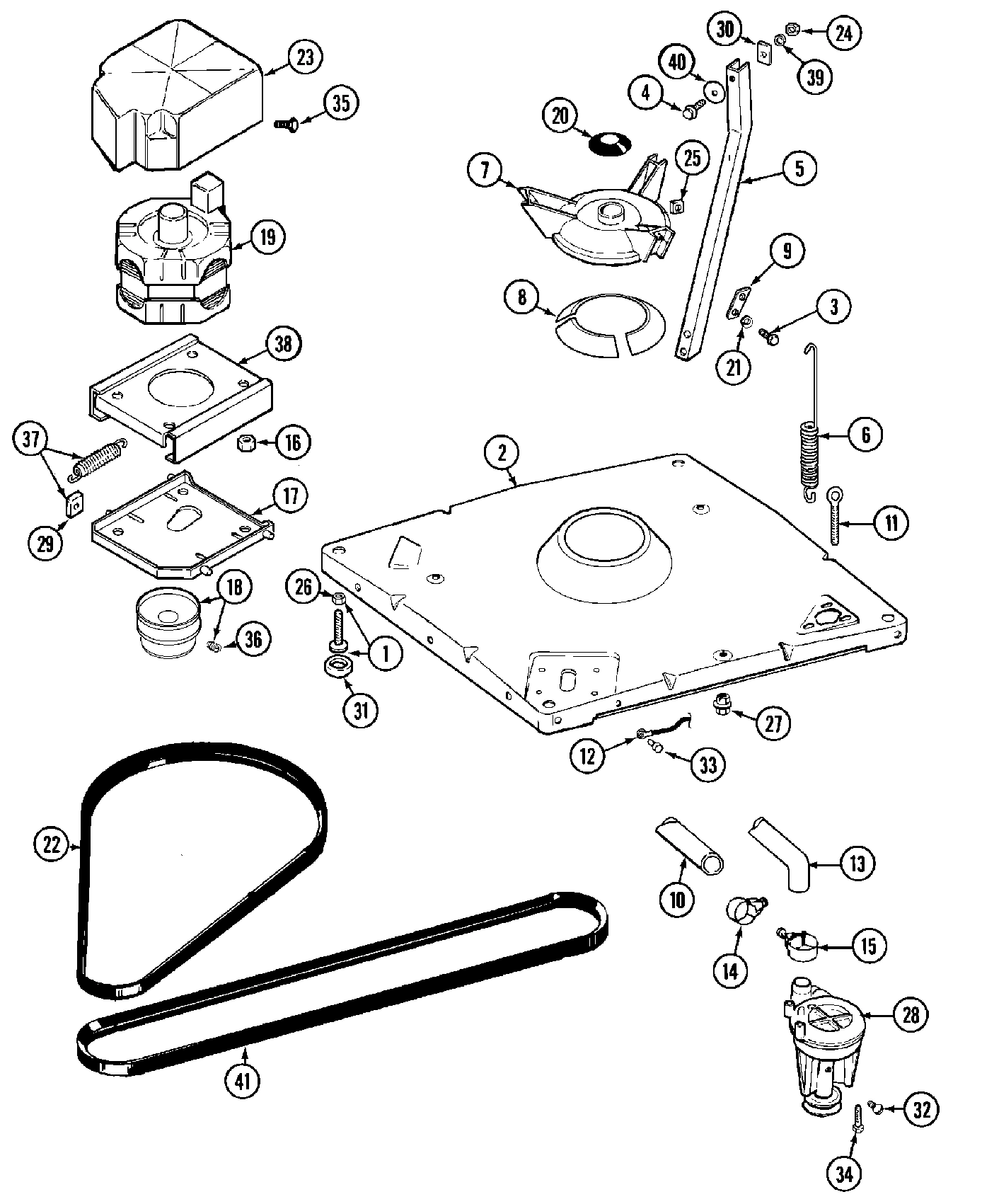

07 - BASE

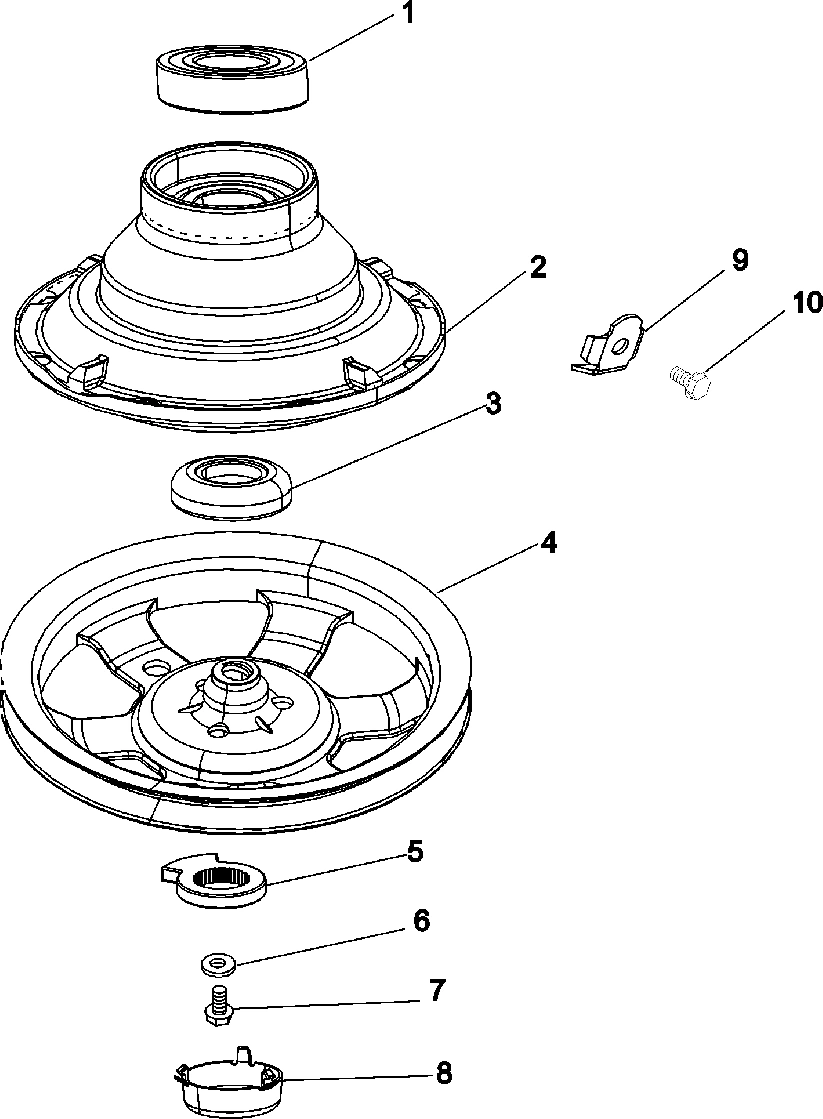

08 - CLUTCH & BRAKE
09 - SUPPLEMENTAL INFORMATION

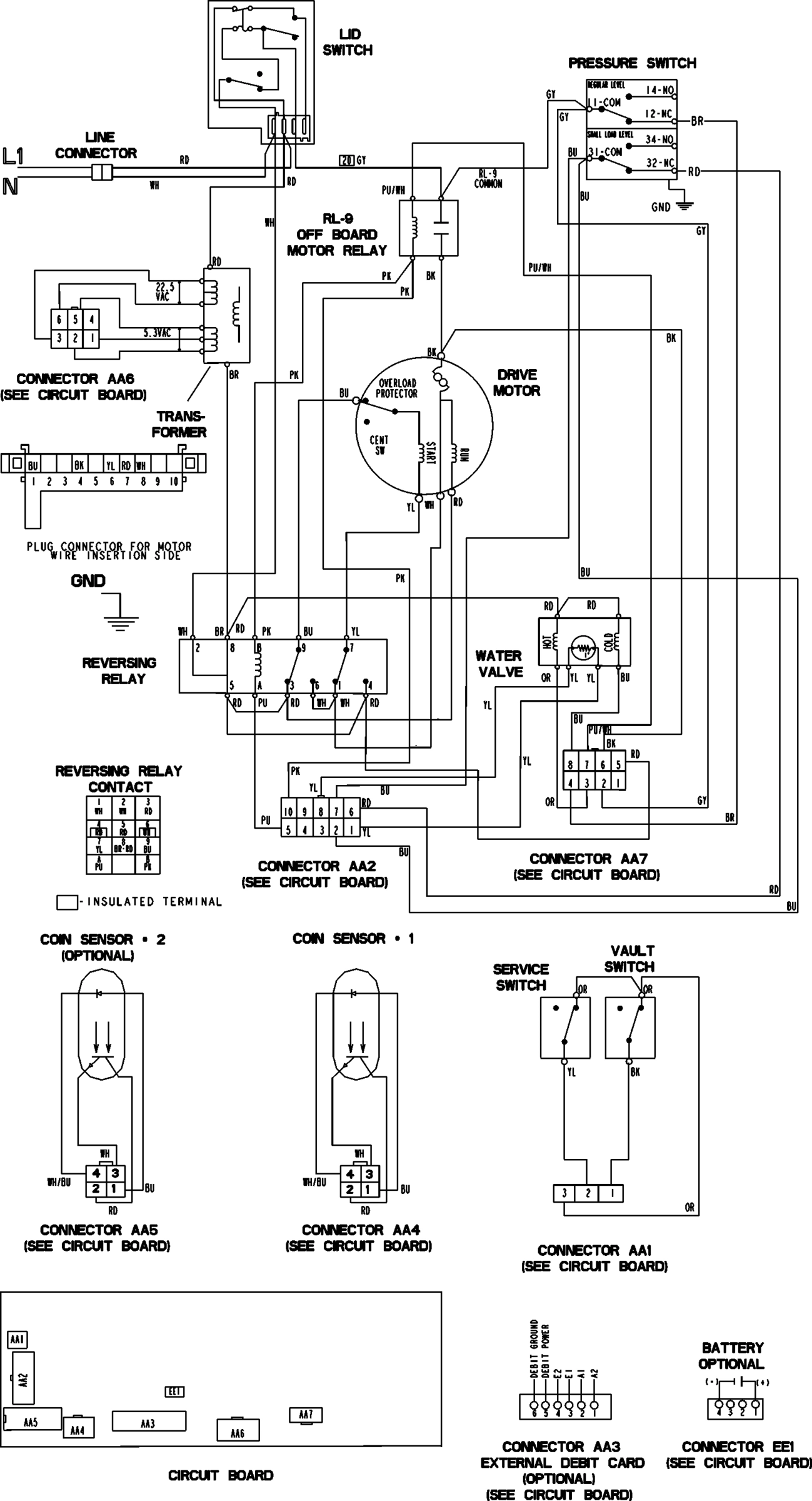

10 - WIRING INFORMATION
Common parts from model Maytag MAT12PDLAQ WASHER
001
MAY Y013783 MAY Y013783 Contact Us For Availability
001
MAY 22002924 MAY 22002924 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY 215417 MAY 215417 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
001
MAY 22001966 MAY 22001966 Contact Us For Availability
001
LOCKING CAM MAY 22003677 Contact Us For Availability
001
MAY 2202538 MAY 2202538 Contact Us For Availability
002
MAY 213846 MAY 213846 Contact Us For Availability
002
MAY 206628 MAY 206628 Contact Us For Availability
002
MAY 22002150 MAY 22002150 Contact Us For Availability
002
MAY 201190 MAY 201190 Contact Us For Availability
002
MAY 16022842 MAY 16022842 Contact Us For Availability
002
MAY 16022844 MAY 16022844 Contact Us For Availability
003
MAY 200835 MAY 200835 Contact Us For Availability
003
MAY 211130 MAY 211130 Contact Us For Availability
003
BRACKET, WATER VALVE MAY 22002361 Contact Us For Availability
003
MAY 22003217 MAY 22003217 Contact Us For Availability
003
MAY 206685 MAY 206685 Contact Us For Availability
003
MAY 22004078 MAY 22004078 Contact Us For Availability
004
MAY 22002135 MAY 22002135 Contact Us For Availability
004
MAY 22004424 MAY 22004424 Contact Us For Availability
004
MAY 206713 MAY 206713 Contact Us For Availability
005
MAY 22001970 MAY 22001970 Contact Us For Availability
005
MAY 22002888 MAY 22002888 Contact Us For Availability
005
MAY 215394 MAY 215394 Contact Us For Availability
005
MAY 213100 MAY 213100 Contact Us For Availability
006
MAY 22001300 MAY 22001300 Contact Us For Availability
006
MAY 22001969 MAY 22001969 Contact Us For Availability
006
MAY Y22001201 MAY Y22001201 Contact Us For Availability
006
MAY 22002537 MAY 22002537 Contact Us For Availability
007
MAY 203725 MAY 203725 Contact Us For Availability
007
MAY 213035 MAY 213035 Contact Us For Availability
007
MAY 22004049 MAY 22004049 Contact Us For Availability
007
MAY 22204012 MAY 22204012 Contact Us For Availability
008
MAY 22002428 MAY 22002428 Contact Us For Availability
008
MAY 22002151 MAY 22002151 Contact Us For Availability
009
MAY 22003814 MAY 22003814 Contact Us For Availability
009
MAY 22001142 MAY 22001142 Contact Us For Availability
009
MAY 22002415 MAY 22002415 Contact Us For Availability
009
MAY 213073 MAY 213073 Contact Us For Availability
010
SCREW, PLUNGER BRACKET MAY 910182 Contact Us For Availability
010
MAY 22001803 MAY 22001803 Contact Us For Availability
010
MAY 22002653 MAY 22002653 Contact Us For Availability
010
MAY Y058700 MAY Y058700 Contact Us For Availability
010
MAY 213326 MAY 213326 Contact Us For Availability
011
MAY 22001968 MAY 22001968 Contact Us For Availability
011
MAY 22002343 MAY 22002343 Contact Us For Availability
012
CAP, AGITATOR MAY 215532 Contact Us For Availability
012
MAY 12001900 MAY 12001900 Contact Us For Availability
012
MAY 12001901 MAY 12001901 Contact Us For Availability
012
MAY 22001341 MAY 22001341 Contact Us For Availability
012
MAY 22002656 MAY 22002656 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
013
MAY 22003679 MAY 22003679 Contact Us For Availability
014
MAY 22001960 MAY 22001960 Contact Us For Availability
014
MAY W10124350 MAY W10124350 Contact Us For Availability
015
PLUNGER, LID SWITCH MAY 216255 Contact Us For Availability
016
WASHER, BRACKET MAY 211500 Contact Us For Availability
017
SCREW, VALVE BRACKET MAY 212276 Contact Us For Availability
017
SCREW & WASHER ASSEMBLY MAY 206478 Contact Us For Availability
017
MAY 22001301 MAY 22001301 Contact Us For Availability
018
MAY 22002127 MAY 22002127 Contact Us For Availability
018
MAY 200816 MAY 200816 Contact Us For Availability
020
WASHER, CLAMPING NUT MAY 211210 Contact Us For Availability
020
SCREW, WATER VALVE MAY Y313561 Contact Us For Availability
020
MAY 22002954 MAY 22002954 Contact Us For Availability
021
MAY 22001608 MAY 22001608 Contact Us For Availability
021
MAY 911852 MAY 911852 Contact Us For Availability
022
MAY 22001900 MAY 22001900 Contact Us For Availability
023
MAY 22001972 MAY 22001972 Contact Us For Availability
023
MAY Y2201881 MAY Y2201881 Contact Us For Availability
023
MAY 215098 MAY 215098 Contact Us For Availability
024
MAY 22003312 MAY 22003312 Contact Us For Availability
024
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
025
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
028
MAY 202203 MAY 202203 Contact Us For Availability
029
MAY Y204998 MAY Y204998 Contact Us For Availability
030
MAY 212979 MAY 212979 Contact Us For Availability
032
MAY 22003235 MAY 22003235 Contact Us For Availability
033
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
036
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
038
PLATE, MOTOR MOUNT (UPR) MAY 214956 Contact Us For Availability
039
WASHER, LOCK (BRACE) MAY Y054867 Contact Us For Availability
040
WASHER, CUSHION (BRACE) MAY 211100 Contact Us For Availability
× ![]()
