Model Maytag MAT12PDBAW WASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - CONTROL CENTER

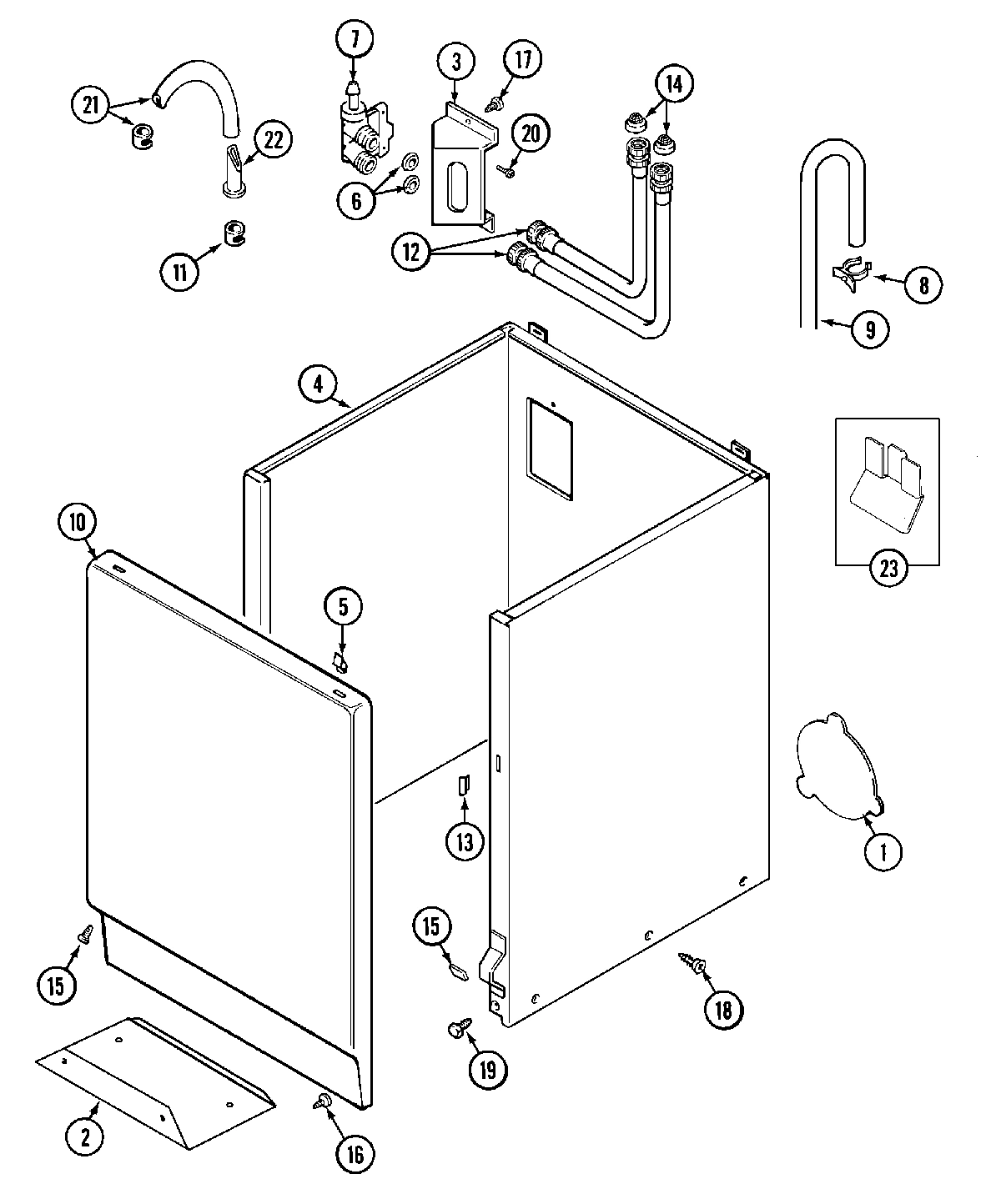

03 - CABINET

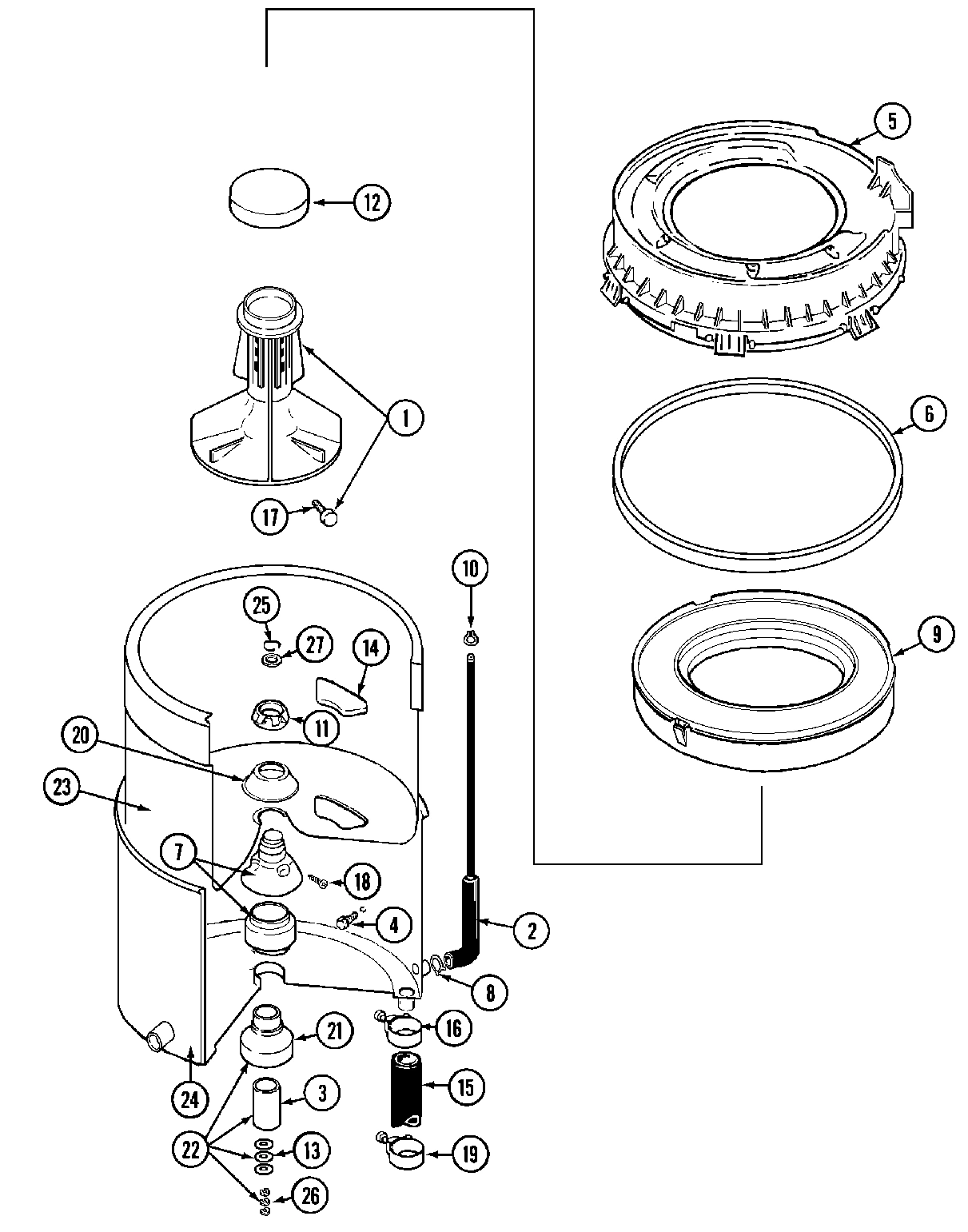

04 - TUB

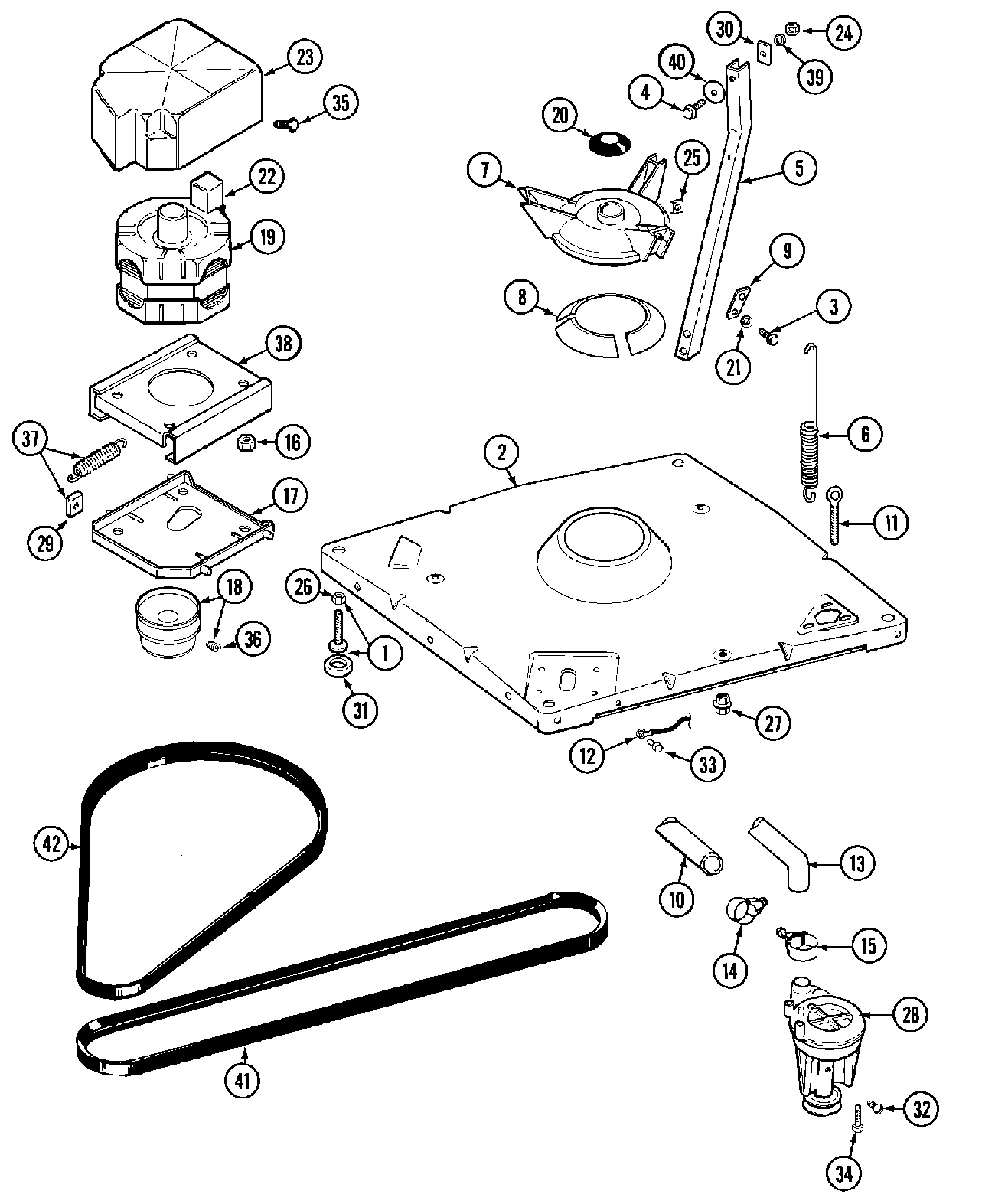

05 - BASE

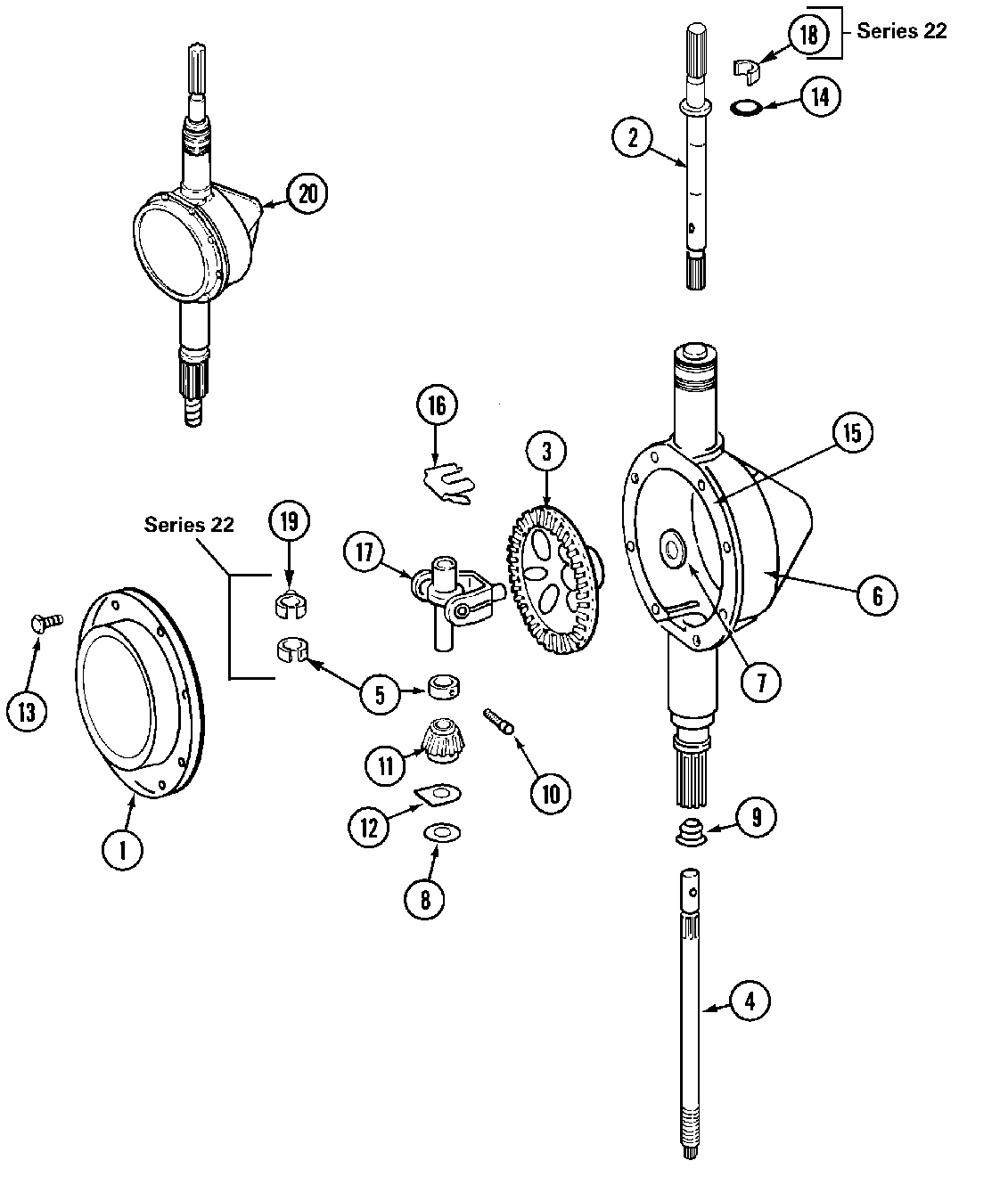

06 - TRANSMISSION

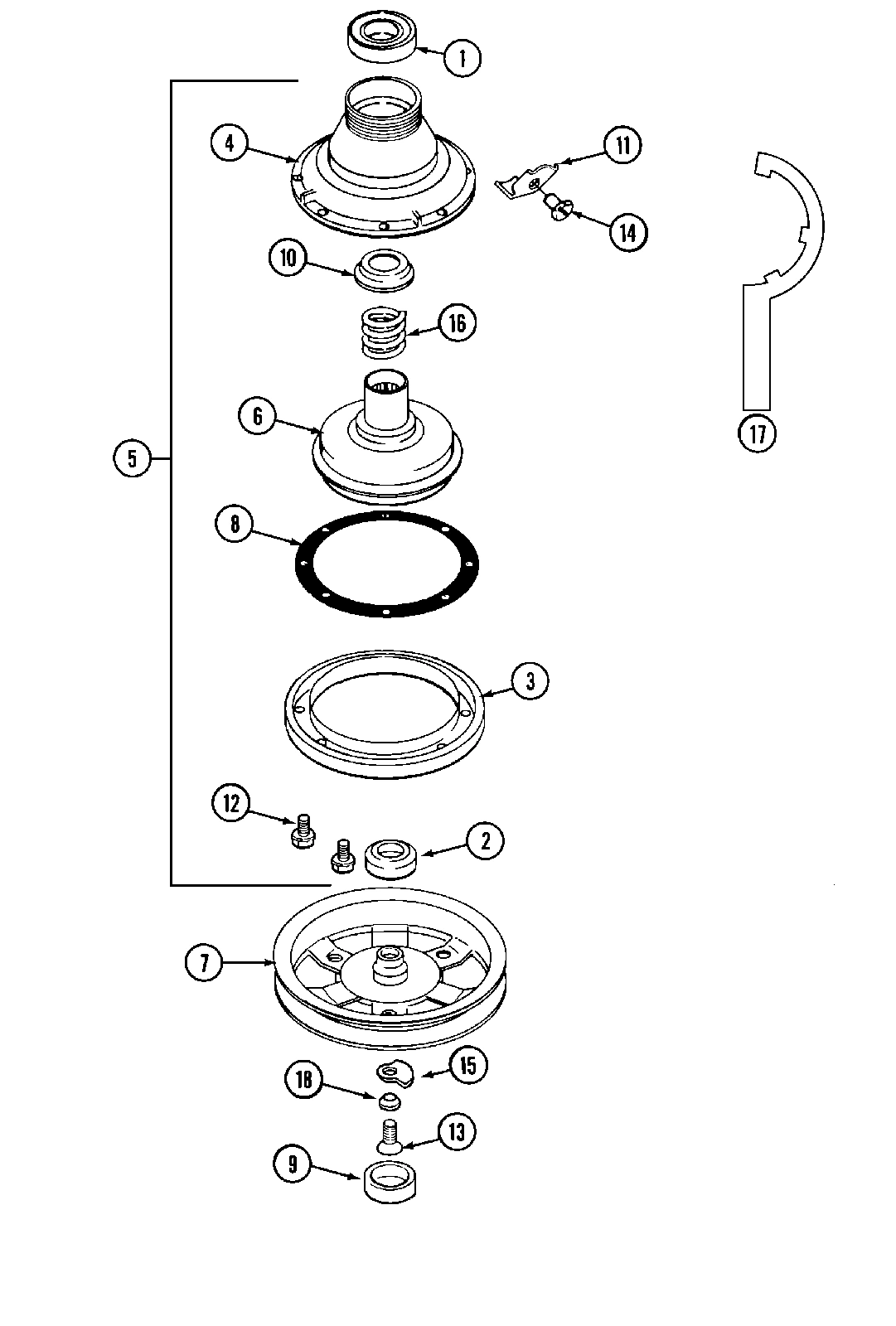

07 - CLUTCH & BRAKE

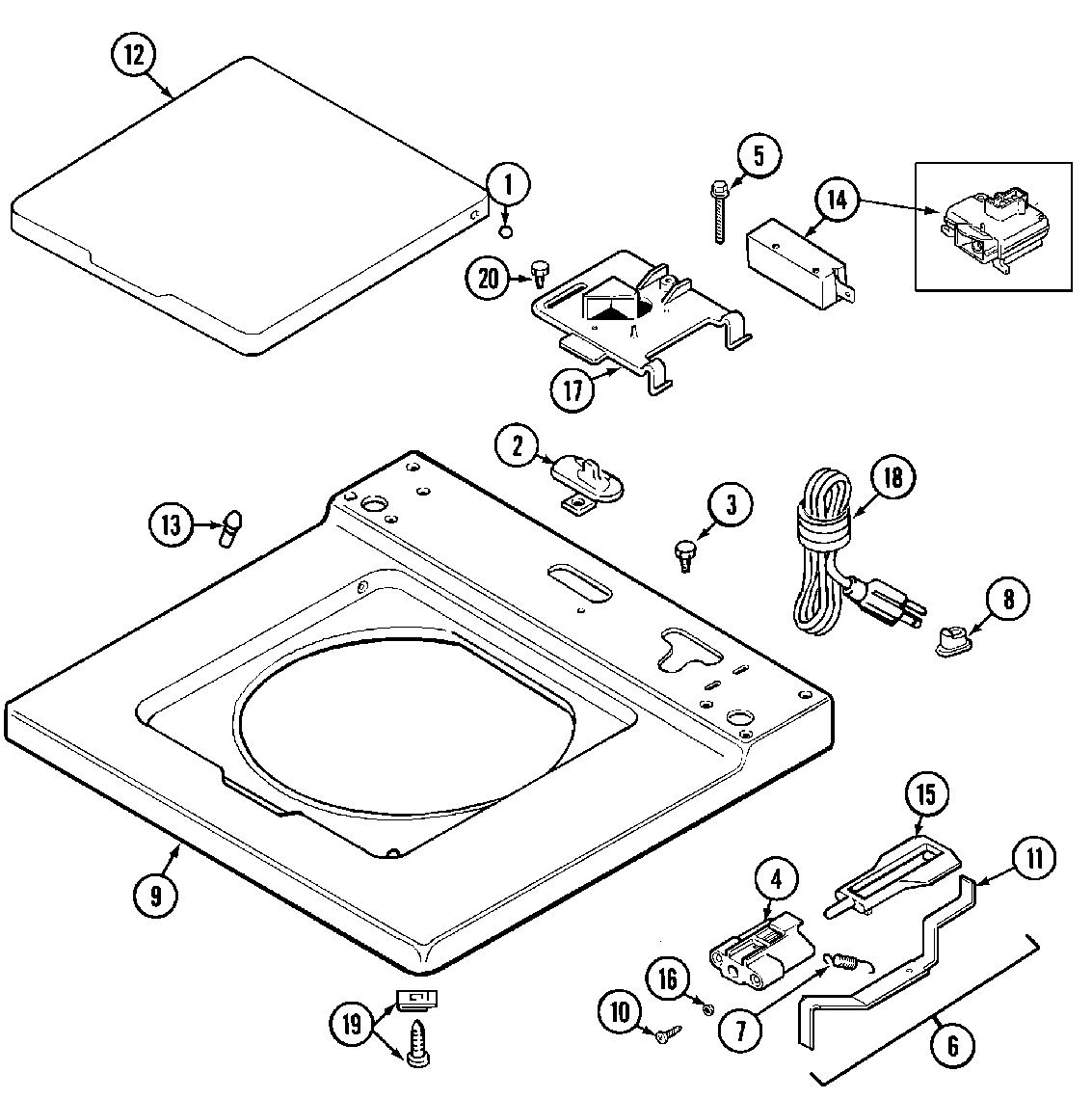

08 - TOP

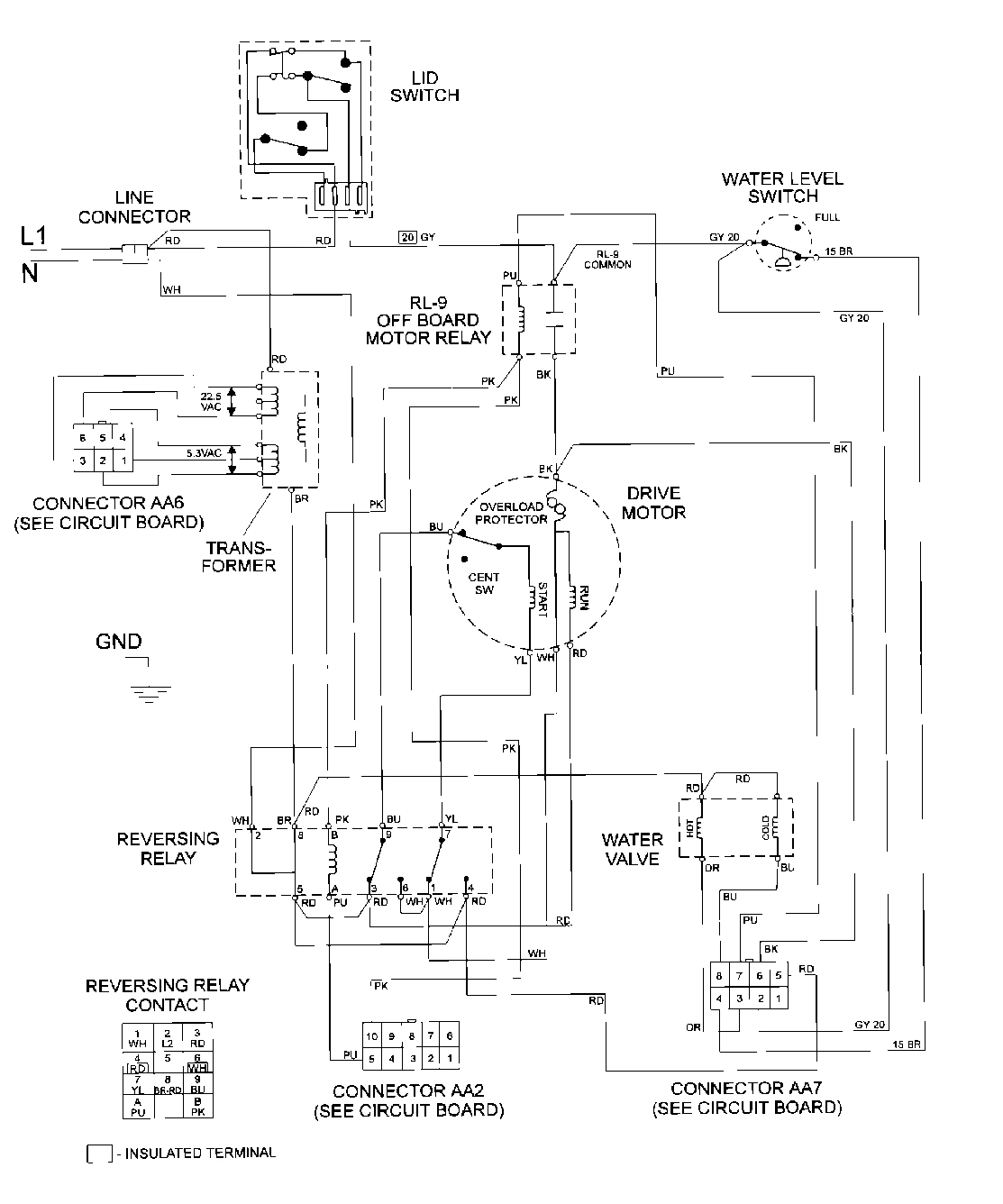

09 - WIRING INFORMATION
Common parts from model Maytag MAT12PDBAW WASHER
001
MAY 212985 MAY 212985 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
001
MAY 206628 MAY 206628 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
002
MAY 200835 MAY 200835 Contact Us For Availability
002
MAY 213846 MAY 213846 Contact Us For Availability
002
TUBE, WATER LEVEL SWITCH MAY 212942 Contact Us For Availability
002
MAY 22001172 MAY 22001172 Contact Us For Availability
002
MAY 207153 MAY 207153 Contact Us For Availability
002
MAY 22002415 MAY 22002415 Contact Us For Availability
002
MAY 22001298 MAY 22001298 Contact Us For Availability
003
MAY 211130 MAY 211130 Contact Us For Availability
003
MAY 214812 MAY 214812 Contact Us For Availability
003
MAY 22003217 MAY 22003217 Contact Us For Availability
003
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
003
MAY 206713 MAY 206713 Contact Us For Availability
003
MAY 211043 MAY 211043 Contact Us For Availability
004
MAY 22002135 MAY 22002135 Contact Us For Availability
004
MAY 22002381 MAY 22002381 Contact Us For Availability
004
MAY 22002382 MAY 22002382 Contact Us For Availability
004
MAY 22002343 MAY 22002343 Contact Us For Availability
004
MAY 211045 MAY 211045 Contact Us For Availability
005
MAY 22001606 MAY 22001606 Contact Us For Availability
005
MAY 213100 MAY 213100 Contact Us For Availability
005
COLLAR (LWR) MAY 215415 Contact Us For Availability
005
PACKAGE, BRAKE MAY 201190 Contact Us For Availability
005
SCREW, LID SWITCH MAY 213501 Contact Us For Availability
006
MAY 22001300 MAY 22001300 Contact Us For Availability
006
LEVER ASSY. (UNBALANCE) MAY 22001969 Contact Us For Availability
006
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
006
MAY 22001681 MAY 22001681 Contact Us For Availability
006
MAY Y22001201 MAY Y22001201 Contact Us For Availability
006
MAY 206625 MAY 206625 Contact Us For Availability
006
MAY 22002537 MAY 22002537 Contact Us For Availability
006
MAY Y056080 MAY Y056080 Contact Us For Availability
006
MAY 201126 MAY 201126 Contact Us For Availability
007
MAY 203725 MAY 203725 Contact Us For Availability
007
MAY 213035 MAY 213035 Contact Us For Availability
007
MAY 22001648 MAY 22001648 Contact Us For Availability
007
MAY 215394 MAY 215394 Contact Us For Availability
007
MAY 211059 MAY 211059 Contact Us For Availability
007
MAY 22002431 MAY 22002431 Contact Us For Availability
008
MAY 211042 MAY 211042 Contact Us For Availability
008
MAY 211881 MAY 211881 Contact Us For Availability
009
MAY 22001816 MAY 22001816 Contact Us For Availability
009
MAY 22001142 MAY 22001142 Contact Us For Availability
009
MAY 22002428 MAY 22002428 Contact Us For Availability
009
MAY 22002701 MAY 22002701 Contact Us For Availability
009
MAY 213073 MAY 213073 Contact Us For Availability
009
MAY 206602 MAY 206602 Contact Us For Availability
009
MAY 22001970 MAY 22001970 Contact Us For Availability
009
(ALM) MAY 22001971 Contact Us For Availability
010
MAY 22001803 MAY 22001803 Contact Us For Availability
010
(ALM) MAY 22001804 Contact Us For Availability
010
MAY 211039 MAY 211039 Contact Us For Availability
010
SCREW, PLUNGER BRACKET MAY 910182 Contact Us For Availability
011
MAY 22001672 MAY 22001672 Contact Us For Availability
011
MAY 22001968 MAY 22001968 Contact Us For Availability
012
CAP, AGITATOR MAY 215532 Contact Us For Availability
012
INLET HOSE ASSEMBLY MAY 205828 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
012
MAY 22001341 MAY 22001341 Contact Us For Availability
012
(W/LEGEND-ALM) MAY 22001342 Contact Us For Availability
013
(ALM) MAY 22001911 Contact Us For Availability
013
MAY 214376 MAY 214376 Contact Us For Availability
013
MAY 215417 MAY 215417 Contact Us For Availability
014
PLUG, TUB MAY 215980 Contact Us For Availability
014
MAY 210690 MAY 210690 Contact Us For Availability
014
MAY 22001960 MAY 22001960 Contact Us For Availability
014
MAY 200961 MAY 200961 Contact Us For Availability
014
MAY Y22001820 MAY Y22001820 Contact Us For Availability
014
BOLT, RETAINING CLIP MAY 213326 Contact Us For Availability
015
PLUNGER, LID SWITCH MAY 216255 Contact Us For Availability
015
SILASTIC, ADHESIVE SEALANT MAY Y058700 Contact Us For Availability
016
MAY 216068 MAY 216068 Contact Us For Availability
016
MAY W10124350 MAY W10124350 Contact Us For Availability
016
MAY 211041 MAY 211041 Contact Us For Availability
016
WASHER, BRACKET MAY 211500 Contact Us For Availability
017
MAY 22001404 MAY 22001404 Contact Us For Availability
017
SCREW, VALVE BRACKET MAY 212276 Contact Us For Availability
017
SCREW & WASHER ASSEMBLY MAY 206478 Contact Us For Availability
017
MAY 22001301 MAY 22001301 Contact Us For Availability
017
MAY 206685 MAY 206685 Contact Us For Availability
017
TOOL, BRAKE PACKAGE ASSEMBLY MAY Y038315 Contact Us For Availability
018
MAY 200816 MAY 200816 Contact Us For Availability
018
TRANSMISSION (COMPLETE) MAY 206708 Contact Us For Availability
019
MAY 22001966 MAY 22001966 Contact Us For Availability
019
SCREW & FASTENER ASSEMBLY MAY 204445 Contact Us For Availability
020
WASHER, CLAMPING NUT MAY 211210 Contact Us For Availability
020
MAY 22002144 MAY 22002144 Contact Us For Availability
020
MAY 33002647 MAY 33002647 Contact Us For Availability
020
SCREW, WATER VALVE MAY Y313561 Contact Us For Availability
020
MAY 22001511 MAY 22001511 Contact Us For Availability
020
MAY 22002127 MAY 22002127 Contact Us For Availability
021
INJECTOR HOSE & CLAMP KIT MAY 22001608 Contact Us For Availability
021
MAY 911852 MAY 911852 Contact Us For Availability
022
MAY 22001900 MAY 22001900 Contact Us For Availability
022
SWITCH, MOTOR EXTERNAL START (PROD. No. 20742 MAY 205131 Contact Us For Availability
022
SWITCH, MOTOR EXTERNAL START (201664-14,20546 MAY 205132 Contact Us For Availability
022
PROD. No. 201664-15 & 205463-3 MAY 206505 Contact Us For Availability
023
MAY 22001972 MAY 22001972 Contact Us For Availability
023
TUB, INNER MAY 22001141 Contact Us For Availability
023
MAY 215098 MAY 215098 Contact Us For Availability
024
MAY 22001115 MAY 22001115 Contact Us For Availability
024
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
025
MAY Y015667 MAY Y015667 Contact Us For Availability
025
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
028
MAY 202203 MAY 202203 Contact Us For Availability
029
MAY Y204998 MAY Y204998 Contact Us For Availability
030
MAY 212979 MAY 212979 Contact Us For Availability
032
MAY Y015408 MAY Y015408 Contact Us For Availability
036
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
038
PLATE, MOTOR MOUNT (UPR) MAY 214956 Contact Us For Availability
039
WASHER, LOCK (BRACE) MAY Y054867 Contact Us For Availability
040
WASHER, CUSHION (BRACE) MAY 211100 Contact Us For Availability
× ![]()
