Model Maytag MAT12CSLWQ WASHER – Common Parts & Diagrams

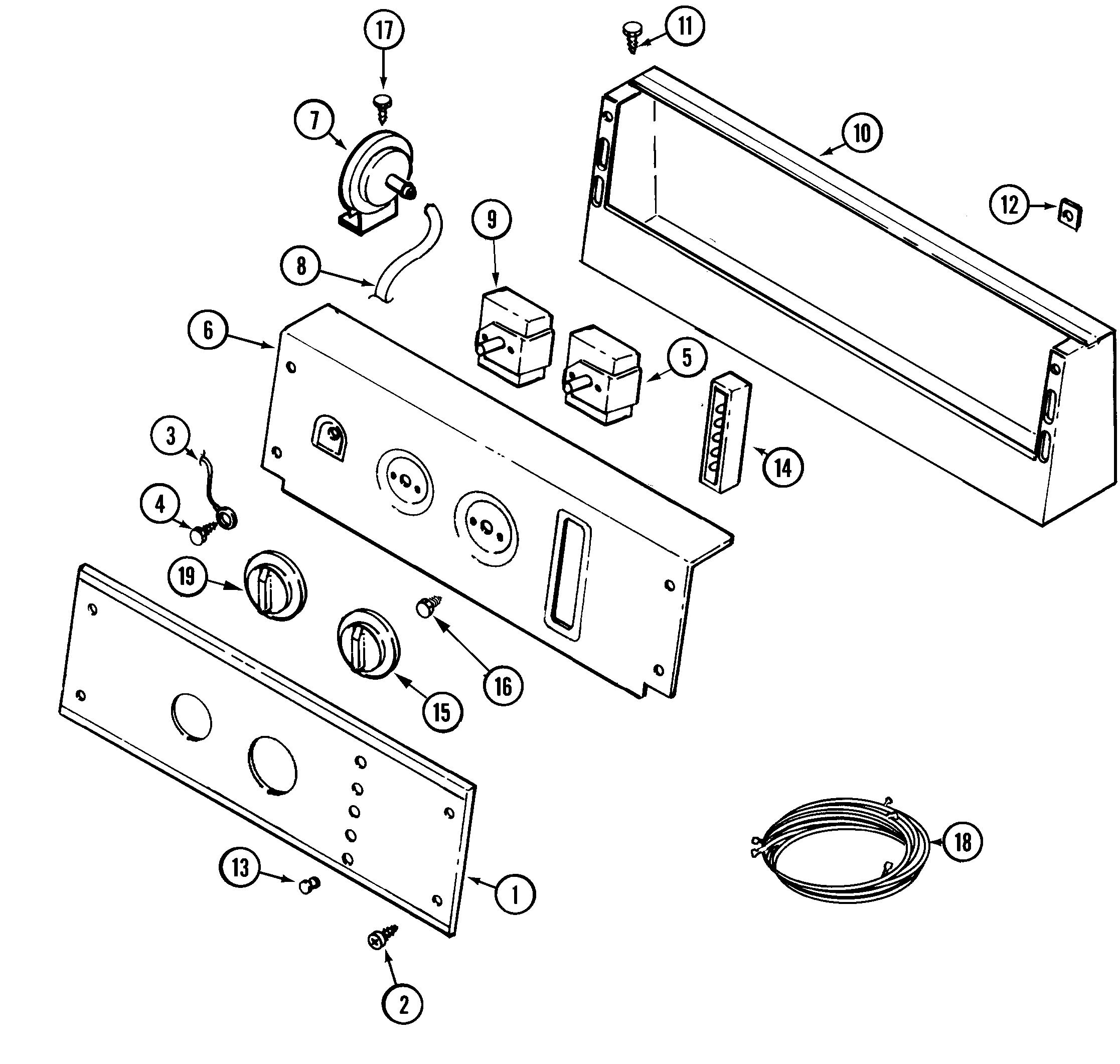

01 - CONTROL PANEL
02 - CONTROL CENTER

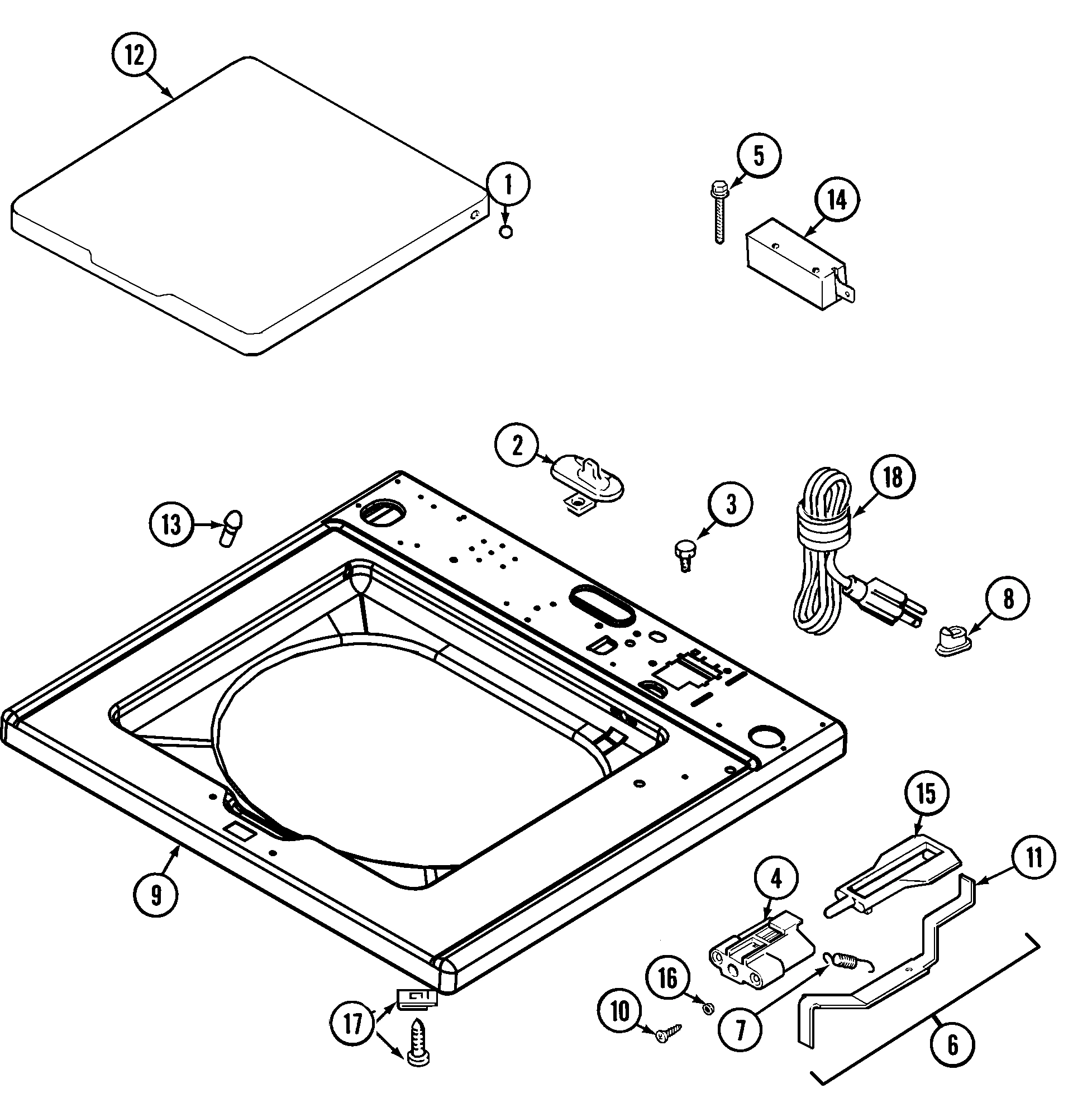

03 - TOP

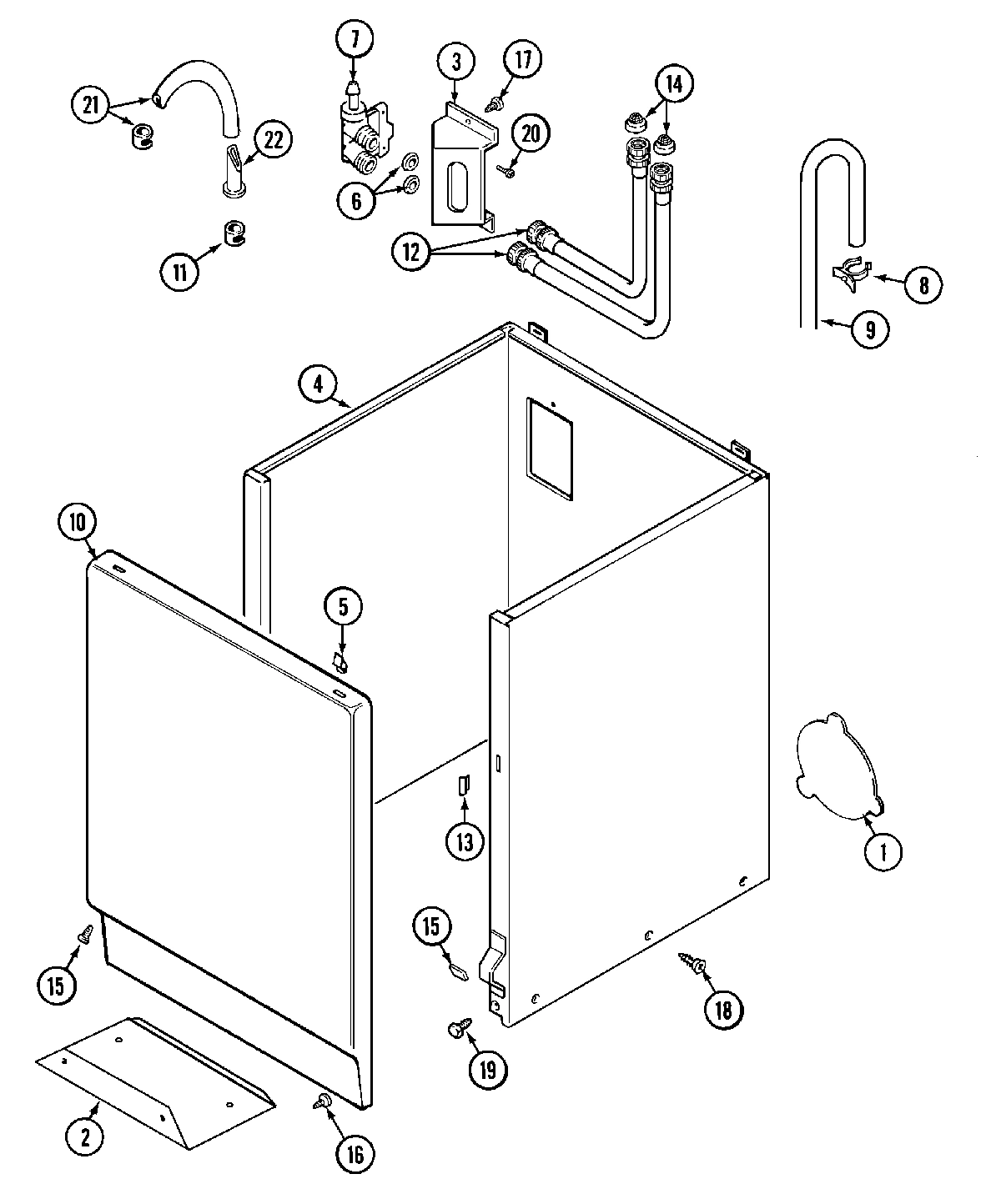

04 - CABINET

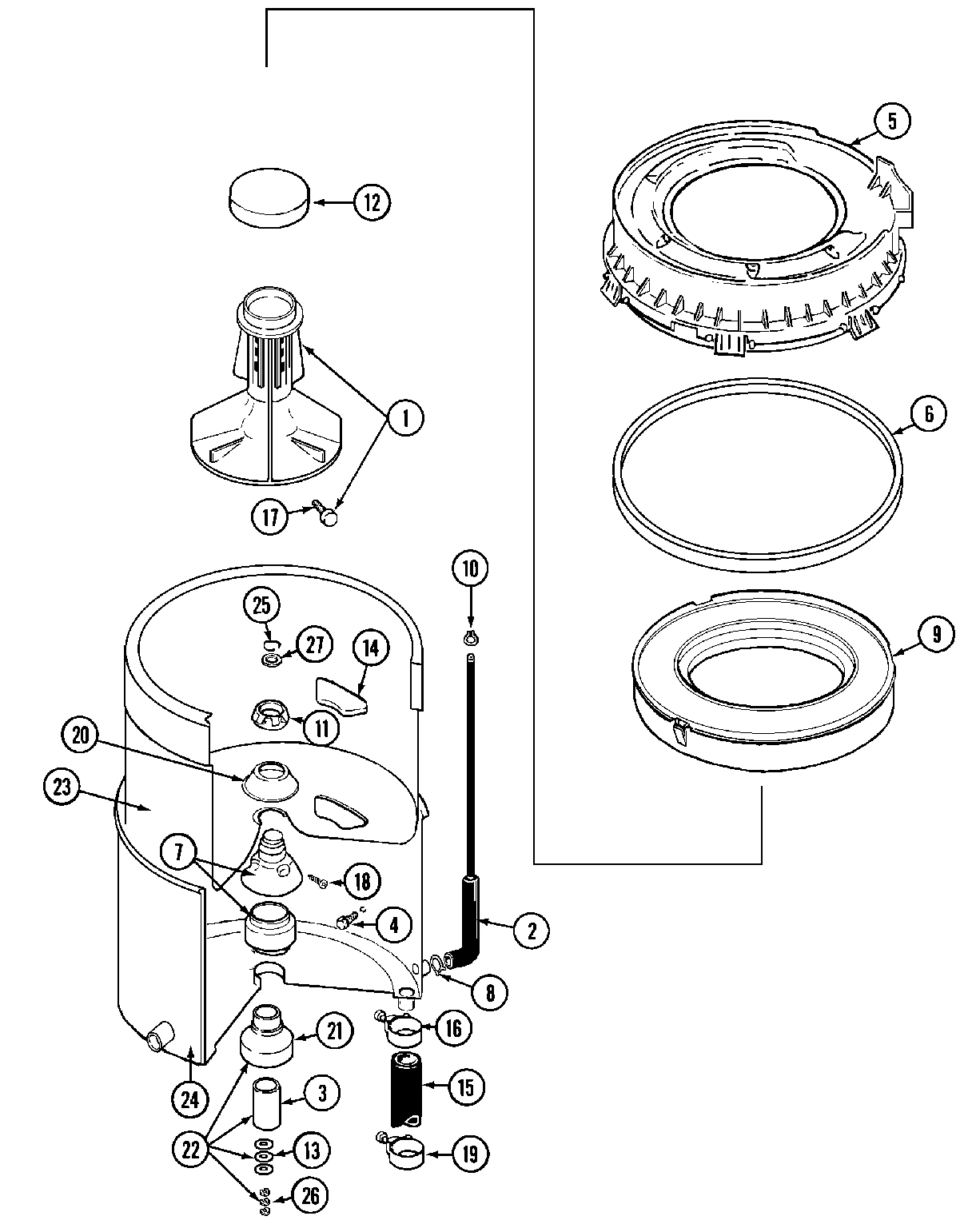

05 - TUB

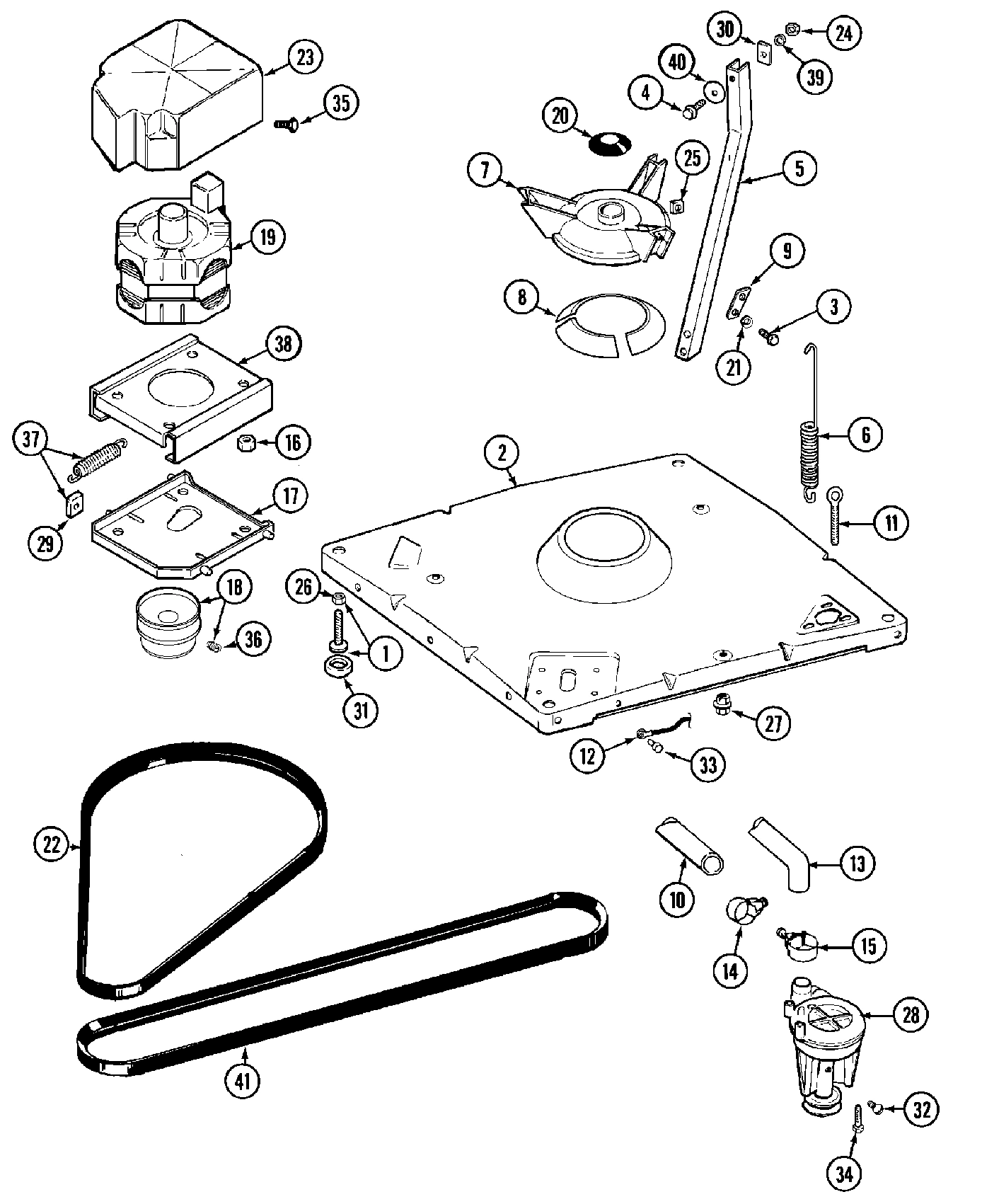

06 - BASE

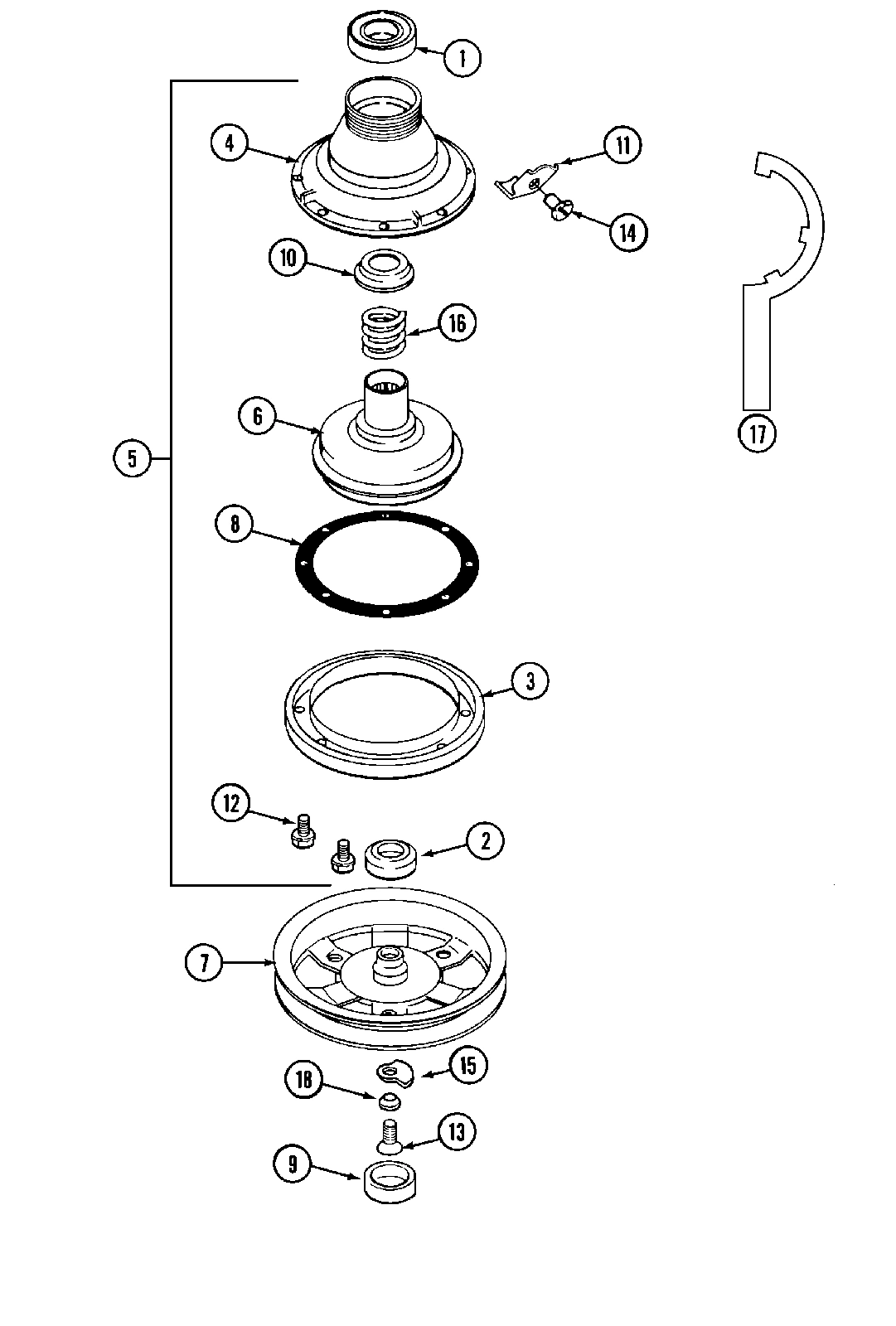

07 - CLUTCH & BRAKE

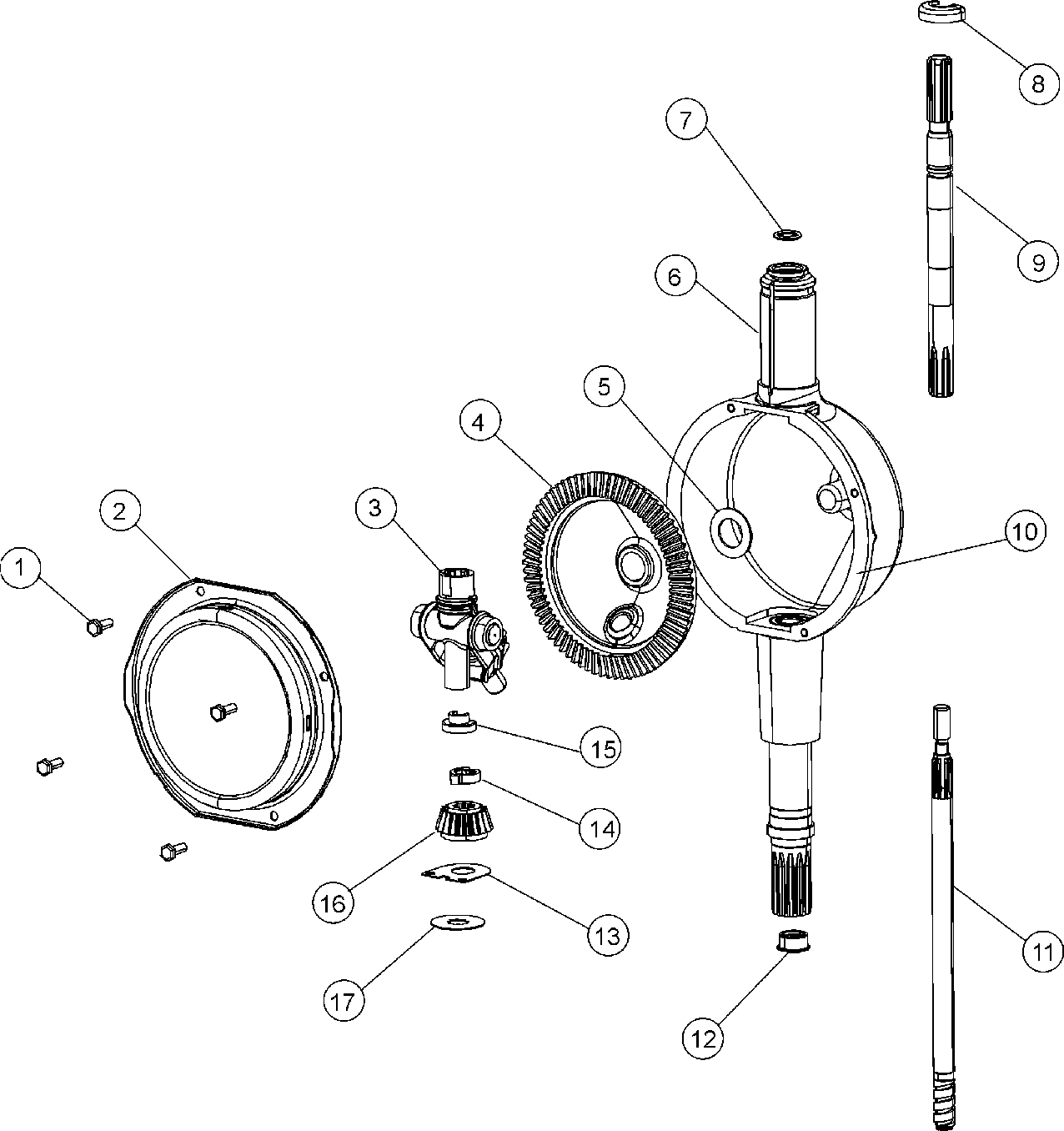

08 - TRANSMISSION
Common parts from model Maytag MAT12CSLWQ WASHER
001
PLATE, ACCESS (W/HOLE) MAY 22002924 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
001
MAY 215417 MAY 215417 Contact Us For Availability
002
MAY 200835 MAY 200835 Contact Us For Availability
002
MAY 213846 MAY 213846 Contact Us For Availability
002
MAY 22002150 MAY 22002150 Contact Us For Availability
002
MAY 206628 MAY 206628 Contact Us For Availability
003
MAY 211130 MAY 211130 Contact Us For Availability
003
MAY 22002361 MAY 22002361 Contact Us For Availability
003
MAY 211043 MAY 211043 Contact Us For Availability
003
MAY 206685 MAY 206685 Contact Us For Availability
004
MAY 22002135 MAY 22002135 Contact Us For Availability
004
MAY 22002382 MAY 22002382 Contact Us For Availability
004
MAY 22002425 MAY 22002425 Contact Us For Availability
004
MAY 22004424 MAY 22004424 Contact Us For Availability
004
MAY 211045 MAY 211045 Contact Us For Availability
004
MAY 206713 MAY 206713 Contact Us For Availability
005
MAY 22001606 MAY 22001606 Contact Us For Availability
005
MAY 213100 MAY 213100 Contact Us For Availability
005
PACKAGE, BRAKE MAY 201190 Contact Us For Availability
005
MAY 215394 MAY 215394 Contact Us For Availability
006
MAY 22001300 MAY 22001300 Contact Us For Availability
006
MAY 22001969 MAY 22001969 Contact Us For Availability
006
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
006
MAY Y22001201 MAY Y22001201 Contact Us For Availability
006
MAY 201126 MAY 201126 Contact Us For Availability
006
MAY 22002537 MAY 22002537 Contact Us For Availability
007
MAY 203725 MAY 203725 Contact Us For Availability
007
MAY W10136962 MAY W10136962 Contact Us For Availability
007
MAY 22001648 MAY 22001648 Contact Us For Availability
007
MAY 211059 MAY 211059 Contact Us For Availability
008
MAY 22002151 MAY 22002151 Contact Us For Availability
008
MAY 211042 MAY 211042 Contact Us For Availability
009
MAY 22003814 MAY 22003814 Contact Us For Availability
009
MAY 22001142 MAY 22001142 Contact Us For Availability
009
CAP, OIL RETAINER MAY NLA Contact Us For Availability
009
MAY 213073 MAY 213073 Contact Us For Availability
009
MAY 22002415 MAY 22002415 Contact Us For Availability
010
MAY 22001816 MAY 22001816 Contact Us For Availability
010
MAY 22001803 MAY 22001803 Contact Us For Availability
010
MAY 22002653 MAY 22002653 Contact Us For Availability
010
MAY 211039 MAY 211039 Contact Us For Availability
010
MAY Y058700 MAY Y058700 Contact Us For Availability
011
MAY 22003679 MAY 22003679 Contact Us For Availability
011
MAY 22002343 MAY 22002343 Contact Us For Availability
012
CAP, AGITATOR MAY 215532 Contact Us For Availability
012
MAY 22001341 MAY 22001341 Contact Us For Availability
012
MAY 22002656 MAY 22002656 Contact Us For Availability
012
MAY 22003682 MAY 22003682 Contact Us For Availability
012
MAY 22003683 MAY 22003683 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
014
PLUG, TUB MAY 215980 Contact Us For Availability
014
MAY Y22001820 MAY Y22001820 Contact Us For Availability
014
BOLT, RETAINING CLIP MAY 213326 Contact Us For Availability
015
PLUNGER, LID SWITCH MAY 216255 Contact Us For Availability
016
WASHER, BRACKET MAY 211500 Contact Us For Availability
016
MAY 211041 MAY 211041 Contact Us For Availability
017
PIVOT ARM, TIMER MAY 22001042 Contact Us For Availability
017
SCREW & FASTENER ASSEMBLY MAY 204445 Contact Us For Availability
017
MAY 22003817 MAY 22003817 Contact Us For Availability
017
SCREW & WASHER ASSEMBLY MAY 206478 Contact Us For Availability
017
MAY 22001301 MAY 22001301 Contact Us For Availability
017
BRAKE PACKAGE ASSEMBLY TOOL MAY Y038315 Contact Us For Availability
018
MAY Y200832 MAY Y200832 Contact Us For Availability
018
MAY 33002190 MAY 33002190 Contact Us For Availability
018
MAY 200816 MAY 200816 Contact Us For Availability
018
MAY 22002375 MAY 22002375 Contact Us For Availability
020
WASHER, CLAMPING NUT MAY 211210 Contact Us For Availability
020
SCREW, WATER VALVE MAY Y313561 Contact Us For Availability
020
MAY 22001511 MAY 22001511 Contact Us For Availability
021
INJECTOR HOSE & CLAMP KIT MAY 22001608 Contact Us For Availability
021
MAY 911852 MAY 911852 Contact Us For Availability
022
MAY 22001900 MAY 22001900 Contact Us For Availability
022
MAY 22002571 MAY 22002571 Contact Us For Availability
023
MAY 22001140 MAY 22001140 Contact Us For Availability
023
MAY 215098 MAY 215098 Contact Us For Availability
024
MAY 22003312 MAY 22003312 Contact Us For Availability
024
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
025
MAY Y015667 MAY Y015667 Contact Us For Availability
025
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
028
MAY 202203 MAY 202203 Contact Us For Availability
029
MAY Y204998 MAY Y204998 Contact Us For Availability
030
MAY 212979 MAY 212979 Contact Us For Availability
032
MAY Y015408 MAY Y015408 Contact Us For Availability
033
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
036
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
038
PLATE, MOTOR MOUNT (UPR) MAY 214956 Contact Us For Availability
039
WASHER, LOCK (BRACE) MAY Y054867 Contact Us For Availability
040
WASHER, CUSHION (BRACE) MAY 211100 Contact Us For Availability
× ![]()
