Model Maytag MAT12CSAAQ WASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - CONTROL CENTER

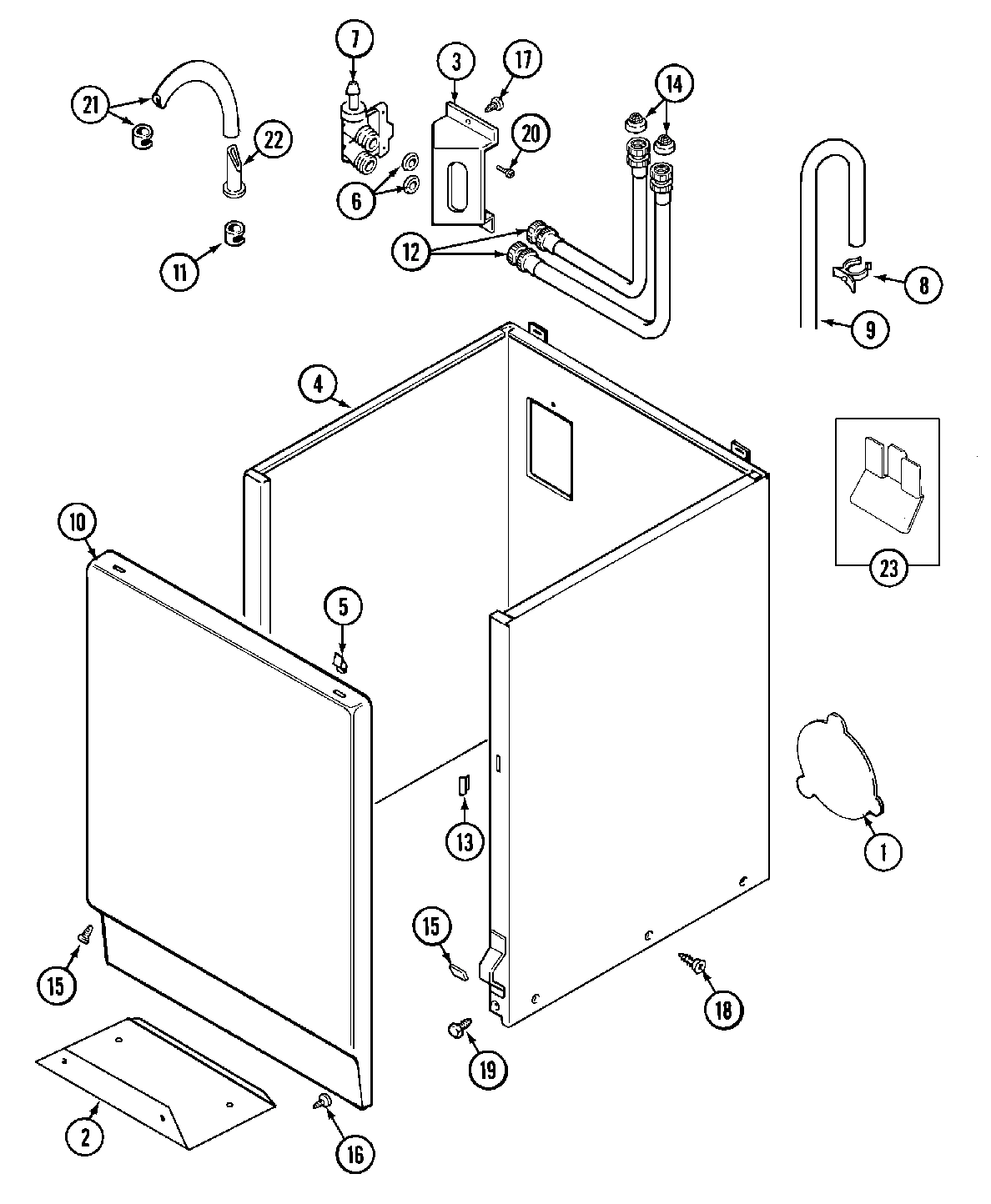

03 - CABINET

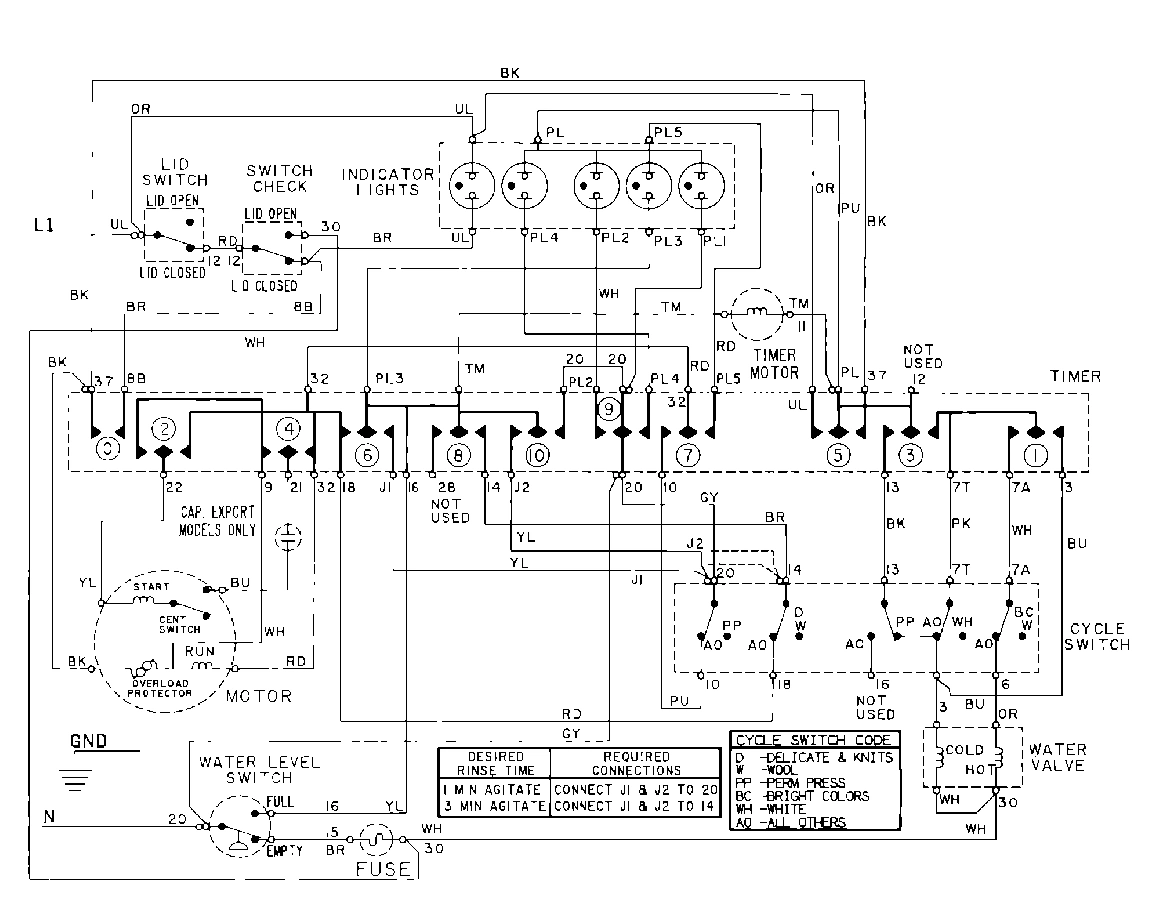

04 - WIRING INFORMATION

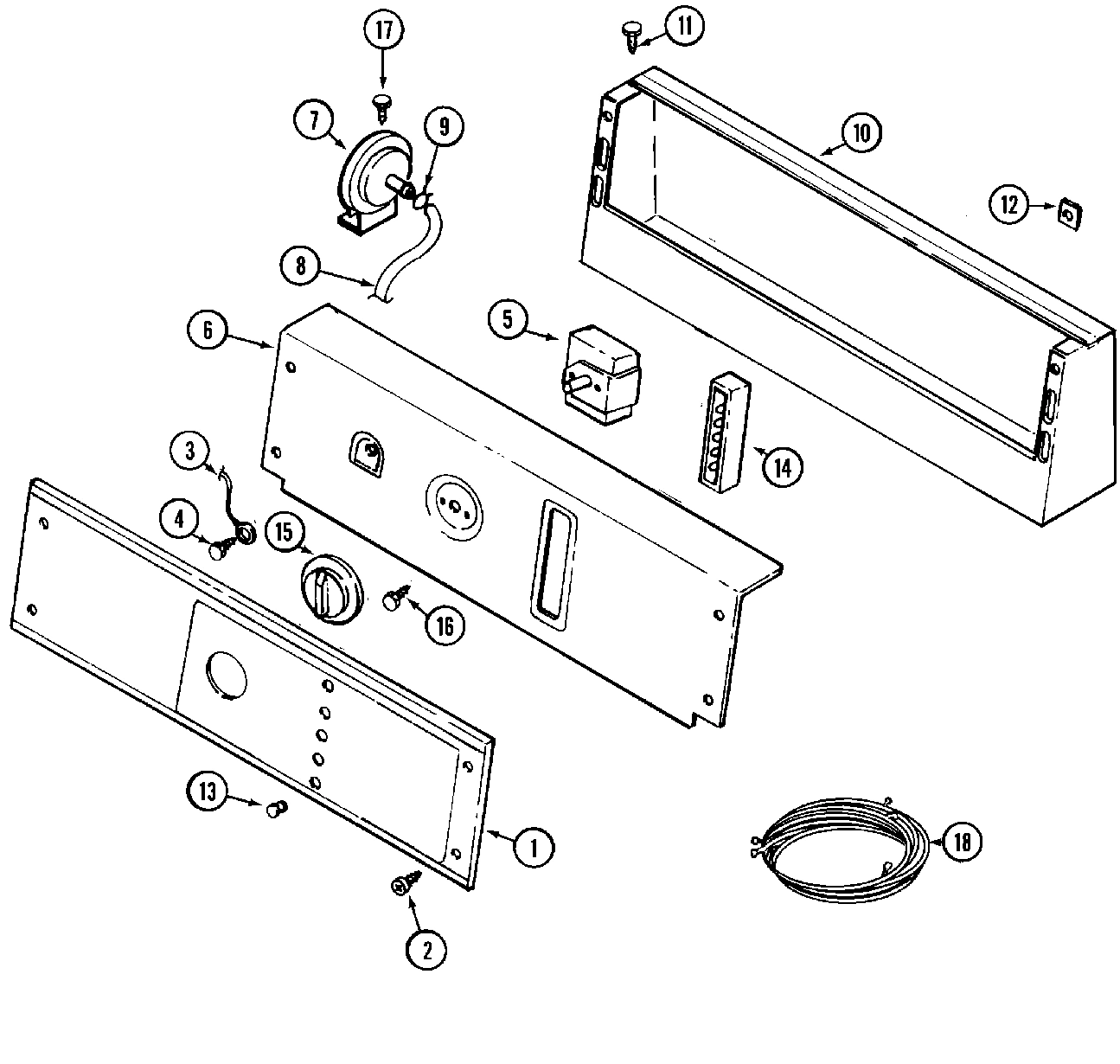

05 - CONTROL PANEL (BSQ)

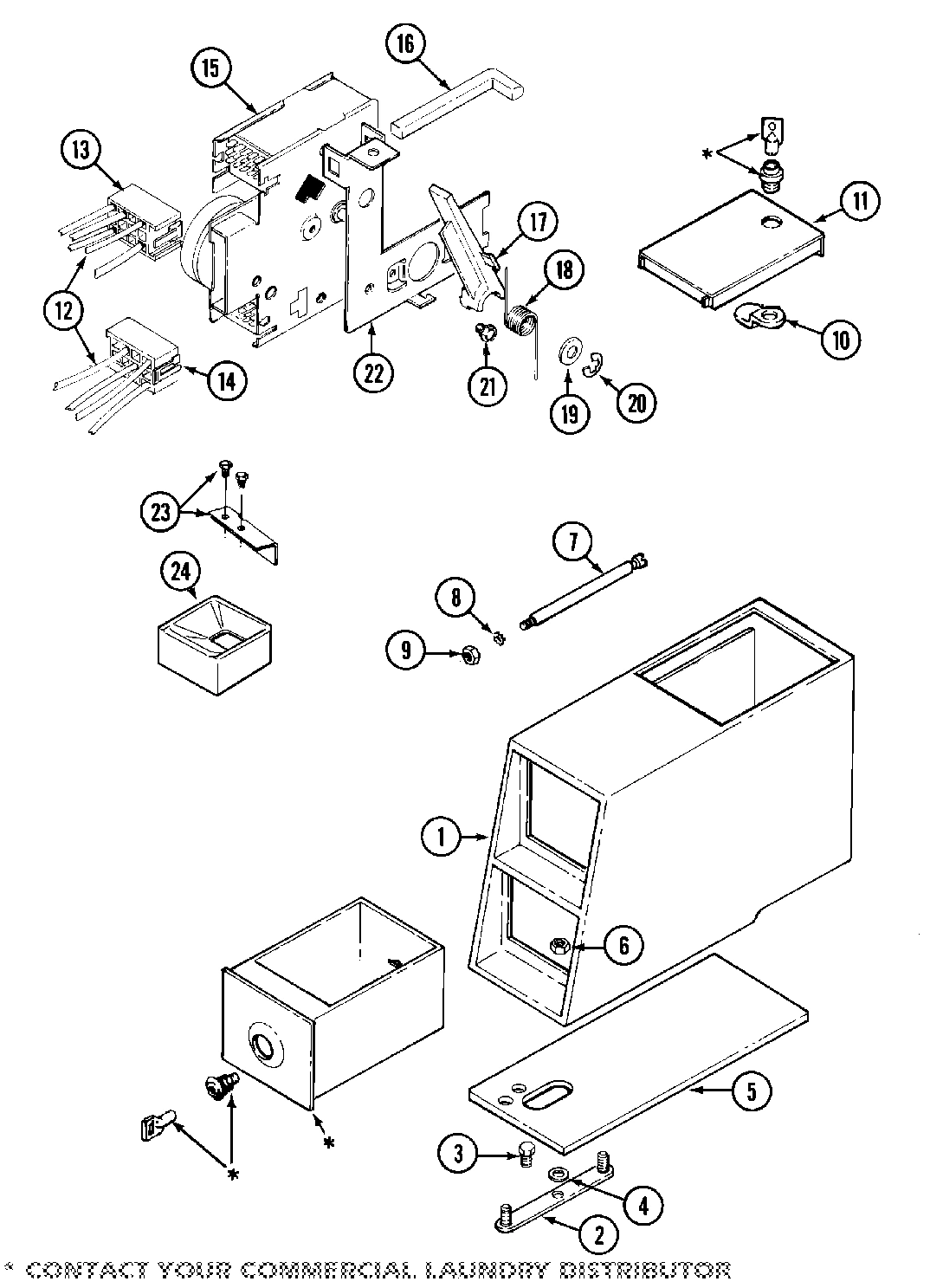

06 - CONTROL CENTER (BSQ)
07 - CABINET (BSQ)

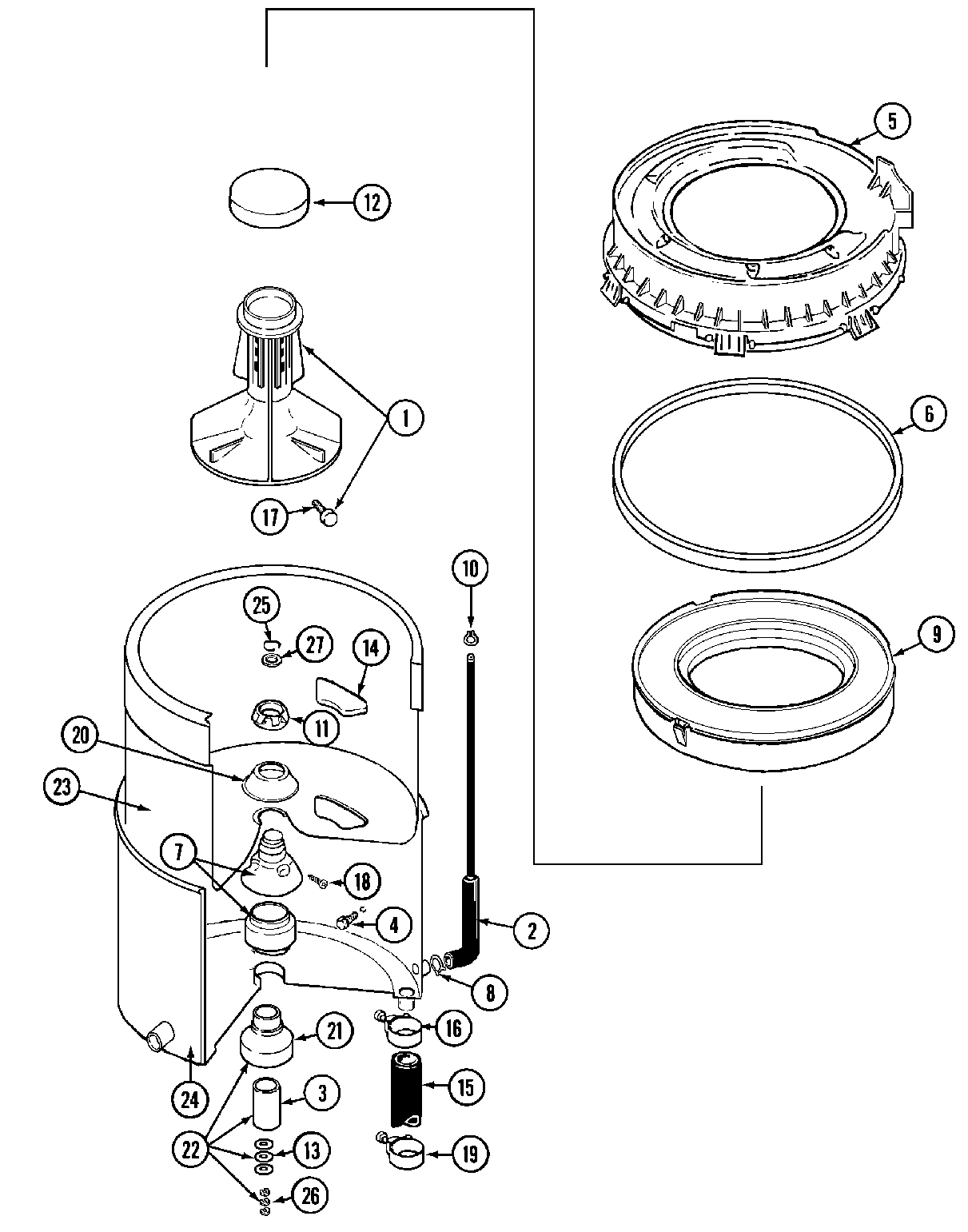

08 - TUB (BSQ)

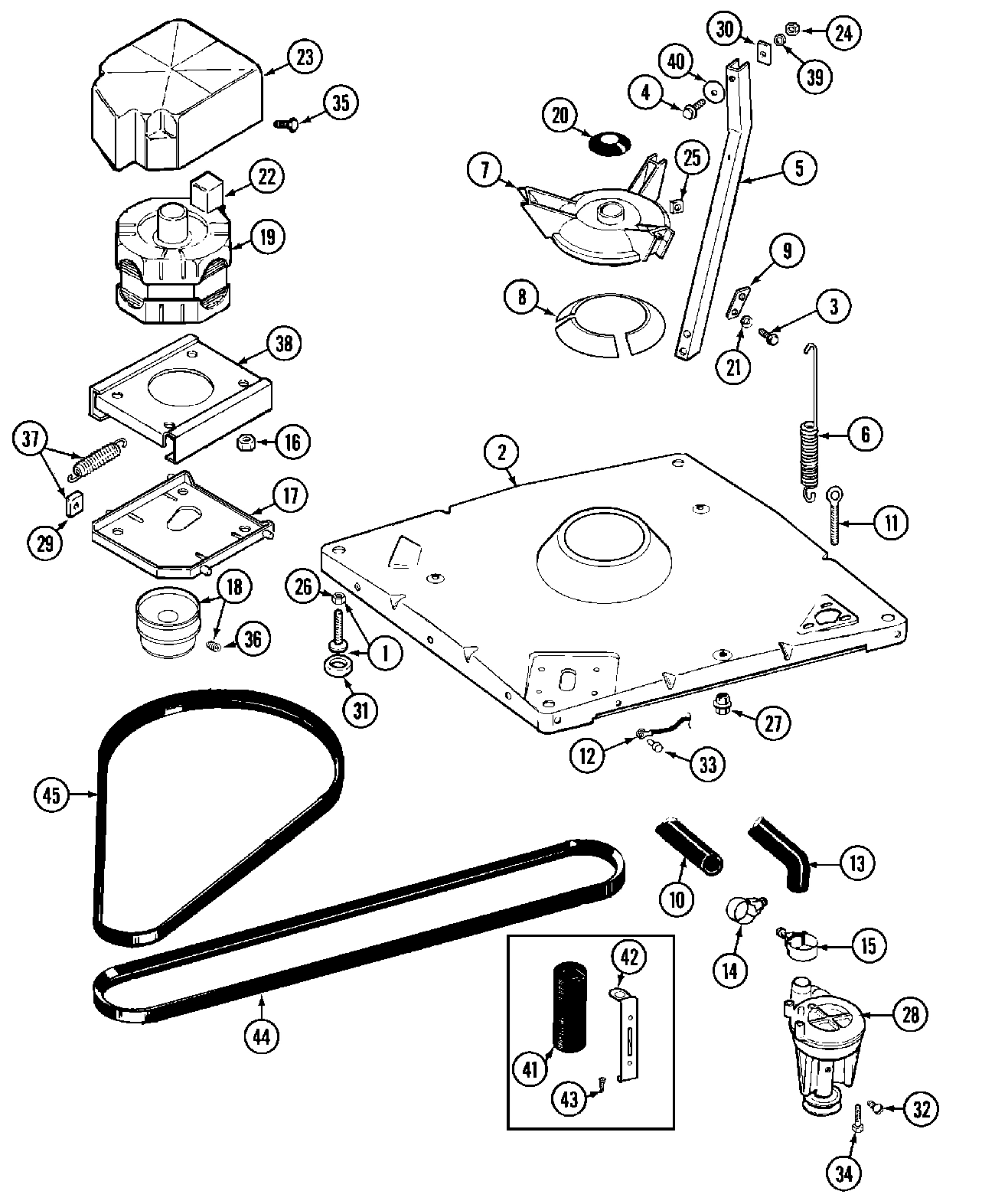

09 - BASE (BSQ)

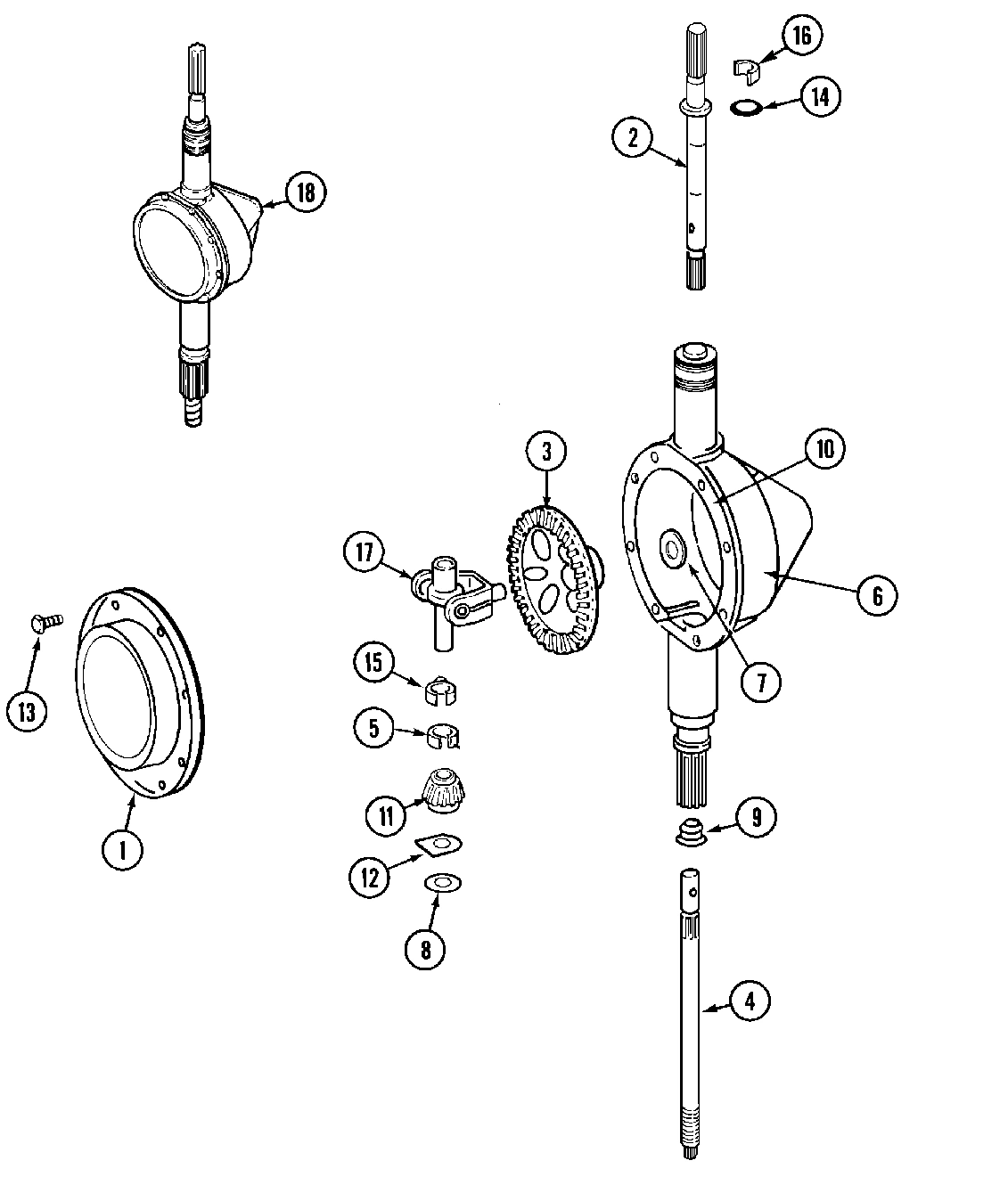

10 - TRANSMISSION (BSQ)

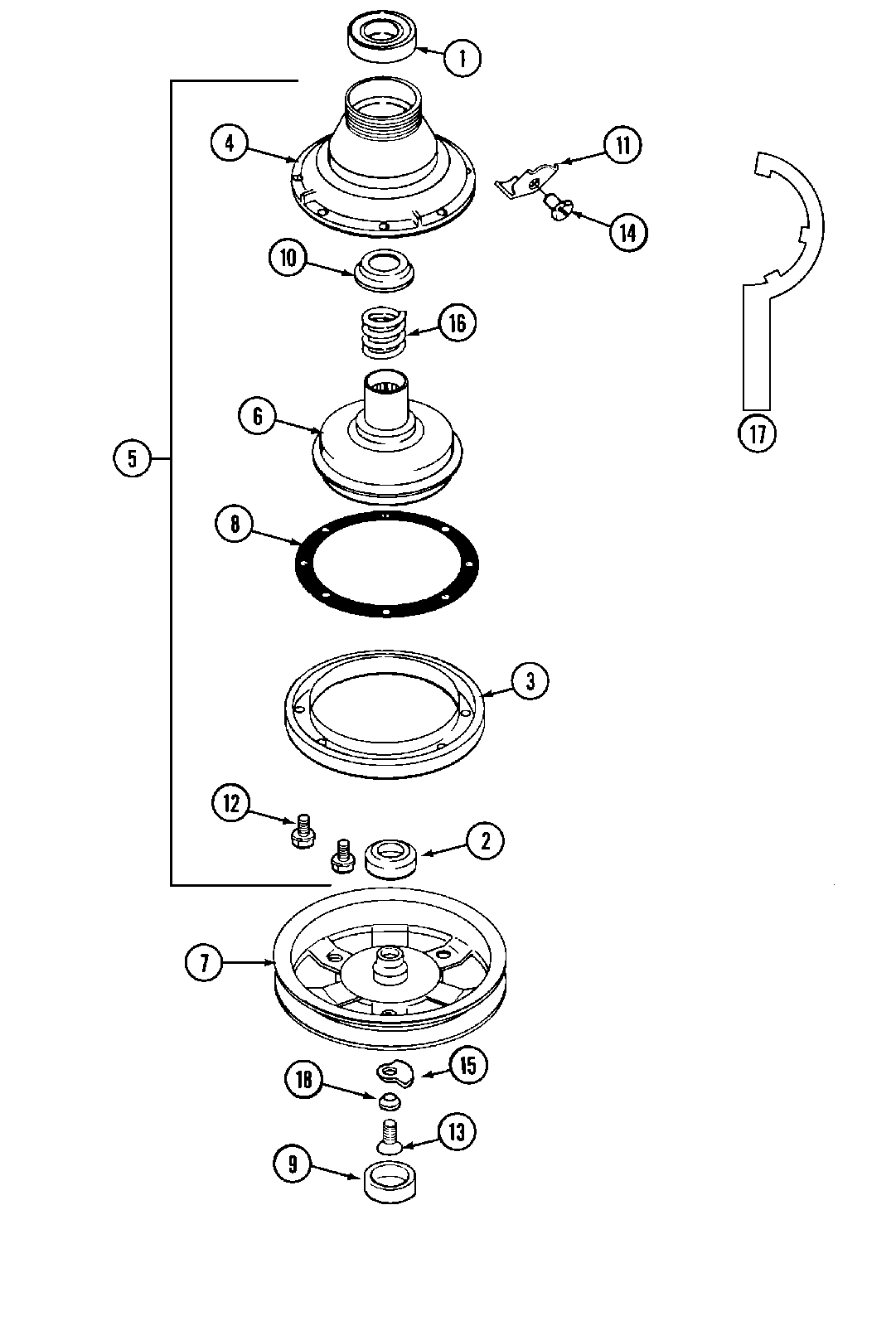

11 - CLUTCH & BRAKE (BSQ)

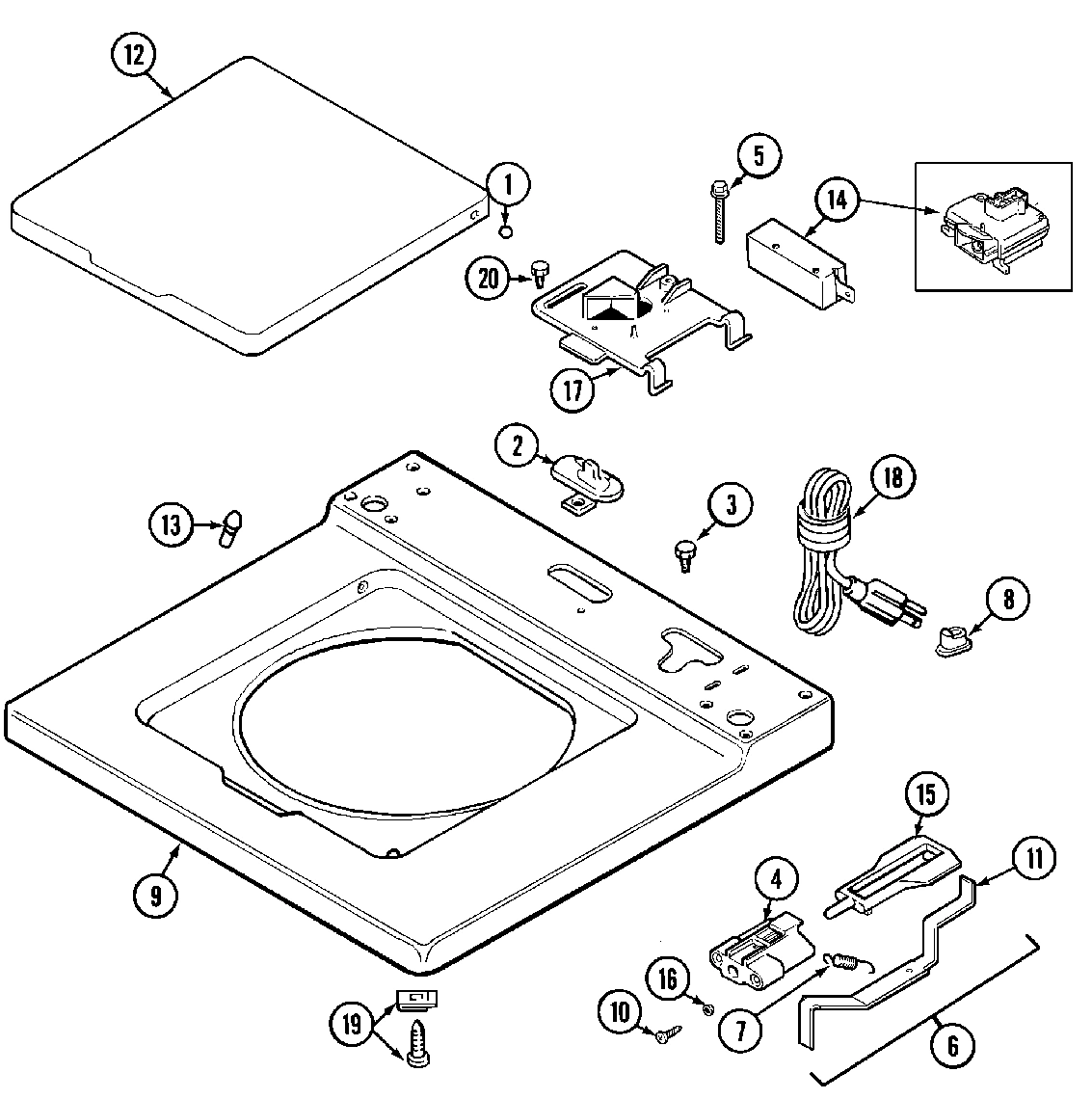

12 - TOP
13 - TOP (BSQ)
Common parts from model Maytag MAT12CSAAQ WASHER
001
MAY 22001884 MAY 22001884 Contact Us For Availability
001
MAY 22002885 MAY 22002885 Contact Us For Availability
001
MAY 212985 MAY 212985 Contact Us For Availability
001
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
001
MAY 206628 MAY 206628 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
002
MAY 200835 MAY 200835 Contact Us For Availability
002
TUBE, WATER LEVEL SWITCH MAY 212942 Contact Us For Availability
002
MAY 22001810 MAY 22001810 Contact Us For Availability
002
MAY 213846 MAY 213846 Contact Us For Availability
002
MAY 22001172 MAY 22001172 Contact Us For Availability
002
MAY 22002415 MAY 22002415 Contact Us For Availability
002
MAY 22001298 MAY 22001298 Contact Us For Availability
003
MAY 211130 MAY 211130 Contact Us For Availability
003
WIRE, GROUND MAY 204807 Contact Us For Availability
003
MAY 210186 MAY 210186 Contact Us For Availability
003
MAY 214812 MAY 214812 Contact Us For Availability
003
MAY 22003217 MAY 22003217 Contact Us For Availability
003
MAY 206713 MAY 206713 Contact Us For Availability
003
MAY 211043 MAY 211043 Contact Us For Availability
004
MAY 22002135 MAY 22002135 Contact Us For Availability
004
MAY 22002381 MAY 22002381 Contact Us For Availability
004
MAY 22002382 MAY 22002382 Contact Us For Availability
004
WASHER, STRAP SCREW MAY 910309 Contact Us For Availability
004
MAY 22002657 MAY 22002657 Contact Us For Availability
004
MAY 22002343 MAY 22002343 Contact Us For Availability
004
MAY 211045 MAY 211045 Contact Us For Availability
005
MAY 205353 MAY 205353 Contact Us For Availability
005
MAY 22002599 MAY 22002599 Contact Us For Availability
005
MAY 22001606 MAY 22001606 Contact Us For Availability
005
MAY 213100 MAY 213100 Contact Us For Availability
005
PACKAGE, BRAKE MAY 201190 Contact Us For Availability
005
MAY 213501 MAY 213501 Contact Us For Availability
006
MAY 22001300 MAY 22001300 Contact Us For Availability
006
MAY 22001969 MAY 22001969 Contact Us For Availability
006
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
006
MAY 22001681 MAY 22001681 Contact Us For Availability
006
MAY 22002883 MAY 22002883 Contact Us For Availability
006
MAY Y22001201 MAY Y22001201 Contact Us For Availability
006
MAY 22002537 MAY 22002537 Contact Us For Availability
006
MAY Y056080 MAY Y056080 Contact Us For Availability
006
MAY 201126 MAY 201126 Contact Us For Availability
007
MAY 203725 MAY 203725 Contact Us For Availability
007
MAY 22001605 MAY 22001605 Contact Us For Availability
007
CLIP, LOCKING BOLT MAY 211605 Contact Us For Availability
007
BOLT, LOCKING MAY 22001903 Contact Us For Availability
007
MAY 22001648 MAY 22001648 Contact Us For Availability
007
MAY 215394 MAY 215394 Contact Us For Availability
007
MAY 22002431 MAY 22002431 Contact Us For Availability
007
MAY 22002432 MAY 22002432 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT MAY 910387 Contact Us For Availability
008
MAY 211042 MAY 211042 Contact Us For Availability
008
MAY 211881 MAY 211881 Contact Us For Availability
008
MAY 216183 MAY 216183 Contact Us For Availability
008
MAY 22002532 MAY 22002532 Contact Us For Availability
009
MAY 22001142 MAY 22001142 Contact Us For Availability
009
MAY 22002428 MAY 22002428 Contact Us For Availability
009
MAY 22002701 MAY 22002701 Contact Us For Availability
009
MAY 213073 MAY 213073 Contact Us For Availability
009
MAY 206602 MAY 206602 Contact Us For Availability
009
MAY 216423 MAY 216423 Contact Us For Availability
009
MAY 22001867 MAY 22001867 Contact Us For Availability
009
MAY 22001920 MAY 22001920 Contact Us For Availability
009
MAY 22001921 MAY 22001921 Contact Us For Availability
009
MAY 22001970 MAY 22001970 Contact Us For Availability
009
MAY 22001971 MAY 22001971 Contact Us For Availability
009
MAY 22002142 MAY 22002142 Contact Us For Availability
009
MAY 22002888 MAY 22002888 Contact Us For Availability
010
MAY 22001816 MAY 22001816 Contact Us For Availability
010
MAY Y200832 MAY Y200832 Contact Us For Availability
010
MAY 22001803 MAY 22001803 Contact Us For Availability
010
(ALM) MAY 22001804 Contact Us For Availability
010
MAY 33001268 MAY 33001268 Contact Us For Availability
010
MAY 211149 MAY 211149 Contact Us For Availability
010
MAY 22002884 MAY 22002884 Contact Us For Availability
010
MAY 22002653 MAY 22002653 Contact Us For Availability
010
SILASTIC, ADHESIVE SEALANT MAY Y058700 Contact Us For Availability
010
MAY 211039 MAY 211039 Contact Us For Availability
010
MAY 910182 MAY 910182 Contact Us For Availability
011
MAY 22001881 MAY 22001881 Contact Us For Availability
011
MAY 22001882 MAY 22001882 Contact Us For Availability
011
MAY 22001883 MAY 22001883 Contact Us For Availability
011
MAY 22002886 MAY 22002886 Contact Us For Availability
011
MAY 22001672 MAY 22001672 Contact Us For Availability
011
MAY 22001968 MAY 22001968 Contact Us For Availability
012
CAP, AGITATOR MAY 215532 Contact Us For Availability
012
INLET HOSE ASSEMBLY MAY 205828 Contact Us For Availability
012
INLET HOSE ASSEMBLY MAY 208100 Contact Us For Availability
012
CLIP, SCREW MAY 215003 Contact Us For Availability
012
WIRE HARNESS (CS) MAY 22001088 Contact Us For Availability
012
WIRE HARNESS MAY 22001093 Contact Us For Availability
012
MAY 22002223 MAY 22002223 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
012
MAY 22001341 MAY 22001341 Contact Us For Availability
012
LID W/LEGEND (ALM)----NA MAY 22001342 Contact Us For Availability
012
LID (WHT-W/LEGEND) MAY 22001594 Contact Us For Availability
012
MAY 22002656 MAY 22002656 Contact Us For Availability
013
MAY 214376 MAY 214376 Contact Us For Availability
013
MAY 22001885 MAY 22001885 Contact Us For Availability
013
MAY 215417 MAY 215417 Contact Us For Availability
014
MAY 22001682 MAY 22001682 Contact Us For Availability
014
PLUG, TUB MAY 215980 Contact Us For Availability
014
MAY 200961 MAY 200961 Contact Us For Availability
014
LIGHT, INDICATOR MAY 206882 Contact Us For Availability
014
MAY 22001886 MAY 22001886 Contact Us For Availability
014
MAY Y22001820 MAY Y22001820 Contact Us For Availability
014
BOLT, RETAINING CLIP MAY 213326 Contact Us For Availability
014
MAY 22001922 MAY 22001922 Contact Us For Availability
014
MAY 22002383 MAY 22002383 Contact Us For Availability
015
MAY 216255 MAY 216255 Contact Us For Availability
015
MAY 213280 MAY 213280 Contact Us For Availability
015
KNOB, SELECTOR (W/BUMPER) MAY 206894 Contact Us For Availability
015
BUMPER, LID MAY 215561 Contact Us For Availability
015
MAY 22001087 MAY 22001087 Contact Us For Availability
016
MAY 216442 MAY 216442 Contact Us For Availability
016
MAY 211041 MAY 211041 Contact Us For Availability
016
MAY 211500 MAY 211500 Contact Us For Availability
017
PIVOT ARM, TIMER MAY 22001042 Contact Us For Availability
017
SCREW, VALVE BRACKET MAY 212276 Contact Us For Availability
017
SCREW & WASHER ASSEMBLY MAY 206478 Contact Us For Availability
017
MAY 22001301 MAY 22001301 Contact Us For Availability
017
MAY 206685 MAY 206685 Contact Us For Availability
017
TOOL, BRAKE PACKAGE ASSEMBLY MAY Y038315 Contact Us For Availability
018
CORD, POWER MAY NLA Contact Us For Availability
018
MAY 22002256 MAY 22002256 Contact Us For Availability
018
MAY 314531 MAY 314531 Contact Us For Availability
018
TERMINAL, EDGEBOARD MAY Y312953 Contact Us For Availability
018
SPRING, TIMER LEVER MAY 214663 Contact Us For Availability
018
MAY 200816 MAY 200816 Contact Us For Availability
018
MAY 22002127 MAY 22002127 Contact Us For Availability
018
MAY 205056 MAY 205056 Contact Us For Availability
018
MAY 208569 MAY 208569 Contact Us For Availability
018
MAY 208746 MAY 208746 Contact Us For Availability
018
MAY 208749 MAY 208749 Contact Us For Availability
018
MAY 22001351 MAY 22001351 Contact Us For Availability
019
MAY 22001398 MAY 22001398 Contact Us For Availability
019
MAY 202157 MAY 202157 Contact Us For Availability
019
MAY 204445 MAY 204445 Contact Us For Availability
020
WASHER, CLAMPING NUT MAY 211210 Contact Us For Availability
020
SCREW, WATER VALVE MAY Y313561 Contact Us For Availability
020
CLIP, SPRING RETAINER MAY Y312270 Contact Us For Availability
020
MAY 22001511 MAY 22001511 Contact Us For Availability
021
INJECTOR HOSE & CLAMP KIT MAY 22001608 Contact Us For Availability
021
SCREW, BRACKET TO TIMER MAY 216412 Contact Us For Availability
021
MAY 911852 MAY 911852 Contact Us For Availability
021
MAY 22003417 MAY 22003417 Contact Us For Availability
022
MAY 22001900 MAY 22001900 Contact Us For Availability
022
MAY 22001043 MAY 22001043 Contact Us For Availability
022
SWITCH, MOTOR EXTERNAL START (PROD. No. 20742 MAY 205131 Contact Us For Availability
022
SWITCH, MOTOR EXTERNAL START (201664-14,20546 MAY 205132 Contact Us For Availability
022
PROD. No. 201664-15 & 205463-3 MAY 206505 Contact Us For Availability
023
MAY 22001972 MAY 22001972 Contact Us For Availability
023
MAY 22001811 MAY 22001811 Contact Us For Availability
023
MAY 22001813 MAY 22001813 Contact Us For Availability
023
TUB, INNER MAY 22001141 Contact Us For Availability
023
MAY 215098 MAY 215098 Contact Us For Availability
024
MAY 22002533 MAY 22002533 Contact Us For Availability
024
MAY 22002534 MAY 22002534 Contact Us For Availability
024
MAY 22001115 MAY 22001115 Contact Us For Availability
024
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
025
MAY Y015667 MAY Y015667 Contact Us For Availability
025
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
028
MAY 202203 MAY 202203 Contact Us For Availability
029
MAY Y204998 MAY Y204998 Contact Us For Availability
030
MAY 212979 MAY 212979 Contact Us For Availability
032
MAY Y015408 MAY Y015408 Contact Us For Availability
036
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
038
PLATE, MOTOR MOUNT (UPR) MAY 214956 Contact Us For Availability
039
WASHER, LOCK (BRACE) MAY Y054867 Contact Us For Availability
040
WASHER, CUSHION (BRACE) MAY 211100 Contact Us For Availability
041
MAY 22001857 MAY 22001857 Contact Us For Availability
042
MAY 22001396 MAY 22001396 Contact Us For Availability
× ![]()
