Model Maytag MAT10PDABL WASHER – Common Parts & Diagrams
01 - CONTROL CENTER
02 - CONTROL CNTR (SERIAL SUFFIX KB & AFTER)
03 - TOP ASSEMBLY

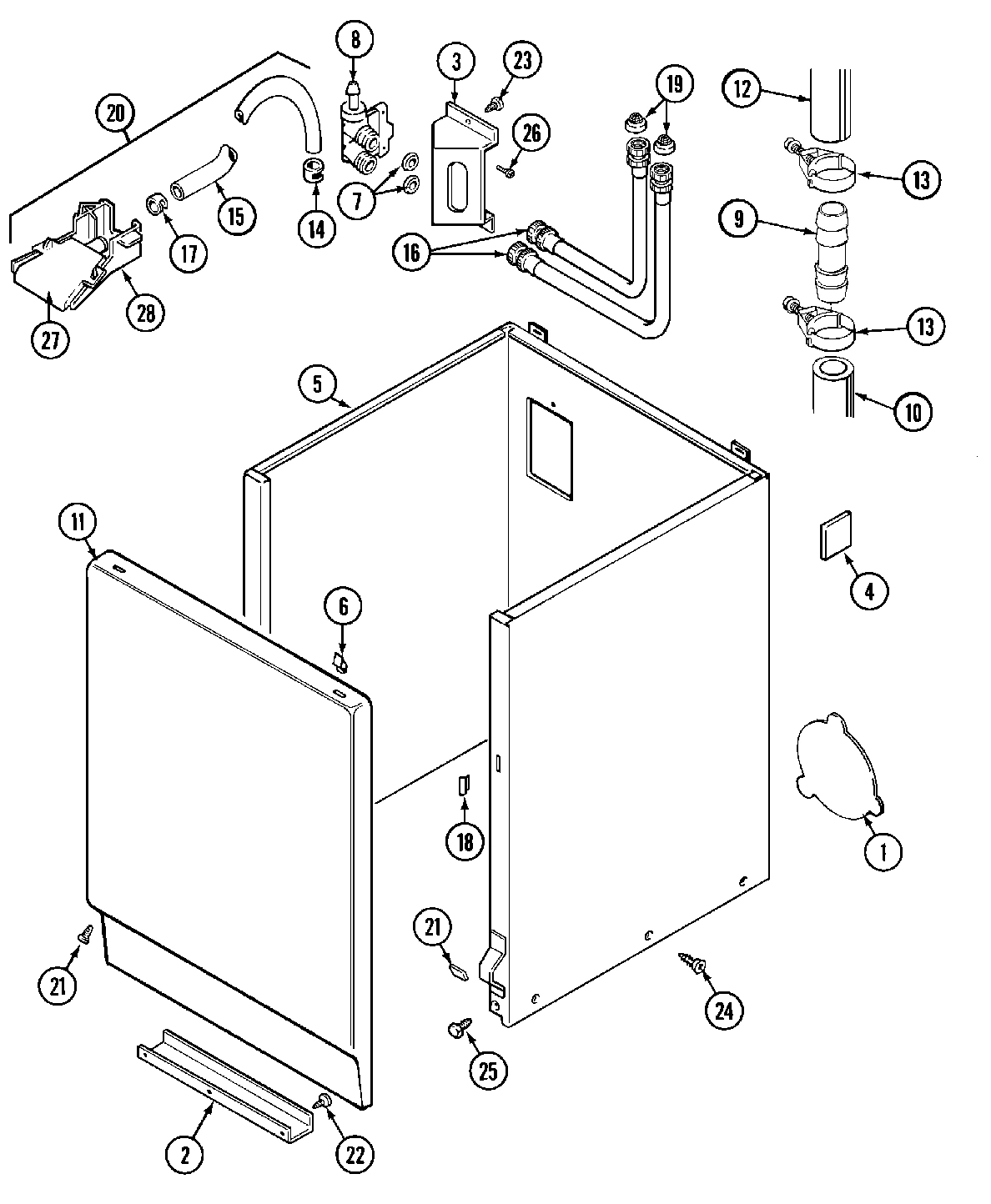

04 - CABINET
05 - TUB

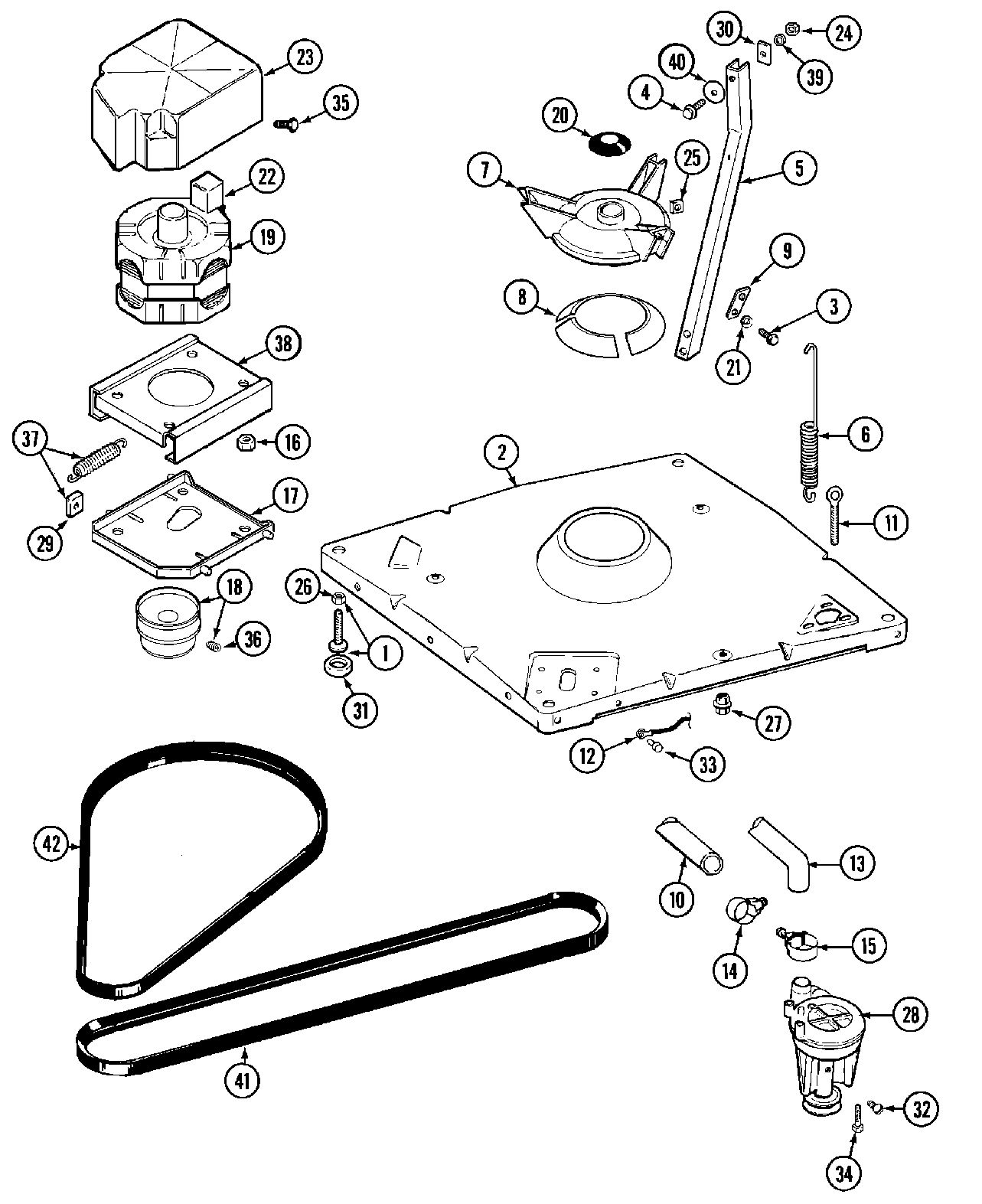

06 - BASE

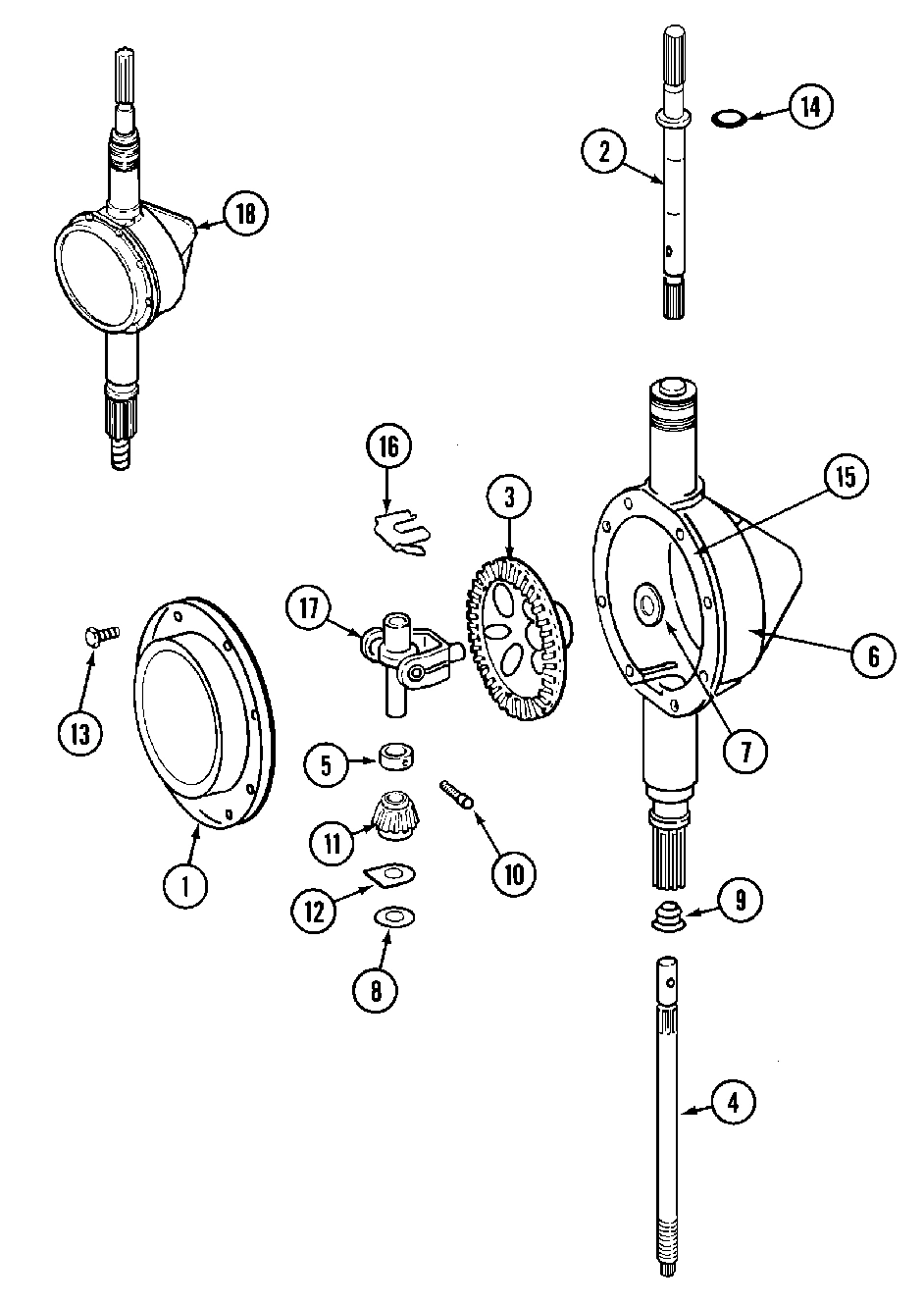

07 - TRANSMISSION

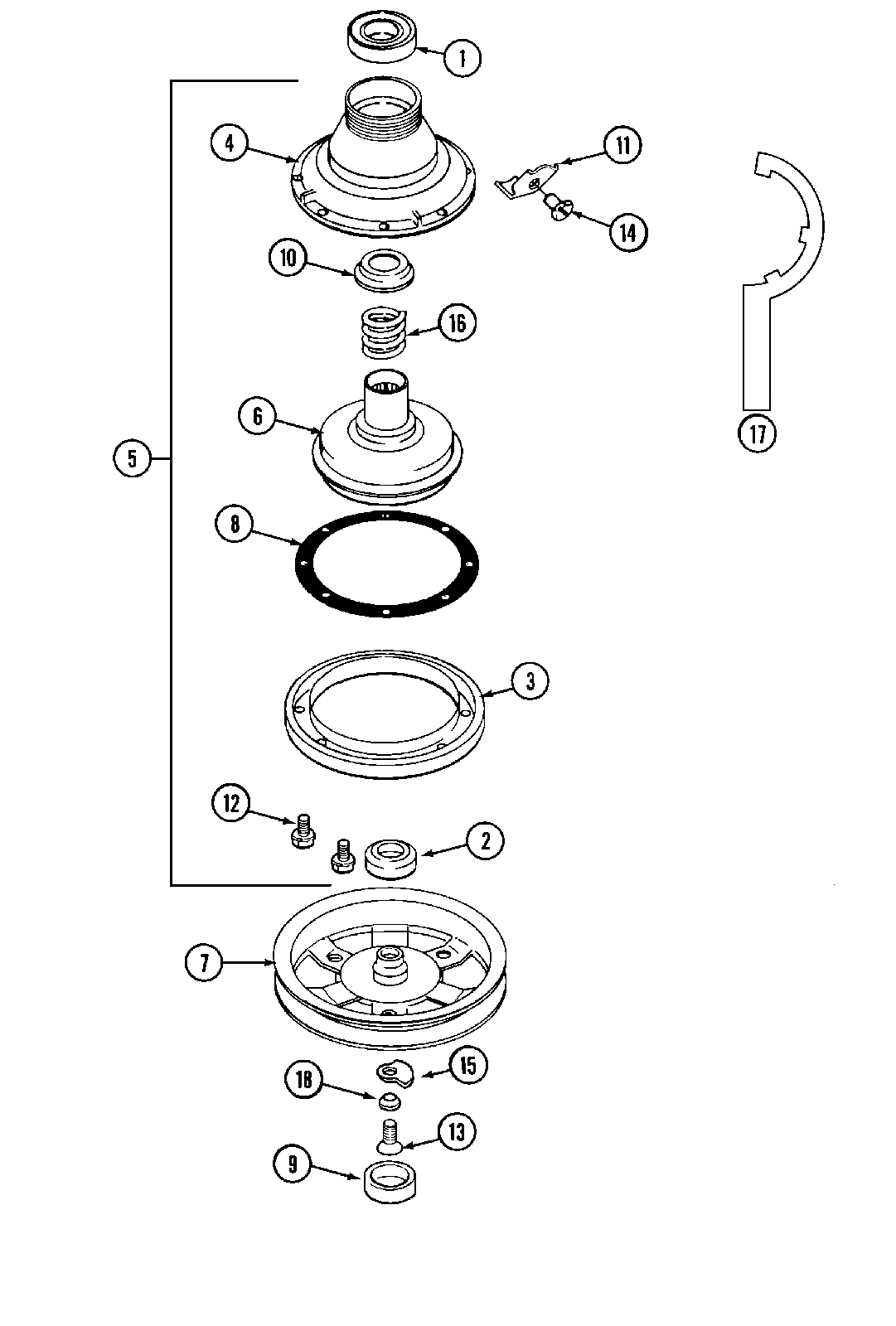

08 - CLUTCH, BRAKE & BELTS

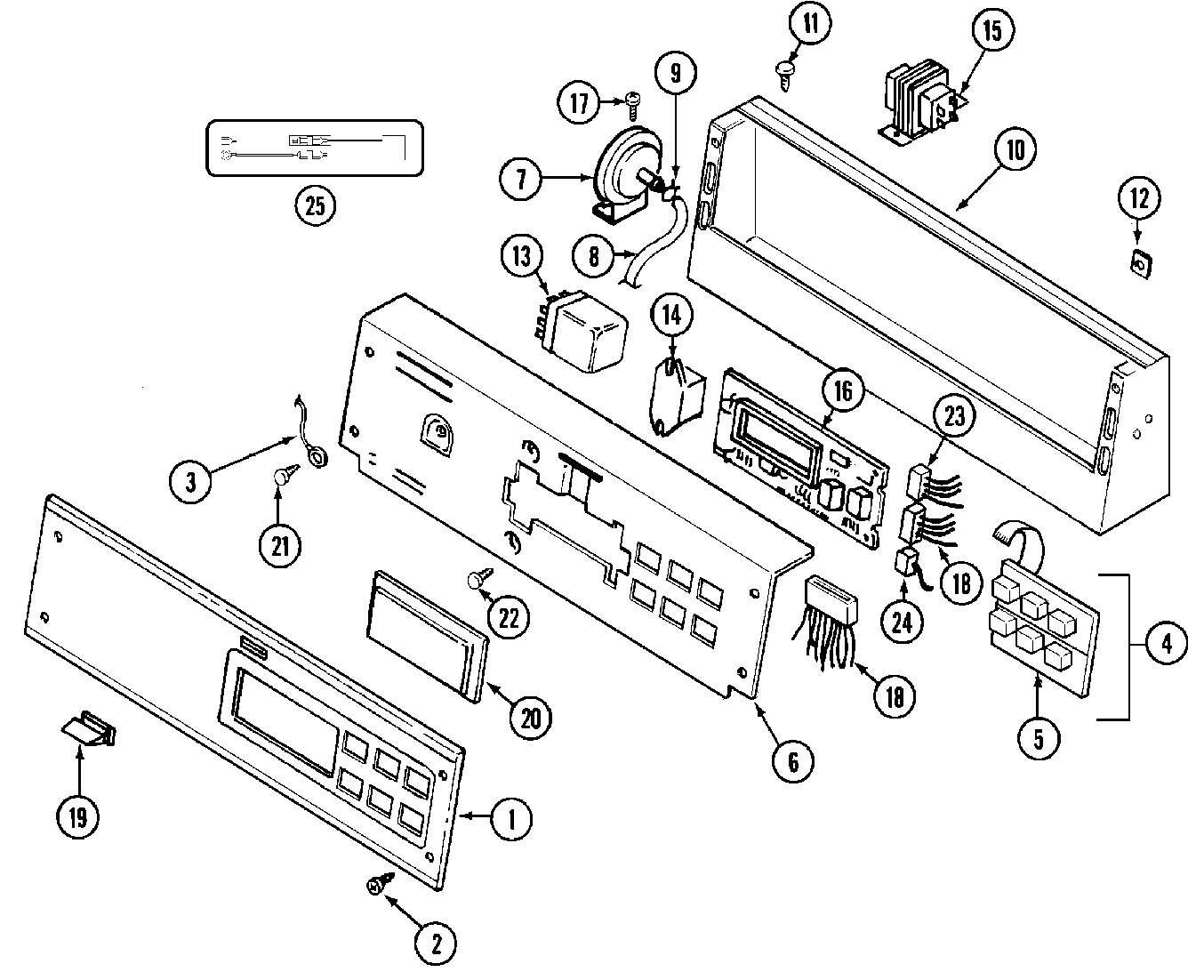

09 - CONTROL PANEL

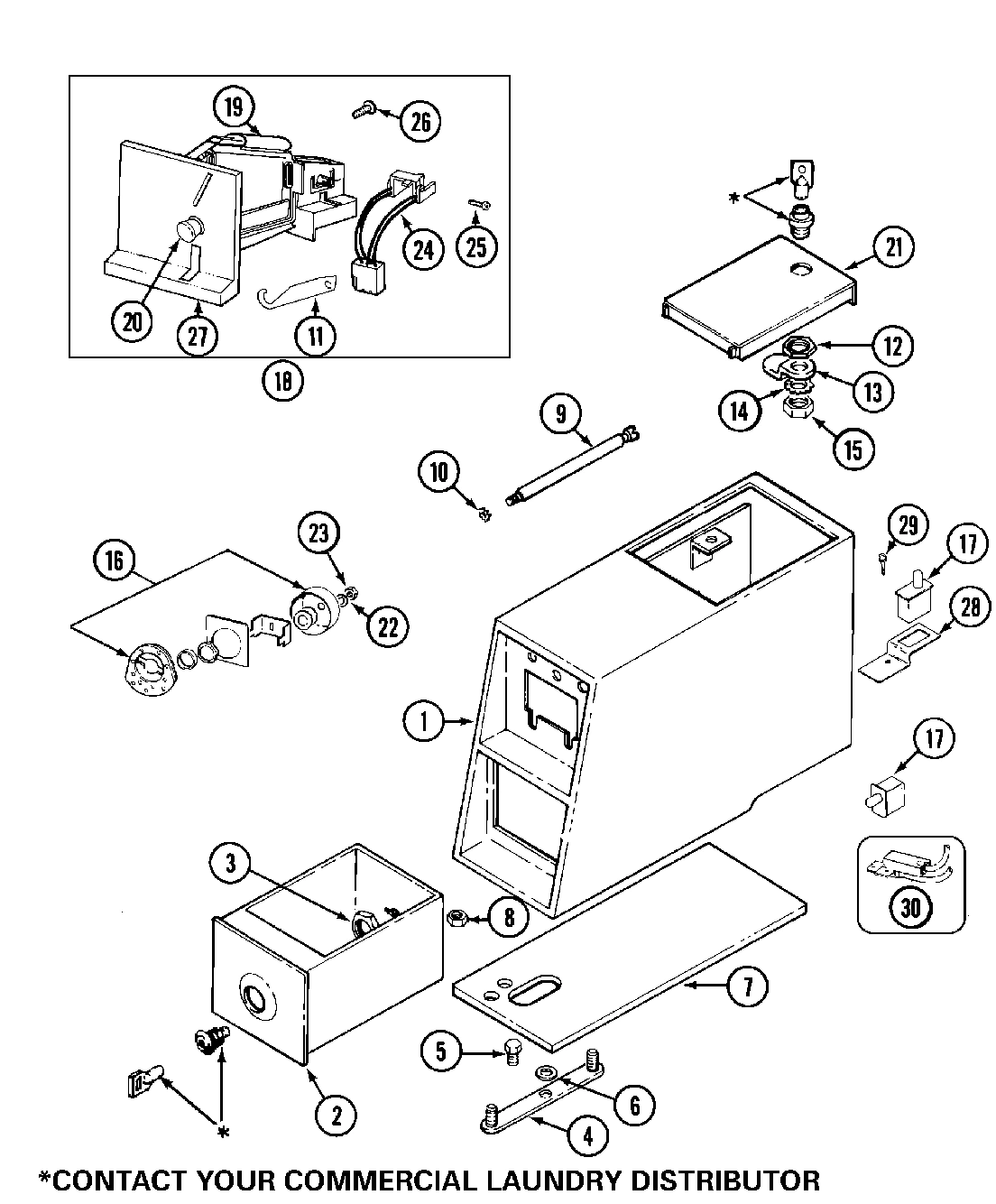

10 - CONTROL CNTR (SERIAL SUFFIX QB & AFTER)
Common parts from model Maytag MAT10PDABL WASHER
001
MAY 212985 MAY 212985 Contact Us For Availability
001
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
001
MAY 206628 MAY 206628 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
001
MAY 22001407 MAY 22001407 Contact Us For Availability
001
MAY 22001408 MAY 22001408 Contact Us For Availability
002
MAY 200835 MAY 200835 Contact Us For Availability
002
MAY 22001298 MAY 22001298 Contact Us For Availability
002
MAY 213846 MAY 213846 Contact Us For Availability
002
MAY 22001172 MAY 22001172 Contact Us For Availability
002
MAY 207153 MAY 207153 Contact Us For Availability
002
MAY 207912 MAY 207912 Contact Us For Availability
002
(ALM) MAY 207912L Contact Us For Availability
003
MAY 211130 MAY 211130 Contact Us For Availability
003
WIRE, GROUND MAY 204807 Contact Us For Availability
003
MAY 214812 MAY 214812 Contact Us For Availability
003
MAY 206713 MAY 206713 Contact Us For Availability
003
MAY 211043 MAY 211043 Contact Us For Availability
004
MAY 215058 MAY 215058 Contact Us For Availability
004
MAY 211045 MAY 211045 Contact Us For Availability
004
SCREW, SWITCH MAY 215526 Contact Us For Availability
005
SCREW, LID SWITCH MAY 213501 Contact Us For Availability
005
MAY 22001606 MAY 22001606 Contact Us For Availability
005
MAY 213100 MAY 213100 Contact Us For Availability
005
COLLAR (LWR) MAY 215415 Contact Us For Availability
005
PACKAGE, BRAKE MAY 201190 Contact Us For Availability
006
MAY 22001300 MAY 22001300 Contact Us For Availability
006
UNBALANCE LEVER ASSEMBLY MAY 22001311 Contact Us For Availability
006
MAY 212982 MAY 212982 Contact Us For Availability
006
MAY Y22001201 MAY Y22001201 Contact Us For Availability
006
MAY 206625 MAY 206625 Contact Us For Availability
006
MAY 201126 MAY 201126 Contact Us For Availability
006
MAY 215516 MAY 215516 Contact Us For Availability
006
WASHER, STRAP SCREW MAY 910309 Contact Us For Availability
007
MAY 203725 MAY 203725 Contact Us For Availability
007
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
007
MAY 204012 MAY 204012 Contact Us For Availability
007
MAY 215394 MAY 215394 Contact Us For Availability
007
MAY 211059 MAY 211059 Contact Us For Availability
007
MAY 214660 MAY 214660 Contact Us For Availability
008
MAY 22001275 MAY 22001275 Contact Us For Availability
008
MAY 211881 MAY 211881 Contact Us For Availability
008
TUBE, WATER LEVEL SWITCH MAY 212942 Contact Us For Availability
008
MAY 211042 MAY 211042 Contact Us For Availability
009
MAY 213035 MAY 213035 Contact Us For Availability
009
MAY 22001142 MAY 22001142 Contact Us For Availability
009
MAY 22001310 MAY 22001310 Contact Us For Availability
009
MAY 213073 MAY 213073 Contact Us For Availability
009
MAY 206602 MAY 206602 Contact Us For Availability
009
RETAINER, LOCKING BOLT MAY 211605 Contact Us For Availability
010
SCREW, PLUNGER BRACKET MAY 910182 Contact Us For Availability
010
HOSE, INTERNAL DRAIN MAY 214768 Contact Us For Availability
010
MAY 211039 MAY 211039 Contact Us For Availability
010
CONSOLE (WHT) MAY 206780 Contact Us For Availability
010
(ALM) MAY 206780L Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT MAY 910181 Contact Us For Availability
011
MAY 22001136 MAY 22001136 Contact Us For Availability
011
MAY 216078 MAY 216078 Contact Us For Availability
011
(ALM) MAY 216078L Contact Us For Availability
012
MAY 301548 MAY 301548 Contact Us For Availability
012
HOSE, INTERNAL DRAIN MAY 215057 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
012
CLIP, SCREW MAY 215003 Contact Us For Availability
013
CAP, AGITATOR MAY 215532 Contact Us For Availability
013
MAY 215417 MAY 215417 Contact Us For Availability
013
RELAY, REVERSING (DPDT) MAY 206421 Contact Us For Availability
014
MAY 210690 MAY 210690 Contact Us For Availability
014
MAY 22001341 MAY 22001341 Contact Us For Availability
014
(W/LEGEND-ALM) MAY 22001342 Contact Us For Availability
014
CLAMP, HOSE MAY 200461 Contact Us For Availability
014
BOLT, RETAINING CLIP MAY 213326 Contact Us For Availability
014
RELAY, MOTOR (SPST) MAY 206824 Contact Us For Availability
014
SCREW, RELAY MAY 212949 Contact Us For Availability
015
PLUG, TUB MAY 215980 Contact Us For Availability
015
MAY 22001900 MAY 22001900 Contact Us For Availability
015
MAY 22001190 MAY 22001190 Contact Us For Availability
015
INJECTOR HOSE & CLAMP KIT MAY 22001608 Contact Us For Availability
015
SILASTIC, ADHESIVE SEALANT MAY Y058700 Contact Us For Availability
015
TRANSFORMER (STEP DOWN) MAY 207766 Contact Us For Availability
016
INLET HOSE ASSEMBLY MAY 205828 Contact Us For Availability
016
MAY 211041 MAY 211041 Contact Us For Availability
016
MAY 207767 MAY 207767 Contact Us For Availability
016
MAY 33001249 MAY 33001249 Contact Us For Availability
016
SPACER, CONTROL BOARD MAY Y215513 Contact Us For Availability
016
SCREW, SENSOR SWITCH MAY 912012 Contact Us For Availability
017
PLUNGER, LID SWITCH MAY 216255 Contact Us For Availability
017
(CAN.) MAY NLA Contact Us For Availability
017
MAY 216170 MAY 216170 Contact Us For Availability
017
MAY 22001301 MAY 22001301 Contact Us For Availability
017
MAY 206685 MAY 206685 Contact Us For Availability
017
TOOL, BRAKE PACKAGE ASSEMBLY MAY Y038315 Contact Us For Availability
017
COIN DROP ASSEMBLY MAY 207948 Contact Us For Availability
017
MAY 22002143 MAY 22002143 Contact Us For Availability
018
WASHER, BRACKET MAY 211500 Contact Us For Availability
018
MAY 214376 MAY 214376 Contact Us For Availability
018
SCREW & WASHER ASSEMBLY MAY 206478 Contact Us For Availability
018
MAY 200816 MAY 200816 Contact Us For Availability
018
TRANSMISSION (COMPLETE) MAY 206708 Contact Us For Availability
018
MAY 314531 MAY 314531 Contact Us For Availability
018
TERMINAL, EDGEBOARD MAY Y312953 Contact Us For Availability
018
MAY 216200 MAY 216200 Contact Us For Availability
019
MAY Y215699 MAY Y215699 Contact Us For Availability
019
MAY 200961 MAY 200961 Contact Us For Availability
019
SET SCREW, MOUNTING STEM MAY 211618 Contact Us For Availability
019
MAY 214610 MAY 214610 Contact Us For Availability
019
MAY 204216 MAY 204216 Contact Us For Availability
019
MAY 204216L MAY 204216L Contact Us For Availability
020
MAY 211028 MAY 211028 Contact Us For Availability
020
MAY 33001208 MAY 33001208 Contact Us For Availability
020
LOCKWASHER, LOCK CAM MAY 22001354 Contact Us For Availability
021
SCREW & FASTENER ASSEMBLY MAY 204439 Contact Us For Availability
021
WASHER, CLAMPING NUT MAY 211210 Contact Us For Availability
021
LOCKWASHER, DOUBLE ``D`` MAY 216203 Contact Us For Availability
021
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
021
SCREW & FASTENER ASSEMBLY MAY 204445 Contact Us For Availability
021
MAY 911852 MAY 911852 Contact Us For Availability
021
MAY 22001355 MAY 22001355 Contact Us For Availability
022
SWITCH, MOTOR EXTERNAL START (PROD. No. 20742 MAY 205131 Contact Us For Availability
022
SWITCH, MOTOR EXTERNAL START No.201664-14,205 MAY 205132 Contact Us For Availability
022
PROD. No. 201664-15 & 205463-3 MAY 206505 Contact Us For Availability
023
MAY 215098 MAY 215098 Contact Us For Availability
024
OPTIC SWITCH ASSEMBLY MAY 206799 Contact Us For Availability
024
MAY 216068 MAY 216068 Contact Us For Availability
024
TUB, INNER MAY 22001141 Contact Us For Availability
024
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
024
MAY 22001361 MAY 22001361 Contact Us For Availability
025
MAY 22001404 MAY 22001404 Contact Us For Availability
025
MAY 22001115 MAY 22001115 Contact Us For Availability
025
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
026
MAY Y015667 MAY Y015667 Contact Us For Availability
026
SCREW, SWITCH BRACKET MAY 212276 Contact Us For Availability
026
SCREW, WATER VALVE MAY Y313561 Contact Us For Availability
027
MAY 22001187 MAY 22001187 Contact Us For Availability
027
MAY 216010 MAY 216010 Contact Us For Availability
027
HARNESS, WIRE (SENSOR SW) MAY 208045 Contact Us For Availability
028
MAY 202203 MAY 202203 Contact Us For Availability
029
MAY Y204998 MAY Y204998 Contact Us For Availability
030
MAY 212979 MAY 212979 Contact Us For Availability
032
MAY Y015408 MAY Y015408 Contact Us For Availability
036
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
038
PLATE, MOTOR MOUNT (UPR) MAY 214956 Contact Us For Availability
039
WASHER, LOCK (BRACE) MAY Y054867 Contact Us For Availability
040
WASHER, CUSHION (BRACE) MAY 211100 Contact Us For Availability
× ![]()
