Model Maytag MAH2400AWW WASHER – Common Parts & Diagrams

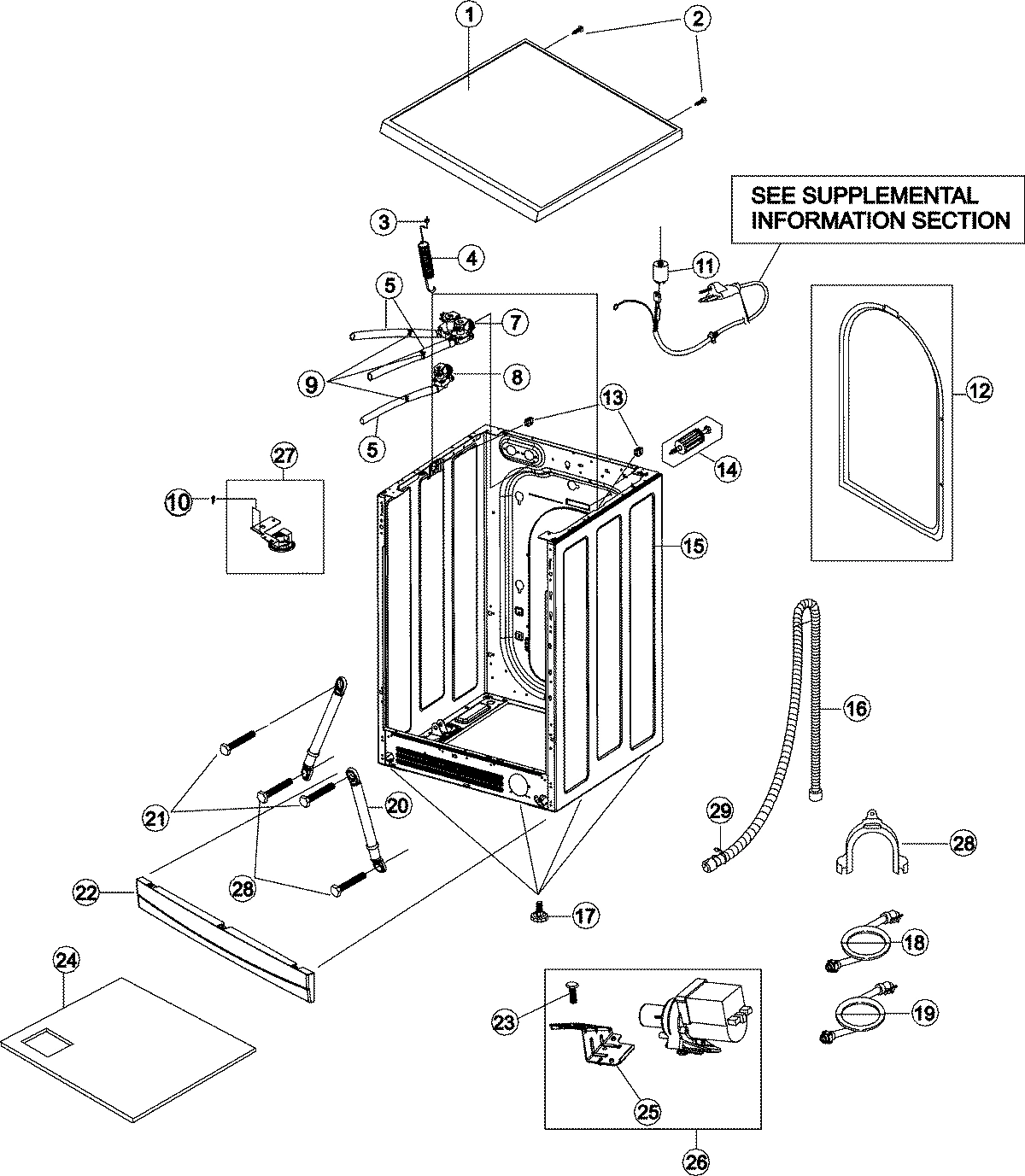

01 - CABINET

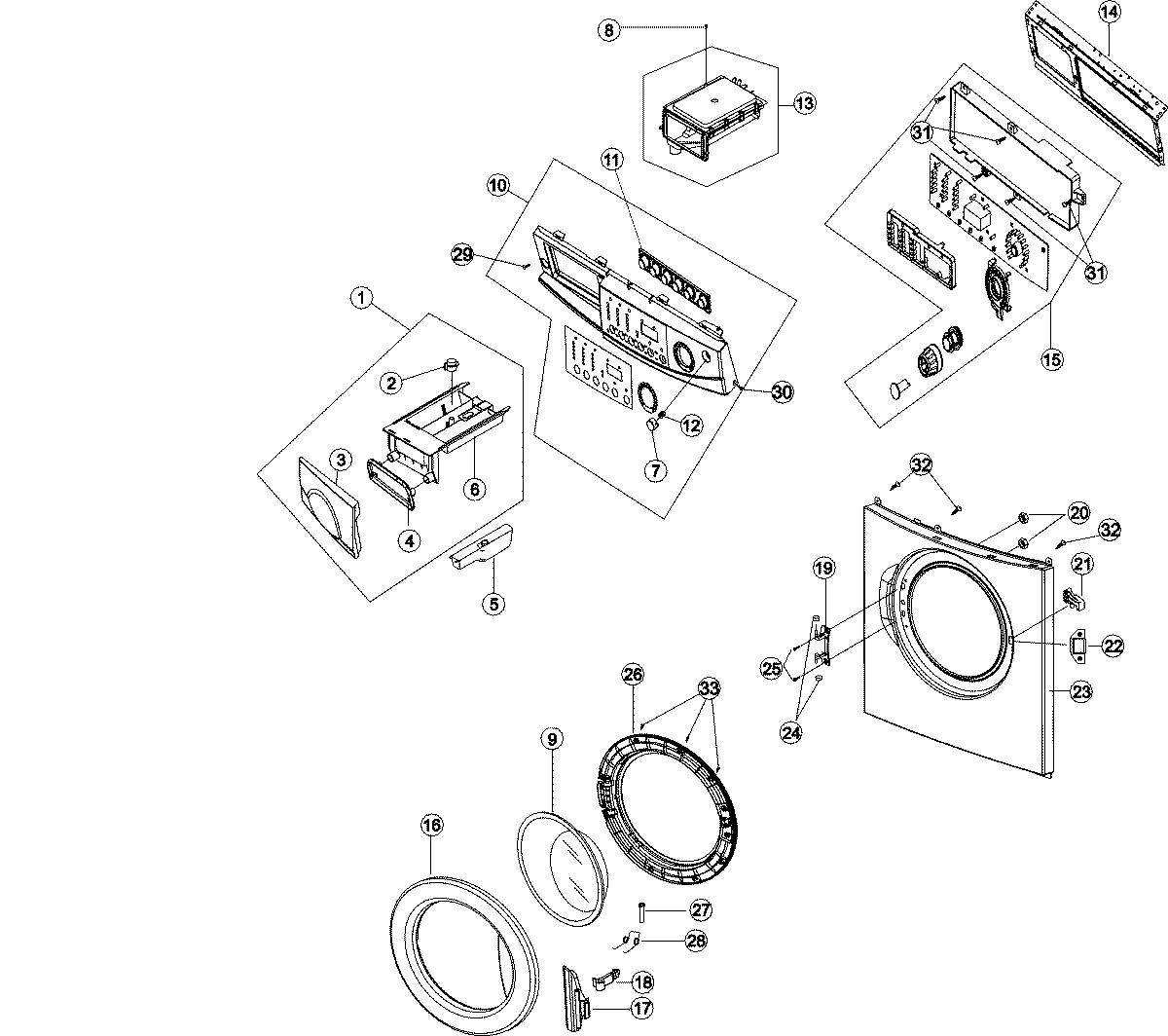

02 - DOOR - FRONT PANEL
03 - SUPPLEMENTAL INFORMATION

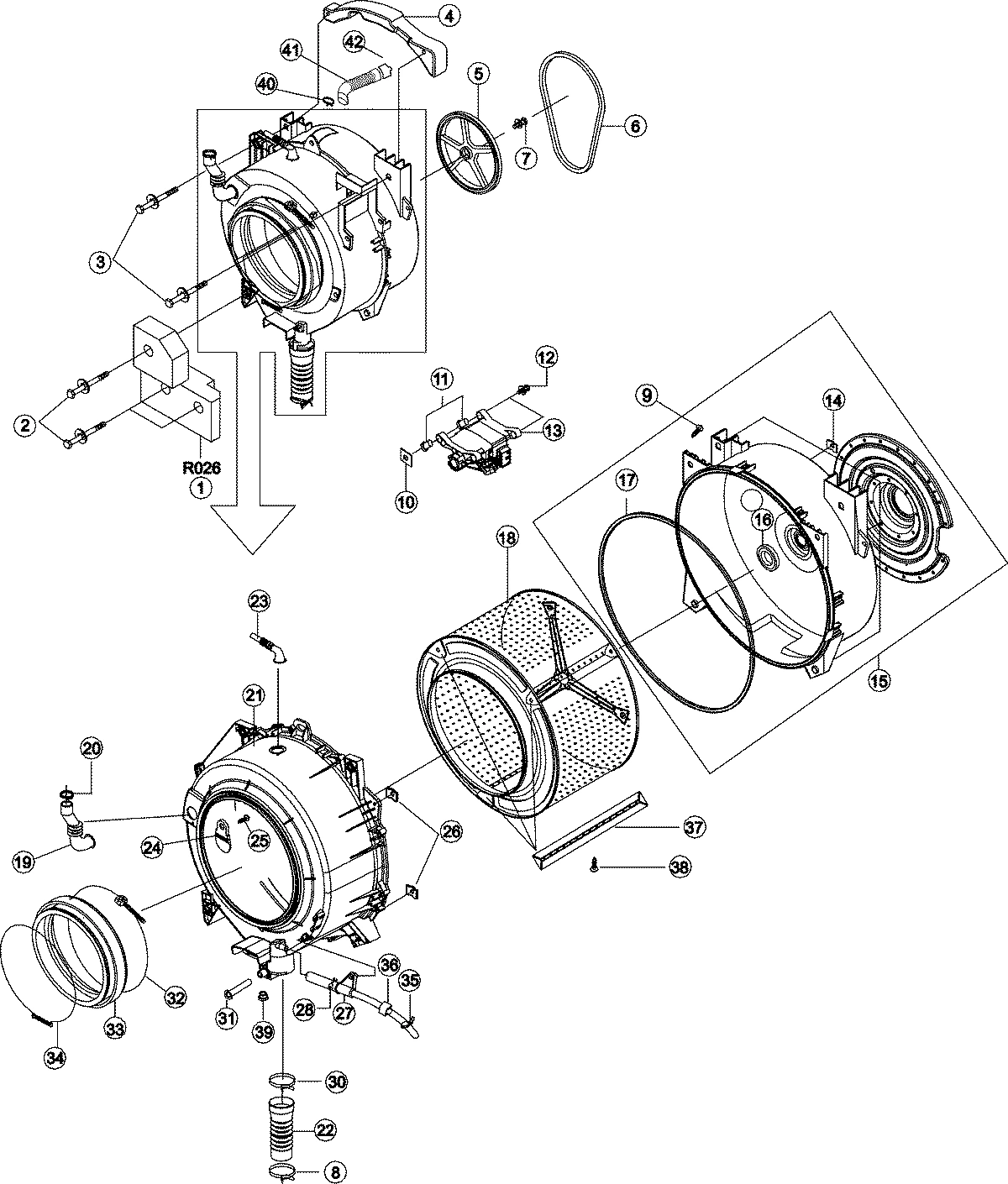

04 - TUB

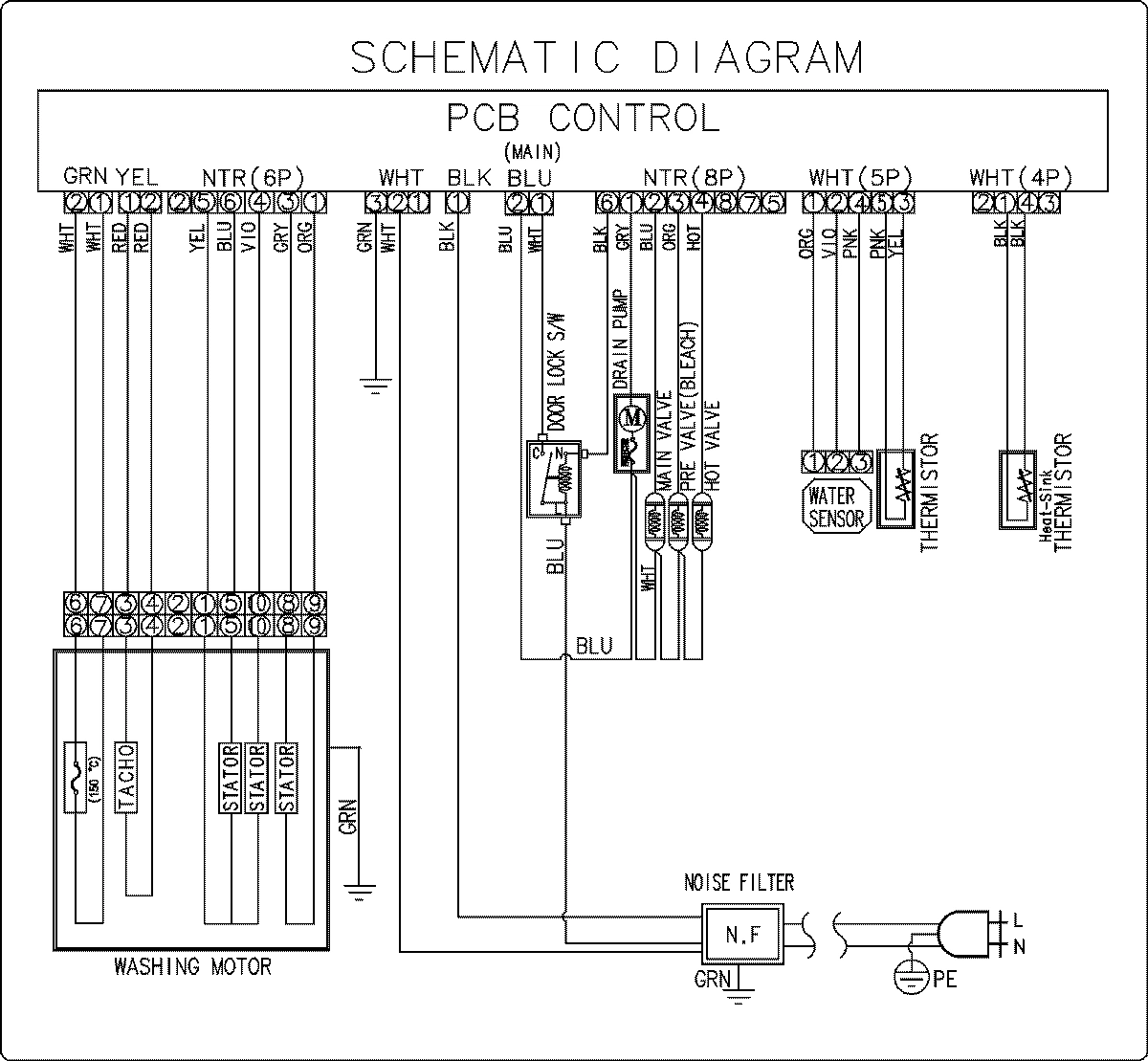

05 - WIRING INFORMATION

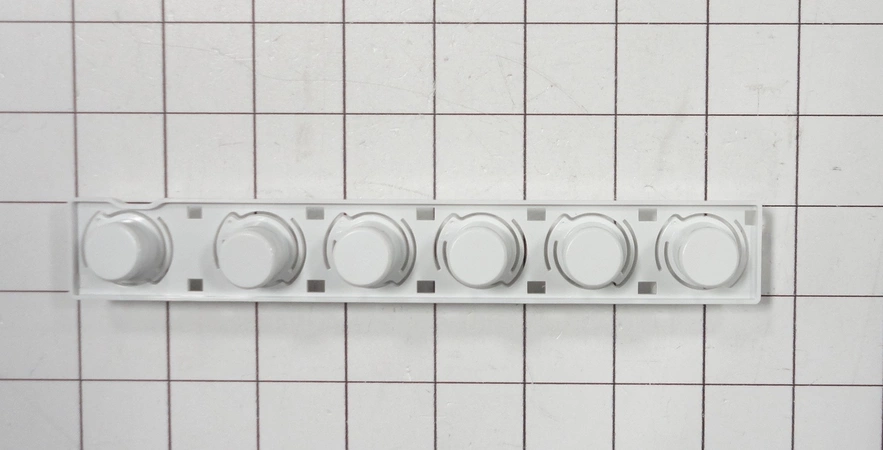

Common parts from model Maytag MAH2400AWW WASHER
1
MAY 34001197 MAY 34001197 Contact Us For Availability
1
MAY 34001220 MAY 34001220 Contact Us For Availability
1
MAY 34001156 MAY 34001156 Contact Us For Availability
1
MAY 15003571 MAY 15003571 Contact Us For Availability
2
POWER CORD MAY 34001204 Contact Us For Availability
3
MAY 34001141 MAY 34001141 Contact Us For Availability
3
MAY 34001085 MAY 34001085 Contact Us For Availability
4
MAY 34001206 MAY 34001206 Contact Us For Availability
4
MAY 34001160 MAY 34001160 Contact Us For Availability
5
MAY 34001124 MAY 34001124 Contact Us For Availability
5
MAY 34001278 MAY 34001278 Contact Us For Availability
5
MAY 16023430 MAY 16023430 Contact Us For Availability
6
MAY 34001117 MAY 34001117 Contact Us For Availability
6
MAY 16023431 MAY 16023431 Contact Us For Availability
7
MAY 2201196 MAY 2201196 Contact Us For Availability
7
MAY W10126688 MAY W10126688 Contact Us For Availability
7
MAY 34001205 MAY 34001205 Contact Us For Availability
8
BOLT-SPANER MAY 34001223 Contact Us For Availability
9
MAY 34001228 MAY 34001228 Contact Us For Availability
9
MAY 34001212 MAY 34001212 Contact Us For Availability
10
MAY 34001086 MAY 34001086 Contact Us For Availability
10
MAY 34001163 MAY 34001163 Contact Us For Availability
11
MAY 34001134 MAY 34001134 Contact Us For Availability
11
BUSHING-MOTOR MAY 34001157 Contact Us For Availability
12
MAY 12001660 MAY 12001660 Contact Us For Availability
12
MAY 35001068 MAY 35001068 Contact Us For Availability
12
ASSY-BOLT MAY 34001158 Contact Us For Availability
13
MAY 34001102 MAY 34001102 Contact Us For Availability
13
CAP-FIXER MAY 34001395 Contact Us For Availability
13
MAY 34001122 MAY 34001122 Contact Us For Availability
14
MAY 34001100 MAY 34001100 Contact Us For Availability
15
MAY 12002651 MAY 12002651 Contact Us For Availability
15
MAY 12002616 MAY 12002616 Contact Us For Availability
15
MAY 34001176 MAY 34001176 Contact Us For Availability
16
ASSY-HOSE DRAIN MAY 34001095 Contact Us For Availability
16
SEAL-OIL MAY 34001159 Contact Us For Availability
17
MAY 34001196 MAY 34001196 Contact Us For Availability
17
MAY 34001123 MAY 34001123 Contact Us For Availability
18
MAY 34001111 MAY 34001111 Contact Us For Availability
18
MAY 34001089 MAY 34001089 Contact Us For Availability
18
MAY 34001175 MAY 34001175 Contact Us For Availability
19
MAY 34001120 MAY 34001120 Contact Us For Availability
20
MAY 34001447 MAY 34001447 Contact Us For Availability
20
MAY 34001144 MAY 34001144 Contact Us For Availability
21
MAY 34001174 MAY 34001174 Contact Us For Availability
22
MAY 34001051 MAY 34001051 Contact Us For Availability
23
MAY 34001145 MAY 34001145 Contact Us For Availability
23
MAY 34001119 MAY 34001119 Contact Us For Availability
24
GUIDE-HINGE MAY 34001192 Contact Us For Availability
24
MAY 34001127 MAY 34001127 Contact Us For Availability
26
MAY 34001179 MAY 34001179 Contact Us For Availability
26
MAY 34001168 MAY 34001168 Contact Us For Availability
27
MAY 34001194 MAY 34001194 Contact Us For Availability
27
MAY 34001091 MAY 34001091 Contact Us For Availability
28
MAY 34001195 MAY 34001195 Contact Us For Availability
29
SCREW-CONSOLE TO FRONT FRAME MAY 34001214 Contact Us For Availability
29
MAY 34001121 MAY 34001121 Contact Us For Availability
30
MAY 34001213 MAY 34001213 Contact Us For Availability
30
MAY 34001165 MAY 34001165 Contact Us For Availability
31
MAY 34001202 MAY 34001202 Contact Us For Availability
31
MAY 6002-000213 MAY 6002-000213 Contact Us For Availability
32
MAY 34001211 MAY 34001211 Contact Us For Availability
32
MAY 34001113 MAY 34001113 Contact Us For Availability
33
MAY 34001193 MAY 34001193 Contact Us For Availability
33
MAY 34001118 MAY 34001118 Contact Us For Availability
34
MAY 34001116 MAY 34001116 Contact Us For Availability
35
SPRING-CLAMP MAY 34001169 Contact Us For Availability
36
MAY 34001170 MAY 34001170 Contact Us For Availability
37
MAY 34001171 MAY 34001171 Contact Us For Availability
38
MAY 34001219 MAY 34001219 Contact Us For Availability
39
PACKING-THERMISTOR-GROMMET MAY 34001162 Contact Us For Availability
40
MAY 34001225 MAY 34001225 Contact Us For Availability
41
MAY 34001226 MAY 34001226 Contact Us For Availability
42
MAY 34001227 MAY 34001227 Contact Us For Availability
× ![]()
