Model Maytag M1TXEGMYS00 REFRIGERATOR – Common Parts & Diagrams

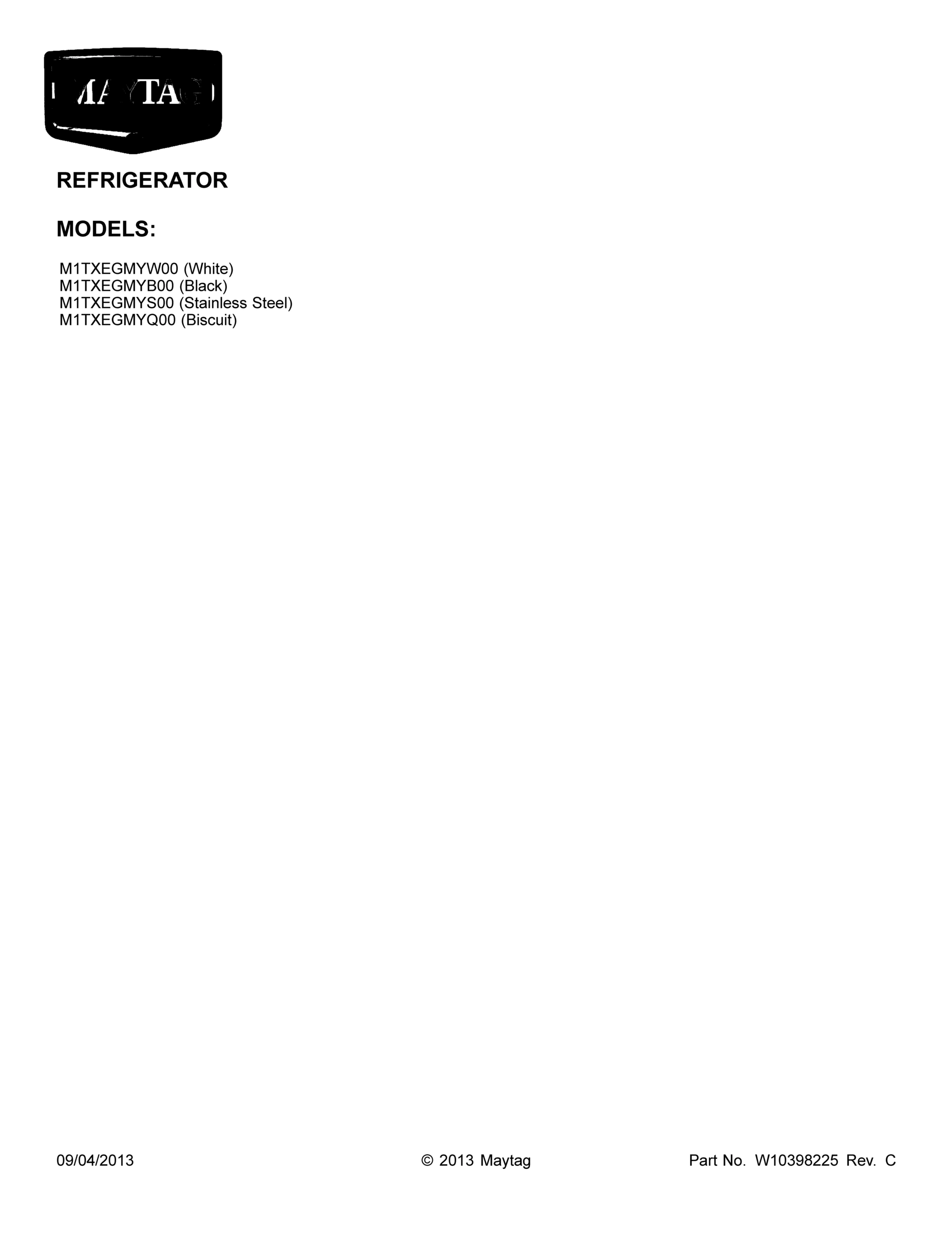

01 - COVER SHEET

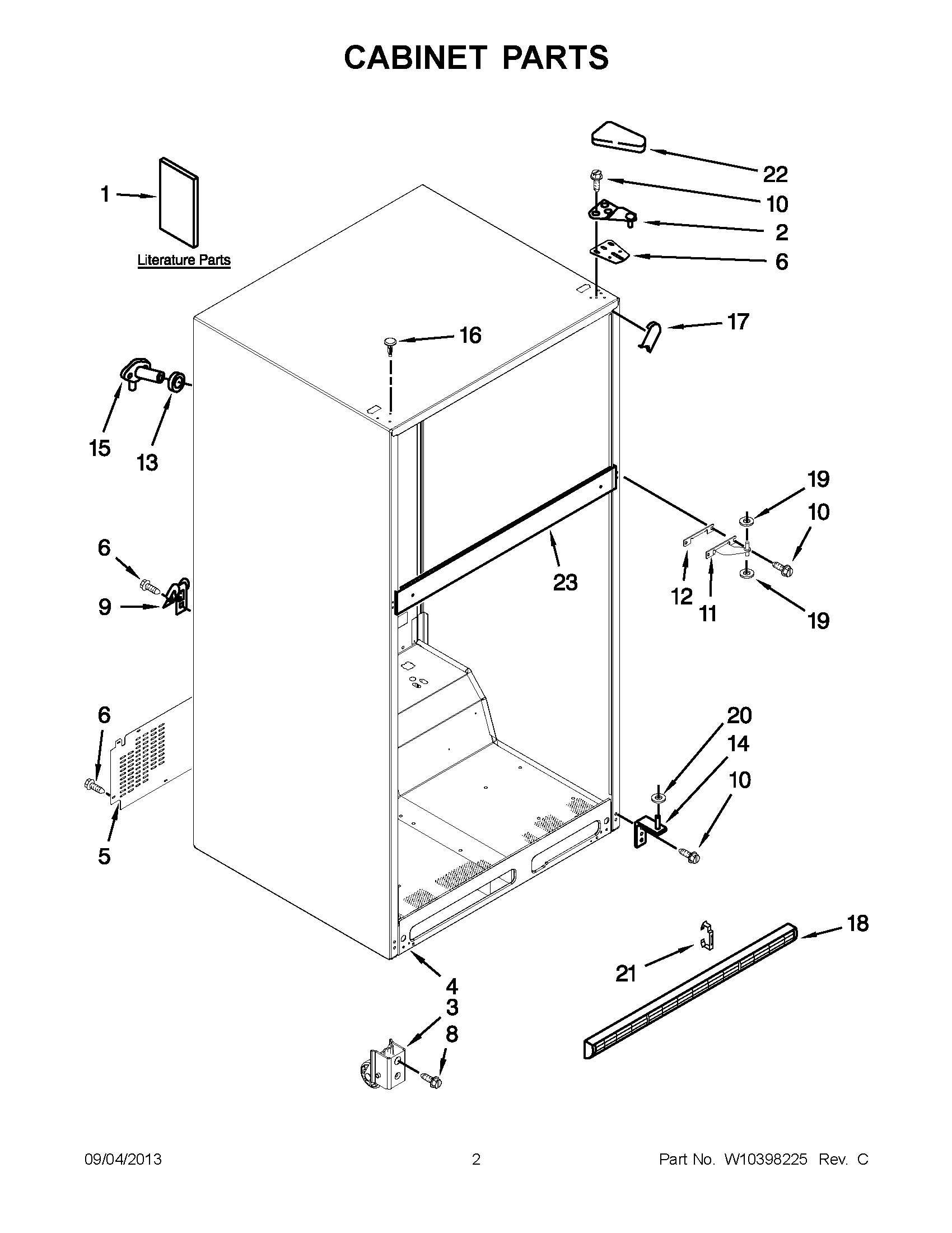

02 - CABINET PARTS

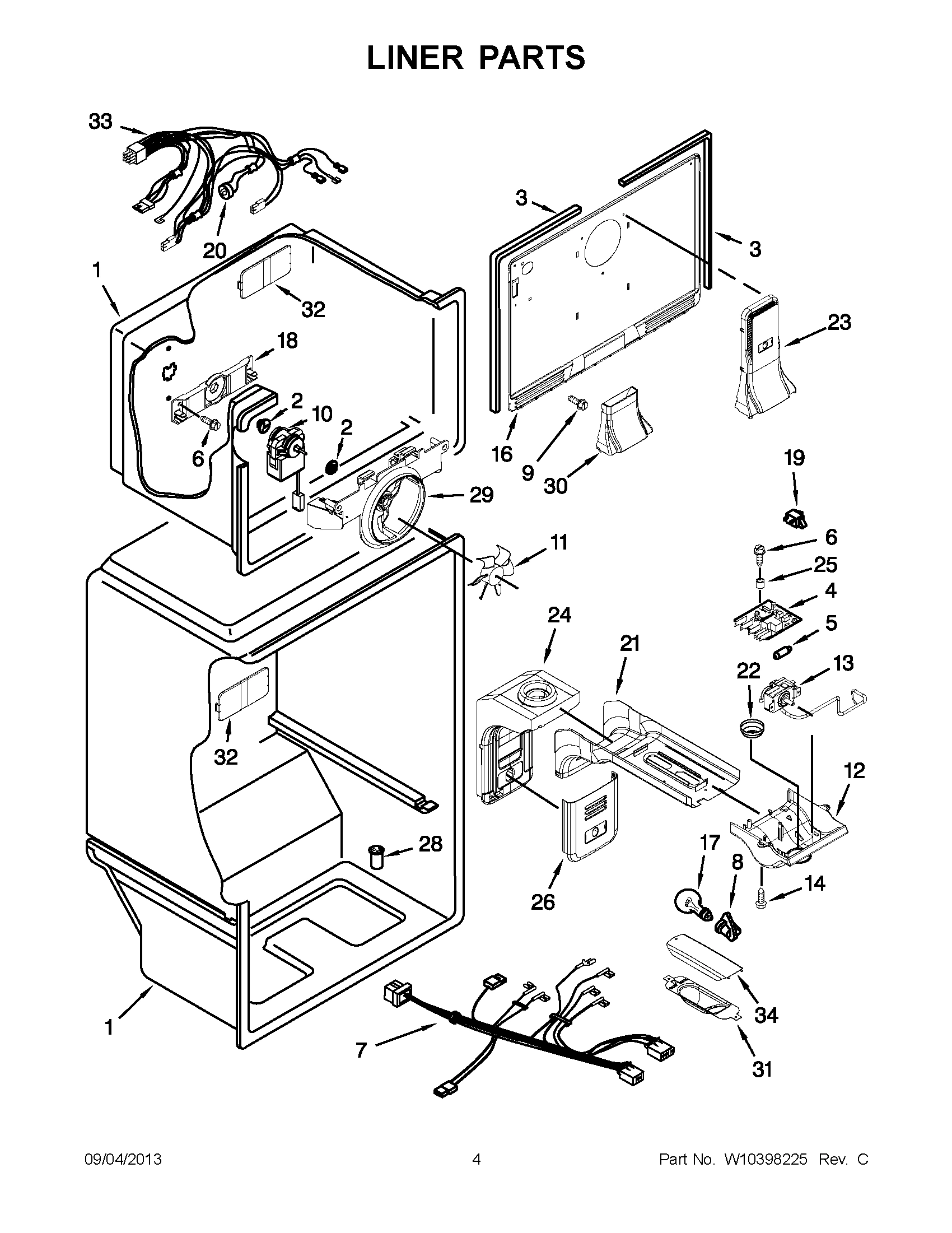

03 - LINER PARTS

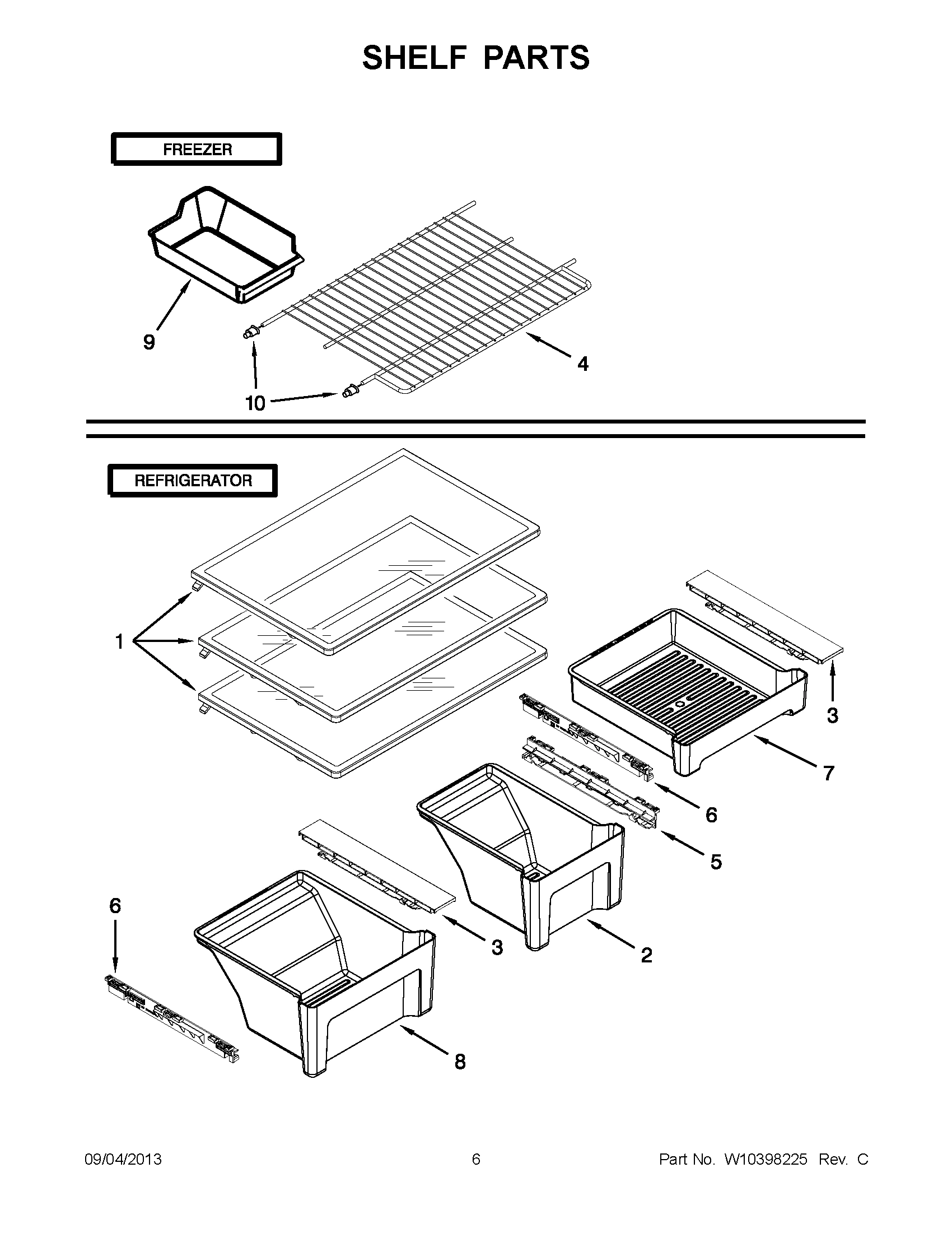

04 - SHELF PARTS

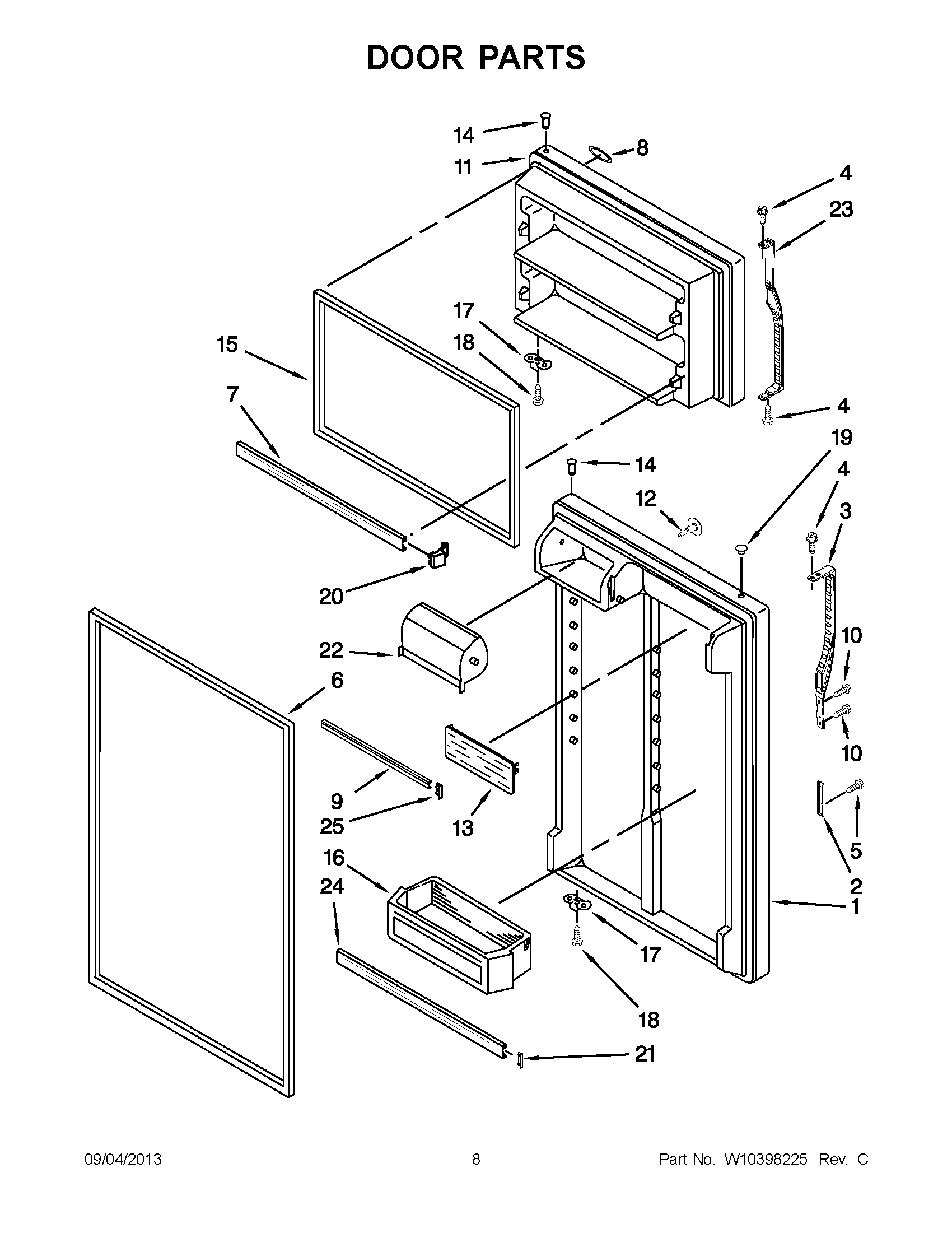

05 - DOOR PARTS

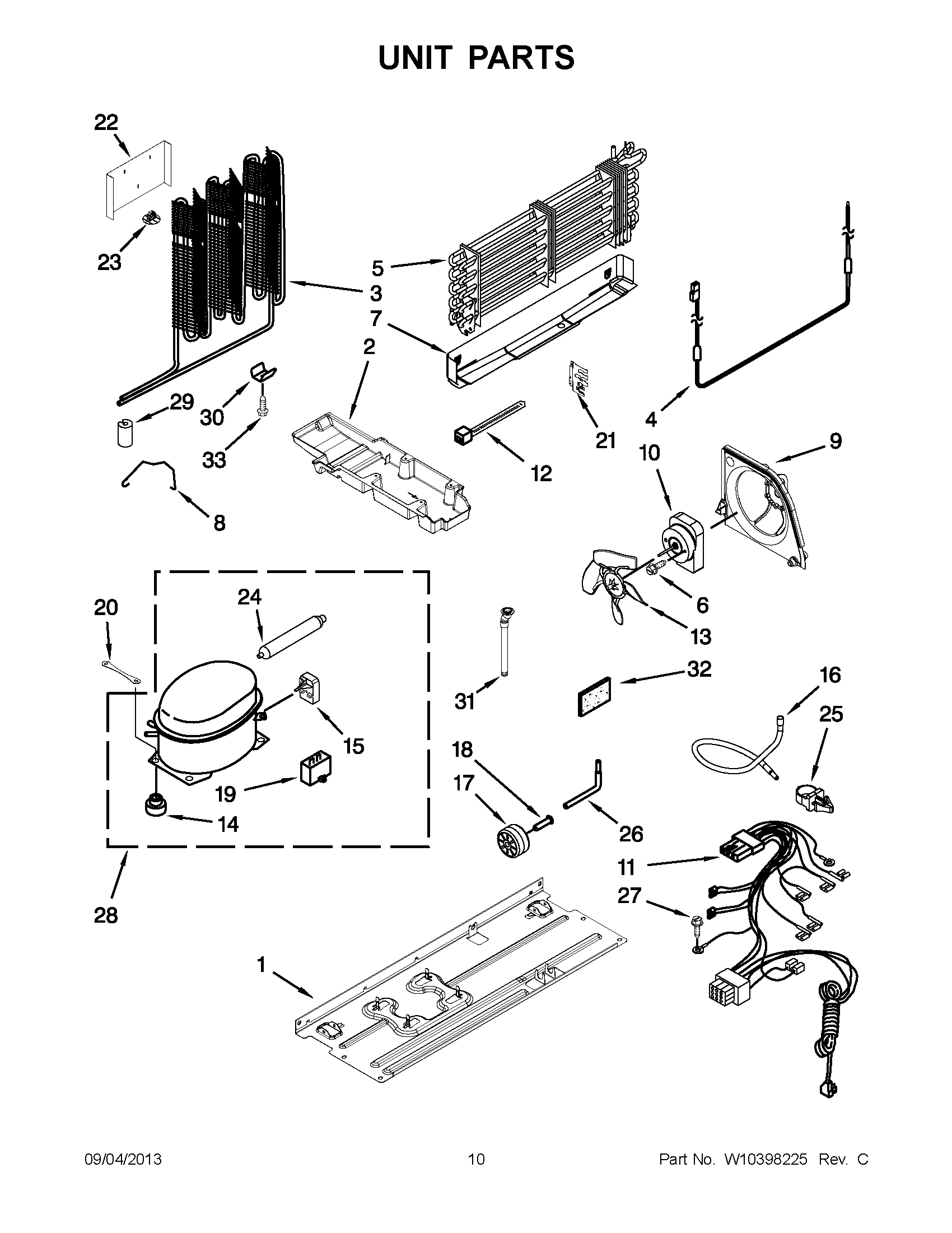

06 - UNIT PARTS

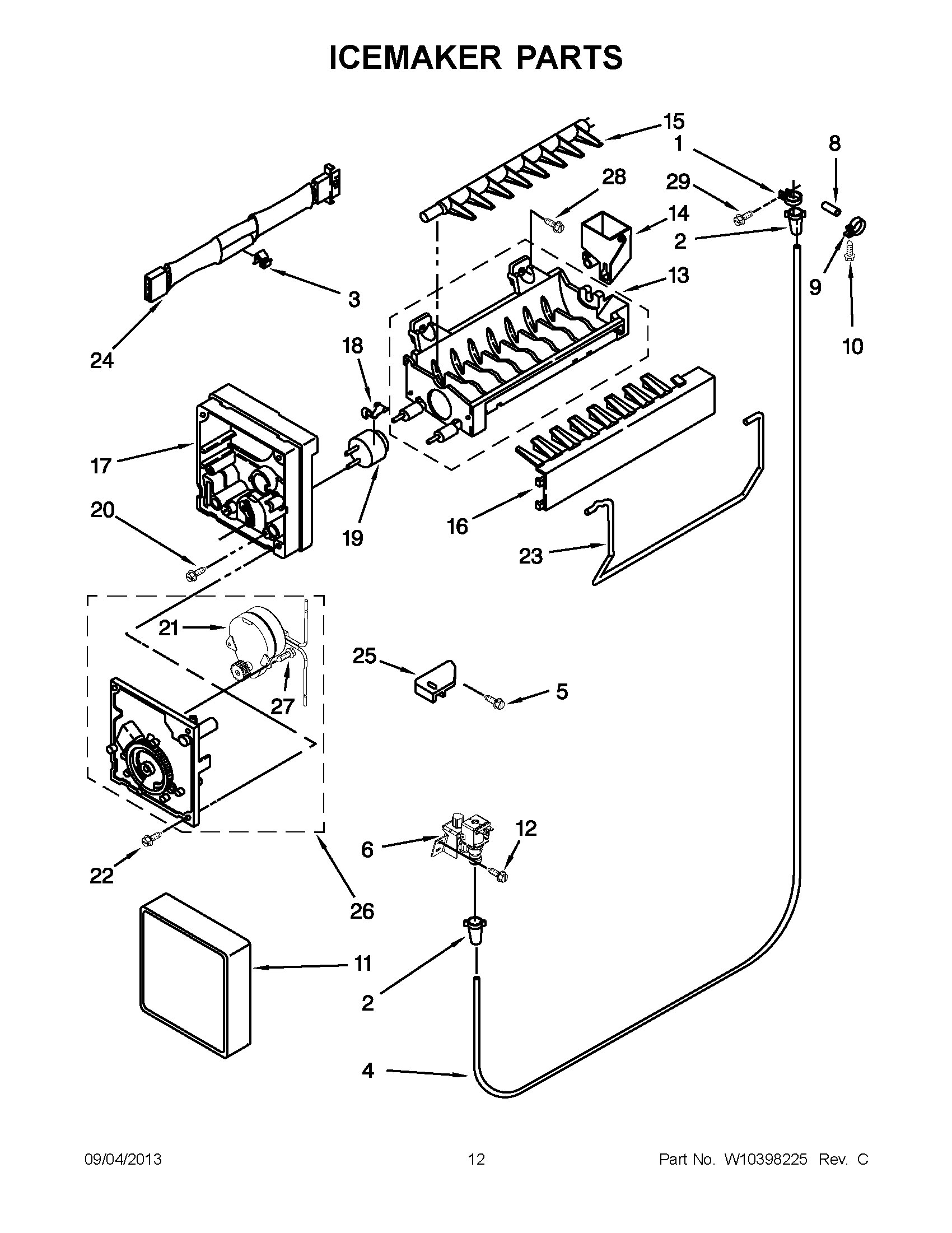

07 - ICEMAKER PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag M1TXEGMYS00 REFRIGERATOR
1
ICEMAKER SERVICE SHEET MAY 2225623 Contact Us For Availability
1
MANUAL, DO-IT-YOURSELF MAY 677969 Contact Us For Availability
1
MAY W10360533 MAY W10360533 Contact Us For Availability
1
SERVICE & WIRING SHEET MAY W10404596 Contact Us For Availability
1
MAY W10417753 MAY W10417753 Contact Us For Availability
1
ASSEMBLY, SHELF MAY W10423879 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEMS 6 & 14) (WH MAY 2183920 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEMS 6 & 14) (BL MAY 2200714 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEMS 6 & 14) (BI MAY 2205284 Contact Us For Availability
1
MAY W10371936 MAY W10371936 Contact Us For Availability
1
MAY W10300118 MAY W10300118 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
2
TOP HINGE ASSEMBLY MAY 2261963 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
CRISPER PAN 12`` MAY W10373951 Contact Us For Availability
2
MAY 2193143B MAY 2193143B Contact Us For Availability
2
HANDLE, TRIM (BISCUIT/BISQUE) MAY 2193143T Contact Us For Availability
2
MAY 2193143W MAY 2193143W Contact Us For Availability
2
MAY 2181939 MAY 2181939 Contact Us For Availability
3
ROLLER ASSEMBLY MAY 2166108 Contact Us For Availability
3
MAY 2254360 MAY 2254360 Contact Us For Availability
3
MAY W10404446 MAY W10404446 Contact Us For Availability
3
MAY 2254533B MAY 2254533B Contact Us For Availability
3
HANDLE, REFRIGERATOR (BISCUIT/BISQUE) MAY 2254533T Contact Us For Availability
3
MAY 2254533W MAY 2254533W Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
3
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
4
ADAPTIVE DEFROST CONTROL MAY W10352689 Contact Us For Availability
4
SHELF, WIRE MAY W10384386 Contact Us For Availability
4
MAY 489357 MAY 489357 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
4
TUBE WATER MAY 2181944 Contact Us For Availability
5
MAY W10384414 MAY W10384414 Contact Us For Availability
5
MAY 2200831 MAY 2200831 Contact Us For Availability
5
MAY W10404450 MAY W10404450 Contact Us For Availability
5
MAY 8281146 MAY 8281146 Contact Us For Availability
5
EVAPORATOR ASSEMBLY MAY W10314205 Contact Us For Availability
5
MAY 489478 MAY 489478 Contact Us For Availability
6
SHIM, TOP HINGE MAY 2221885 Contact Us For Availability
6
MAY W10404449 MAY W10404449 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (BEIGE) MAY 2202875 Contact Us For Availability
6
MAY 2202882 MAY 2202882 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
MAY W10279909 MAY W10279909 Contact Us For Availability
7
WIRE ASSEMBLY, CONTROL BOX MAY W10318068 Contact Us For Availability
7
MEAT PAN MAY W10310944 Contact Us For Availability
7
MAY W10463315 MAY W10463315 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
8
MAY W10142287 MAY W10142287 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY W10373948 MAY W10373948 Contact Us For Availability
8
Badge (Maytag) MAY W10170766 Contact Us For Availability
8
BALE STRAP MAY W10249638 Contact Us For Availability
8
MAY 2174755 MAY 2174755 Contact Us For Availability
9
Clamp, Power Cord MAY 549193 Contact Us For Availability
9
MAY W10142283 MAY W10142283 Contact Us For Availability
9
Bucket, Ice MAY 2254352 Contact Us For Availability
9
TRIM, DOOR MAY 2195378 Contact Us For Availability
9
BAFFLE, AIR MAY 2315541 Contact Us For Availability
9
CLAMP, TUBE MAY 489385 Contact Us For Availability
10
MAY 2262176 MAY 2262176 Contact Us For Availability
10
MAY 489497 MAY 489497 Contact Us For Availability
10
MAY W10208121 MAY W10208121 Contact Us For Availability
10
Cup, Shelf MAY W10130299 Contact Us For Availability
10
MAY 8281206 MAY 8281206 Contact Us For Availability
10
MAY 2188874 MAY 2188874 Contact Us For Availability
11
MAY 2254618 MAY 2254618 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
FREEZER DOOR (INCLUDES ITEMS 14 & 15) (WHITE) MAY 2182489 Contact Us For Availability
11
FREEZER DOOR (INCLUDES ITEMS 14 & 15) (BLACK) MAY 2200711 Contact Us For Availability
11
FREEZER DOOR (INCLUDES ITEMS 14 & 15) (BISCUI MAY 2204686 Contact Us For Availability
11
MAY W10371935 MAY W10371935 Contact Us For Availability
11
MAY W10289690 MAY W10289690 Contact Us For Availability
12
MAY 2183852 MAY 2183852 Contact Us For Availability
12
CONTROL BOX MAY W10316941 Contact Us For Availability
12
Hole PLug (White) MAY 2189000 Contact Us For Availability
12
MAY 2189009 MAY 2189009 Contact Us For Availability
12
HOLE PLUG (BISCUIT/BISQUE) MAY 2200936 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
12
MAY W10001260 MAY W10001260 Contact Us For Availability
13
GASKET, SEAL MAY 1106508 Contact Us For Availability
13
THERMOSTAT ASSEMBLY MAY W10343913 Contact Us For Availability
13
MAY 2188236 MAY 2188236 Contact Us For Availability
13
MAY W10139483 MAY W10139483 Contact Us For Availability
13
ASSEMBLY, MOLD AND HEATER MAY W10122527 Contact Us For Availability
14
HINGE, BOTTOM MAY 2254473 Contact Us For Availability
14
MAY 489174 MAY 489174 Contact Us For Availability
14
MAY 2314293 MAY 2314293 Contact Us For Availability
14
PRODUCTION MAY 10835903 Contact Us For Availability
14
MAY W10122561 MAY W10122561 Contact Us For Availability
15
MAY W10472793 MAY W10472793 Contact Us For Availability
15
DOOR GASKET, MAGNETIC (BEIGE) MAY 2214967 Contact Us For Availability
15
MAY 2214969 MAY 2214969 Contact Us For Availability
15
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10330832 Contact Us For Availability
15
MAY 627843 MAY 627843 Contact Us For Availability
16
MAY W10520304 MAY W10520304 Contact Us For Availability
16
HOLE PLUG (BLACK) MAY W10520305 Contact Us For Availability
16
MAY W10520306 MAY W10520306 Contact Us For Availability
16
MAY W10385129 MAY W10385129 Contact Us For Availability
16
BIN, DOOR MAY 2204812 Contact Us For Availability
16
STRIPPER, ICE MAY W10122563 Contact Us For Availability
17
CORNER FILLER (BISCUIT/BISQUE) MAY W10283958 Contact Us For Availability
17
CORNER FILLER (WHITE) MAY W10283959 Contact Us For Availability
17
CORNER FILLER (BLACK) MAY W10283960 Contact Us For Availability
17
LIGHT BULB, BLUE MAY W10311528 Contact Us For Availability
17
MAY 2189202 MAY 2189202 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
17
MAY 2194712 MAY 2194712 Contact Us For Availability
18
ASSEMBLY, GRILLE (WHITE) MAY 2254313 Contact Us For Availability
18
ASSEMBLY, GRILLE (BLACK) MAY 2254315 Contact Us For Availability
18
ASSEMBLY, GRILLE (BISCUIT/BISQUE) MAY 2254316 Contact Us For Availability
18
BRACKET EVAPORATOR FAN, REAR MAY 2254454 Contact Us For Availability
18
MAY 488921 MAY 488921 Contact Us For Availability
18
AXLE, RIVET MAY 2221797 Contact Us For Availability
18
MAY 2315522 MAY 2315522 Contact Us For Availability
19
WASHER, PLASTIC MAY 489341 Contact Us For Availability
19
SWITCH, ROCKER ARM (REFRIGERATOR) MAY 1118894 Contact Us For Availability
19
HOLE PLUG, HINGE (WHITE) MAY 2212648 Contact Us For Availability
19
HOLE PLUG, HINGE (BISCUIT/BISQUE) MAY 2212649 Contact Us For Availability
19
HOLE PLUG, HINGE (BLACK) MAY 2212651 Contact Us For Availability
19
MAY 2264017 MAY 2264017 Contact Us For Availability
19
MAY W10290336 MAY W10290336 Contact Us For Availability
20
Washer, Plastic MAY 487576 Contact Us For Availability
20
DEFROST, BI-METAL MAY W10392132 Contact Us For Availability
20
END CAP, DOOR TRIM MAY 2195916 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
20
MAY 8533917 MAY 8533917 Contact Us For Availability
21
MAY 2189356 MAY 2189356 Contact Us For Availability
21
AIR DIFFUSER COVER MAY W10305175 Contact Us For Availability
21
MAY 2156006 MAY 2156006 Contact Us For Availability
21
MAY W10314197 MAY W10314197 Contact Us For Availability
21
MOTOR, MODULE ASSEMBLY MAY W10122551 Contact Us For Availability
22
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
22
MAY 2213363 MAY 2213363 Contact Us For Availability
22
COVER, HINGE (BISCUIT/BISQUE) MAY 2213364 Contact Us For Availability
22
KNOB MAY W10356940 Contact Us For Availability
22
MAY W10385897 MAY W10385897 Contact Us For Availability
22
MAY W10349515 MAY W10349515 Contact Us For Availability
22
MAY 489276 MAY 489276 Contact Us For Availability
23
MAY W10305174 MAY W10305174 Contact Us For Availability
23
MAY W10291249 MAY W10291249 Contact Us For Availability
23
MAY W10292303 MAY W10292303 Contact Us For Availability
23
MAY W10292304 MAY W10292304 Contact Us For Availability
23
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
23
MAY 627792 MAY 627792 Contact Us For Availability
24
AIR DIFFUSER ASSEMBLY MAY W10376137 Contact Us For Availability
24
TRIM, SHELF MAY 2195948 Contact Us For Availability
24
Drier MAY W10177049 Contact Us For Availability
24
MAY W10309399 MAY W10309399 Contact Us For Availability
25
Plug-Trim MAY 2156007 Contact Us For Availability
25
Clip, Harness MAY 2219077 Contact Us For Availability
25
Bracket, Ice Maker Mounting MAY 628320 Contact Us For Availability
26
MAY W10310927 MAY W10310927 Contact Us For Availability
26
MAY 2212848 MAY 2212848 Contact Us For Availability
26
ASSEMBLY, MODULE MAY W10223929 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
27
Screw MAY 489136 Contact Us For Availability
28
Screw MAY 488208 Contact Us For Availability
28
MAY 2210509 MAY 2210509 Contact Us For Availability
28
COMPRESSOR MAY W10187125 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
29
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
29
SCREW MAY 488886 Contact Us For Availability
30
ASSEMBLY, TOWER CONNECTION MAY W10396926 Contact Us For Availability
30
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
31
MAY W10300161 MAY W10300161 Contact Us For Availability
31
VALVE, DRAIN MAY W10316650 Contact Us For Availability
32
SCREW CUP MAY W10336009 Contact Us For Availability
32
MAY 2215468 MAY 2215468 Contact Us For Availability
33
MAY W10339629 MAY W10339629 Contact Us For Availability
33
MAY 8281232 MAY 8281232 Contact Us For Availability
34
MAY W10348614 MAY W10348614 Contact Us For Availability
100
ICEMAKER ASSEMBLY (COMPLETE) MAY W10190952 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
MAY W10395148 MAY W10395148 Contact Us For Availability
× ![]()
