LG LY24Z6231V Parts List | Part Advantage

105A

5251JA3004P LG Drain Tube Assembly Backorder LGE 5251JA3004P $19.31

View on Model

106A

AFC72909201 LG Leg Assembly Adjust Backorder LGE AFC72909201 $24.91

View on Model

133E

AHJ73269903 LG Roller Assembly Backorder LGE AHJ73269903 $15.77

View on Model

143A

Hinge Assembly,Center Backorder LGE AEH76186909 $60.67

View on Model

151A

AJP76427502 LG Vegetable Tray Assembly Backorder LGE AJP76427502 $94.66

View on Model

154A

ACQ91170834 LG Vegetable Tray Cover Assembly Backorder LGE ACQ91170834 $103.57

View on Model

162A

Guide Assembly,Rail LGE AEC75955417 Contact Us For Availability

View on Model

162B

Guide Assembly,Rail Backorder LGE AEC75955418 $39.18

View on Model

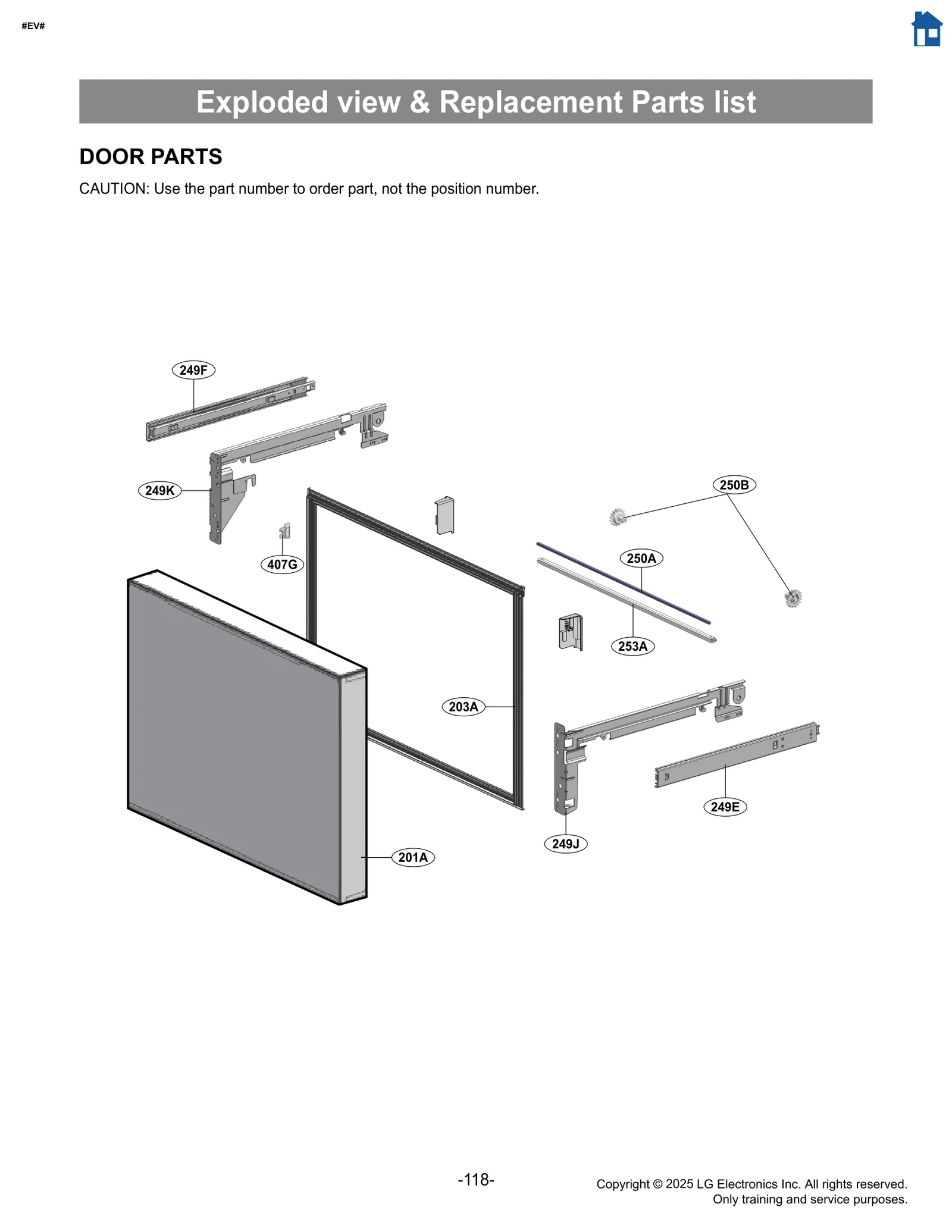

180A

RAB32775604 LG Ferrite Magnet Backorder LGE RAB32775604 $6.62

View on Model

201A

Door Foam Assembly,Freezer LGE ADD76452402 Contact Us For Availability

View on Model

203A

MDS38201426 LG Refrigerator Door Gasket In Stock LGE MDS38201426 $69.11

View on Model

206C

MJB65173703 LG Door Stopper Backorder LGE MJB65173703 $6.62

View on Model

212G

MFT64808222 LG Name Plate In Stock LGE MFT64808222 $19.31

View on Model

231B

Door Foam Assembly,Refrigerator LGE ADD76451803 Contact Us For Availability

View on Model

231C

Door Foam Assembly,Refrigerator LGE ADD76451003 Contact Us For Availability

View on Model

233A

ADX72930461 LG Refrigerator Door Gasket Assem Backorder LGE ADX72930461 $86.64

View on Model

233B

ADX72930460 LG Refrigerator Door Gasket Assem Backorder LGE ADX72930460 $86.64

View on Model

233G

Stopper,Door Backorder LGE MJB65182902 $6.62

View on Model

235A

AGU75407901 LG Front Plate Assembly In Stock LGE AGU75407901 $148.35

View on Model

241A

BASKET,DOOR Backorder LGE MAN64888801 $31.90

View on Model

241B

Basket Assembly,Door LGE AAP74271342 Contact Us For Availability

View on Model

243K

MBF65449502 LG Bush Backorder LGE MBF65449502 $6.62

View on Model

243P

Stopper,Door LGE MJB65181302 Contact Us For Availability

View on Model

249E

5218JA1009L LG Slide Rail Backorder LGE 5218JA1009L $114.35

View on Model

249F

5218JA1009M LG Slide Rail Assembly Backorder LGE 5218JA1009M $114.35

View on Model

249J

MCD62328902 LG Refrigerator Rail Connector Backorder LGE MCD62328902 $86.64

View on Model

249K

MCD62328907 LG Refrigerator Rail Connector Backorder LGE MCD62328907 $86.64

View on Model

250A

MAK64727009 LG Bar Backorder LGE MAK64727009 $24.91

View on Model

250B

MDT62207801 LG Ice Maker Gear Backorder LGE MDT62207801 $6.62

View on Model

253A

Supporter,Cover Tray LGE MJH62553613 Contact Us For Availability

View on Model

275A

ABN76537402 LG Duct Cap Assembly Backorder LGE ABN76537402 $86.64

View on Model

276B

MEG63262301 LG Lever Holder Backorder LGE MEG63262301 $6.62

View on Model

276C

MFF62123101 LG Link Assembly Backorder LGE MFF62123101 $6.62

View on Model

278A

ADW73550410 LG Funnel Assembly Backorder LGE ADW73550410 $103.57

View on Model

278B

4932JA3009C LG Connector Tube Backorder LGE 4932JA3009C $15.77

View on Model

278H

MHY62644404 LG Refrigerator Spring Backorder LGE MHY62644404 $6.62

View on Model

279A

Cover Assembly,Display LGE ACQ30535725 Contact Us For Availability

View on Model

279K

MBG67853614 LG Lever Button Backorder LGE MBG67853614 $24.91

View on Model

300A

COMPRESSOR,SET ASSEMBLY Backorder LGE TCA36911411 $352.16

View on Model

300A

TCA37091607 LG Refrigerator Compressor Set As In Stock LGE TCA37091607 $319.92

View on Model

300A

TCA37091615 LG Compressor Set Assembly Backorder LGE TCA37091615 $406.72

View on Model

301A

ACG76164405 LG Condenser Wire Assembly Backorder LGE ACG76164405 $133.22

View on Model

302B

ADL76320912 LG Evaporator Assembly Backorder LGE ADL76320912 $249.52

View on Model

303A

EBG60663282 LG PTC Thermistor Assembly Backorder LGE EBG60663282 $69.11

View on Model

303C

EAF61170610 LG Overload Protection Backorder LGE EAF61170610 $39.18

View on Model

303D

EAD62428629 LG Harness Assembly Backorder LGE EAD62428629 $196.49

View on Model

304A

MCK69300903 LG Refrigerator PTC Cover Backorder LGE MCK69300903 $15.77

View on Model

306A

DAMPER,COMPRESSOR Backorder LGE MCQ70912201 $10.52

View on Model

308A

Tray,Drip LGE MJS62233511 Contact Us For Availability

View on Model

308B

MEA65930101 LG Refrigerator Fan Guide In Stock LGE MEA65930101 $249.52

View on Model

308C

EAU65058327 LG DC Motor Assembly Backorder LGE EAU65058327 $69.11

View on Model

308C

EAU65058502 LG Refrigerator Condenser Fan Mot In Stock LGE EAU65058502 $77.79

View on Model

310B

MGE62010610 LG Compressor Sealing Pipe Backorder LGE MGE62010610 $10.52

View on Model

313A

ACQ91135806 LG Refrigerator Rear Cover Assemb Backorder LGE ACQ91135806 $46.70

View on Model

314A

4620JA3015A LG Refrigerator Compressor Stoppe Backorder LGE 4620JA3015A $6.62

View on Model

316A

5072JA3003F LG Refrigerator Damper Backorder LGE 5072JA3003F $6.62

View on Model

316B

DAMPER,NOISE Backorder LGE 5072JA3003Y $6.62

View on Model

317A

ADH73150208 LG Dryer Assembly In Stock LGE ADH73150208 $80.51

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $6.62

View on Model

400A

ACM75678716 LG Controller Assembly Backorder LGE ACM75678716 $39.18

View on Model

402A

EBF61314813 LG Refrigerator Magnet Switch In Stock LGE EBF61314813 $19.31

View on Model

402C

6600JB3001C LG Refrigerator Micro Switch In Stock LGE 6600JB3001C $15.77

View on Model

403B

ADP73273402 LG Refrigerator Fan Assembly In Stock LGE ADP73273402 $15.77

View on Model

405A

EAU59551208 LG Refrigerator DC Motor Backorder LGE EAU59551208 $60.38

View on Model

405M

MCK66769001 LG Lamp Cover In Stock LGE MCK66769001 $6.62

View on Model

406B

EBF61314816 LG Refrigerator Magnet Switch In Stock LGE EBF61314816 $19.31

View on Model

407G

MCK67227902 LG Refrigerator Door Switch Cover Backorder LGE MCK67227902 $10.52

View on Model

408A

MEE62225177 LG Sheath Heater Backorder LGE MEE62225177 $94.66

View on Model

409I

EAV61652805 LG LED Assembly In Stock LGE EAV61652805 $38.92

View on Model

411A

EAD64545770 LG Refrigerator Power Cord Assemb Backorder LGE EAD64545770 $69.11

View on Model

500C

Cover Assembly,PCB LGE ACQ30727202 Contact Us For Availability

View on Model

500P

EBR64730408 LG Power Control PCB Assembly Backorder LGE EBR64730408 $24.91

View on Model

600A

AEQ73110227 LG Ice Maker Assembly Backorder LGE AEQ73110227 $196.49

View on Model

601C

EAU64063301 LG Indoor DC Motor Assembly In Stock LGE EAU64063301 $114.35

View on Model

601C

EAU65062901 LG Refrigerator Indoor DC Motor A Backorder LGE EAU65062901 $114.35

View on Model

603B

4930JA3091A LG Refrigerator Water Line Connec Backorder LGE 4930JA3091A $6.62

View on Model

603C

4930JA3093B LG Holder Bracket Backorder LGE 4930JA3093B $6.62

View on Model

607A

4931JA3005B LG Refrigerator Bracket Holder As Backorder LGE 4931JA3005B $6.62

View on Model

611A

AKC73369912 LG Ice Bucket Assembly Backorder LGE AKC73369912 $173.96

View on Model

612A

ACZ74170507 LG Ice Dispenser Assembly Backorder LGE ACZ74170507 $249.52

View on Model

616F

MJU62070622 LG Refrigerator Plastic Tube Backorder LGE MJU62070622 $10.52

View on Model

619A

AJU75632504 LG Refrigerator Water Valve Assem Backorder LGE AJU75632504 $109.92

View on Model

619B

MJX64471402 LG Water Valve In Stock LGE MJX64471402 $86.64

View on Model

619C

ADQ73913318 LG Filter Assembly,Water Backorder LGE ADQ73913318 $114.35

View on Model

619F

Valve Assembly,Water LGE AJU73432883 Contact Us For Availability

View on Model

623B

Cap,Cover LGE MBL30046701 Contact Us For Availability

View on Model

623C

4932JA3002A LG Refrigerator 5/16" Plastic Uni In Stock LGE 4932JA3002A $15.77

View on Model

624A

ADQ74793501 LG Refrigerator Water Filter (LT1 Backorder LGE ADQ74793501 $73.31

View on Model

624C

MCK69605202 LG Refrigerator Filter Cover Backorder LGE MCK69605202 $15.77

View on Model

626A

MCK69605302 LG Refrigerator Filter Cover Backorder LGE MCK69605302 $15.77

View on Model

627A

MEG42758602 LG Pipe Holder Backorder LGE MEG42758602 $5.75

View on Model

630A

ADC72987155 LG Refrigerator Freezer Door Asse Backorder LGE ADC72987155 $172.59

View on Model

630B

ADD72915916 LG Door Foam Assembly Backorder LGE ADD72915916 $133.22

View on Model

630C

MDS62111103 LG Door Gasket In Stock LGE MDS62111103 $94.66

View on Model

630D

MEB61894003 LG Refrigerator Ice Room Door Han Backorder LGE MEB61894003 $15.77

View on Model

630D

MEB62915403 LG Refrigerator Home Bar Handle Backorder LGE MEB62915403 $10.52

View on Model

630E

MCK63734907 LG Refrigerator Lever Cover Backorder LGE MCK63734907 $10.52

View on Model

630F

AEH72976201 LG Upper Hinge Assembly Backorder LGE AEH72976201 $19.31

View on Model

630G

AEH74156202 LG Refrigerator Lower Hinge Assem Backorder LGE AEH74156202 $10.52

View on Model

630J

ADX73250609 LG Door Gasket Assembly Backorder LGE ADX73250609 $31.90

View on Model

630Q

4580JT3001B LG Refrigerator Roller Backorder LGE 4580JT3001B $6.62

View on Model

631C

ADQ73214408 LG Refrigerator Air Cleaner Filte In Stock LGE ADQ73214408 $29.63

View on Model

Model LG LY24Z6231V – Common Parts & Diagrams

Common parts from model LG LY24Z6231V
