LG LUU246HV.AWGBEUS Universal Inverter Parts List

152503

4H01010A LG Air Conditioner Heat Pump Drain P Backorder LGE 4H01010A $3.40

View on Model

268711B

PCB Assembly LGE EBR48168222 Contact Us For Availability

View on Model

346810

4681A20172Q LG Air Conditioner Outdoor Upper In Stock LGE 4681A20172Q $200.15

View on Model

349480

Orifice LGE 4948A20011G Contact Us For Availability

View on Model

430410

Base Assembly,Outdoor LGE AAN74315312 Contact Us For Availability

View on Model

435300

Grille,Rear LGE MDX59045504 Contact Us For Availability

View on Model

435301

MDX61846201 LG Discharge Grille Backorder LGE MDX61846201 $68.76

View on Model

435511A

3551A30162B LG Outdoor Control Assembly Cover Backorder LGE 3551A30162B $26.57

View on Model

435511B

Cover Assembly,Control(Outdoor) LGE ACQ36712504 Contact Us For Availability

View on Model

435512

ACQ73019508 LG Outdoor Cover Assembly Backorder LGE ACQ73019508 $75.08

View on Model

437210

Panel Assembly,Front(Sub) LGE 1A00197E Contact Us For Availability

View on Model

437211

Panel Assembly,Front(Outdoor) LGE AGL32105614 Contact Us For Availability

View on Model

447910

Barrier Assembly,Outdoor LGE AAM34710905 Contact Us For Availability

View on Model

548490

Accumulator LGE 4848A20005L Contact Us For Availability

View on Model

549610

ABA32344701 LG Motor Bracket Assembly Backorder LGE ABA32344701 $59.89

View on Model

550140

4H00982E LG Compressor Damper In Stock LGE 4H00982E $3.40

View on Model

552113

AJR34565801 LG Condenser Tube Assembly Backorder LGE AJR34565801 $85.74

View on Model

552115

AJR34739801 LG Outdoor Manifold Tube Assembly Backorder LGE AJR34739801 $59.89

View on Model

552116

Tube Assembly,Reverse LGE AJR71429402 Contact Us For Availability

View on Model

552117

Tube Assembly,Suction(Outdoor) LGE AJR71429301 Contact Us For Availability

View on Model

552200

MJX62751401 LG Expansion Body Valve Backorder LGE MJX62751401 $50.56

View on Model

552202

VALVE,REVERSE Backorder LGE 5220AR3228E $73.56

View on Model

552202

VALVE,REVERSE Backorder LGE 5220AR3228Y $59.89

View on Model

552203A

Valve,Service Backorder LGE MJX62472101 $59.89

View on Model

552203B

Valve,Service Backorder LGE MJX62472207 $39.22

View on Model

554031

Condenser Assembly,Bending LGE ACG73425105 Contact Us For Availability

View on Model

554160

Compressor LGE 5416A90055D Contact Us For Availability

View on Model

554160

Compressor LGE 5416A90055J Contact Us For Availability

View on Model

559010

MDG37708601 LG Air Conditioner Heat Pump Prop Backorder LGE MDG37708601 $132.09

View on Model

561410

DRAWING,ASSEMBLY Backorder LGE EAD62115302 $23.19

View on Model

649950

Case Assembly,Control(Outdoor) LGE ABQ32900622 Contact Us For Availability

View on Model

661400

Coil,Expansion LGE EAP62228709 Contact Us For Availability

View on Model

661400

Drawing,Assembly Backorder LGE EAD62437308 $97.99

View on Model

661400B

Coil,Expansion Backorder LGE EAP30616909 $34.48

View on Model

669010

LGE 6901A20017E LGE 6901A20017E Contact Us For Availability

View on Model

EBG13BR

EBG61106507 LG Temperature Sensor Thermistor Backorder LGE EBG61106507 $15.76

View on Model

EBG13BR

Thermistor Assembly LGE 6323A20016M Contact Us For Availability

View on Model

EBG24RD

EBG61107109 LG Temperature Sensor Assembly Th Backorder LGE EBG61107109 $30.20

View on Model

EBG24WH

EBG61107014 LG Air Conditioner NTC Thermistor Backorder LGE EBG61107014 $28.99

View on Model

W0FZZ

0FZZA90002A LG Time Delay Fuse Backorder LGE 0FZZA90002A $5.27

View on Model

W4810D

BRACKET Backorder LGE 3A01934B $9.50

View on Model

W4986A

3096A20018A LG Soundproofing Backorder LGE 3096A20018A $55.80

View on Model

W4986B

Gasket LGE 3096AP3476L Contact Us For Availability

View on Model

W6200

Filter,Line Noise LGE EAM38878003 Contact Us For Availability

View on Model

W6631

Harness,Multi LGE EAD62124601 Contact Us For Availability

View on Model

W6640

Connector,Terminal Block LGE 3A00493K Contact Us For Availability

View on Model

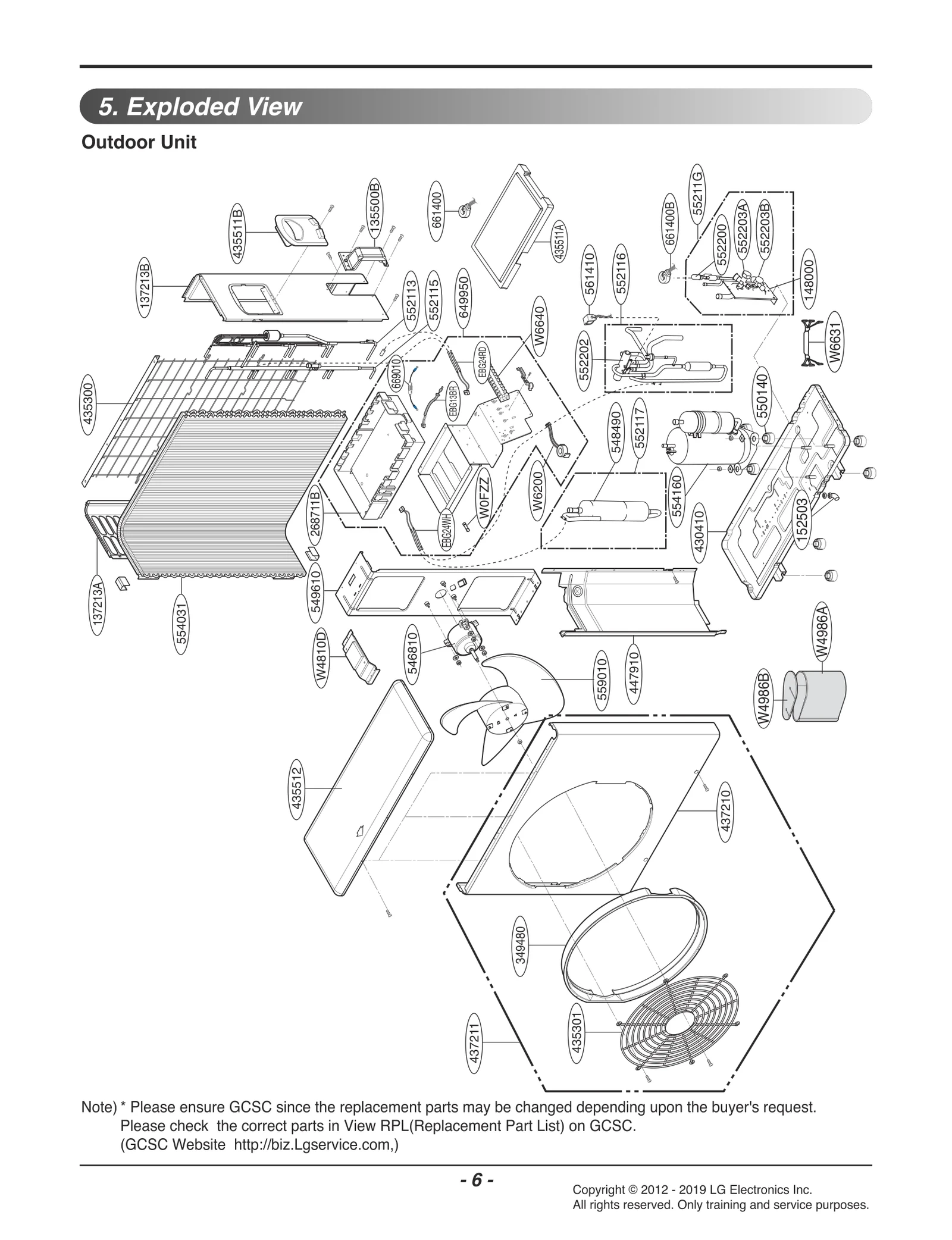

Model LG LUU246HV.AWGBEUS Universal Inverter – Common Parts & Diagrams

Common parts from model LG LUU246HV.AWGBEUS Universal Inverter
