Model LG LP150CED1 AC – Common Parts & Diagrams

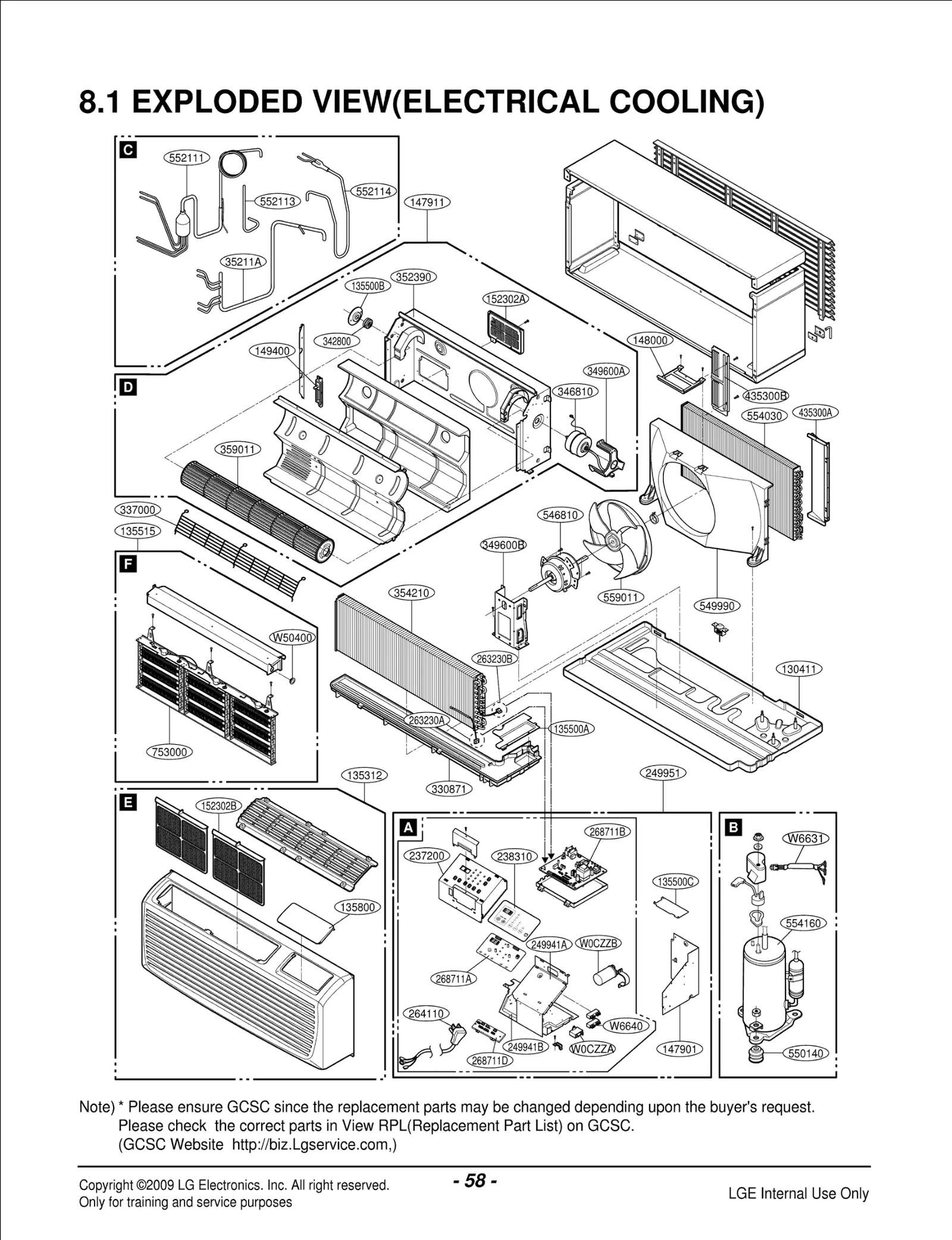

Diagram 0
Common parts from model LG LP150CED1 AC
135800
DOOR LGE 3580A20021B Contact Us For Availability
152302B
FILTER(MECH),A/C LGE 5230A20021A Contact Us For Availability
237200
Panel,Control LGE 3720A20710A Contact Us For Availability
249941A
Case,Control LGE 4994A20127A Contact Us For Availability
249941B
Case,Control(Indoor) LGE 4994A20128A Contact Us For Availability
249951
Case Assembly,Control LGE 4995A20824T Contact Us For Availability
263230A
Thermistor Assembly,NTC LGE 6323A20006H Contact Us For Availability
263230B
Thermistor Assembly,NTC LGE 6323A20006G Contact Us For Availability
268711A
PCB Assembly,Display LGE 6871A00085A Contact Us For Availability
268711B
PCB Assembly,Main LGE 6871A00084K Contact Us For Availability
330871
DRAIN PAN ASSEMBLY LGE 3087A20033A Contact Us For Availability
346810
MOTOR ASSEMBLY,INDOOR LGE 4681A20064C Contact Us For Availability
346810
Motor Assembly,AC,Indoor LGE EAU60688702 Contact Us For Availability
349600A
MOUNT,MOTOR LGE 4960A20042A Contact Us For Availability
349600B
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20118A Contact Us For Availability
359011
FAN ASSEMBLY,CROSS FLOW LGE 5901A10027A Contact Us For Availability
435300A
GRILLE,REAR LGE 3530A30015A Contact Us For Availability
435300B
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
546810
MOTOR ASSEMBLY,OUTDOOR LGE 4681A20063C Contact Us For Availability
549990
SHROUD LGE 4998A20001B Contact Us For Availability
552111
TUBE ASSEMBLY,CAPILLARY LGE 5211A20623B Contact Us For Availability
552113
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A30434B Contact Us For Availability
552114
Tube Assembly,Discharge LGE 5211A20622B Contact Us For Availability
554160
COMPRESSOR LGE 5416A30004A Contact Us For Availability
559011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
753000
Heater,Electric LGE 5300A20006D Contact Us For Availability
× ![]()
