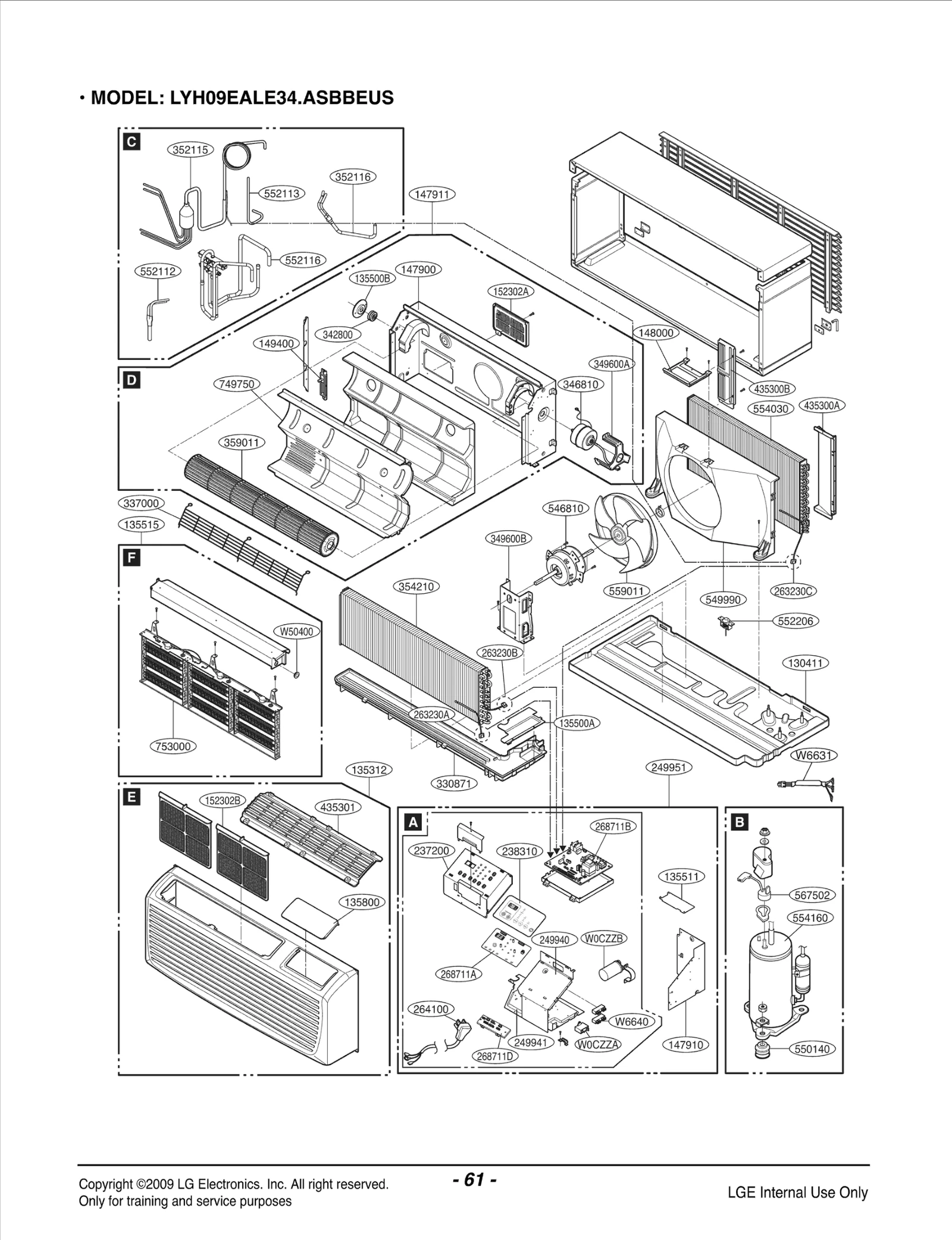

Model LG LP070HED1 AC – Common Parts & Diagrams

135800
DOOR
DOOR LGE 3580A20021B Contact Us For Availability
View on Model
152302B
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A20021A Contact Us For Availability
View on Model
237200
Panel,Control
Panel,Control LGE 3720A20710A Contact Us For Availability
View on Model
249940
Case,Control
Case,Control LGE 4994A20127A Contact Us For Availability
View on Model
249941
Case,Control(Indoor)
Case,Control(Indoor) LGE 4994A20128A Contact Us For Availability
View on Model
249951
PCB Assembly,Main
PCB Assembly,Main LGE 6871A00084N Contact Us For Availability
View on Model
249951
Case Assembly,Control
Case Assembly,Control LGE 4995A20824P Contact Us For Availability
View on Model
263230A
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE 6323A20006H Contact Us For Availability
View on Model
263230A
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE 6323A20006B Contact Us For Availability
View on Model
263230A
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20006A Contact Us For Availability
View on Model
263230B
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE 6323A20006G Contact Us For Availability
View on Model
263230C
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE 6323A20006C Contact Us For Availability
View on Model
268711A
PCB Assembly,Display
PCB Assembly,Display LGE 6871A00085A Contact Us For Availability
View on Model
330871
DRAIN PAN ASSEMBLY
DRAIN PAN ASSEMBLY LGE 3087A20033A Contact Us For Availability
View on Model
346810
MOTOR ASSEMBLY,INDOOR
MOTOR ASSEMBLY,INDOOR LGE 4681A20064K Contact Us For Availability
View on Model
349600A
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960A20032A Contact Us For Availability
View on Model
349600B
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
View on Model
352115
TUBE ASSEMBLY,EVAPORATOR IN
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20671A Contact Us For Availability
View on Model
352116
TUBE ASSEMBLY,EVAPORATOR OUT
TUBE ASSEMBLY,EVAPORATOR OUT LGE 5211A20673A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20118A Contact Us For Availability
View on Model
359011
FAN ASSEMBLY,CROSS FLOW
FAN ASSEMBLY,CROSS FLOW LGE 5901A10027A Contact Us For Availability
View on Model
435300A
GRILLE,REAR
GRILLE,REAR LGE 3530A30015A Contact Us For Availability
View on Model
435300B
GRILLE,REAR
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
View on Model
435301
GRILLE,DISCHARGE
GRILLE,DISCHARGE LGE 3530A20040B Contact Us For Availability
View on Model
546810
MOTOR ASSEMBLY,OUTDOOR
MOTOR ASSEMBLY,OUTDOOR LGE 4681A20063F Contact Us For Availability
View on Model
549990
SHROUD
SHROUD LGE 4998A20001B Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE 5211A20679A Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE 5211A30434C Contact Us For Availability
View on Model
552116
TUBE ASSEMBLY,REVERSING
TUBE ASSEMBLY,REVERSING LGE 5211A20675C Contact Us For Availability
View on Model
552206
Valve,Drain
Valve,Drain LGE 5220A30006B Contact Us For Availability
View on Model
554030
Condenser Assembly,First/OBSOLETE PART/SEE GC
Condenser Assembly,First/OBSOLETE PART/SEE GC LGE 5403A20076H Contact Us For Availability
View on Model
554160
COMPRESSOR
COMPRESSOR LGE 5416A30006A Contact Us For Availability
View on Model
559011
FAN "WC" CHASSIS LW-C1211/1011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
View on Model
753000
Heater,Electric
Heater,Electric LGE 5300A20006E Contact Us For Availability
View on Model
W0CZZA
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 3A02157F Contact Us For Availability
View on Model
