Model Whirlpool LIT3169489 30" Electronic Range Freestanding Self−Clean Oven Full Width Ceramic Cooktop – Common Parts & Diagrams

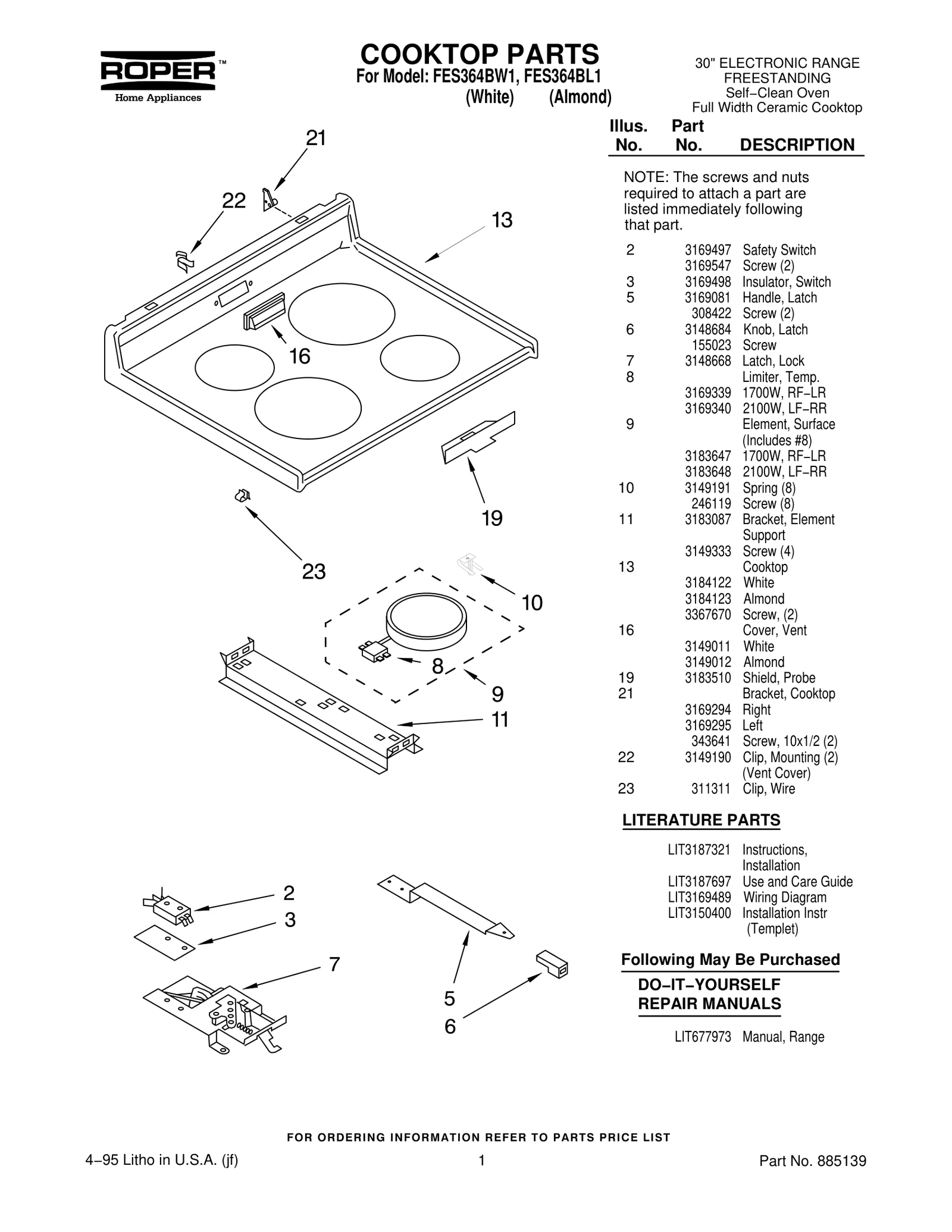

COOKTOP PARTS

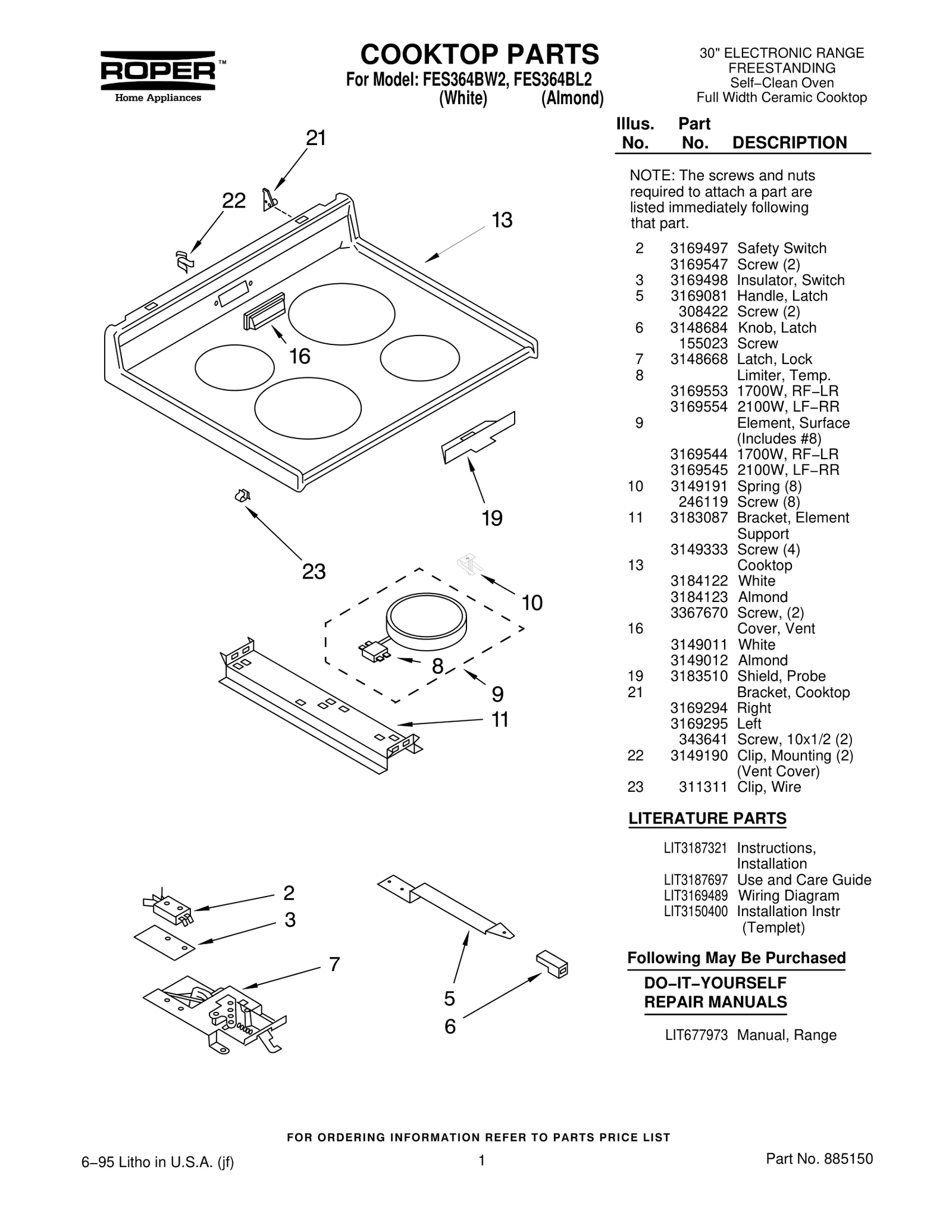

COOKTOP PARTS

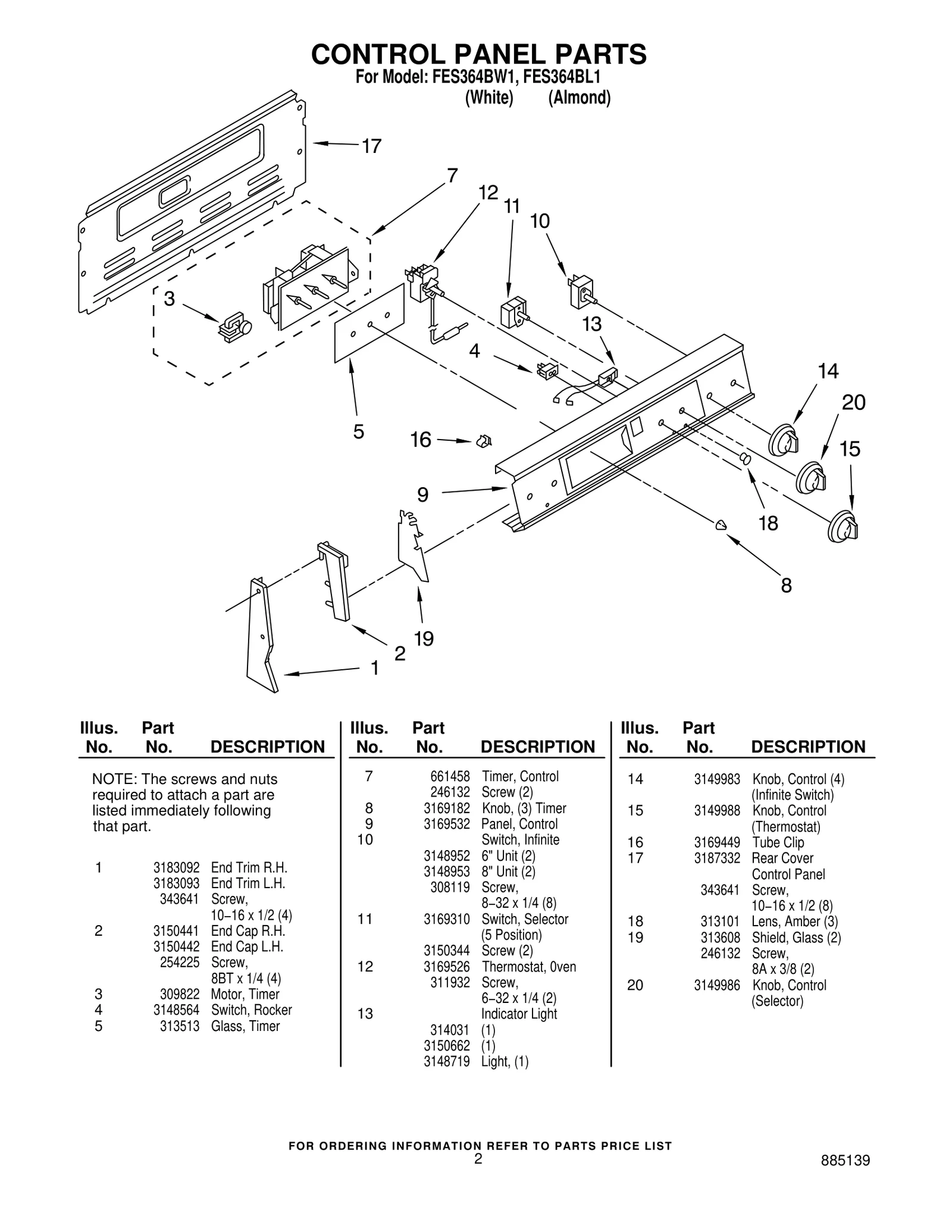

CONTROL PANEL PARTS

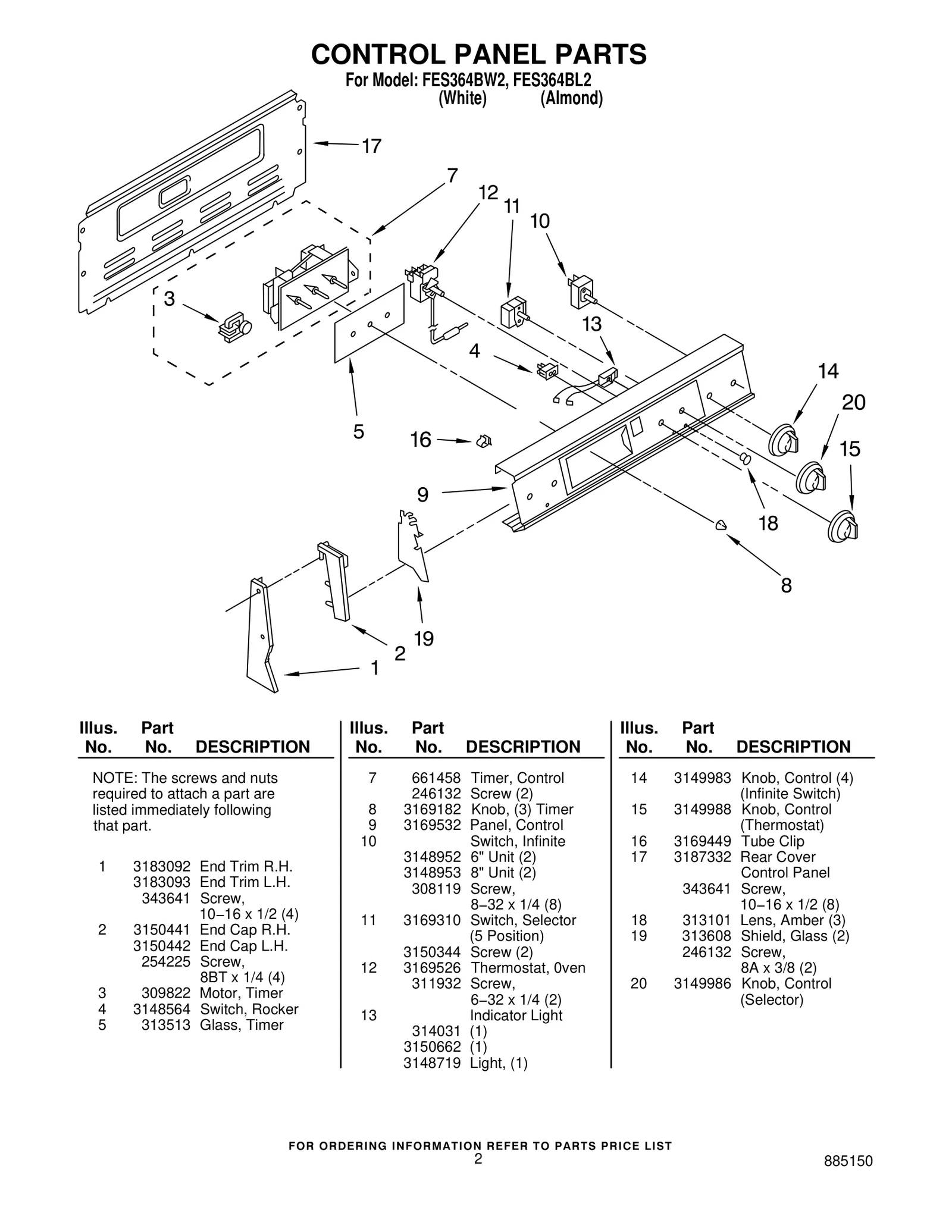

CONTROL PANEL PARTS

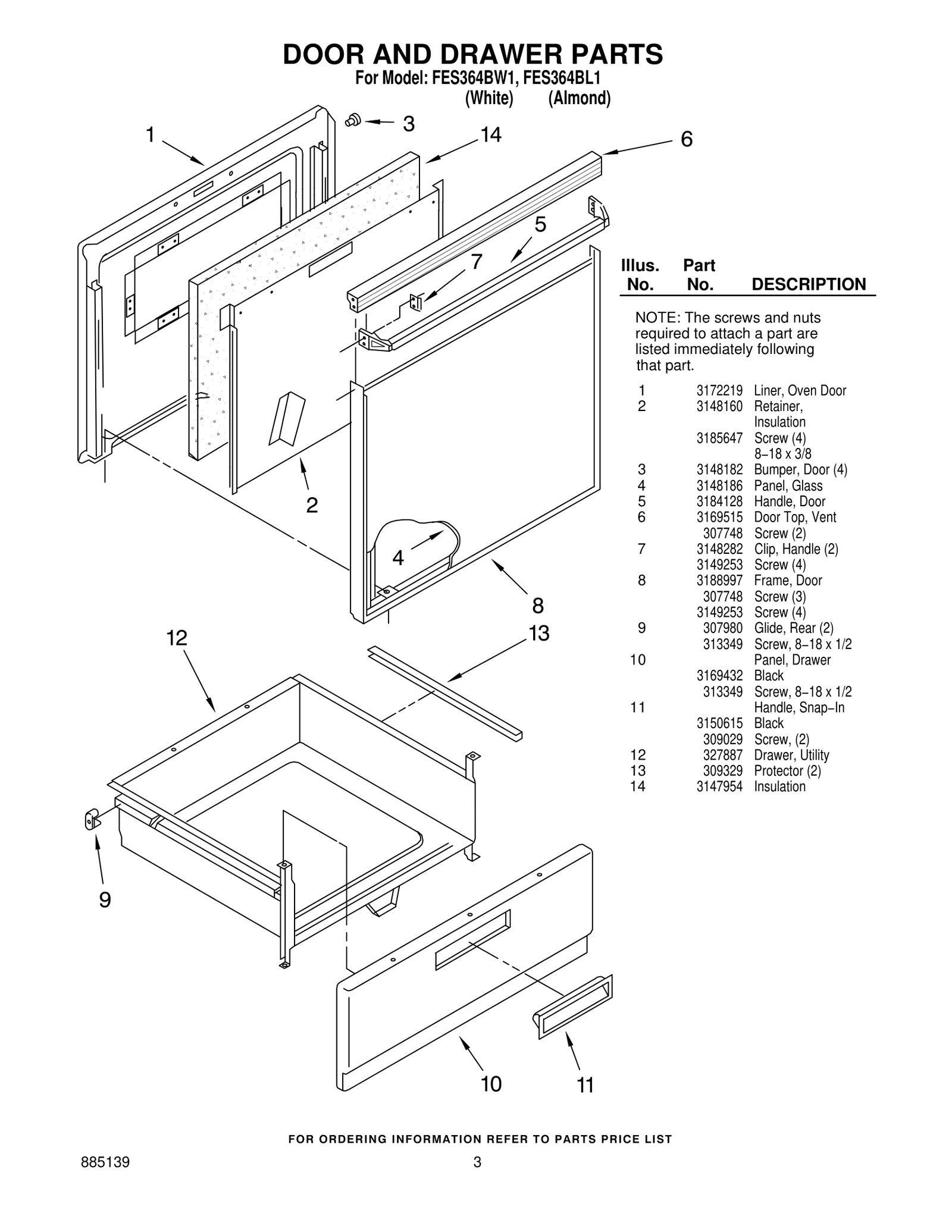

DOOR AND DRAWER PARTS

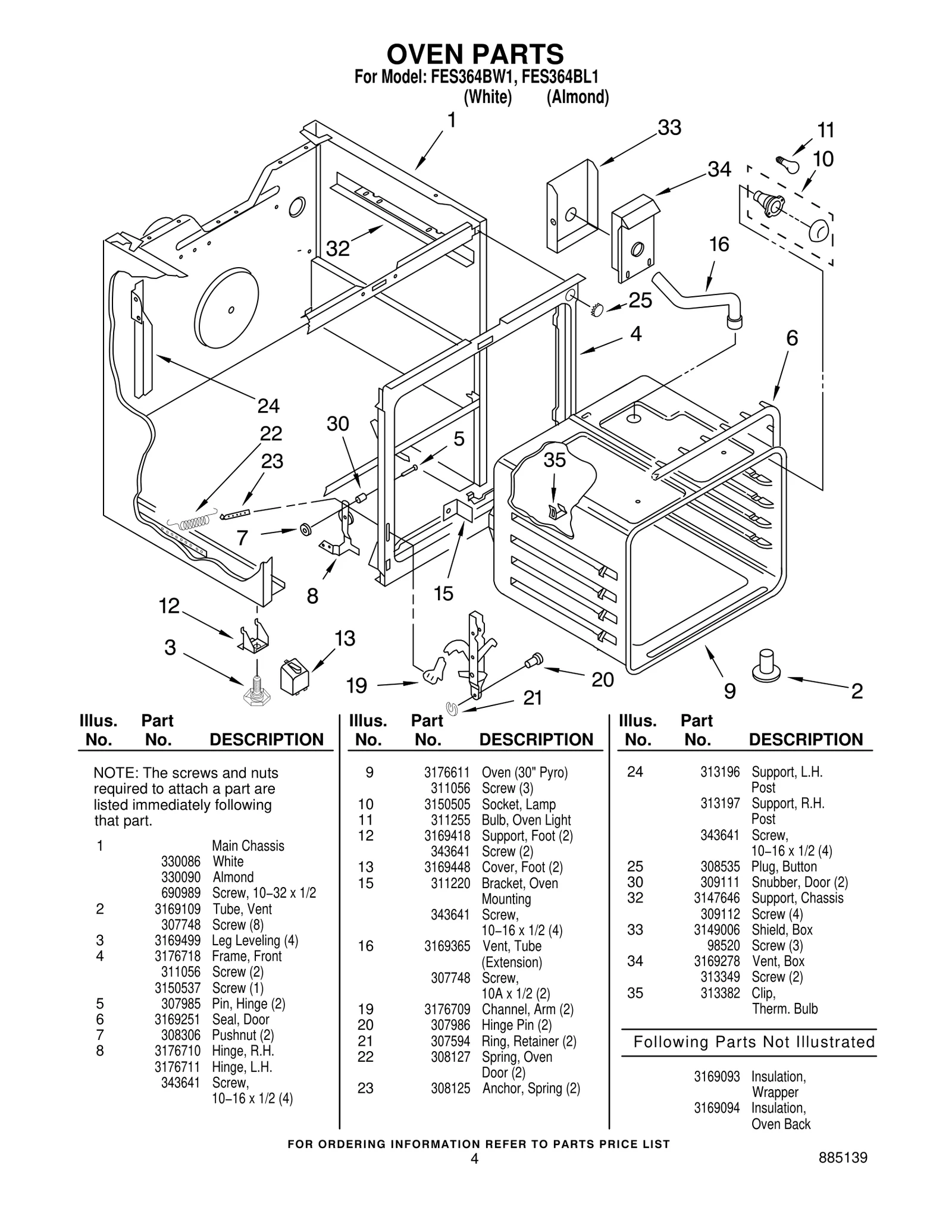

OVEN PARTS

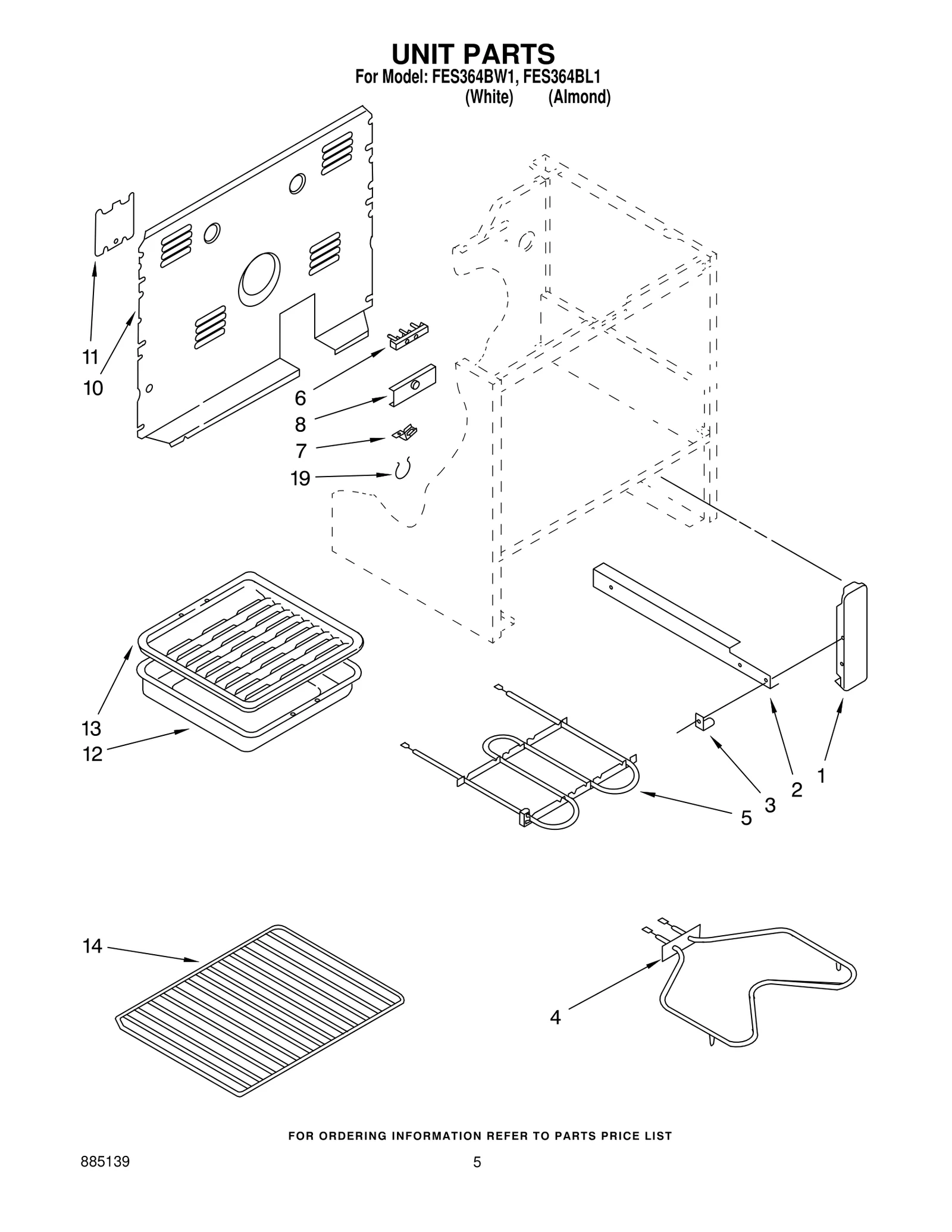

UNIT PARTS

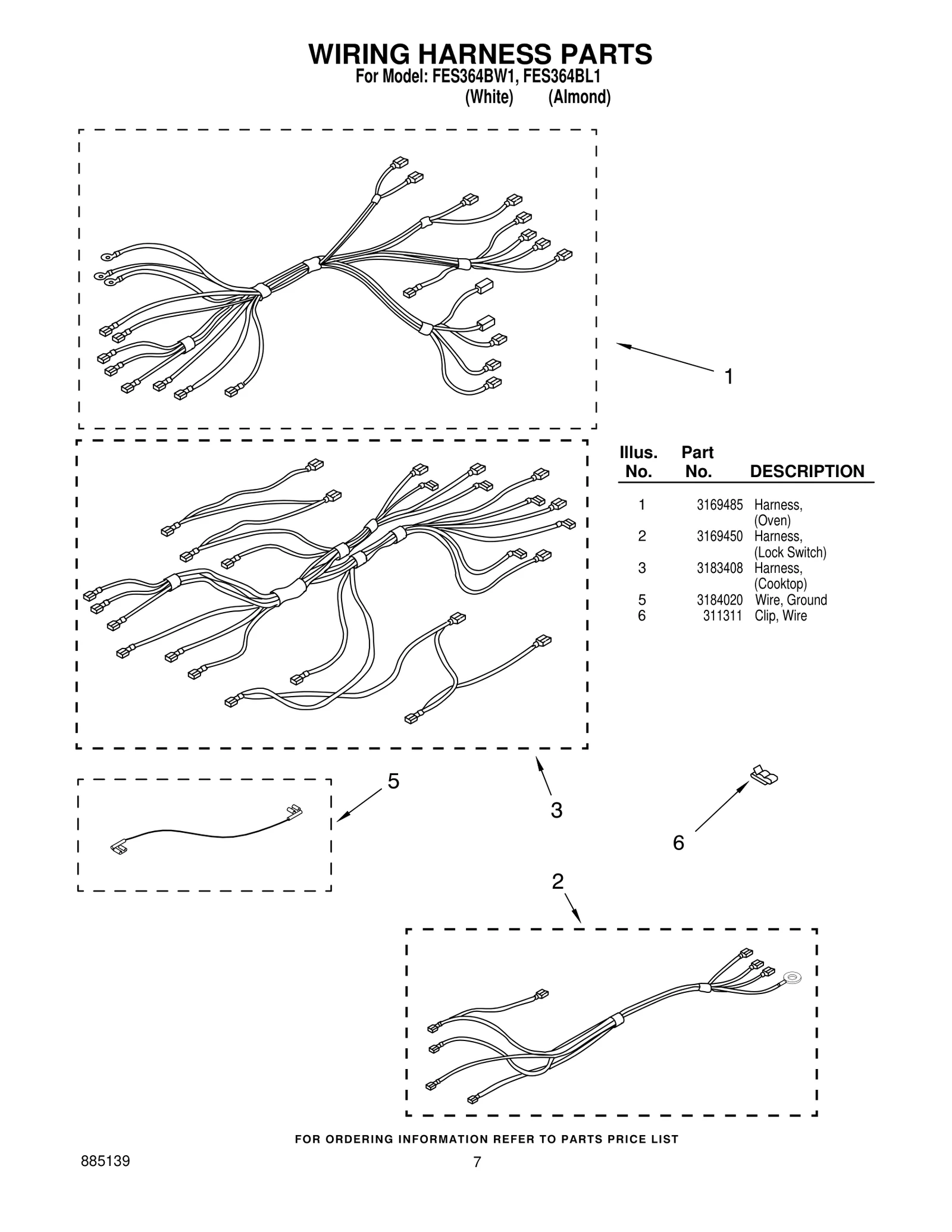

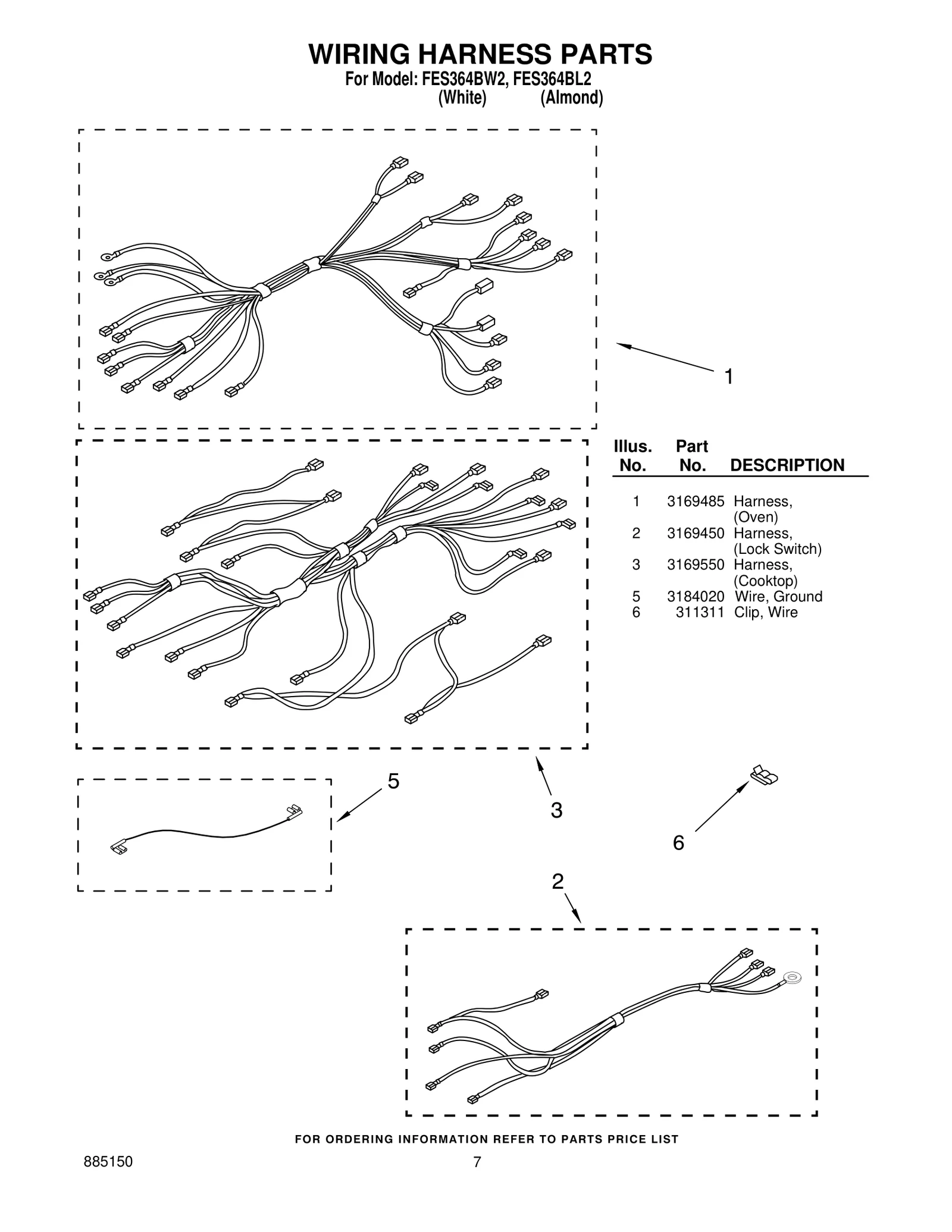

WIRING HARNESS PARTS
WIRING HARNESS PARTS

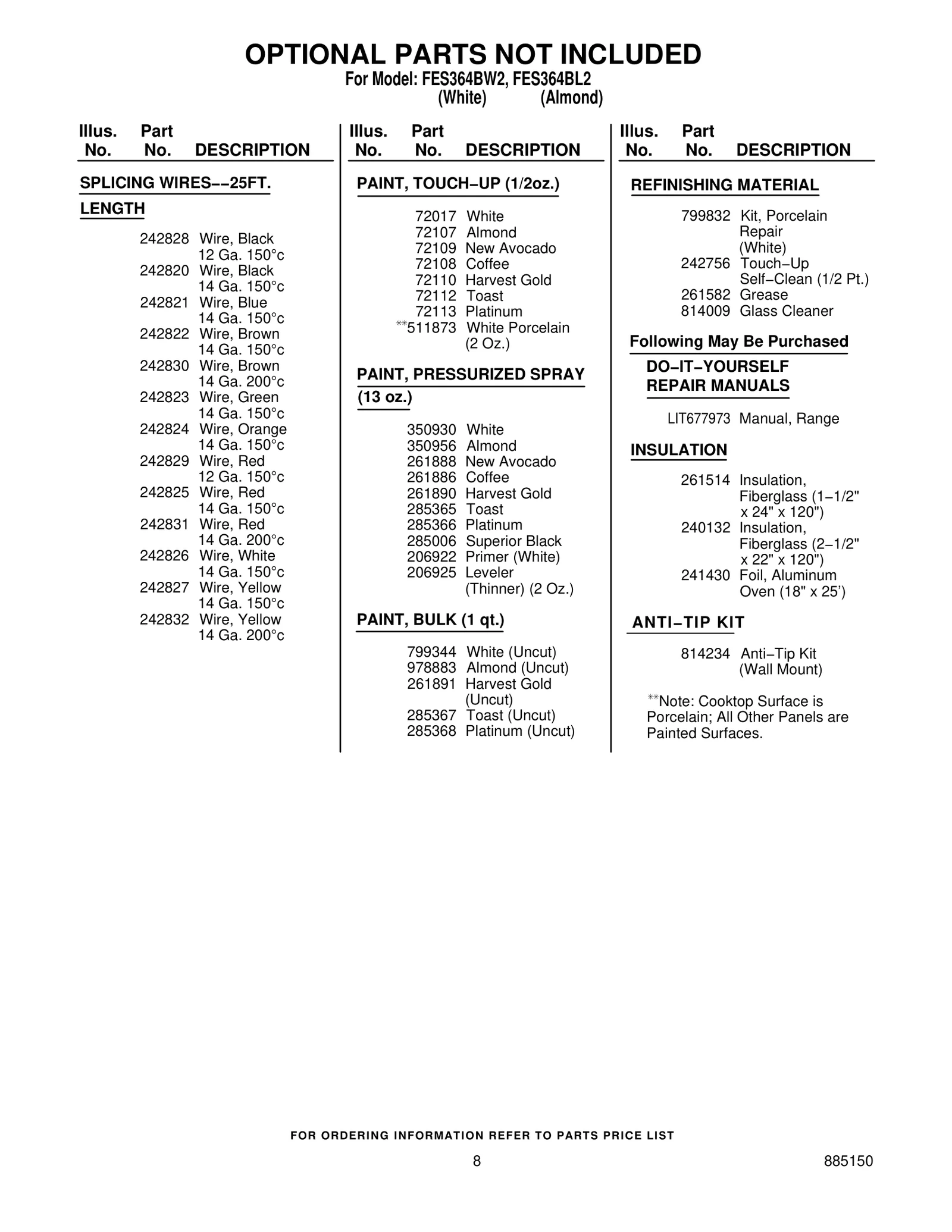

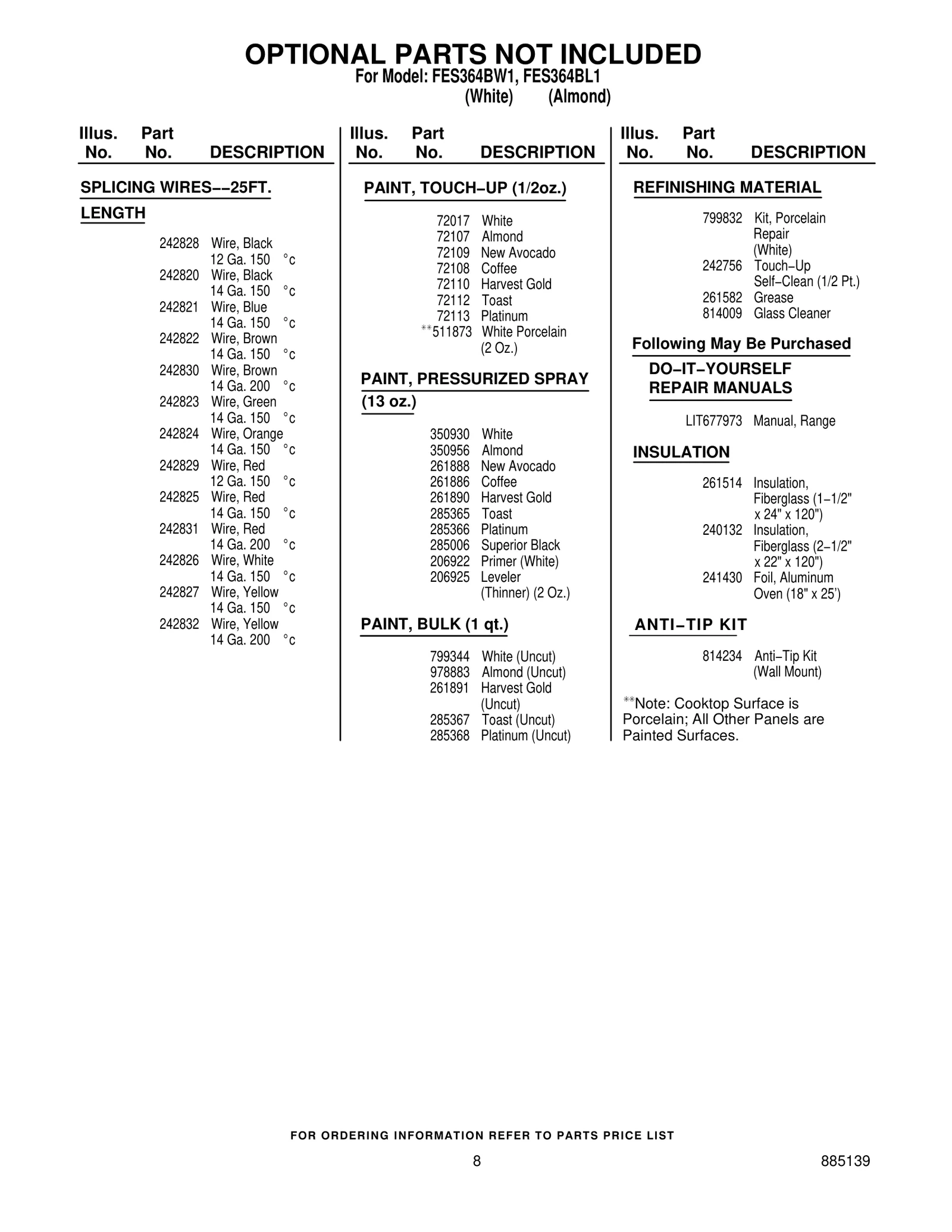

OPTIONAL PARTS NOT INCLUDED
OPTIONAL PARTS NOT INCLUDED
Common parts from model Whirlpool LIT3169489 30" Electronic Range Freestanding Self−Clean Oven Full Width Ceramic Cooktop
1
End Trim R.H. WPL 3183092 Contact Us For Availability
1
End Trim L.H. WPL 3183093 Contact Us For Availability
1
Liner, Oven Door WPL 3172219 Contact Us For Availability
1
Main Chassis — White WPL 330086 Contact Us For Availability
1
Main Chassis — Almond WPL 330090 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
1
Harness, WPL 3169485 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
Retainer, Insulation WPL 3148160 Contact Us For Availability
2
Screw (4) 8−18 x 3/8 WPL 3185647 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
Tube, Vent WPL 3169109 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. WPL 3149256 Contact Us For Availability
2
Harness, WPL 3169450 Contact Us For Availability
3
Motor, Timer WPL 309822 Contact Us For Availability
3
Bumper, Door (4) WPL 3148182 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Harness, WPL 3183408 Contact Us For Availability
3
Harness, WPL 3169550 Contact Us For Availability
4
Panel, Glass WPL 3148186 Contact Us For Availability
4
Frame, Front WPL 3176718 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
5
Glass, Timer WPL 313513 Contact Us For Availability
5
Handle, Door WPL 3184128 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw, 10−32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Door Top, Vent WPL 3169515 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Screw, 10−16 x 1 (2) WPL 98884 Contact Us For Availability
6
Clip, Wire WPL 311311 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Timer, Control WPL 661458 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Screw (4) WPL 3149253 Contact Us For Availability
8
Frame, Door WPL 3188997 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Panel, Control WPL 3169532 Contact Us For Availability
9
Glide, Rear (2) WPL 307980 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30" Pyro) WPL 3176611 Contact Us For Availability
10
Spring (8) WPL 3149191 Contact Us For Availability
10
Screw, 8−32 x 1/4 (8) WPL 308119 Contact Us For Availability
10
Panel, Drawer — Black WPL 3169432 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Handle, Snap−In — Black WPL 3150615 Contact Us For Availability
11
Screw (4) WPL 3149333 Contact Us For Availability
11
Switch, Selector WPL 3169310 Contact Us For Availability
11
Screw, (2) WPL 309029 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Thermostat, 0ven WPL 3169526 Contact Us For Availability
12
Drawer, Utility WPL 327887 Contact Us For Availability
12
Support, Foot (2) WPL 3169418 Contact Us For Availability
13
Indicator Light WPL 314031 Contact Us For Availability
13
Indicator Light WPL 3150662 Contact Us For Availability
13
Light, (1) WPL 3148719 Contact Us For Availability
13
Protector (2) WPL 309329 Contact Us For Availability
13
Cover, Foot (2) WPL 3169448 Contact Us For Availability
14
Insulation WPL 3147954 Contact Us For Availability
14
Rack, Oven WPL 308173 Contact Us For Availability
15
Knob, Control WPL 3149988 Contact Us For Availability
15
Bracket, Oven Mounting WPL 311220 Contact Us For Availability
16
Tube Clip WPL 3169449 Contact Us For Availability
16
Vent, Tube WPL 3169365 Contact Us For Availability
17
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
18
Lens, Amber (3) WPL 313101 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Knob, Control WPL 3149986 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Clip, Mounting (2) WPL 3149190 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Plug, Button WPL 308535 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
33
Screw (3) WPL 98520 Contact Us For Availability
34
Vent, Box WPL 3169278 Contact Us For Availability
35
Insulation, Wrapper WPL 3169093 Contact Us For Availability
35
Insulation, Oven Back WPL 3169094 Contact Us For Availability
OPT-1
Wire, Black WPL 242828 Contact Us For Availability
OPT-2
Wire, Black WPL 242820 Contact Us For Availability
OPT-3
Wire, Blue WPL 242821 Contact Us For Availability
OPT-4
Wire, Brown WPL 242822 Contact Us For Availability
OPT-5
Wire, Brown WPL 242830 Contact Us For Availability
OPT-6
Wire, Green WPL 242823 Contact Us For Availability
OPT-7
Wire, Orange WPL 242824 Contact Us For Availability
OPT-8
Wire, Red WPL 242829 Contact Us For Availability
OPT-9
Wire, Red WPL 242825 Contact Us For Availability
OPT-10
Wire, Red WPL 242831 Contact Us For Availability
OPT-11
Wire, White WPL 242826 Contact Us For Availability
OPT-12
Wire, Yellow WPL 242827 Contact Us For Availability
OPT-13
Wire, Yellow WPL 242832 Contact Us For Availability
OPT-17
Coffee WPL 72108 Contact Us For Availability
OPT-19
Toast WPL 72112 Contact Us For Availability
OPT-24
New Avocado WPL 261888 Contact Us For Availability
OPT-25
Coffee WPL 261886 Contact Us For Availability
OPT-26
Harvest Gold WPL 261890 Contact Us For Availability
OPT-27
Toast WPL 285365 Contact Us For Availability
OPT-28
Platinum WPL 285366 Contact Us For Availability
OPT-31
Leveler WPL 206925 Contact Us For Availability
OPT-32
White (Uncut) WPL 799344 Contact Us For Availability
OPT-33
Almond (Uncut) WPL 978883 Contact Us For Availability
OPT-34
Harvest Gold WPL 261891 Contact Us For Availability
OPT-35
Toast (Uncut) WPL 285367 Contact Us For Availability
OPT-36
Platinum (Uncut) WPL 285368 Contact Us For Availability
OPT-37
Kit, Porcelain WPL 799832 Contact Us For Availability
OPT-39
Grease WPL 261582 Contact Us For Availability
OPT-43
Foil, Aluminum WPL 241430 Contact Us For Availability
× ![]()
