Model Whirlpool LHW0050PQ2 COMPACT AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Shipping Kit WPL 285987 Contact Us For Availability

Stack Kit WPL 8182452 Contact Us For Availability

ACCESSORIES WPL ARI117840A Contact Us For Availability

1

WP8182406 Whirlpool Frame Backorder WPL WP8182406 $223.47

1

Handle, Drawer WPL 8182371 Contact Us For Availability

1

Control Panel WPL 8182348 Contact Us For Availability

1

Tub WPL 8182441 Contact Us For Availability

1

Grommet WPL 8182385 Contact Us For Availability

2

WP8182415 Whirlpool Water Pump In Stock WPL WP8182415 $213.91

2

Overlay WPL 8182729 Contact Us For Availability

2

Button WPL 8182725 Contact Us For Availability

2

Retainer WPL 8182410 Contact Us For Availability

3

8182737 Whirlpool Pulley Backorder WPL 8182737 $192.28

3

WPW10253196 Whirlpool Screw Backorder WPL WPW10253196 $2.91

3

Housing WPL 8182350 Contact Us For Availability

3

Pin WPL 8182383 Contact Us For Availability

3

Housing, Filter WPL 8182416 Contact Us For Availability

4

8182730 Whirlpool Washer Spring In Stock WPL 8182730 $108.97

4

Filter WPL 8182417 Contact Us For Availability

4

Baffle WPL 8182444 Contact Us For Availability

4

Door Glass WPL 8182405 Contact Us For Availability

5

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.33

5

Control, PCB WPL 8182351 Contact Us For Availability

5

Drive Belt WPL 8182450 Contact Us For Availability

5

Housing, Dispenser WPL 8182367 Contact Us For Availability

5

Gasket WPL 8182418 Contact Us For Availability

6

Inner Frame WPL 8182414 Contact Us For Availability

6

Drawer, Detergent WPL 8182370 Contact Us For Availability

6

Washer WPL 8182419 Contact Us For Availability

7

Inner Ring WPL 8182404 Contact Us For Availability

7

Cap WPL 8182420 Contact Us For Availability

7

Screw WPL 8182377 Contact Us For Availability

8

Door Gasket WPL 8182403 Contact Us For Availability

8

Cover, Drawer WPL 8182727 Contact Us For Availability

8

Screw WPL 8182440 Contact Us For Availability

9

Outer Ring WPL 8182402 Contact Us For Availability

9

Hose WPL 8182422 Contact Us For Availability

9

Screw WPL 8182376 Contact Us For Availability

10

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

10

Dispenser WPL 8182378 Contact Us For Availability

10

Hose, Drain WPL 8182423 Contact Us For Availability

11

Spring, Door Catch WPL 8182413 Contact Us For Availability

11

Clamp, Hose WPL 8182424 Contact Us For Availability

12

8182401 Whirlpool Screw Backorder WPL 8182401 $8.45

12

Washer WPL 8182457 Contact Us For Availability

12

Screw WPL 8182323 Contact Us For Availability

13

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $2.51

13

Microswitch WPL 8182407 Contact Us For Availability

13

Hose, Drawer WPL 8182373 Contact Us For Availability

WP22002933 Whirlpool Screw In Stock WPL WP22002933 $2.38

Door Handle WPL 8182408 Contact Us For Availability

Knob (2) WPL 8182360 Contact Us For Availability

Cover, Bleach WPL 8182372 Contact Us For Availability

15

WP8182361 Whirlpool Spring Backorder WPL WP8182361 $37.06

15

Link WPL 8182379 Contact Us For Availability

15

Bracket, Hose WPL 8182428 Contact Us For Availability

16

Push Button (3) WPL 8182362 Contact Us For Availability

16

Actautor (2) WPL 8182366 Contact Us For Availability

16

Clamp, Hose WPL 8182429 Contact Us For Availability

17

Switch, Cycle WPL 8182724 Contact Us For Availability

17

Bracket, Actuator WPL 8182365 Contact Us For Availability

17

Support WPL 8182430 Contact Us For Availability

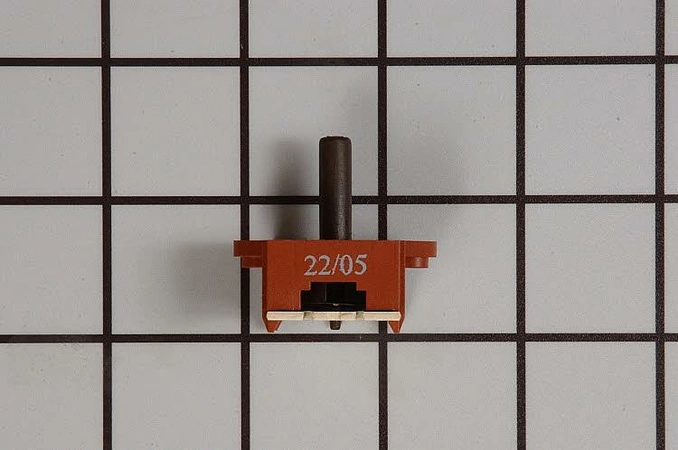

8182346 Whirlpool Cycle Switch Backorder WPL 8182346 $111.98

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

Arm WPL 8182364 Contact Us For Availability

Screw WPL 8182432 Contact Us For Availability

8182397 Whirlpool Fill Hose Backorder WPL 8182397 $142.95

8182409 Whirlpool Hose Backorder WPL 8182409 $65.03

Hose, Fill (Cold) WPL 8182389 Contact Us For Availability

Screw WPL 8182723 Contact Us For Availability

Foot, Leveling WPL 8182334 Contact Us For Availability

Screw, Ground WPL 8182458 Contact Us For Availability

20

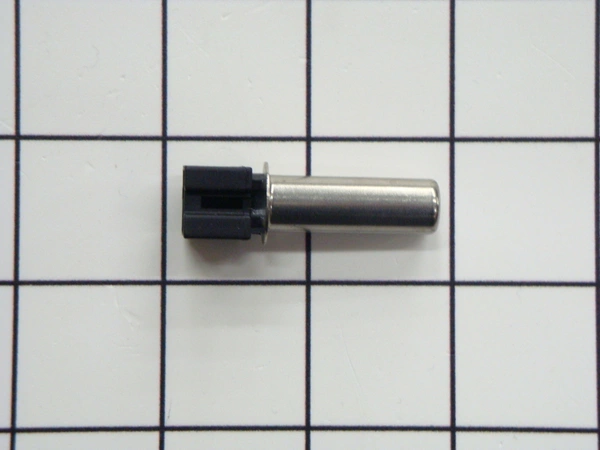

8182433 Whirlpool Sensor Backorder WPL 8182433 $67.21

20

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

20

Washer WPL 8182390 Contact Us For Availability

WP8182395 Whirlpool PB Switch Backorder WPL WP8182395 $96.07

Water Valve (Cold) WPL 8182387 Contact Us For Availability

Water Valve (Hot) WPL 8182398 Contact Us For Availability

Gasket WPL 8182435 Contact Us For Availability

22

Cover, Rear Tub (Includes Seal & Bearings) WPL 8182455 Contact Us For Availability

22

Connector WPL 8182380 Contact Us For Availability

23

8182388 Whirlpool Washer Water Level Switch Backorder WPL 8182388 $200.29

23

WP8182399 Whirlpool Hose Backorder WPL WP8182399 $79.50

24

Support, Element WPL 8182434 Contact Us For Availability

24

Clamp, Hose (8) WPL 8182374 Contact Us For Availability

25

Washer WPL 8182436 Contact Us For Availability

26

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $3.46

26

Bushing, Upper WPL 8182437 Contact Us For Availability

27

Bushing, Lower WPL 8182438 Contact Us For Availability

28

Microswitch, Door WPL 8182690 Contact Us For Availability

28

Washer WPL 8182442 Contact Us For Availability

29

Bracket WPL 8182718 Contact Us For Availability

29

Spring WPL 8182726 Contact Us For Availability

30

Vent Tube, Upper WPL 8182736 Contact Us For Availability

32

Ring, Locking WPL 8182568 Contact Us For Availability

33

Vent Tube, Lower WPL 8182734 Contact Us For Availability

34

Elbow, Right WPL 8182735 Contact Us For Availability

35

Clamp, Hose WPL 8182571 Contact Us For Availability
