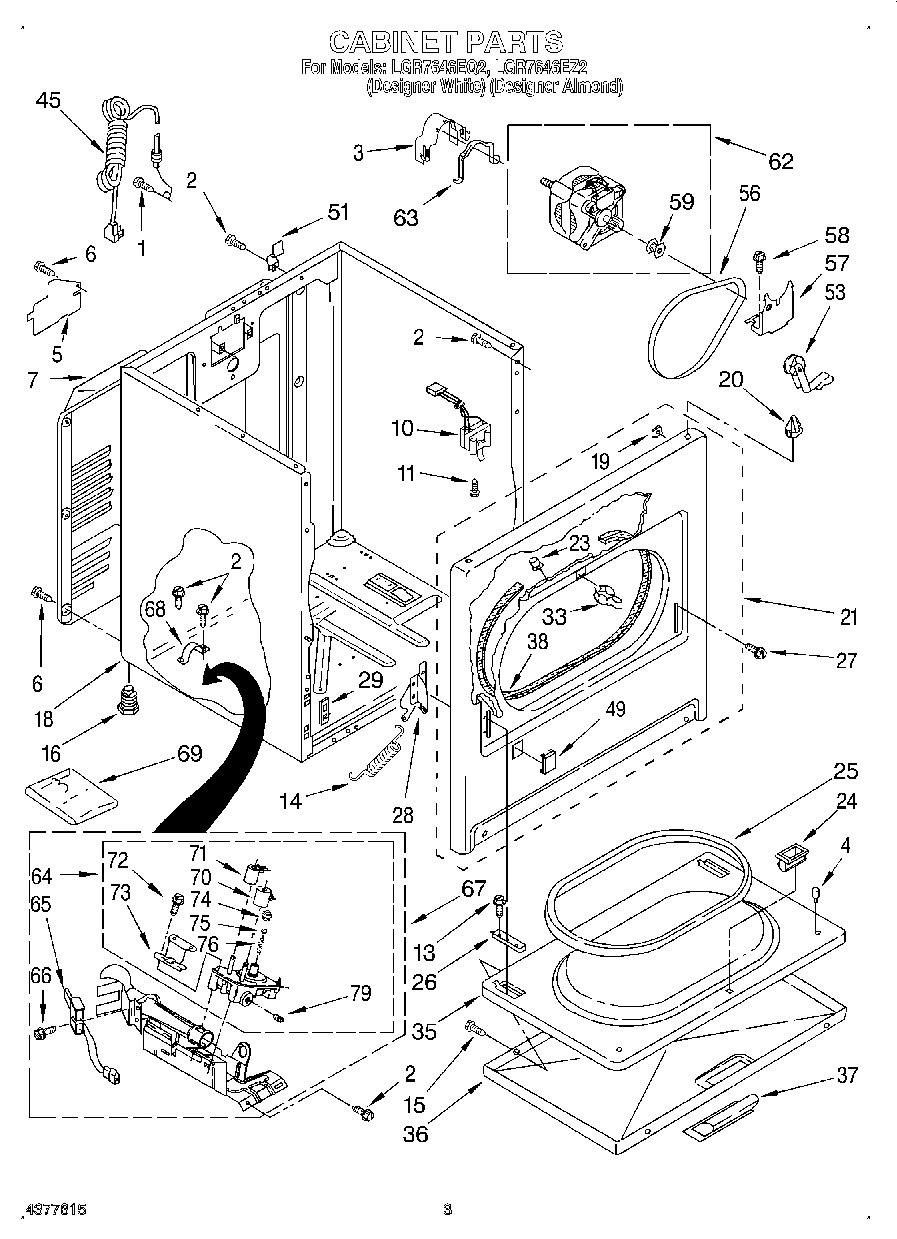

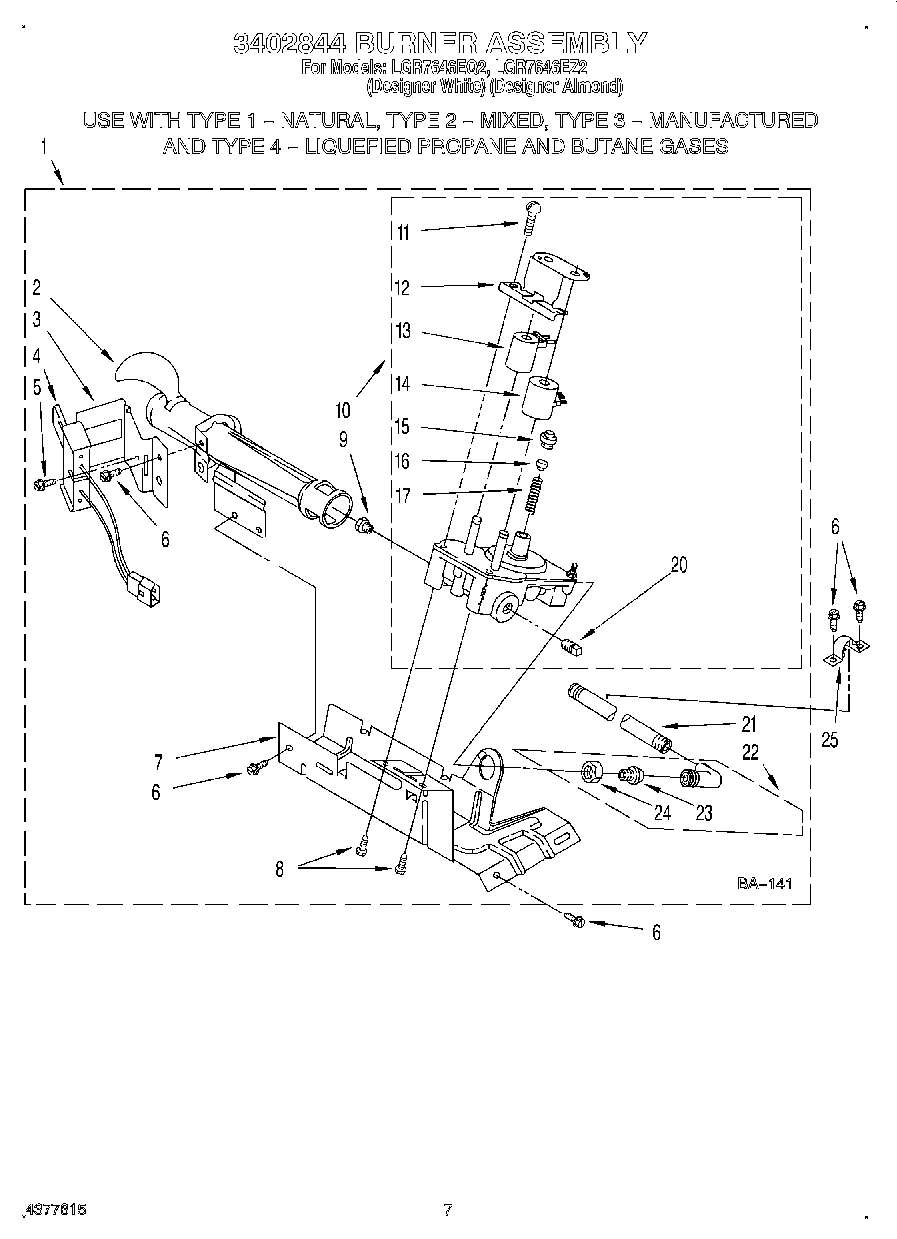

Model Whirlpool LGR7646EQ2 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 799344 WPL 799344 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $66.93

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

3

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

3

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

3

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

Connector, Timer WPL 3397269 Contact Us For Availability

6

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.28

7

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

8

Cap, End (R.H.) (White) WPL 3358513 Contact Us For Availability

8

Cap, End (R.H.) (Almond) WPL 3358514 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

9

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

11

WP8577230 Whirlpool Housing In Stock WPL WP8577230 $66.34

11

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

11

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

3397695 Whirlpool Wire Harness Backorder WPL 3397695 $30.25

15

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $6.28

15

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

Support, Heater Box WPL 348484 Contact Us For Availability

17

Wire, Jumper (Black) WPL 3401684 Contact Us For Availability

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

18

WP3399639 Whirlpool Switch In Stock WPL WP3399639 $33.03

19

W11700522 Whirlpool Socket Backorder WPL W11700522 $29.48

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

20

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

21

WP3976580 Whirlpool Timer In Stock WPL WP3976580 $159.61

21

Seal, Blower WPL 3394196 Contact Us For Availability

22

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

22

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $3.51

23

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $3.70

23

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

24

W11398682 Whirlpool Bracket Backorder WPL W11398682 $20.90

24

Nut, Compression WPL 233076 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

29

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

Harness, Wiring WPL 3394301 Contact Us For Availability

32

8539893 Whirlpool Wire Harness Backorder WPL 8539893 $7.36

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

39

WP3398095 Whirlpool Dryer Start Relay In Stock WPL WP3398095 $48.28

40

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $32.39

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $7.32

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

3957753 Whirlpool Knob Backorder WPL 3957753 $37.09

48

W10828911 Whirlpool Bulkhead Assembly Backorder WPL W10828911 $126.81

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $35.83

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $32.48

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

50

Receptacle, 2 Way WPL 717252 Contact Us For Availability

51

Connector 6-Circuit WPL 3347243 Contact Us For Availability

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

53

Bracket, Control WPL 8054298 Contact Us For Availability

54

Panel, Control (White) WPL 3976756 Contact Us For Availability

54

Panel, Control (Almond) WPL 3976757 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $42.57

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

66

W10612022 Whirlpool Felt Seal In Stock WPL W10612022 $23.66

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $132.34

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

76

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
