Model Electrolux LGGF3042KFS RANGE/OVEN, GAS, FREESTANDING – Common Parts & Diagrams
01 - COVER SHEET

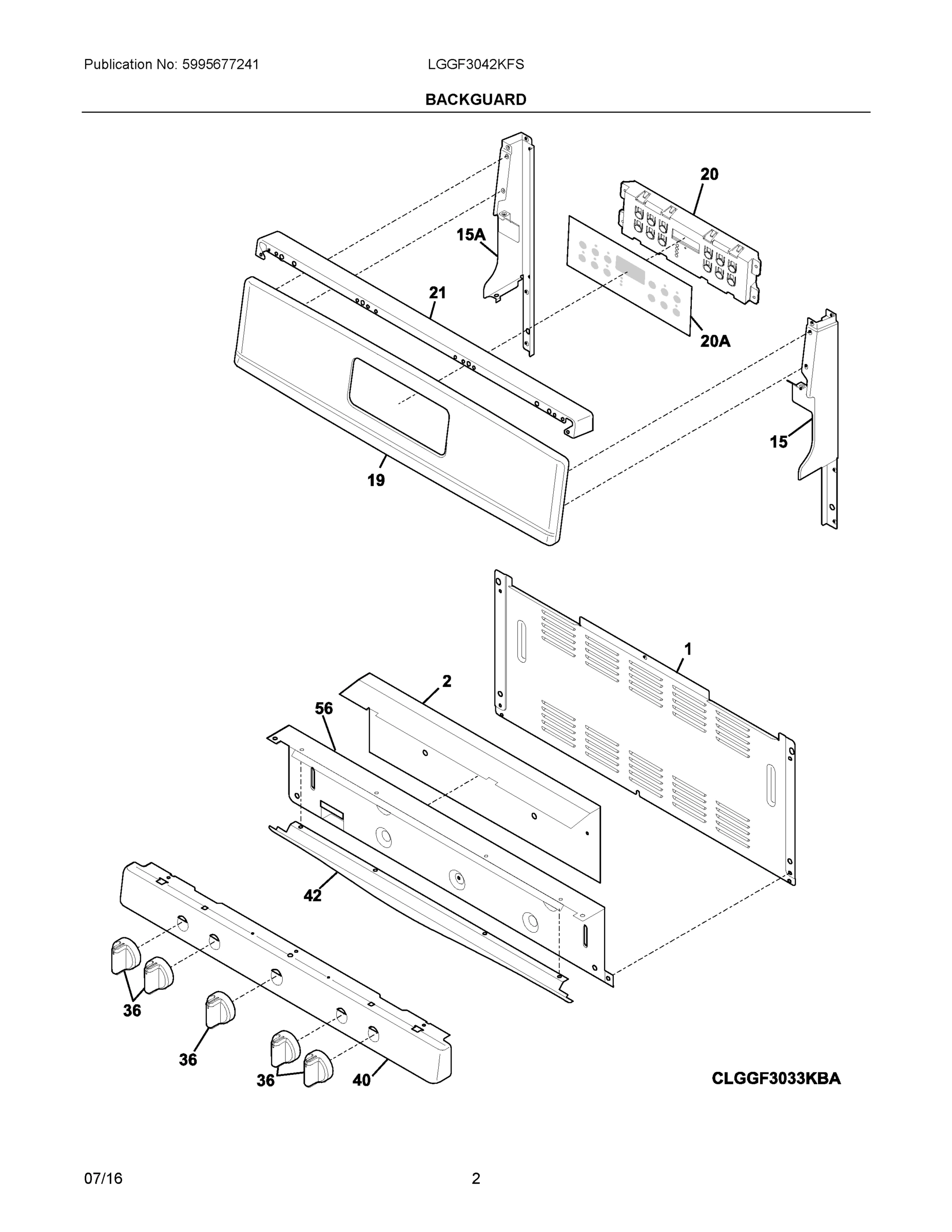

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
Common parts from model Electrolux LGGF3042KFS RANGE/OVEN, GAS, FREESTANDING
1
SHIELD, REAR WALL WCI 316557600 Contact Us For Availability
2
VALVE, BURNER, 16/17/18K WCI 316560900 Contact Us For Availability
2A
VALVE, 5K TOP BURNER, W/MTG SCREW WCI 5303935308 Contact Us For Availability
2B
VALVE, TOP BURNER, BLUE STEM WCI 5303935306 Contact Us For Availability
2C
VALVE, 9.5K BURNER, W/MTG SCREW WCI 5303935305 Contact Us For Availability
3
WCI 316580615 WCI 316580615 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, W/FOIL WCI 316452722 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
7
LINK, COUPLER, (2), AUTO RACK WCI 316546300 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
8
WCI 808608804 WCI 808608804 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400603 Contact Us For Availability
9
PAN, BROILER OPTIONAL ACCESSORY WCI 316081900 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423811 Contact Us For Availability
10
BURNER, SEALED, 18.2K WCI 316438400 Contact Us For Availability
10
SCREW, HANDLE MTG., 10-24 X 1.75", (2) WCI 316439500 Contact Us For Availability
10
INSERT, BROILER PAN OPTIONAL ACCESSORY WCI 316082000 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10B
BURNER, SEALED, 14K WCI 316438600 Contact Us For Availability
10B
WASHER, 3/4 OD X 1/4 ID, STEEL WCI 316008401 Contact Us For Availability
10C
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT FRON WCI 316536622 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536616 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9. WCI 316536623 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
13
WCI 316489101 WCI 316489101 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
WCI 316091711 WCI 316091711 Contact Us For Availability
14
WCI 316572700 WCI 316572700 Contact Us For Availability
15
BRACKET, REGULATOR WCI 316091600 Contact Us For Availability
15A
CAP, BACKGUARD, BLACK, LH END WCI 316546703 Contact Us For Availability
16
MAINTOP PANEL, BLACK WCI 316469661 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
WCI 5304504811 WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BURNER, OVEN WCI 316404400 Contact Us For Availability
18
LINK, DOOR, (2), AUTO RACK WCI 316547900 Contact Us For Availability
19
WCI 5304506545 WCI 5304506545 Contact Us For Availability
19
PANEL, BACKGUARD, BR ALUM WCI 316572406 Contact Us For Availability
20
SPACER, DOOR HANDLE, (2) WCI 316284100 Contact Us For Availability
20
GRATE, BLACK, (2) WCI 316499502 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK, ES330 WCI 316419339 Contact Us For Availability
20A
GRATE, CENTER, BLACK WCI 316551802 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 5303013272 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR WCI 316575906 Contact Us For Availability
23
BURNER, BROILER WCI 316404302 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
25
WCI 5304497666 WCI 5304497666 Contact Us For Availability
26
IGNITOR, BAKE BURNER WCI 316489403 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316405900 Contact Us For Availability
36
KNOB, TOP VALVE, BLACK, (4) WCI 316564511 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
40
WCI 316249087 WCI 316249087 Contact Us For Availability
44
ORIFICE, BURNER, 17K WCI 316527509 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
44A
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44B
ORIFICE, BURNER, 14K WCI 316527511 Contact Us For Availability
44C
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
47
LP CONVERSION KIT, W/INSTRUCTIONS WCI GRLP4 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408300 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
82
SHIELD, BAKE BURNER WCI 316400801 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 316215600 WCI 316215600 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316401500 WCI 316401500 Contact Us For Availability
NIA
WCI 316021104 WCI 316021104 Contact Us For Availability
× ![]()
