Model Electrolux LFHT1513LBD REFRIGERATOR – Common Parts & Diagrams

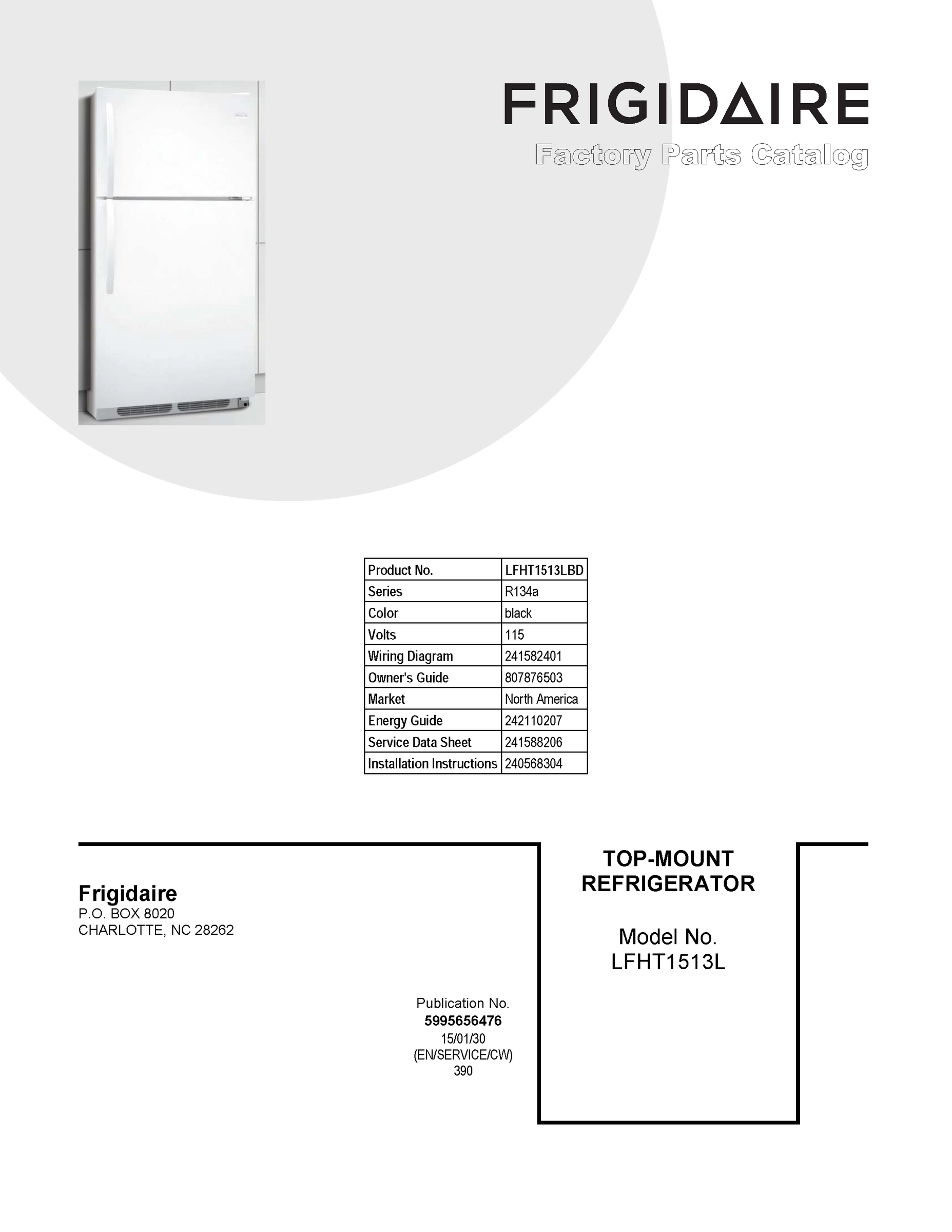

01 - COVER SHEET

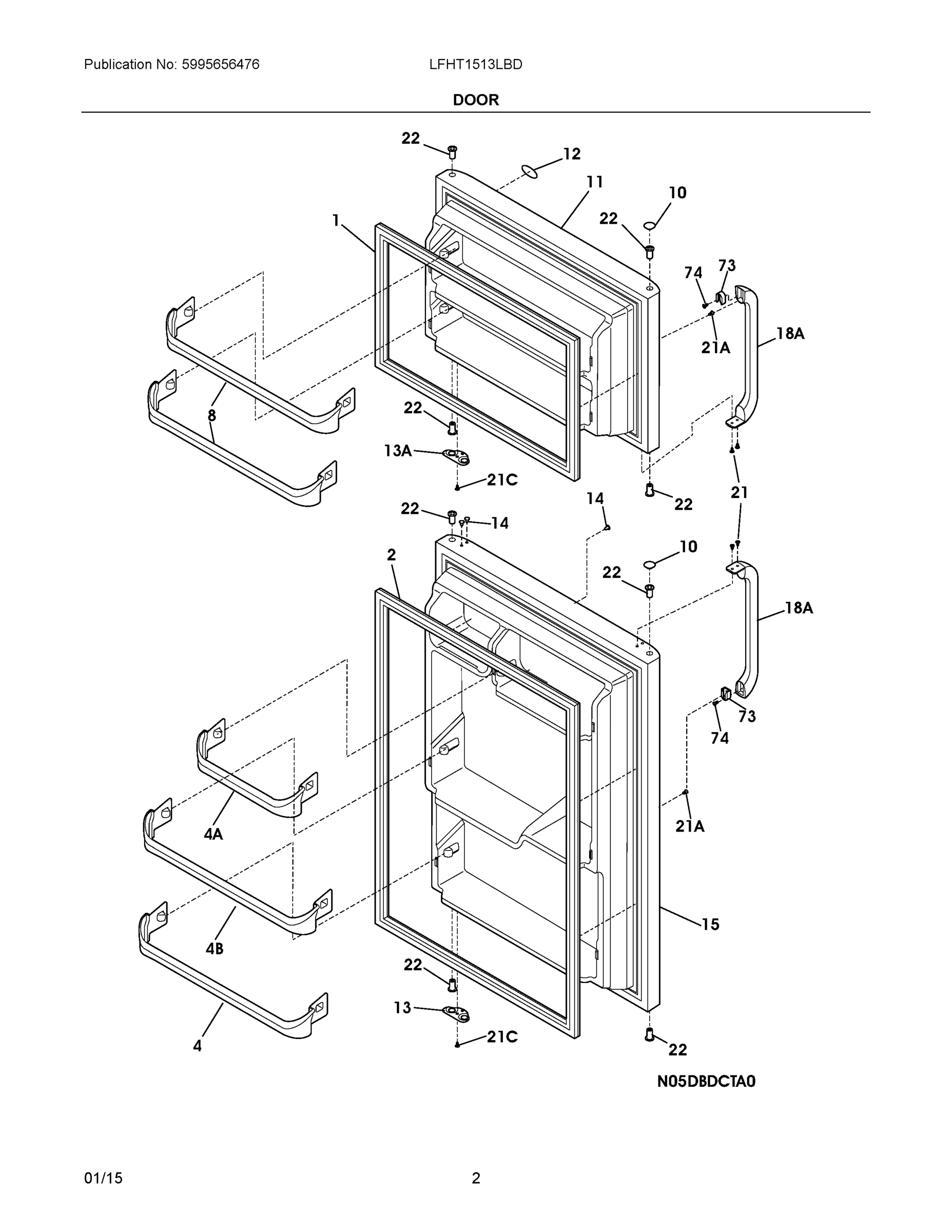

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux LFHT1513LBD REFRIGERATOR
1
GASKET-FRZR DOOR, BLACK, MAGNETIC WCI 242193207 Contact Us For Availability
1
CONDENSER, DYNAMIC WCI 241785404 Contact Us For Availability
1A
DEFLECTOR, AIR WCI 242213901 Contact Us For Availability
2
WCI 240367001 WCI 240367001 Contact Us For Availability
2
GASKET-FRZR DOOR, BLACK, MAGNETIC WCI 242193208 Contact Us For Availability
4
WCI 240535101 WCI 240535101 Contact Us For Availability
4
WCI 241523701 WCI 241523701 Contact Us For Availability
4A
RACK-DOOR, 12.03" WCI 240535301 Contact Us For Availability
4B
WCI 240535201 WCI 240535201 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
7
DOOR-DAIRY, W/O GRAPHICS, WHITE WCI 240337701 Contact Us For Availability
8
WCI 240535001 WCI 240535001 Contact Us For Availability
9
BRACKET-MOTOR MTG, FRONT WCI 5303292396 Contact Us For Availability
10
PLUG-BUTTON, BLACK, HINGE BRG HOLE WCI 240381303 Contact Us For Availability
10
WCI 241652218 WCI 241652218 Contact Us For Availability
11
SHELF, FREEZER WCI 240358007 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
12
DIFFUSER, AIR, TOP WCI 241542001 Contact Us For Availability
12
NAMEPLATE, BLACK WCI 242062803 Contact Us For Availability
12
PLUG-HOLE, ICEMAKER WCI 242193602 Contact Us For Availability
12A
PLUG-WTR INLET TUBE, ROUND, 1" WCI 240374401 Contact Us For Availability
13
MOTOR-FAN, W/FRZR HARNESS WCI 241854301 Contact Us For Availability
13
DIFFUSER, AIR, BOTTOM WCI 240362601 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240312415 Contact Us For Availability
14
WCI 241554901 WCI 241554901 Contact Us For Availability
14
PLUG-BUTTON, BLACK WCI 240494003 Contact Us For Availability
15
WCI 5303918491 WCI 5303918491 Contact Us For Availability
16
WCI 241559801 WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
WCI 241801302 WCI 241801302 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 240360801 Contact Us For Availability
18A
HANDLE-DOOR, GRAY, W/BLOCK & SCREW WCI 218428121 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
THERMOSTAT KIT, DEFROST, W/CONNECTOR WCI 5303918634 Contact Us For Availability
21A
SCREW, #10-16 X 1/2 WCI 240521303 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22
WCI 215774918 WCI 215774918 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
WCI 240360906 WCI 240360906 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
25
WCI 242120508 WCI 242120508 Contact Us For Availability
25
WCI 242037701 WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN, CRISPER, (2) WCI 240364501 Contact Us For Availability
30
WCI 241941005 WCI 241941005 Contact Us For Availability
32
CLAMP, ELEC CONT MTG, COMPRESSOR WCI 297030500 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET, CENTER HINGE, BLACK WCI 240357003 Contact Us For Availability
35A
SPACER-HINGE, CENTER, BLACK WCI 240336803 Contact Us For Availability
37
WCI 242161202 WCI 242161202 Contact Us For Availability
38
WCI 240356903 WCI 240356903 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 240354404 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
43
ROLLER ASSY, FRONT LH, (2) WCI 241889002 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
56
WCI 240516502 WCI 240516502 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
72
GRILLE/KICKPLATE, BLACK, LOWER FRONT WCI 240368303 Contact Us For Availability
74
SCREW, CR PAN HD, 10-16 X 0.500 WCI 215503203 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
89
COVER-ACCESS, WITH LABEL WCI 241733906 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE WCI 5303918263 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
WCI 218515401 WCI 218515401 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
ROLLER ASSY, FRONT RH, (2) WCI 241889001 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
NIA
WCI 241705801 WCI 241705801 Contact Us For Availability
NIAA
PLUG, ROUND, FOAM, ICE MAKER, WATER INLET WCI 241586701 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
NIC
WIRING HARNESS, CONTROL BOX WCI 240388701 Contact Us For Availability
× ![]()
