Model RCA LEB356GT3BB Electric Range – Common Parts & Diagrams

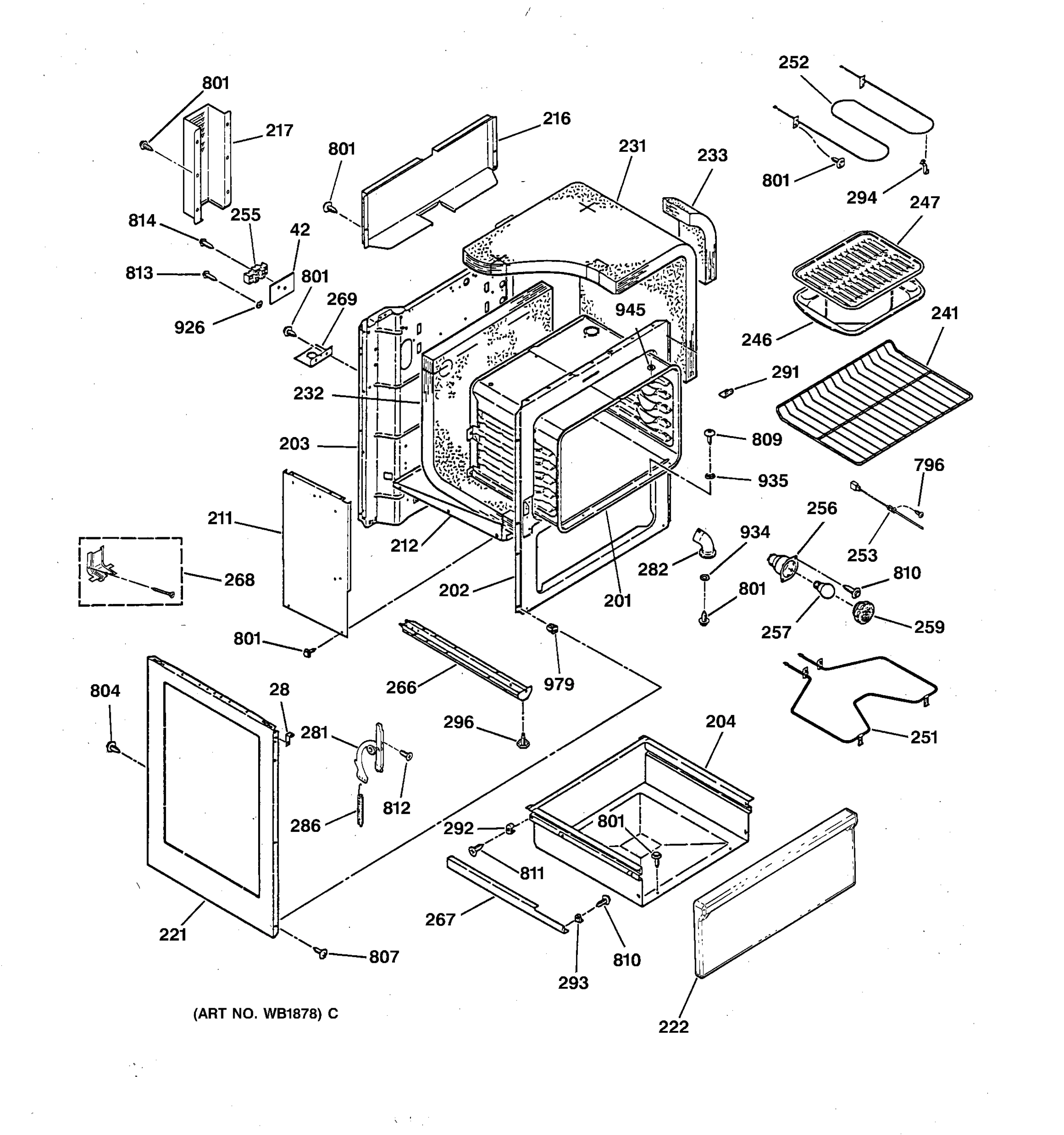

BODY PARTS

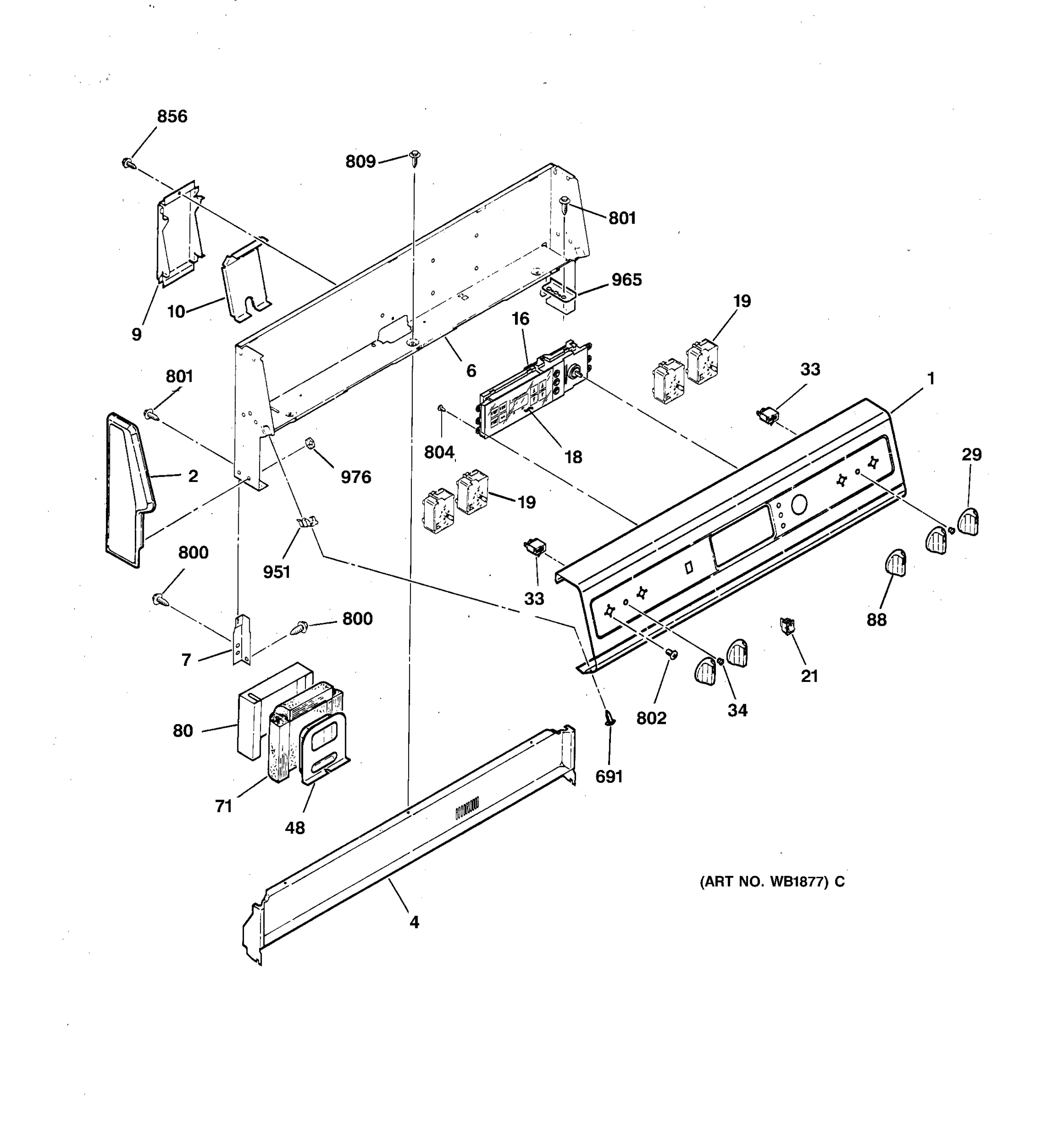

CONTROL PANEL
COOKTOP
DOOR

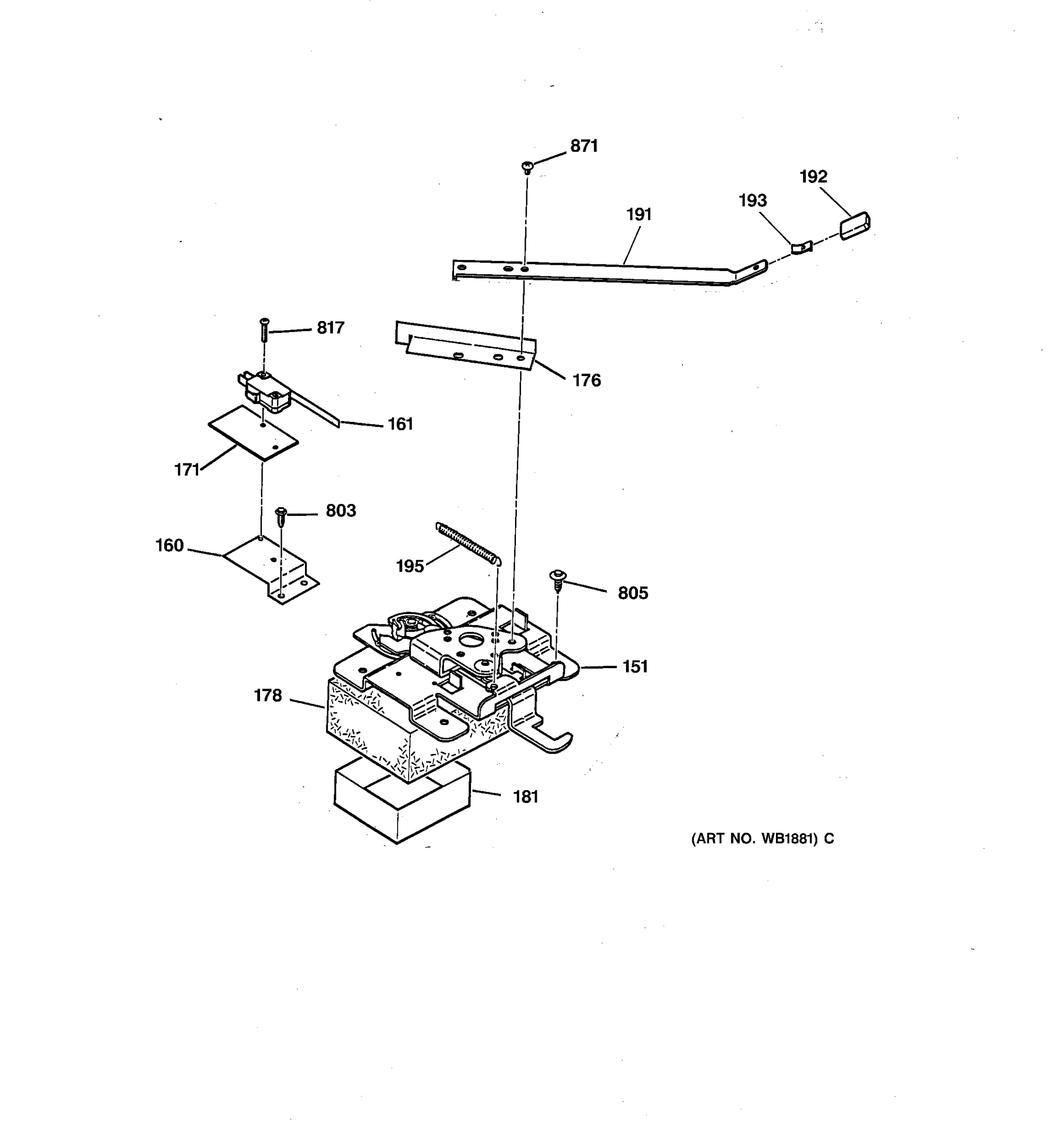

LOCK
Common parts from model RCA LEB356GT3BB Electric Range
1
GEN WB36K5631 GEN WB36K5631 Contact Us For Availability
2
GEN WB36K5398 GEN WB36K5398 Contact Us For Availability
2
GEN WB36K5399 GEN WB36K5399 Contact Us For Availability
4
GEN WB37K5032 GEN WB37K5032 Contact Us For Availability
6
GEN WB37M0005 GEN WB37M0005 Contact Us For Availability
7
BKGD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT LT GEN WB06X0128 Contact Us For Availability
9
RACEWAY WIRE GEN WB02X9415 Contact Us For Availability
10
COVER RACEWAY GEN WB06X0134 Contact Us For Availability
16
GEN WB27K5258 GEN WB27K5258 Contact Us For Availability
18
GEN WB27K5254 GEN WB27K5254 Contact Us For Availability
19
GEN WB23M0023 GEN WB23M0023 Contact Us For Availability
29
INFINITE KNOB-BLACK GEN WB03K5195 Contact Us For Availability
33
GEN WB25K5020 GEN WB25K5020 Contact Us For Availability
33
LIGHT INDICATOR GEN WB25M0008 Contact Us For Availability
34
GEN WB25M0009 GEN WB25M0009 Contact Us For Availability
48
GEN WB38K5049 GEN WB38K5049 Contact Us For Availability
51
GEN WB61K5049 GEN WB61K5049 Contact Us For Availability
56
GEN WB23K5039 GEN WB23K5039 Contact Us For Availability
57
GEN WB23K5040 GEN WB23K5040 Contact Us For Availability
60
GEN WB09K5014 GEN WB09K5014 Contact Us For Availability
61
GEN WB64K5068 GEN WB64K5068 Contact Us For Availability
62
BRACKET RADIANT HEATER GEN WB02K5318 Contact Us For Availability
66
PLATE COVER GEN WB34K5199 Contact Us For Availability
71
GEN WB35K5052 GEN WB35K5052 Contact Us For Availability
71
GEN WB35K5111 GEN WB35K5111 Contact Us For Availability
76
GEN WB38K5050 GEN WB38K5050 Contact Us For Availability
79
BURN BOX BTM BAFFLE-LT GEN WB34M0045 Contact Us For Availability
79
BURN BOX BTM BAFFLE-RT GEN WB34M0046 Contact Us For Availability
80
GEN WB38K5033 GEN WB38K5033 Contact Us For Availability
82
SWITCH THERMAL (1400W) GEN WB24K5070 Contact Us For Availability
82
SWITCH THERMAL (1900W) GEN WB24K5071 Contact Us For Availability
85
GEN WB35K5098 GEN WB35K5098 Contact Us For Availability
88
THERMOSTAT KNOB-BLACK GEN WB03K5196 Contact Us For Availability
90
SUPPORT MT GLASS RT GEN WB02X9876 Contact Us For Availability
90
SUPPORT MT GLASS LT GEN WB02X9877 Contact Us For Availability
95
GEN WB02K5317 GEN WB02K5317 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55K5037 GEN WB55K5037 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
PLATE GLASS MTG GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5215 GEN WB57K5215 Contact Us For Availability
122
GEN WB57K5141 GEN WB57K5141 Contact Us For Availability
123
GLASS OV DR INNER GEN WB56X1907 Contact Us For Availability
124
GEN WB35K5103 GEN WB35K5103 Contact Us For Availability
140
GEN WB55K5054 GEN WB55K5054 Contact Us For Availability
144
PLATE REINFORCEMENT GEN WB02K5316 Contact Us For Availability
146
DOOR HANDLE SPACER-BLACK GEN WB02X9037 Contact Us For Availability
147
SPACER DR HDL (BLK) GEN WB02K5312 Contact Us For Availability
151
LATCH ASM GEN WB14X0128 Contact Us For Availability
160
BRACKET SW GEN WB02X9882 Contact Us For Availability
161
SWITCH MICRO GEN WB24K5092 Contact Us For Availability
171
INSULATOR SWITCH GEN WB02X9880 Contact Us For Availability
176
GEN WB02X9881 GEN WB02X9881 Contact Us For Availability
178
LOCK BOX INSULATION GEN WB35K5027 Contact Us For Availability
181
GEN WB02K5097 GEN WB02K5097 Contact Us For Availability
191
HANDLE LATCH 79 GEN WB02X9434 Contact Us For Availability
192
GEN WB03K5154 GEN WB03K5154 Contact Us For Availability
193
CLIP KNOB GEN WB02X9404 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
211
GEN WB02M0038 GEN WB02M0038 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
WIRE COVER-REAR-UPP GEN WB34M0020 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
221
GEN WB63K5189 GEN WB63K5189 Contact Us For Availability
222
LO FRT PANEL ASM GEN WB56K5060 Contact Us For Availability
231
INSULATION TOP &SIDES GEN WB35M0022 Contact Us For Availability
232
GEN WB35K5113 GEN WB35K5113 Contact Us For Availability
233
INSULATION TOP&SDS FRT GEN WB02X9718 Contact Us For Availability
241
RACK OVN GEN WB48X0208 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
LAMP OVEN GEN BUY LOCAL Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
266
GEN WB02K5274 GEN WB02K5274 Contact Us For Availability
267
SUPPORT DRAW RT & LT GEN WB56M0003 Contact Us For Availability
269
SERVICE CORD MTG PLATE GEN WB02X9427 Contact Us For Availability
282
TUBE VENT ASM GEN WB38M0001 Contact Us For Availability
286
OV DR SPRING GEN WB09X0273 Contact Us For Availability
291
COVER ENAM WIPE GEN WB02X9152 Contact Us For Availability
292
BLOCK SLIDE REAR GEN WB02X9146 Contact Us For Availability
293
BLOCK SLIDE FRT GEN WB02X9148 Contact Us For Availability
296
GEN WB02X9188 GEN WB02X9188 Contact Us For Availability
752
GEN WB00X6542 GEN WB00X6542 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
811
SCREW TC8-32X.375FLNI GEN WB01X1172 Contact Us For Availability
812
SCREW TC 10-32X.625(BLK) GEN WB01K5160 Contact Us For Availability
817
SCREW ST4ABX.750FLPK GEN WB01X1346 Contact Us For Availability
871
GEN WB01M0013 GEN WB01M0013 Contact Us For Availability
926
WASHER GROUND GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
951
CLIP BKGD GEN WB02X9443 Contact Us For Availability
965
GEN WB02X9000 GEN WB02X9000 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
979
SPACER EXPAN NUT GEN WB01X1177 Contact Us For Availability
999
GEN 31-10059 GEN 31-10059 Contact Us For Availability
999
GEN 31-13256 GEN 31-13256 Contact Us For Availability
999
GEN 79-4097 GEN 79-4097 Contact Us For Availability
999
GEN WB18K5492 GEN WB18K5492 Contact Us For Availability
999
GEN WB18K5499 GEN WB18K5499 Contact Us For Availability
999
GEN WB18K5579 GEN WB18K5579 Contact Us For Availability
999
HARNESS WIRE SENSOR GEN WB18K5598 Contact Us For Availability
× ![]()
