Model RCA LEB316GT3AD Electric Range – Common Parts & Diagrams

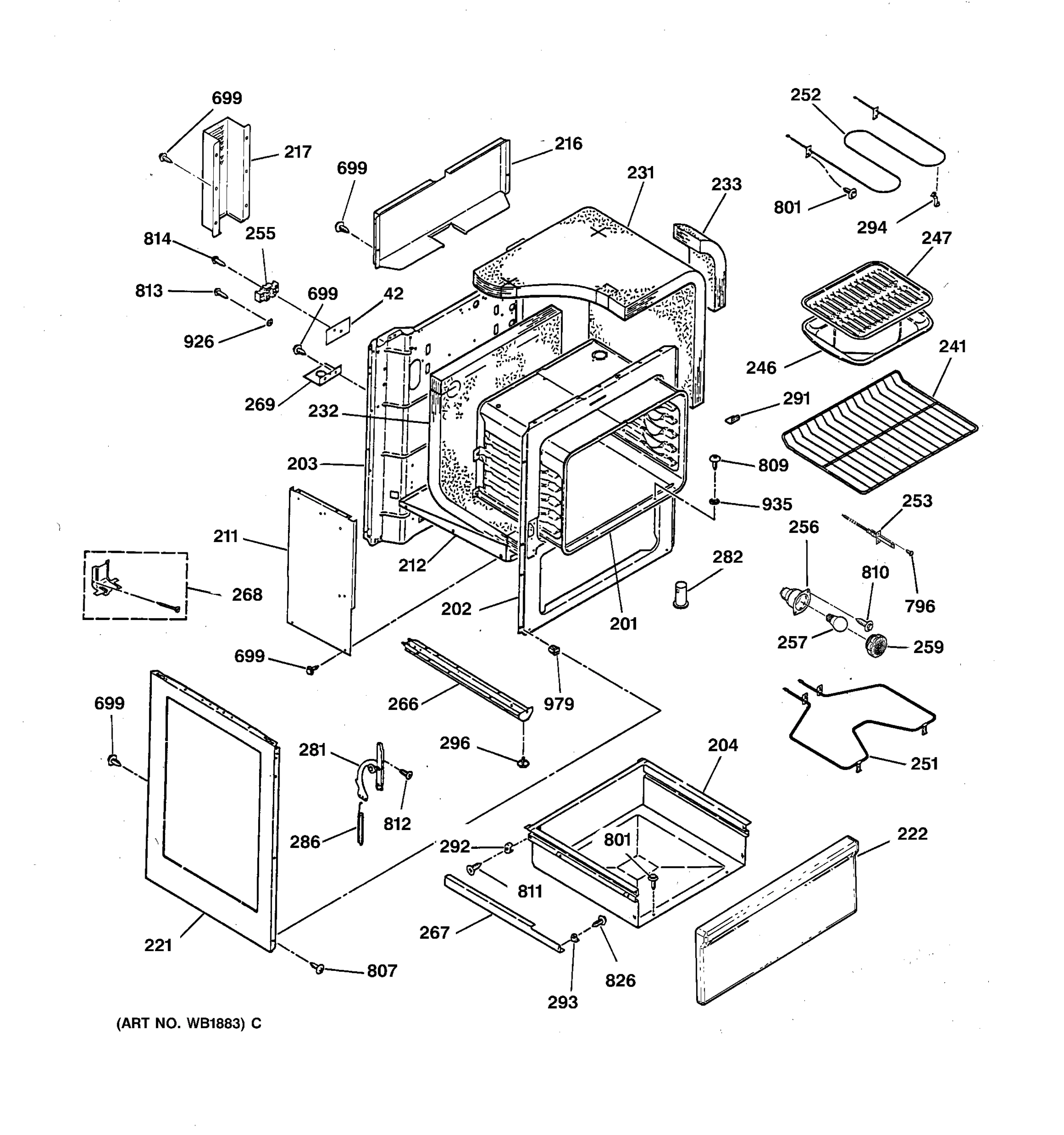

BODY PARTS

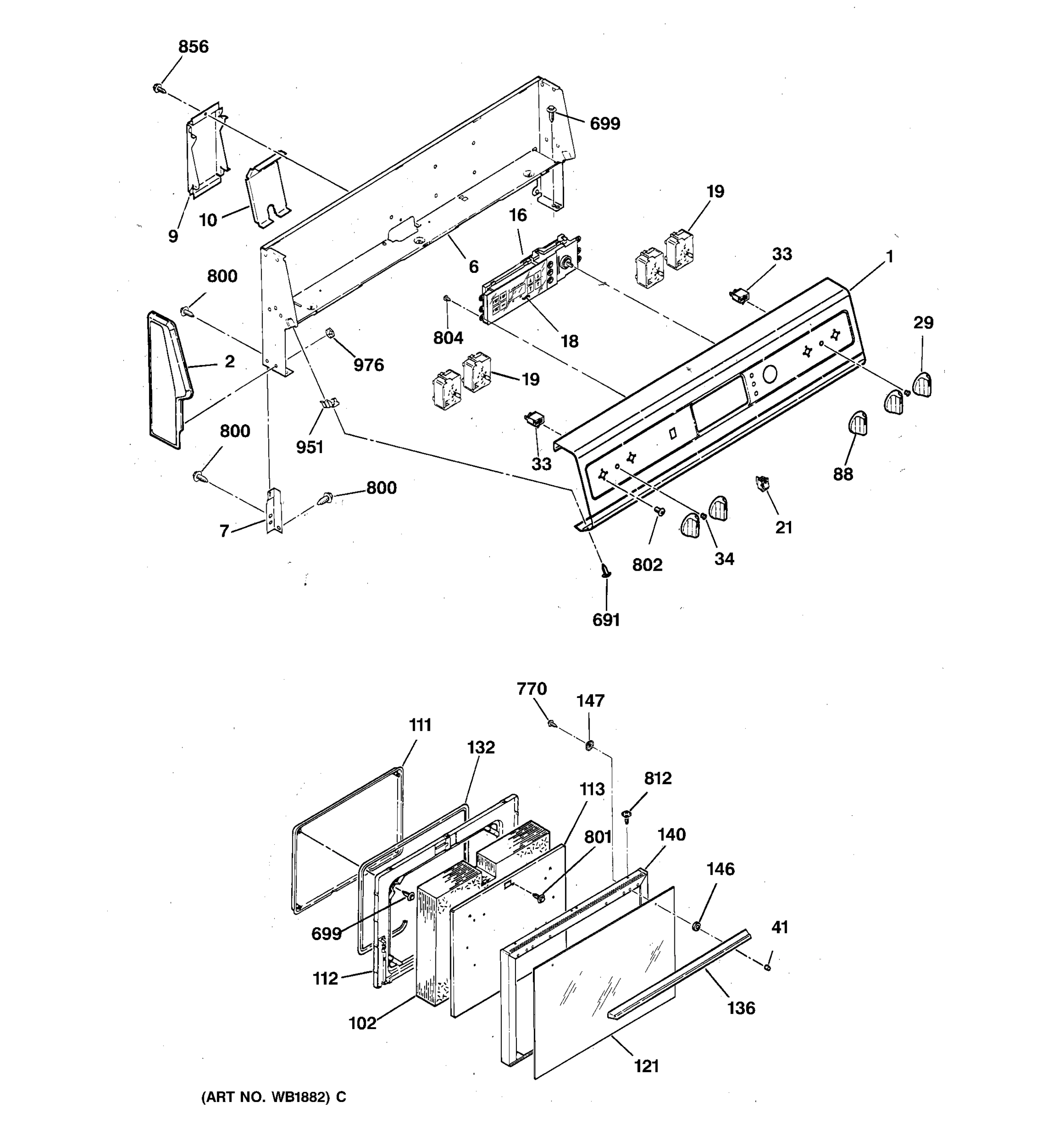

CONTROL PANEL & OVEN DOOR

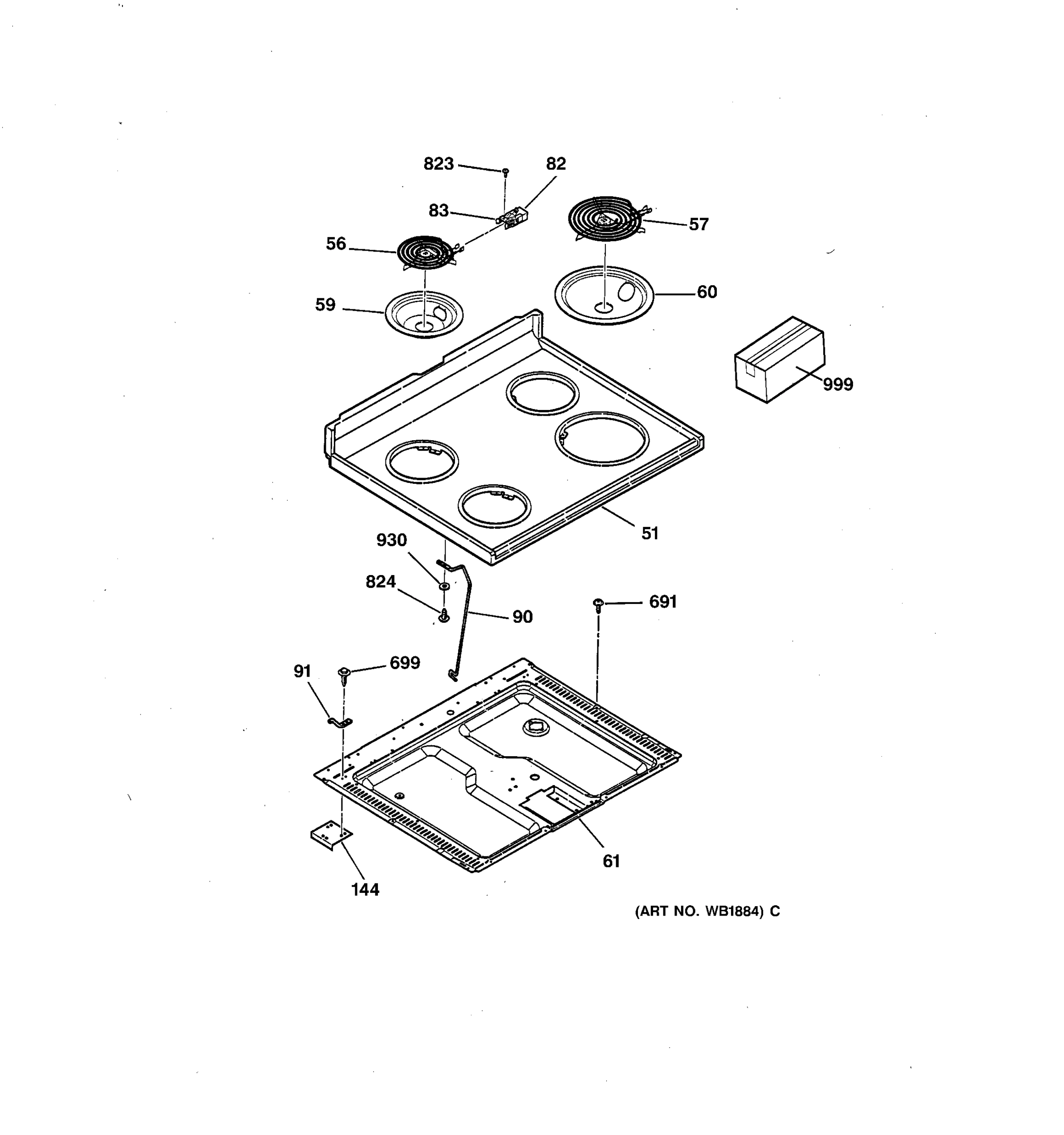

COOKTOP

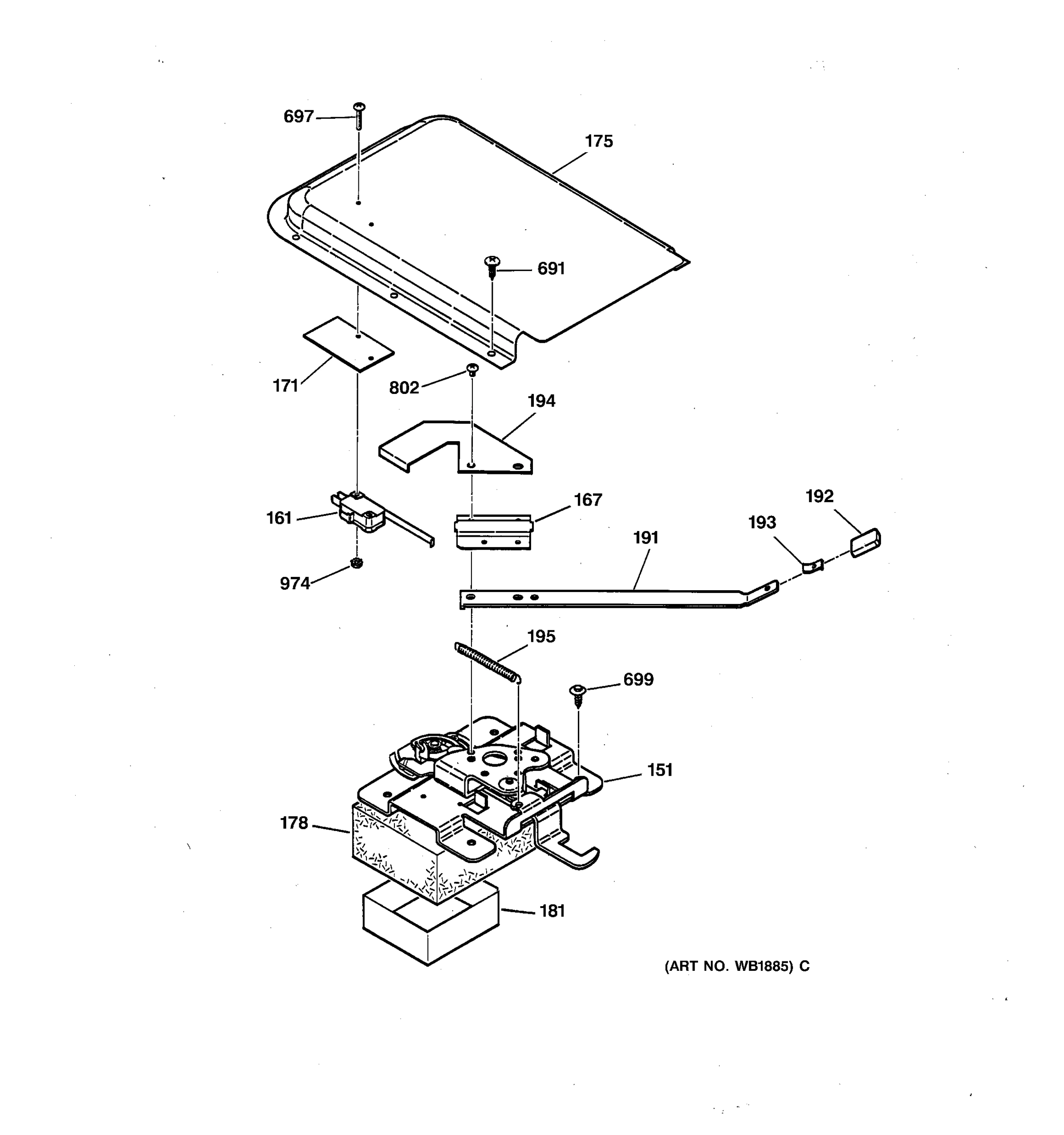

LOCK
Common parts from model RCA LEB316GT3AD Electric Range
1
GEN WB36K5629 GEN WB36K5629 Contact Us For Availability
2
GEN WB36K5398 GEN WB36K5398 Contact Us For Availability
2
GEN WB36K5399 GEN WB36K5399 Contact Us For Availability
6
GEN WB37M0005 GEN WB37M0005 Contact Us For Availability
7
GEN WB07X1647 GEN WB07X1647 Contact Us For Availability
9
RACEWAY WIRE GEN WB02X9415 Contact Us For Availability
10
COVER RACEWAY GEN WB06X0134 Contact Us For Availability
16
GEN WB27K5258 GEN WB27K5258 Contact Us For Availability
18
GEN WB27K5254 GEN WB27K5254 Contact Us For Availability
29
INFINITE KNOB-BLACK GEN WB03K5195 Contact Us For Availability
33
LIGHT INDICATOR GEN WB25M0008 Contact Us For Availability
34
GEN WB25M0009 GEN WB25M0009 Contact Us For Availability
51
GEN WB62M0013 GEN WB62M0013 Contact Us For Availability
60
GEN WB31M0015 GEN WB31M0015 Contact Us For Availability
61
BOTTOM BURN BOX GEN WB64K5091 Contact Us For Availability
83
GEN WB01K5128 GEN WB01K5128 Contact Us For Availability
88
THERMOSTAT KNOB-BLACK GEN WB03K5196 Contact Us For Availability
90
ROD SUPT TOP GEN WB02X9084 Contact Us For Availability
91
GEN WB14X0126 GEN WB14X0126 Contact Us For Availability
91
GEN WB14X0127 GEN WB14X0127 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55K5036 GEN WB55K5036 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
GEN WB02K5315 GEN WB02K5315 Contact Us For Availability
121
GEN WB57K5213 GEN WB57K5213 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
144
PLATE REINFORCEMENT GEN WB02K5316 Contact Us For Availability
146
DOOR HANDLE SPACER-BLACK GEN WB02X9037 Contact Us For Availability
147
SPACER DR HDL (BLK) GEN WB02K5312 Contact Us For Availability
151
LATCH ASM GEN WB14X0128 Contact Us For Availability
161
SWITCH MICRO GEN WB24K5092 Contact Us For Availability
171
INSULATOR SW GEN WB35K5101 Contact Us For Availability
175
LOCK COVER ASM GEN WB02X9431 Contact Us For Availability
178
LOCK BOX INSULATION GEN WB35K5027 Contact Us For Availability
181
GEN WB02K5097 GEN WB02K5097 Contact Us For Availability
191
HANDLE LATCH 79 GEN WB02X9434 Contact Us For Availability
192
GEN WB03K5154 GEN WB03K5154 Contact Us For Availability
193
CLIP KNOB GEN WB02X9404 Contact Us For Availability
194
LEVER SWITCH GEN WB02X9432 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
WIRE COVER-REAR-UPP GEN WB34M0020 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
221
GEN WB63K5193 GEN WB63K5193 Contact Us For Availability
222
GEN WB56K5063 GEN WB56K5063 Contact Us For Availability
231
INSULATION TOP &SIDES GEN WB35M0022 Contact Us For Availability
232
GEN WB35K5113 GEN WB35K5113 Contact Us For Availability
233
INSULATION TOP&SDS FRT GEN WB02X9718 Contact Us For Availability
241
RACK OVN GEN WB48X0208 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
LAMP OVEN GEN BUY LOCAL Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
266
GEN WB02K5274 GEN WB02K5274 Contact Us For Availability
267
SUPPORT DRAW RT & LT GEN WB56M0003 Contact Us For Availability
269
SERVICE CORD MTG PLATE GEN WB02X9427 Contact Us For Availability
282
TUBE VENT ASM GEN WB38M0007 Contact Us For Availability
286
GEN WB09K5020 GEN WB09K5020 Contact Us For Availability
291
COVER ENAM WIPE GEN WB02X9152 Contact Us For Availability
292
BLOCK SLIDE REAR GEN WB02X9146 Contact Us For Availability
293
BLOCK SLIDE FRT GEN WB02X9148 Contact Us For Availability
296
GEN WB02X9188 GEN WB02X9188 Contact Us For Availability
697
SC TC 4-40X.687 RD ZN GEN WB01X1170 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
811
SCREW TC8-32X.375FLNI GEN WB01X1172 Contact Us For Availability
812
SCREW TC 10-32X.625(BLK) GEN WB01K5160 Contact Us For Availability
824
GEN WB01X1291 GEN WB01X1291 Contact Us For Availability
826
SCREW TC10-32X.531HEXPRK GEN WB01X1167 Contact Us For Availability
871
GEN WB01K5122 GEN WB01K5122 Contact Us For Availability
926
WASHER GROUND GEN WB01X1260 Contact Us For Availability
930
GEN WB01M0022 GEN WB01M0022 Contact Us For Availability
951
CLIP BKGD GEN WB02X9443 Contact Us For Availability
974
NUT HEX 4-40 ZN GEN WB01X1264 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
979
SPACER EXPAN NUT GEN WB01X1177 Contact Us For Availability
999
HARNESS WIRE MAINTOP GEN WB18K5469 Contact Us For Availability
999
GEN 31-10059 GEN 31-10059 Contact Us For Availability
999
GEN 31-13255 GEN 31-13255 Contact Us For Availability
999
GEN 79-4098 GEN 79-4098 Contact Us For Availability
999
HARNESS WIRE LCK SW GEN WB18K5503 Contact Us For Availability
999
GEN WB18K5579 GEN WB18K5579 Contact Us For Availability
999
HARNESS WIRE SENSOR GEN WB18K5598 Contact Us For Availability
× ![]()
