Model RCA LEB316GT2AD Electric Range – Common Parts & Diagrams

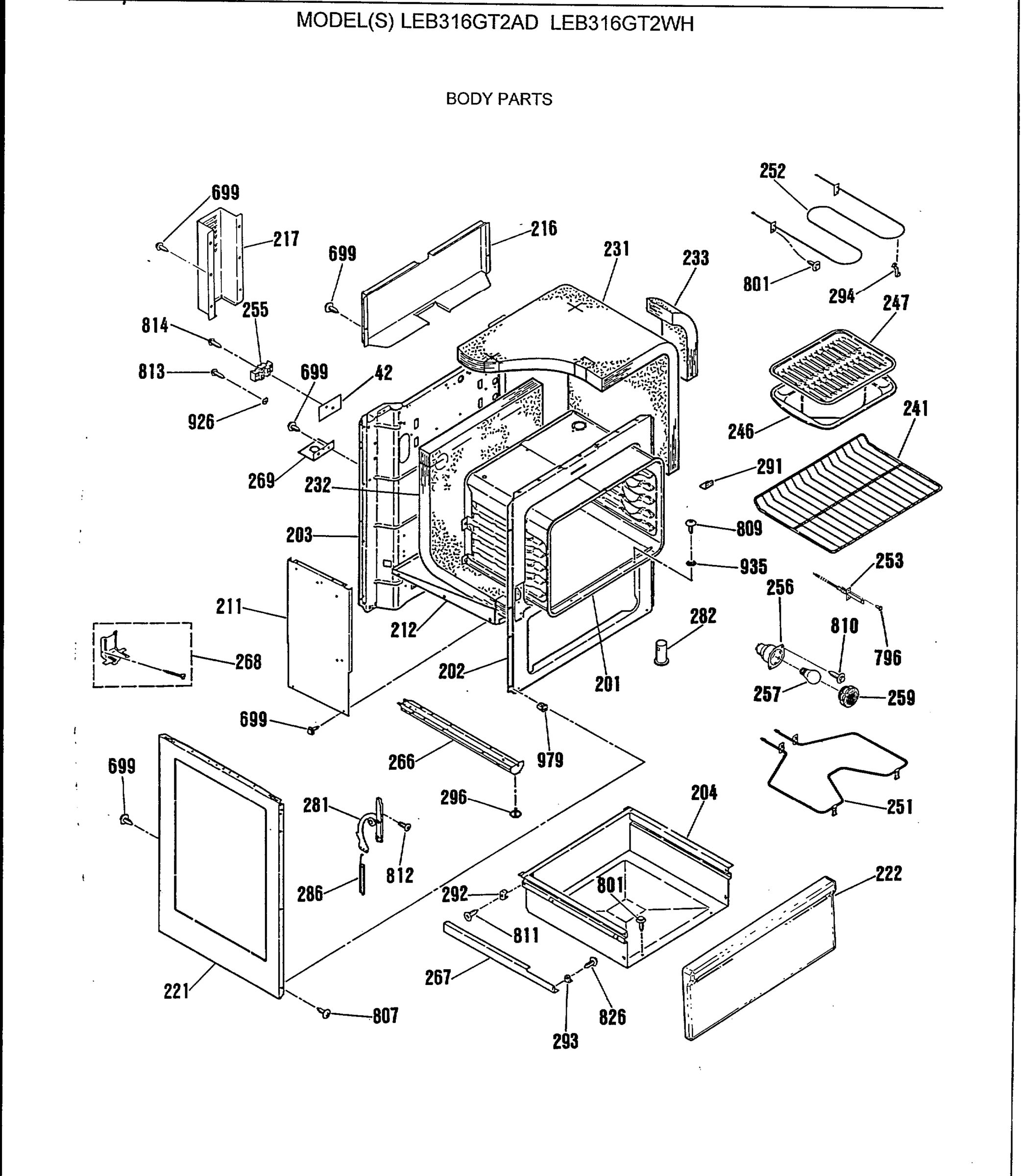

BODY PARTS

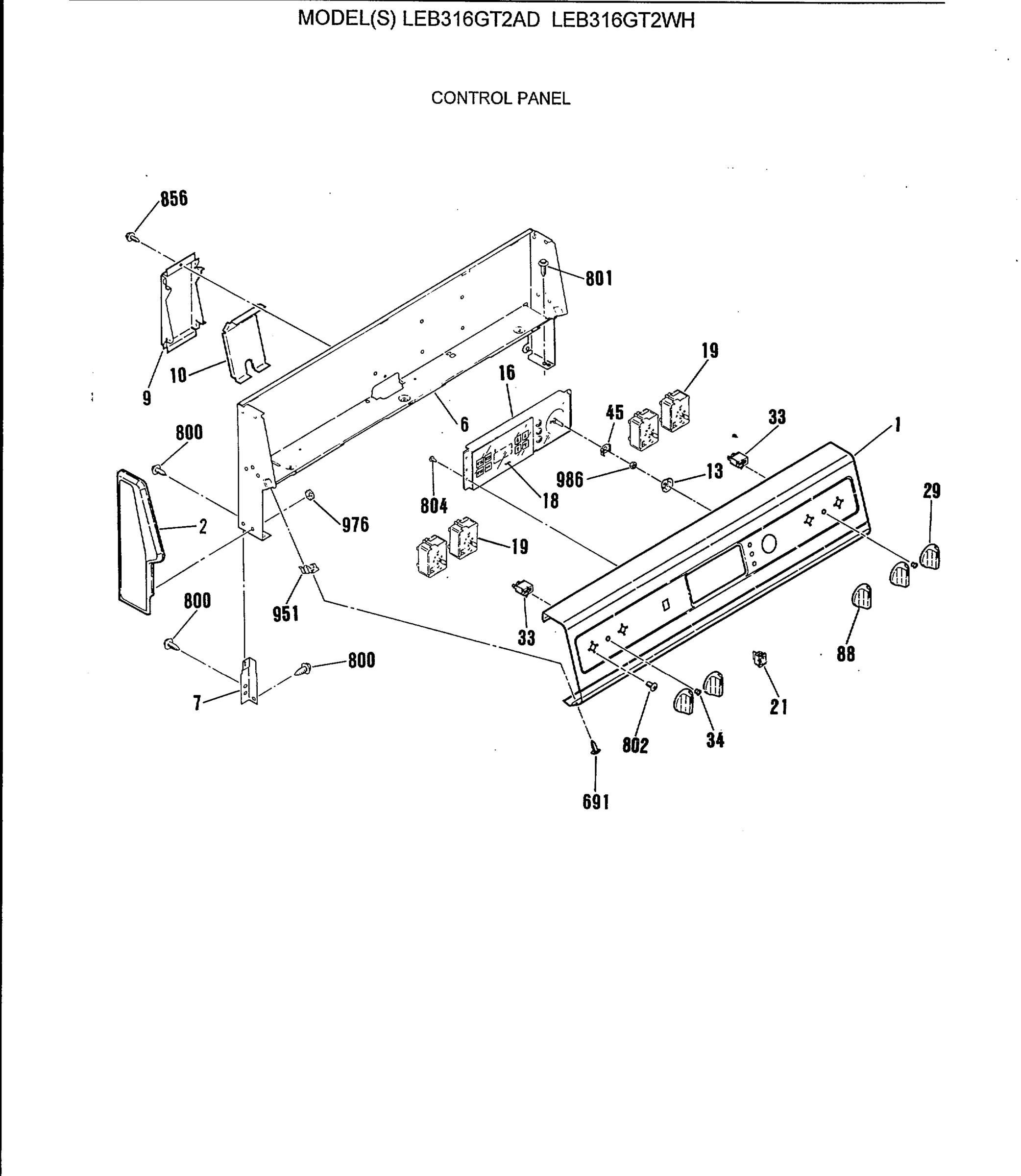

CONTROL PANEL
COOKTOP
LOCK
OVEN DOOR
Common parts from model RCA LEB316GT2AD Electric Range
1
GEN WB36K5465 GEN WB36K5465 Contact Us For Availability
2
GEN WB36K5398 GEN WB36K5398 Contact Us For Availability
2
GEN WB36K5399 GEN WB36K5399 Contact Us For Availability
6
GEN WB37M0005 GEN WB37M0005 Contact Us For Availability
7
GEN WB07X1647 GEN WB07X1647 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
COVER RACEWAY GEN WB06X0134 Contact Us For Availability
13
GEN WB02X8297 GEN WB02X8297 Contact Us For Availability
16
GEN WB27K5128 GEN WB27K5128 Contact Us For Availability
18
GEN WB27K5165 GEN WB27K5165 Contact Us For Availability
29
GEN WB03K5195 GEN WB03K5195 Contact Us For Availability
33
GEN WB25M0008 GEN WB25M0008 Contact Us For Availability
34
GEN WB25M0009 GEN WB25M0009 Contact Us For Availability
45
GEN WB09X5121 GEN WB09X5121 Contact Us For Availability
51
GEN WB62M0013 GEN WB62M0013 Contact Us For Availability
60
GEN WB31M0015 GEN WB31M0015 Contact Us For Availability
61
GEN WB64K5091 GEN WB64K5091 Contact Us For Availability
83
GEN WB01K5128 GEN WB01K5128 Contact Us For Availability
88
GEN WB03K5196 GEN WB03K5196 Contact Us For Availability
90
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
91
GEN WB14X0126 GEN WB14X0126 Contact Us For Availability
91
GEN WB14X0127 GEN WB14X0127 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55K5036 GEN WB55K5036 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
GEN WB02K5315 GEN WB02K5315 Contact Us For Availability
121
GEN WB57K5213 GEN WB57K5213 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
144
GEN WB02K5316 GEN WB02K5316 Contact Us For Availability
146
DOOR HANDLE SPACER-BLACK GEN WB02X9037 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
151
GEN WB14X0128 GEN WB14X0128 Contact Us For Availability
161
GEN WB24K5092 GEN WB24K5092 Contact Us For Availability
171
GEN WB35K5101 GEN WB35K5101 Contact Us For Availability
175
LOCK COVER ASM GEN WB02X9431 Contact Us For Availability
178
LOCK BOX INSULATION GEN WB35K5027 Contact Us For Availability
181
GEN WB02K5097 GEN WB02K5097 Contact Us For Availability
191
LATCH HANDLE GEN WB02X9434 Contact Us For Availability
192
GEN WB03K5154 GEN WB03K5154 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
194
LEVER SWITCH GEN WB02X9432 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
WIRE COVER-REAR-UPP GEN WB34M0020 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
221
BODY SIDE-TEXTURED GEN WB63K5193 Contact Us For Availability
222
GEN WB56K5063 GEN WB56K5063 Contact Us For Availability
231
INSULATION TOP &SIDES GEN WB35M0022 Contact Us For Availability
232
GEN WB35K5113 GEN WB35K5113 Contact Us For Availability
233
INSULATION TOP & SIDES GEN WB02X9718 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
253
GEN WB21X5310 GEN WB21X5310 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
266
GEN WB02K5274 GEN WB02K5274 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
SERVICE CORD MTG PLATE GEN WB02X9427 Contact Us For Availability
282
GEN WB38M0007 GEN WB38M0007 Contact Us For Availability
286
GEN WB09X0264 GEN WB09X0264 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB02X9188 GEN WB02X9188 Contact Us For Availability
697
GEN WB01X1170 GEN WB01X1170 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
812
SCREW-BLACK GEN WB01K5160 Contact Us For Availability
824
GEN WB01X1291 GEN WB01X1291 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
871
GEN WB01K5122 GEN WB01K5122 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
930
GEN WB01M0022 GEN WB01M0022 Contact Us For Availability
951
GEN WB02X9443 GEN WB02X9443 Contact Us For Availability
974
GEN WB01X1264 GEN WB01X1264 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
986
GEN WB02X8268 GEN WB02X8268 Contact Us For Availability
999
GEN WB18K5469 GEN WB18K5469 Contact Us For Availability
999
GEN 31-10059 GEN 31-10059 Contact Us For Availability
999
GEN 31-13165 GEN 31-13165 Contact Us For Availability
999
GEN 79-4090 GEN 79-4090 Contact Us For Availability
999
GEN WB18K5459 GEN WB18K5459 Contact Us For Availability
999
GEN WB18K5503 GEN WB18K5503 Contact Us For Availability
999
GEN WB18K5579 GEN WB18K5579 Contact Us For Availability
× ![]()
