Model Maytag LDE8624ACM ELECTRIC DRYER – Common Parts & Diagrams

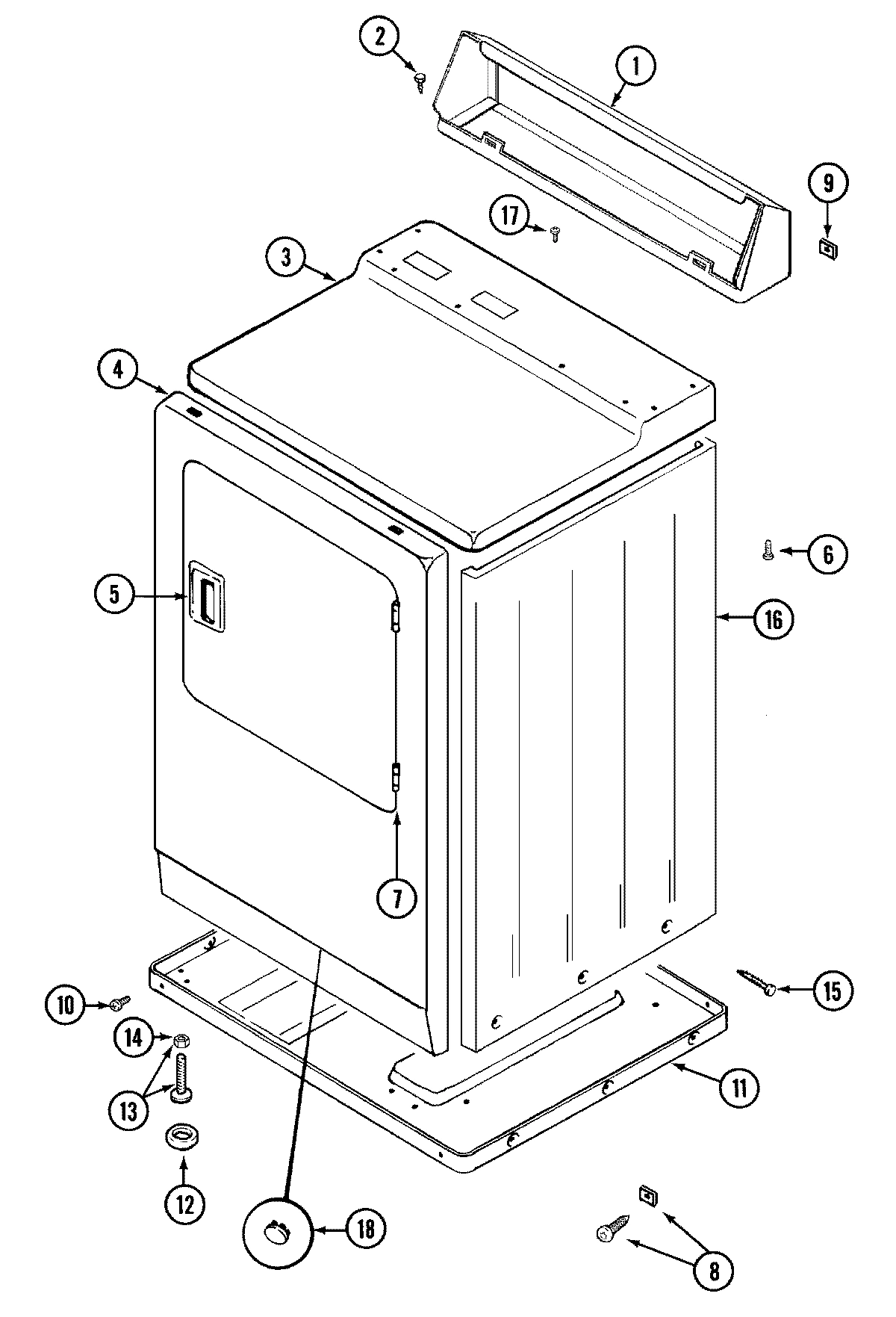

01 - CABINET (FRONT LDE8624ACM & LDG8624AAM)

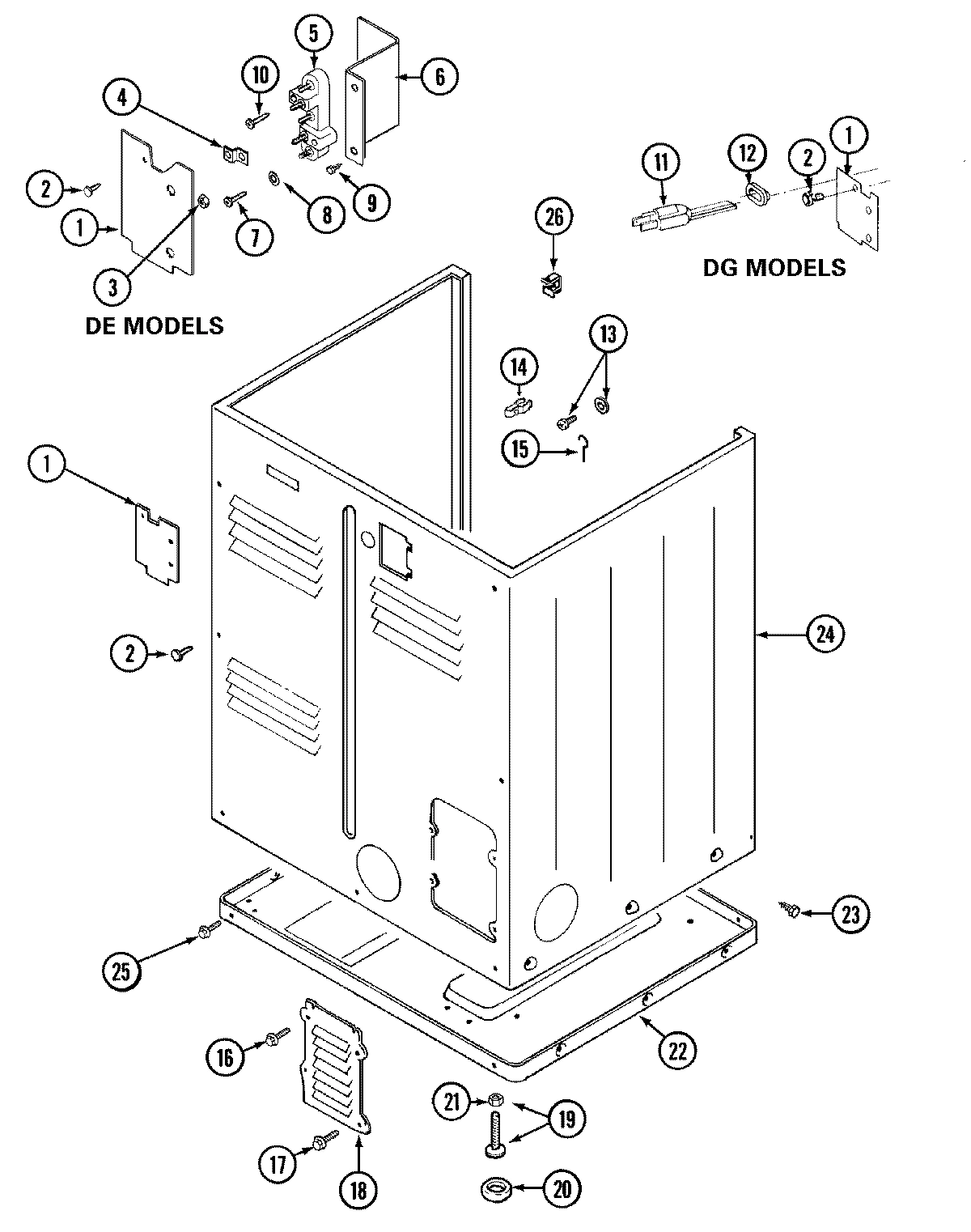

02 - CABINET (REAR LDE8624ACM & LDG8624AAM)
03 - CONTROL PANEL (LDE8624ACM & LDG8624AAM)
04 - DOOR (LDE8624ACM & LDG8624AAM)
05 - HEATER
06 - MOTOR DRIVE (LDE8624ACM & LDG8624AAM)
07 - TUMBLER (LDE8624ACM & LDG8624AAM)
08 - WIRING INFORMATION-LDE8624ACx
Common parts from model Maytag LDE8624ACM ELECTRIC DRYER
1
MAY 33001016 MAY 33001016 Contact Us For Availability
1
MAY Y312893 MAY Y312893 Contact Us For Availability
2
MAY 308503 MAY 308503 Contact Us For Availability
2
MAY Y303442 MAY Y303442 Contact Us For Availability
2
MAY 33001171 MAY 33001171 Contact Us For Availability
3
MAY 314995 MAY 314995 Contact Us For Availability
3
MAY 33001257 MAY 33001257 Contact Us For Availability
3
MAY 313764 MAY 313764 Contact Us For Availability
4
MAY 22001292 MAY 22001292 Contact Us For Availability
4
MAY 22001293 MAY 22001293 Contact Us For Availability
4
MAY 22001566 MAY 22001566 Contact Us For Availability
4
MAY 22001567 MAY 22001567 Contact Us For Availability
4
MAY 33001254 MAY 33001254 Contact Us For Availability
4
MAY 315346 MAY 315346 Contact Us For Availability
4
MAY Y313561 MAY Y313561 Contact Us For Availability
5
MAY 400008 MAY 400008 Contact Us For Availability
5
MAY 214894 MAY 214894 Contact Us For Availability
5
MAY 33001131 MAY 33001131 Contact Us For Availability
5
MAY 33001422 MAY 33001422 Contact Us For Availability
6
MAY 33001464 MAY 33001464 Contact Us For Availability
6
MAY 33001168 MAY 33001168 Contact Us For Availability
6
MAY Y310376 MAY Y310376 Contact Us For Availability
7
MAY 33001230 MAY 33001230 Contact Us For Availability
7
MAY 33001372 MAY 33001372 Contact Us For Availability
7
MAY Y304578 MAY Y304578 Contact Us For Availability
7
MAY 314998 MAY 314998 Contact Us For Availability
8
MAY 204439 MAY 204439 Contact Us For Availability
8
MAY 33001282 MAY 33001282 Contact Us For Availability
8
MAY 212982 MAY 212982 Contact Us For Availability
9
MAY 314999 MAY 314999 Contact Us For Availability
10
MAY 216424 MAY 216424 Contact Us For Availability
10
MAY 314554 MAY 314554 Contact Us For Availability
11
MAY 33001012 MAY 33001012 Contact Us For Availability
11
MAY 314937 MAY 314937 Contact Us For Availability
11
MAY 33001371 MAY 33001371 Contact Us For Availability
11
MAY 314848 MAY 314848 Contact Us For Availability
12
MAY Y314137 MAY Y314137 Contact Us For Availability
12
MAY 314158 MAY 314158 Contact Us For Availability
12
MAY 214897 MAY 214897 Contact Us For Availability
12
MAY 33001172 MAY 33001172 Contact Us For Availability
12
MAY 33001173 MAY 33001173 Contact Us For Availability
13
MAY Y305086 MAY Y305086 Contact Us For Availability
13
MAY 33001221 MAY 33001221 Contact Us For Availability
13
MAY 33001258 MAY 33001258 Contact Us For Availability
13
MAY Y308590 MAY Y308590 Contact Us For Availability
13
MAY Y308613 MAY Y308613 Contact Us For Availability
13
MAY 314846 MAY 314846 Contact Us For Availability
13
MAY 33001108 MAY 33001108 Contact Us For Availability
14
MAY 33001036 MAY 33001036 Contact Us For Availability
14
MAY 33001174 MAY 33001174 Contact Us For Availability
14
MAY Y310759 MAY Y310759 Contact Us For Availability
15
MAY 33001178 MAY 33001178 Contact Us For Availability
15
MAY 210186 MAY 210186 Contact Us For Availability
15
MAY 33001176 MAY 33001176 Contact Us For Availability
16
MAY 204807 MAY 204807 Contact Us For Availability
16
MAY Y313910 MAY Y313910 Contact Us For Availability
16
MAY 313915 MAY 313915 Contact Us For Availability
17
MAY Y310632 MAY Y310632 Contact Us For Availability
18
MAY Y308205 MAY Y308205 Contact Us For Availability
18
MAY 33001243 MAY 33001243 Contact Us For Availability
18
MAY 306207 MAY 306207 Contact Us For Availability
18
MAY Y303877 MAY Y303877 Contact Us For Availability
18
MAY Y303879 MAY Y303879 Contact Us For Availability
18
MAY 312538 MAY 312538 Contact Us For Availability
20
WPL WP6-3129480 No Longer Available
20
MAY 33001232 MAY 33001232 Contact Us For Availability
20
MAY Y305185 MAY Y305185 Contact Us For Availability
21
MAY 33001344 MAY 33001344 Contact Us For Availability
21
MAY 33001540 MAY 33001540 Contact Us For Availability
21
MAY Y053241 MAY Y053241 Contact Us For Availability
21
MAY Y303373 MAY Y303373 Contact Us For Availability
22
MAY 22001269 MAY 22001269 Contact Us For Availability
22
MAY Y303945 MAY Y303945 Contact Us For Availability
23
MAY 33001225 MAY 33001225 Contact Us For Availability
25
MAY 33001045 MAY 33001045 Contact Us For Availability
25
MAY Y312527 MAY Y312527 Contact Us For Availability
26
MAY Y314110 MAY Y314110 Contact Us For Availability
27
MAY 315317 MAY 315317 Contact Us For Availability
27
MAY 901220 MAY 901220 Contact Us For Availability
28
MAY 33001104 MAY 33001104 Contact Us For Availability
28
MAY 910343 MAY 910343 Contact Us For Availability
28
MAY Y312894 MAY Y312894 Contact Us For Availability
29
MAY 16000327 MAY 16000327 Contact Us For Availability
29
MAY 33001259 MAY 33001259 Contact Us For Availability
30
MAY Y303711 MAY Y303711 Contact Us For Availability
31
MAY 312897 MAY 312897 Contact Us For Availability
31
MAY Y303389 MAY Y303389 Contact Us For Availability
33
MAY Y305084 MAY Y305084 Contact Us For Availability
33
MAY Y312658 MAY Y312658 Contact Us For Availability
39
MAY 315471 MAY 315471 Contact Us For Availability
40
MAY 410490 MAY 410490 Contact Us For Availability
42
MAY 315122 MAY 315122 Contact Us For Availability
NI
MAY 15001054 MAY 15001054 Contact Us For Availability
NI
MAY 15001587 MAY 15001587 Contact Us For Availability
× ![]()
