Model LDE7500ADL – Common Parts & Diagrams
01 - CABINET-FRONT (LDE7500ACL,ACW,ADL,ADW)
02 - CABINET-FRONT (LDE7500ACM,ADM) & (LDG)

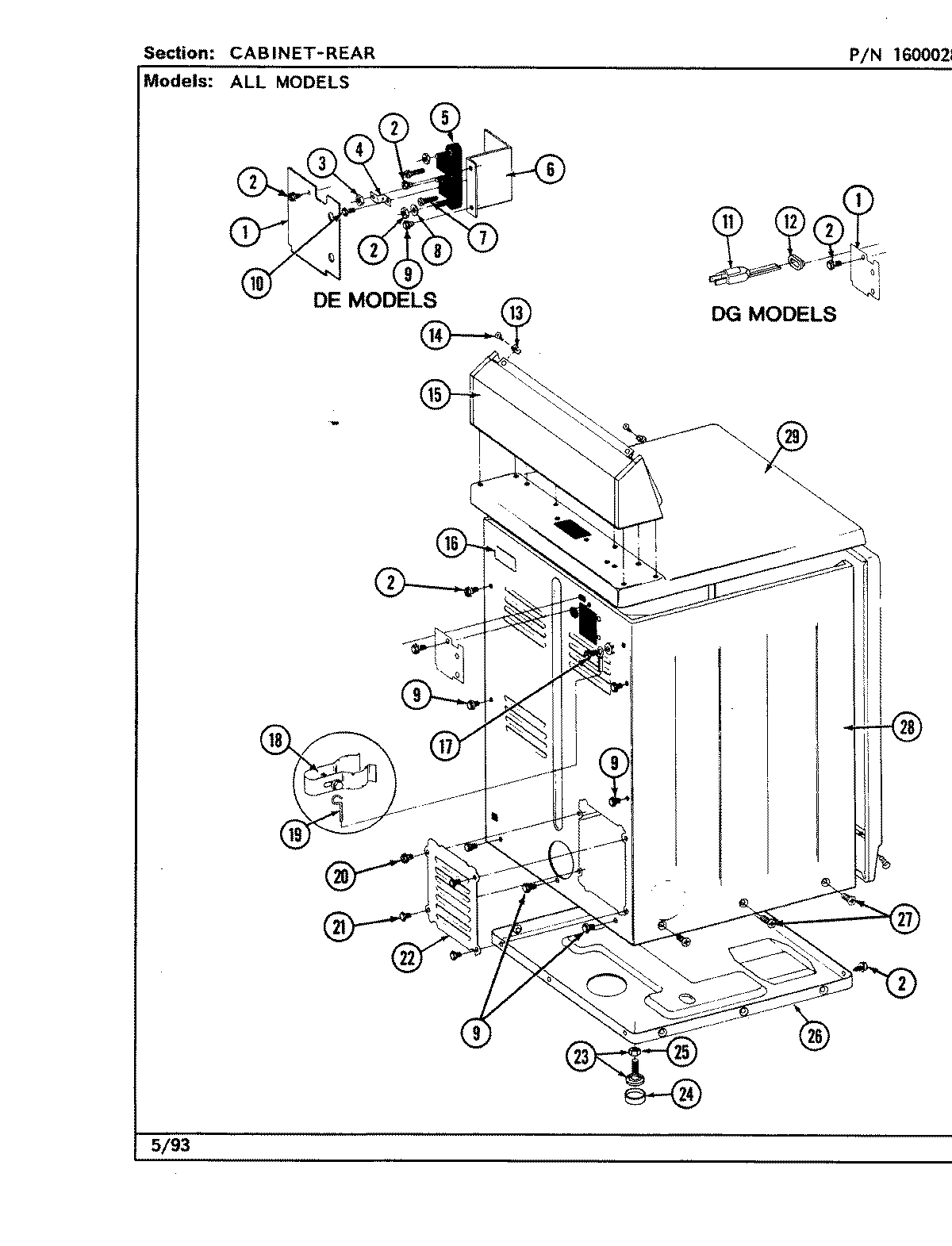

03 - CABINET-REAR (LDE7500ACL,ACW,ADL,ADW)

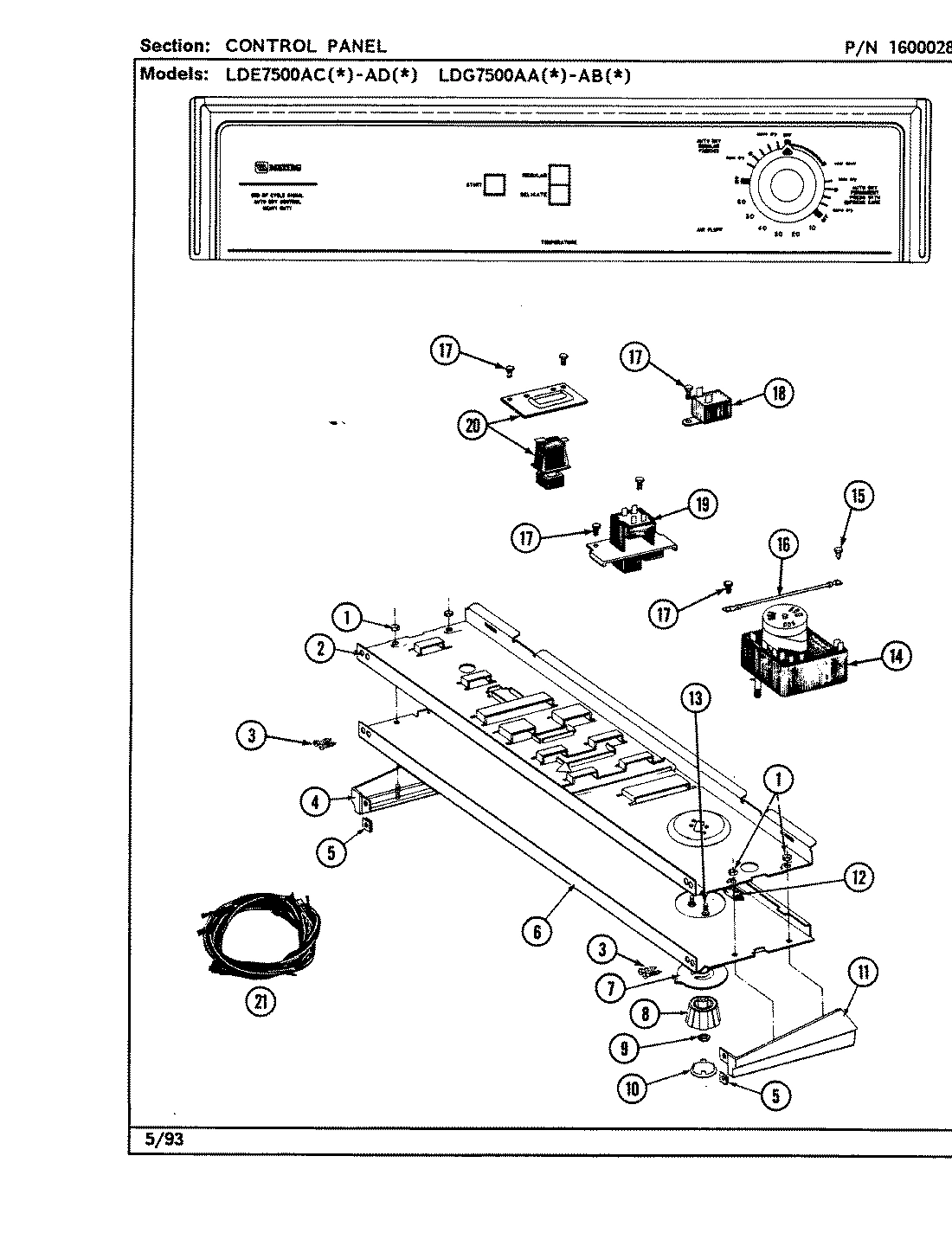

04 - CONTROL PANEL (LDE7500ACL,ACW,ADL,ADW)

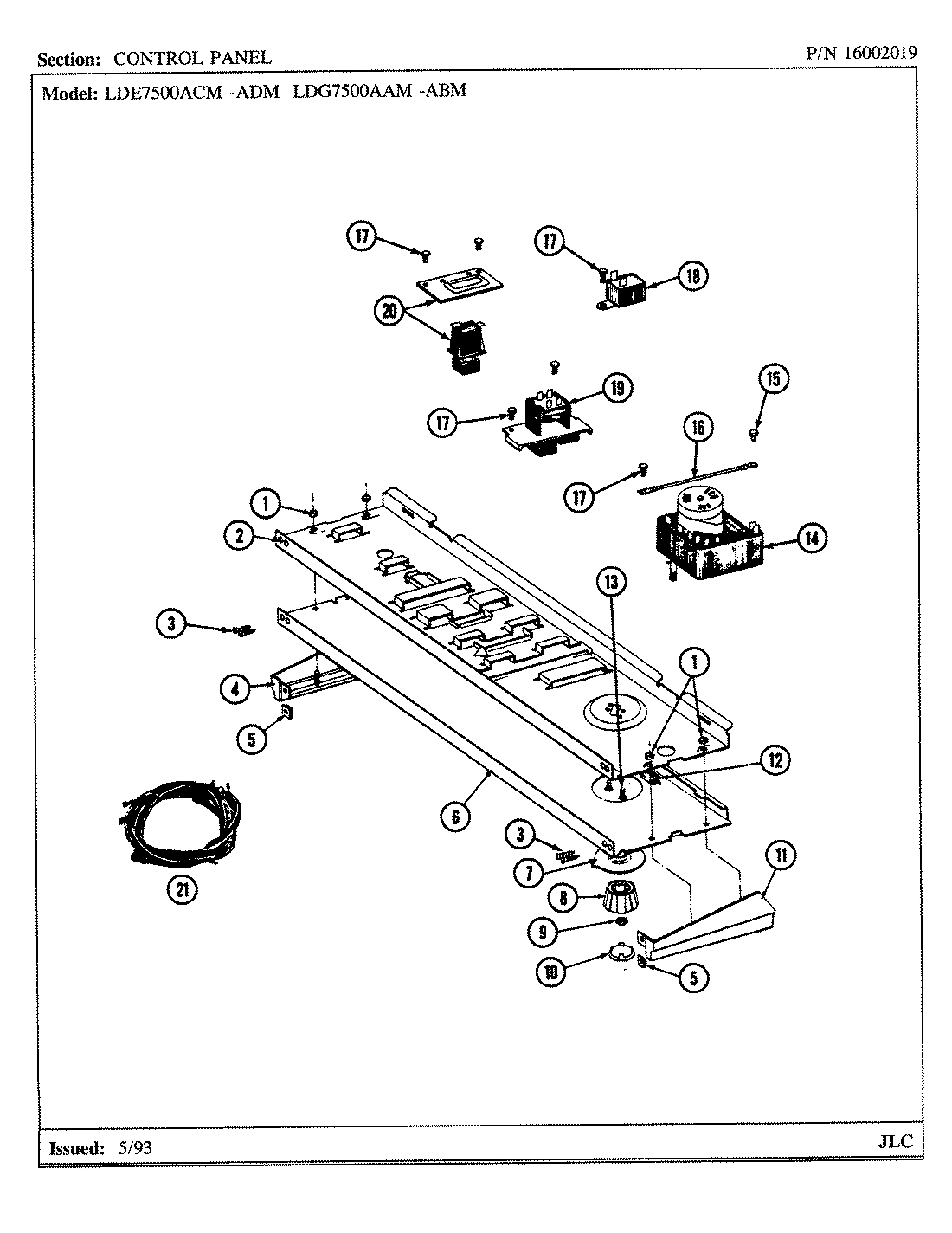

05 - CONTROL PANEL (LDE7500ACM,ADM) & (LDG)

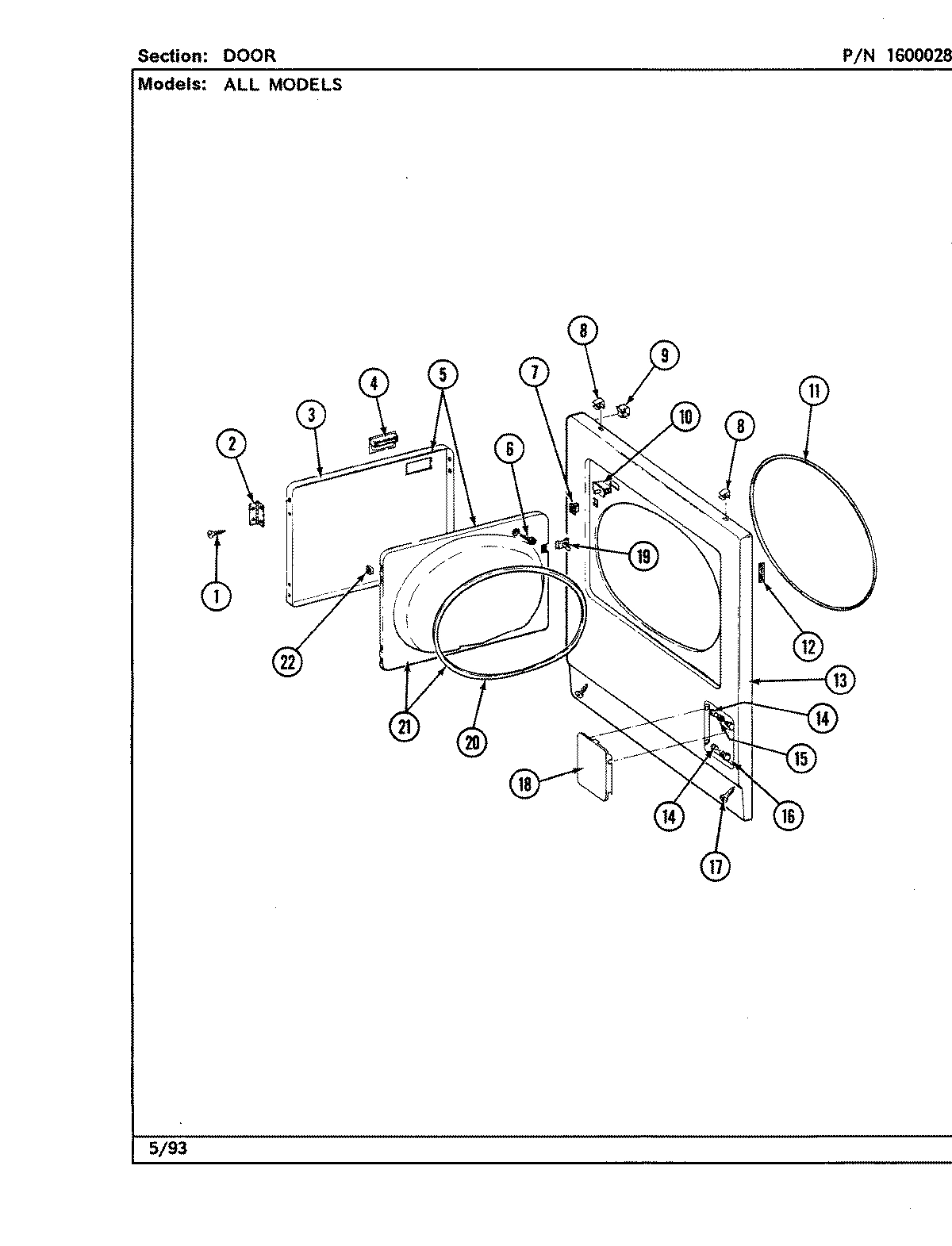

06 - DOOR (LDE7500ACL,ACW,ADL,ADW)

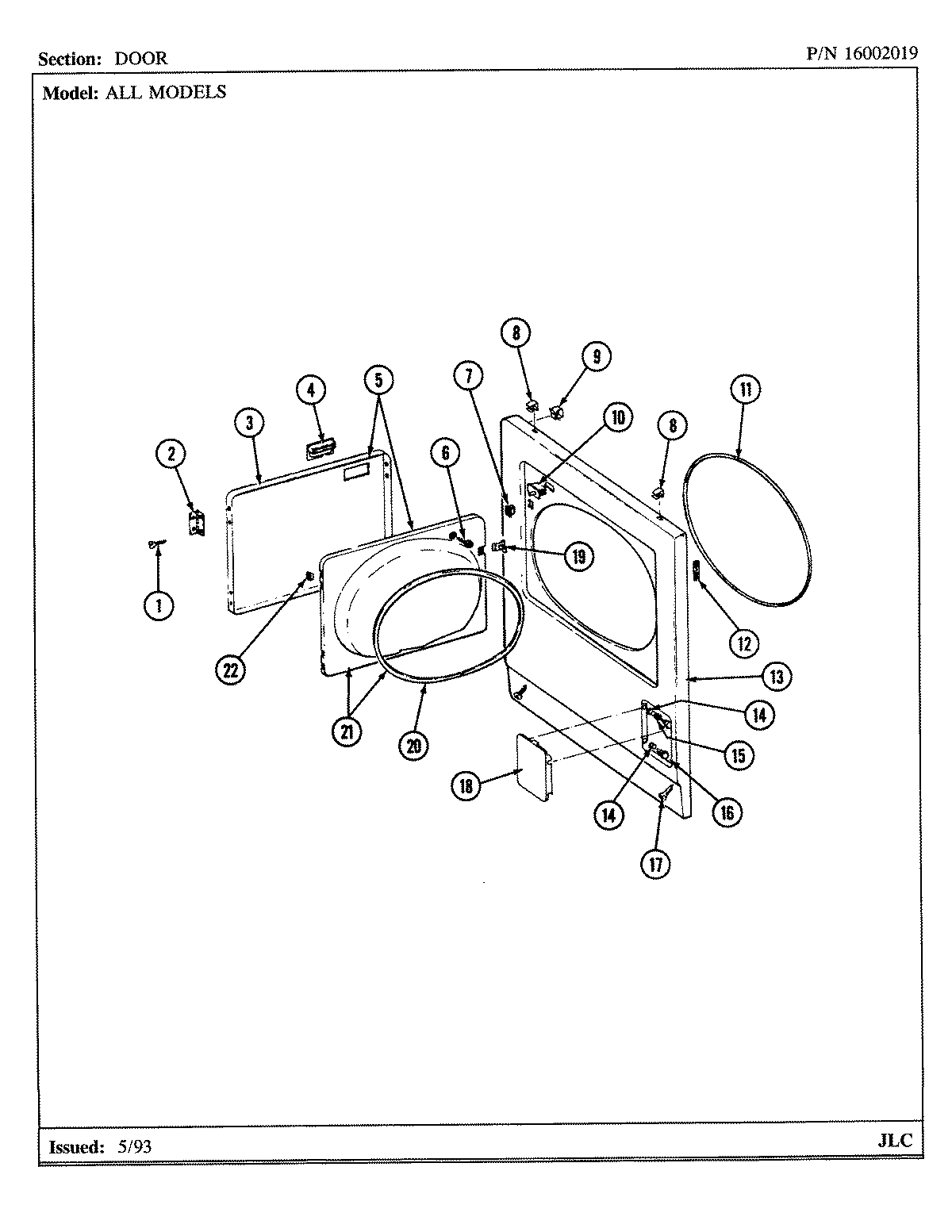

07 - DOOR (LDE7500ACM,ADM) & (LDG)

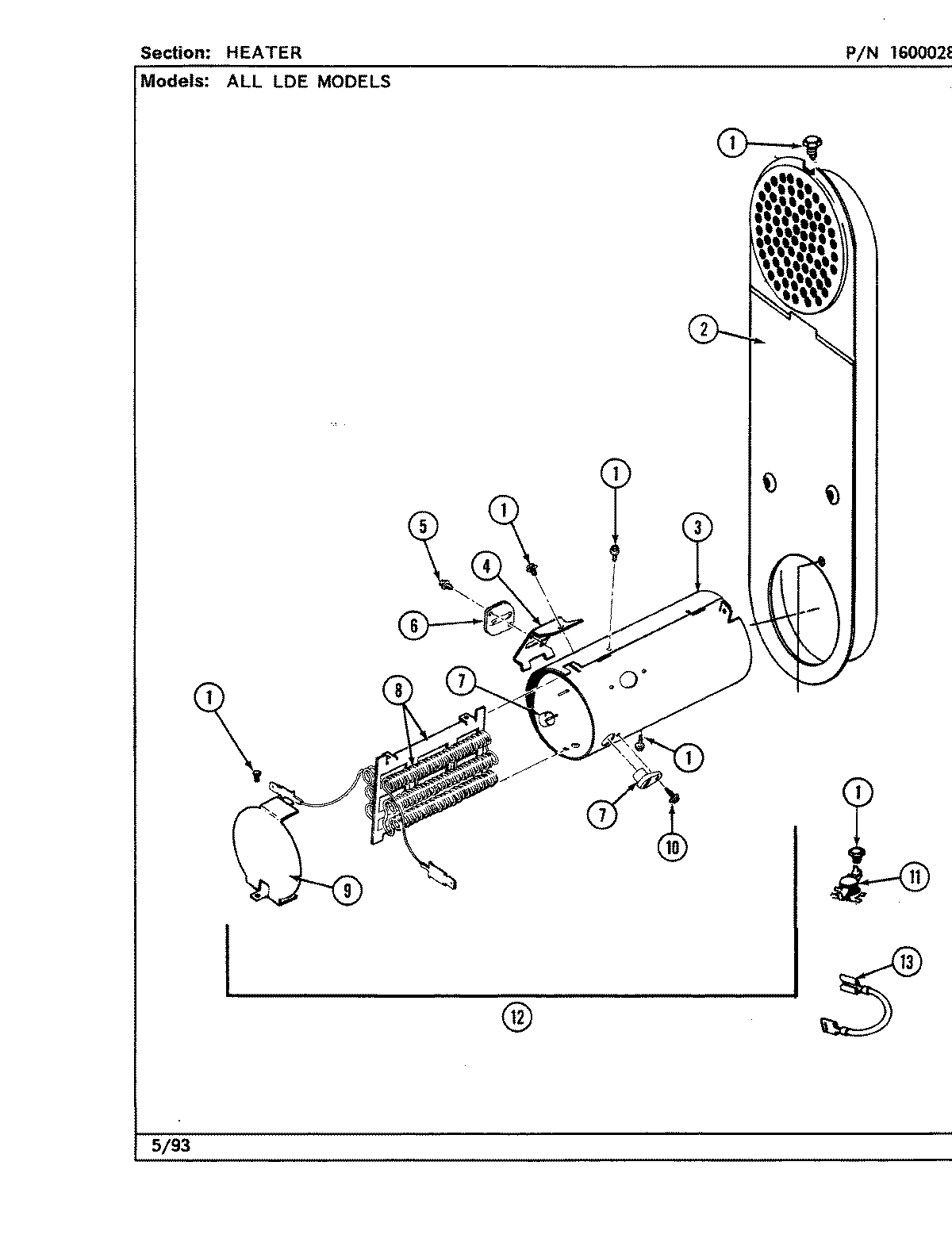

08 - HEATER (LDE7500ACL,ACW,ADL,ADW)

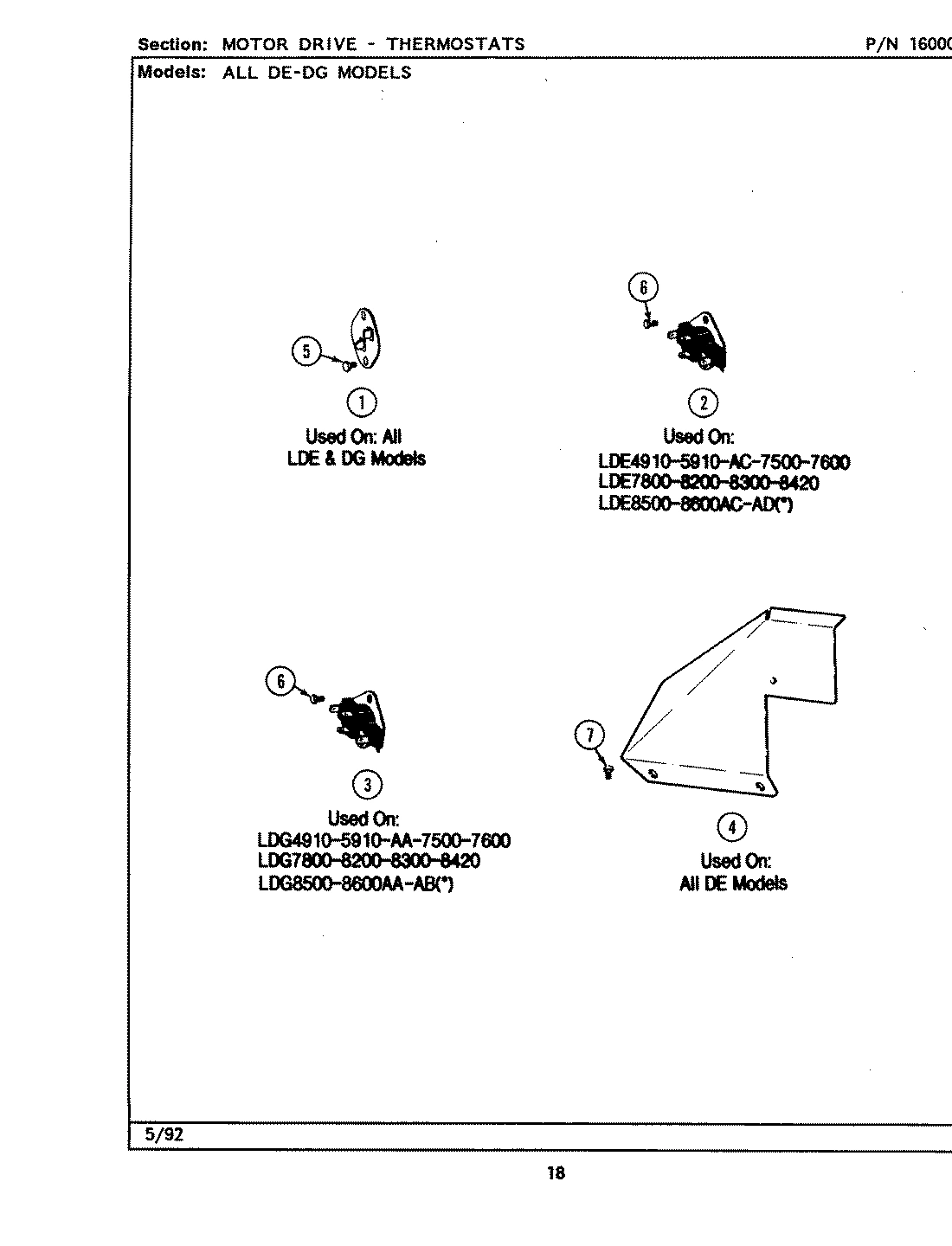

09 - MOTOR DRIVE (LDE7500ACE,ADE) & (LDG)

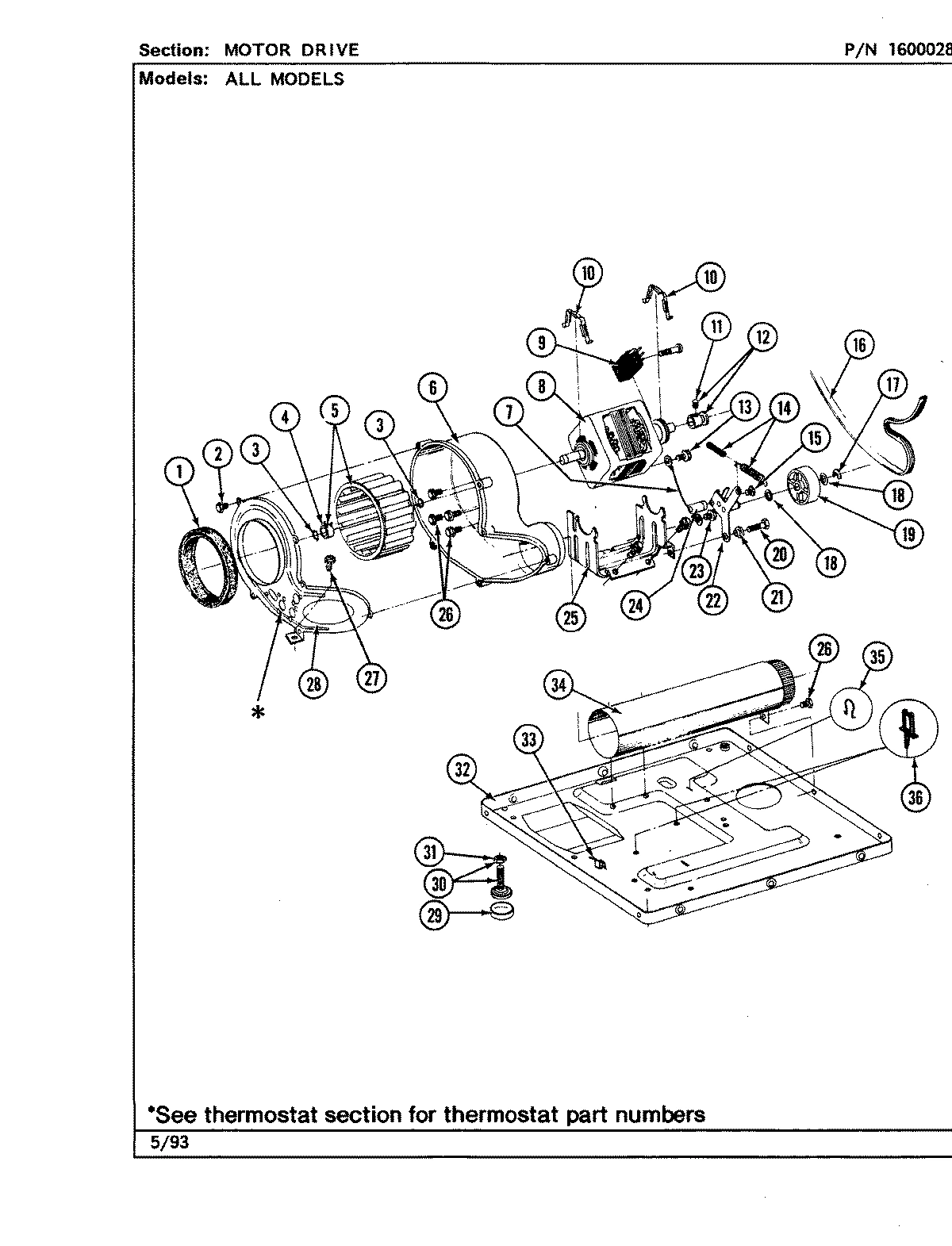

10 - MOTOR DRIVE (LDE7500ACL,ACW,ADL,ADW)

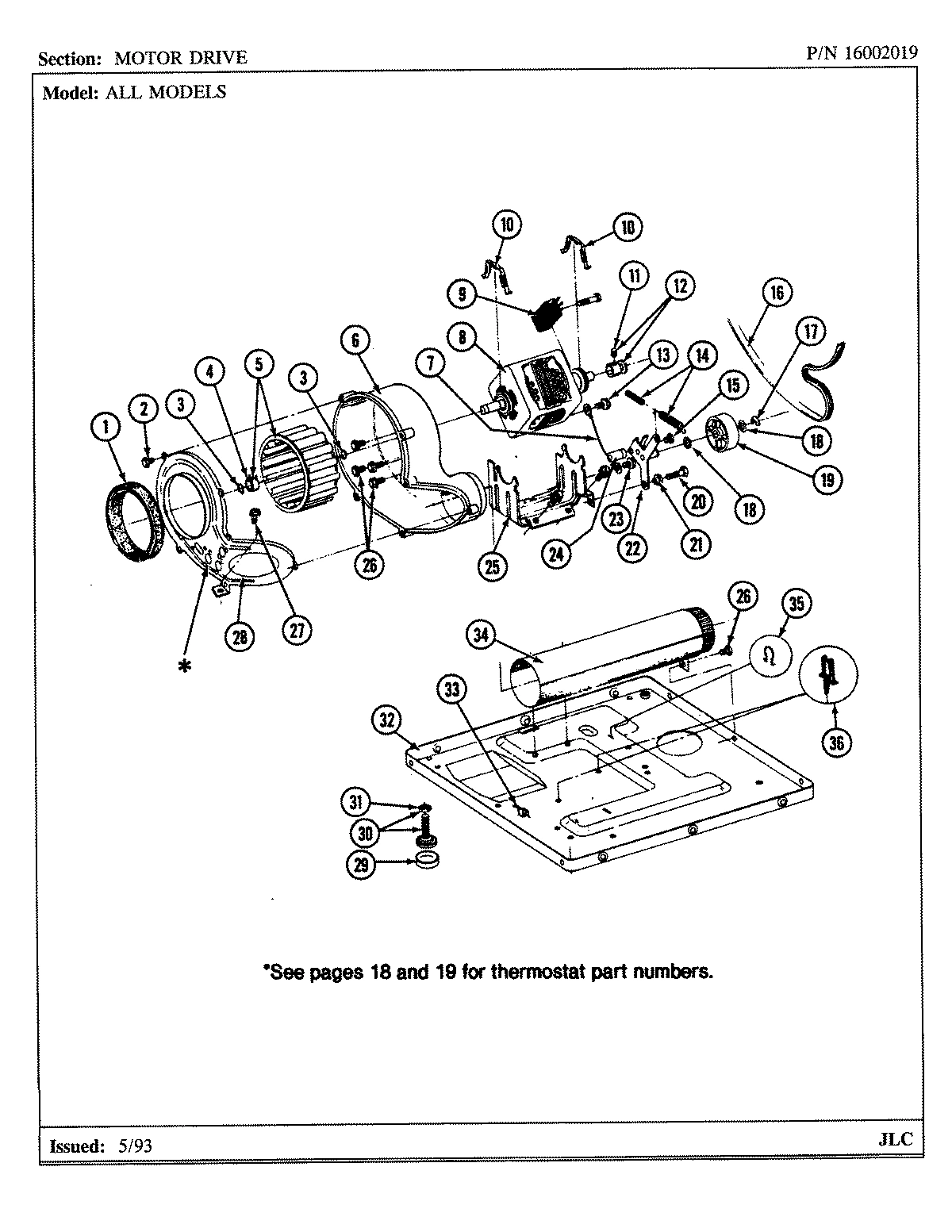

11 - MOTOR DRIVE (LDE7500ACM,ADM) & (LDG)
12 - MOTOR DRIVE (LDG7500AAL,AAW,ABL,ABW)

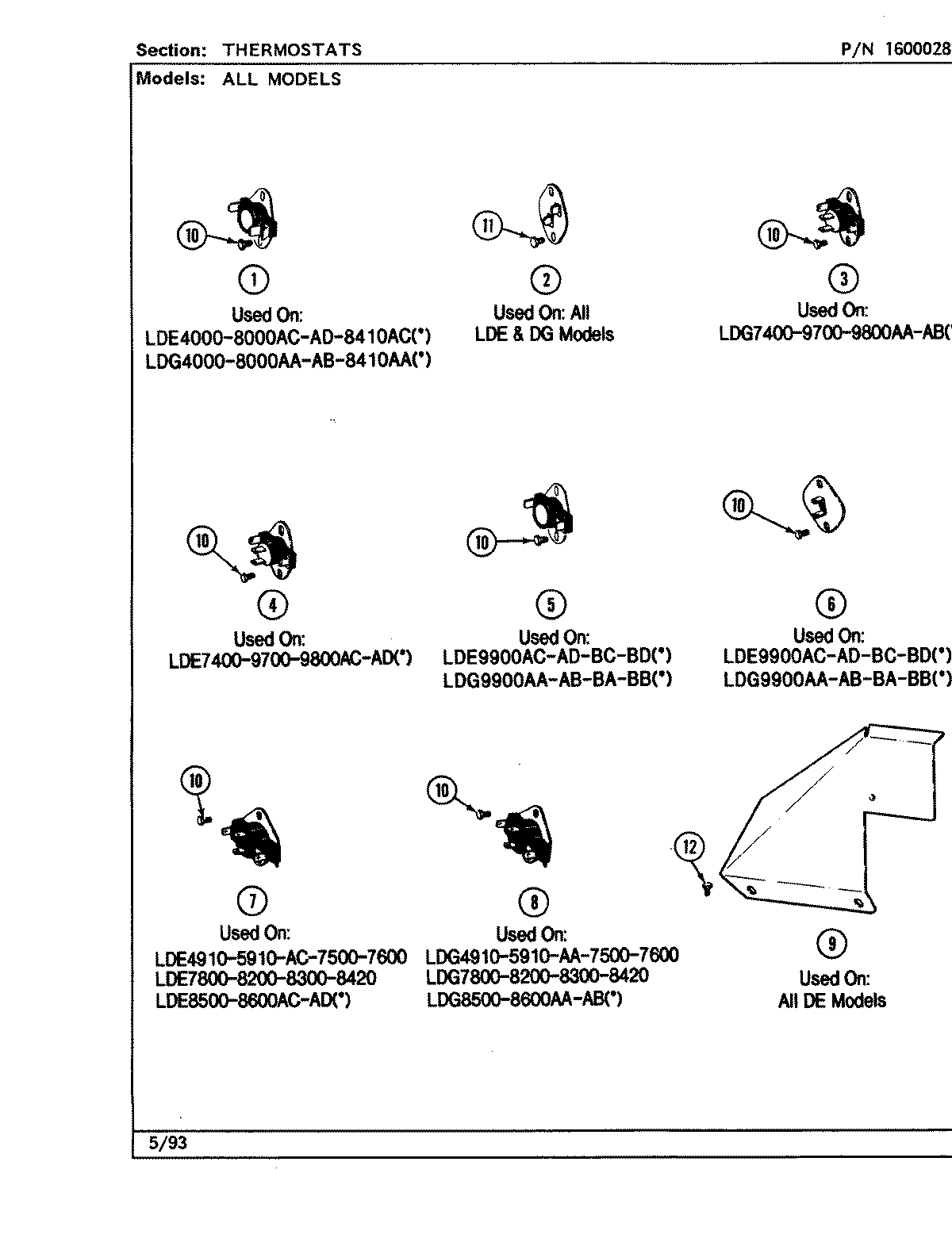

13 - THERMOSTATS (LDE7500ACL,ACW,ADL,ADW)

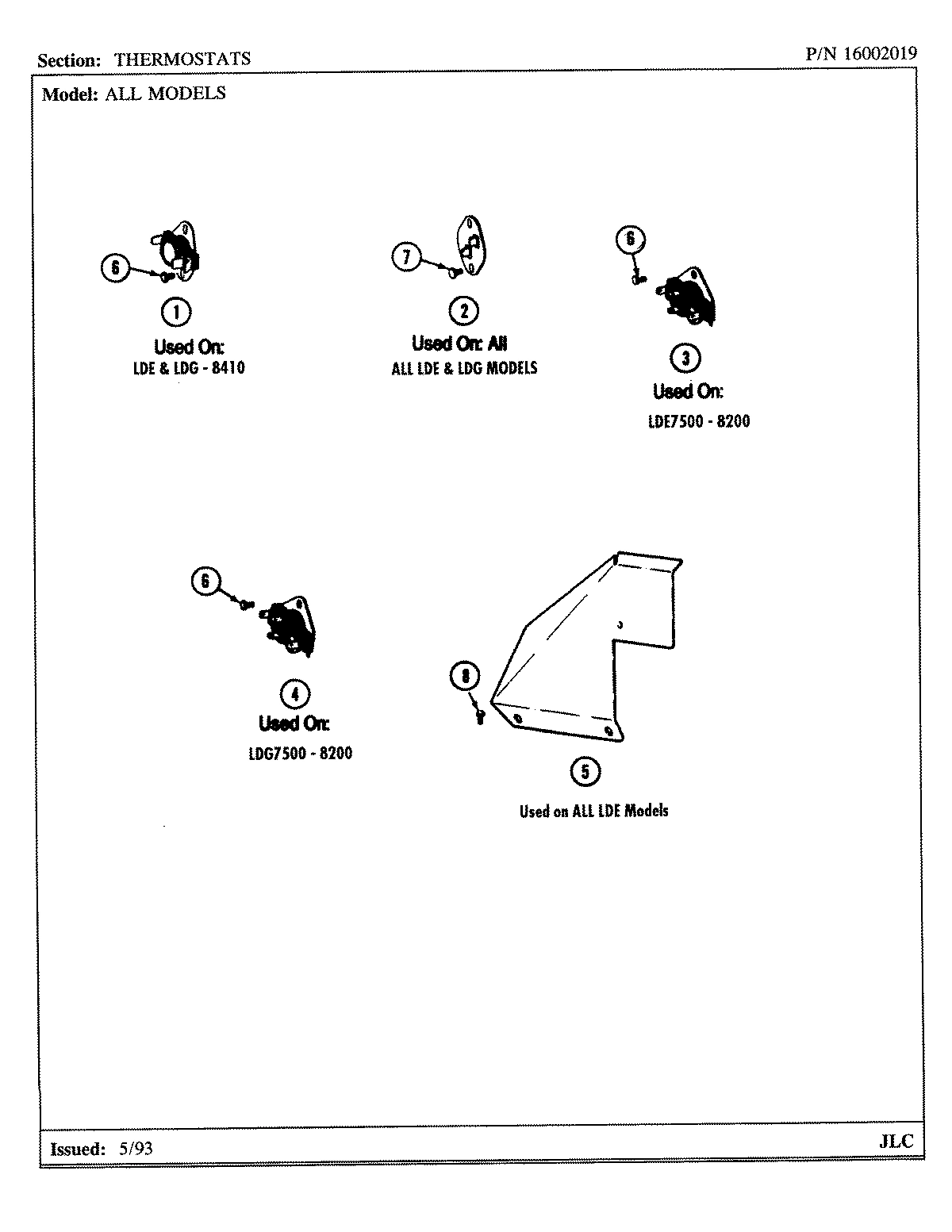

14 - THERMOSTATS (LDE7500ACM,ADM) & (LDG)

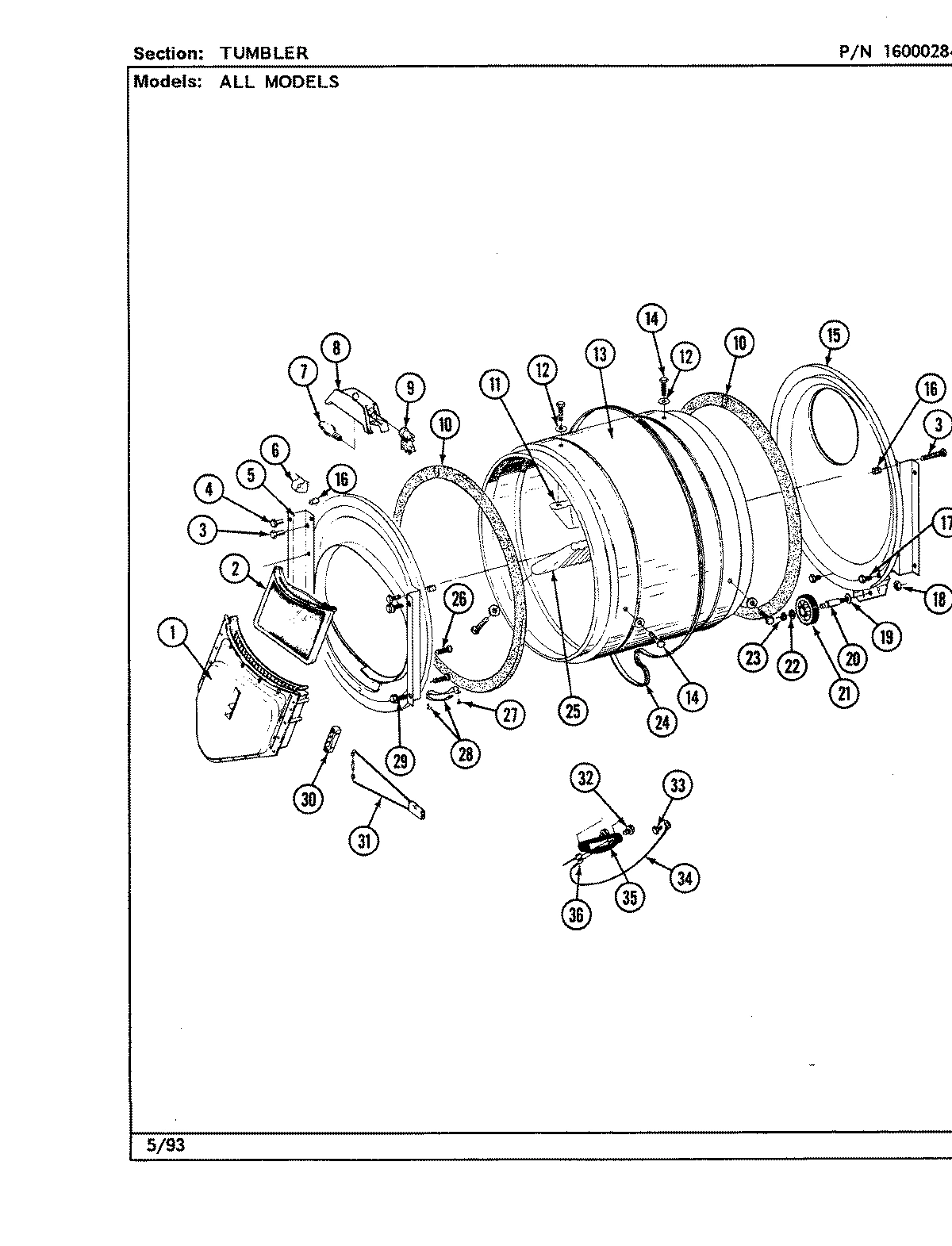

15 - TUMBLER (LDE7500ACL,ACW,ADL,ADW)
