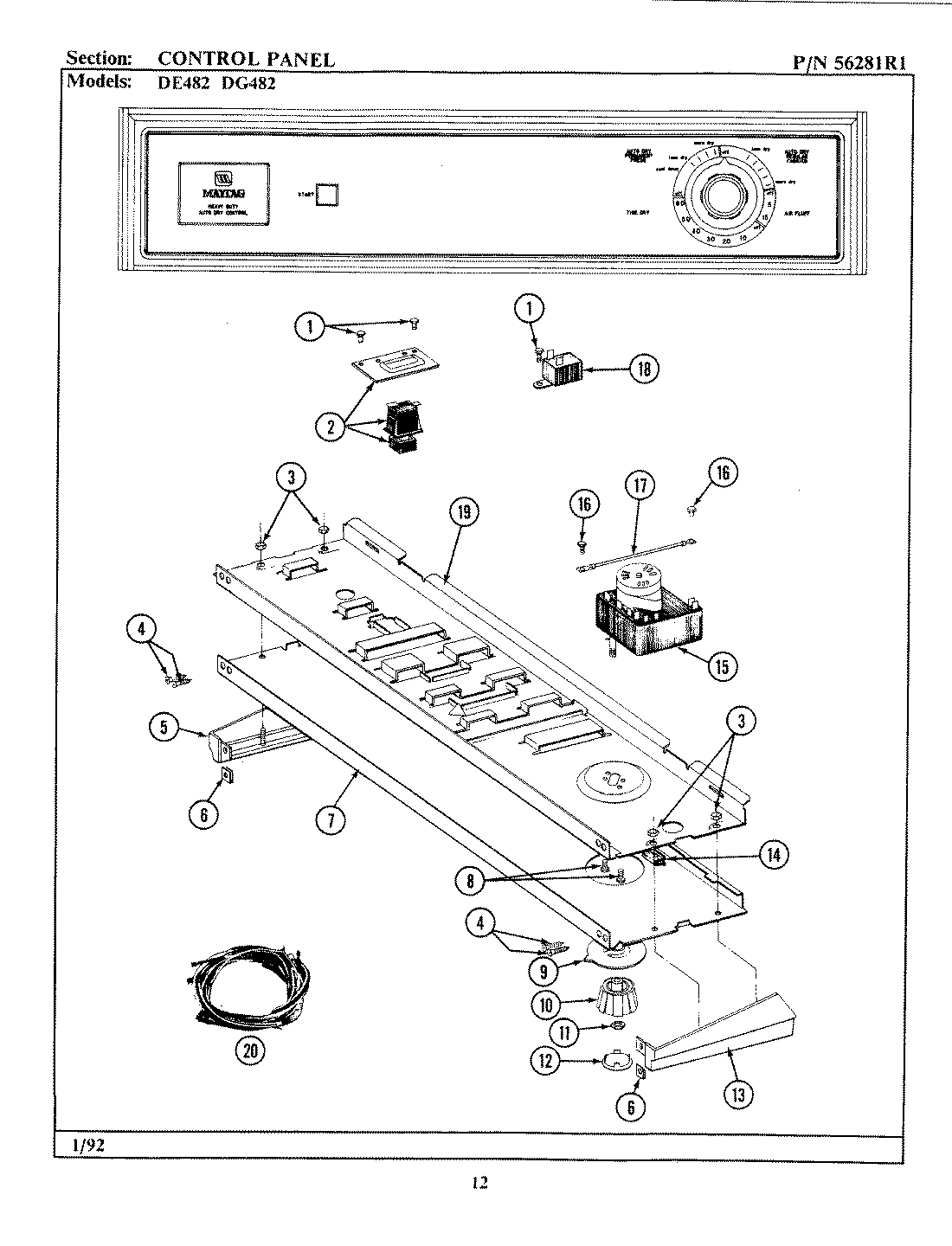

Model Whirlpool LDE482 ELECTRIC DRYER – Common Parts &amp; Diagrams

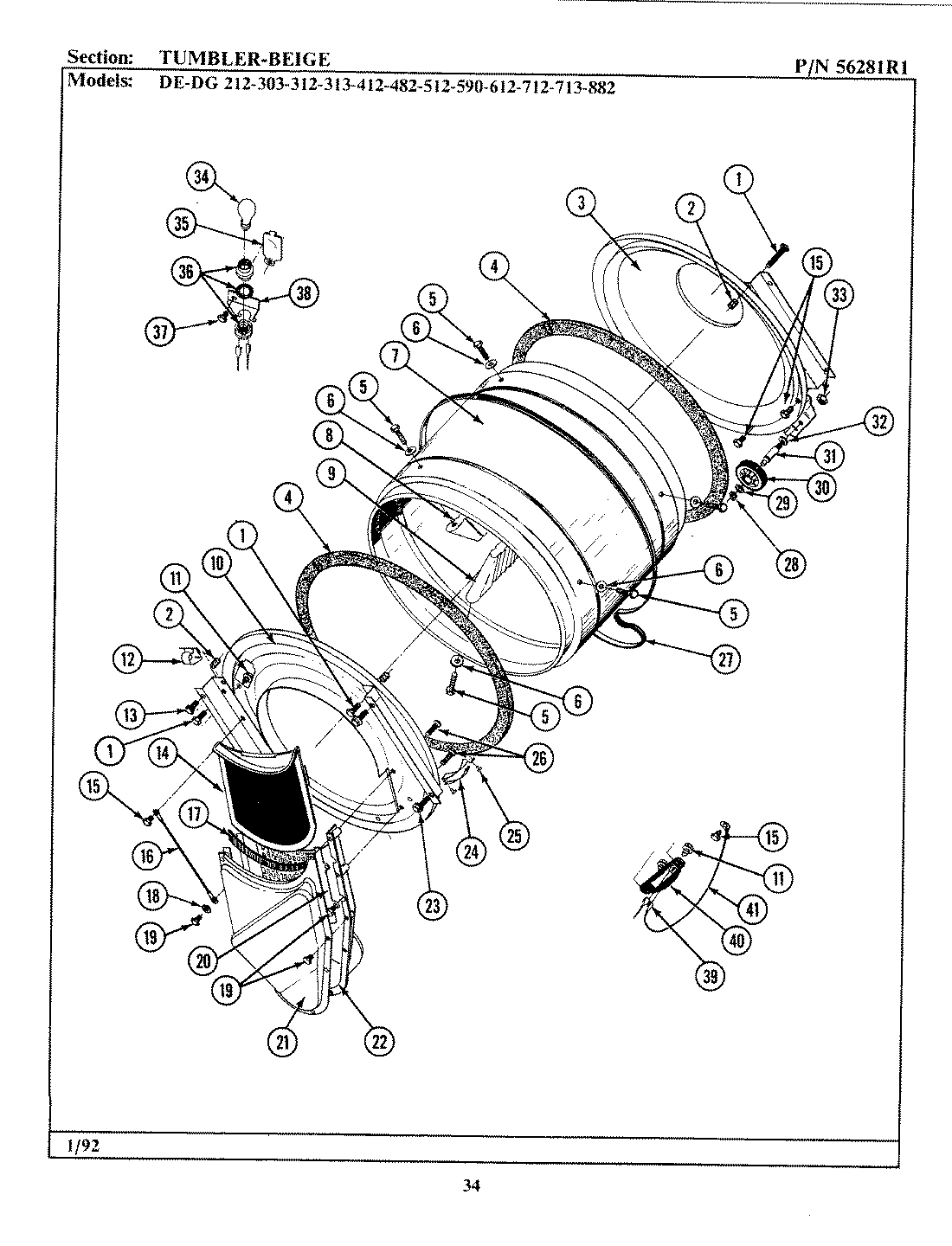

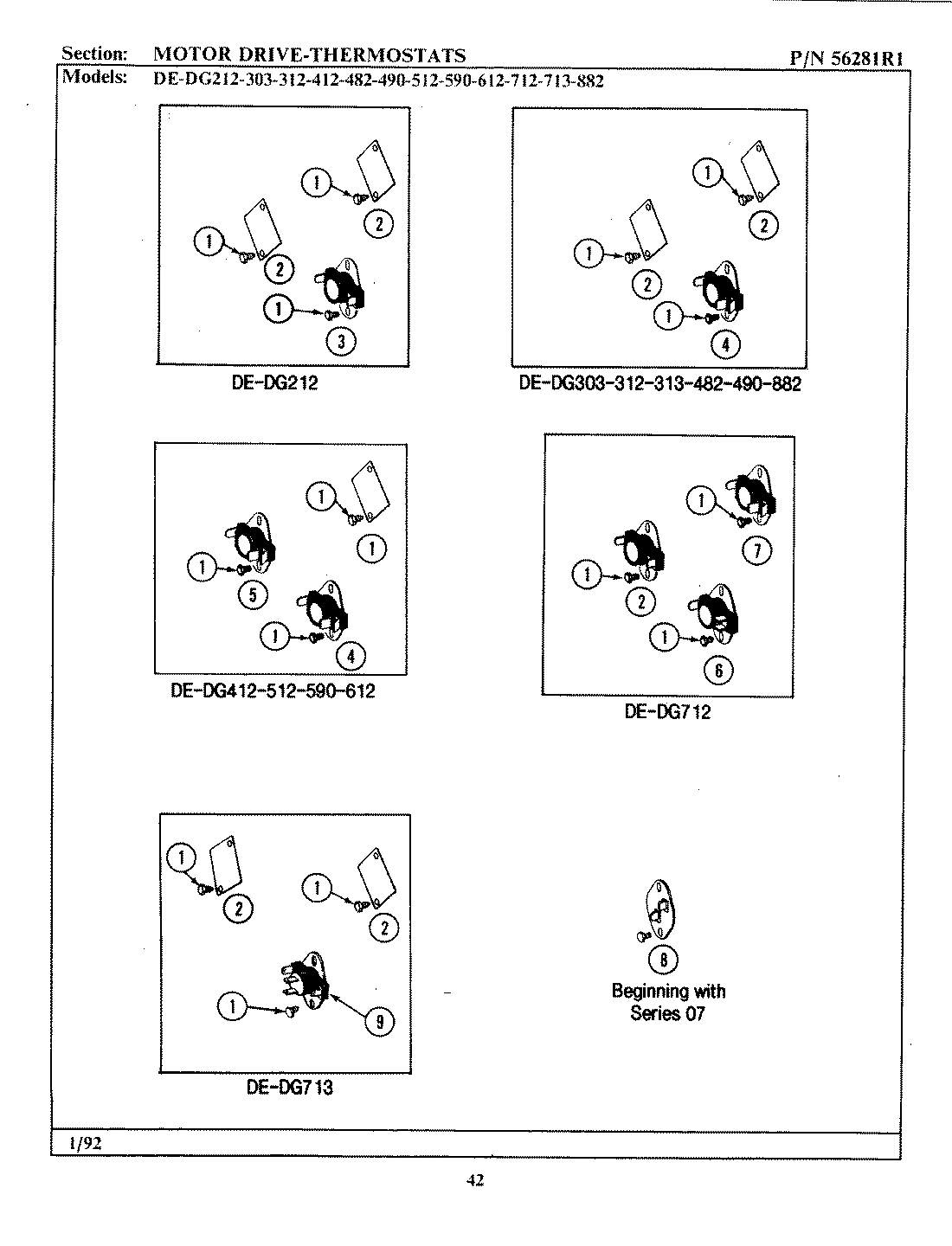

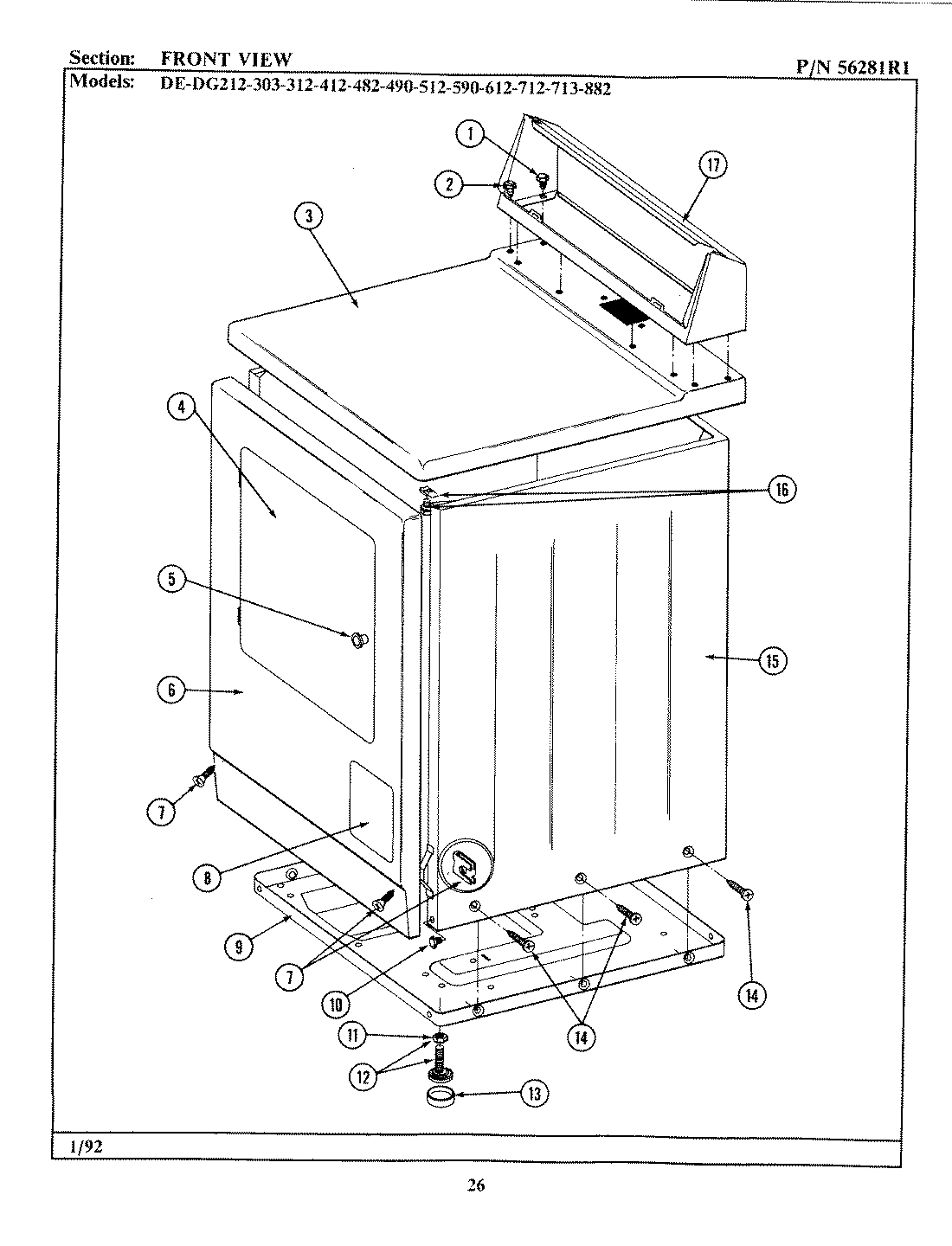

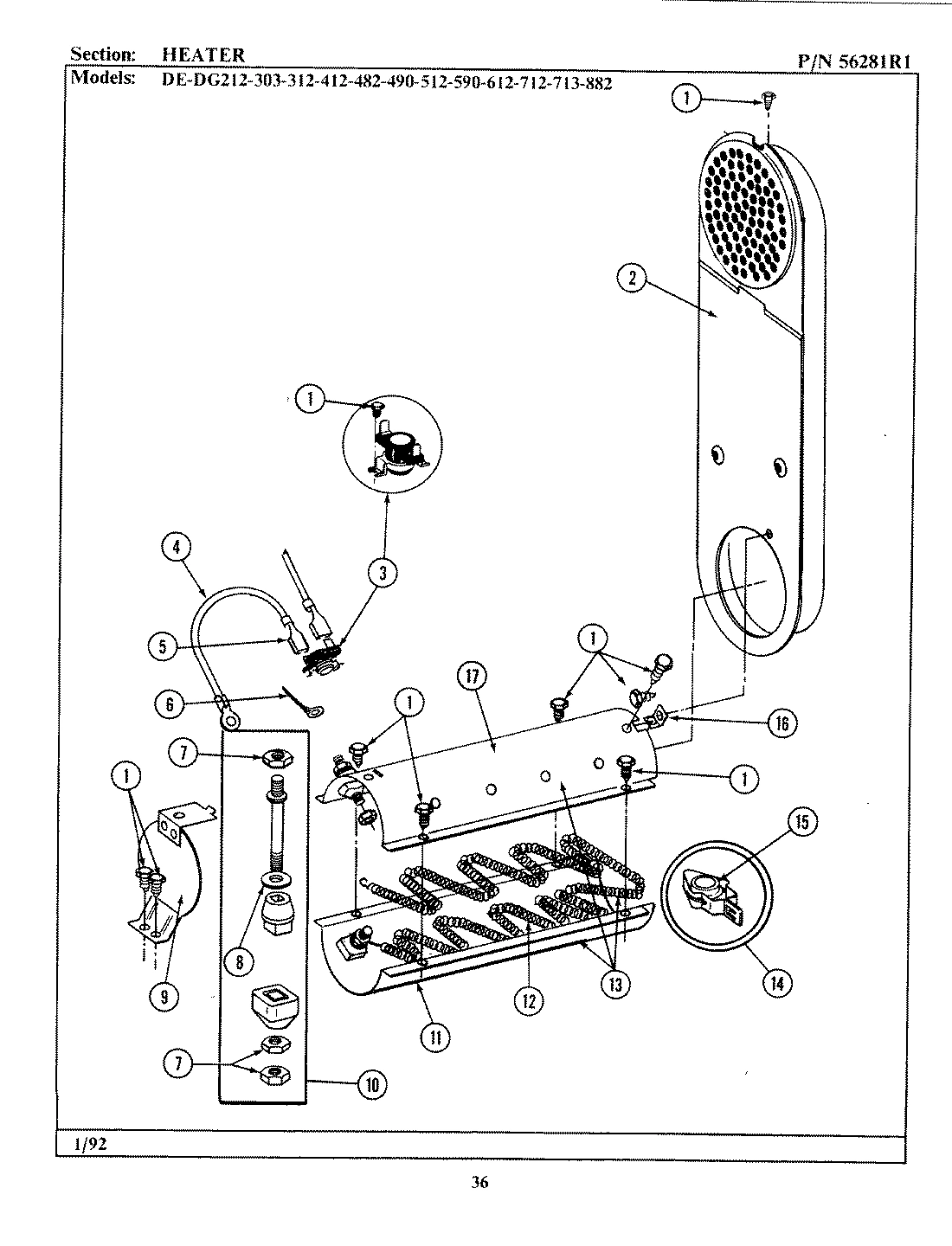

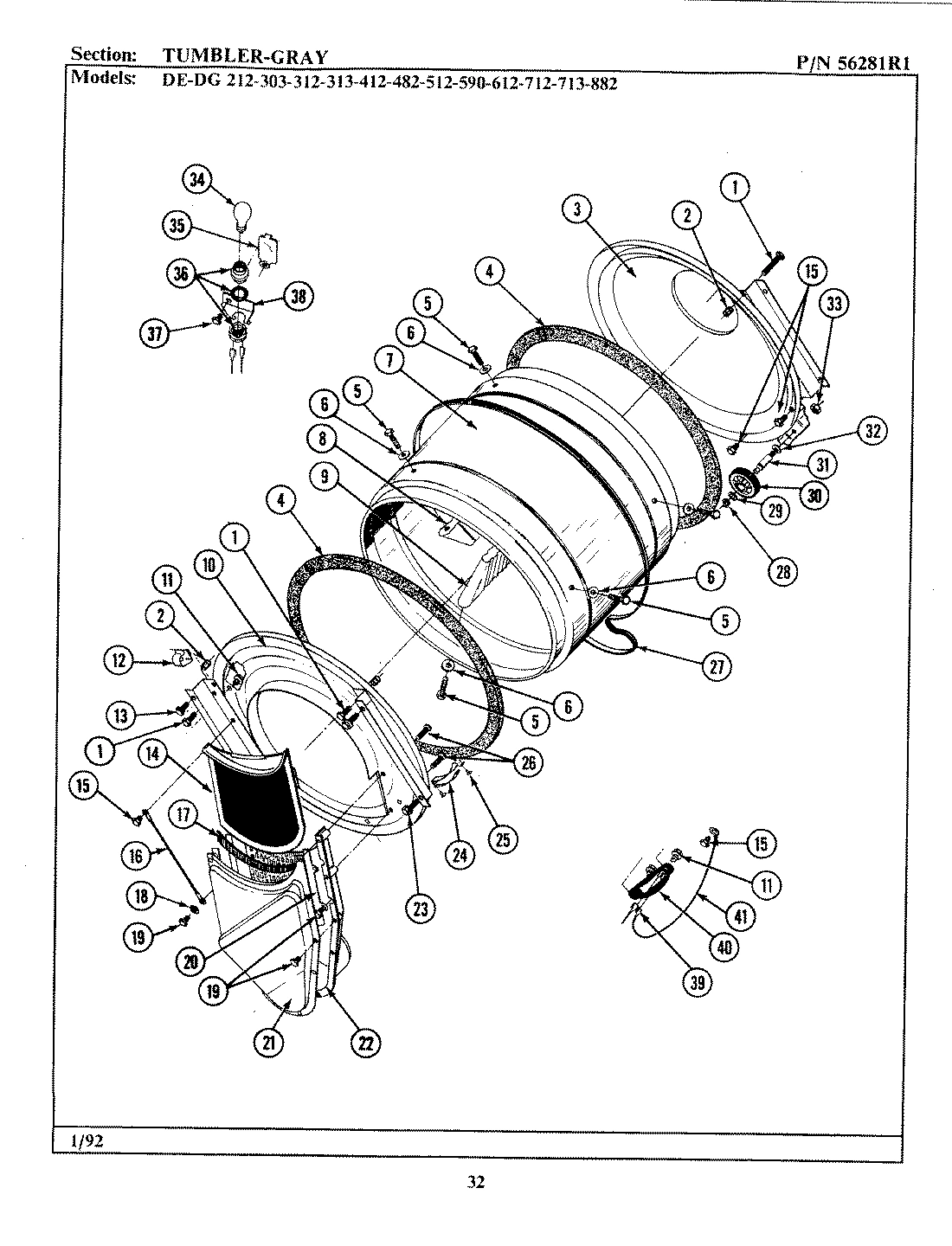

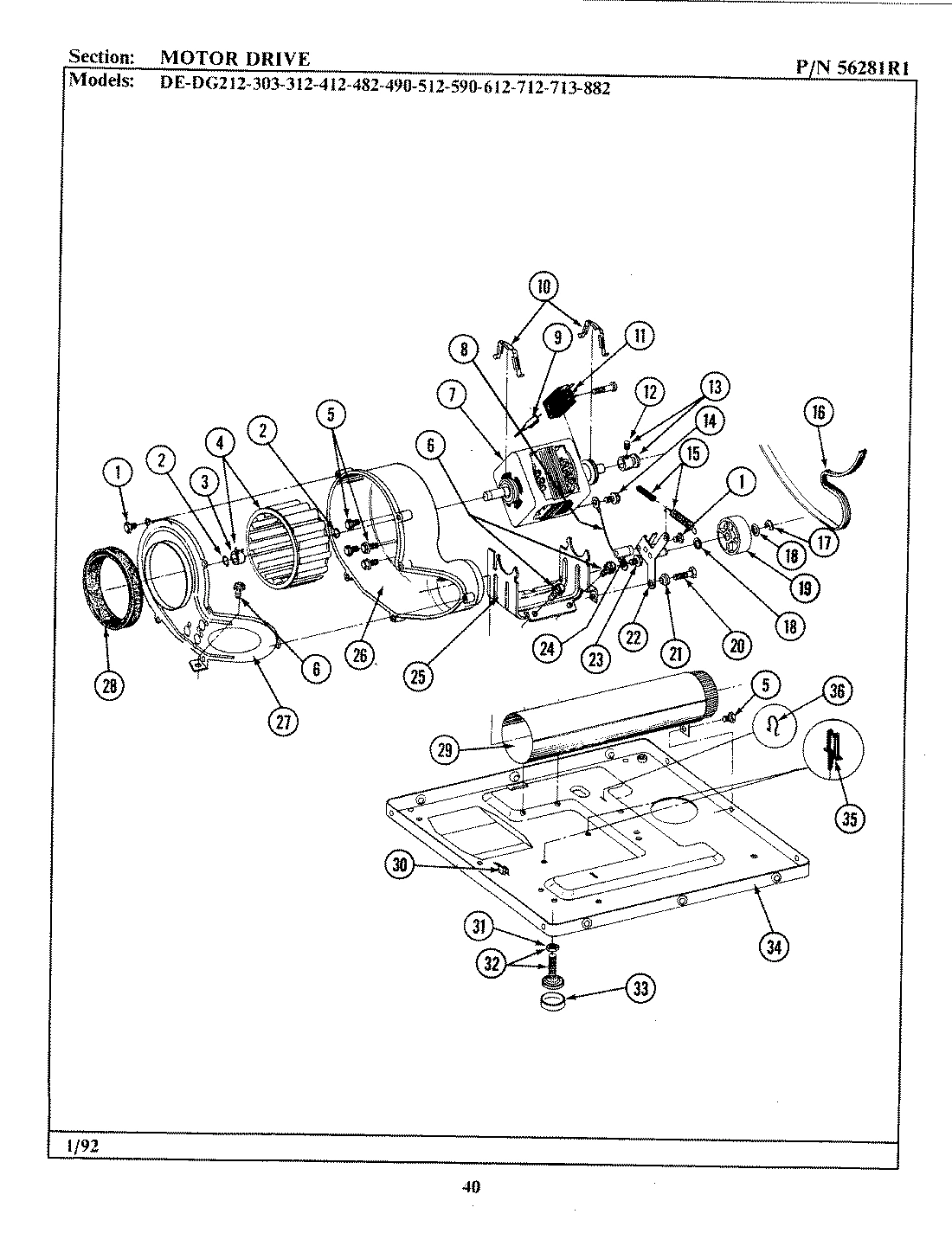

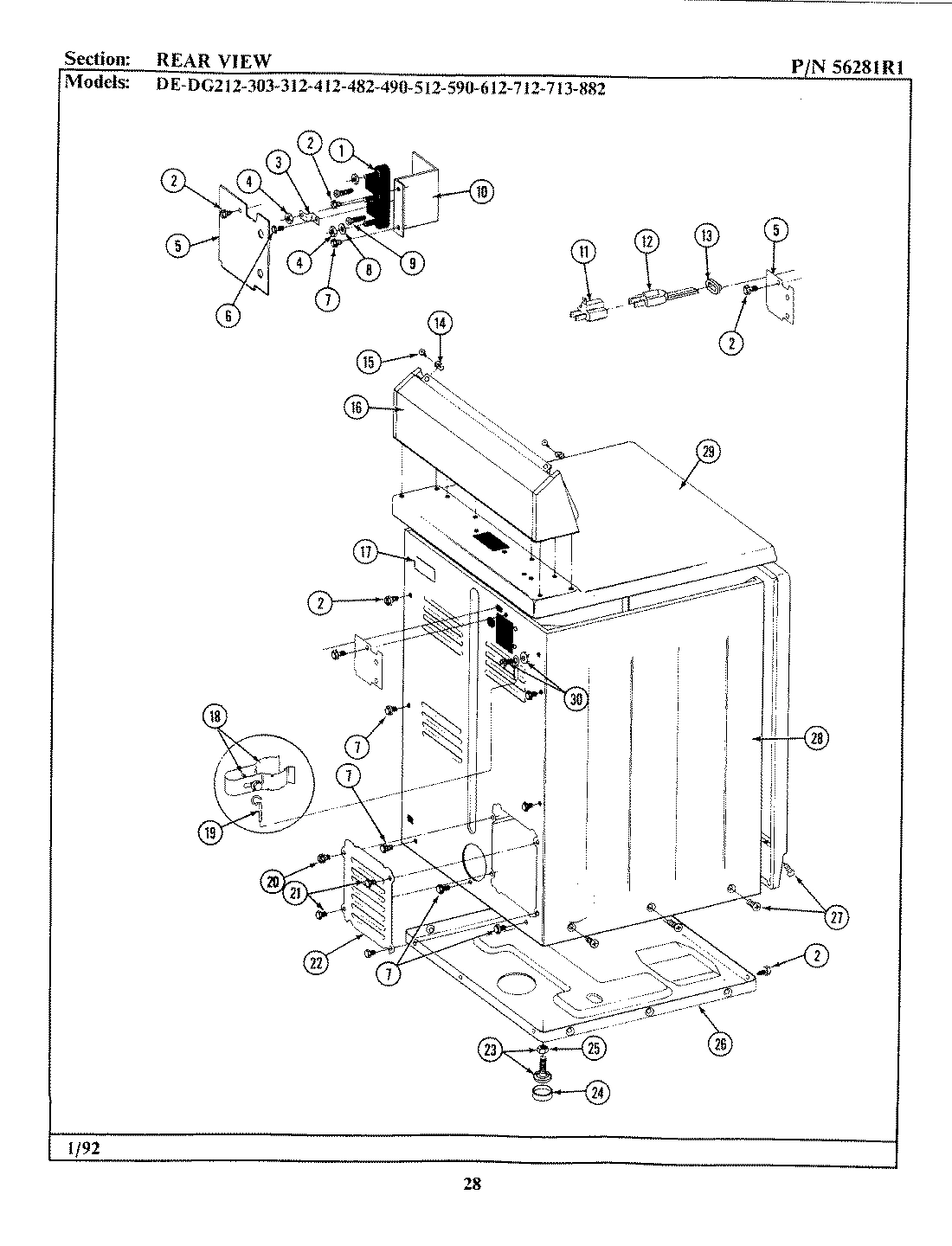

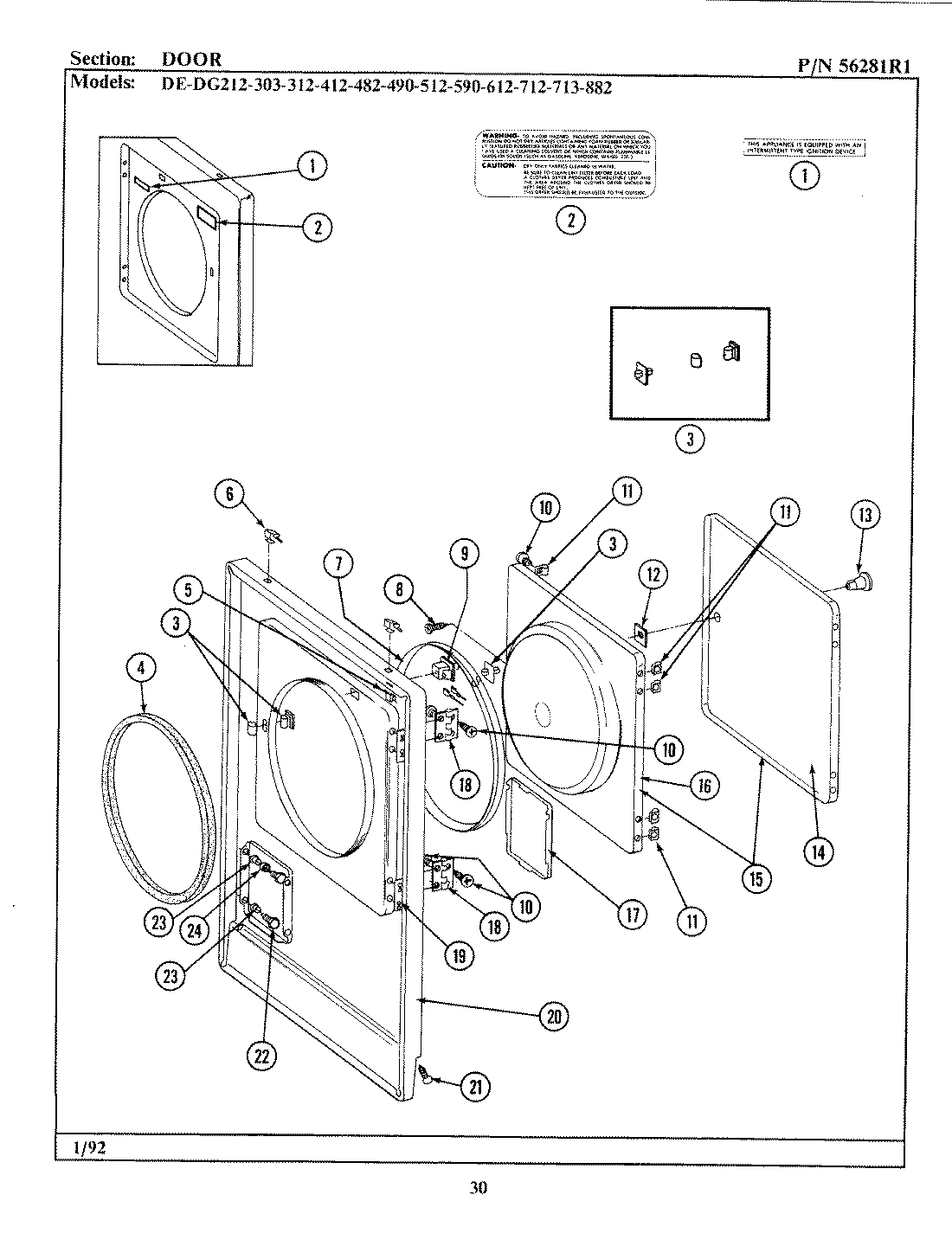

1

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

1

SCREW WPL 313764 Contact Us For Availability

1

LOCK WASHER WPL 211194 Contact Us For Availability

2

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

2

SCREW----NA WPL Y313561 Contact Us For Availability

2

SWITCH, PUSH/TO/START W/BKT WPL 306533 Contact Us For Availability

2

COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability

2

COVER, THREAD WPL 313915 Contact Us For Availability

2

INSTRUCTION LABEL WPL Y313927 Contact Us For Availability

2

INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability

3

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $2.98

3

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $15.21

3

WP303896 Whirlpool High Limit Thermostat Backorder WPL WP303896 $49.72

3

WP312967 Whirlpool Clamp In Stock WPL WP312967 $4.78

3

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

3

PALNUT, END CAP WPL 214872 Contact Us For Availability

3

TUMBLER BACK WPL Y306660 Contact Us For Availability

3

STRAP, GROUND WPL Y312184 Contact Us For Availability

4

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.55

4

WP314820 Whirlpool Felt Seal In Stock WPL WP314820 $15.28

4

WPY304475 Whirlpool Dryer Cycling Thermostat In Stock WPL WPY304475 $47.01

4

WPY304693 Whirlpool Wire Jumper In Stock WPL WPY304693 $3.70

4

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $9.74

4

SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability

4

DOOR, ALMOND WPL 306668L Contact Us For Availability

5

SCREW WPL Y310759 Contact Us For Availability

5

END CAP F/CONTROL PANEL-LH WPL 214815 Contact Us For Availability

5

KNOB AND SCREW WPL 303942 Contact Us For Availability

5

WIRE TERMINAL WPL 210745 Contact Us For Availability

5

COVER, TERMINAL WPL Y312905 Contact Us For Availability

6

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $3.88

6

WP489483 Whirlpool Screw Backorder WPL WP489483 $4.58

6

FASTENER, END CAP WPL 214894 Contact Us For Availability

6

WASHER WPL 314158 Contact Us For Availability

6

FRONT PANEL-ALMOND WPL 304595L Contact Us For Availability

6

WIRE WPL 306448 Contact Us For Availability

7

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $79.39

7

SCREW WPL Y310632 Contact Us For Availability

7

CONTROL PANEL WPL 306383 Contact Us For Availability

7

TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability

7

TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability

7

DOOR SEAL WPL 314077 Contact Us For Availability

7

SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability

8

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

8

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $14.55

8

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $2.55

8

BAFFLE (SHORT) WPL 314803 Contact Us For Availability

8

WIRE, GROUND WPL 901220 Contact Us For Availability

9

33001004 Whirlpool Baffle In Stock WPL 33001004 $59.53

9

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $11.09

9

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.96

9

TIMER DIAL INDICATOR WPL 314422 Contact Us For Availability

9

HEATER SHIELD WPL 304124 Contact Us For Availability

WFR314421 Whirlpool AD-25,50 T Backorder WPL WFR314421 $28.14

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $9.36

Y304596 Whirlpool Terminal Insulator Assembly Backorder WPL Y304596 $12.05

TUMBLER FRONT----NA WPL 306670 Contact Us For Availability

SCREW WPL Y314062 Contact Us For Availability

BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability

W10155650 Whirlpool Nut Backorder WPL W10155650 $9.75

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability

W10116793 Whirlpool Element Backorder WPL W10116793 $102.25

WPY313538 Whirlpool Heater Element In Stock WPL WPY313538 $25.97

CAP FOR KNOB WPL 215163 Contact Us For Availability

DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

13

WPY303404 Whirlpool Heating Element In Stock WPL WPY303404 $180.84

13

END CAP F/CONTROL PANEL-RH WPL 214816 Contact Us For Availability

13

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

WP33001003 Whirlpool Lint Filter In Stock WPL WP33001003 $15.26

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.14

WPY303881 Whirlpool Clip and Insulator Backorder WPL WPY303881 $9.30

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

DOOR PANEL-ALMOND WPL 313908L Contact Us For Availability

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

WP305448 Whirlpool Timer Backorder WPL WP305448 $197.83

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

DOOR-ALMOND WPL 304579L Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $11.86

WIRE, GROUND WPL 205810 Contact Us For Availability

INNER DOOR WITH KNOB & SCRE WPL 305835 Contact Us For Availability

INNER DOOR WITH KNOB WPL 306676 Contact Us For Availability

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

CONSOLE (WHT) WPL Y305193 Contact Us For Availability

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

LINT SEAL WPL Y313796 Contact Us For Availability

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

CONSOLE (ALM) WPL 305193L Contact Us For Availability

HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability

LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $55.40

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $4.04

WASHER WPL 310557 Contact Us For Availability

DOOR HINGE WPL Y304577 Contact Us For Availability

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

19

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $6.70

19

BACK UP PLATE WPL 314184 Contact Us For Availability

19

TWIN FASTENER WPL Y313907 Contact Us For Availability

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $2.55

GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability

WIRE HARNESS WPL 305780 Contact Us For Availability

WIRE HARNESS - CANADA WPL 305782 Contact Us For Availability

WIRE HARNESS WPL 306814 Contact Us For Availability

WIRE HARNESS WPL 306820 Contact Us For Availability

21

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $4.78

21

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

21

OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $46.70

OUTLET DUCT ASSEMBLY WPL Y304810 Contact Us For Availability

OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability

OUTLET DUCT & GRID WPL 306657 Contact Us For Availability

COVER, ACCESS WPL Y312951 Contact Us For Availability

23

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

24

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $5.29

24

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $29.65

25

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

25

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.55

25

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

26

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.55

26

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

26

BASE ASSY. WPL Y303361 Contact Us For Availability

27

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.55

27

COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability

27

COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability

28

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $31.81

28

CABINET-ALMOND WPL 305302L Contact Us For Availability

29

WP312535 Whirlpool Washer Backorder WPL WP312535 $5.02

29

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

29

TOP COVER ASSY WPL 307104L Contact Us For Availability

30

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $8.00

30

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.55

30

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

31

6-3129480CM Choice Shaft-Tumblr In Stock CMP 6-3129480CM $3.19

33

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $2.55

35

RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability

36

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
