Model LG LDE4415BD.ABDLLGA 7.3 cu. ft. Electric Double Oven Range with ProBake Convection, EasyClean and Infrared Heating Syste – Common Parts & Diagrams

Common parts from model LG LDE4415BD.ABDLLGA 7.3 cu. ft. Electric Double Oven Range with ProBake Convection, EasyClean and Infrared Heating Syste

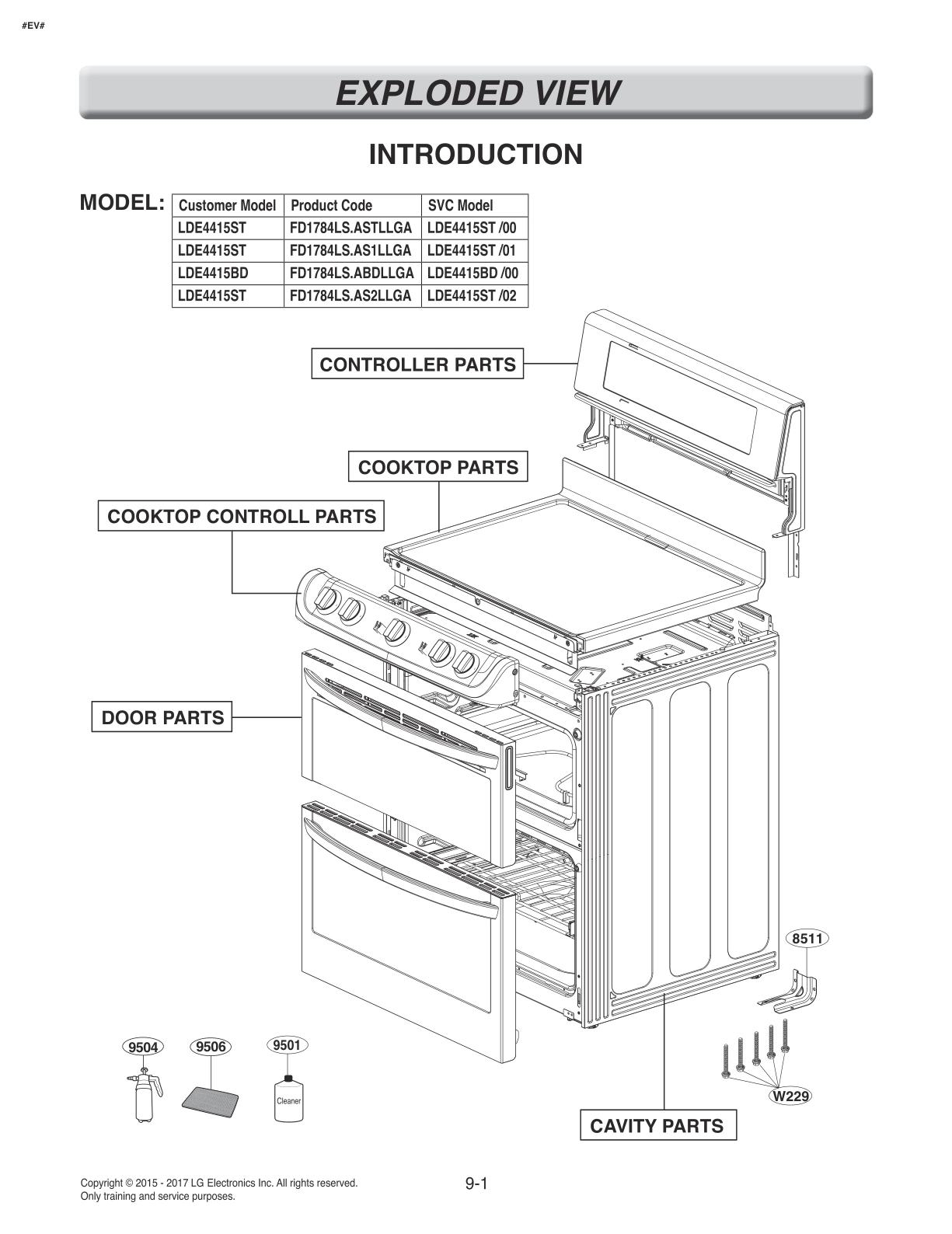

INTRODUCTION

Print

• This Diagram
• All Diagrams

170L

MAZ64607602 LG Hinge Bracket Backorder LGE MAZ64607602 View Details $23.86

View on Model

170R

MAZ64607601 LG Hinge Bracket Backorder LGE MAZ64607601 View Details $23.86

View on Model

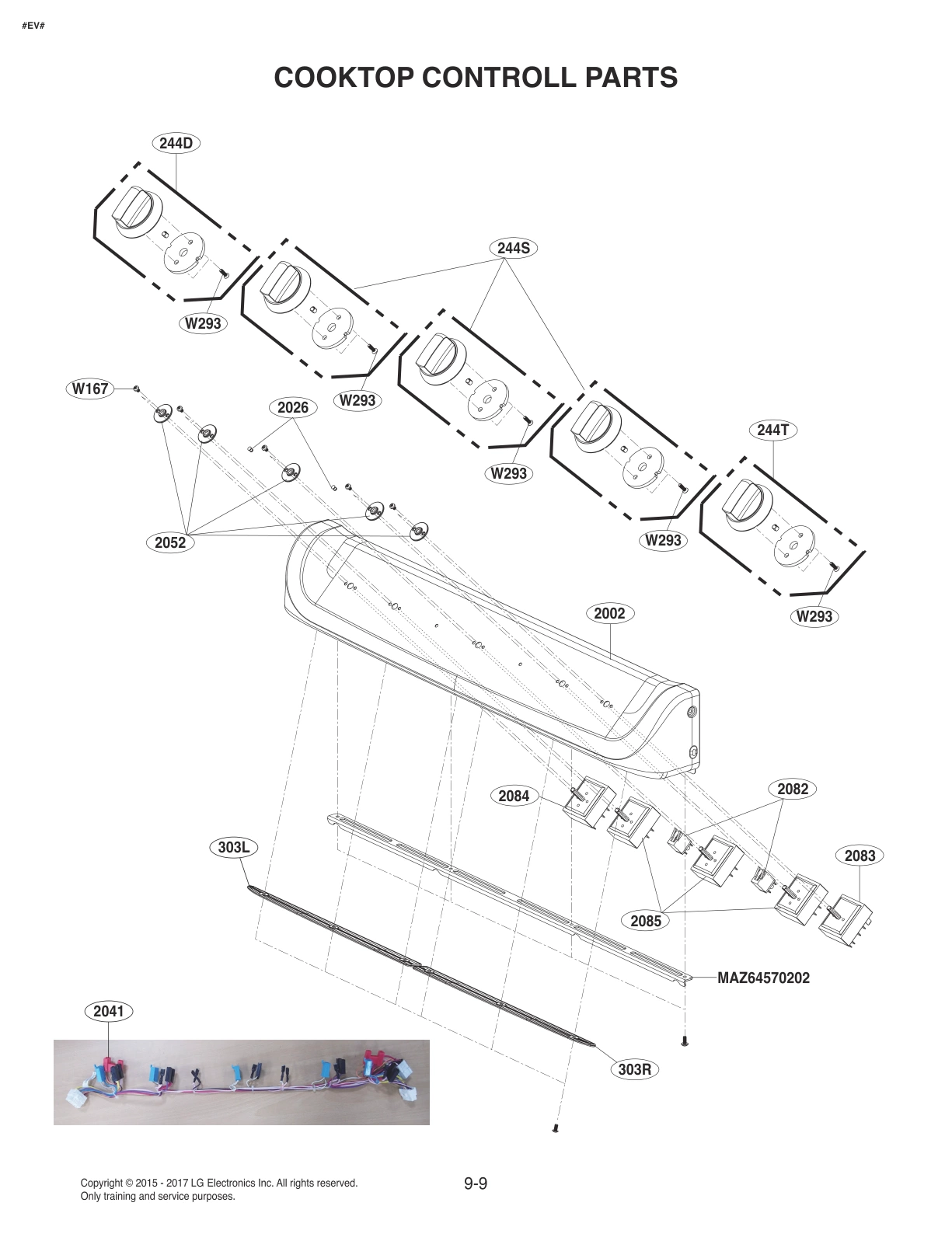

244D

AEZ74073415 LG Knob Assembly Backorder LGE AEZ74073415 View Details $72.13

View on Model

244S

AEZ74073416 LG Knob Assembly Backorder LGE AEZ74073416 View Details $72.13

View on Model

244T

AEZ74073417 LG Knob Assembly Backorder LGE AEZ74073417 View Details $72.13

View on Model

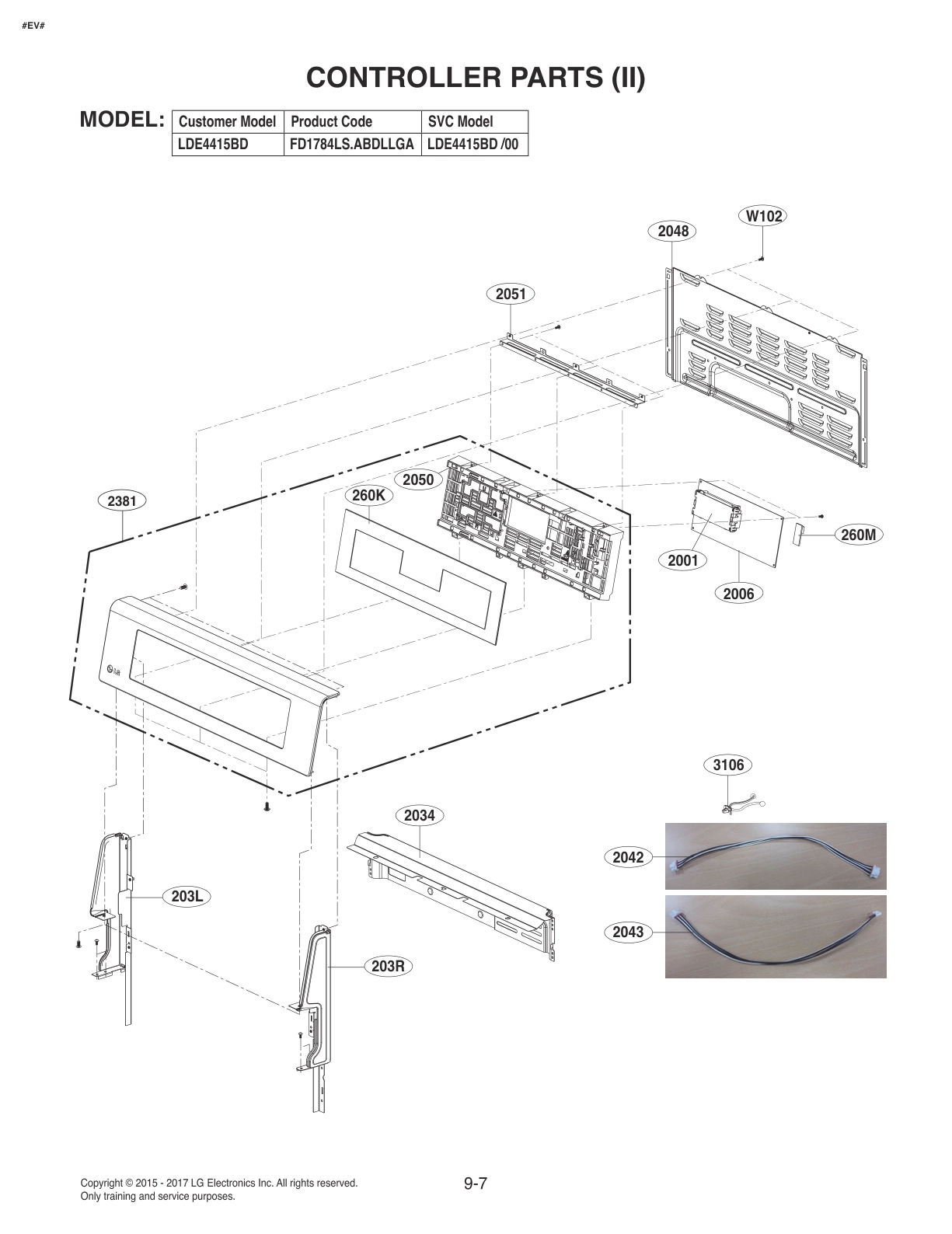

260K

EBR35185801 LG PCB Sub Assembly In Stock LGE EBR35185801 View Details $109.49

View on Model

260M

EBR78789101 LG Printed Circuit Board Module A In Stock LGE EBR78789101 View Details $30.60

View on Model

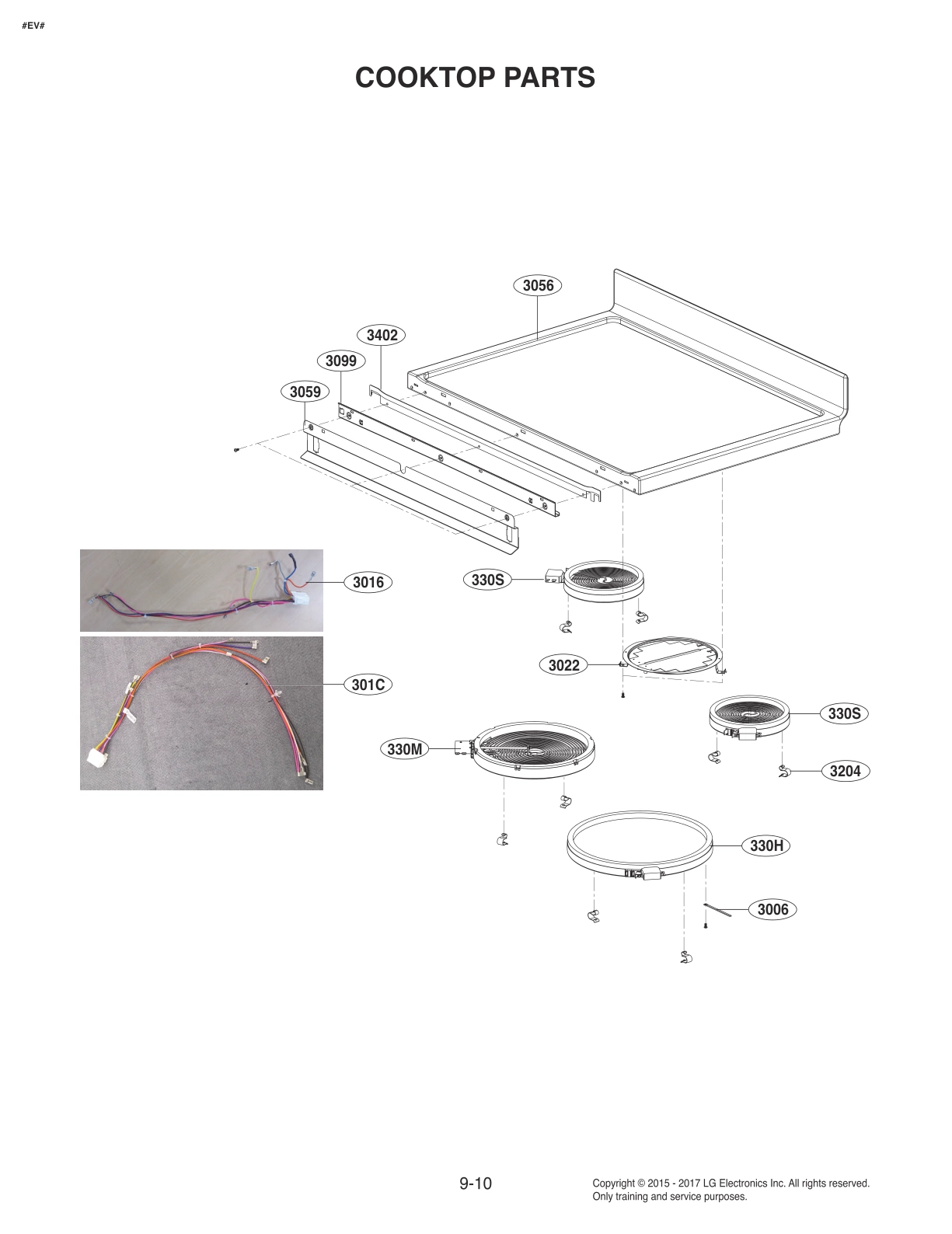

330H

MEE62704901 LG Radiation Heater Backorder LGE MEE62704901 View Details $217.03

View on Model

330M

MEE62385201 LG Range Oven Heater Element Backorder LGE MEE62385201 View Details $185.17

View on Model

330S

MEE62385001 LG Heater Radiation Backorder LGE MEE62385001 View Details $203.74

View on Model

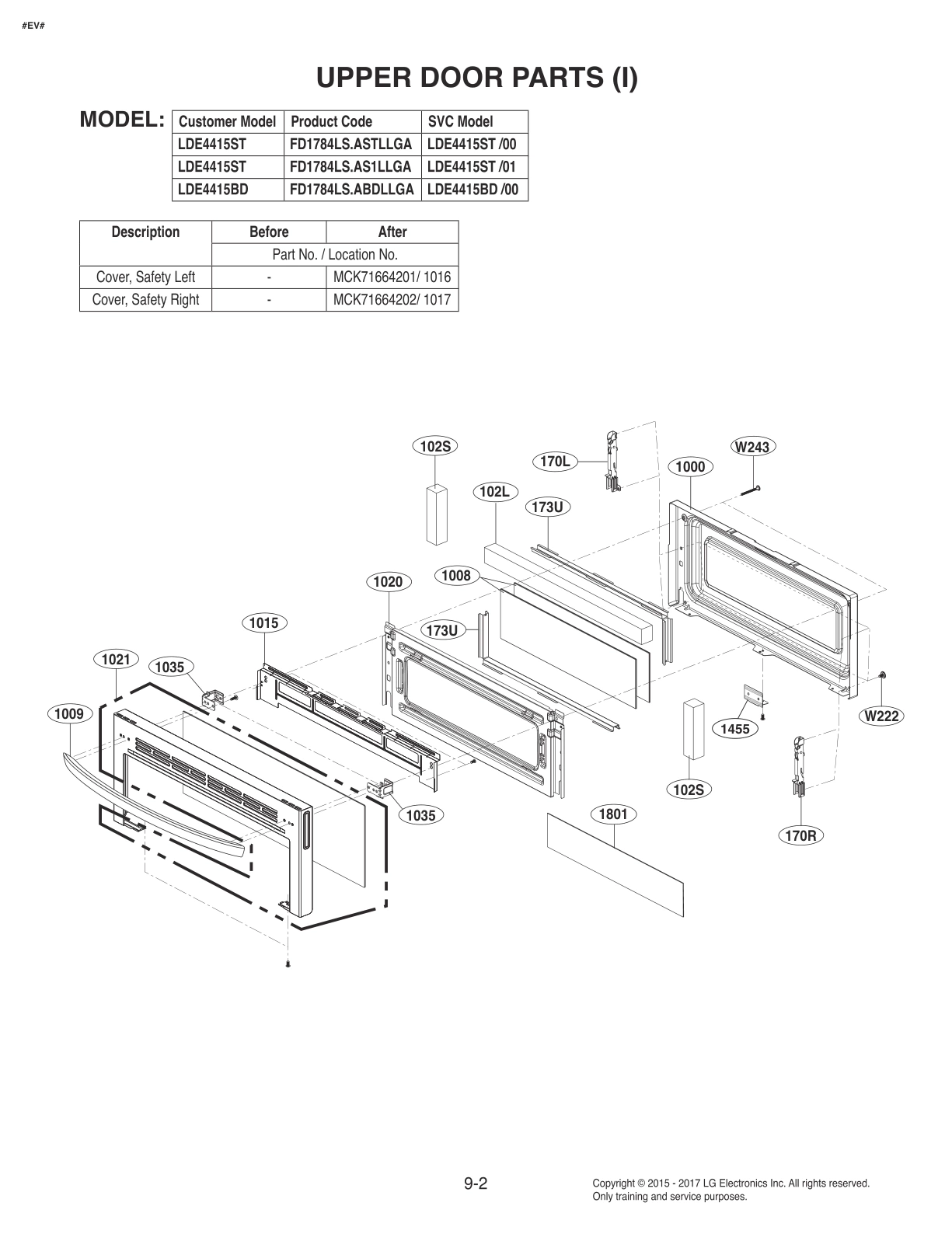

1000

MDQ64177102 LG Door Frame Backorder LGE MDQ64177102 View Details $132.54

View on Model

1008

4890W1N005P LG Glass Window Backorder LGE 4890W1N005P View Details $90.52

View on Model

1009

MEB62494914 LG Range Door Handle Backorder LGE MEB62494914 View Details $115.90

View on Model

1009

MEB63574005 LG Door Handle Backorder LGE MEB63574005 View Details $115.90

View on Model

1018

4890W1N005W LG Glass Window Backorder LGE 4890W1N005W View Details $72.13

View on Model

1021

ACQ87912304 LG Poise Cover Assembly Backorder LGE ACQ87912304 View Details $217.03

View on Model

1035

MJH64673101 LG Handle Support Assembly Backorder LGE MJH64673101 View Details $6.11

View on Model

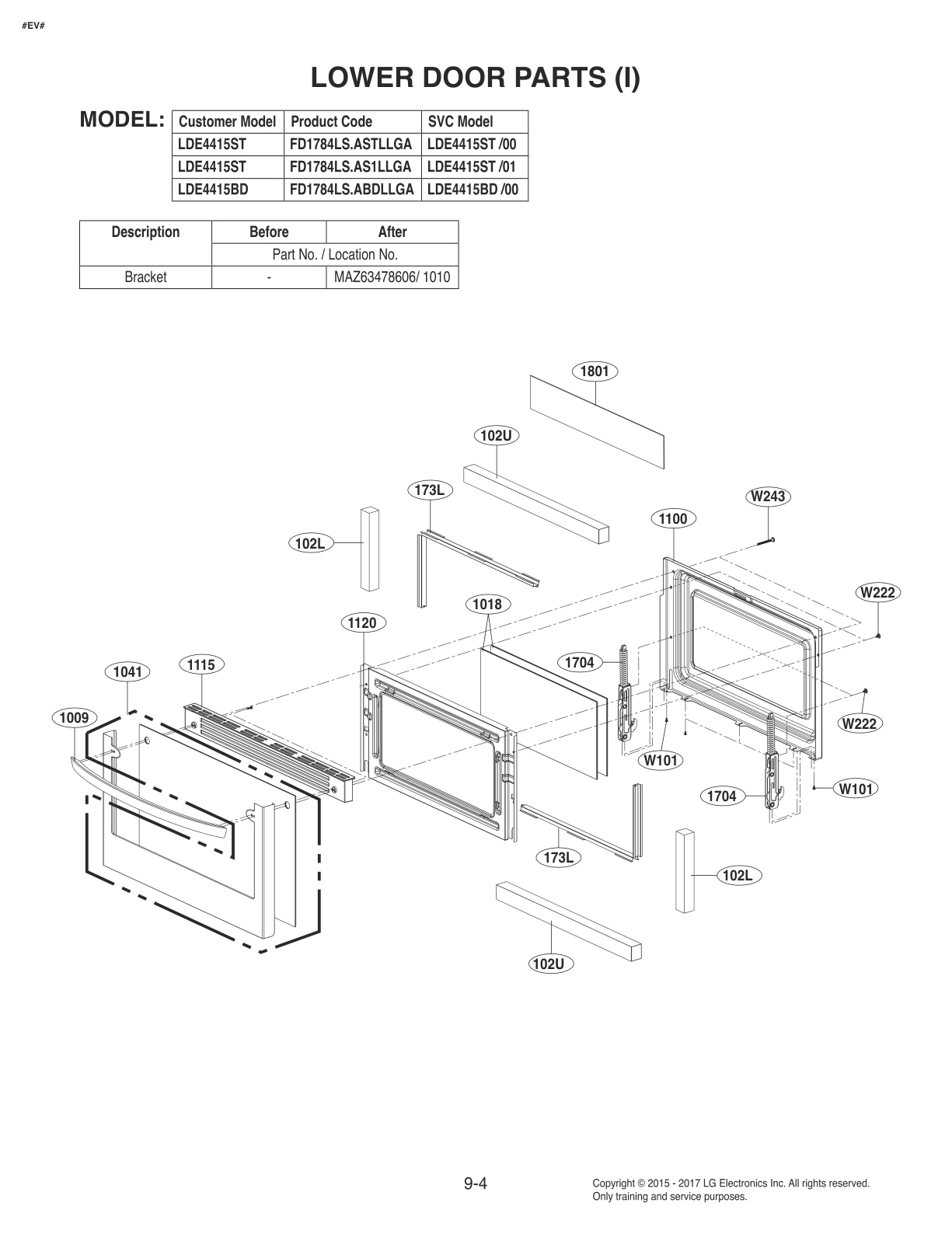

1041

ACQ87912404 LG Poise Cover Assembly Backorder LGE ACQ87912404 View Details $178.04

View on Model

1100

MDQ64177302 LG Door Frame Backorder LGE MDQ64177302 View Details $150.14

View on Model

1115

MCR65828301 LG Door Decor Backorder LGE MCR65828301 View Details $55.55

View on Model

1704

AEH72957514 LG Hinge Assembly Backorder LGE AEH72957514 View Details $81.12

View on Model

2001

MCK68548601 LG Display Cover Backorder LGE MCK68548601 View Details $9.72

View on Model

2006

EBR87050401 LG Main PCB Assembly Backorder LGE EBR87050401 View Details $280.09

View on Model

2041

EAD63685603 LG Harness Assembly Backorder LGE EAD63685603 View Details $115.90

View on Model

2042

EAD34822942 LG Harness Assembly Backorder LGE EAD34822942 View Details $20.09

View on Model

2043

EAD34822956 LG Harness Single Backorder LGE EAD34822956 View Details $23.86

View on Model

2050

MJH63756201 LG PCB Supporter Backorder LGE MJH63756201 View Details $55.55

View on Model

2052

MGZ63727001 LG Range Guide Ring Backorder LGE MGZ63727001 View Details $6.11

View on Model

2082

EAQ60658301 LG Lamp Neon Backorder LGE EAQ60658301 View Details $23.86

View on Model

2082

EAQ60658303 LG Neon Lamp Backorder LGE EAQ60658303 View Details $14.57

View on Model

2083

EBF62174906 LG Rotary Switch In Stock LGE EBF62174906 View Details $81.12

View on Model

2084

EBF62174904 LG Range Rotary Switch Backorder LGE EBF62174904 View Details $81.12

View on Model

2084

EBF62174907 LG Rotary Switch In Stock LGE EBF62174907 View Details $82.87

View on Model

2085

EBF62174905 LG Rotary Switch Backorder LGE EBF62174905 View Details $72.13

View on Model

2085

EBF62174908 LG Rotary Switch In Stock LGE EBF62174908 View Details $72.13

View on Model

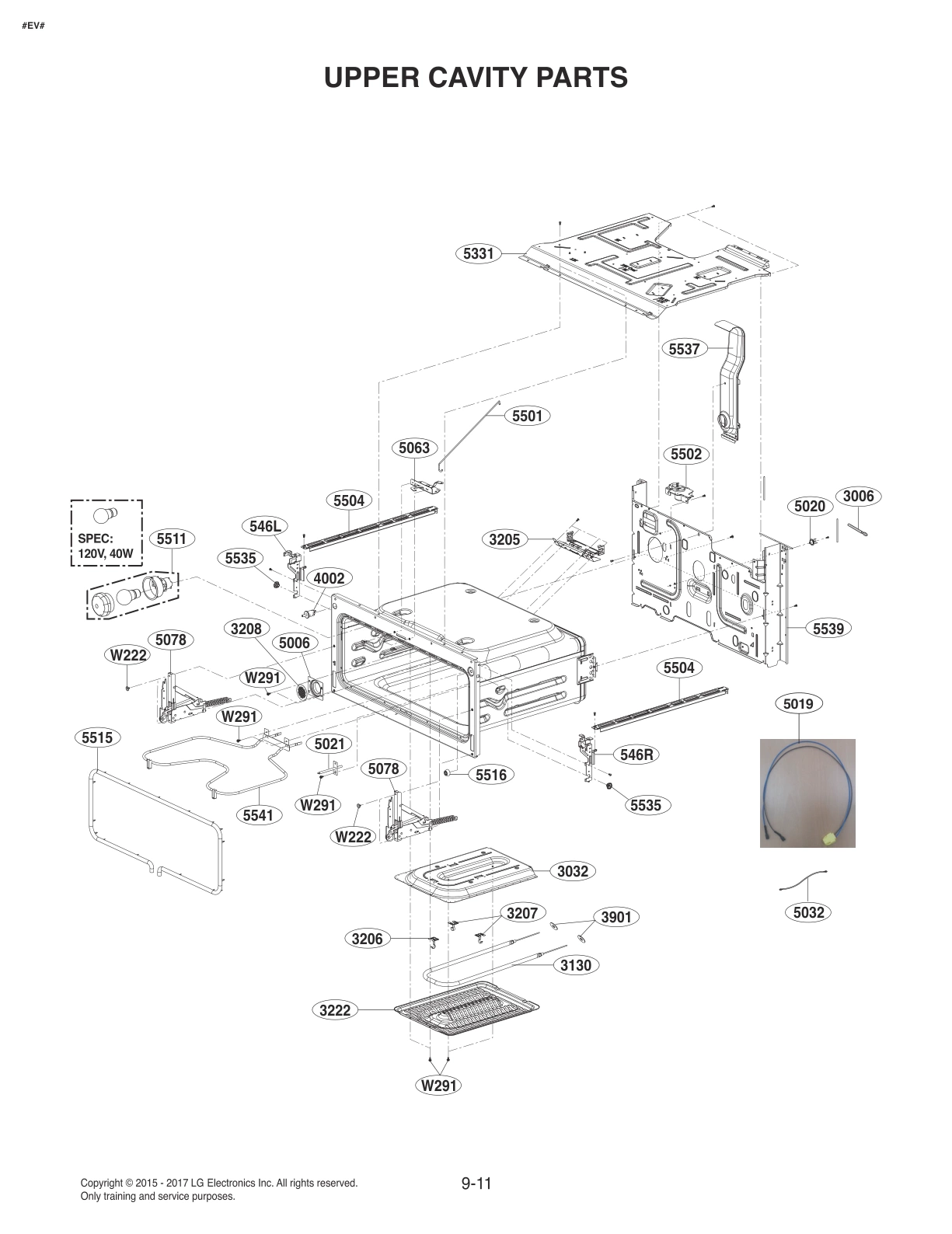

3006

4B72510F LG Wire Holder Backorder LGE 4B72510F View Details $6.11

View on Model

3022

AEG33897011 LG Heater Assembly Backorder LGE AEG33897011 View Details $81.12

View on Model

3056

AGU74969001 LG Plate Assembly Backorder LGE AGU74969001 View Details $484.99

View on Model

3130

MEE61844803 LG Carbon Heater Backorder LGE MEE61844803 View Details $132.54

View on Model

3204

MAZ63310801 LG Heater Bracket Backorder LGE MAZ63310801 View Details $9.72

View on Model

3511

AHT74173805 LG Range Shelf Assembly Backorder LGE AHT74173805 View Details $176.09

View on Model

3901

4350W4A007P LG Gasket Backorder LGE 4350W4A007P View Details $9.72

View on Model

4002

EBF60663403 LG Range Oven Door Tact Switch Backorder LGE EBF60663403 View Details $23.86

View on Model

5019

EAD61076101 LG Single Harness Backorder LGE EAD61076101 View Details $37.50

View on Model

5020

6930W1A003X LG Thermal Safety Fuse Thermostat In Stock LGE 6930W1A003X View Details $9.72

View on Model

5021

EBG61305805 LG Oven Range Temperature Thermis In Stock LGE EBG61305805 View Details $63.40

View on Model

5032

6877W1N024F LG Single Harness Backorder LGE 6877W1N024F View Details $9.72

View on Model

5039

EAU62343001 LG Range Convection Fan Motor Ass In Stock LGE EAU62343001 View Details $105.32

View on Model

5063

ABA75389602 LG Bracket Assembly Backorder LGE ABA75389602 View Details $30.60

View on Model

5078

AEH74656201 LG Hinge Assembly Backorder LGE AEH74656201 View Details $106.86

View on Model

5407

MDG62882901 LG Gas Range Oven Convection Fan In Stock LGE MDG62882901 View Details $20.09

View on Model

5408

3B72559A LG Range Convection Fan Backorder LGE 3B72559A View Details $6.11

View on Model

5505

4980W1N013A LG Supporter Backorder LGE 4980W1N013A View Details $6.11

View on Model

5506

MAZ64548501 LG Range Heater Bracket Backorder LGE MAZ64548501 View Details $20.09

View on Model

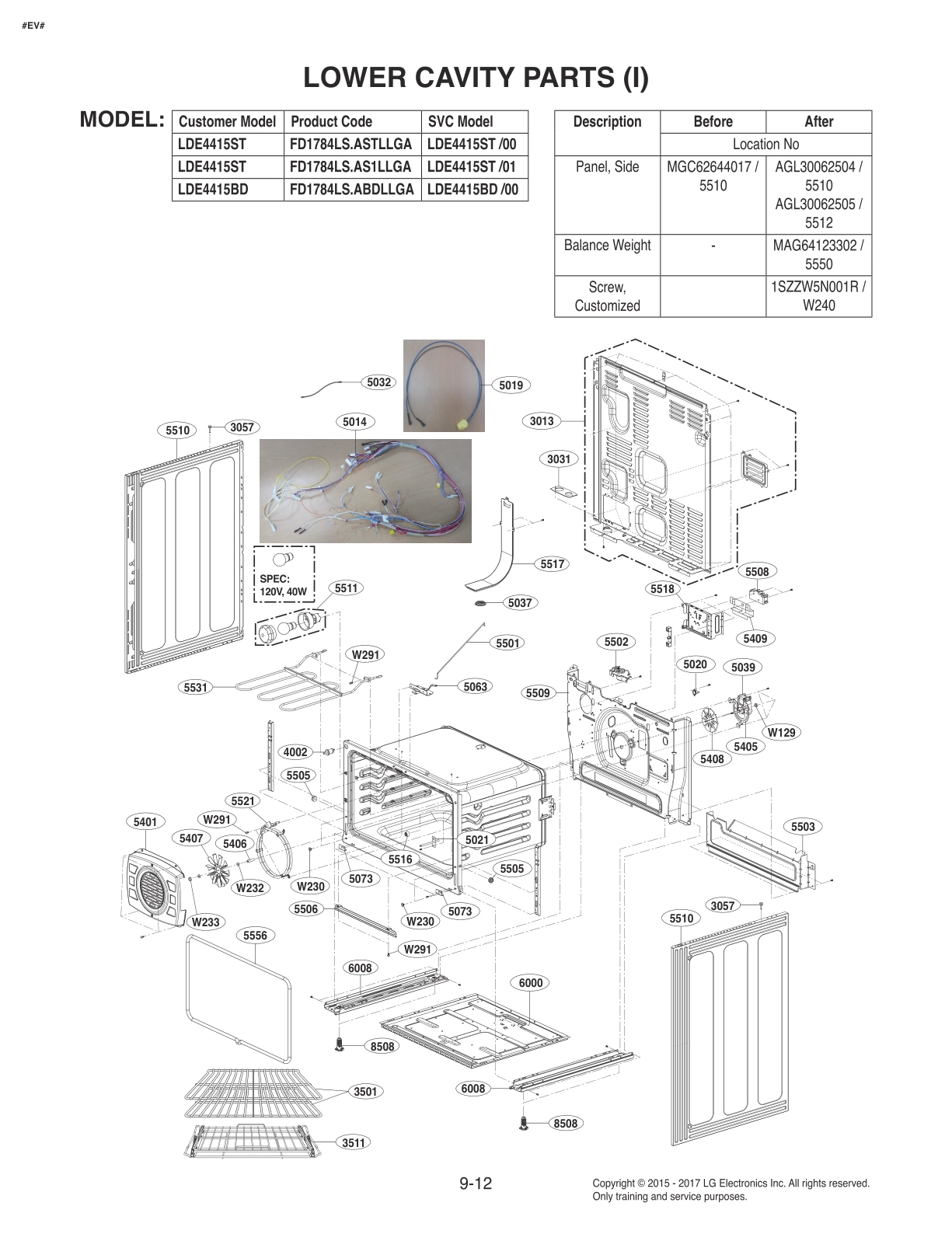

5510

MGC62644017 LG Side Panel In Stock LGE MGC62644017 View Details $109.49

View on Model

5510

Panel,Side LGE MGC62644035 Contact Us For Availability

View on Model

5511

6913W1N002C LG Range Incandescent Lamp In Stock LGE 6913W1N002C View Details $76.99

View on Model

5511

6913W1N002H LG Incandescent Lamp Backorder LGE 6913W1N002H View Details $72.13

View on Model

5515

MFZ64539602 LG Gasket Packing Backorder LGE MFZ64539602 View Details $63.26

View on Model

5516

3920W1N013A LG Gasket Packing Backorder LGE 3920W1N013A View Details $6.11

View on Model

5517

AJV73149701 LG Vent Assembly Backorder LGE AJV73149701 View Details $44.78

View on Model

5518

MAZ64569801 LG Bracket Idle Backorder LGE MAZ64569801 View Details $14.57

View on Model

5521

MEE62865003 LG Range Heater Sheath Backorder LGE MEE62865003 View Details $98.93

View on Model

5531

MEE61945102 LG Range Lower Heater Sheath Backorder LGE MEE61945102 View Details $177.30

View on Model

5531

MEE61945104 LG Sheath Heater In Stock LGE MEE61945104 View Details $90.52

View on Model

5531

MEE61945105 LG Heater Sheath Backorder LGE MEE61945105 View Details $109.49

View on Model

5541

MEE62864902 LG Heater Sheath Backorder LGE MEE62864902 View Details $106.86

View on Model

5541

MEE62864903 LG Range Heater Sheath Backorder LGE MEE62864903 View Details $98.93

View on Model

5556

MFZ64539701 LG Gasket Packing Backorder LGE MFZ64539701 View Details $70.55

View on Model

5556

MFZ64539702 LG Packing Gasket Backorder LGE MFZ64539702 View Details $72.13

View on Model

6000

PLATE,BASE Backorder LGE MGJ67041801 View Details $55.55

View on Model

6008

MGJ64431102 LG Base Plate Backorder LGE MGJ64431102 View Details $37.50

View on Model

8508

4778W1N001A LG Range Oven Leveling Leg Foot Backorder LGE 4778W1N001A View Details $14.57

View on Model

8511

MAZ34877103 LG Idle Bracket In Stock LGE MAZ34877103 View Details $14.57

View on Model

9504

AAA77169702 LG Accessory Assembly Backorder LGE AAA77169702 View Details $30.60

View on Model

W129

1NHA0400018 LG Nut Common Backorder LGE 1NHA0400018 View Details $6.11

View on Model

W222

1SZZW5N001C LG Range Screw Drawing Backorder LGE 1SZZW5N001C View Details $6.11

View on Model

W230

1SZZW5N001A LG Screw Customized Backorder LGE 1SZZW5N001A View Details $6.11

View on Model

W232

1WZZ81N001A LG Customized Electric Range Oven Backorder LGE 1WZZ81N001A View Details $6.11

View on Model

W233

1NHB0500032 LG Electric Range Oven Hexagon Nu Backorder LGE 1NHB0500032 View Details $6.11

View on Model

W243

1SZZW5N001H LG Screw Customized In Stock LGE 1SZZW5N001H View Details $6.11

View on Model

W291

1SZZW2A004E LG Customized Screw In Stock LGE 1SZZW2A004E View Details $6.11

View on Model

×
