Model Whirlpool LDE26CD ELECTRIC DRYER – Common Parts & Diagrams

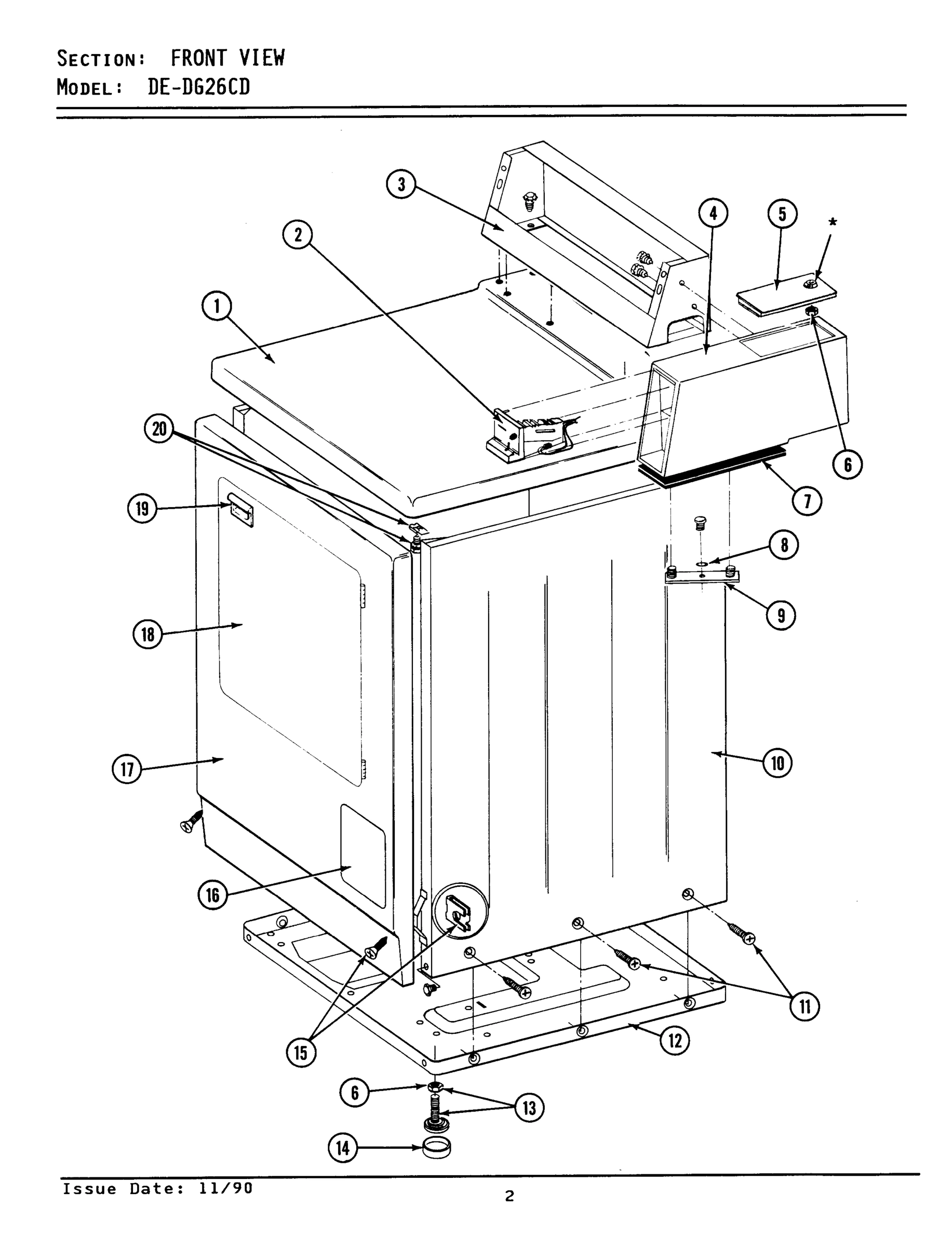

01 - FRONT VIEW - CD MODELS

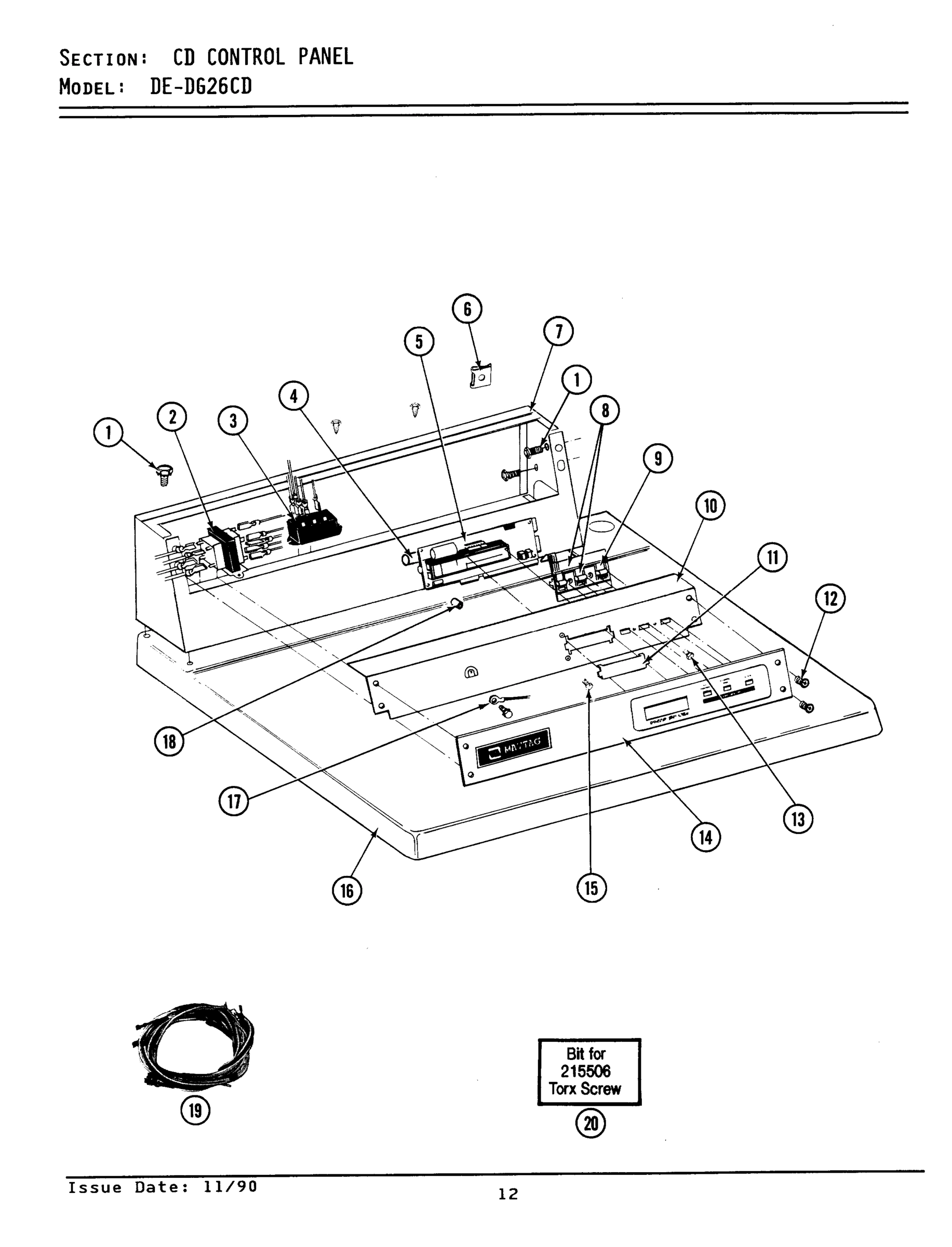

03 - CONTROL PANEL-CD MODELS

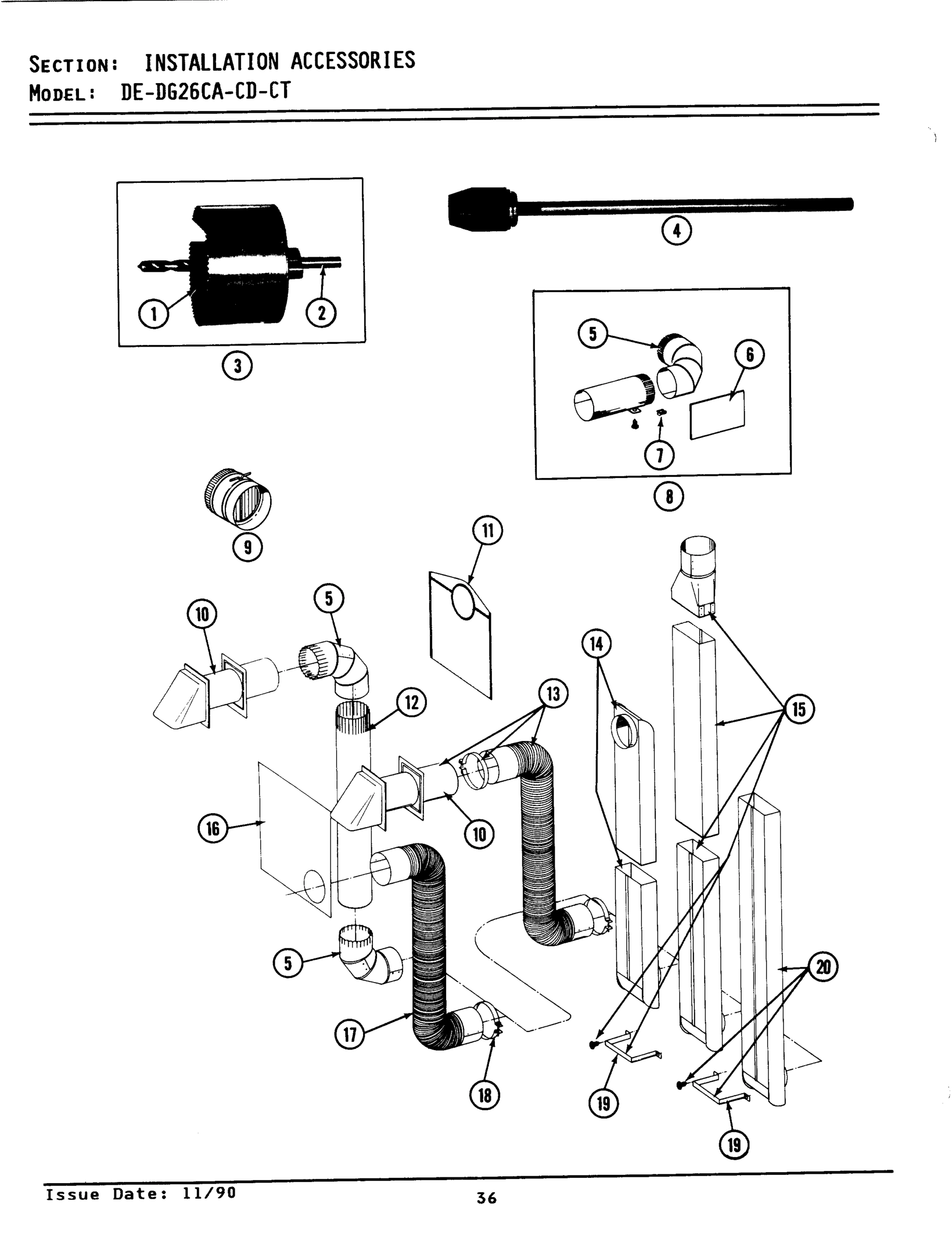

10 - INSTALLATION ACCESSORIES

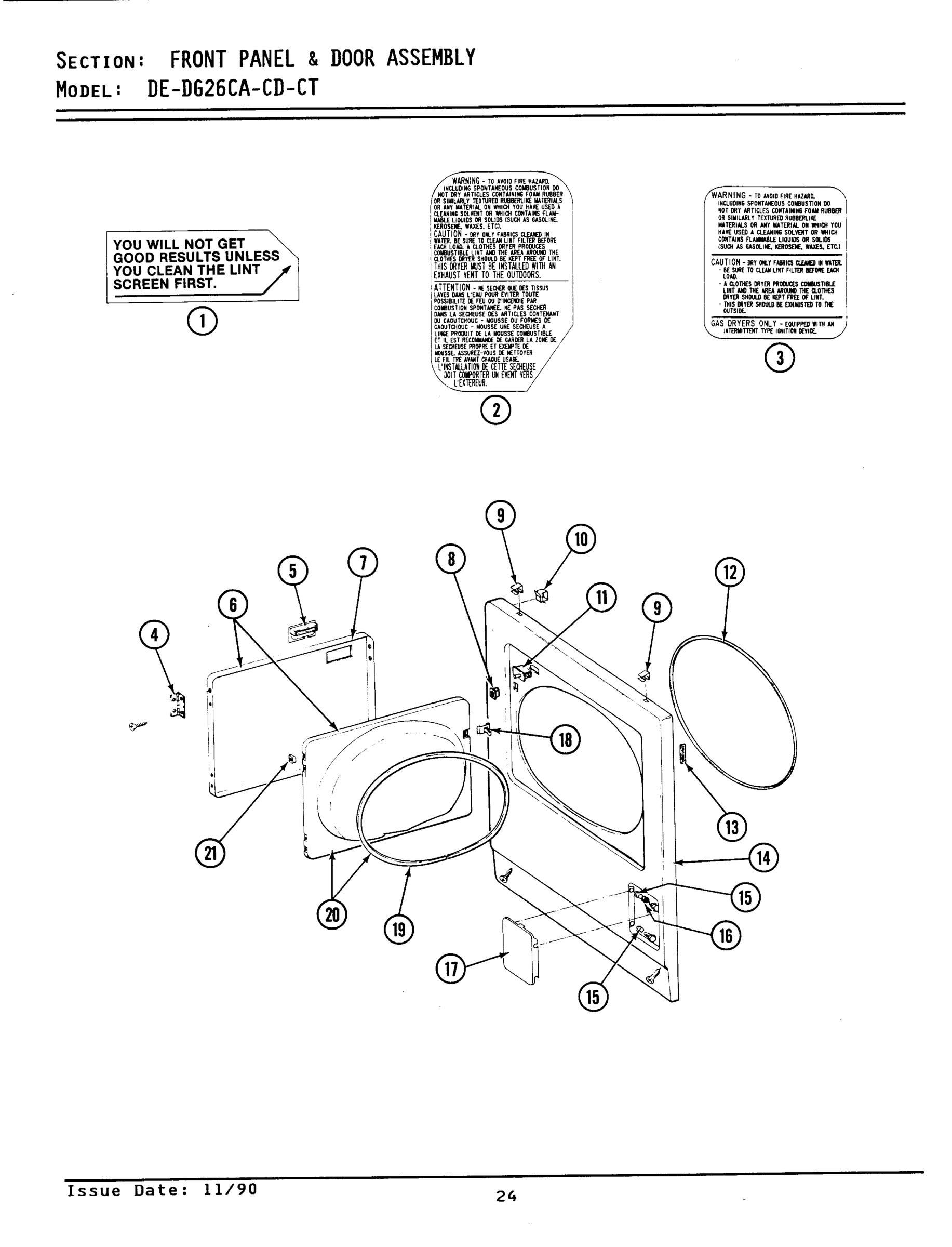

05 - FRONT PANEL & DOOR ASSEMBLY

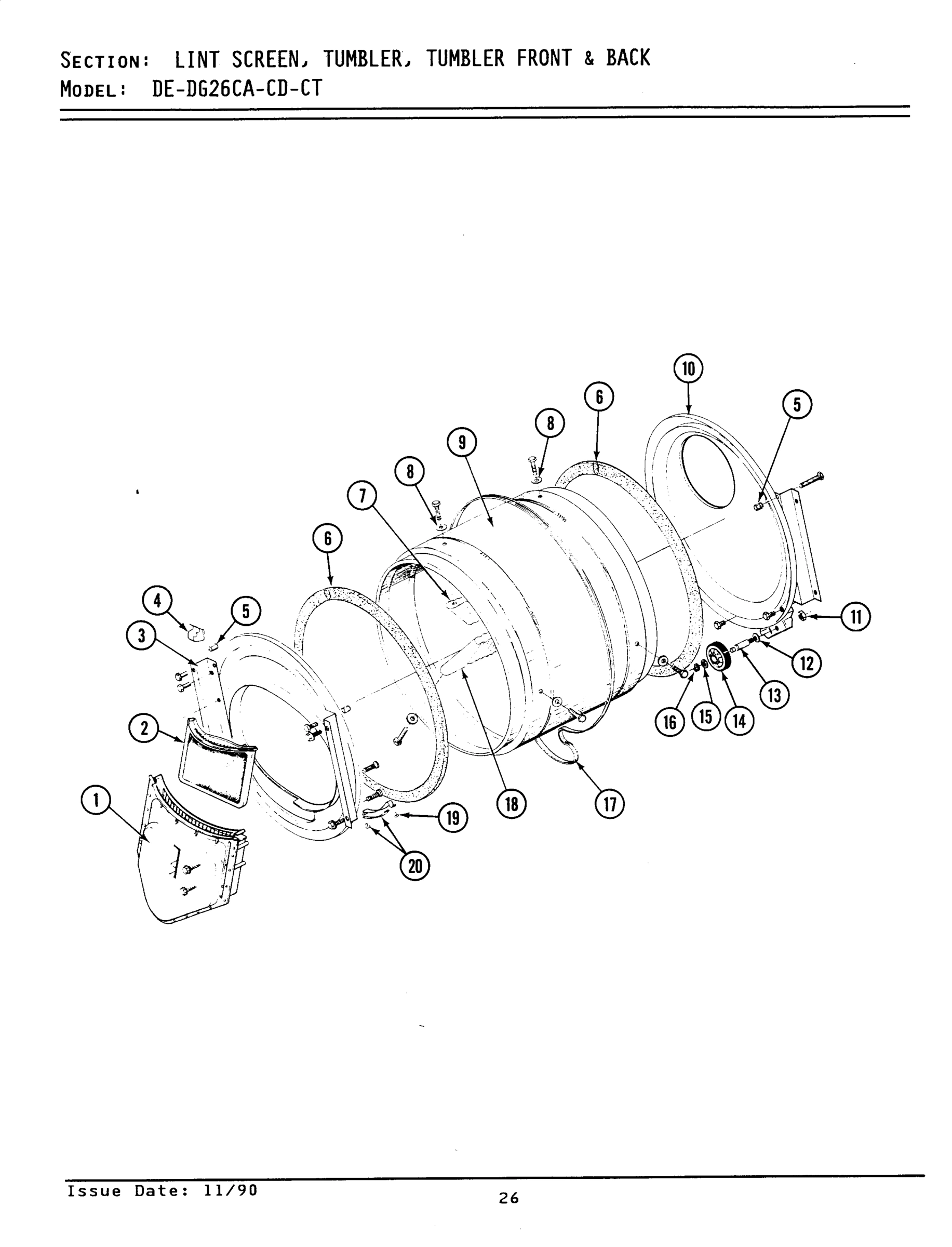

06 - LINT SCREEN, TUMBLER (FRONT & BACK)

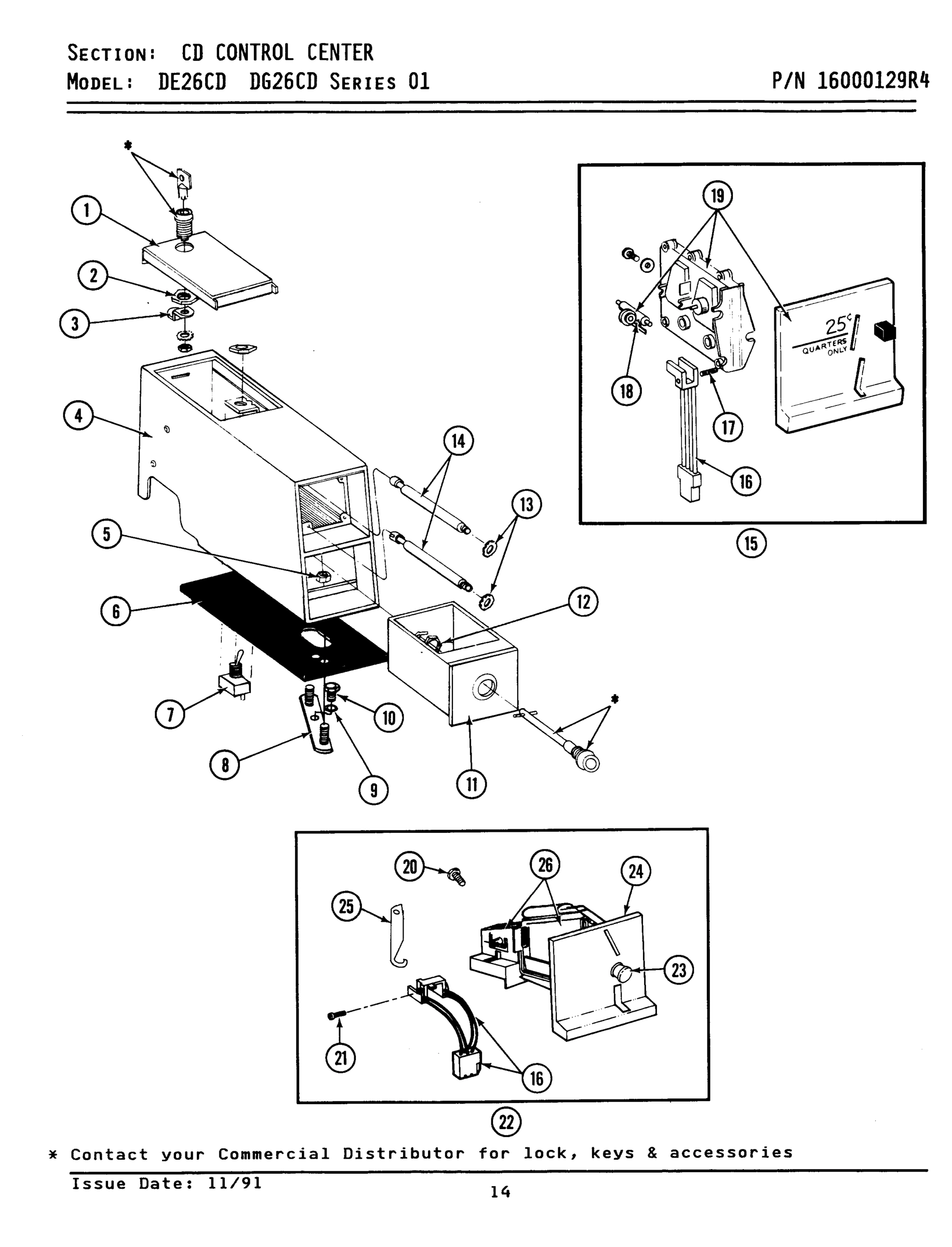

04 - CONTROL CENTER - CD MODELS

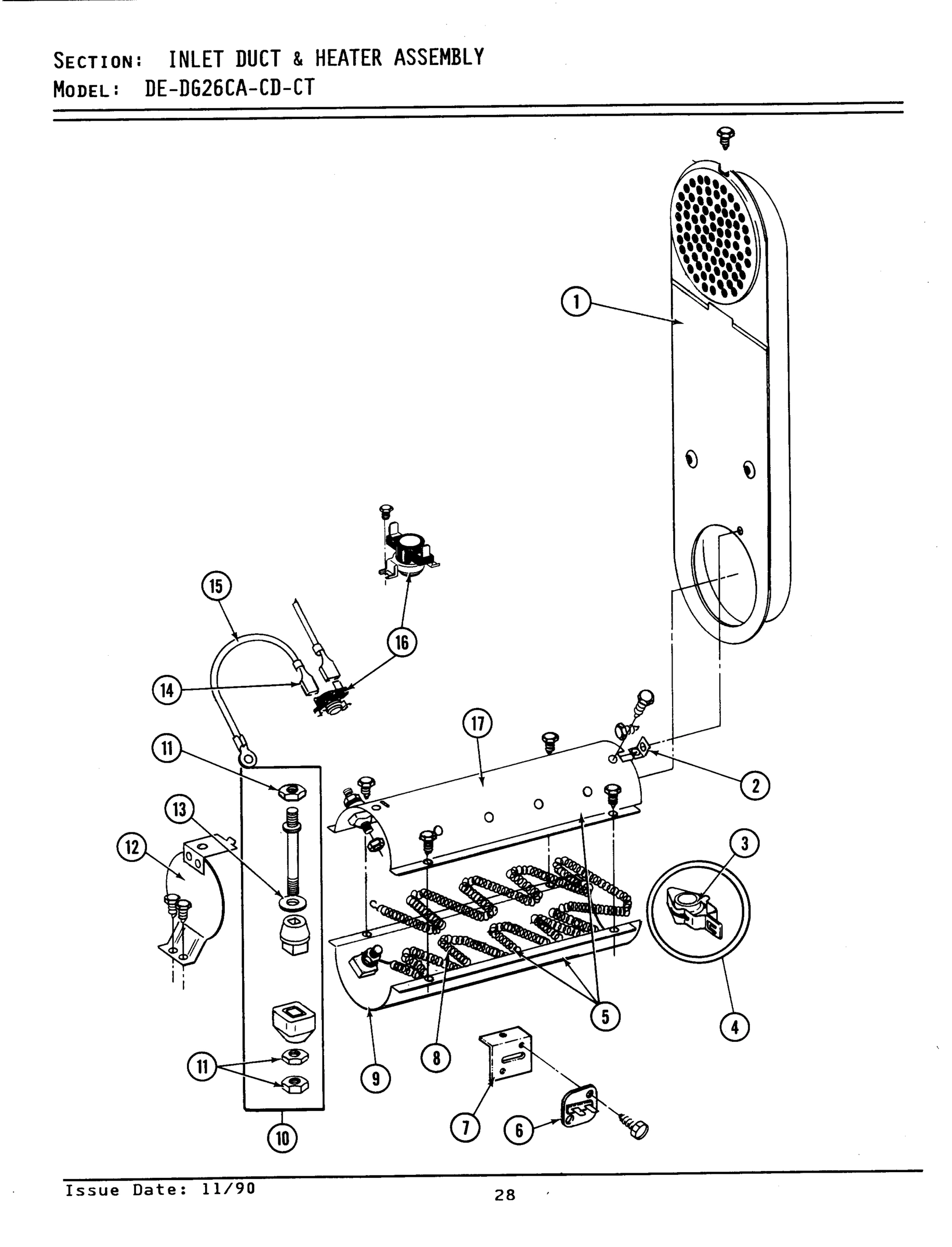

07 - INLET DUCT & HEATER ASSEMBLY

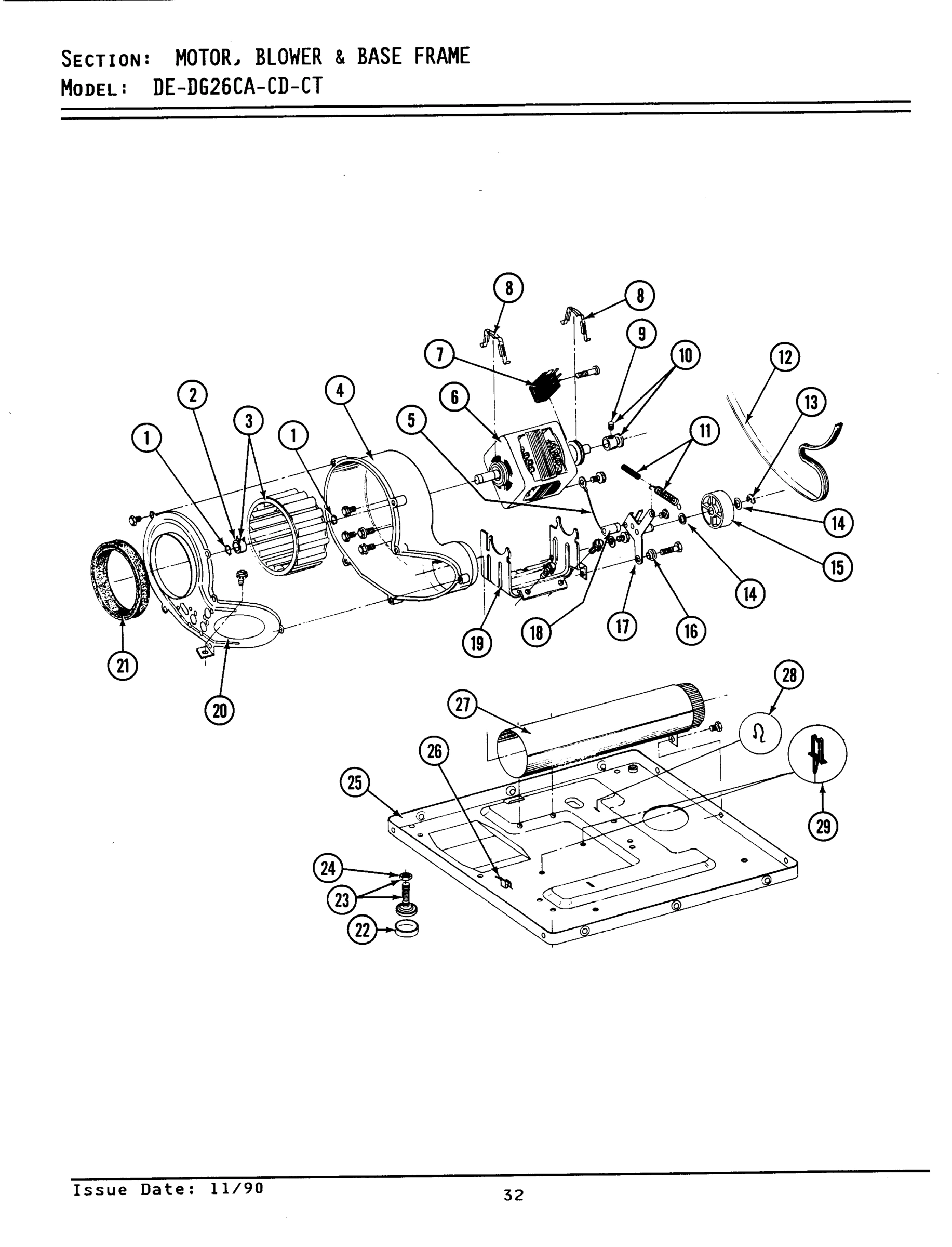

08 - MOTOR, BLOWER & BASE FRAME

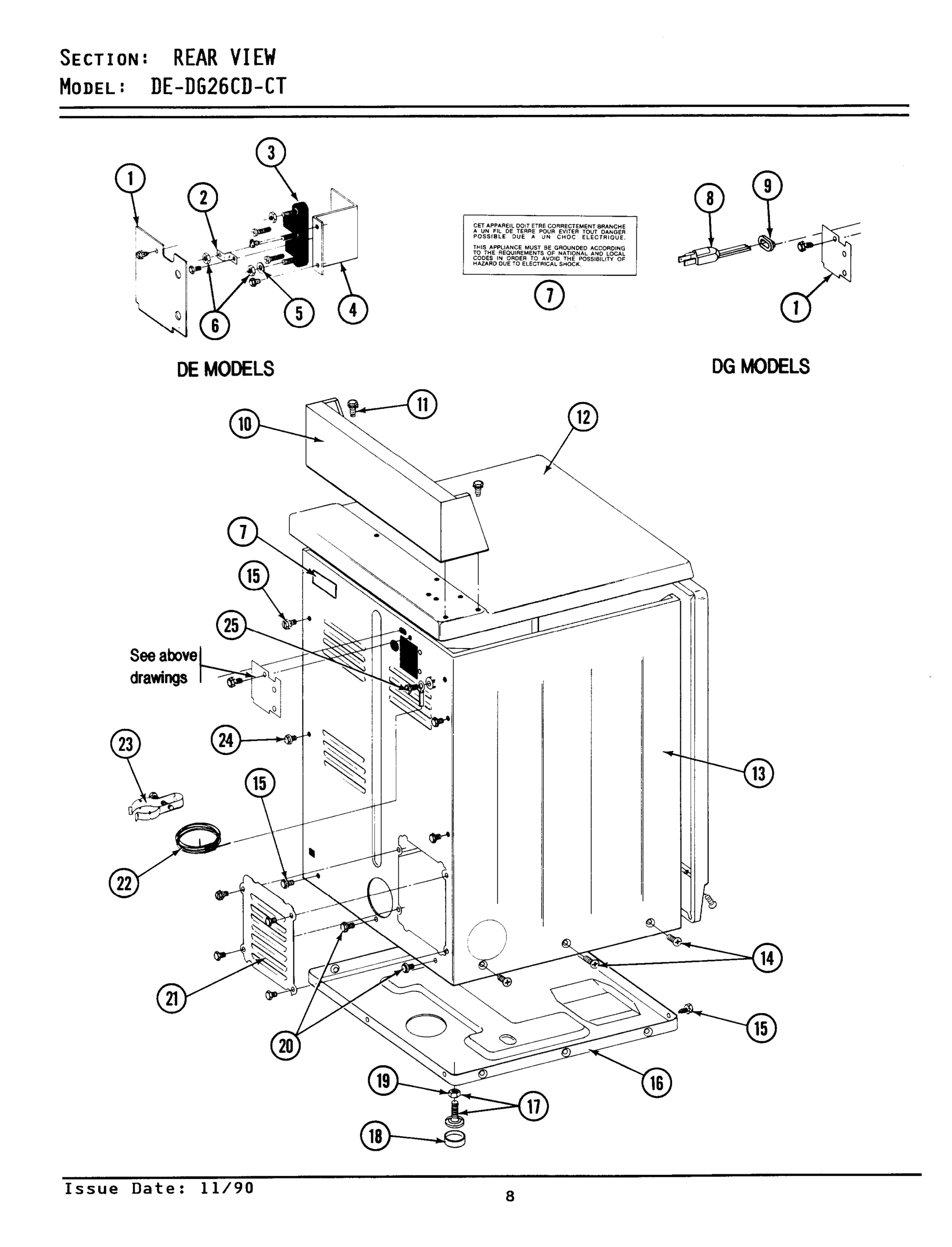

02 - REAR VIEW - CD/CT MODELS

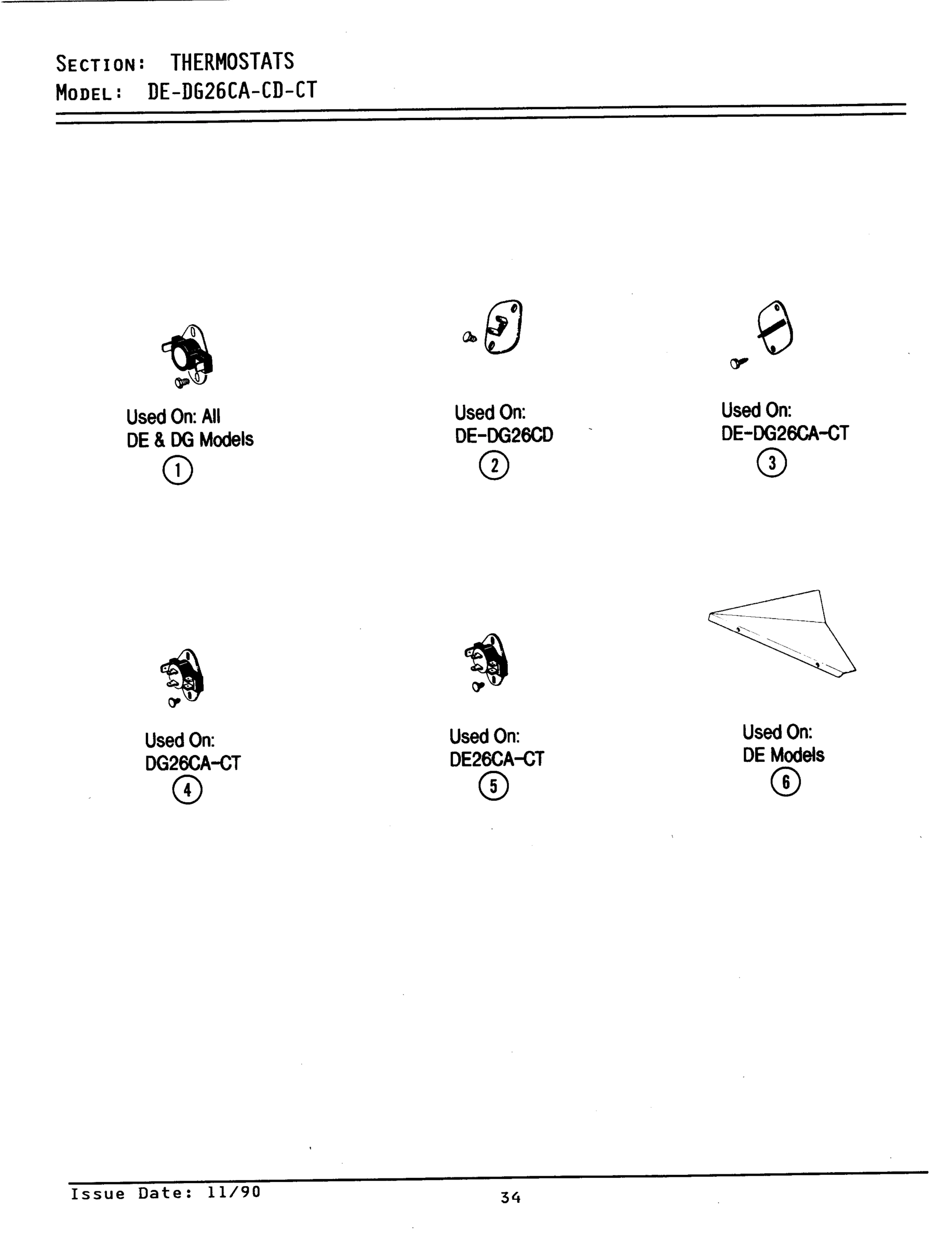

09 - THERMOSTATS
Common parts from model Whirlpool LDE26CD ELECTRIC DRYER
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
001
(ALM) WPL 203188L Contact Us For Availability
001
(H. WHEAT) WPL 203188M Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
002
TRANSFORMER WPL 207766 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
002
STRAP, GROUND WPL Y312184 Contact Us For Availability
002
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
003
SCREW WPL NLA Contact Us For Availability
003
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
INSULATOR, HEATER ELEMENT WPL Y313270 Contact Us For Availability
003
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
004
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
004
BATTERY WPL 206828 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
004
CONTROL CENTER CASE (WHT) WPL 207673 Contact Us For Availability
004
(ALM) WPL 207673L Contact Us For Availability
004
CASE, COIN METER (WHT) WPL 207940 Contact Us For Availability
004
(ALM) WPL 207940L Contact Us For Availability
004
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
004
PART NOT USED WPL 306966 Contact Us For Availability
005
HANDLE (WHT) WPL 314946 Contact Us For Availability
005
(ALM) WPL 314972 Contact Us For Availability
005
SUPPORT, PC BOARD WPL 215510 Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
HEATER ASSY 240V WPL 307470 Contact Us For Availability
005
HEATER ASSY 208V WPL 307471 Contact Us For Availability
005
WIRE, GROUND WPL 901220 Contact Us For Availability
005
PART NOT USED WPL 306967 Contact Us For Availability
006
GASKET, METER CASE WPL 214660 Contact Us For Availability
006
FASTENER WPL 215003 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
006
SCREW----NA WPL Y313561 Contact Us For Availability
006
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
SWITCH WPL 206794 Contact Us For Availability
007
PART NOT USED WPL 315046 Contact Us For Availability
007
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
007
PART NOT USED WPL 214519 Contact Us For Availability
008
BACKUP PLATE W/SWITCH WPL 306694 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
008
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
009
WASHER WPL 910309 Contact Us For Availability
009
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
009
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
009
PART NOT USED WPL 211881 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
011
DISPLAY COVER WPL 215515 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
011
COIN BOX (WHT) WPL 207672 Contact Us For Availability
011
(ALM) WPL 207672L Contact Us For Availability
011
BOX, COIN (WHT) WPL 207912 Contact Us For Availability
011
(ALM) WPL 207912L Contact Us For Availability
011
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
012
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
HEATER SHIELD WPL 304124 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
013
LOCK WASHER WPL 910181 Contact Us For Availability
014
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
BOLT, LOCKING WPL 213035 Contact Us For Availability
014
WIRE TERMINAL WPL 210745 Contact Us For Availability
015
SCREW WPL 215526 Contact Us For Availability
015
PART NOT USED WPL 212949 Contact Us For Availability
016
BASE ASSY. WPL Y303361 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
PART NOT USED WPL 312369 Contact Us For Availability
016
SWITCH, OPTIC ASSY. WPL 206799 Contact Us For Availability
017
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
017
WIRE, GROUND WPL 205810 Contact Us For Availability
017
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
018
SPACER CIRCUIT BOARD WPL Y215513 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
RELAY, HEATER WPL 306199 Contact Us For Availability
019
WIRE HARNESS WPL Y307455 Contact Us For Availability
019
DOOR SEAL WPL 314935 Contact Us For Availability
020
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
020
TORX BIT (TX20H) WPL Y038227 Contact Us For Availability
020
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
020
COVER, BLOWER WPL 314778 Contact Us For Availability
021
CLIP, DOOR LINER WPL Y313910 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
022
COIN DROP ASSY. (25 CENTS) WPL 207948 Contact Us For Availability
023
BUTTON, RETURN WPL 216009 Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
024
SCREW WPL Y310632 Contact Us For Availability
024
MTG. PLATE, SINGLE WPL 216010 Contact Us For Availability
025
SPRING, BUTTON WPL 216011 Contact Us For Availability
026
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
026
COIN REJECTOR (.25 CENTS) WPL 207947 Contact Us For Availability
026
COIN REJECTOR 25 CENTS WPL 207949 Contact Us For Availability
027
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
028
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
029
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
× ![]()
