Model Maytag LDE25CS ELECTRIC DRYER – Common Parts & Diagrams

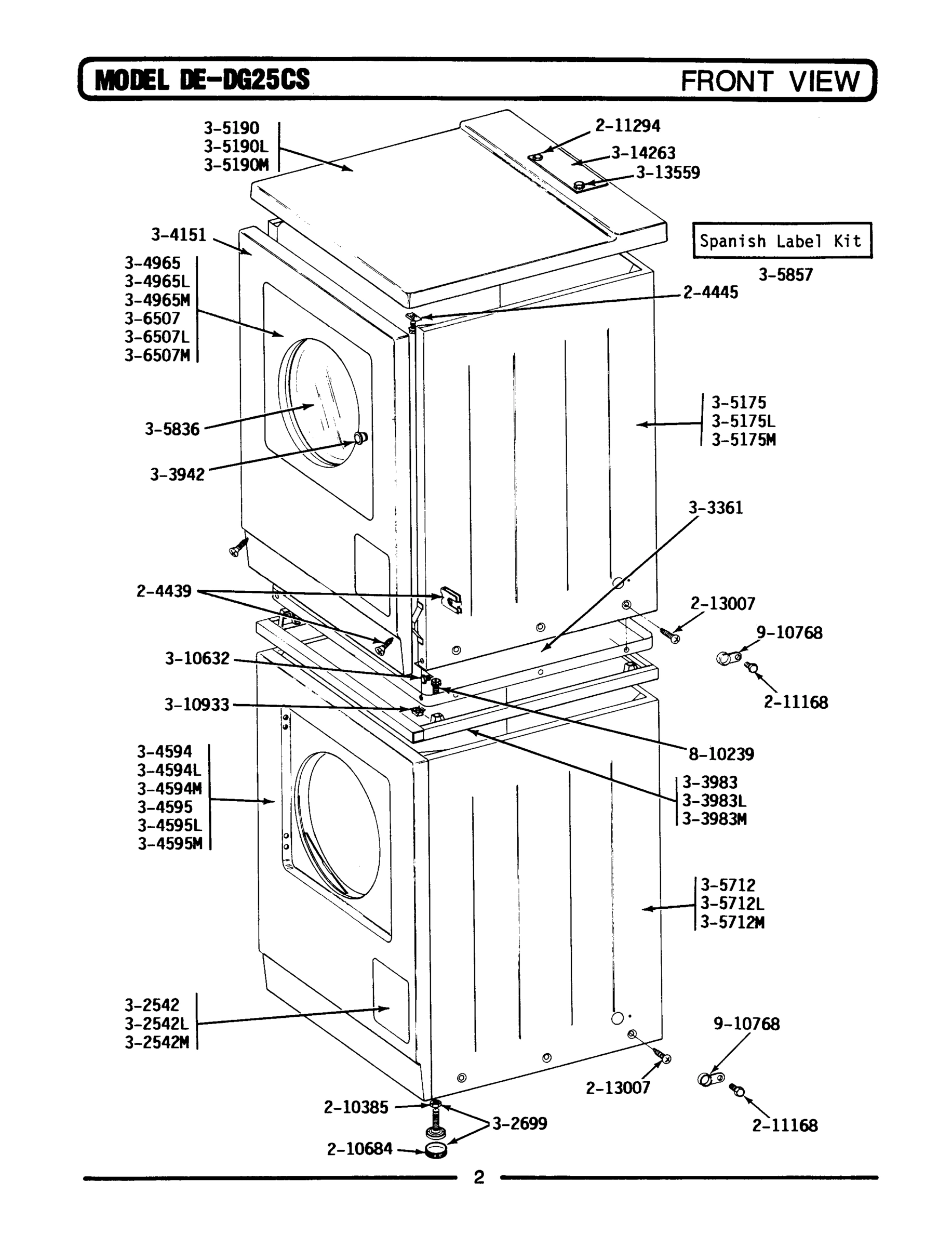

01 - FRONT VIEW
02 - REAR VIEW

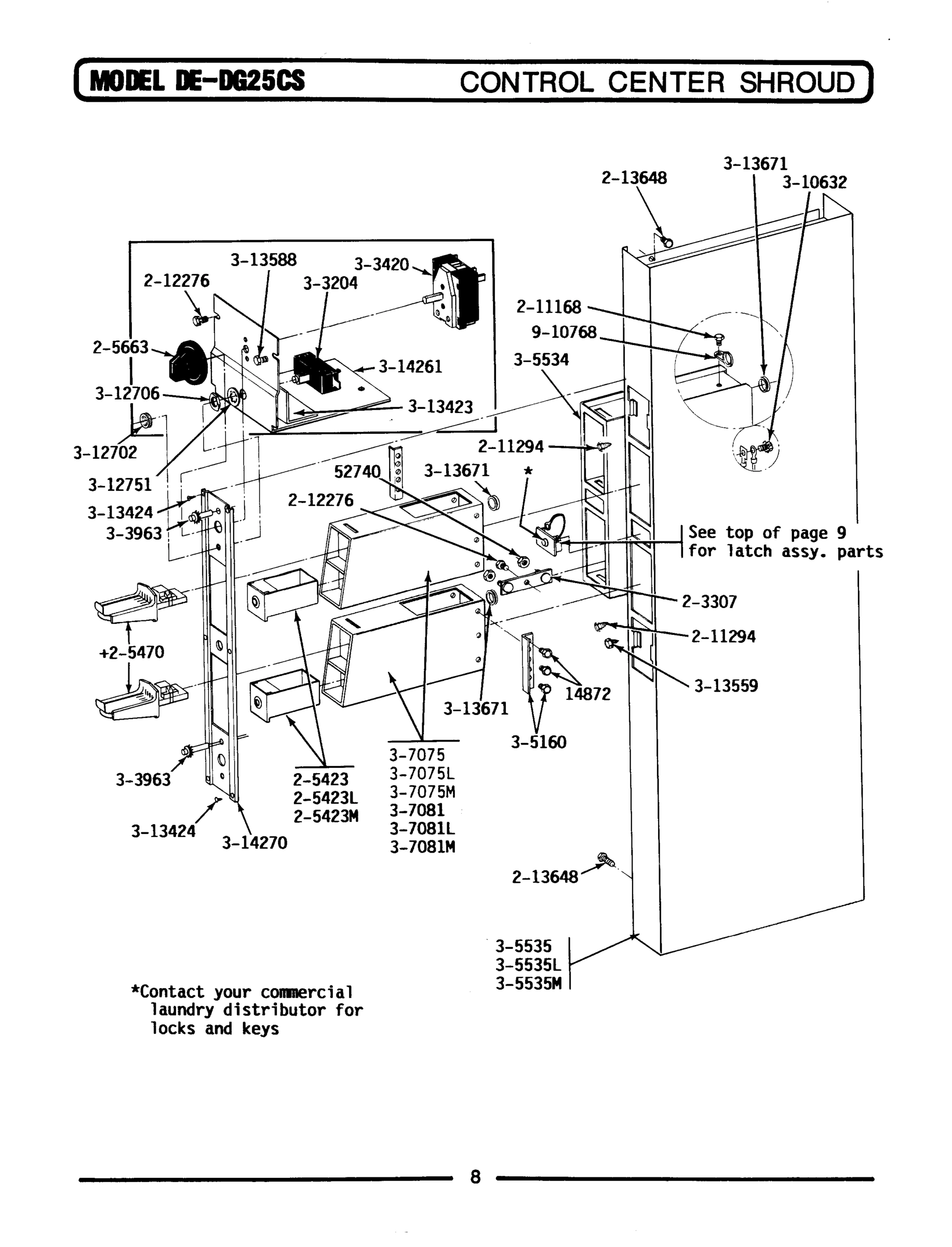

03 - CONTROL CENTER SHROUD

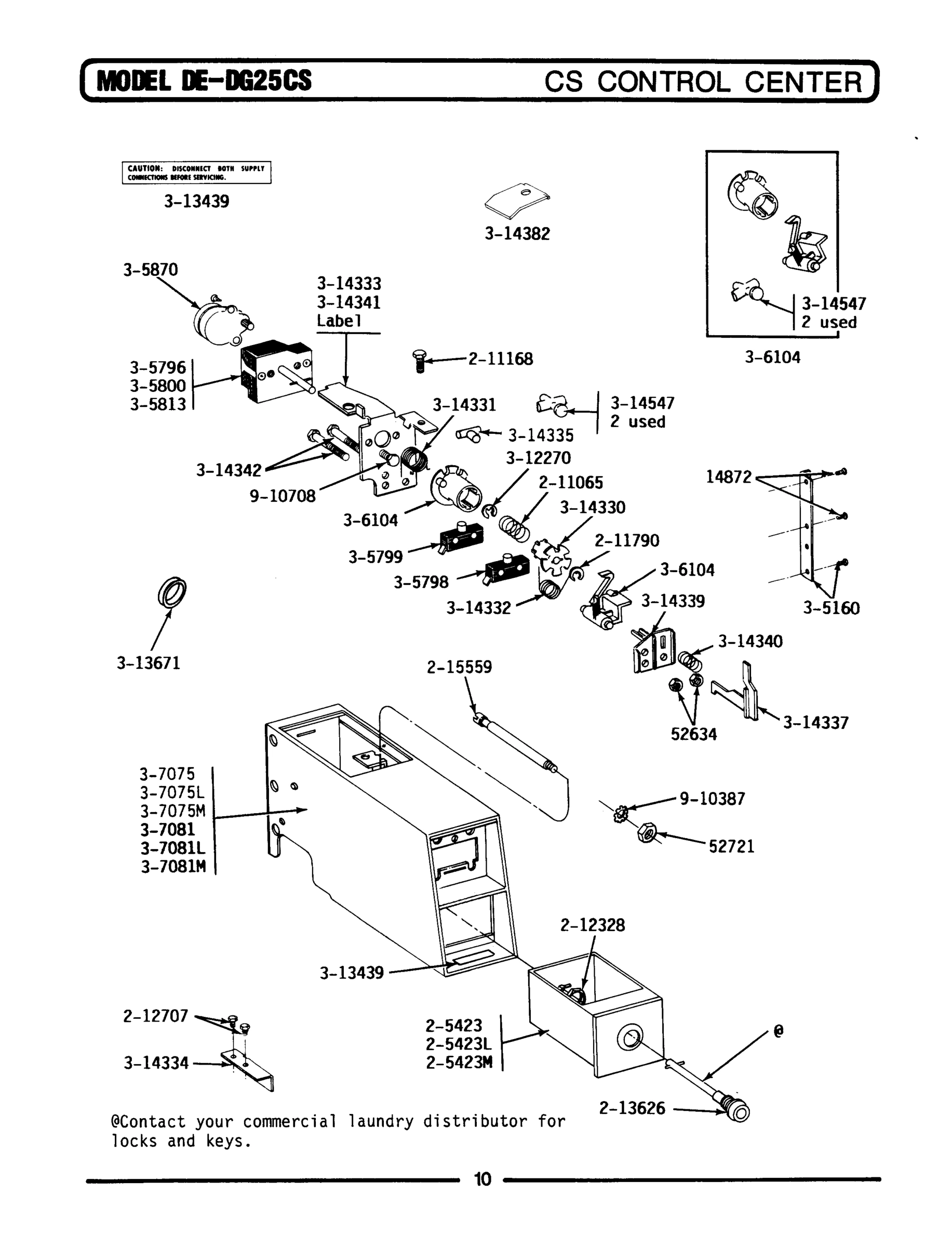

04 - CONTROL CENTER

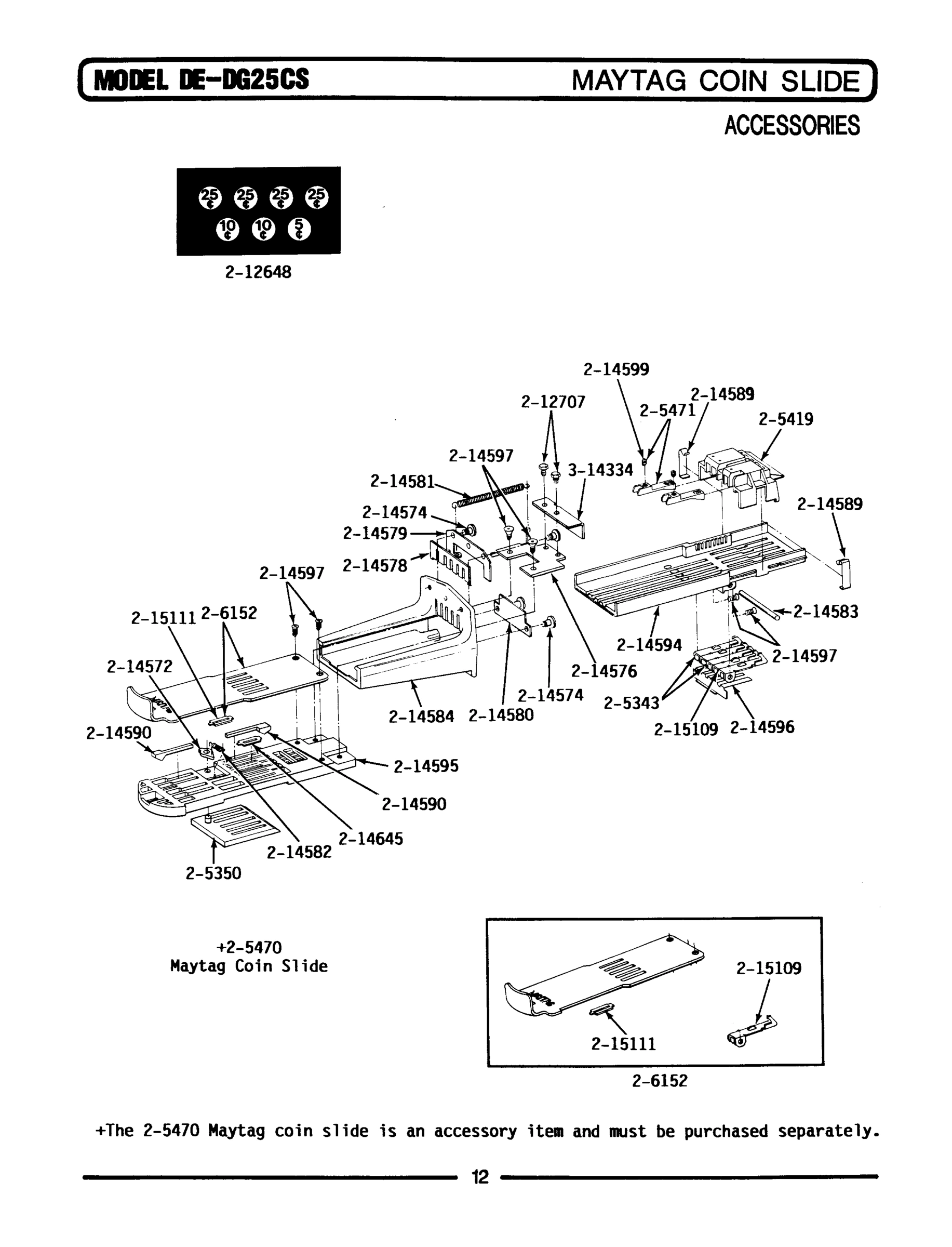

05 - MAYTAG COIN SLIDE

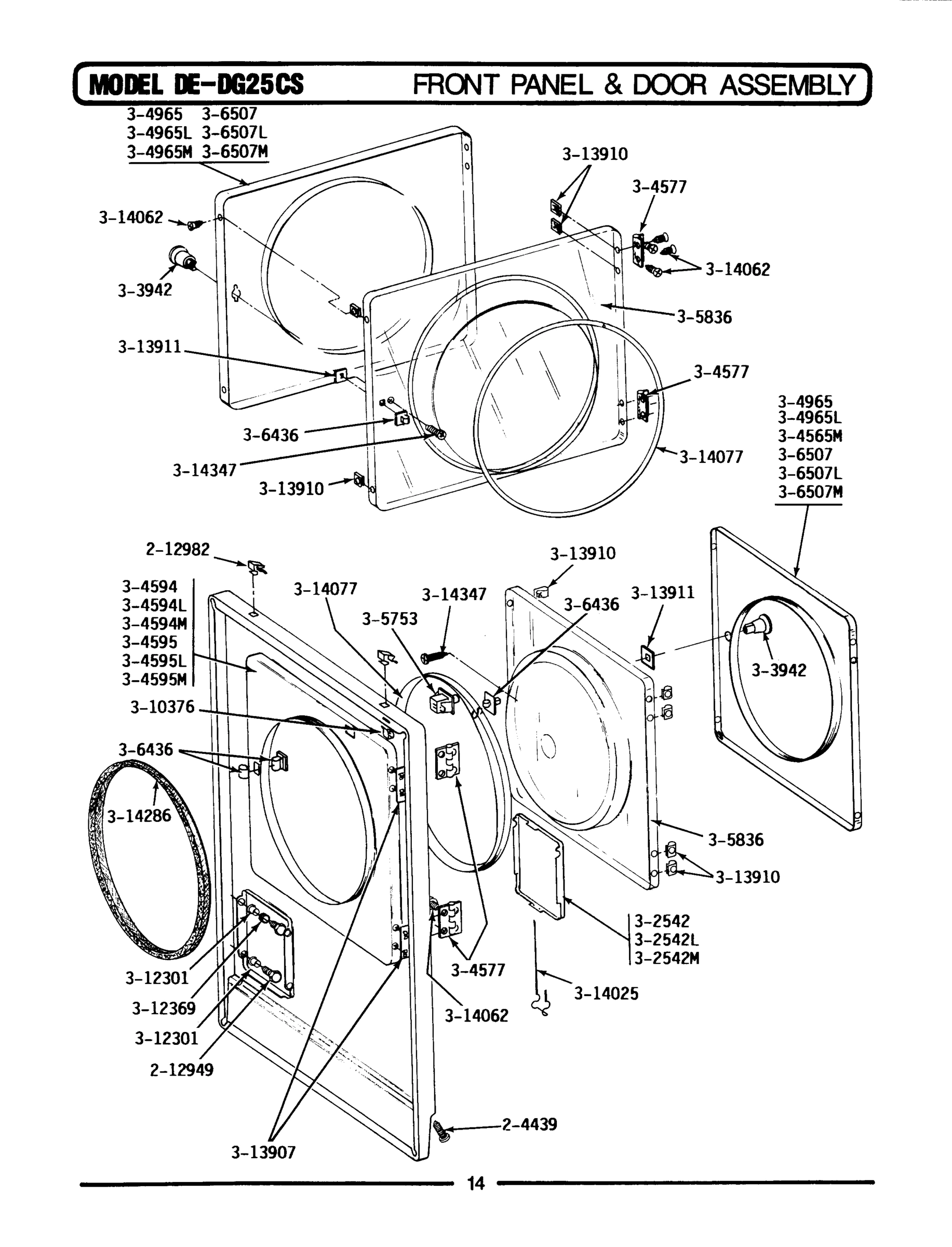

06 - FRONT PANEL & DOOR ASSEMBLY

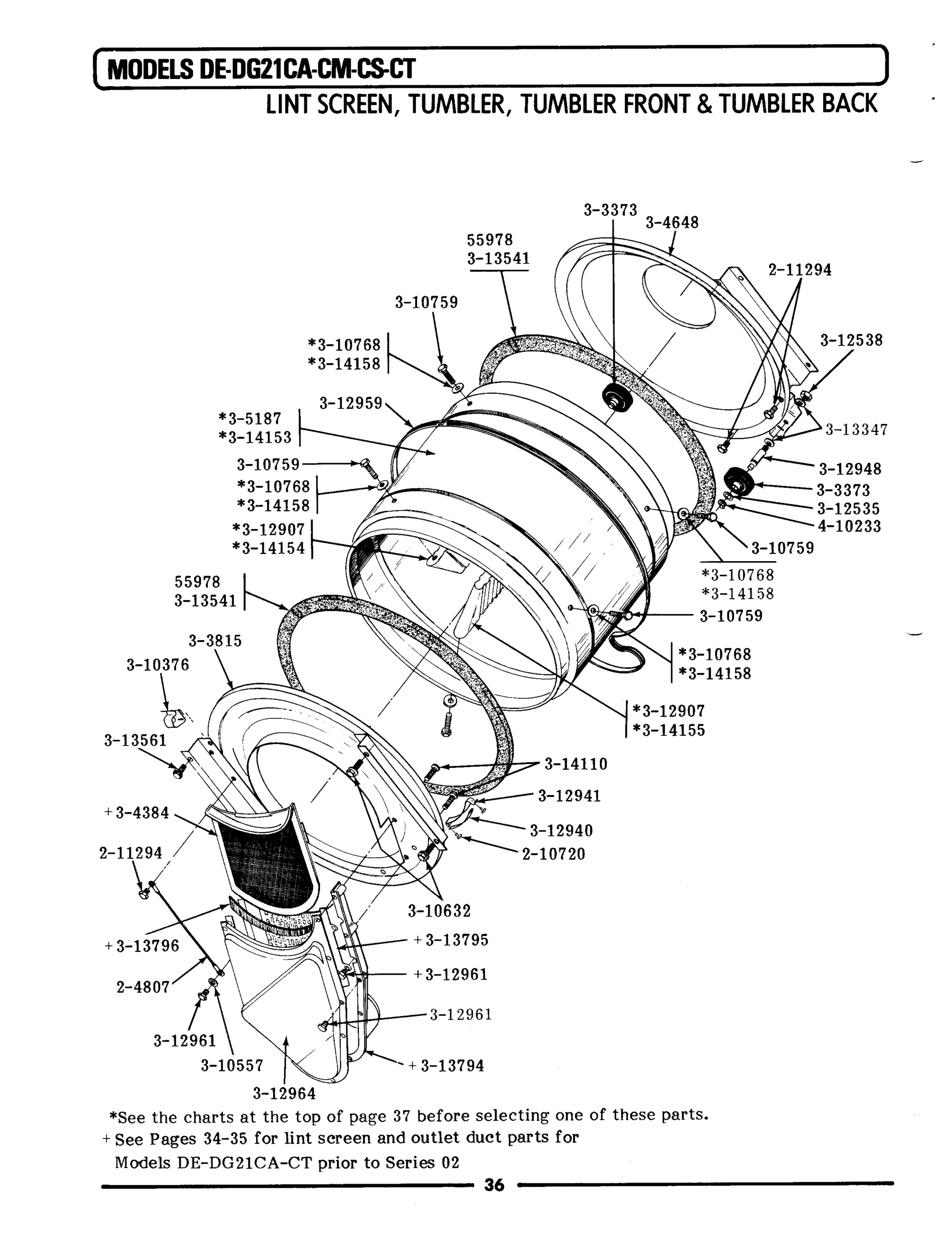

07 - LINT SCREEN, TUMBLER (FRONT & BACK)

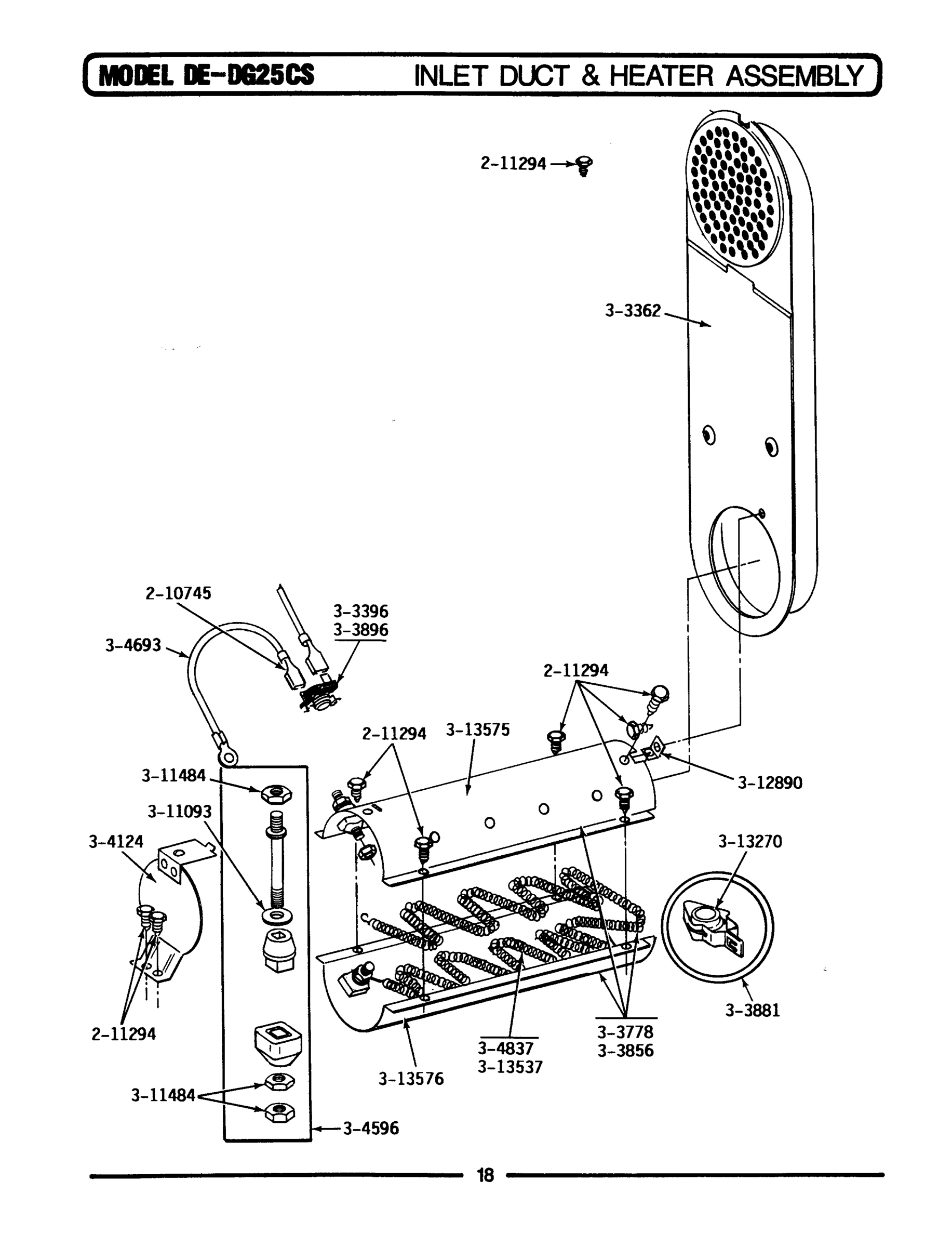

08 - INLET DUCT & HEATER ASSEMBLY

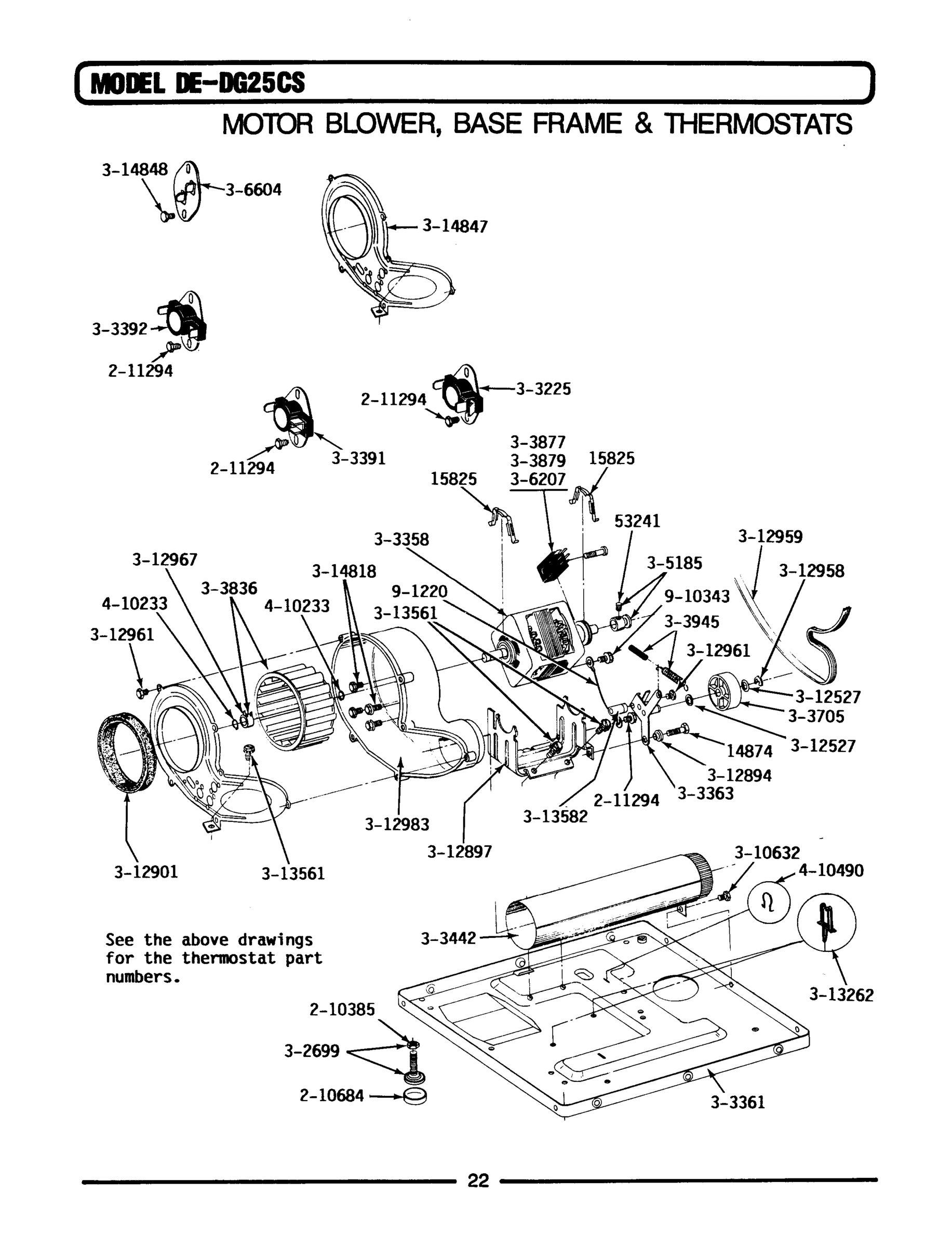

09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

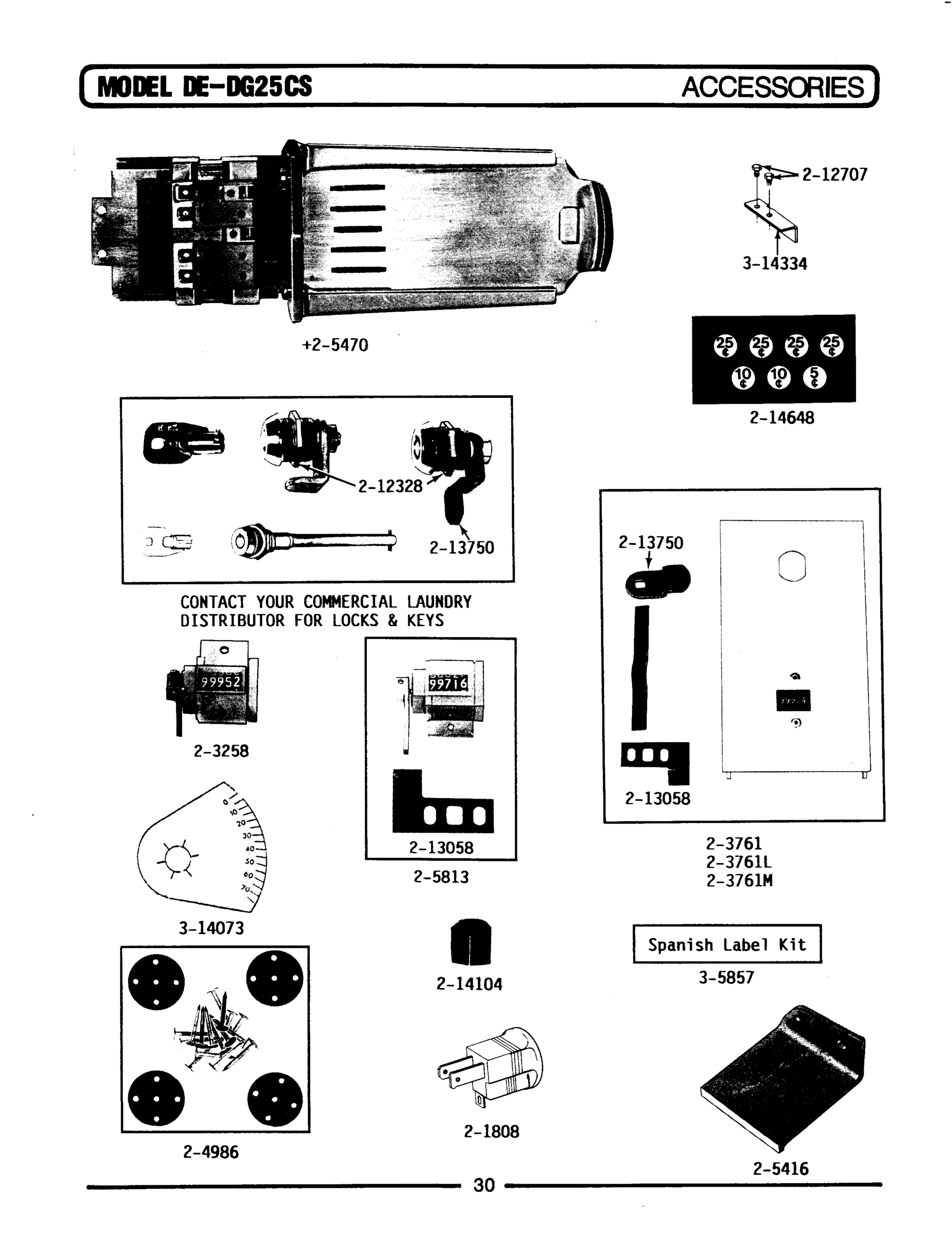

10 - INSTALLATION ACCESSORIES
Common parts from model Maytag LDE25CS ELECTRIC DRYER
001
MAY 204439 MAY 204439 Contact Us For Availability
001
MAY Y014872 MAY Y014872 Contact Us For Availability
001
MAY 205343 MAY 205343 Contact Us For Availability
001
MAY 205810 MAY 205810 Contact Us For Availability
001
MAY 210745 MAY 210745 Contact Us For Availability
002
MAY Y052634 MAY Y052634 Contact Us For Availability
002
MAY 205350 MAY 205350 Contact Us For Availability
002
MAY 212949 MAY 212949 Contact Us For Availability
003
MAY 212982 MAY 212982 Contact Us For Availability
003
MAY Y303362 MAY Y303362 Contact Us For Availability
003
MAY Y053241 MAY Y053241 Contact Us For Availability
004
COIN BOX-ALMOND MAY 205423L Contact Us For Availability
004
COIN BOX-WHITE MAY 205423 Contact Us For Availability
004
MAY Y303373 MAY Y303373 Contact Us For Availability
005
MAY Y303778 MAY Y303778 Contact Us For Availability
005
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
006
MAY 205663 MAY 205663 Contact Us For Availability
006
MAY 306656 MAY 306656 Contact Us For Availability
006
MAY Y303856 MAY Y303856 Contact Us For Availability
006
MAY Y059130 MAY Y059130 Contact Us For Availability
007
MAY 304965 MAY 304965 Contact Us For Availability
007
MAY 306657 MAY 306657 Contact Us For Availability
007
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
007
MAY Y059131 MAY Y059131 Contact Us For Availability
008
MAY Y303225 MAY Y303225 Contact Us For Availability
008
MAY 214572 MAY 214572 Contact Us For Availability
008
MAY Y306660 MAY Y306660 Contact Us For Availability
008
MAY Y059134 MAY Y059134 Contact Us For Availability
009
MAY 212276 MAY 212276 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
MAY 304124 MAY 304124 Contact Us For Availability
009
MAY Y059135 MAY Y059135 Contact Us For Availability
010
MAY Y306665 MAY Y306665 Contact Us For Availability
010
MAY Y303361 MAY Y303361 Contact Us For Availability
010
MAY Y059143 MAY Y059143 Contact Us For Availability
011
MAY 215559 MAY 215559 Contact Us For Availability
011
MAY 214578 MAY 214578 Contact Us For Availability
012
MAY Y310376 MAY Y310376 Contact Us For Availability
013
MAY 305796 MAY 305796 Contact Us For Availability
013
MAY Y303204 MAY Y303204 Contact Us For Availability
013
MAY 310557 MAY 310557 Contact Us For Availability
014
MAY Y303420 MAY Y303420 Contact Us For Availability
014
MAY 305798 MAY 305798 Contact Us For Availability
014
MAY 214581 MAY 214581 Contact Us For Availability
014
MAY 312369 MAY 312369 Contact Us For Availability
014
MAY Y303442 MAY Y303442 Contact Us For Availability
014
MAY 213323 MAY 213323 Contact Us For Availability
015
MAY Y305799 MAY Y305799 Contact Us For Availability
015
INDICATOR LIGHT MAY 303963 Contact Us For Availability
015
MAY 214582 MAY 214582 Contact Us For Availability
015
MAY Y313340 MAY Y313340 Contact Us For Availability
015
MAY Y310759 MAY Y310759 Contact Us For Availability
016
MAY Y303981 MAY Y303981 Contact Us For Availability
016
MAY 305800 MAY 305800 Contact Us For Availability
016
MAY Y313907 MAY Y313907 Contact Us For Availability
016
MAY Y312890 MAY Y312890 Contact Us For Availability
016
MAY Y304353 MAY Y304353 Contact Us For Availability
017
MAY Y313270 MAY Y313270 Contact Us For Availability
017
MAY 305813 MAY 305813 Contact Us For Availability
017
MAY 214584 MAY 214584 Contact Us For Availability
017
MAY Y313910 MAY Y313910 Contact Us For Availability
017
MAY 312538 MAY 312538 Contact Us For Availability
017
MAY Y303877 MAY Y303877 Contact Us For Availability
017
MAY Y304630 MAY Y304630 Contact Us For Availability
018
MAY 305534 MAY 305534 Contact Us For Availability
018
TIMER MOTOR RPR MAY 305870 Contact Us For Availability
018
MAY 214589 MAY 214589 Contact Us For Availability
018
MAY Y313911 MAY Y313911 Contact Us For Availability
018
MAY Y313537 MAY Y313537 Contact Us For Availability
018
MAY Y303879 MAY Y303879 Contact Us For Availability
018
MAY Y304652 MAY Y304652 Contact Us For Availability
019
MAY 306104 MAY 306104 Contact Us For Availability
019
MAY Y313927 MAY Y313927 Contact Us For Availability
019
MAY Y313575 MAY Y313575 Contact Us For Availability
019
MAY Y303945 MAY Y303945 Contact Us For Availability
019
MAY 311353 MAY 311353 Contact Us For Availability
020
MAY 214594 MAY 214594 Contact Us For Availability
020
MAY Y314025 MAY Y314025 Contact Us For Availability
020
MAY Y313576 MAY Y313576 Contact Us For Availability
020
MAY Y305185 MAY Y305185 Contact Us For Availability
020
MAY 312302 MAY 312302 Contact Us For Availability
021
BRACKET, EXHAUST DEFLECTOR MAY NLA Contact Us For Availability
021
MAY Y312964 MAY Y312964 Contact Us For Availability
022
MAY 214596 MAY 214596 Contact Us For Availability
022
MAY 314077 MAY 314077 Contact Us For Availability
023
MAY Y312702 MAY Y312702 Contact Us For Availability
023
MAY 214597 MAY 214597 Contact Us For Availability
024
MAY Y310632 MAY Y310632 Contact Us For Availability
024
MAY Y312706 MAY Y312706 Contact Us For Availability
025
MAY Y307081 MAY Y307081 Contact Us For Availability
025
MAY Y313795 MAY Y313795 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
MAY Y313796 MAY Y313796 Contact Us For Availability
026
MAY Y312270 MAY Y312270 Contact Us For Availability
026
MAY 214648 MAY 214648 Contact Us For Availability
026
MAY Y312893 MAY Y312893 Contact Us For Availability
027
MAY Y313424 MAY Y313424 Contact Us For Availability
027
MAY Y313439 MAY Y313439 Contact Us For Availability
027
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
028
MAY Y313427 MAY Y313427 Contact Us For Availability
028
MAY Y313671 MAY Y313671 Contact Us For Availability
028
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
029
MAY 314158 MAY 314158 Contact Us For Availability
029
MAY 314330 MAY 314330 Contact Us For Availability
029
MAY 313428 MAY 313428 Contact Us For Availability
029
MAY 214334 MAY 214334 Contact Us For Availability
030
MAY Y313559 MAY Y313559 Contact Us For Availability
030
MAY 314802 MAY 314802 Contact Us For Availability
031
MAY 314332 MAY 314332 Contact Us For Availability
031
MAY 314803 MAY 314803 Contact Us For Availability
032
MAY 400008 MAY 400008 Contact Us For Availability
032
TIMER MOUNTING BRACKET MAY 314333 Contact Us For Availability
033
MAY Y314261 MAY Y314261 Contact Us For Availability
033
BRACKET FOR COIN SLIDE MAY 314334 Contact Us For Availability
034
TIME ADJUSTMENT PEG MAY 314335 Contact Us For Availability
034
MAY 314270 MAY 314270 Contact Us For Availability
034
MAY Y313262 MAY Y313262 Contact Us For Availability
035
CABLE STRAP-HARNESS TO BASE MAY 910768 Contact Us For Availability
035
MAY Y313561 MAY Y313561 Contact Us For Availability
036
MAY 314339 MAY 314339 Contact Us For Availability
037
MAY 314818 MAY 314818 Contact Us For Availability
038
MAY 314847 MAY 314847 Contact Us For Availability
041
MAY 314547 MAY 314547 Contact Us For Availability
041
MAY 410490 MAY 410490 Contact Us For Availability
042
MAY 910387 MAY 910387 Contact Us For Availability
042
MAY 901220 MAY 901220 Contact Us For Availability
043
MAY 910708 MAY 910708 Contact Us For Availability
043
MAY 910343 MAY 910343 Contact Us For Availability
× ![]()
