Model Whirlpool LDE19CS ELECTRIC DRYER – Common Parts & Diagrams

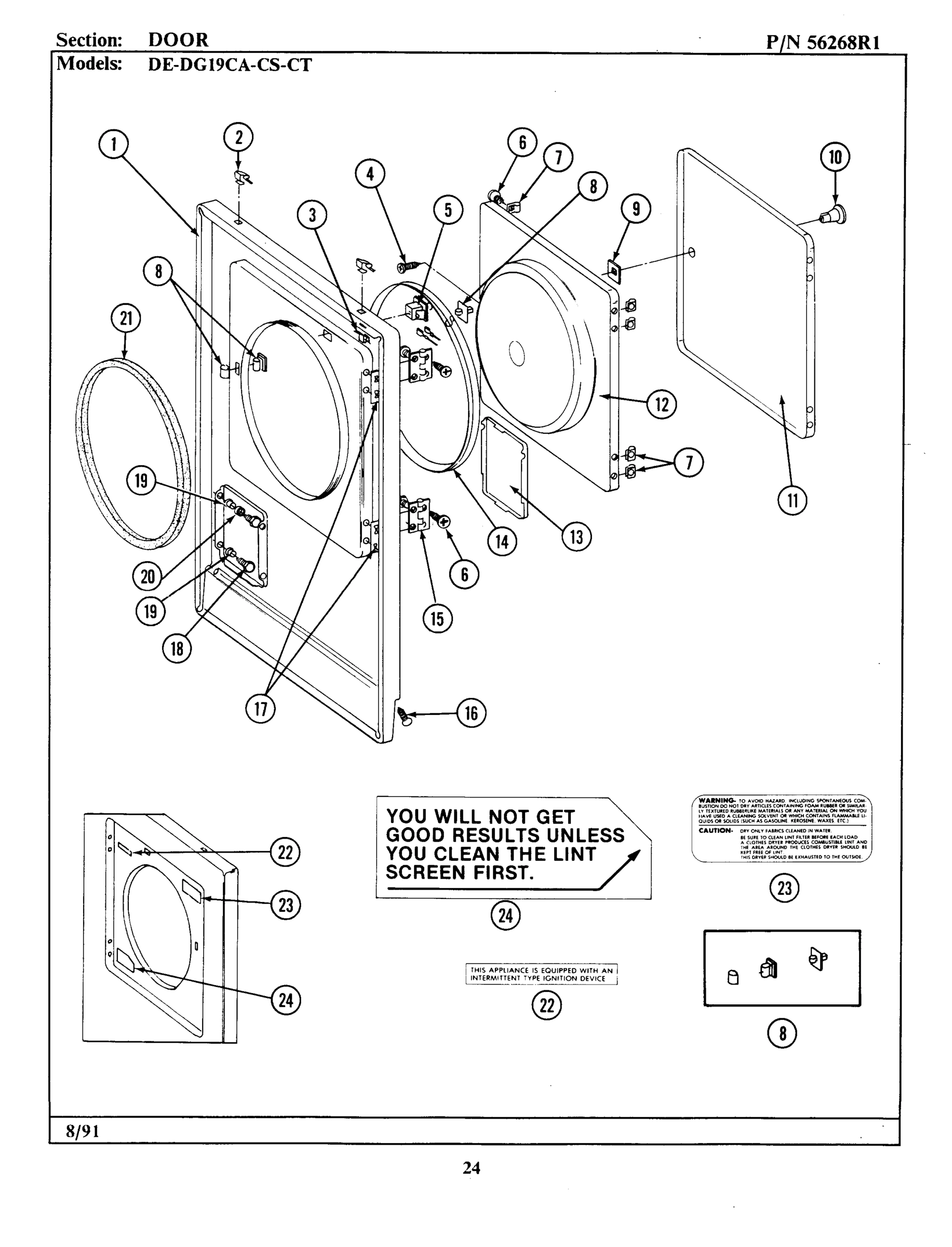

04 - DOOR

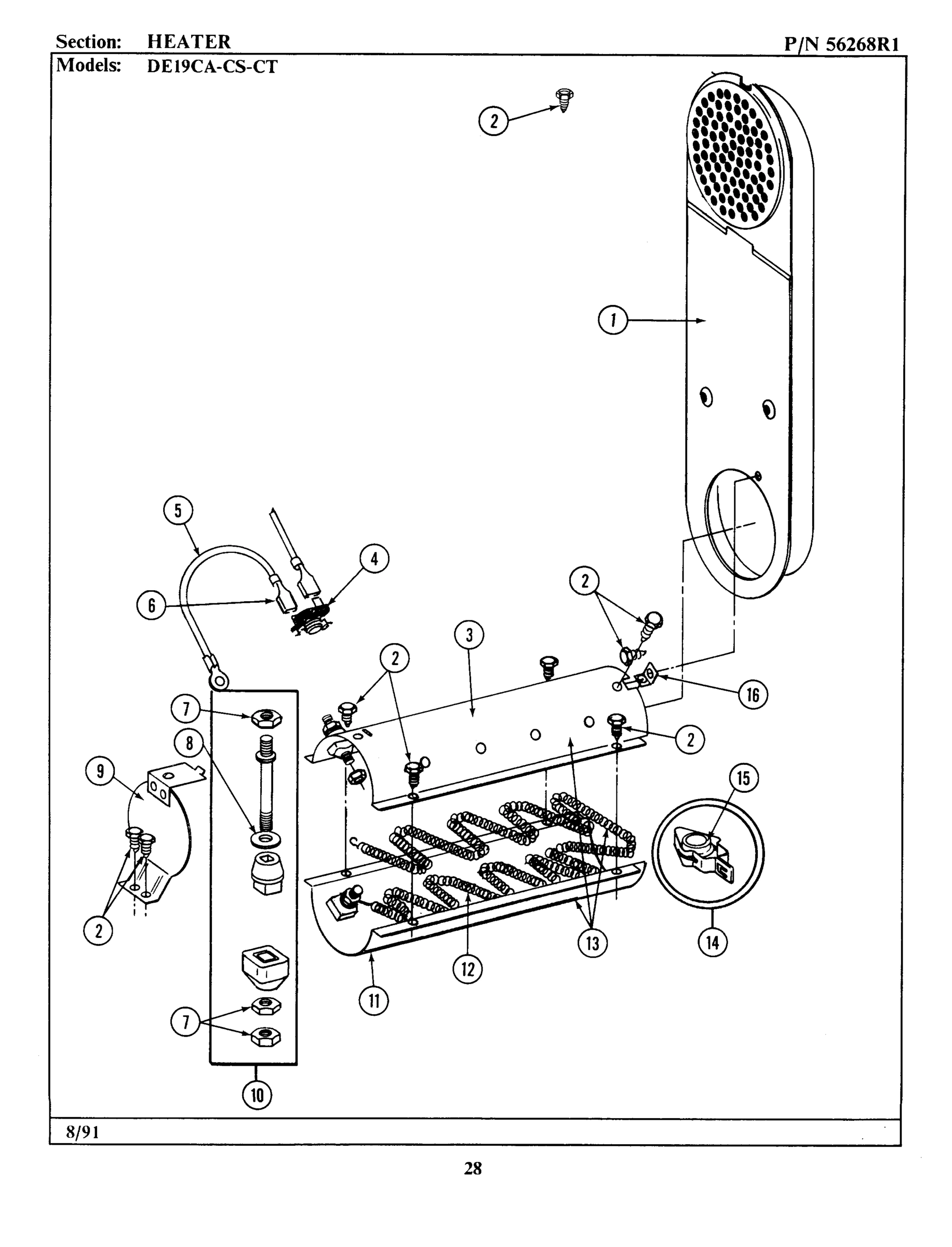

06 - HEATER

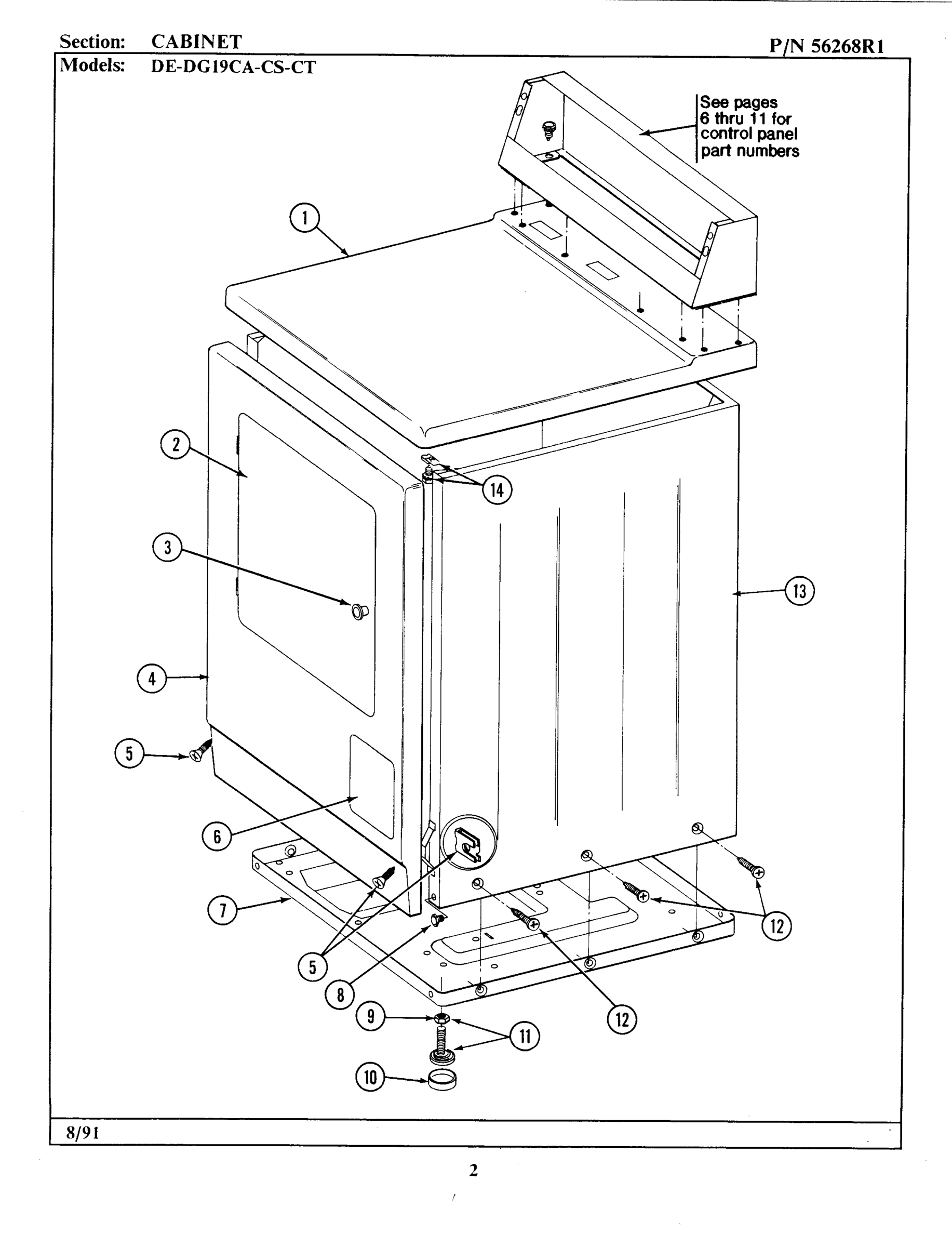

01 - CABINET-FRONT

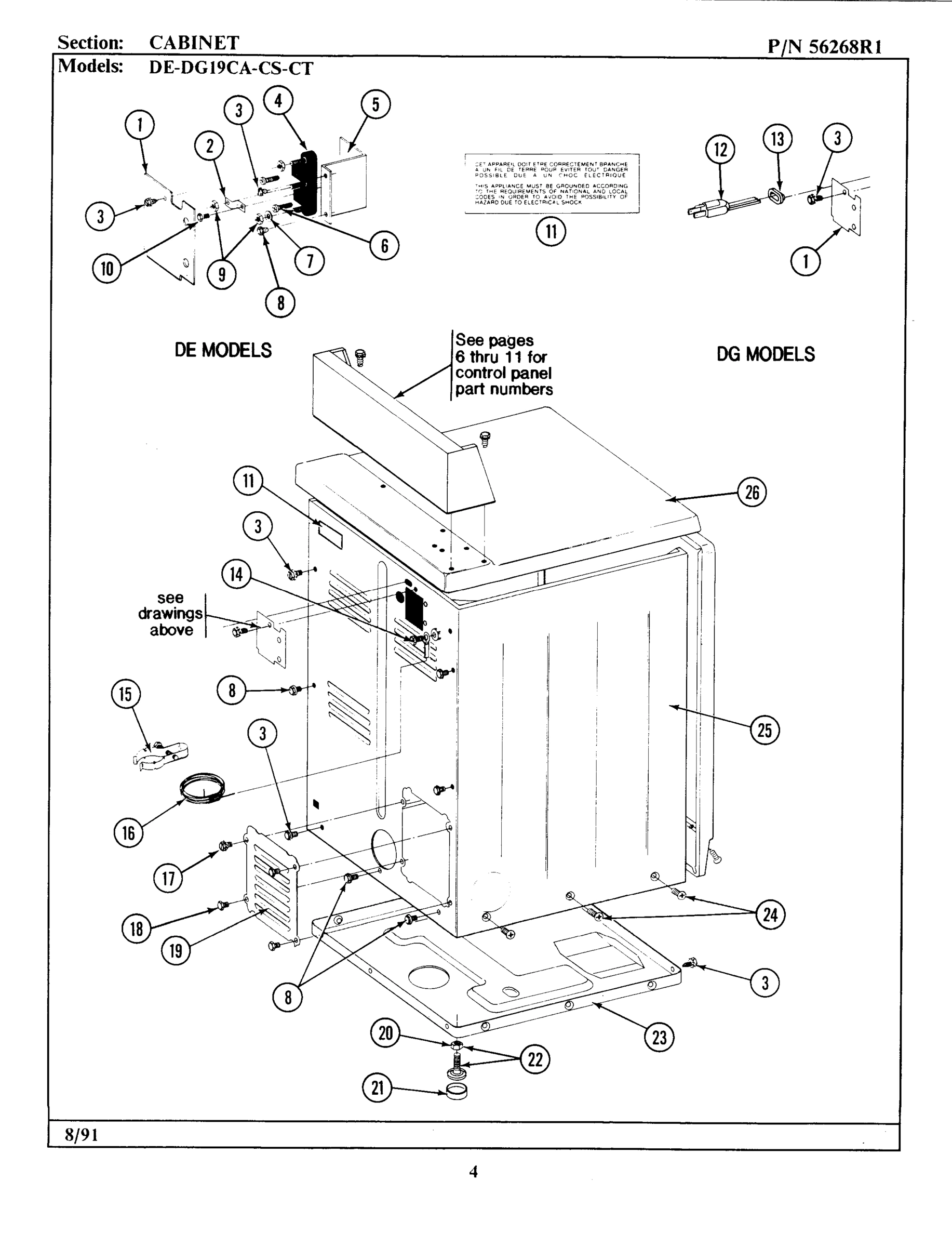

02 - CABINET-REAR

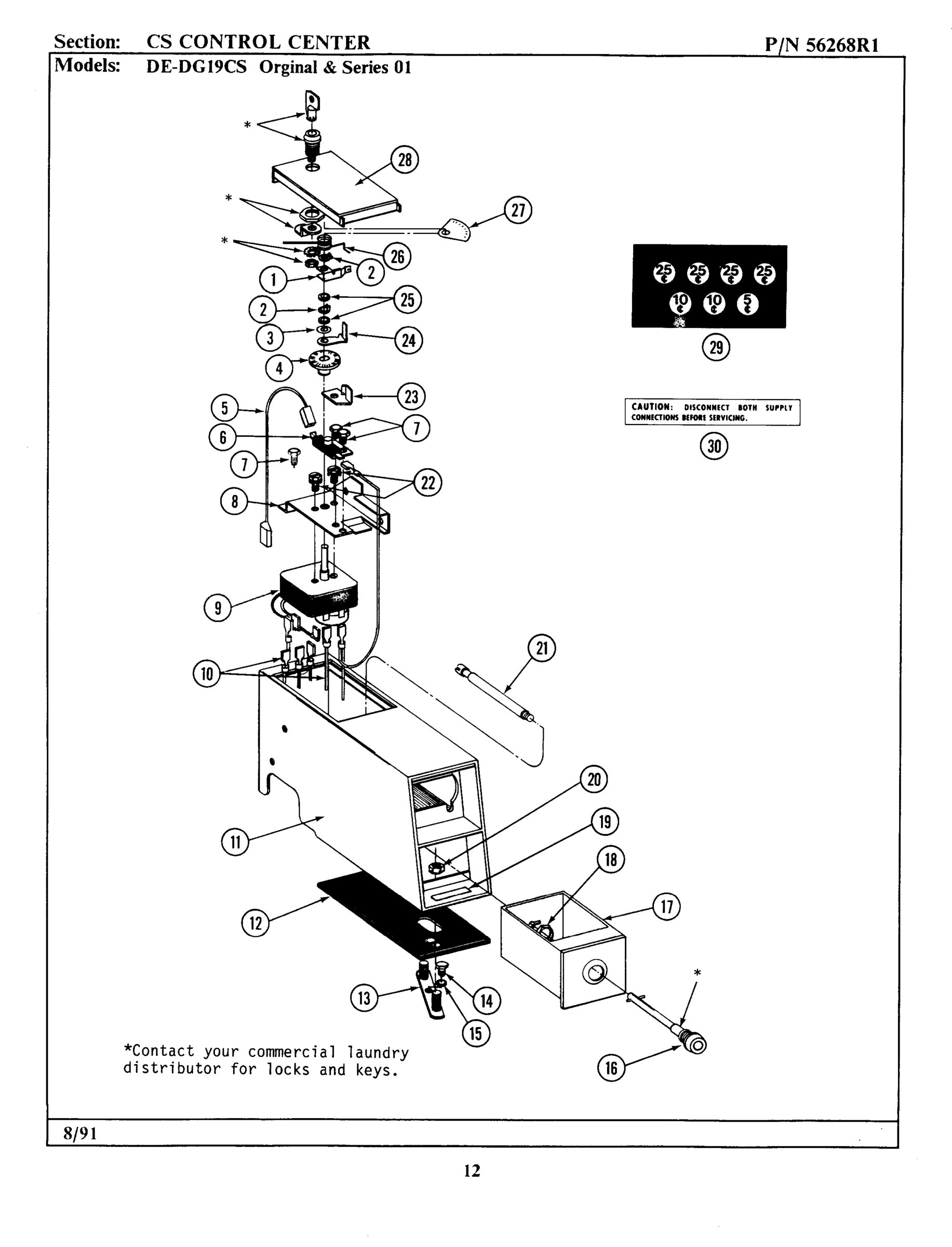

09 - CONTROL CENTER

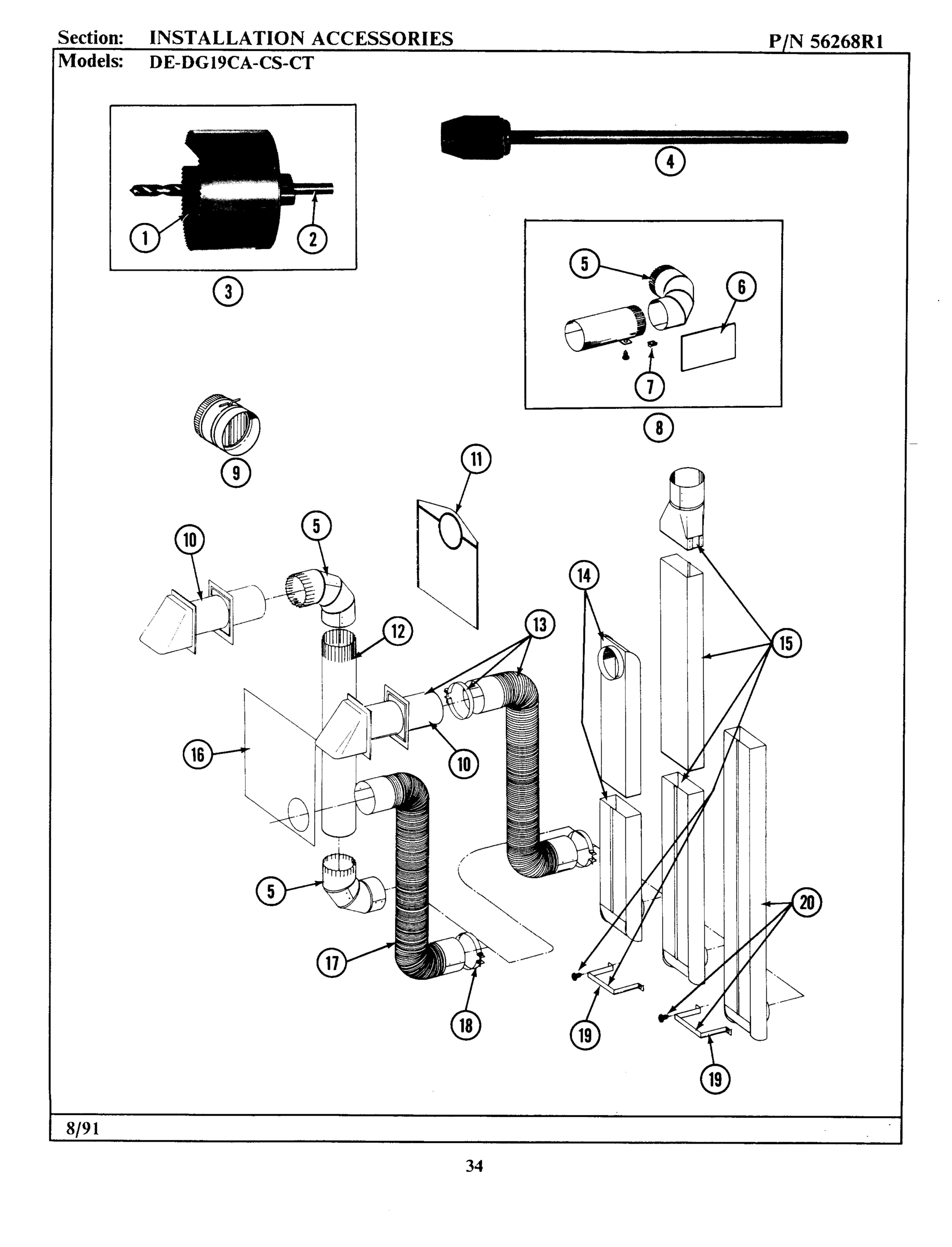

08 - INSTALLATION ACCESSORIES

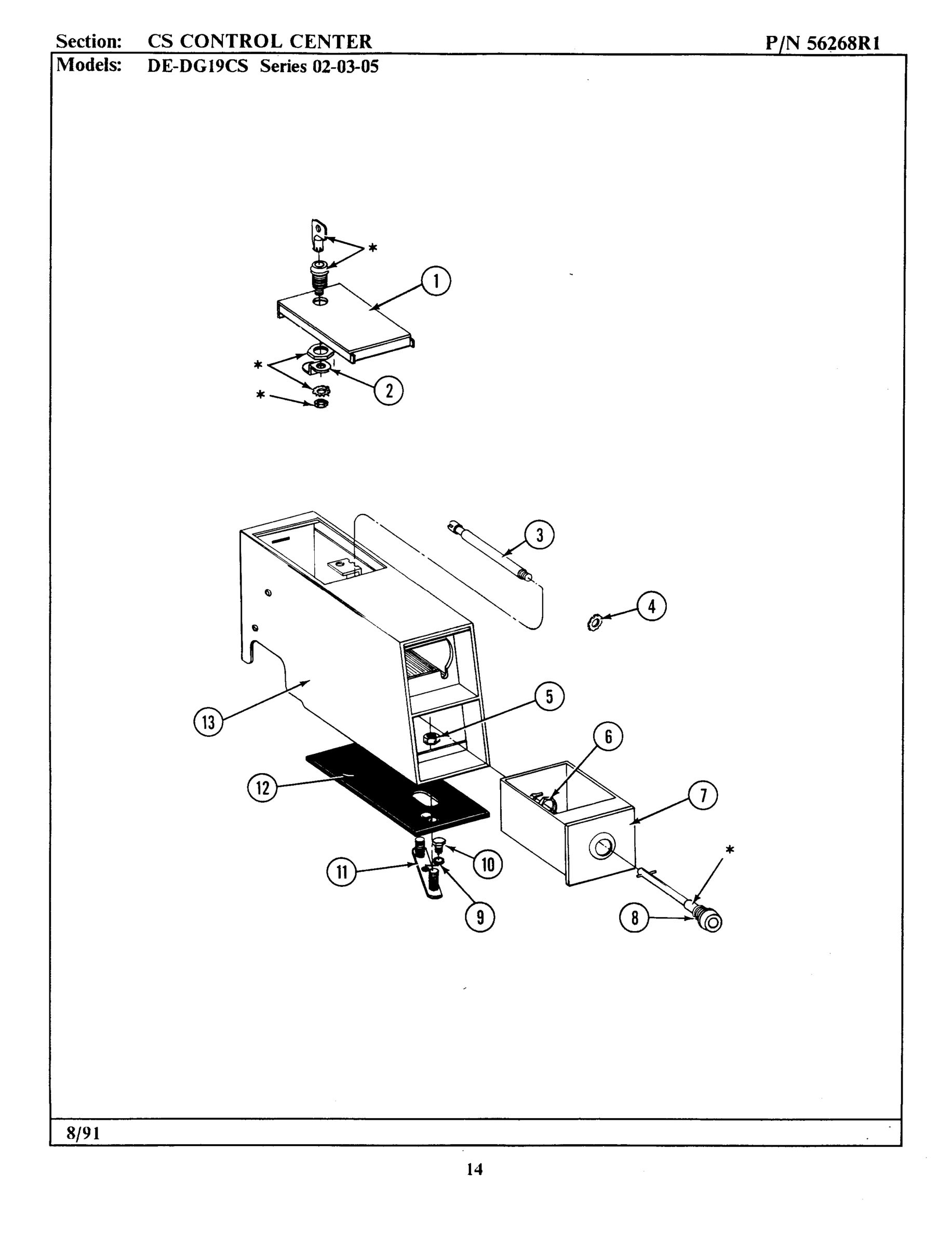

10 - CONTROL CENTER CASE

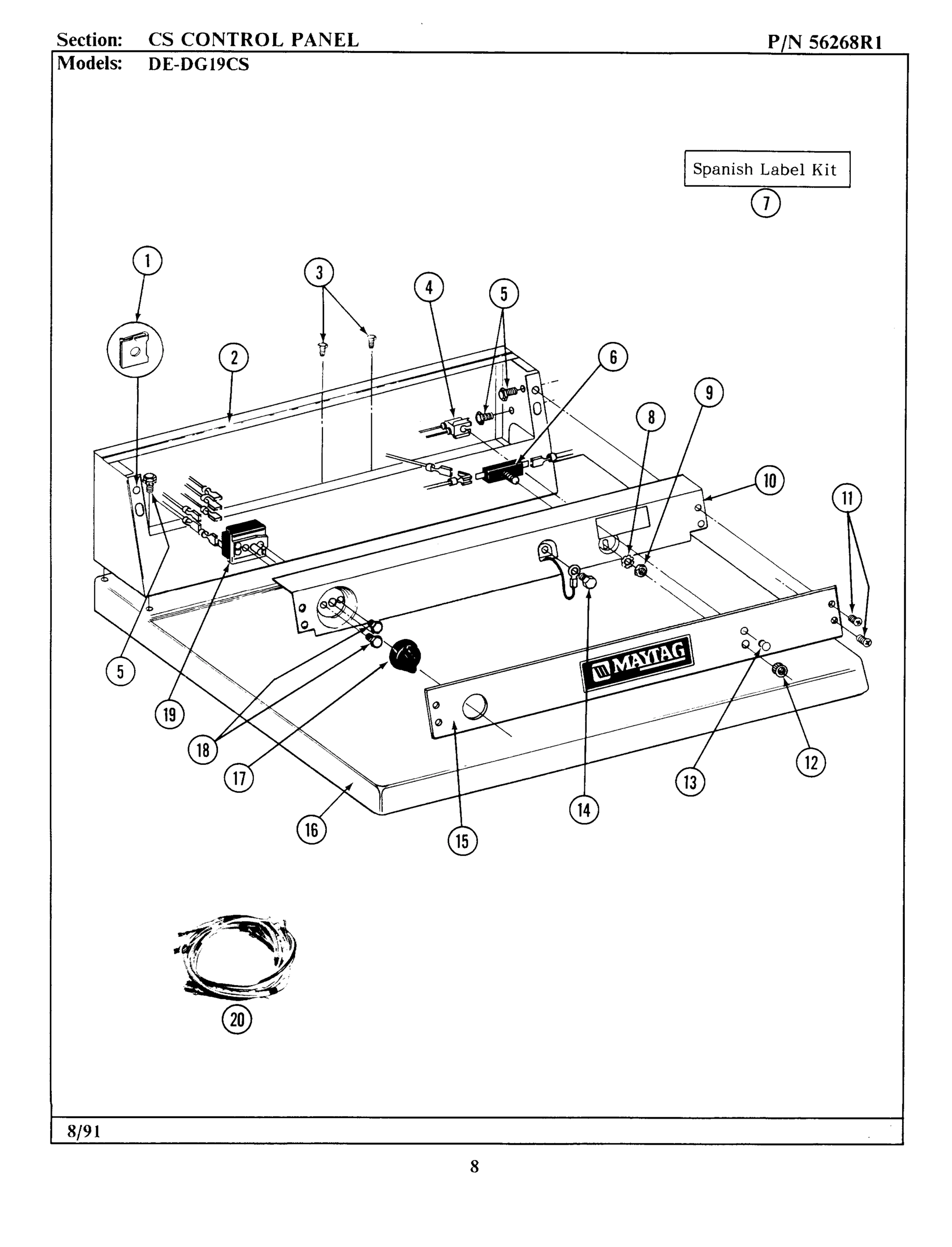

03 - CONTROL PANEL

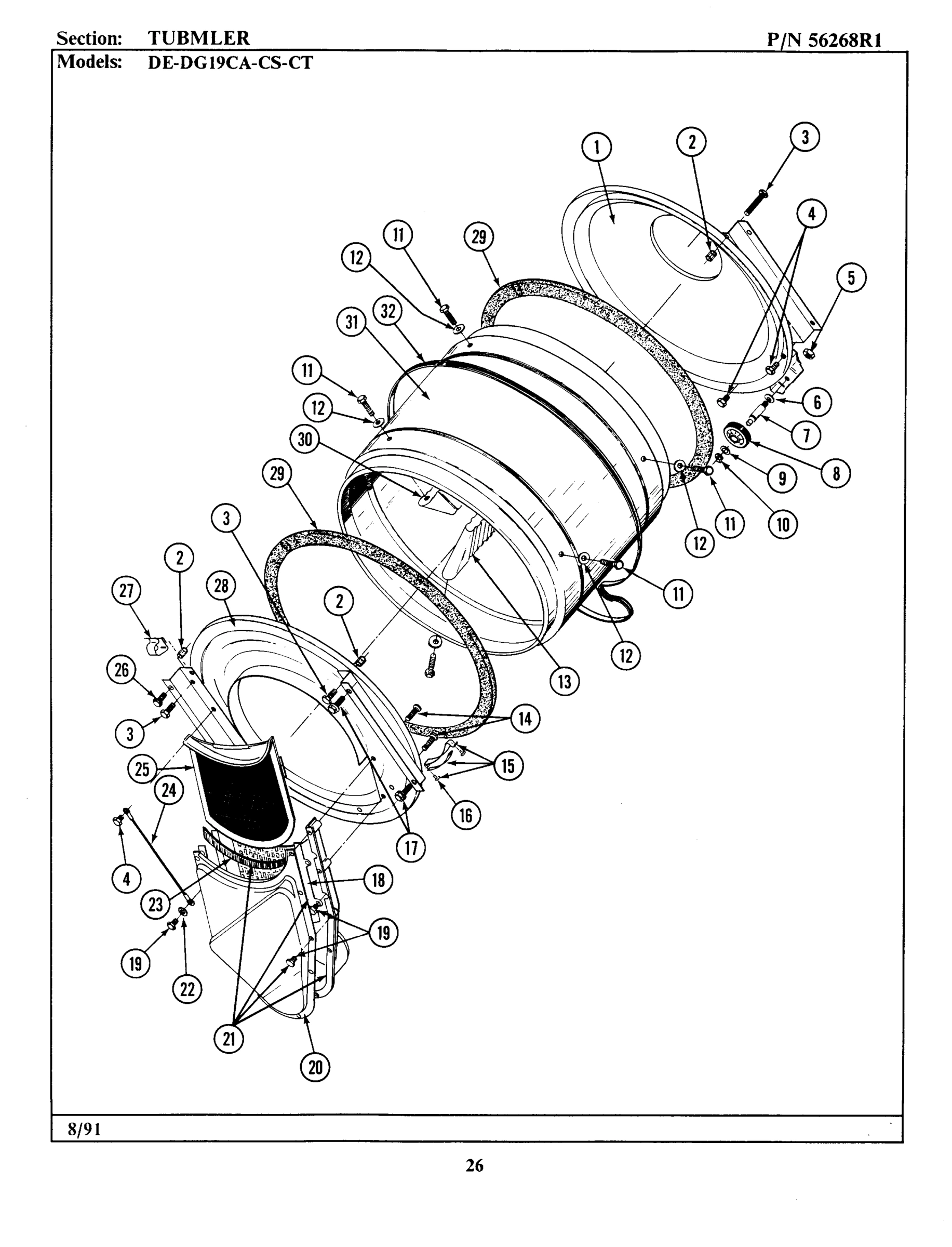

05 - TUMBLER

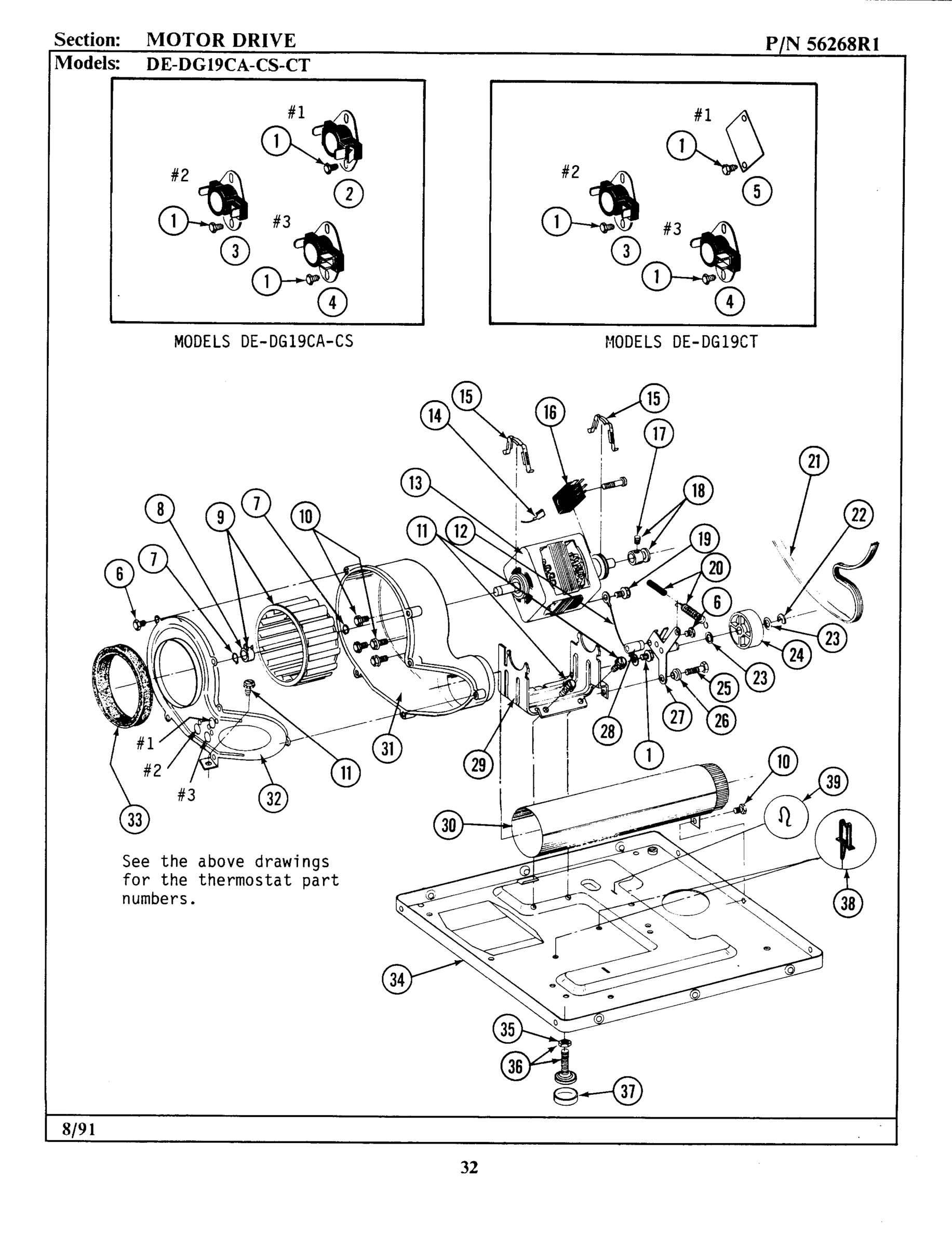

07 - MOTOR DRIVE

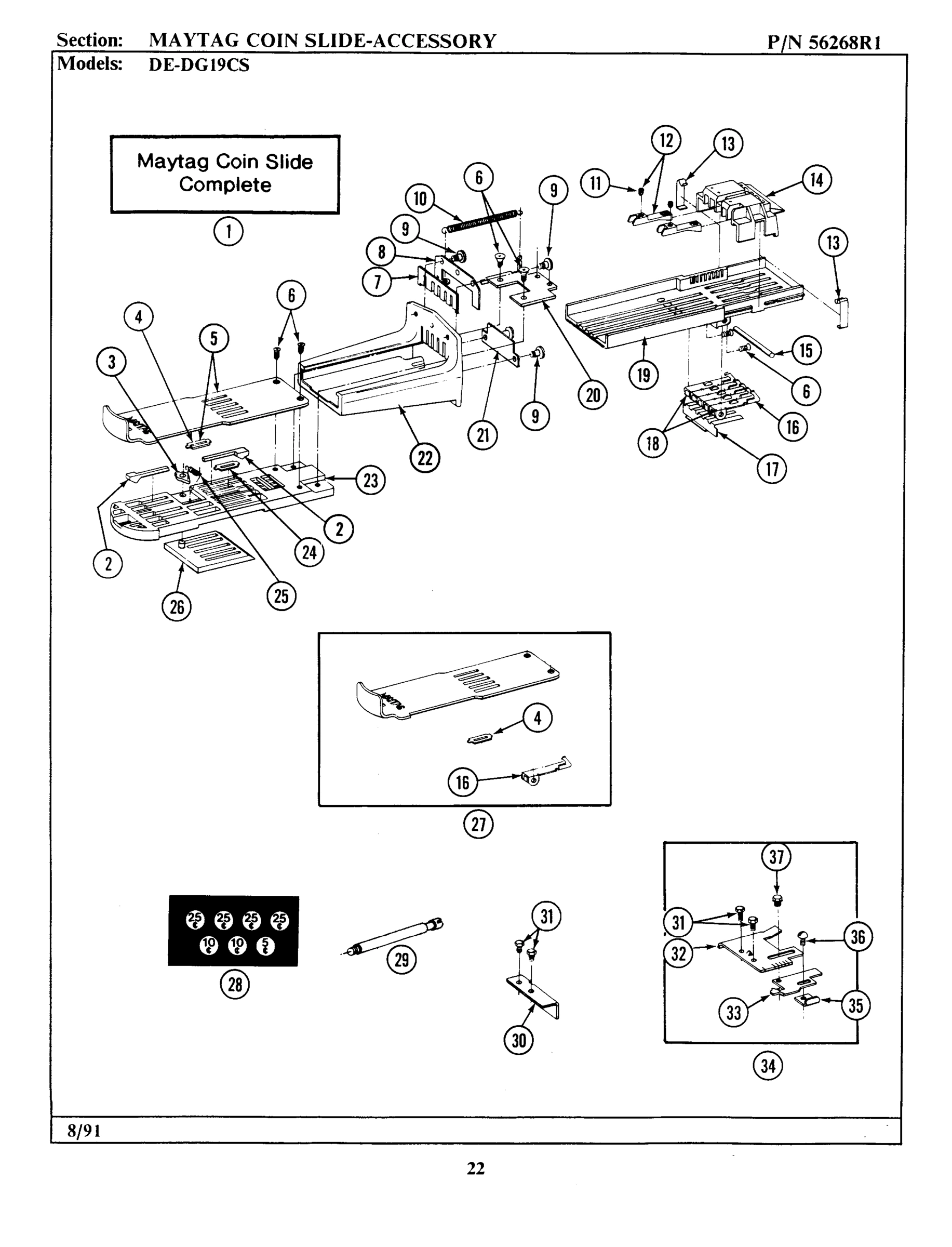

12 - MAYTAG COIN SLIDE-ACCESSORY
13 - 50HZ CONVERSION LIST

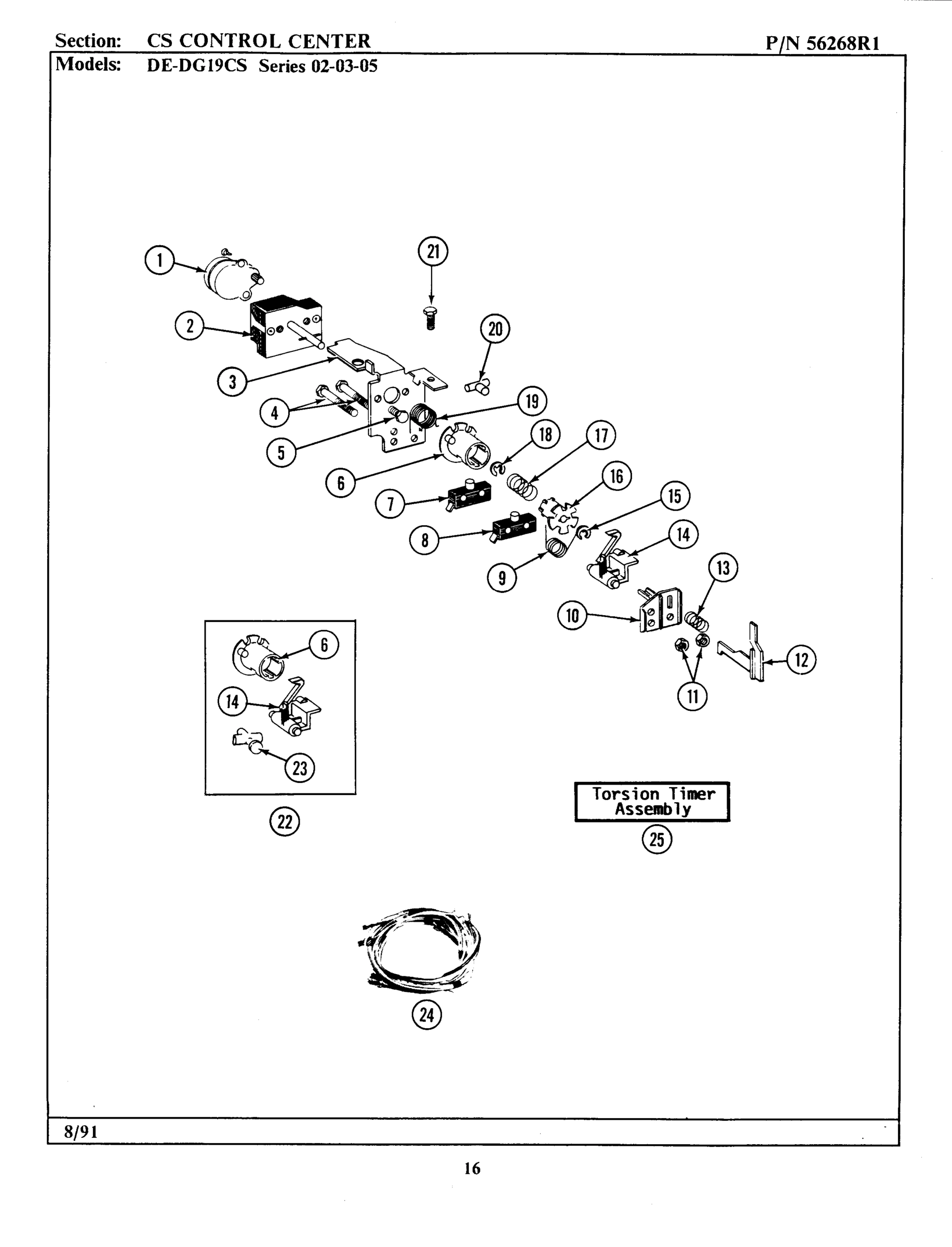

11 - CONTROL CENTER (SERIES 02)
Common parts from model Whirlpool LDE19CS ELECTRIC DRYER
001
INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
RETURN LEVER WPL Y312068 Contact Us For Availability
001
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
001
ACCESS DOOR-ALMOND WPL 203188L Contact Us For Availability
001
ACCESS DOOR-HARVEST WHEAT WPL 203188M Contact Us For Availability
001
FASTENER WPL 215003 Contact Us For Availability
001
TUMBLER BACK WPL Y306660 Contact Us For Availability
001
TIMER MOTOR WPL 305870 Contact Us For Availability
002
DOOR-WHITE WPL Y304579 Contact Us For Availability
002
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
002
STRAP, GROUND WPL Y312184 Contact Us For Availability
002
CONSOLE-WHITE WPL 305213 Contact Us For Availability
002
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
002
TIMER WPL 305796 Contact Us For Availability
002
TIMER - CANADA RPR WPL 305813 Contact Us For Availability
003
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
003
SPRING WASHER WPL 312073 Contact Us For Availability
003
PART NOT USED WPL Y314322 Contact Us For Availability
003
RATCHET ARM WPL 214572 Contact Us For Availability
003
TIMER MOUNTING BRACKET WPL 314333 Contact Us For Availability
004
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
004
LOCK WASHER WPL 910181 Contact Us For Availability
004
INDICATOR LAMP WPL Y305396 Contact Us For Availability
004
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
004
SCREW WPL 315277 Contact Us For Availability
005
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
005
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
005
WIRE ASSEMBLY WPL Y303707 Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
PART NOT USED WPL Y312853 Contact Us For Availability
006
WIRE TERMINAL WPL 210745 Contact Us For Availability
006
SWITCH FOR COIN SLIDE WPL Y301774 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
START SWITCH WITH NUTS WPL Y303204 Contact Us For Availability
006
SCREW WPL 214597 Contact Us For Availability
006
MOTOR 240-50 WPL Y304656 Contact Us For Availability
006
INDEX WHEEL WPL 314546 Contact Us For Availability
007
COIN BOX-WHITE WPL 205423 Contact Us For Availability
007
COIN BOX-ALMOND WPL 205423L Contact Us For Availability
007
COIN BOX-HARVEST WHEAT WPL 205423M Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
GATE FOR COIN OPENING WPL 214578 Contact Us For Availability
007
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
007
BYPASS SWITCH FOR HEATER WPL Y305799 Contact Us For Availability
008
TIMER SUPPORT BRACKET WPL 312250 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
008
BYPASS SWITCH FOR MOTOR WPL 305798 Contact Us For Availability
009
HEATER SHIELD WPL 304124 Contact Us For Availability
009
TIMER WPL Y303743 Contact Us For Availability
009
WASHER WPL 910309 Contact Us For Availability
009
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
009
TIMER 240-50 WPL 305812 Contact Us For Availability
009
ACTUATOR SPRING WPL 314332 Contact Us For Availability
010
SCREW WPL Y310632 Contact Us For Availability
010
RETURN SPRING WPL 214581 Contact Us For Availability
010
TIMER MOTOR 240-50 WPL 306527 Contact Us For Availability
010
SWITCH AND SLIDER BRACKET WPL 314339 Contact Us For Availability
011
SCREW WPL Y310759 Contact Us For Availability
011
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
011
SCREW----NA WPL Y313561 Contact Us For Availability
011
PART NOT USED WPL 214519 Contact Us For Availability
011
OUTER CASE-WHITE----NA WPL 305395 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
011
HEATER ELEMENT 240-50 WPL Y313950 Contact Us For Availability
012
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
012
PART NOT USED WPL 302521 Contact Us For Availability
012
GASKET, METER CASE WPL 214660 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
KNURLED NUT WPL Y312702 Contact Us For Availability
012
WASHER WPL 314158 Contact Us For Availability
012
WIRE, GROUND WPL 901220 Contact Us For Availability
013
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
013
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
013
PART NOT USED WPL 211881 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
OUTER CASE-WHITE WPL 205646 Contact Us For Availability
013
OUTER CASE-ALMOND WPL 205646L Contact Us For Availability
013
OUTER CASE-HARVEST WHEAT WPL 205646M Contact Us For Availability
013
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
013
SPRING CLIP WPL 214589 Contact Us For Availability
014
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
015
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
015
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
015
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
015
LOCK RING FOR TIMER SHAFT WPL 211790 Contact Us For Availability
016
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
016
TOP COVER-WHITE WPL Y305191 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
PROD. No.3-3358-8 & No.3-3358-9 WPL 306207 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358-2, No.3-3 WPL Y303877 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 WPL Y303879 Contact Us For Availability
016
DRIVER FOR INDEX WHEEL WPL 314330 Contact Us For Availability
017
TWIN FASTENER WPL Y313907 Contact Us For Availability
017
KNOB FOR SELECTOR SWITCH WPL 205663 Contact Us For Availability
017
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
017
SPRING FOR LOWER GAGE ARM WPL 214596 Contact Us For Availability
018
SCREW WPL 212949 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
018
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
018
E CLIP WPL Y312270 Contact Us For Availability
019
COVER, ACCESS WPL Y312951 Contact Us For Availability
019
SELECTOR SWITCH WPL Y303420 Contact Us For Availability
019
BASE INSERT FOR HOUSING WPL 214594 Contact Us For Availability
019
RETURN SPRING WPL 314331 Contact Us For Availability
020
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
020
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
020
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
020
TIME ADJUSTMENT PEG WPL 314335 Contact Us For Availability
021
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
021
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
022
SCREW WPL 211251 Contact Us For Availability
022
WASHER WPL 310557 Contact Us For Availability
022
HOUSING FOR COIN SLIDE WPL 214584 Contact Us For Availability
022
TORSION-TIMER KIT WPL 306104 Contact Us For Availability
023
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
023
STOP FOR ACTUATOR WPL Y312069 Contact Us For Availability
023
LINT SEAL WPL Y313796 Contact Us For Availability
024
MAIN WIRE HARNESS WPL NLA Contact Us For Availability
024
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
024
TIMER ACTUATOR LEVER WPL Y313309 Contact Us For Availability
024
WIRE HARNESS FOR TIMER WPL 305800 Contact Us For Availability
025
WASHER WPL 410730 Contact Us For Availability
025
SPRING FOR RATCHET ARM WPL 214582 Contact Us For Availability
025
TORSION TIMER ASSM COMPLETE WPL 305797 Contact Us For Availability
026
RETURN SPRING FOR ACTUATOR WPL Y312071 Contact Us For Availability
026
STOP BLOCK ASSEMBLY WPL 205350 Contact Us For Availability
027
TIME INDICATOR GAGE WPL 314073 Contact Us For Availability
027
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
028
COINAGE DECAL WPL 214648 Contact Us For Availability
029
BOLT, LOCKING WPL 213035 Contact Us For Availability
029
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
030
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
030
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
030
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
030
BRACKET FOR COIN SLIDE WPL 314334 Contact Us For Availability
031
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
031
TUMBLER WPL 305187 Contact Us For Availability
031
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
032
COVER FOR BLOWER HOUSING WPL Y313770 Contact Us For Availability
032
BRACKET FOR SLIDE WPL Y312577 Contact Us For Availability
033
SLIDE ADJUSTMENT WPL Y312578 Contact Us For Availability
034
BASE ASSY. WPL Y303361 Contact Us For Availability
034
ACTUATOR KIT-DRYER SLIDES WPL Y302924 Contact Us For Availability
035
ZERO SLIDE ADJUSTMENT WPL Y312576 Contact Us For Availability
036
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
038
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
039
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
× ![]()
