Model Maytag LDE19CA ELECTRIC DRYER – Common Parts & Diagrams

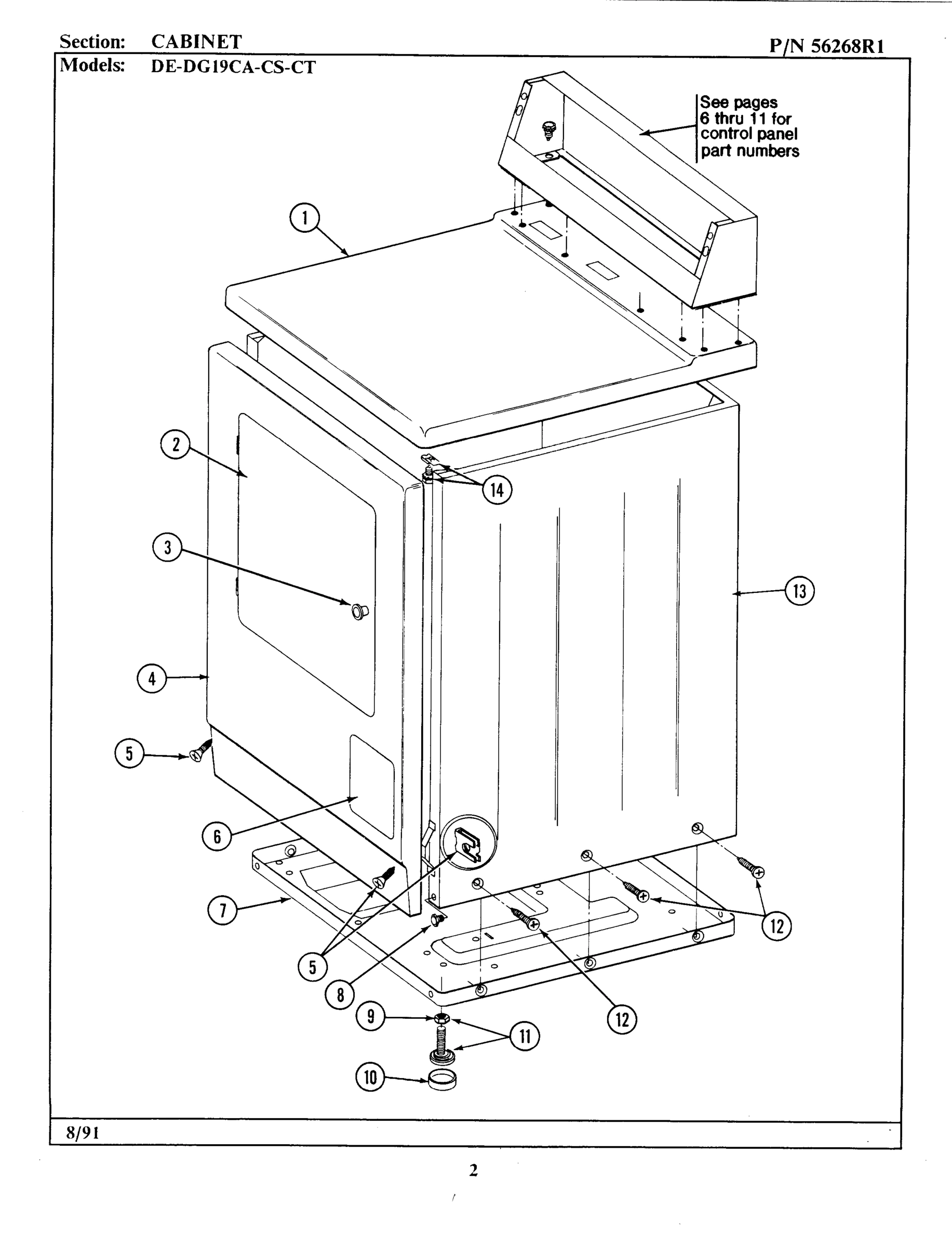

01 - CABINET-FRONT

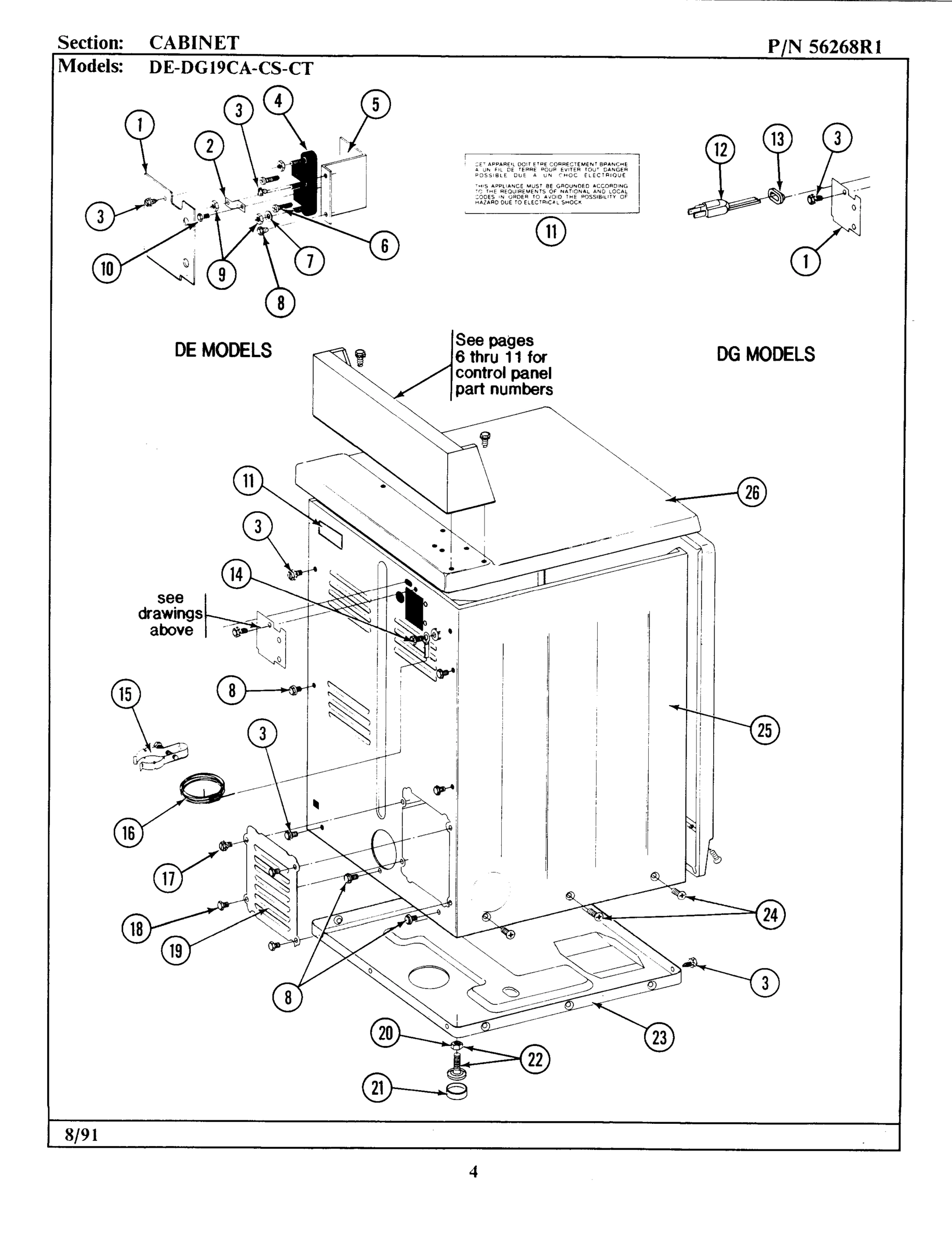

02 - CABINET-REAR

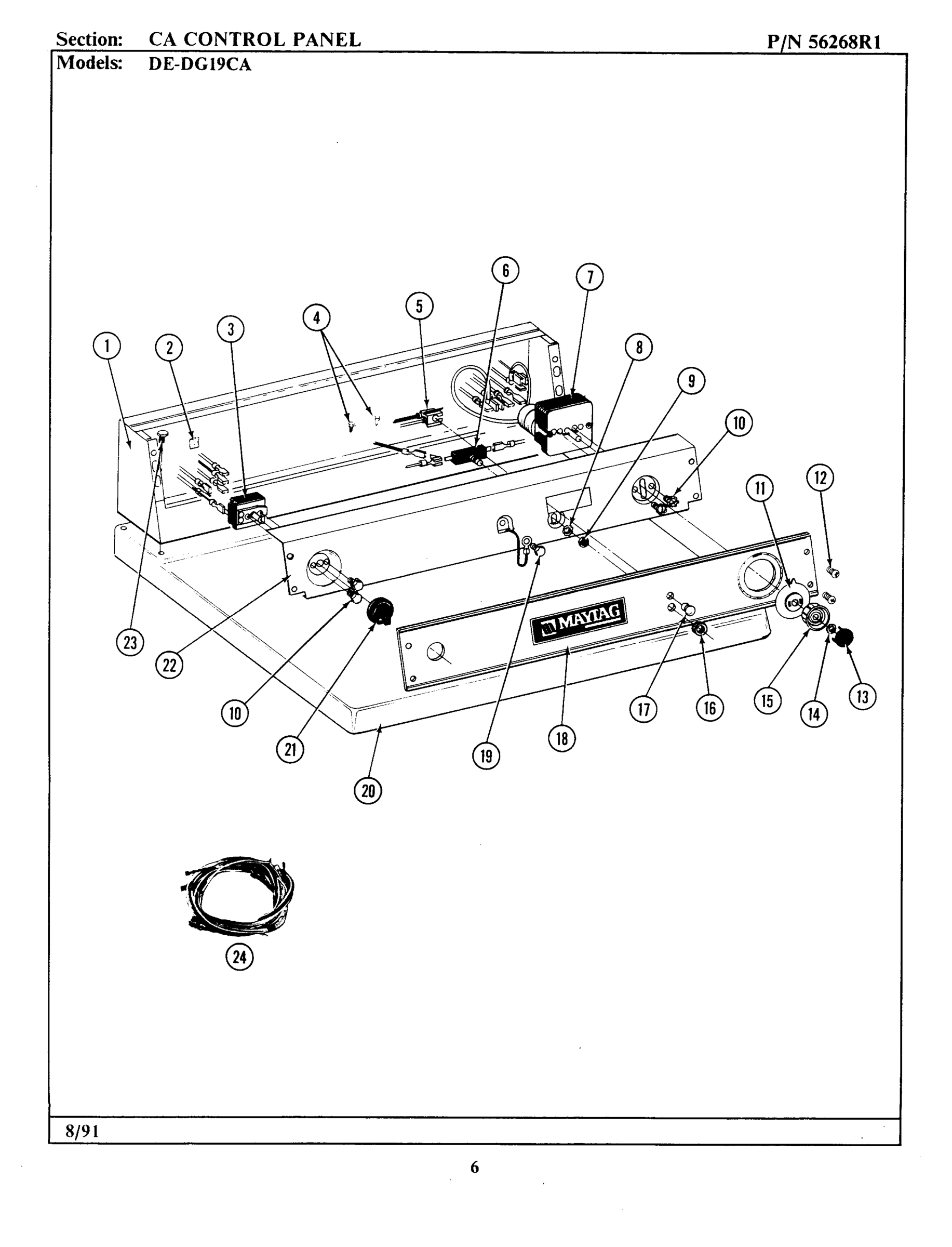

03 - CONTROL PANEL

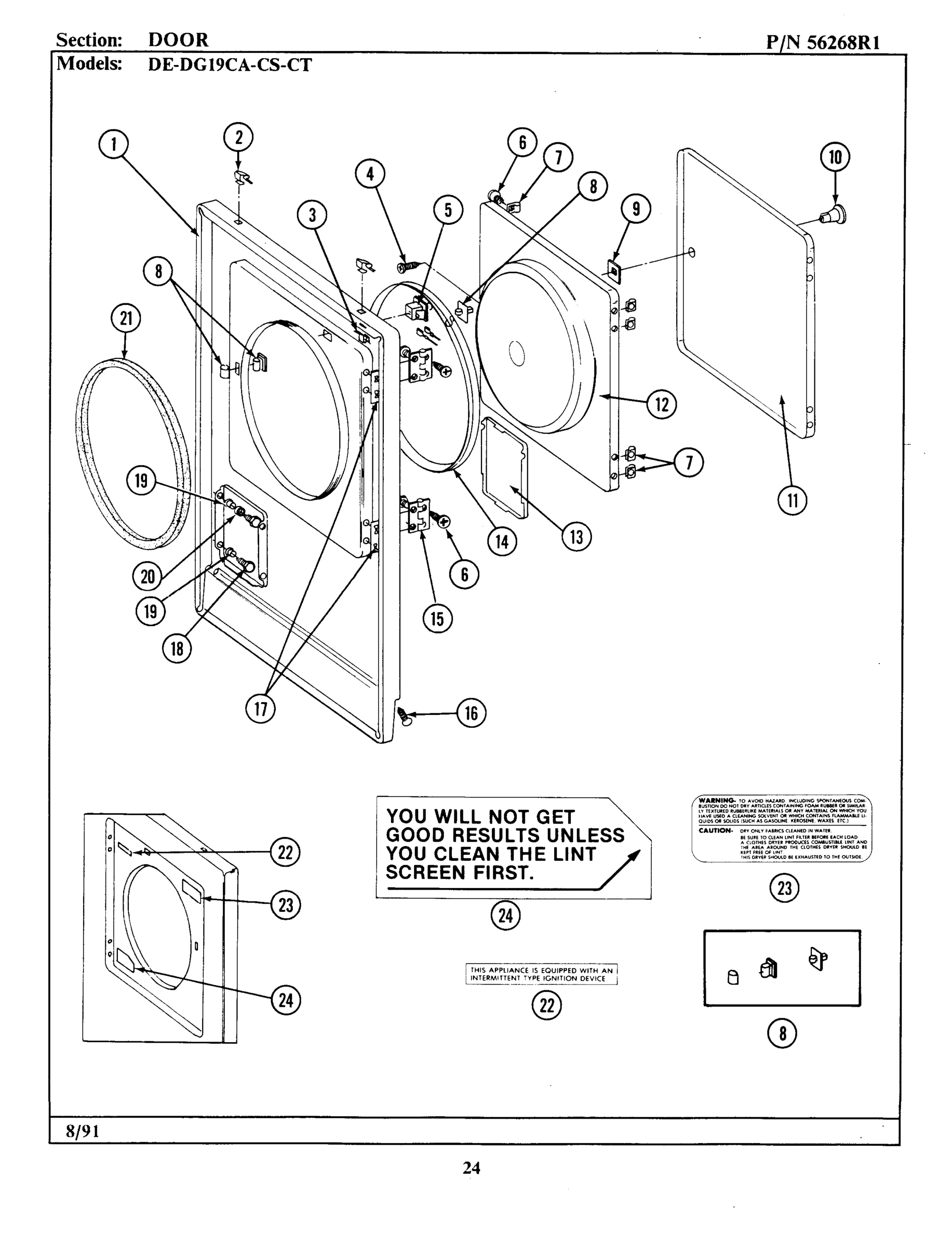

04 - DOOR

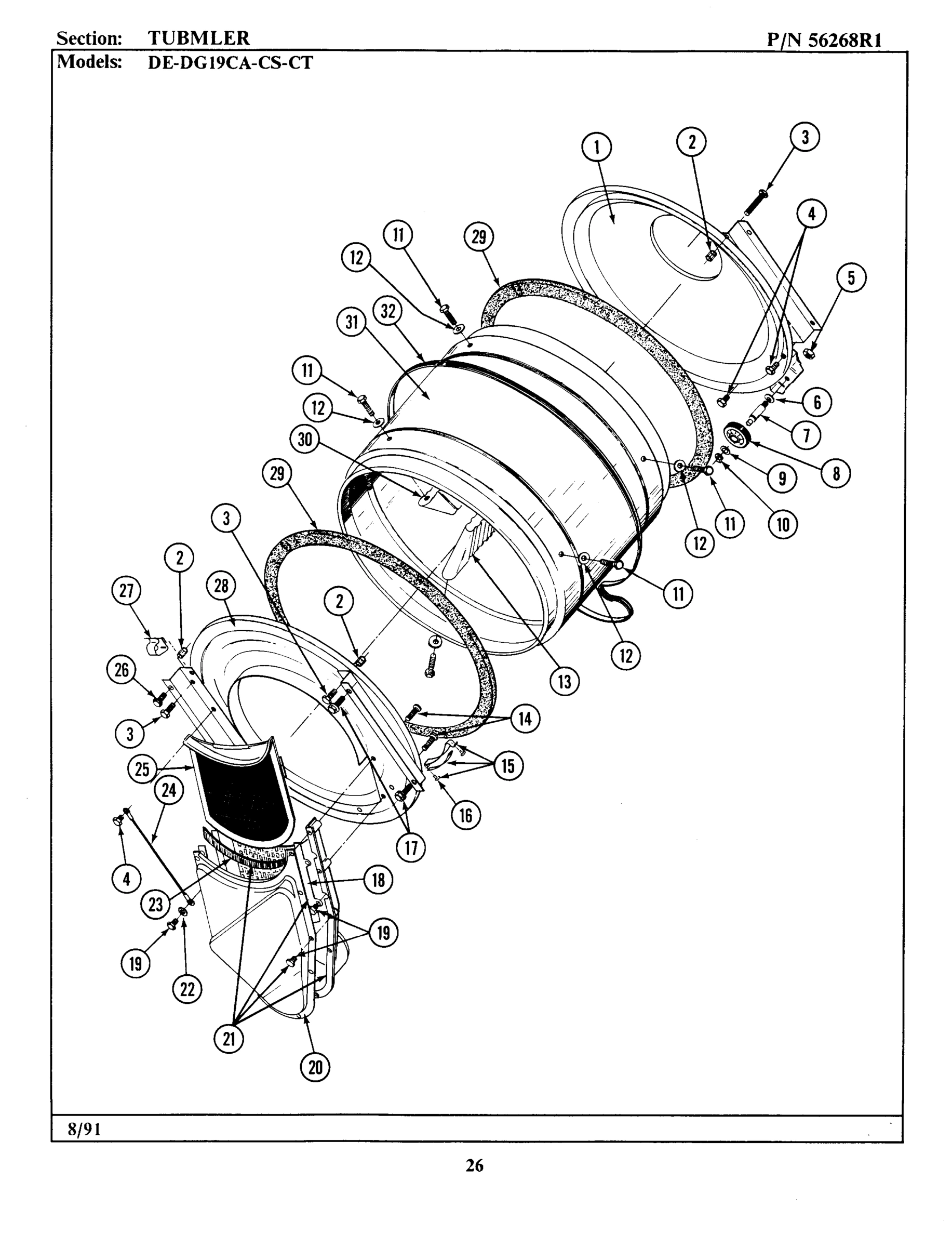

05 - TUMBLER

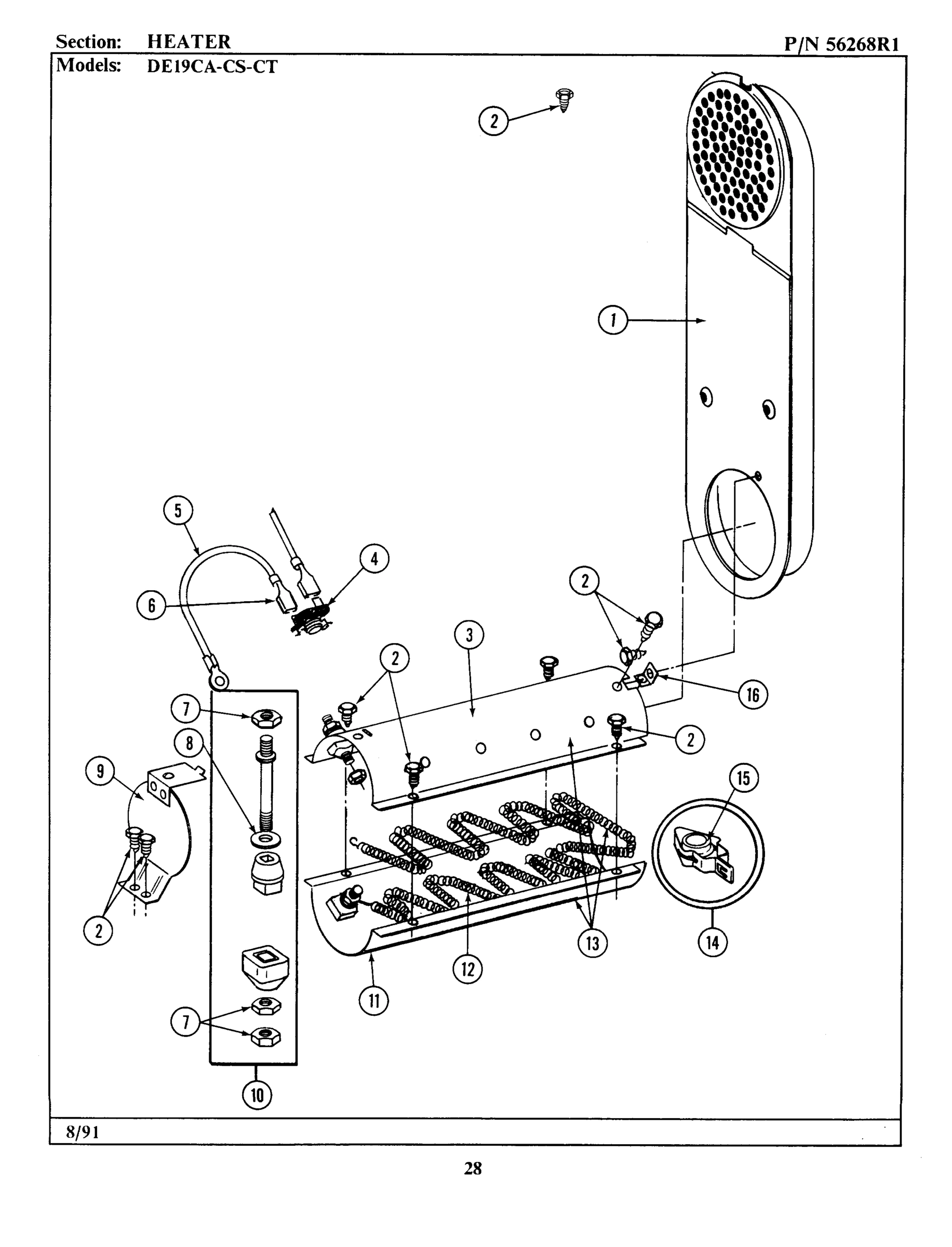

06 - HEATER

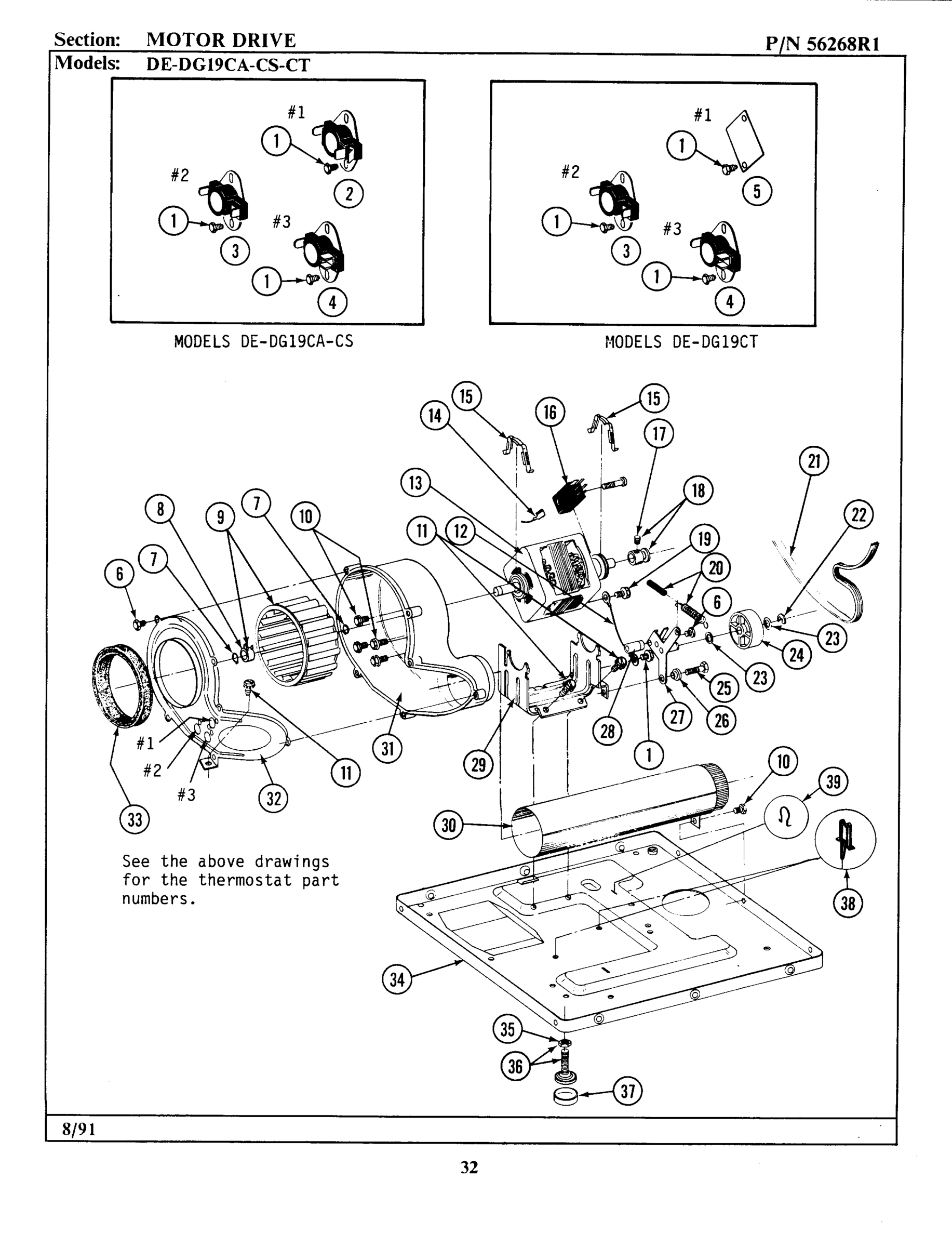

07 - MOTOR DRIVE

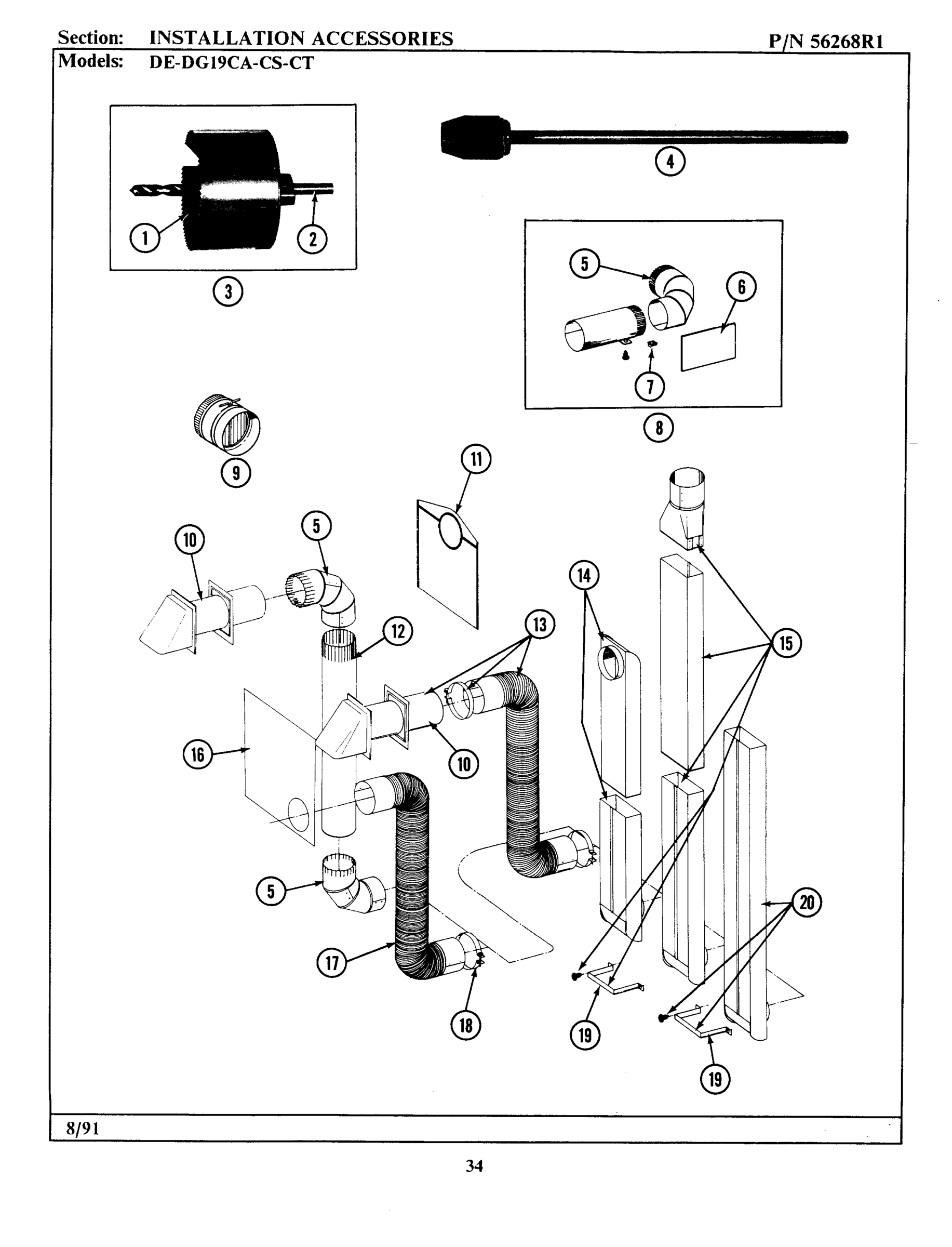

08 - INSTALLATION ACCESSORIES
09 - 50HZ CONVERSION LIST
Common parts from model Maytag LDE19CA ELECTRIC DRYER
001
MAY Y306660 MAY Y306660 Contact Us For Availability
001
MAY Y303362 MAY Y303362 Contact Us For Availability
001
MAY Y304656 MAY Y304656 Contact Us For Availability
002
MAY Y303225 MAY Y303225 Contact Us For Availability
002
MAY 212982 MAY 212982 Contact Us For Availability
002
MAY 305186 MAY 305186 Contact Us For Availability
003
MAY Y313575 MAY Y313575 Contact Us For Availability
004
MAY 400008 MAY 400008 Contact Us For Availability
004
MAY Y305758 MAY Y305758 Contact Us For Availability
005
TIMER MOTOR 240-50 MAY NLA Contact Us For Availability
005
MAY 312538 MAY 312538 Contact Us For Availability
005
PART NOT USED MAY Y312853 Contact Us For Availability
005
MAY Y059131 MAY Y059131 Contact Us For Availability
005
MAY 306528 MAY 306528 Contact Us For Availability
006
START SWITCH W/NUTS MAY Y303204 Contact Us For Availability
006
MAY 210745 MAY 210745 Contact Us For Availability
006
MAY 312302 MAY 312302 Contact Us For Availability
006
MAY Y313950 MAY Y313950 Contact Us For Availability
007
SHAFT, TUMBLER ROLLER----C WPL WP6-3129480 No Longer Available
007
MAY 305214 MAY 305214 Contact Us For Availability
007
MAY 305215 MAY 305215 Contact Us For Availability
007
TIMER MOTOR RPR FOR 305214 TIMER ONLY MAY Y304585 Contact Us For Availability
007
CLIP, DOOR LINER (OUTER PNL) MAY Y313910 Contact Us For Availability
007
MAY 213323 MAY 213323 Contact Us For Availability
008
MAY Y303373 MAY Y303373 Contact Us For Availability
008
MAY Y304652 MAY Y304652 Contact Us For Availability
009
MAY Y312706 MAY Y312706 Contact Us For Availability
009
MAY Y313911 MAY Y313911 Contact Us For Availability
009
MAY 304124 MAY 304124 Contact Us For Availability
010
MAY Y310632 MAY Y310632 Contact Us For Availability
011
MAY Y306668 MAY Y306668 Contact Us For Availability
011
MAY Y310759 MAY Y310759 Contact Us For Availability
011
MAY Y313561 MAY Y313561 Contact Us For Availability
011
MAY Y313576 MAY Y313576 Contact Us For Availability
011
MAY 311353 MAY 311353 Contact Us For Availability
012
MAY 314158 MAY 314158 Contact Us For Availability
012
MAY Y313537 MAY Y313537 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
012
MAY Y059130 MAY Y059130 Contact Us For Availability
013
MAY Y303778 MAY Y303778 Contact Us For Availability
013
CAP, TIMER KNOB MAY 214806 Contact Us For Availability
013
MAY 314155 MAY 314155 Contact Us For Availability
013
MAY Y303856 MAY Y303856 Contact Us For Availability
013
MAY Y059143 MAY Y059143 Contact Us For Availability
014
MAY 314077 MAY 314077 Contact Us For Availability
014
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
014
MAY Y059135 MAY Y059135 Contact Us For Availability
015
INSULATOR, HEATER ELEMENT MAY Y313270 Contact Us For Availability
015
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
016
SCREW & FSTNER ASSY (FT. PNL) MAY 204439 Contact Us For Availability
016
MAY Y312702 MAY Y312702 Contact Us For Availability
016
MAY Y312890 MAY Y312890 Contact Us For Availability
016
PROD. No.3-3358-8 & No.3-3358-9 MAY 306207 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358-2, No.3-3 MAY Y303877 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 MAY Y303879 Contact Us For Availability
016
MAY Y059134 MAY Y059134 Contact Us For Availability
017
LENS, CONTROL PANEL MAY 213099 Contact Us For Availability
017
MAY Y313907 MAY Y313907 Contact Us For Availability
017
MAY Y053241 MAY Y053241 Contact Us For Availability
017
MAY Y304353 MAY Y304353 Contact Us For Availability
018
MAY 212949 MAY 212949 Contact Us For Availability
018
GUIDE, LINT SCREEN MAY Y313795 Contact Us For Availability
018
MAY Y305185 MAY Y305185 Contact Us For Availability
018
MAY Y304630 MAY Y304630 Contact Us For Availability
019
MAY 910343 MAY 910343 Contact Us For Availability
020
TOP COVER (WHT) MAY Y305190 Contact Us For Availability
020
MAY 312369 MAY 312369 Contact Us For Availability
020
MAY Y312964 MAY Y312964 Contact Us For Availability
020
MAY Y303945 MAY Y303945 Contact Us For Availability
021
KNOB, SELECTOR SWITCH MAY 205663 Contact Us For Availability
021
MAY 306657 MAY 306657 Contact Us For Availability
022
MAY 310557 MAY 310557 Contact Us For Availability
023
MAY Y313796 MAY Y313796 Contact Us For Availability
023
MAY 212276 MAY 212276 Contact Us For Availability
023
MAY Y313927 MAY Y313927 Contact Us For Availability
023
MAY Y312527 MAY Y312527 Contact Us For Availability
024
LABEL, LINT SCREEN INSTR. MAY Y313340 Contact Us For Availability
025
MAY Y306665 MAY Y306665 Contact Us For Availability
026
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
027
MAY Y310376 MAY Y310376 Contact Us For Availability
029
MAY Y055978 MAY Y055978 Contact Us For Availability
029
TUMBLER SEAL -----S MAY Y313541 Contact Us For Availability
030
MAY 314803 MAY 314803 Contact Us For Availability
030
MAY Y303442 MAY Y303442 Contact Us For Availability
031
TUMBLER W/BAFFLES MAY 305187 Contact Us For Availability
031
MAY 306663 MAY 306663 Contact Us For Availability
031
MAY Y312893 MAY Y312893 Contact Us For Availability
032
MAY Y313770 MAY Y313770 Contact Us For Availability
034
MAY Y303361 MAY Y303361 Contact Us For Availability
036
MAY Y305086 MAY Y305086 Contact Us For Availability
037
MAY Y314137 MAY Y314137 Contact Us For Availability
038
MAY Y313262 MAY Y313262 Contact Us For Availability
039
MAY 410490 MAY 410490 Contact Us For Availability
× ![]()
