Model Whirlpool LDE19CA ELECTRIC DRYER – Common Parts & Diagrams

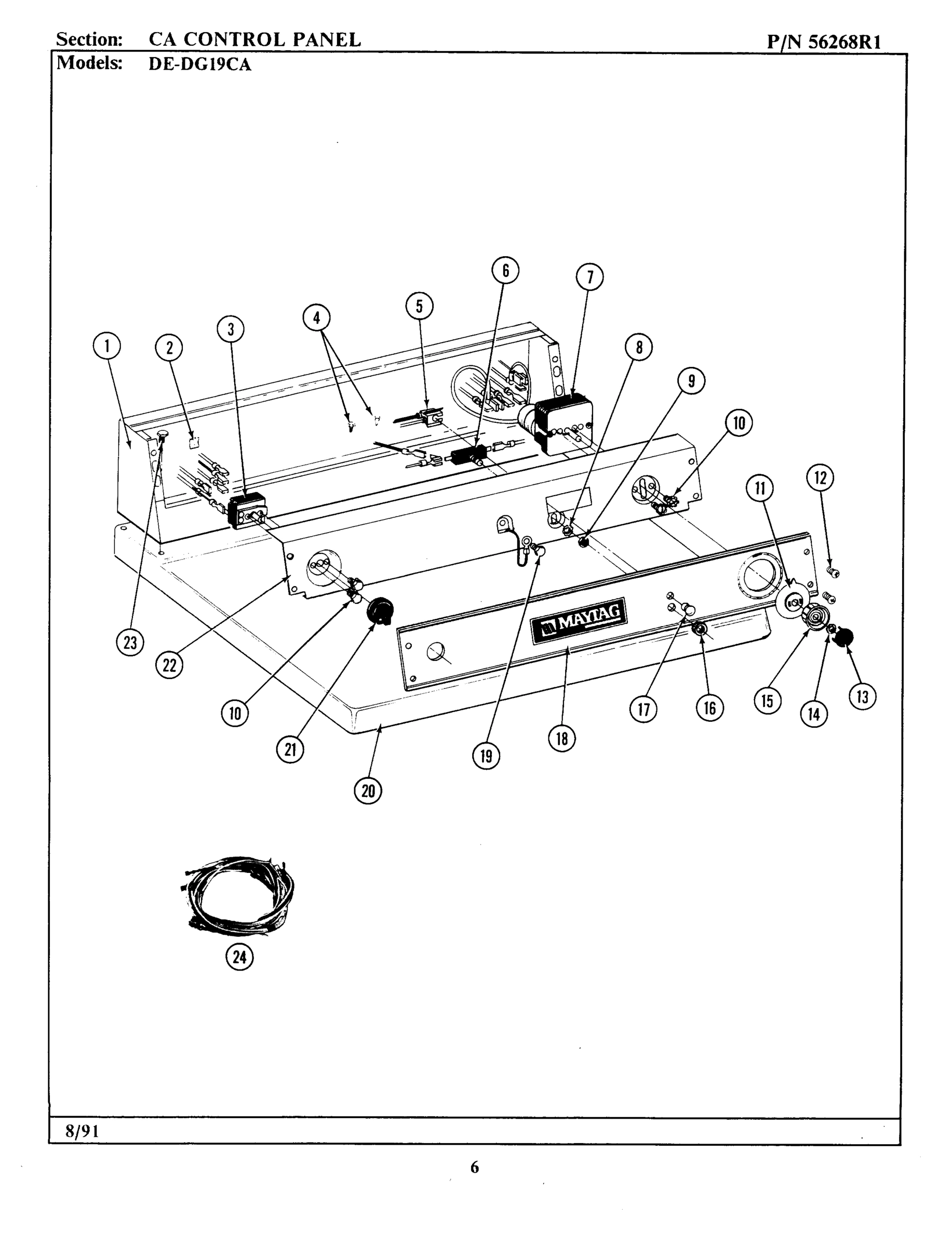

03 - CONTROL PANEL

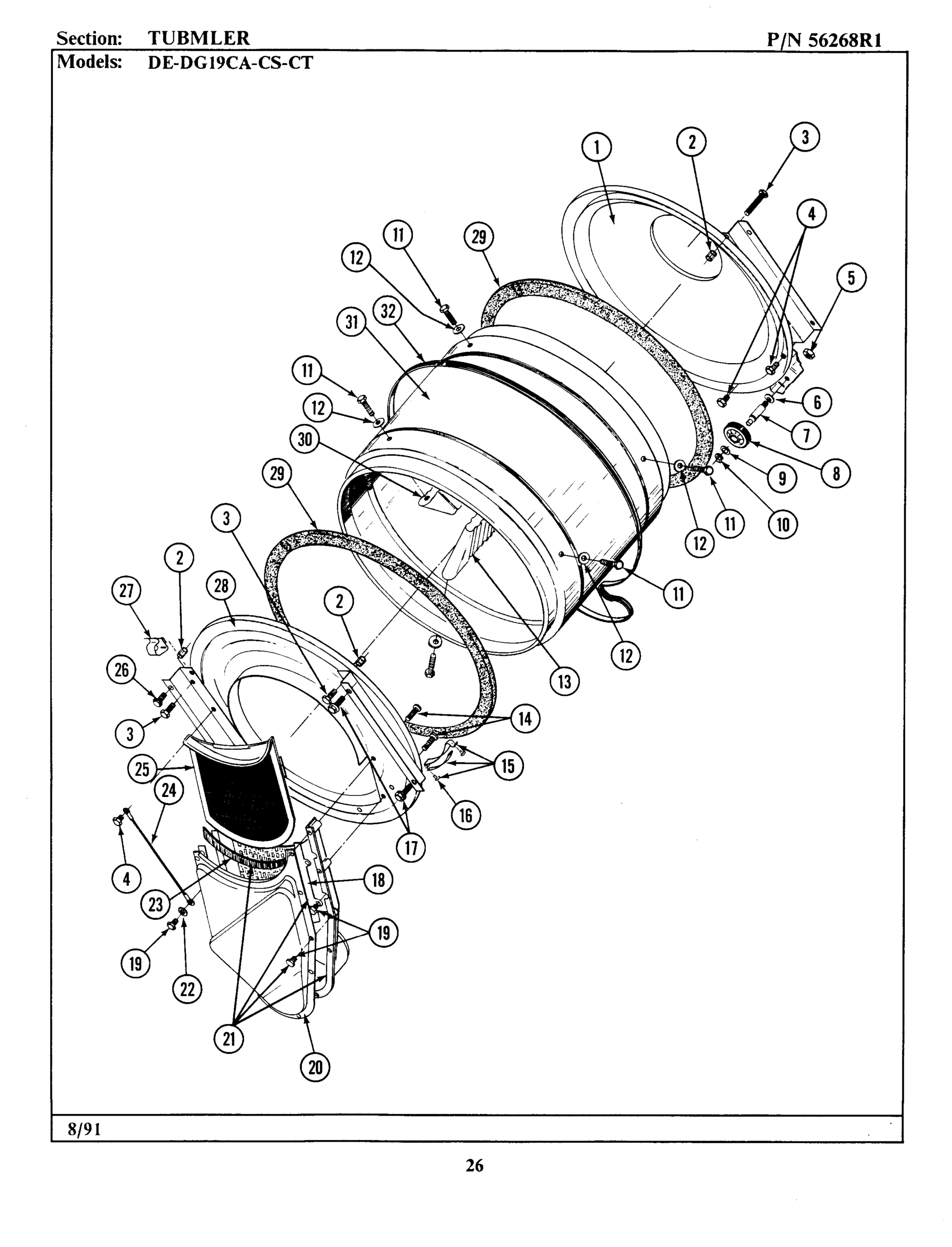

05 - TUMBLER

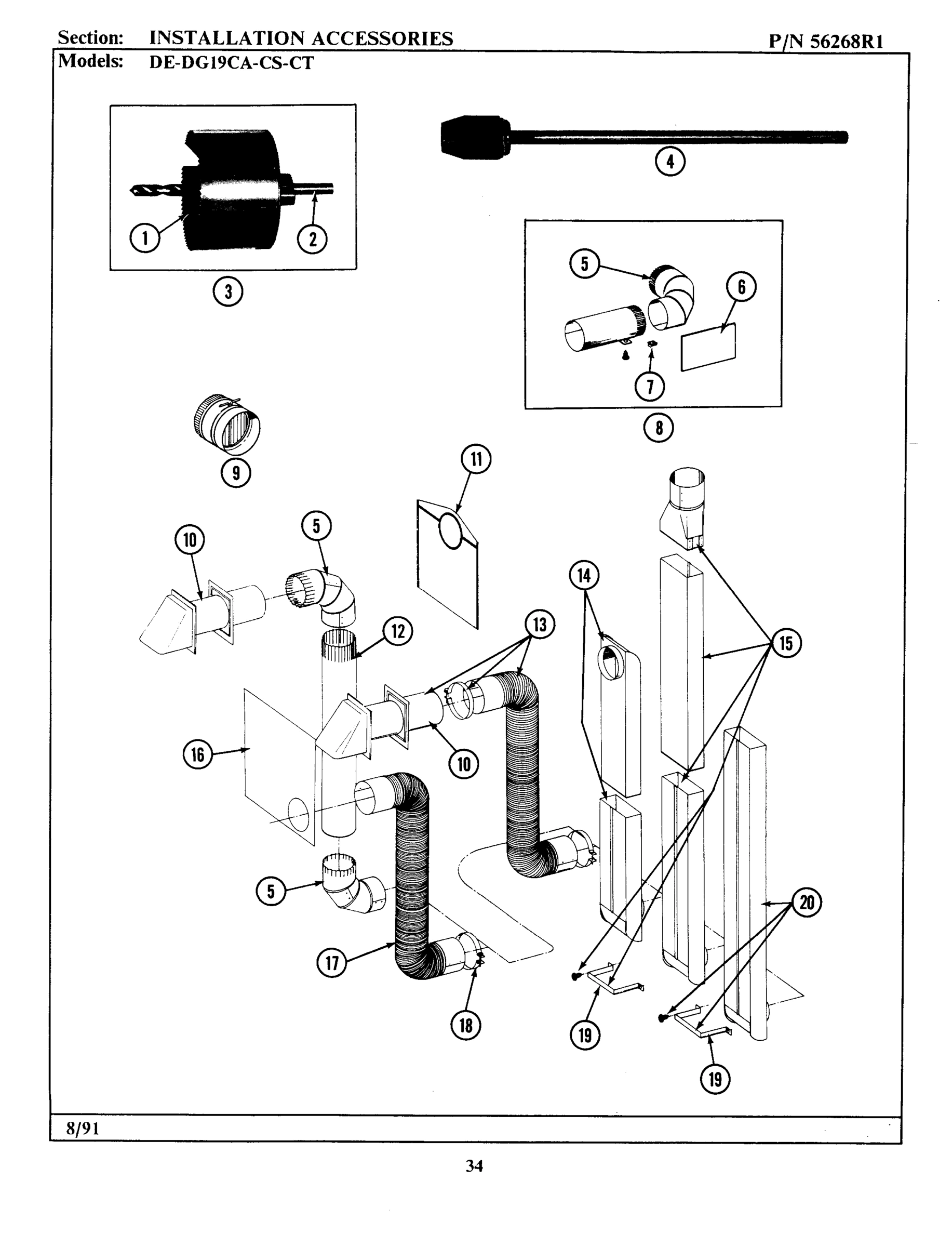

08 - INSTALLATION ACCESSORIES

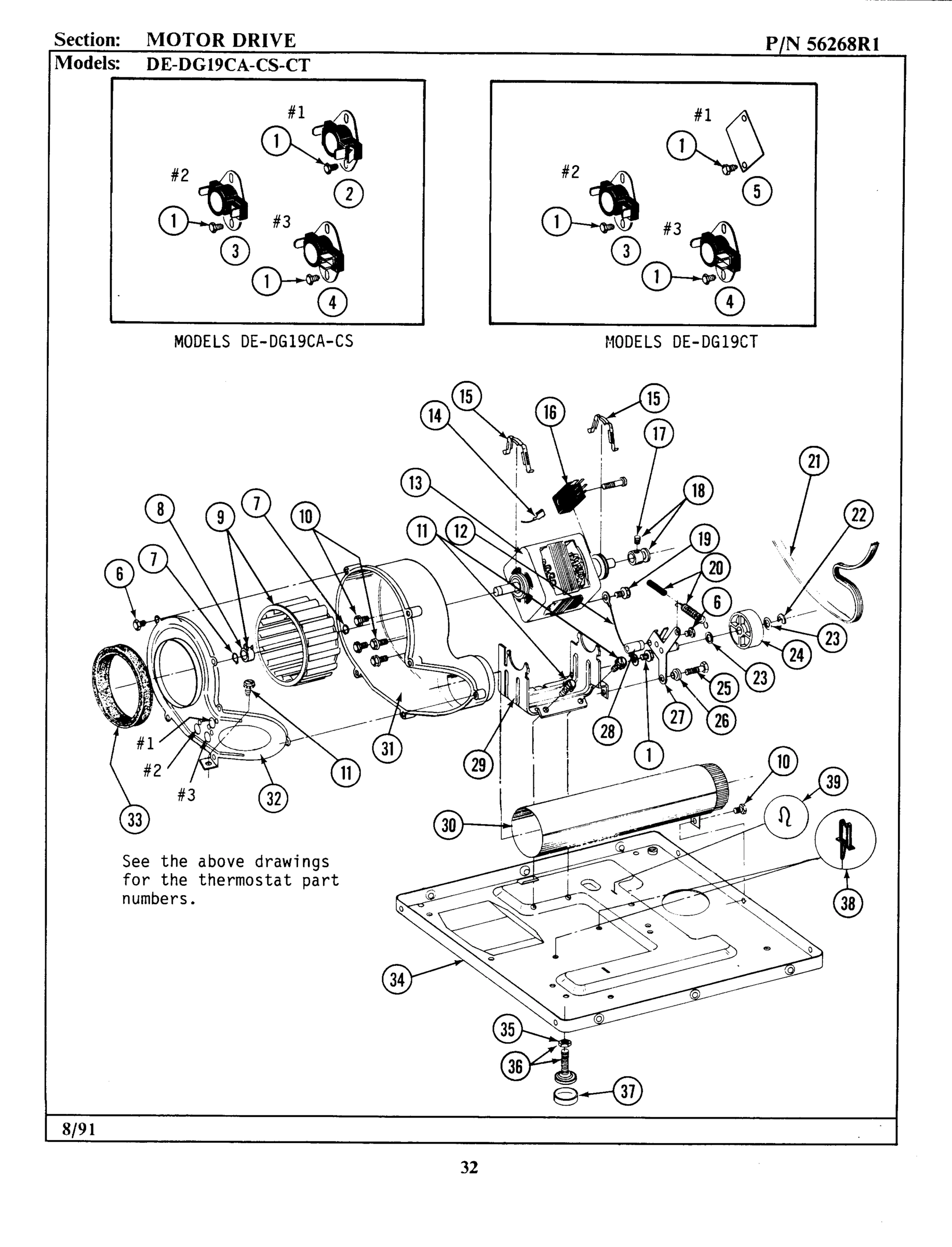

07 - MOTOR DRIVE

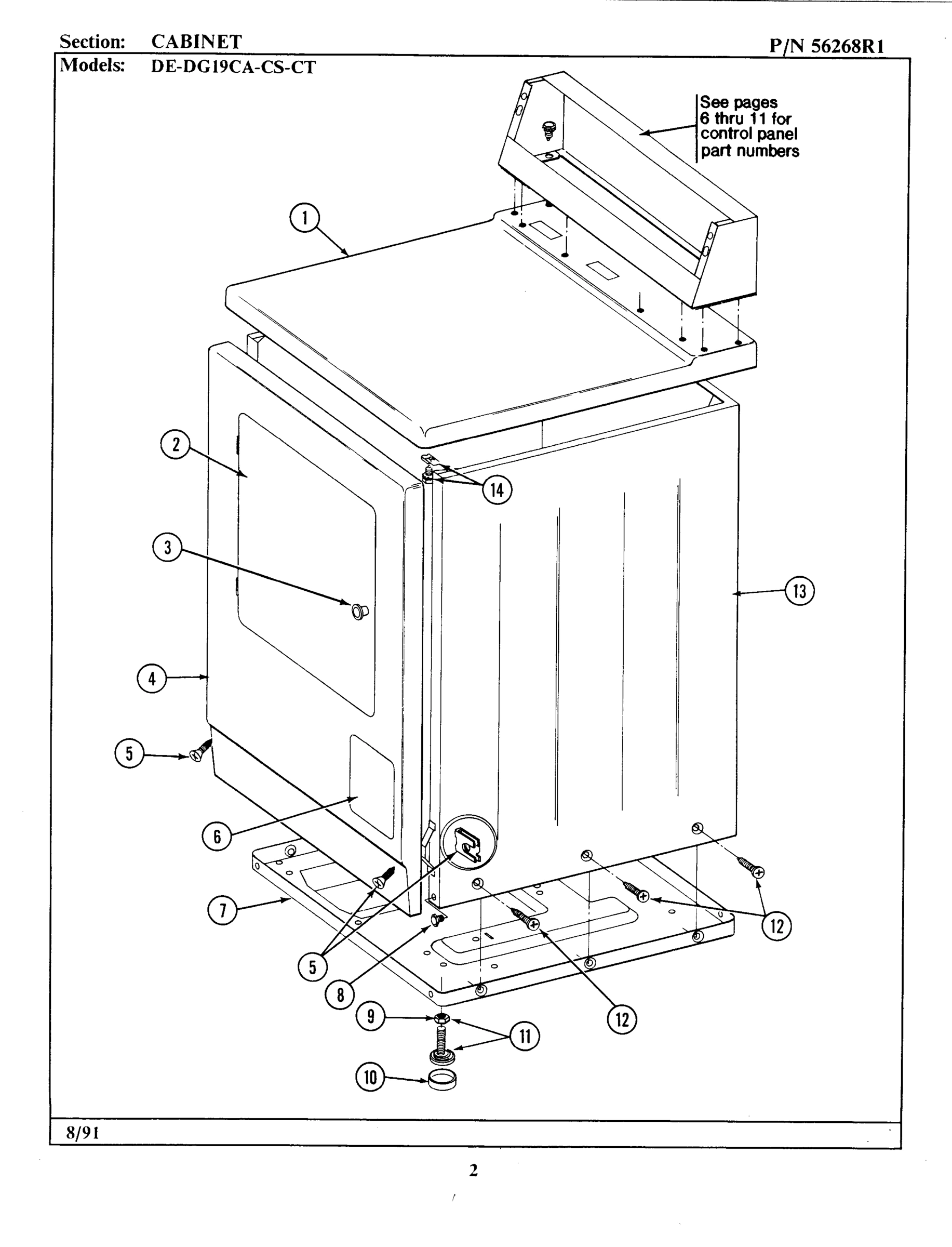

01 - CABINET-FRONT

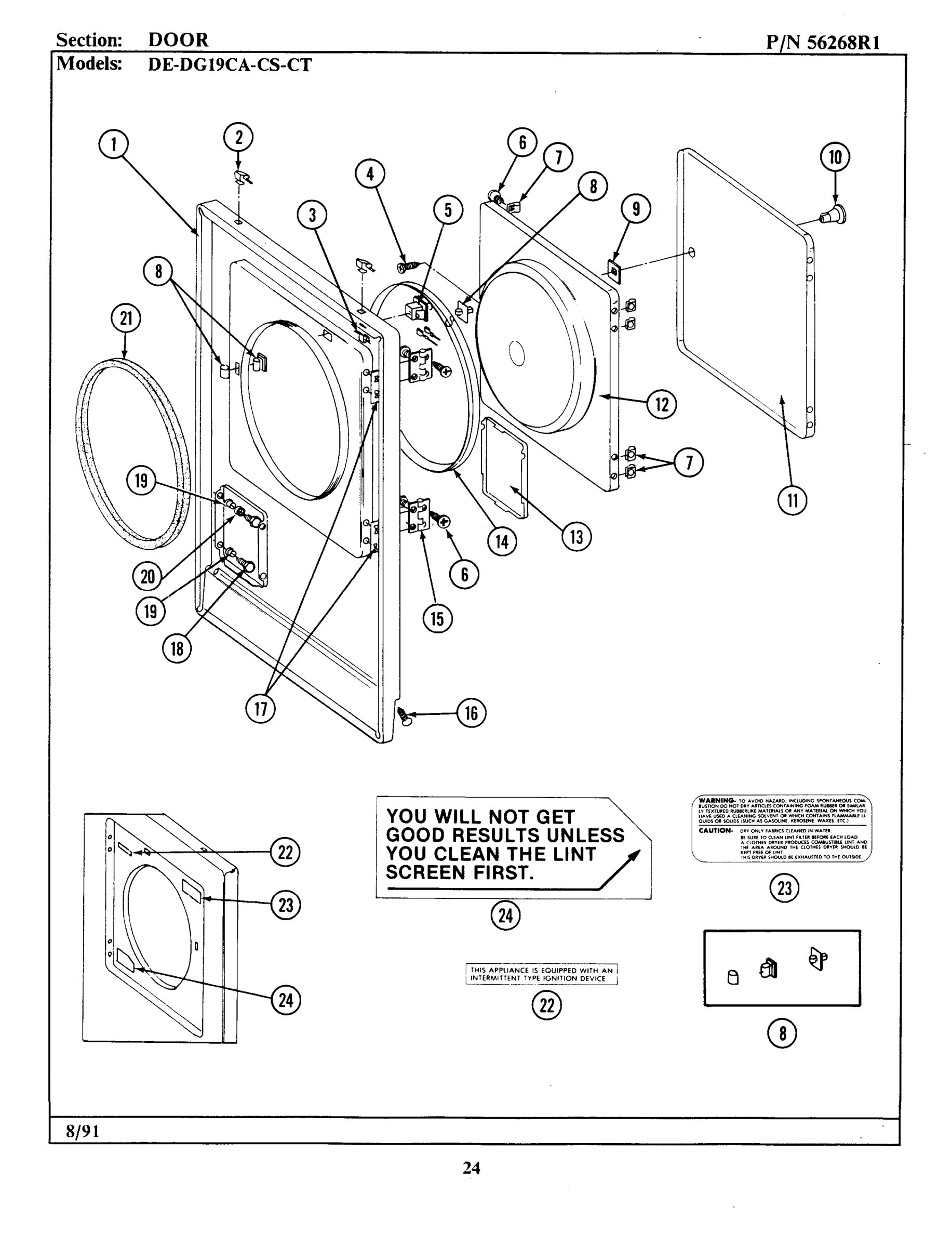

04 - DOOR

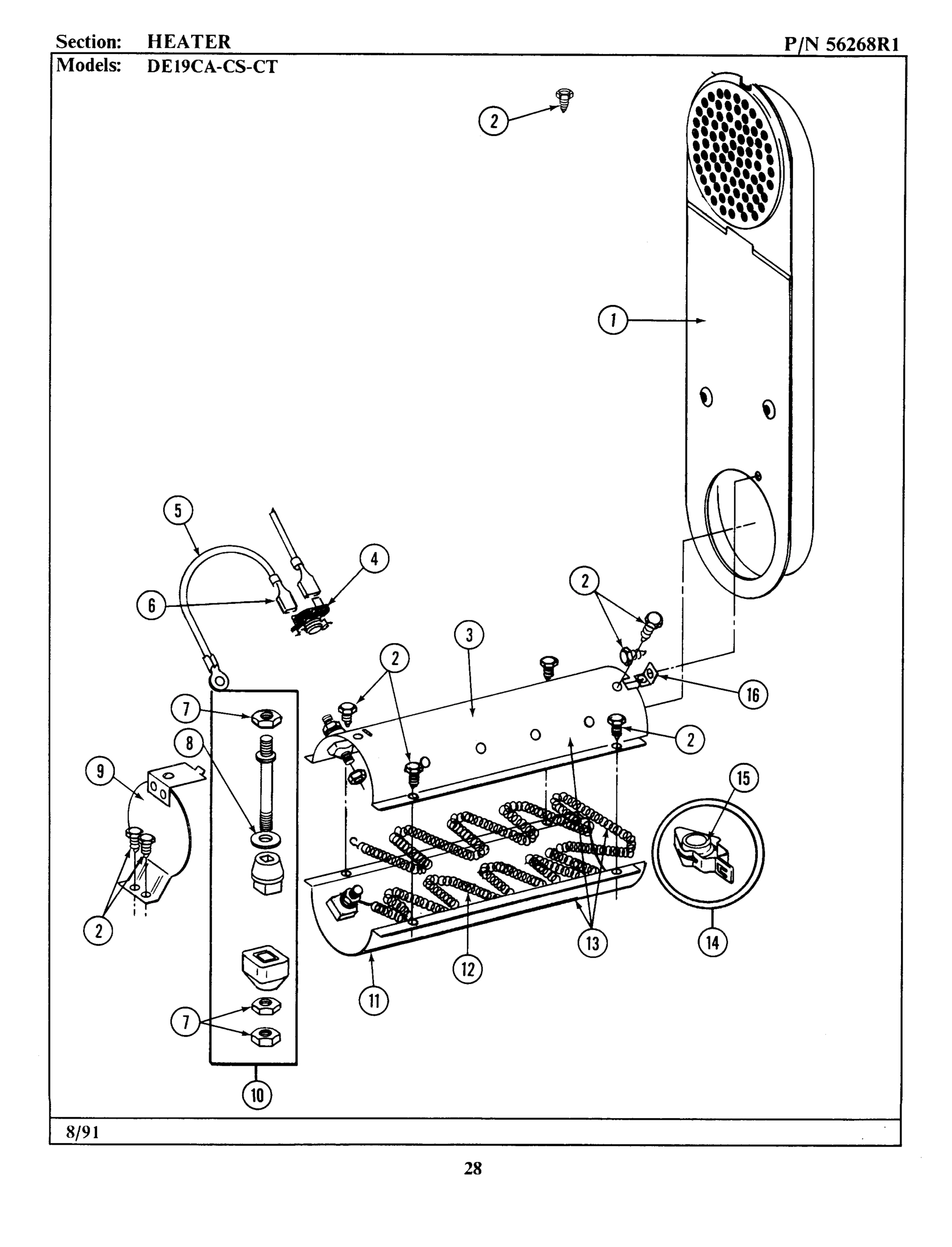

06 - HEATER

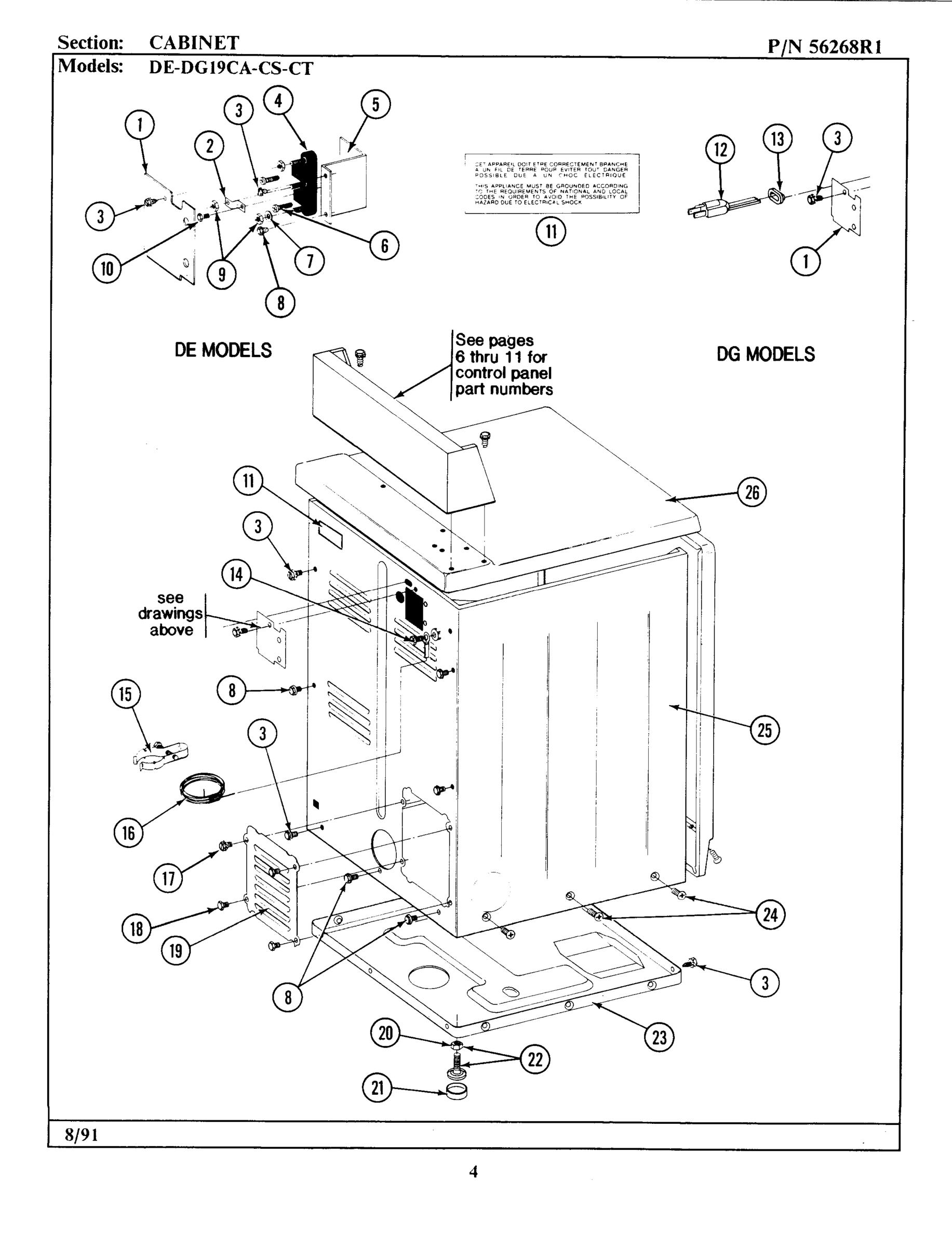

02 - CABINET-REAR
09 - 50HZ CONVERSION LIST
Common parts from model Whirlpool LDE19CA ELECTRIC DRYER
001
TUMBLER BACK WPL Y306660 Contact Us For Availability
001
INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
MOTOR 240-50 WPL Y304656 Contact Us For Availability
002
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
002
DOOR (WHT) WPL Y304579 Contact Us For Availability
002
DOOR PANEL (WHT) WPL Y313908 Contact Us For Availability
002
STRAP, GROUND WPL Y312184 Contact Us For Availability
002
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
003
SCREW----NA WPL Y313561 Contact Us For Availability
003
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
003
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
004
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
004
TIMER 240-50 WPL Y305758 Contact Us For Availability
005
TIMER MOTOR 240-50 WPL NLA Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
PART NOT USED WPL Y312853 Contact Us For Availability
005
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
005
FOR 3-5758 TIMER WPL 306528 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
SCREW WPL Y314062 Contact Us For Availability
006
WIRE TERMINAL WPL 210745 Contact Us For Availability
006
HEATER ELEMENT 240-50 WPL Y313950 Contact Us For Availability
007
TIMER MOTOR RPR FOR 305214 TIMER ONLY WPL Y304585 Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
CLIP, DOOR LINER (OUTER PNL) WPL Y313910 Contact Us For Availability
008
SCREW WPL Y310632 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
009
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
009
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
009
HEATER SHIELD WPL 304124 Contact Us For Availability
011
SCREW WPL Y310759 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
011
DOOR (WHT) WPL Y306668 Contact Us For Availability
011
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
011
PART NOT USED WPL 214519 Contact Us For Availability
012
WASHER WPL 314158 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
WIRE, GROUND WPL 901220 Contact Us For Availability
012
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
012
PART NOT USED WPL 302521 Contact Us For Availability
013
CAP, TIMER KNOB WPL 214806 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
013
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
013
PART NOT USED WPL 211881 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
014
DOOR SEAL WPL 314077 Contact Us For Availability
015
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
015
INSULATOR, HEATER ELEMENT WPL Y313270 Contact Us For Availability
015
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
016
KNURLED NUT WPL Y312702 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
PROD. No.3-3358-8 & No.3-3358-9 WPL 306207 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358-2, No.3-3 WPL Y303877 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 WPL Y303879 Contact Us For Availability
016
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
016
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
017
LENS, CONTROL PANEL WPL 213099 Contact Us For Availability
017
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
017
TWIN FASTENER WPL Y313907 Contact Us For Availability
018
GUIDE, LINT SCREEN WPL Y313795 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
018
SCREW WPL 212949 Contact Us For Availability
019
COVER, ACCESS WPL Y312951 Contact Us For Availability
020
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
020
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
020
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
021
SEAL, FRONT PANEL WPL 314286 Contact Us For Availability
021
KNOB, SELECTOR SWITCH WPL 205663 Contact Us For Availability
021
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
022
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
022
WASHER WPL 310557 Contact Us For Availability
023
LINT SEAL WPL Y313796 Contact Us For Availability
023
BASE ASSY. WPL Y303361 Contact Us For Availability
023
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
024
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
026
TOP COVER (WHT) WPL Y305190 Contact Us For Availability
029
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
030
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
030
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
031
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
031
TUMBLER W/BAFFLES WPL 305187 Contact Us For Availability
031
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
032
COVER, BLOWER HOUSING WPL Y313770 Contact Us For Availability
038
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
039
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
× ![]()
