Model Maytag LDE18CT ELECTRIC DRYER – Common Parts & Diagrams
01 - FRONT VIEW
02 - FRONT VIEW (SERIES 03)
03 - REAR VIEW
04 - CONTROL PANEL-REAR VIEW

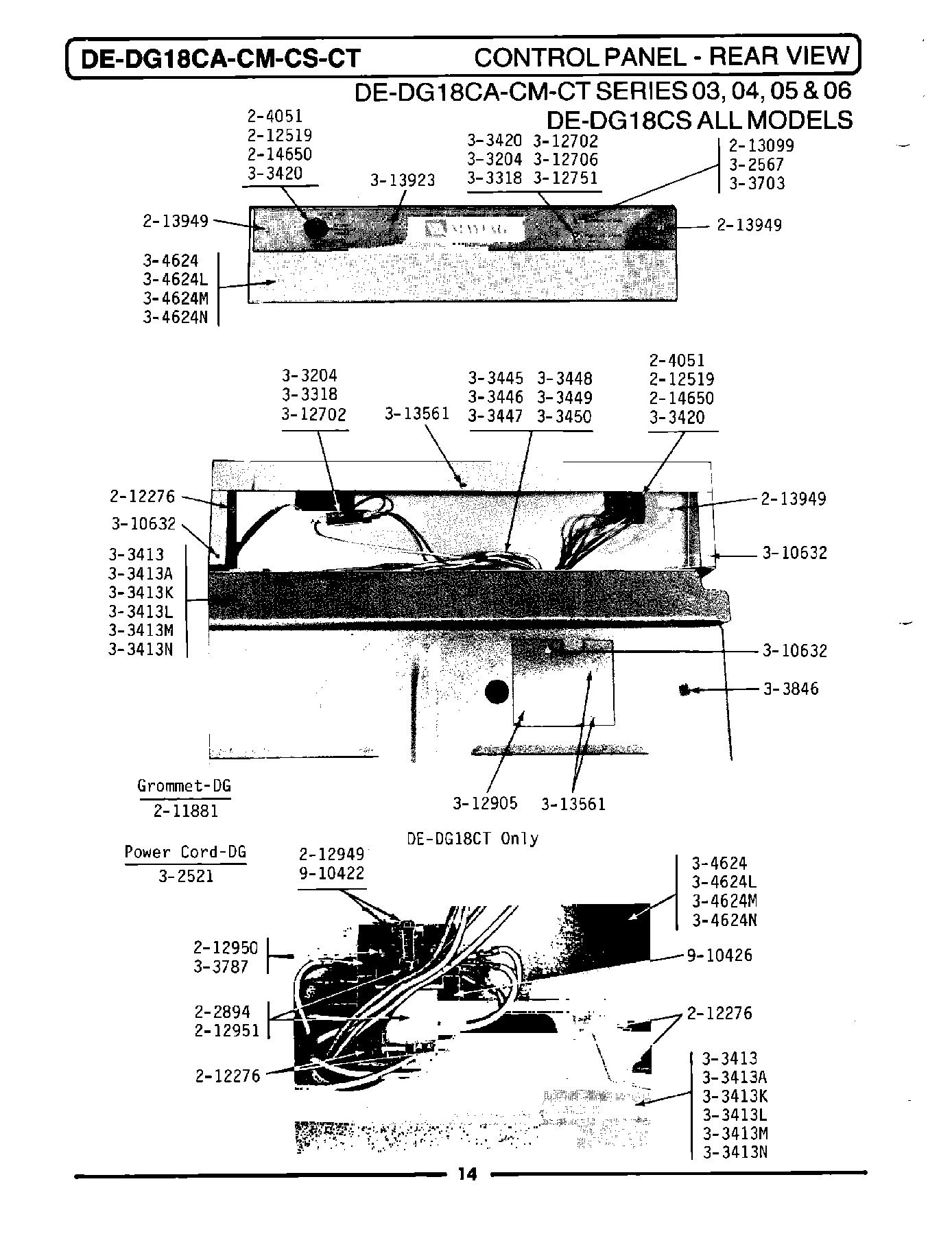

05 - CONTROL PANEL-REAR VIEW (SERIES 03)

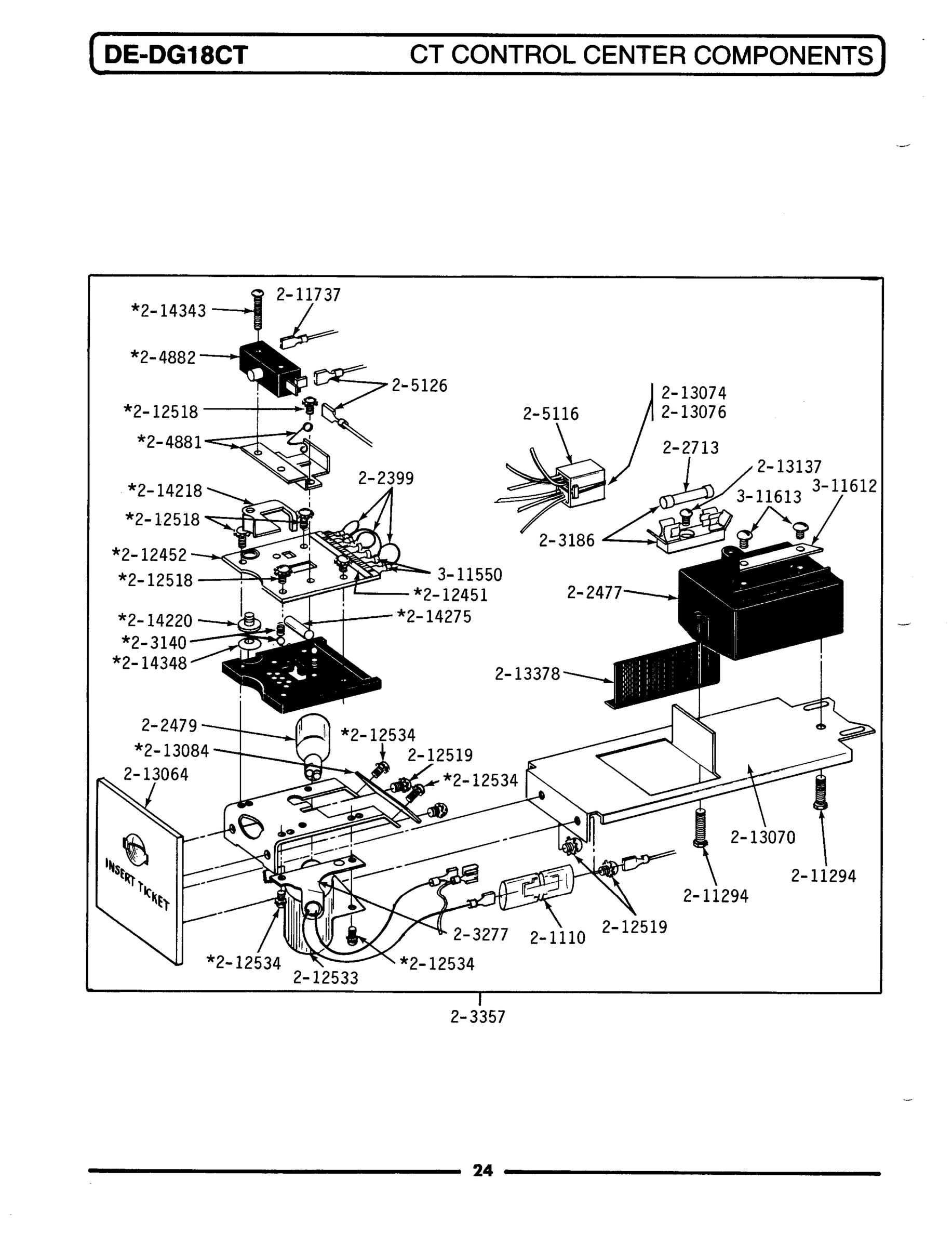

06 - CT CONTROL CENTER
07 - CT CONTROL CENTER COMPONENTS

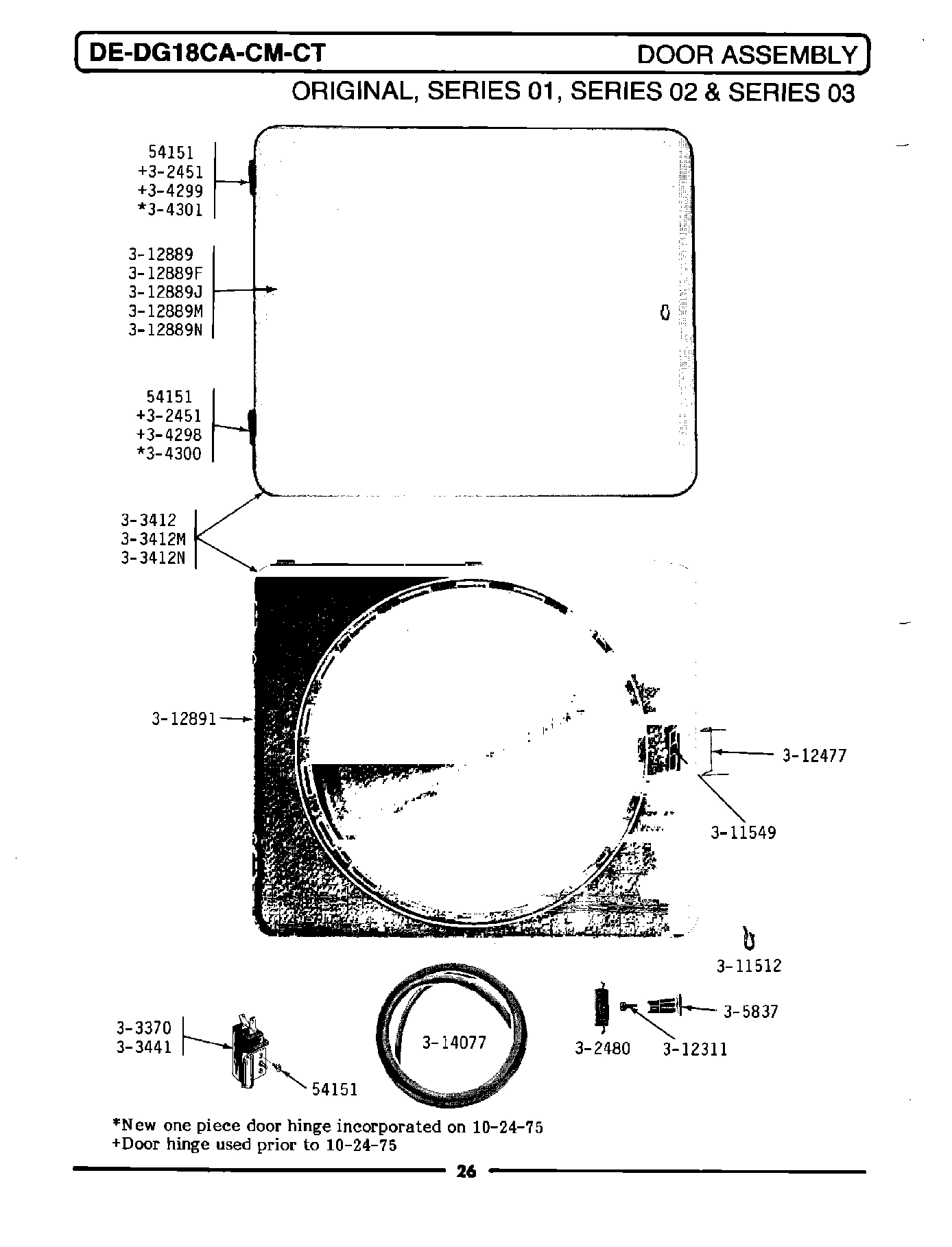

08 - DOOR ASSEMBLY

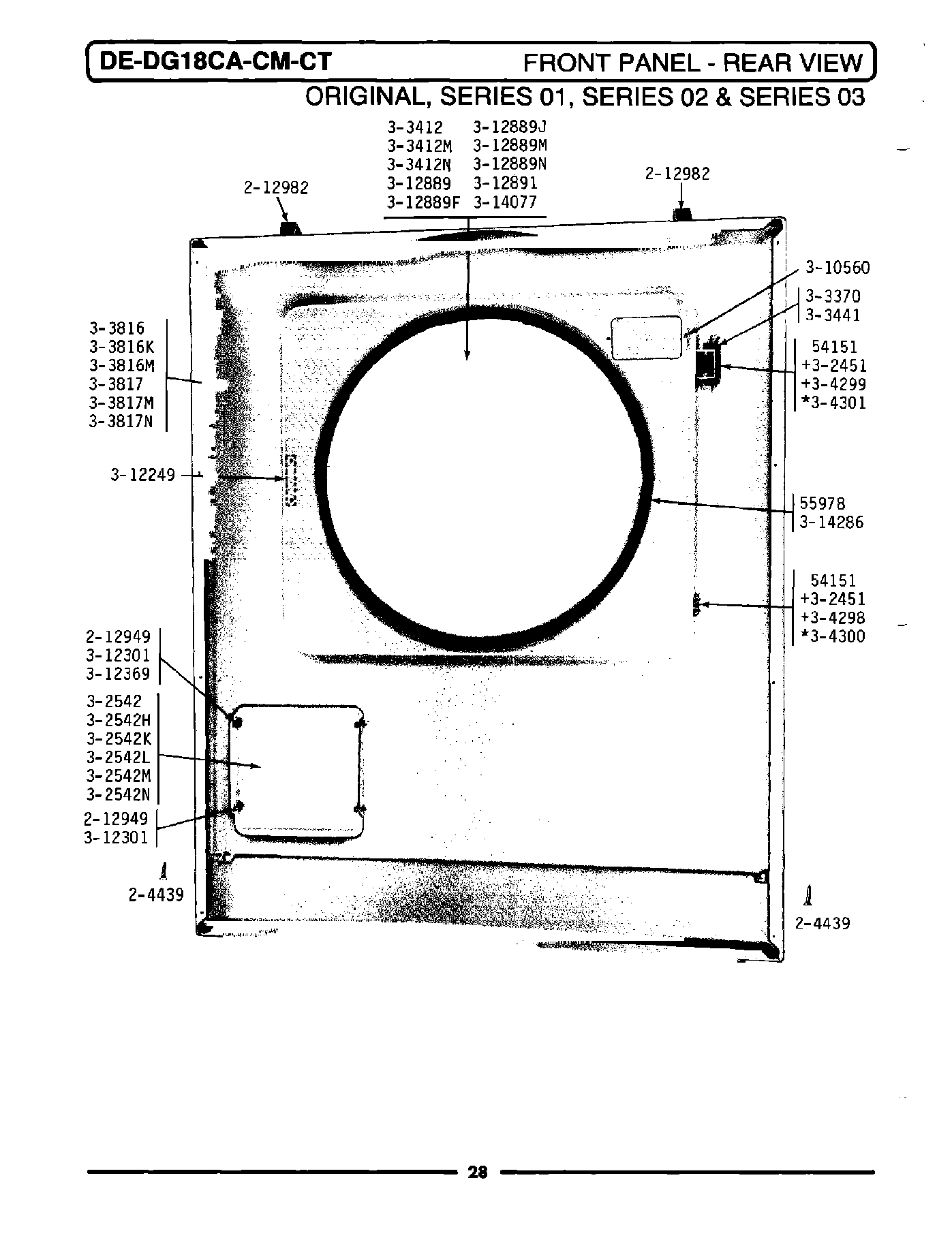

09 - FRONT PANEL-REAR VIEW

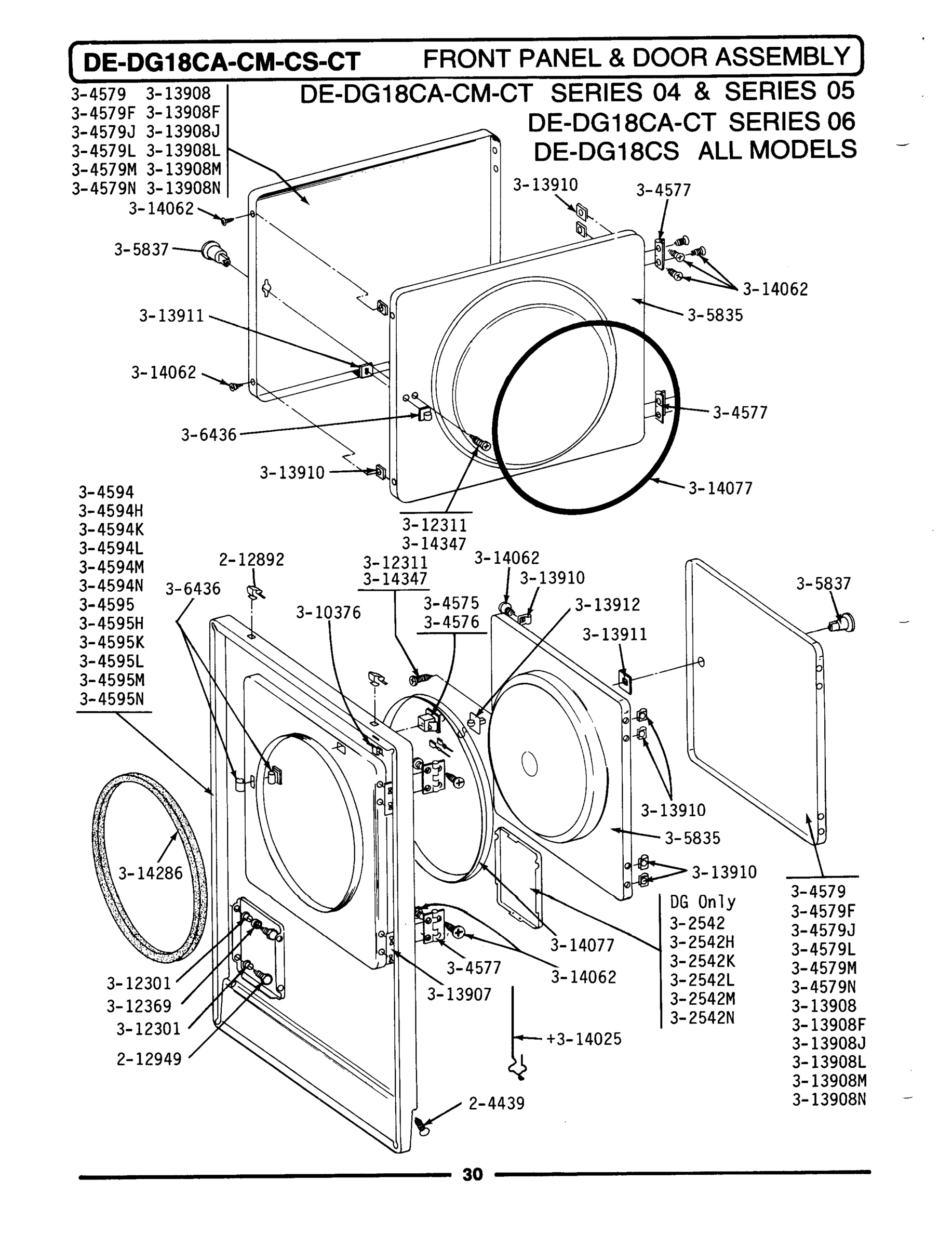

10 - FRONT PANEL & DOOR ASSEMBLY

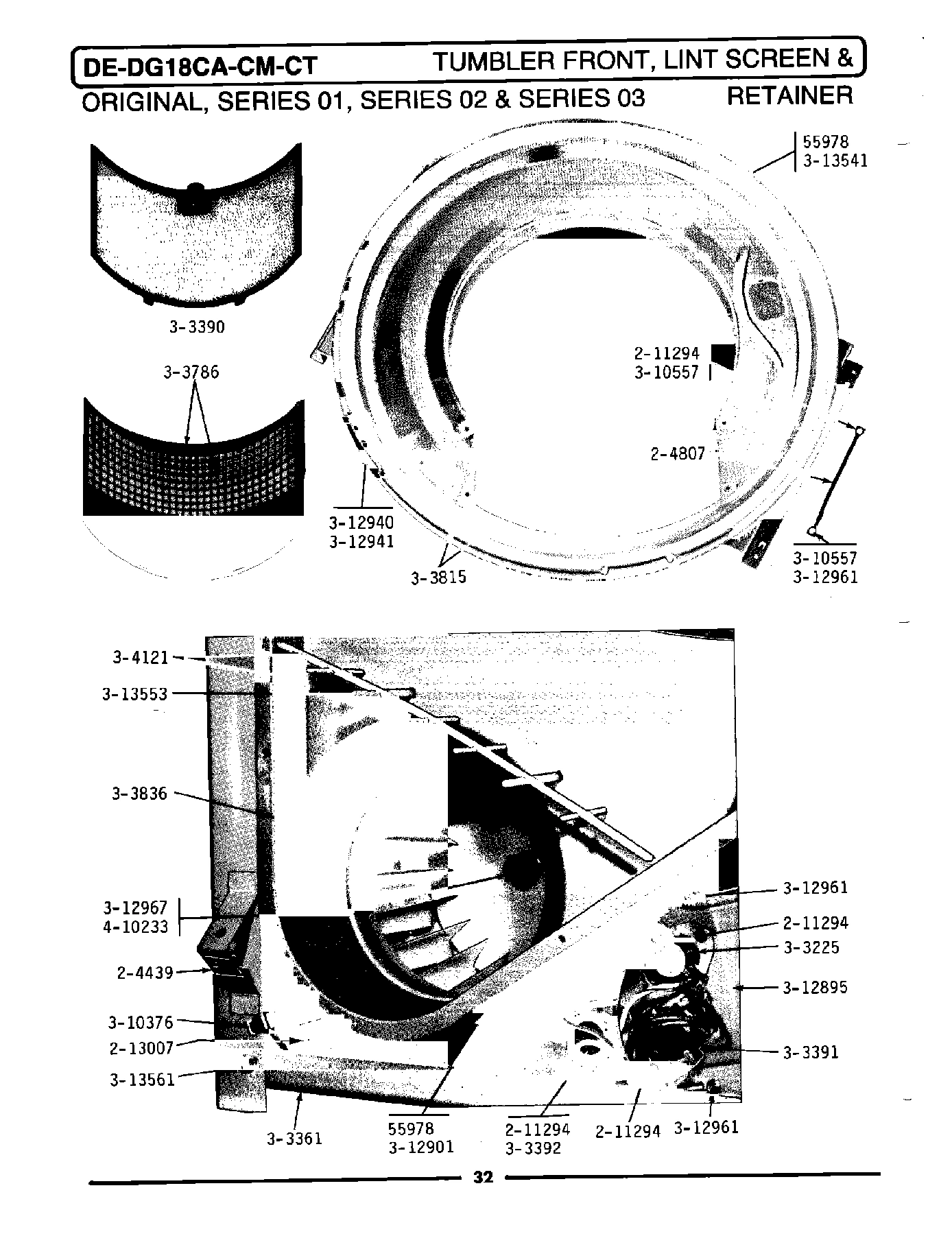

11 - TUMBLER FRONT, LINT SCREEN & RETAINER

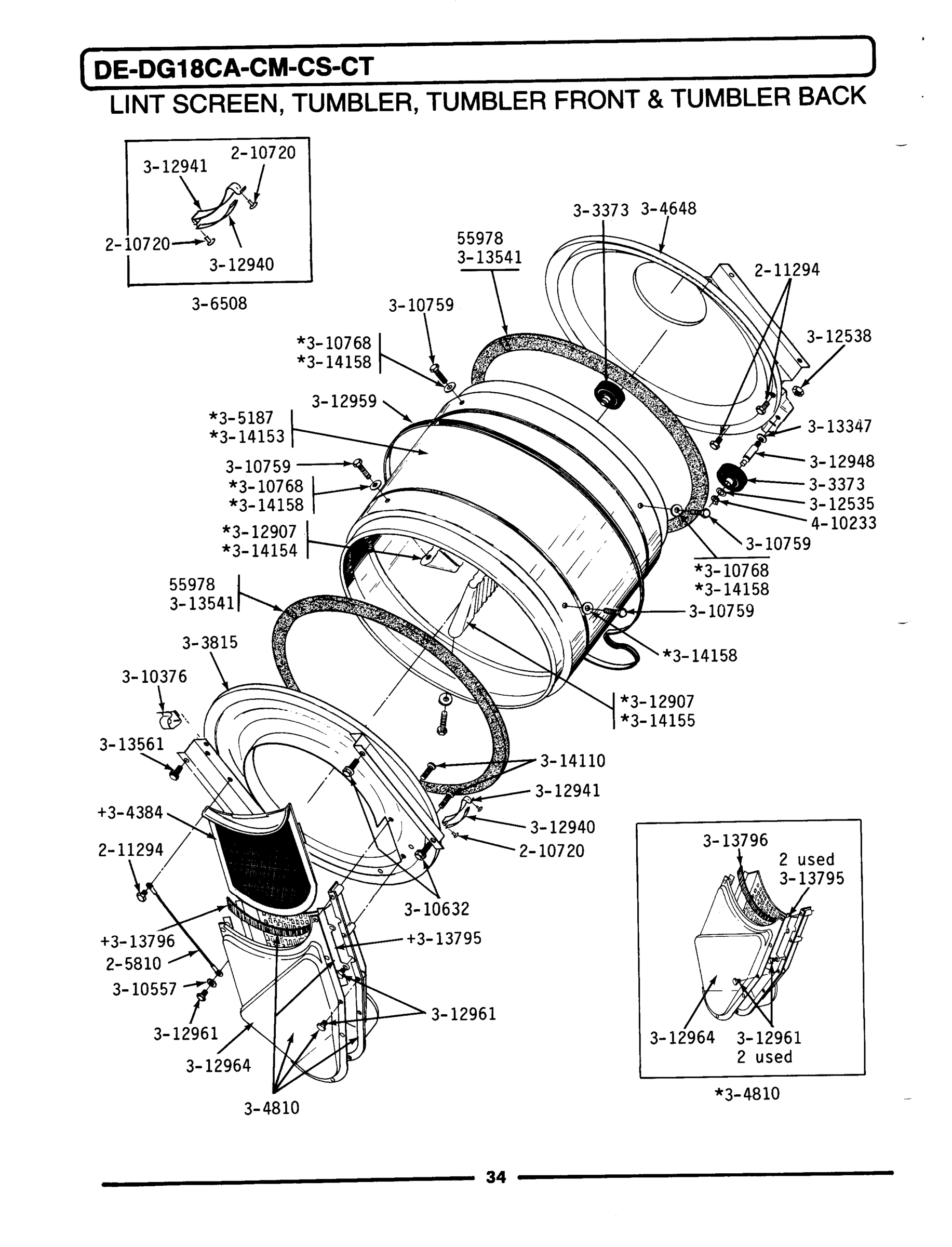

12 - LINT SCREEN, TUMBLER (FRONT & BACK)
13 - INLET DUCT & HEATER ASSEMBLY

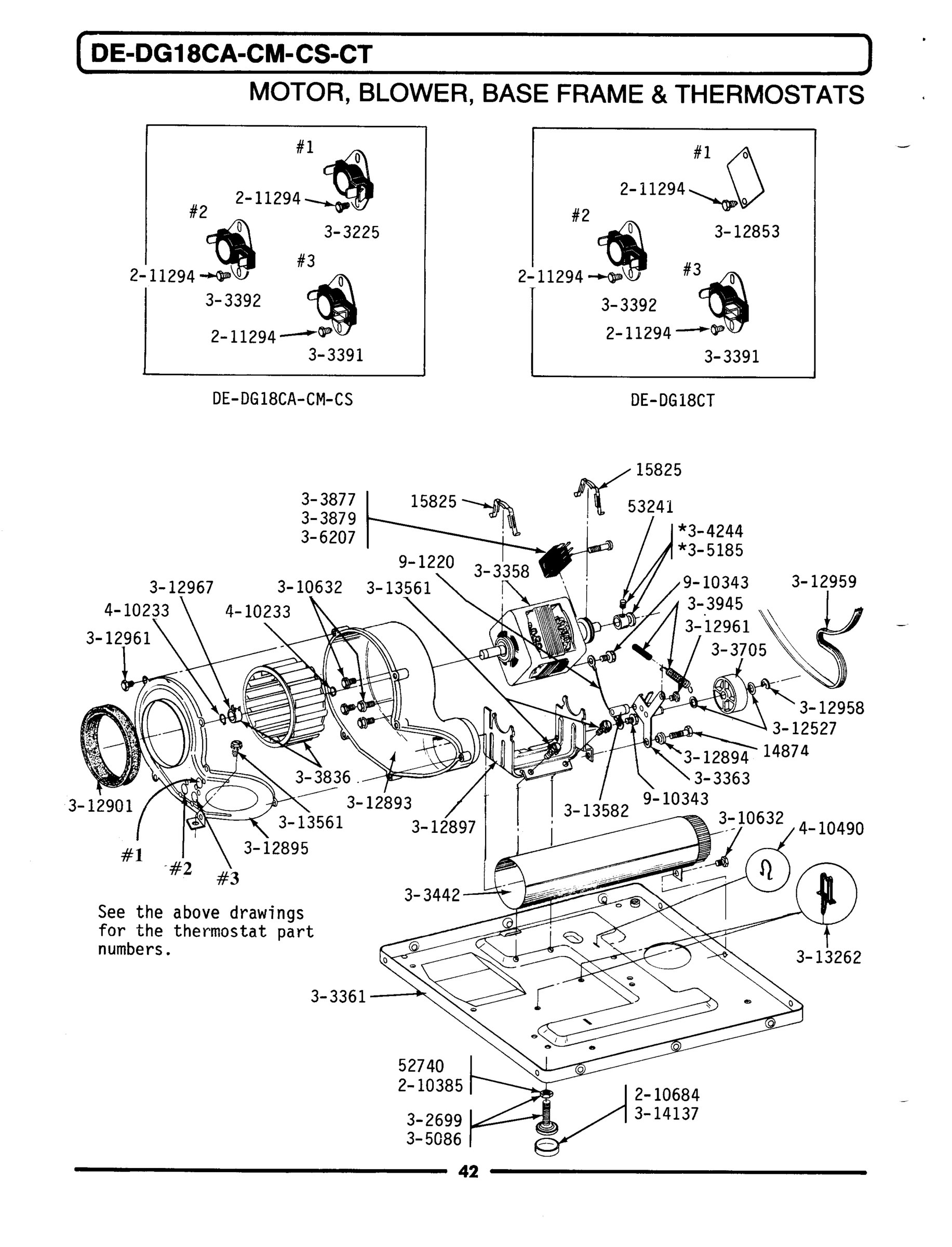

14 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
Common parts from model Maytag LDE18CT ELECTRIC DRYER
001
MAY Y055978 MAY Y055978 Contact Us For Availability
001
MAY 202894 MAY 202894 Contact Us For Availability
001
MAY Y201110 MAY Y201110 Contact Us For Availability
001
MAY 210745 MAY 210745 Contact Us For Availability
002
MAY 204439 MAY 204439 Contact Us For Availability
002
MAY 204051 MAY 204051 Contact Us For Availability
002
MAY 212982 MAY 212982 Contact Us For Availability
003
MAY 211881 MAY 211881 Contact Us For Availability
003
MAY 202477 MAY 202477 Contact Us For Availability
003
MAY 204807 MAY 204807 Contact Us For Availability
003
MAY 205810 MAY 205810 Contact Us For Availability
004
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
004
MAY Y053241 MAY Y053241 Contact Us For Availability
004
MAY Y303362 MAY Y303362 Contact Us For Availability
005
MAY 202509 MAY 202509 Contact Us For Availability
005
MAY Y304579 MAY Y304579 Contact Us For Availability
006
MAY 303709 MAY 303709 Contact Us For Availability
006
MAY 212949 MAY 212949 Contact Us For Availability
006
MAY 202713 MAY 202713 Contact Us For Availability
006
MAY Y303370 MAY Y303370 Contact Us For Availability
006
MAY Y303373 MAY Y303373 Contact Us For Availability
007
MAY Y303778 MAY Y303778 Contact Us For Availability
007
MAY 212950 MAY 212950 Contact Us For Availability
007
MAY 203140 MAY 203140 Contact Us For Availability
007
MAY Y303815 MAY Y303815 Contact Us For Availability
008
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
008
MAY 212951 MAY 212951 Contact Us For Availability
008
MAY Y303390 MAY Y303390 Contact Us For Availability
008
MAY Y303856 MAY Y303856 Contact Us For Availability
009
MAY 213099 MAY 213099 Contact Us For Availability
009
MAY Y304384 MAY Y304384 Contact Us For Availability
010
MAY Y303361 MAY Y303361 Contact Us For Availability
010
MAY Y304648 MAY Y304648 Contact Us For Availability
011
SCREW FOR 2-4051 KNOB MAY 214650 Contact Us For Availability
011
MAY 204881 MAY 204881 Contact Us For Availability
011
MAY Y304298 MAY Y304298 Contact Us For Availability
011
MAY Y303786 MAY Y303786 Contact Us For Availability
011
OUTLET DUCT ASSEMBLY---S MAY Y304810 Contact Us For Availability
011
MAY 304124 MAY 304124 Contact Us For Availability
012
MAY 204882 MAY 204882 Contact Us For Availability
013
MAY Y303318 MAY Y303318 Contact Us For Availability
013
MAY 305187 MAY 305187 Contact Us For Availability
014
MAY Y303442 MAY Y303442 Contact Us For Availability
014
MAY 212276 MAY 212276 Contact Us For Availability
015
MAY 310560 MAY 310560 Contact Us For Availability
015
MAY Y310376 MAY Y310376 Contact Us For Availability
016
MAY 310557 MAY 310557 Contact Us For Availability
016
KNOB FOR TIMER MAY 213089 Contact Us For Availability
016
MAY 211737 MAY 211737 Contact Us For Availability
016
MAY Y313340 MAY Y313340 Contact Us For Availability
017
MAY Y303420 MAY Y303420 Contact Us For Availability
017
MAY Y313907 MAY Y313907 Contact Us For Availability
017
MAY Y303877 MAY Y303877 Contact Us For Availability
018
MAY Y302559 MAY Y302559 Contact Us For Availability
018
MAY 212452 MAY 212452 Contact Us For Availability
018
MAY Y313908 MAY Y313908 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
018
MAY Y303879 MAY Y303879 Contact Us For Availability
019
MAY Y303787 MAY Y303787 Contact Us For Availability
019
MAY Y312891 MAY Y312891 Contact Us For Availability
019
MAY Y312890 MAY Y312890 Contact Us For Availability
019
MAY Y303945 MAY Y303945 Contact Us For Availability
020
MAY 312940 MAY 312940 Contact Us For Availability
020
MAY Y313270 MAY Y313270 Contact Us For Availability
020
MAY 212519 MAY 212519 Contact Us For Availability
020
MAY Y303801 MAY Y303801 Contact Us For Availability
021
SHIELD FOR HEAT LAMP MAY 212533 Contact Us For Availability
021
MAY Y313910 MAY Y313910 Contact Us For Availability
021
MAY 312538 MAY 312538 Contact Us For Availability
021
MAY Y313322 MAY Y313322 Contact Us For Availability
021
MAY Y304245 MAY Y304245 Contact Us For Availability
022
MAY Y313911 MAY Y313911 Contact Us For Availability
022
MAY Y312907 MAY Y312907 Contact Us For Availability
023
MAY Y313927 MAY Y313927 Contact Us For Availability
023
MAY Y305185 MAY Y305185 Contact Us For Availability
023
MAY Y313537 MAY Y313537 Contact Us For Availability
024
MAY Y314025 MAY Y314025 Contact Us For Availability
024
MAY 312941 MAY 312941 Contact Us For Availability
024
MAY Y313575 MAY Y313575 Contact Us For Availability
025
MAY Y310632 MAY Y310632 Contact Us For Availability
025
MAY Y311423 MAY Y311423 Contact Us For Availability
025
MAY 213074 MAY 213074 Contact Us For Availability
025
MAY Y313576 MAY Y313576 Contact Us For Availability
026
MAY 314077 MAY 314077 Contact Us For Availability
026
MAY Y312300 MAY Y312300 Contact Us For Availability
026
MAY Y312527 MAY Y312527 Contact Us For Availability
027
MAY Y312702 MAY Y312702 Contact Us For Availability
027
MAY 910309 MAY 910309 Contact Us For Availability
027
MAY Y312853 MAY Y312853 Contact Us For Availability
028
MAY Y312706 MAY Y312706 Contact Us For Availability
028
MAY Y312964 MAY Y312964 Contact Us For Availability
028
MAY Y312893 MAY Y312893 Contact Us For Availability
029
MAY Y313796 MAY Y313796 Contact Us For Availability
029
MAY Y312184 MAY Y312184 Contact Us For Availability
029
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
030
SCREW, No.10-24 X 3/4 INCH-----O MAY Y312209 Contact Us For Availability
030
MAY Y312905 MAY Y312905 Contact Us For Availability
030
MAY 214218 MAY 214218 Contact Us For Availability
030
MAY Y312895 MAY Y312895 Contact Us For Availability
030
TUMBLER SEAL -----S MAY Y313541 Contact Us For Availability
031
SUPPORT, MOTOR MAY NLA Contact Us For Availability
031
MAY 214220 MAY 214220 Contact Us For Availability
032
MAY Y312904 MAY Y312904 Contact Us For Availability
032
MAY 214275 MAY 214275 Contact Us For Availability
032
MAY Y313795 MAY Y313795 Contact Us For Availability
034
MAY Y312951 MAY Y312951 Contact Us For Availability
034
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
035
MAY Y313559 MAY Y313559 Contact Us For Availability
035
MAY Y311550 MAY Y311550 Contact Us For Availability
035
TUMBLER No. MAY Y314153 Contact Us For Availability
036
COVER FOR CIRCUIT BOARD MAY 311612 Contact Us For Availability
037
CABLE STRAP-HARNESS TO BASE MAY 910768 Contact Us For Availability
037
MAY 311613 MAY 311613 Contact Us For Availability
037
MAY 314155 MAY 314155 Contact Us For Availability
037
MAY Y313262 MAY Y313262 Contact Us For Availability
038
MAY 400008 MAY 400008 Contact Us For Availability
038
MAY 314158 MAY 314158 Contact Us For Availability
038
MAY Y313561 MAY Y313561 Contact Us For Availability
042
MAY 410490 MAY 410490 Contact Us For Availability
043
MAY 901220 MAY 901220 Contact Us For Availability
044
MAY 910343 MAY 910343 Contact Us For Availability
× ![]()
