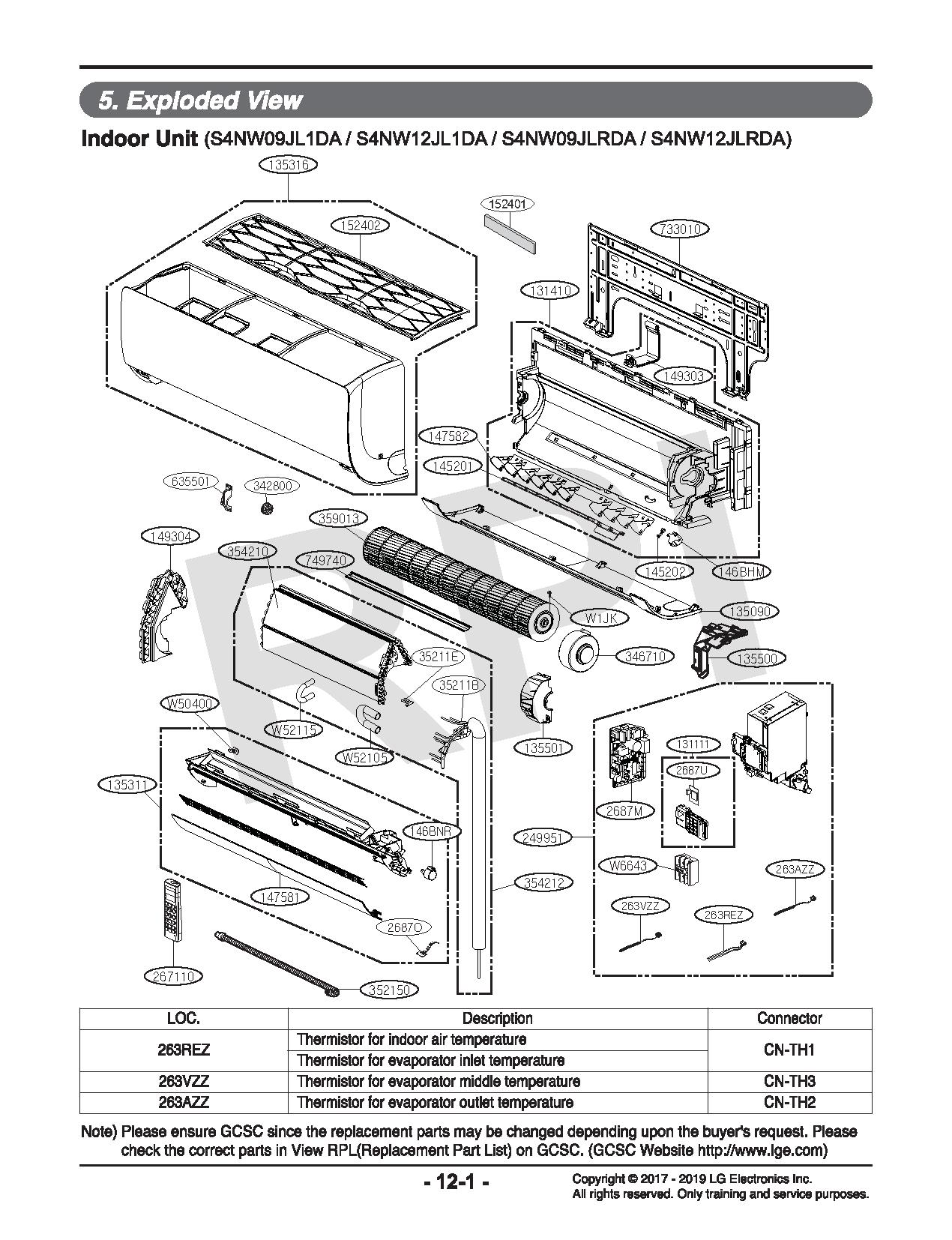

Model LG LAN120HSV5 – Common Parts & Diagrams
0
Common parts from model LG LAN120HSV5
263AZZ
Thermistor Assembly,NTC LGE EBG61325801 Contact Us For Availability
2687M
PCB Assembly,Main LGE EBR83671017 Contact Us For Availability
35211E
Tube Assembly,Connector LGE AJR75023301 Contact Us For Availability
131111
Case Assembly,Indoor LGE ABQ75140167 Contact Us For Availability
131410
Chassis Assembly LGE ABW74052418 Contact Us For Availability
135090
Decor Assembly LGE ACW74737235 Contact Us For Availability
135311
Grille Assembly,Discharge(Indoor) LGE AEB74424751 Contact Us For Availability
135316
Grille Assembly,Front(Indoor) LGE AEB75244501 Contact Us For Availability
135500
Cover LGE MCK69584901 Contact Us For Availability
135501
Cover LGE MCK68472701 Contact Us For Availability
145201
Link LGE MFF62923101 Contact Us For Availability
145202
Link LGE MFF62863101 Contact Us For Availability
147581
Louver,Horizontal LGE MFH63023606 Contact Us For Availability
147582
Louver,Vertical LGE MFH63023701 Contact Us For Availability
149303
Holder,Tubing LGE MEG56994601 Contact Us For Availability
149304
Holder,Evaporator LGE MEG64039001 Contact Us For Availability
152401
Filter,Air LGE MDJ61144754 Contact Us For Availability
152402
Filter,Air LGE MDJ64984704 Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ75748434 Contact Us For Availability
267110
Remote Controller Assembly LGE AKB74955602 Contact Us For Availability
342800
Bearing LGE MAP64313501 Contact Us For Availability
346710
Motor Assembly,DC,Indoor LGE EAU62983003 Contact Us For Availability
352150
Hose Assembly,Drain LGE AEM73493417 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL74582503 Contact Us For Availability
354212
Evaporator Assembly,Final LGE ADL74741004 Contact Us For Availability
359013
Fan Assembly,Cross Flow LGE ADP74133401 Contact Us For Availability
635501
Cover,Bearing LGE MCK71152601 Contact Us For Availability
733010
Plate Assembly,Installation LGE AGU67813404 Contact Us For Availability
749740
Guide LGE MEA64890102 Contact Us For Availability
W1JK
Screw,Set LGE 3H00535C Contact Us For Availability
W6643
Connector,Terminal Block LGE EAG38884401 Contact Us For Availability
W50400
Damper LGE 5040A30027A Contact Us For Availability
W52105
Tube,Return Bending LGE MJU64227501 Contact Us For Availability
W52115
Tube,Return Bending LGE MJU64227401 Contact Us For Availability
× ![]()
