Model Maytag L3878XVA ELECTRIC RANGE – Common Parts & Diagrams

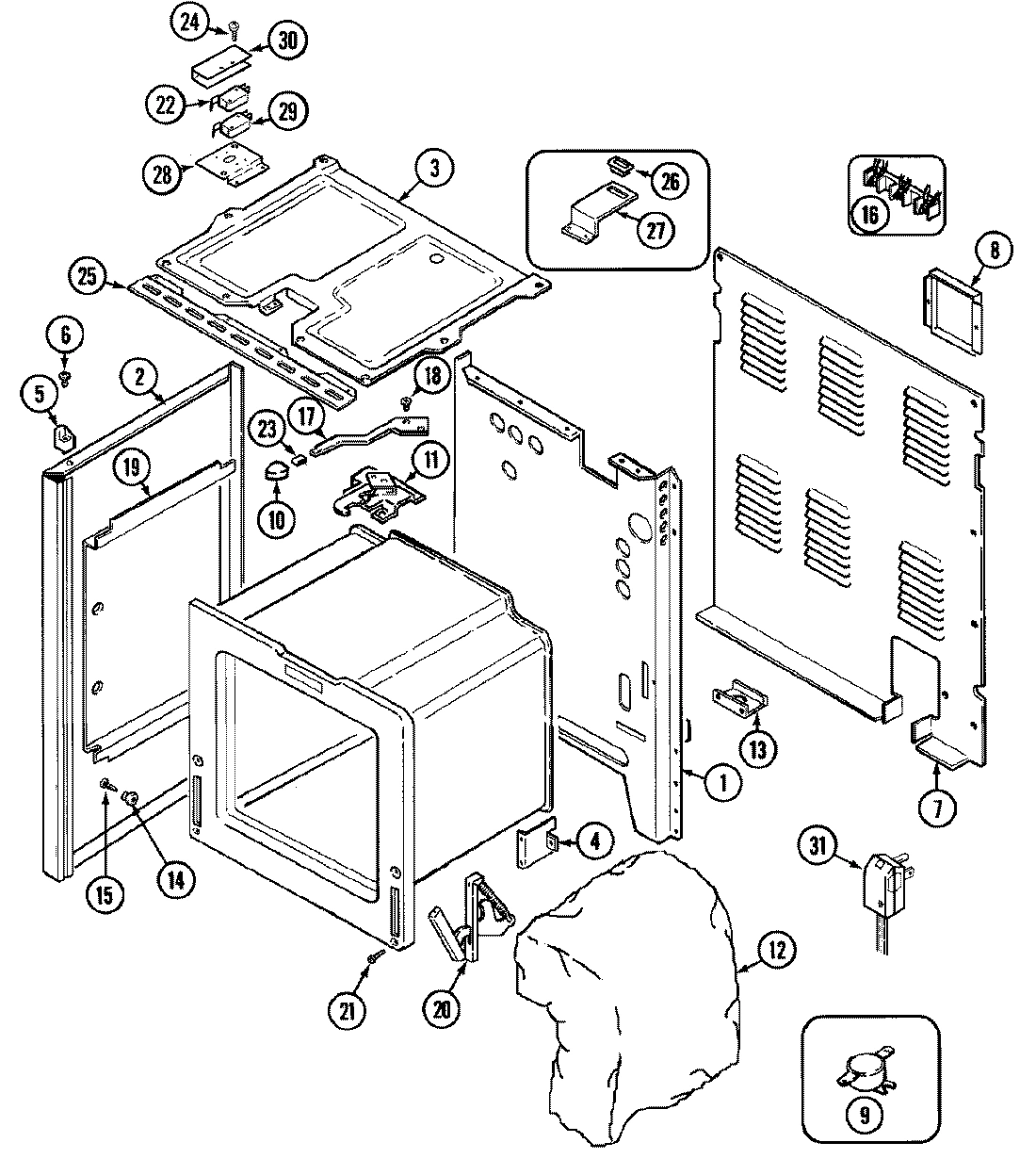

01 - BODY

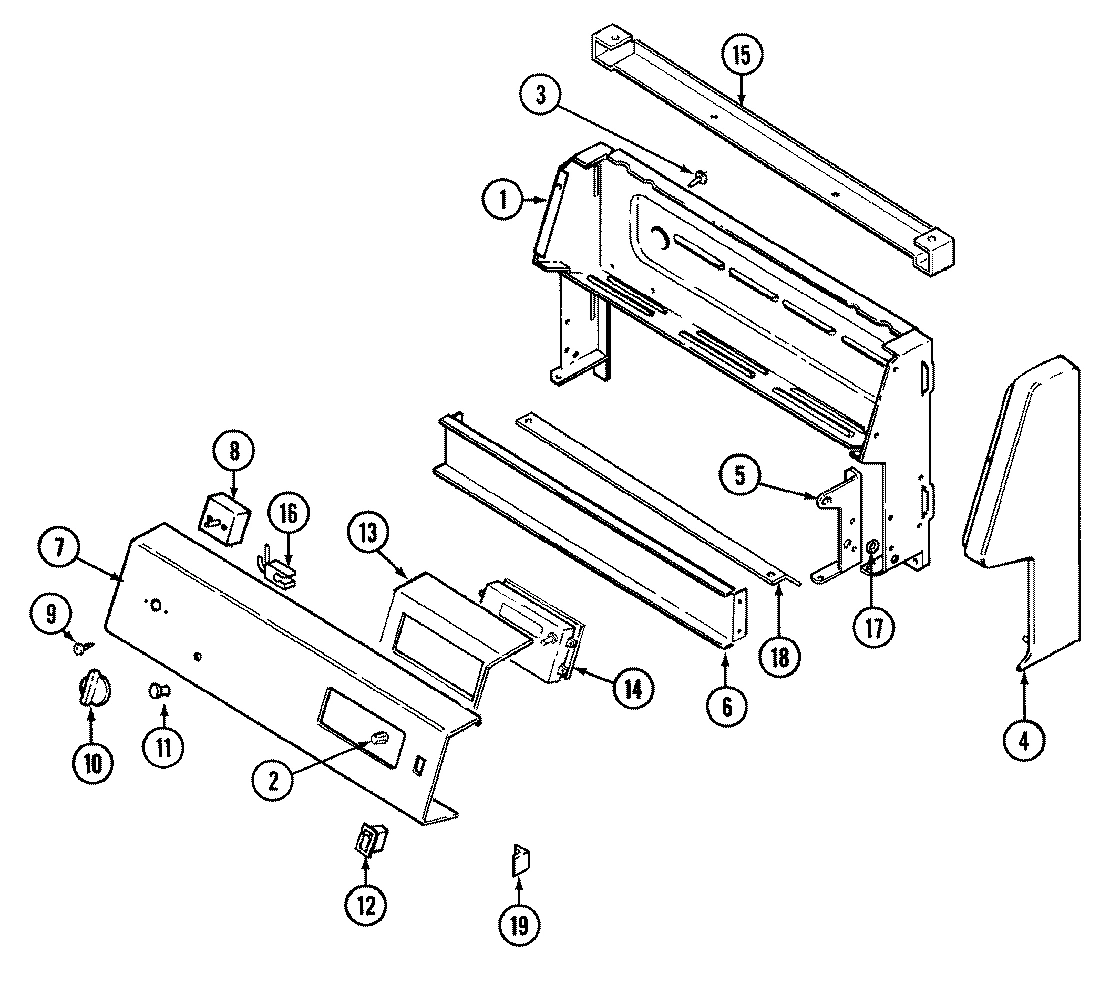

02 - CONTROL PANEL

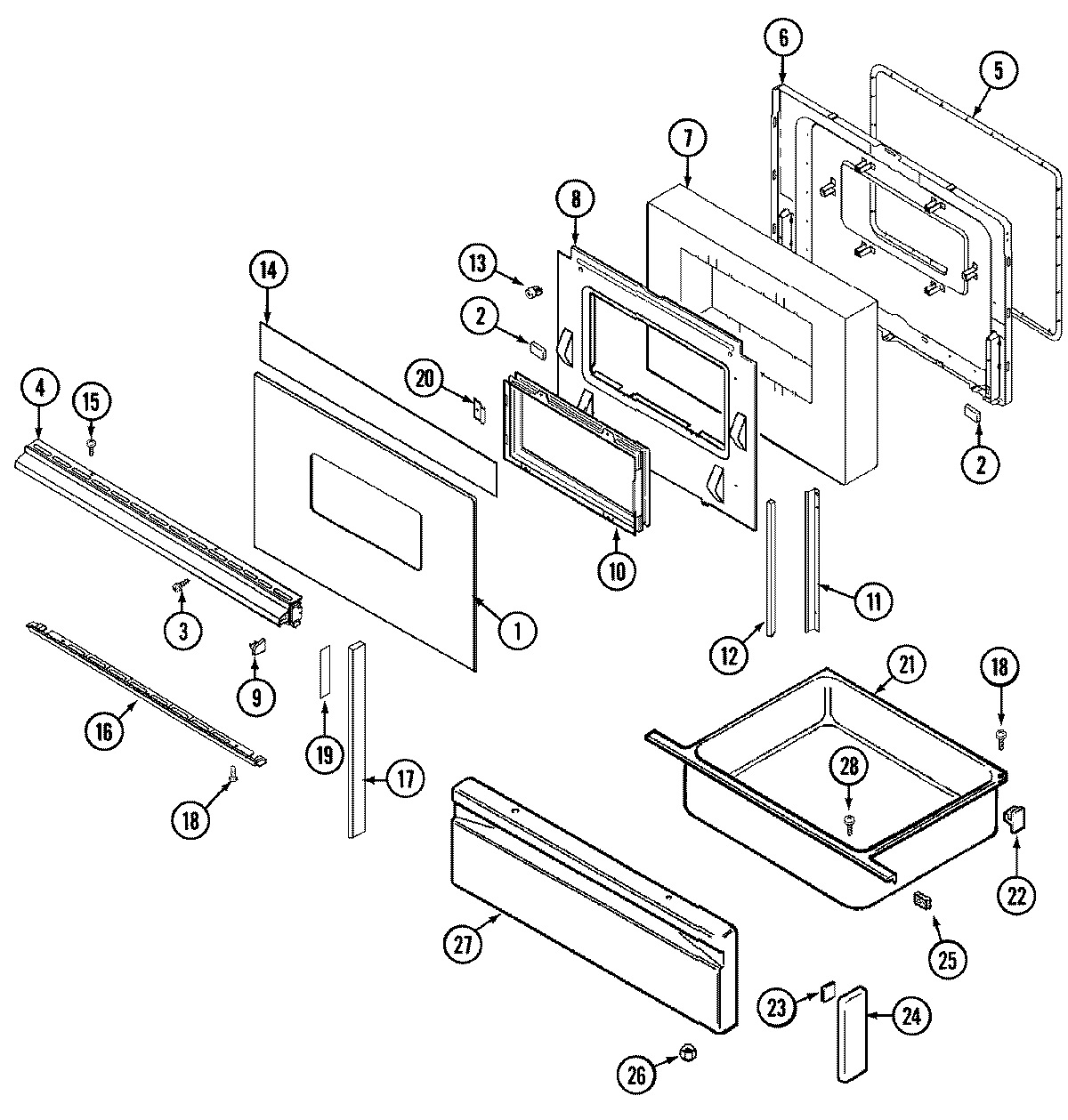

03 - DOOR/DRAWER

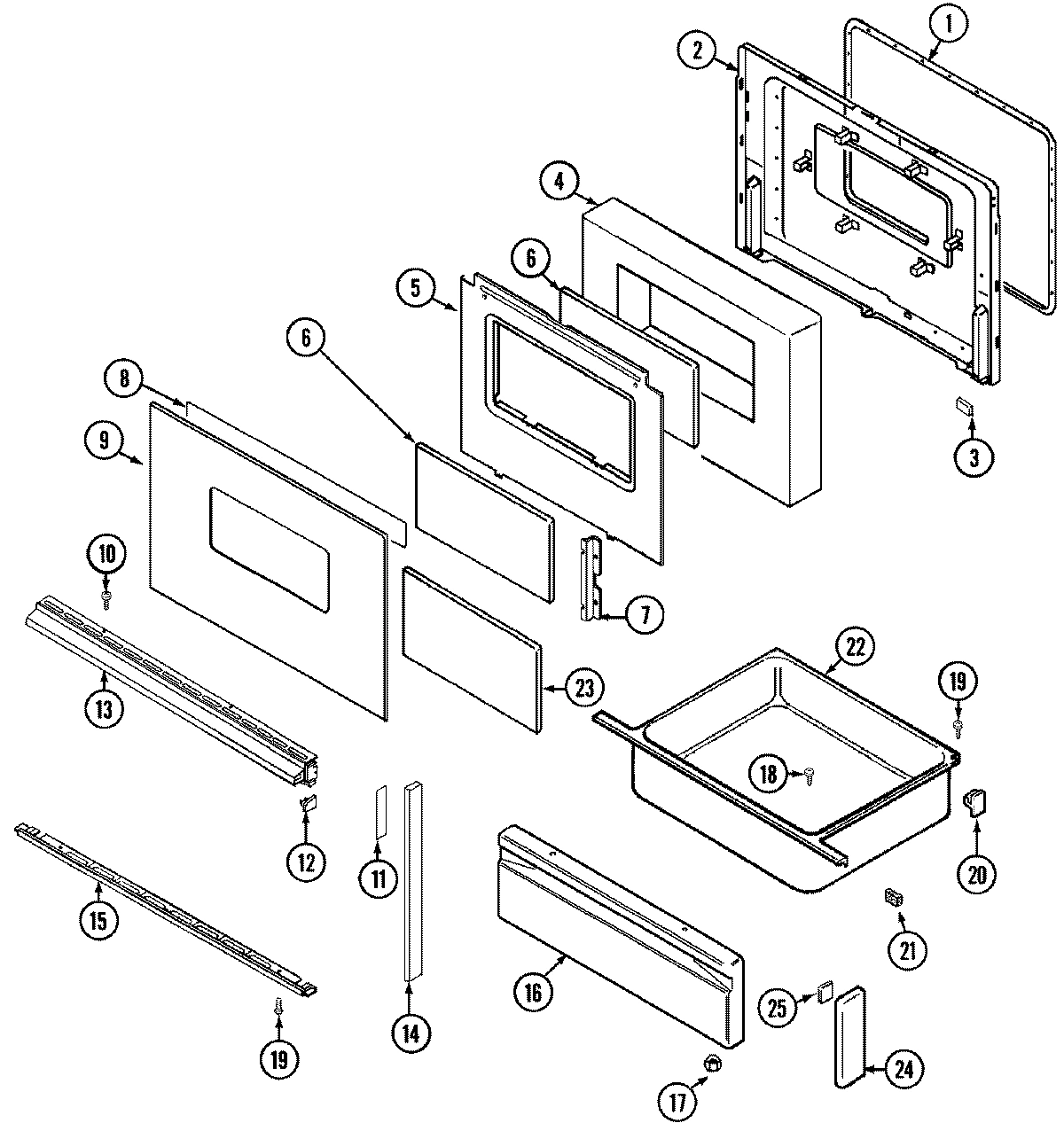

04 - DOOR/DRAWER (SER. PRE. 21)

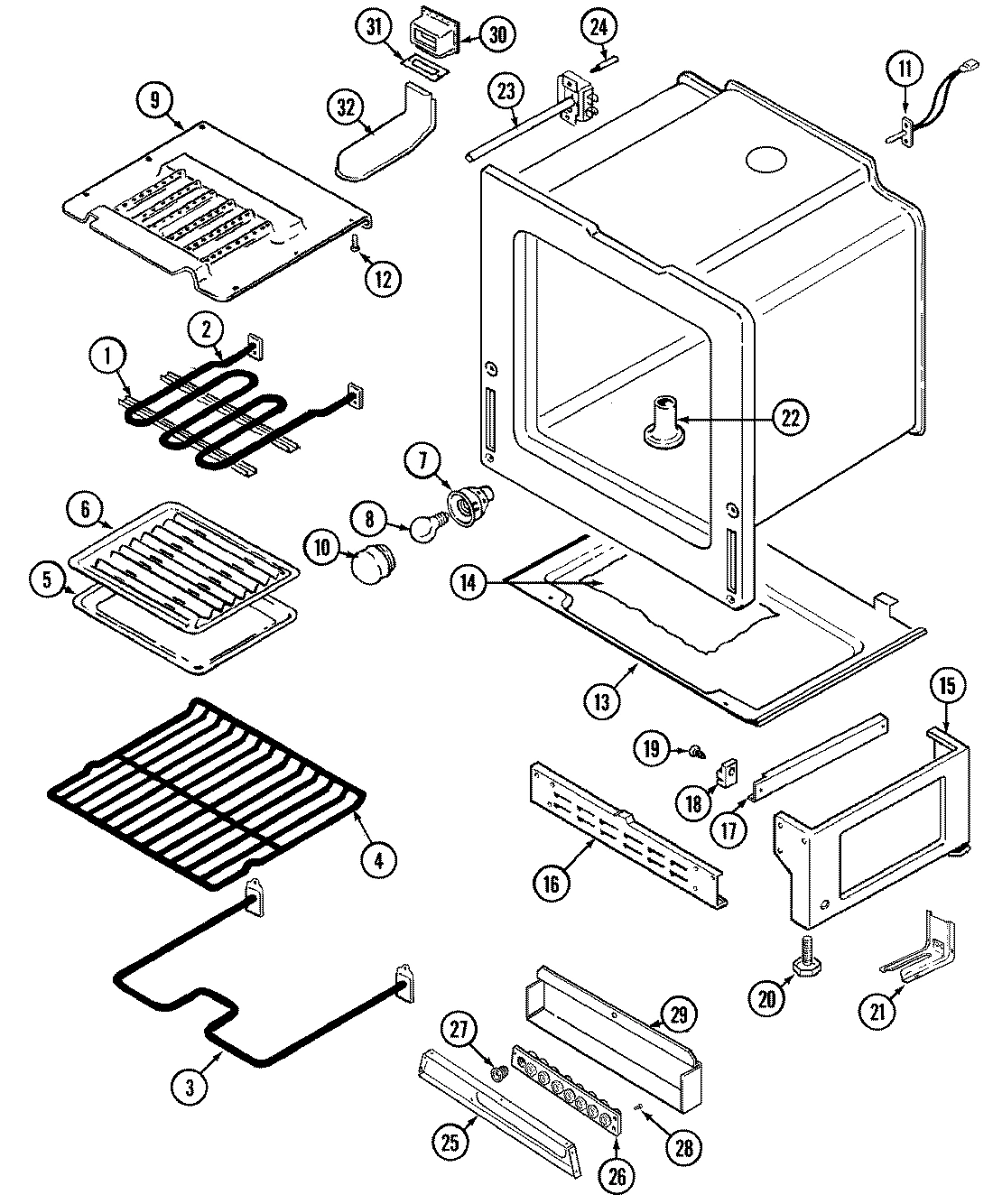

05 - OVEN/BASE

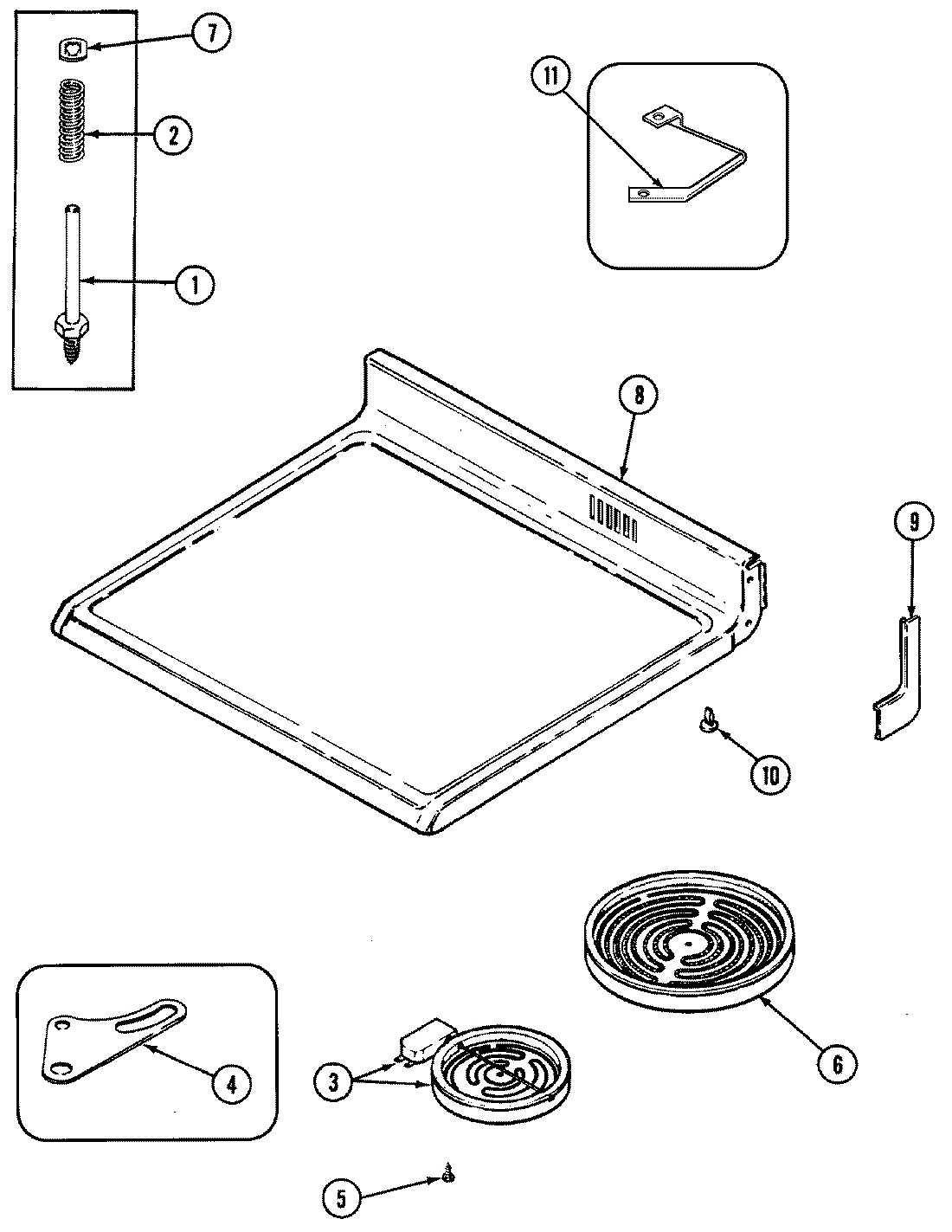

06 - TOP ASSEMBLY

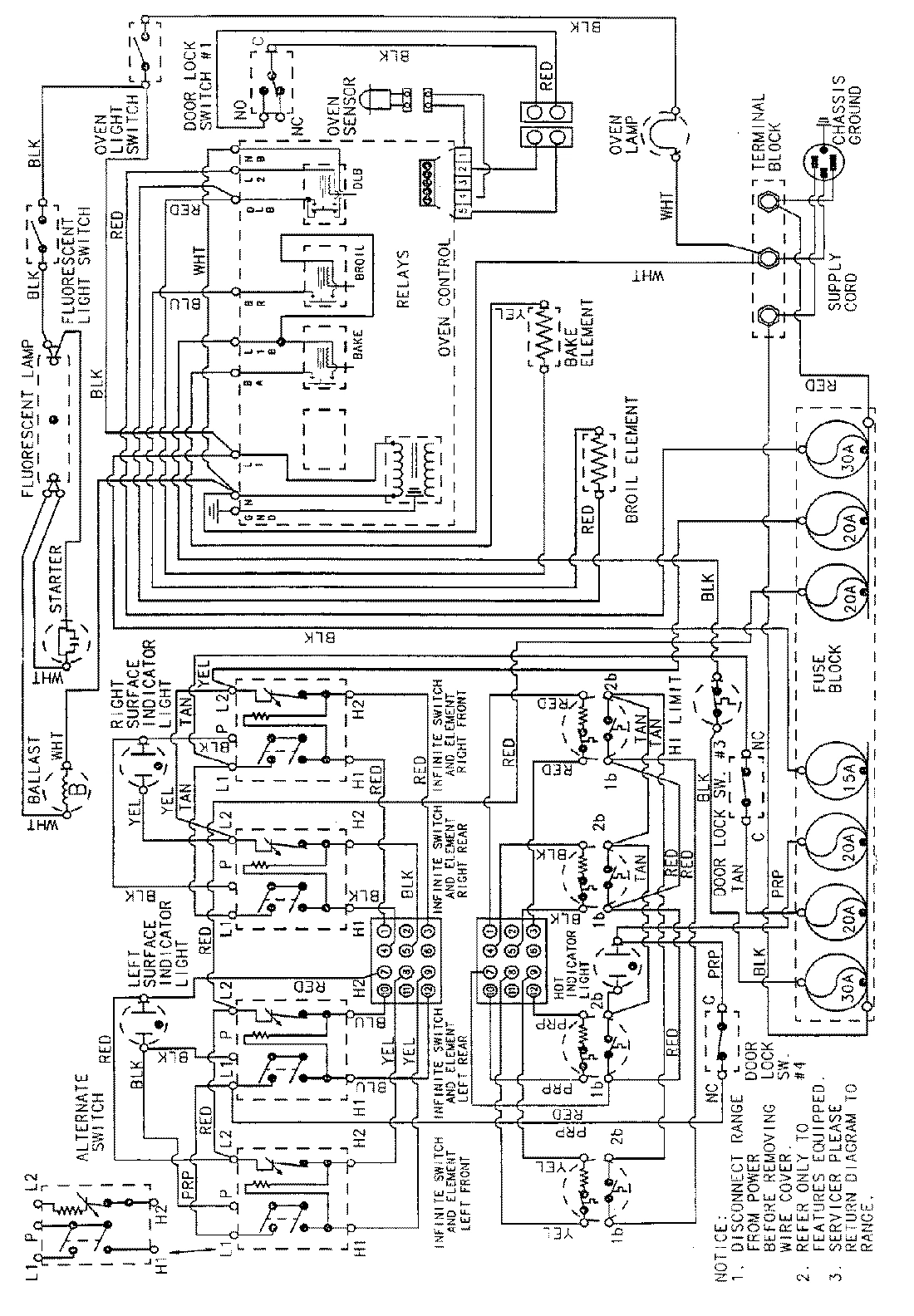

07 - WIRING INFORMATION
Common parts from model Maytag L3878XVA ELECTRIC RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7113P013-60 MAY 7113P013-60 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 7803P066-60 MAY 7803P066-60 Contact Us For Availability
3
MAY 12500041 MAY 12500041 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY Y04000058 MAY Y04000058 Contact Us For Availability
3
MAY 7406P074-60 MAY 7406P074-60 Contact Us For Availability
4
MAY 74001352 MAY 74001352 Contact Us For Availability
4
MAY 74001355 MAY 74001355 Contact Us For Availability
4
MAY 7726P059-60 MAY 7726P059-60 Contact Us For Availability
4
MAY 7726P060-60 MAY 7726P060-60 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
4
MAY 3819F013-45 MAY 3819F013-45 Contact Us For Availability
5
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
5
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
5
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
6
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 12500040 MAY 12500040 Contact Us For Availability
6
MAY 74002652 MAY 74002652 Contact Us For Availability
6
MAY 7406P073-60 MAY 7406P073-60 Contact Us For Availability
7
MAY W10124350 MAY W10124350 Contact Us For Availability
7
MAY 74001002 MAY 74001002 Contact Us For Availability
7
MAY 7002P155-60 MAY 7002P155-60 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY 7112P091-60 MAY 7112P091-60 Contact Us For Availability
8
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
8
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
8
MAY 5706S076-84 MAY 5706S076-84 Contact Us For Availability
8
MAY 74001553 MAY 74001553 Contact Us For Availability
9
MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability
9
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
9
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
10
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
10
MAY 7737P032-60 MAY 7737P032-60 Contact Us For Availability
10
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
10
MAY 74001428 MAY 74001428 Contact Us For Availability
11
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
11
MAY 4005F398-80 MAY 4005F398-80 Contact Us For Availability
11
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
11
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
11
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
11
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
11
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
11
MAY 74001437 MAY 74001437 Contact Us For Availability
12
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
12
MAY 4804F038-60 MAY 4804F038-60 Contact Us For Availability
12
MAY 7403P102-60 MAY 7403P102-60 Contact Us For Availability
12
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
12
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
12
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
12
MAY 74002539 MAY 74002539 Contact Us For Availability
12
MAY 74002540 MAY 74002540 Contact Us For Availability
13
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
13
MAY 3801F338-45 MAY 3801F338-45 Contact Us For Availability
13
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
13
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
13
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 74001005 MAY 74001005 Contact Us For Availability
14
MAY 74002687 MAY 74002687 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
14
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
14
MAY 74002084 MAY 74002084 Contact Us For Availability
14
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
15
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
15
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
15
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
15
MAY 4020W013-80 MAY 4020W013-80 Contact Us For Availability
16
MAY 7401P041-60 MAY 7401P041-60 Contact Us For Availability
16
MAY 2416F039-64 MAY 2416F039-64 Contact Us For Availability
16
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
17
MAY 74001725 MAY 74001725 Contact Us For Availability
17
MAY 8009P024-60 MAY 8009P024-60 Contact Us For Availability
17
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
18
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
18
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
18
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
18
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
18
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
19
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
19
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
19
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
20
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
20
MAY 5195D082-60 MAY 5195D082-60 Contact Us For Availability
20
MAY 5170D202-60 MAY 5170D202-60 Contact Us For Availability
20
MAY 5170P205-60 MAY 5170P205-60 Contact Us For Availability
20
MAY 5175D052-60 MAY 5175D052-60 Contact Us For Availability
20
MAY 5175D077-60 MAY 5175D077-60 Contact Us For Availability
20
MAY 74001008 MAY 74001008 Contact Us For Availability
20
MAY 74002753 MAY 74002753 Contact Us For Availability
20
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
20
MAY 74001449 MAY 74001449 Contact Us For Availability
20
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
21
MAY 16007454 MAY 16007454 Contact Us For Availability
21
MAY 8113P068-60 MAY 8113P068-60 Contact Us For Availability
21
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
21
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
21
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
21
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
22
MAY 8026P019-60 MAY 8026P019-60 Contact Us For Availability
22
MAY 74001708 MAY 74001708 Contact Us For Availability
22
MAY 7403P323-60 MAY 7403P323-60 Contact Us For Availability
22
MAY 7403P324-60 MAY 7403P324-60 Contact Us For Availability
22
MAY 16002081 MAY 16002081 Contact Us For Availability
22
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
23
MAY 74002002 MAY 74002002 Contact Us For Availability
23
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
23
MAY 7404P057-60 MAY 7404P057-60 Contact Us For Availability
24
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
24
TAPE MAY 8270P098-60 Contact Us For Availability
24
MAY 7118P020-60 MAY 7118P020-60 Contact Us For Availability
25
MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability
25
MAY Y7744P07060 MAY Y7744P07060 Contact Us For Availability
25
MAY 3801F309-80 MAY 3801F309-80 Contact Us For Availability
26
MAY 7407P097-60 MAY 7407P097-60 Contact Us For Availability
26
MAY 7401A032-60 MAY 7401A032-60 Contact Us For Availability
26
MAY 7401P031-60 MAY 7401P031-60 Contact Us For Availability
27
MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability
27
MAY 7416P004-60 MAY 7416P004-60 Contact Us For Availability
27
MAY 7416P005-60 MAY 7416P005-60 Contact Us For Availability
27
MAY 7416P006-60 MAY 7416P006-60 Contact Us For Availability
28
MAY 3605F197-51 MAY 3605F197-51 Contact Us For Availability
28
MAY 74001744 MAY 74001744 Contact Us For Availability
28
MAY 2416F039-65 MAY 2416F039-65 Contact Us For Availability
28
MAY 7101P068-60 MAY 7101P068-60 Contact Us For Availability
29
MAY 74001743 MAY 74001743 Contact Us For Availability
29
MAY 7403P317-60 MAY 7403P317-60 Contact Us For Availability
29
MAY 4005F445-51 MAY 4005F445-51 Contact Us For Availability
30
MAY 74001722 MAY 74001722 Contact Us For Availability
30
MAY 74001999 MAY 74001999 Contact Us For Availability
30
MAY 3826W014-45 MAY 3826W014-45 Contact Us For Availability
31
MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability
31
MAY 7201P054-60 MAY 7201P054-60 Contact Us For Availability
32
MAY 5170P161-60 MAY 5170P161-60 Contact Us For Availability
32
MAY 74001010 MAY 74001010 Contact Us For Availability
32
MAY 4006W107-45 MAY 4006W107-45 Contact Us For Availability
NI
MAY 15001731 MAY 15001731 Contact Us For Availability
× ![]()
