Model Maytag L3872VRV ELECTRIC RANGE – Common Parts & Diagrams

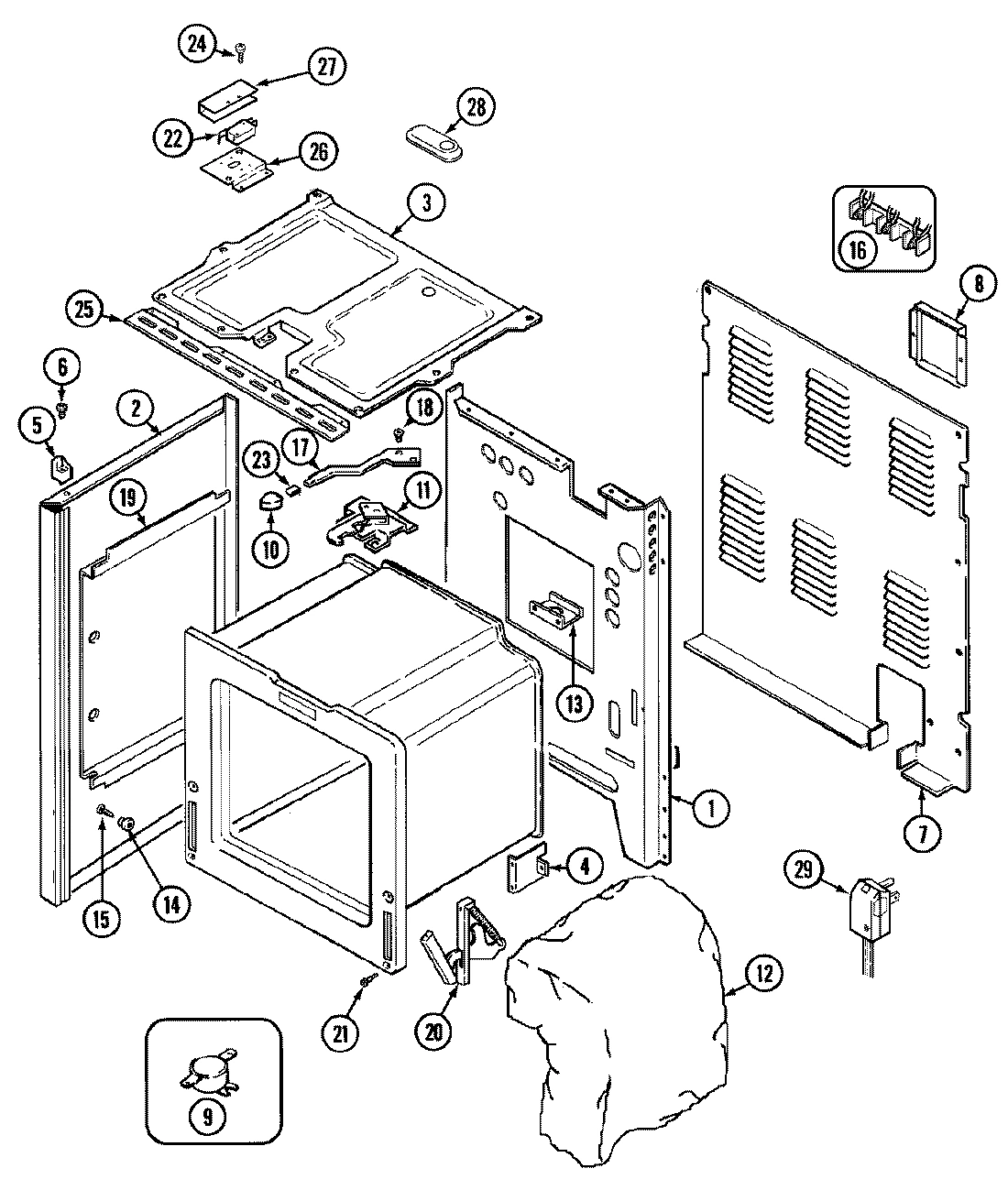

01 - BODY

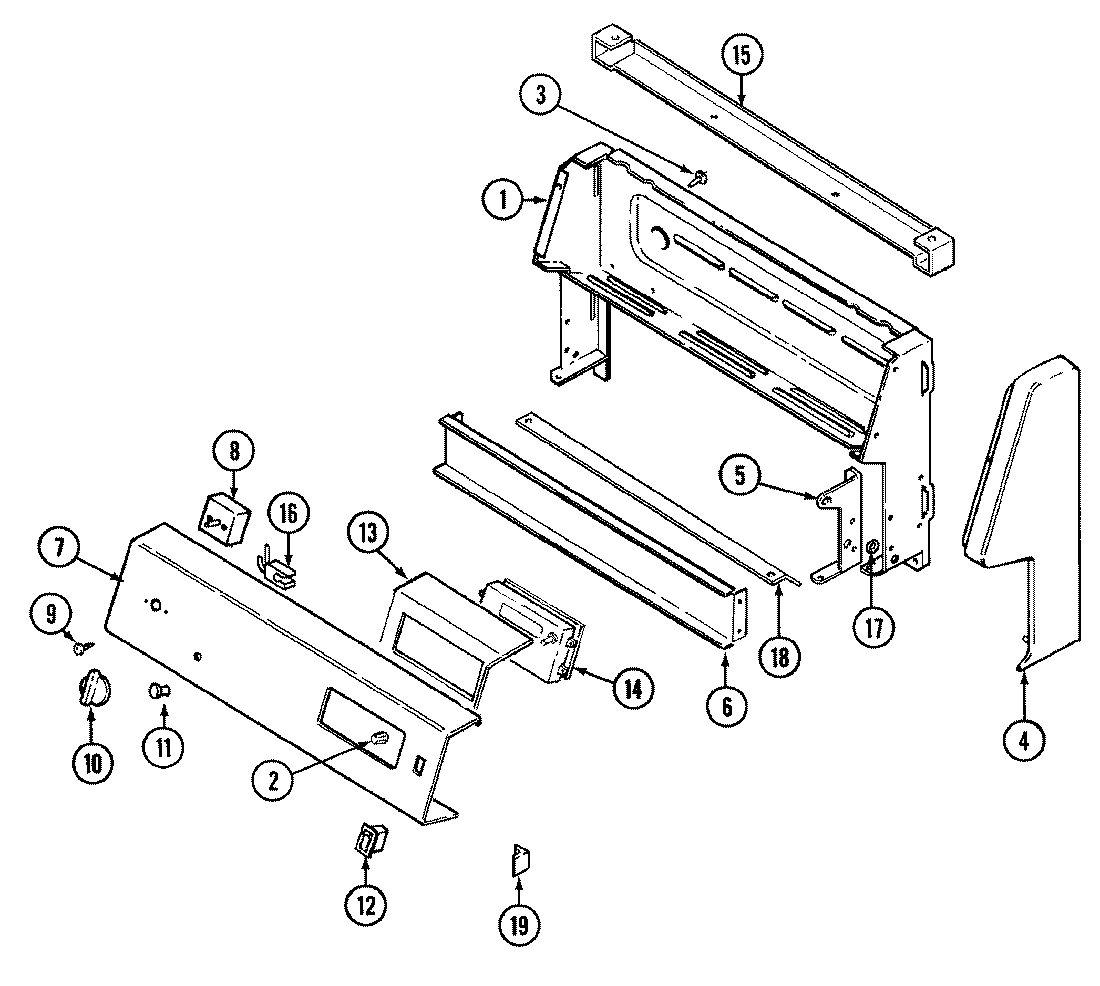

02 - CONTROL PANEL

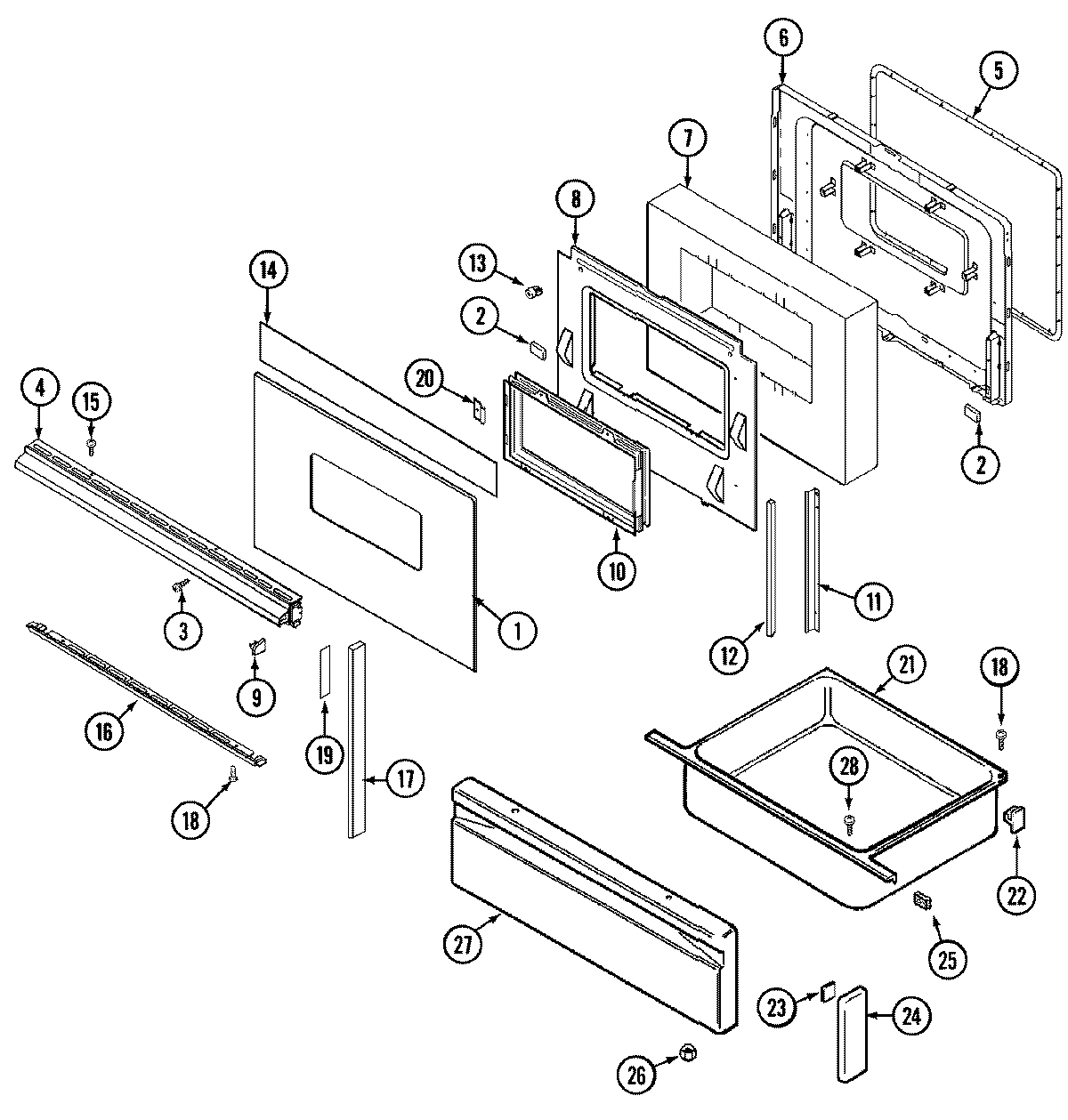

03 - DOOR/DRAWER

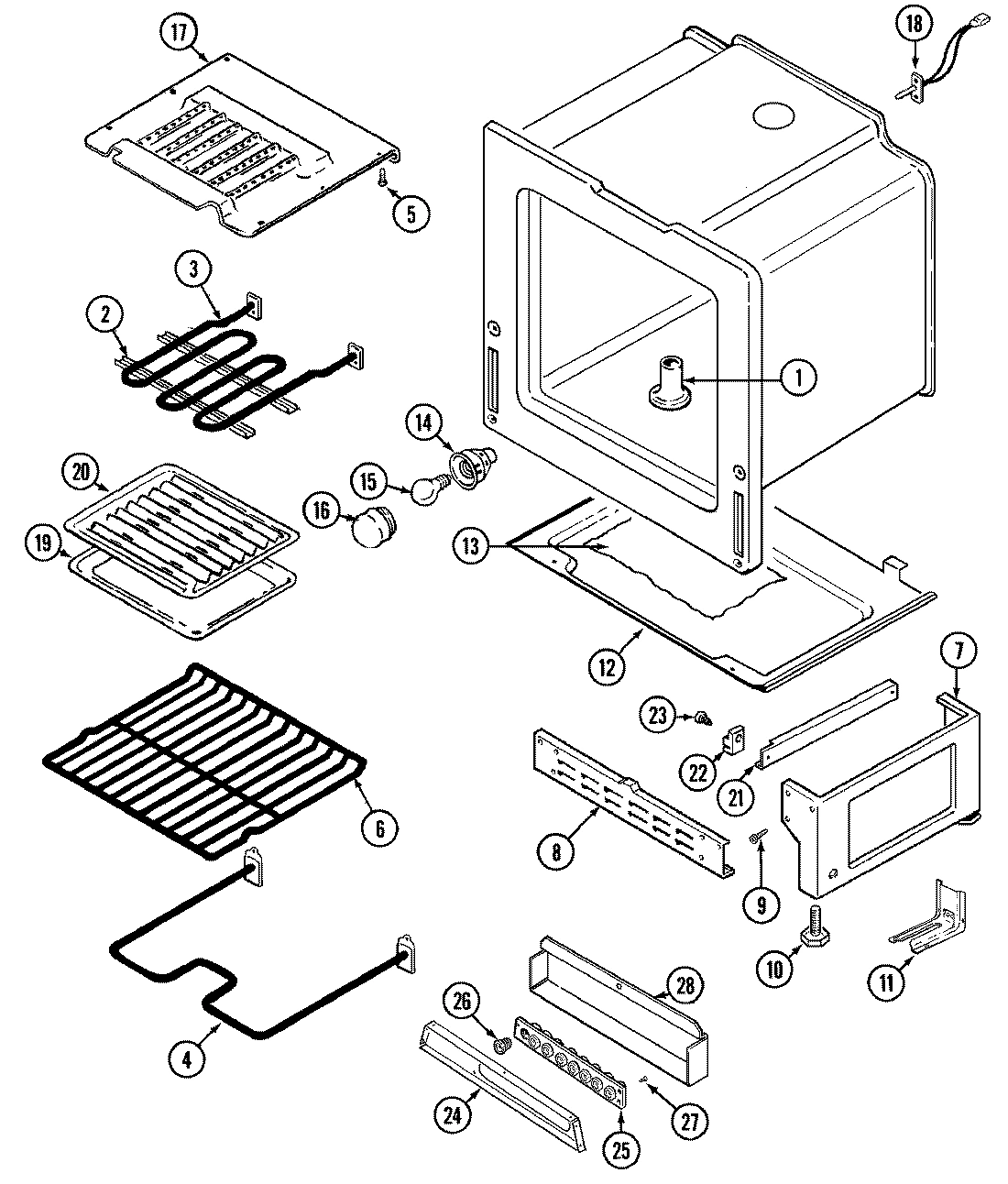

04 - OVEN/BASE

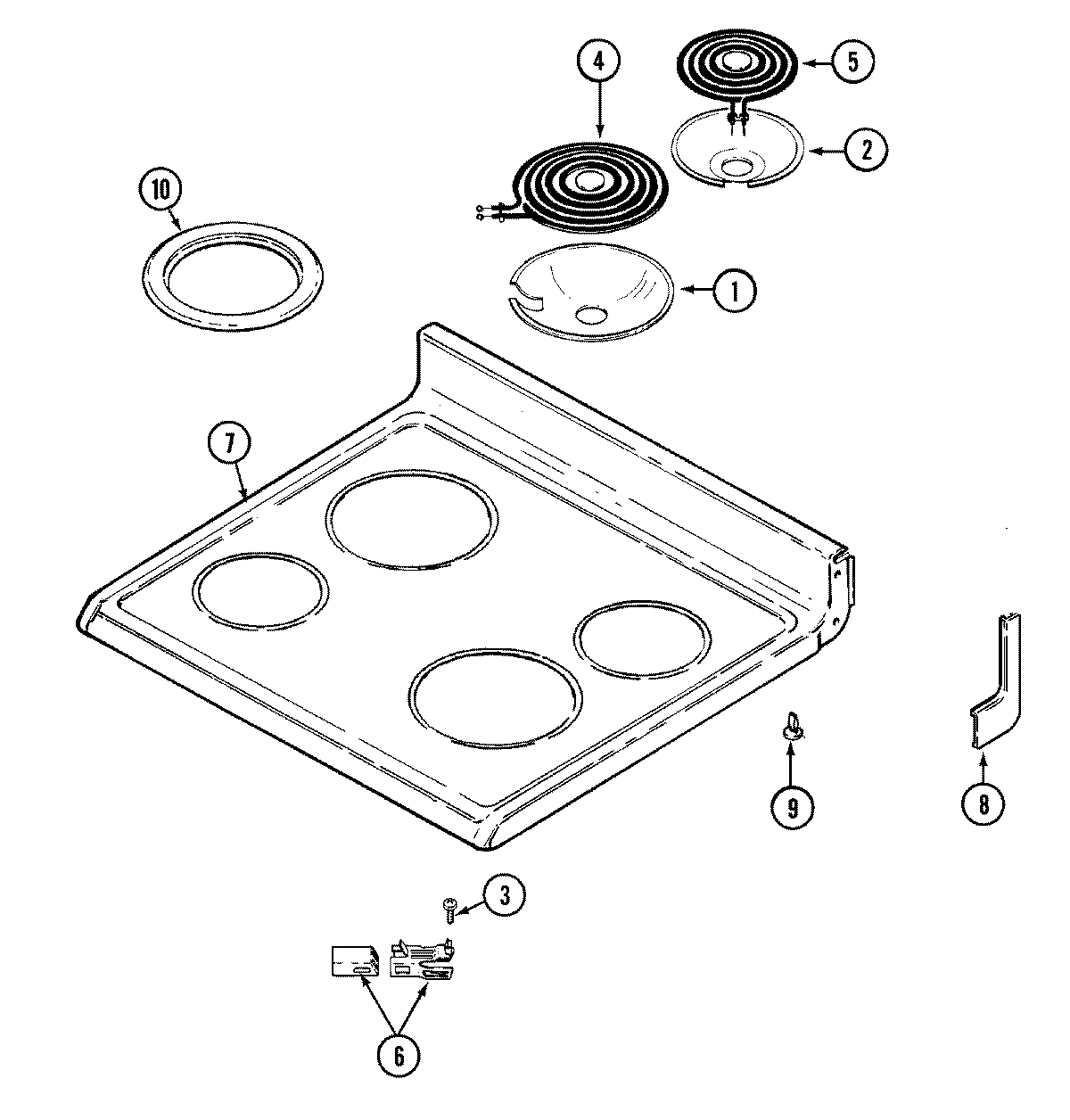

05 - TOP ASSEMBLY
Common parts from model Maytag L3872VRV ELECTRIC RANGE
1
MAY 8026P019-60 MAY 8026P019-60 Contact Us For Availability
1
MAY 74002162 MAY 74002162 Contact Us For Availability
1
MAY 7902P328-60 MAY 7902P328-60 Contact Us For Availability
1
MAY 7725P019-60 MAY 7725P019-60 Contact Us For Availability
2
MAY 7711P493-60 MAY 7711P493-60 Contact Us For Availability
2
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
2
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
2
MAY 7725P018-60 MAY 7725P018-60 Contact Us For Availability
3
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
4
MAY 7726P085-60 MAY 7726P085-60 Contact Us For Availability
4
MAY 7726P086-60 MAY 7726P086-60 Contact Us For Availability
4
MAY 7701P105-60 MAY 7701P105-60 Contact Us For Availability
4
MAY Y04000058 MAY Y04000058 Contact Us For Availability
4
MAY 7406P080-60 MAY 7406P080-60 Contact Us For Availability
5
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
5
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
6
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
6
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
6
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
6
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
6
MAY 1430306K MAY 1430306K Contact Us For Availability
7
MAY 4005F455-51 MAY 4005F455-51 Contact Us For Availability
7
MAY 4876S008-59 MAY 4876S008-59 Contact Us For Availability
7
MAY 7101P346-60 MAY 7101P346-60 Contact Us For Availability
7
MAY 7002P155-60 MAY 7002P155-60 Contact Us For Availability
7
MAY 4020W017-80 MAY 4020W017-80 Contact Us For Availability
7
MAY 2002W103-81 MAY 2002W103-81 Contact Us For Availability
8
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
8
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
8
MAY 7746P032-60 MAY 7746P032-60 Contact Us For Availability
8
MAY 7746P033-60 MAY 7746P033-60 Contact Us For Availability
9
MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability
9
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
9
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
9
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
10
MAY 74001311 MAY 74001311 Contact Us For Availability
10
MAY 7701P153-60 MAY 7701P153-60 Contact Us For Availability
10
MAY 7737P040-60 MAY 7737P040-60 Contact Us For Availability
10
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
10
MAY 7744P130-60 MAY 7744P130-60 Contact Us For Availability
10
MAY 7744P131-60 MAY 7744P131-60 Contact Us For Availability
11
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
11
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
11
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
11
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
11
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
11
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
12
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
12
MAY 74001800 MAY 74001800 Contact Us For Availability
12
MAY 7403P314-60 MAY 7403P314-60 Contact Us For Availability
12
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
12
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
13
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
13
MAY 3801F310-45 MAY 3801F310-45 Contact Us For Availability
13
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
13
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 7601P205-60 MAY 7601P205-60 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
15
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
15
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
16
MAY 7401P041-60 MAY 7401P041-60 Contact Us For Availability
16
MAY 7407P081-60 MAY 7407P081-60 Contact Us For Availability
16
MAY 7744P103-60 MAY 7744P103-60 Contact Us For Availability
17
MAY 8009P024-60 MAY 8009P024-60 Contact Us For Availability
17
MAY 7744P065-60 MAY 7744P065-60 Contact Us For Availability
17
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
18
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
18
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
18
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
18
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
19
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
19
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
19
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
19
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
20
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
20
MAY 74001449 MAY 74001449 Contact Us For Availability
20
MAY 5170D122-60 MAY 5170D122-60 Contact Us For Availability
20
MAY 5170P162-60 MAY 5170P162-60 Contact Us For Availability
20
MAY 5175D049-60 MAY 5175D049-60 Contact Us For Availability
20
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
20
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
21
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
21
MAY 8113P008-60 MAY 8113P008-60 Contact Us For Availability
21
MAY 8113P033-60 MAY 8113P033-60 Contact Us For Availability
21
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
21
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
22
MAY 74001745 MAY 74001745 Contact Us For Availability
22
MAY 7403P323-60 MAY 7403P323-60 Contact Us For Availability
22
MAY 16002081 MAY 16002081 Contact Us For Availability
22
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
23
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
23
TAPE MAY 8270P098-60 Contact Us For Availability
23
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
24
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
24
MAY 7744P069-60 MAY 7744P069-60 Contact Us For Availability
24
MAY 74001339 MAY 74001339 Contact Us For Availability
25
MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability
25
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
25
MAY 7401P031-60 MAY 7401P031-60 Contact Us For Availability
26
MAY 3605F197-51 MAY 3605F197-51 Contact Us For Availability
26
MAY 7416P004-60 MAY 7416P004-60 Contact Us For Availability
26
MAY 7416P005-60 MAY 7416P005-60 Contact Us For Availability
26
MAY 7416P006-60 MAY 7416P006-60 Contact Us For Availability
27
MAY 74001999 MAY 74001999 Contact Us For Availability
27
MAY 2416F039-62 MAY 2416F039-62 Contact Us For Availability
27
MAY 7101P068-60 MAY 7101P068-60 Contact Us For Availability
27
MAY 7103P064-60 MAY 7103P064-60 Contact Us For Availability
28
COVER, VENT MAY 4005F432-45 Contact Us For Availability
28
MAY 4005F445-51 MAY 4005F445-51 Contact Us For Availability
29
MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability
× ![]()
