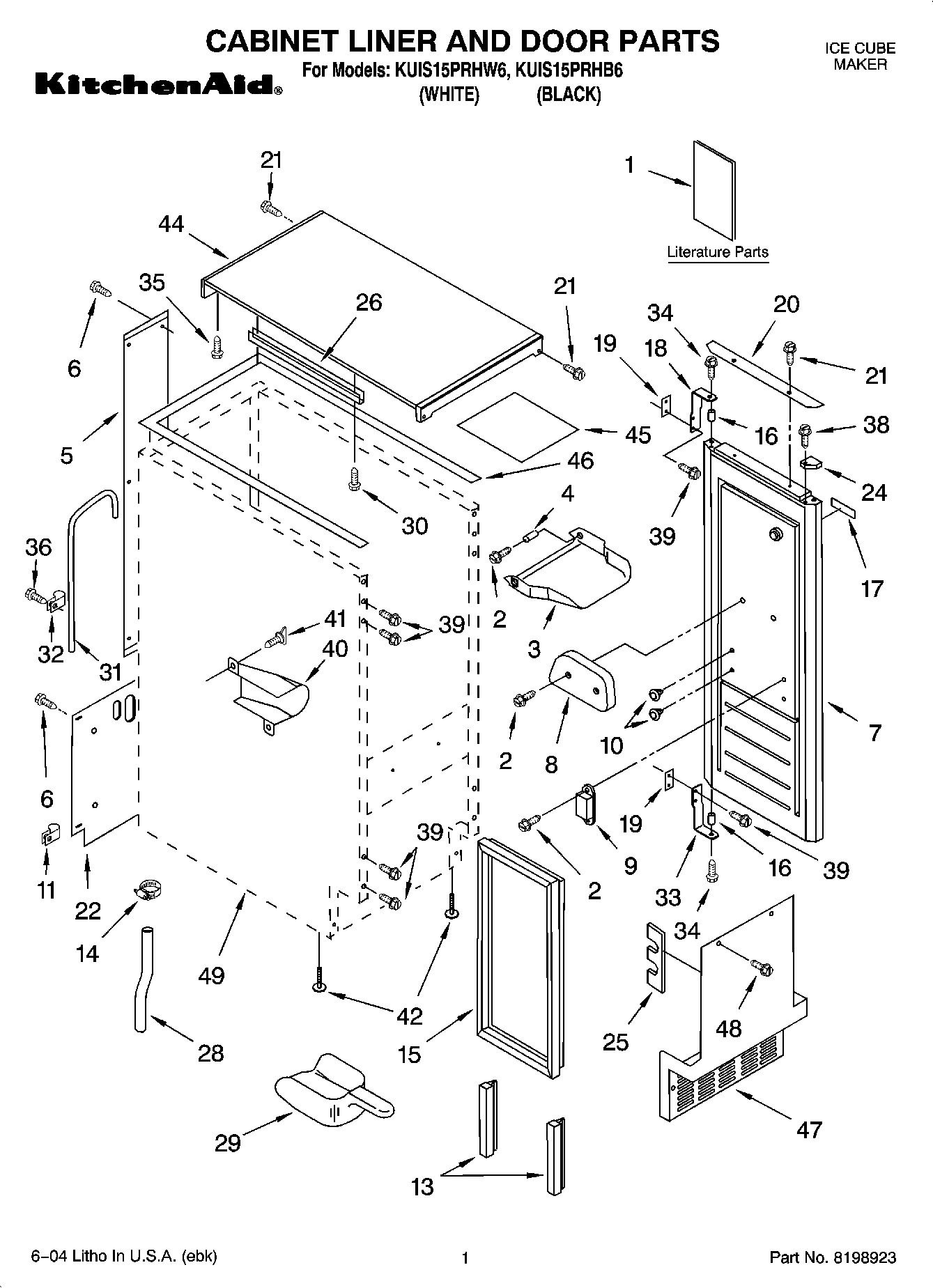

Model Whirlpool KUIS15PRHB6 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

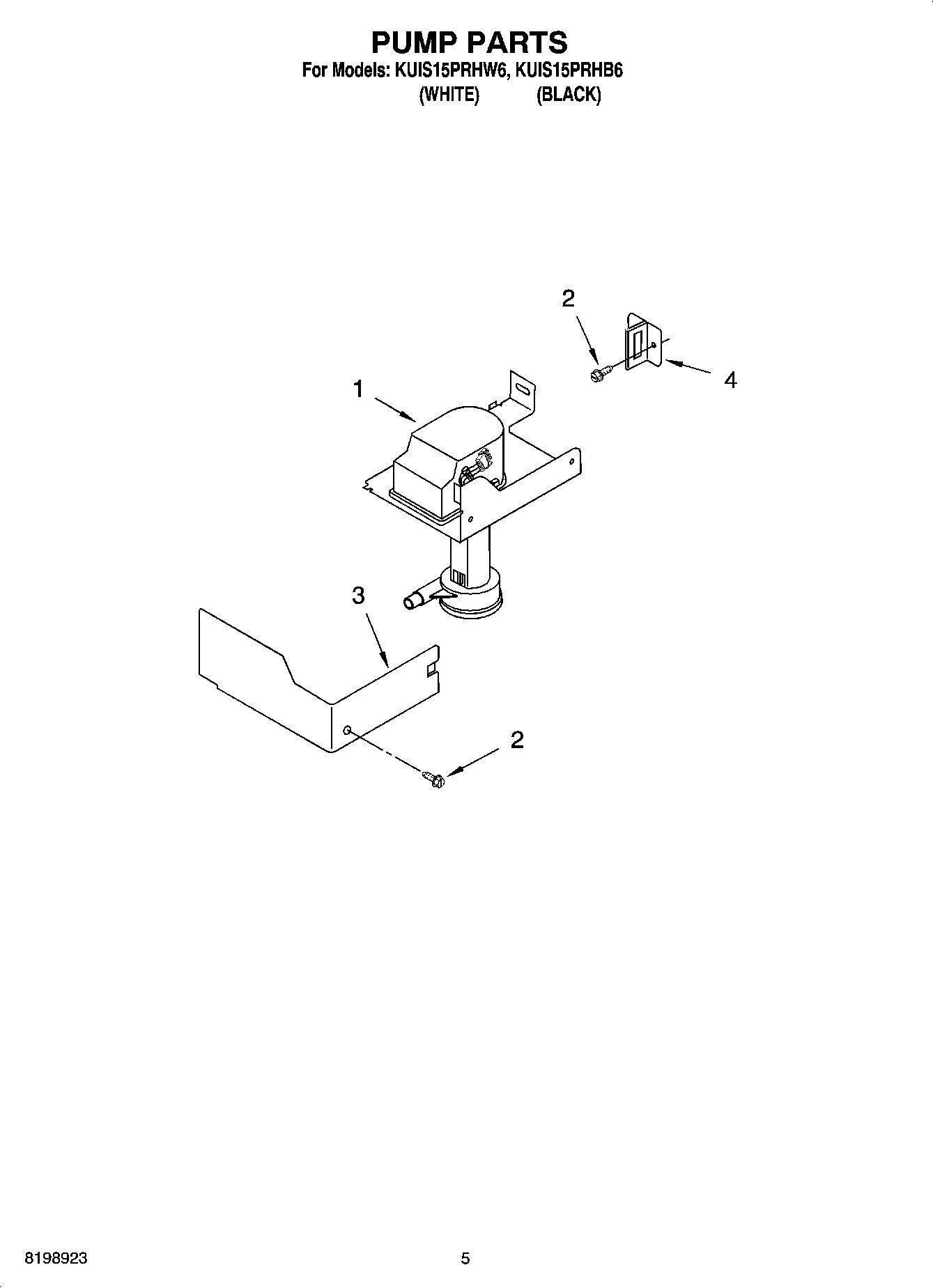

WP2217220 Whirlpool Recirculation Pump Assemb In Stock WPL WP2217220 $162.07

1

Box, Control WPL 2185738 Contact Us For Availability

2

Transformer WPL 2185657 Contact Us For Availability

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $30.25

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER 4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $30.89

4

Overlay WPL 2208317W Contact Us For Availability

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $379.51

5

P.C. Board WPL 6100499 Contact Us For Availability

6

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

7

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

7

Lens, LED WPL 2185694 Contact Us For Availability

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

8

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

8

Wiring Harness Grid/ Light WPL 2185692 Contact Us For Availability

9

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $9.13

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

Bulb WPL 745362 Contact Us For Availability

10

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

10

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

11

Fastener, Pushnut WPL 2208539 Contact Us For Availability

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $40.23

13

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $27.52

13

2217367 Whirlpool Refrigerator Door Gasket Backorder WPL 2217367 $30.89

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $64.06

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $39.53

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

Screw WPL 489472 Contact Us For Availability

Wiring Harness, Main to Pump, WPL 2185703 Contact Us For Availability

15

WP2217294 Whirlpool Refrigerator Door Gasket Backorder WPL WP2217294 $115.70

15

WP2313890 Whirlpool Overflow Hose Backorder WPL WP2313890 $45.05

15

Coil, Solenoid WPL 759112 Contact Us For Availability

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $28.11

16

W10724988 Whirlpool Refrigerator Gas Valve Backorder WPL W10724988 $175.79

16

Guide, Ice Grid WPL 2217310 Contact Us For Availability

17

Wiring Harness, Condenser Fan WPL 2187267 Contact Us For Availability

17

Bracket, Front and Rear WPL 2185615 Contact Us For Availability

18

8201791 Whirlpool Air Conditioner Spacer Backorder WPL 8201791 $8.99

18

WP2217223 Whirlpool Refrigerator Overload Rel Backorder WPL WP2217223 $49.46

18

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $44.14

19

Twist Loc WPL 2217322 Contact Us For Availability

WP2217224 Whirlpool Refrigerator Start Relay In Stock WPL WP2217224 $43.49

Handle, Door (White) WPL 2208492W Contact Us For Availability

Handle, Door (Black) WPL 2208492B Contact Us For Availability

Tube WPL 2208533 Contact Us For Availability

Thermister, Ice Control WPL 2217289 Contact Us For Availability

21

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

21

WP487627 Whirlpool Refrigerator Sleeve Backorder WPL WP487627 $4.81

22

1901A Whirlpool Ice Maker Drain Pump Kit In Stock WPL 1901A $480.22

22

WP245183 Whirlpool Nut Backorder WPL WP245183 $2.51

23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

24

8201810 Whirlpool Refrigerator Condenser Backorder WPL 8201810 $194.16

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

25

Wire Tie WPL 851095 Contact Us For Availability

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

26

Tube, Drainage WPL 2208432 Contact Us For Availability

27

2217397 Whirlpool Foam Pad Backorder WPL 2217397 $30.65

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $153.80

30

2217445 Whirlpool Refrigerator Base Condenser Backorder WPL 2217445 $95.42

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $30.51

34

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

35

REFRIGERANT CHARGE 6.5 OZ. (R134A) WPL ARI116782A Contact Us For Availability

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $35.08

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $32.39

41

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $42.71

42

Thumbscrew WPL 8281228 Contact Us For Availability

43

Reservoir, Water WPL 8201653 Contact Us For Availability

44

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $16.51

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $57.00

46

WP3400909 Whirlpool Refrigerator Nut In Stock WPL WP3400909 $2.51

47

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $84.13

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability
