Model Whirlpool KUIS15NRTS2 ICE CUBE MAKER – Common Parts & Diagrams
03 - PUMP PARTS
04 - CONTROL PANEL PARTS

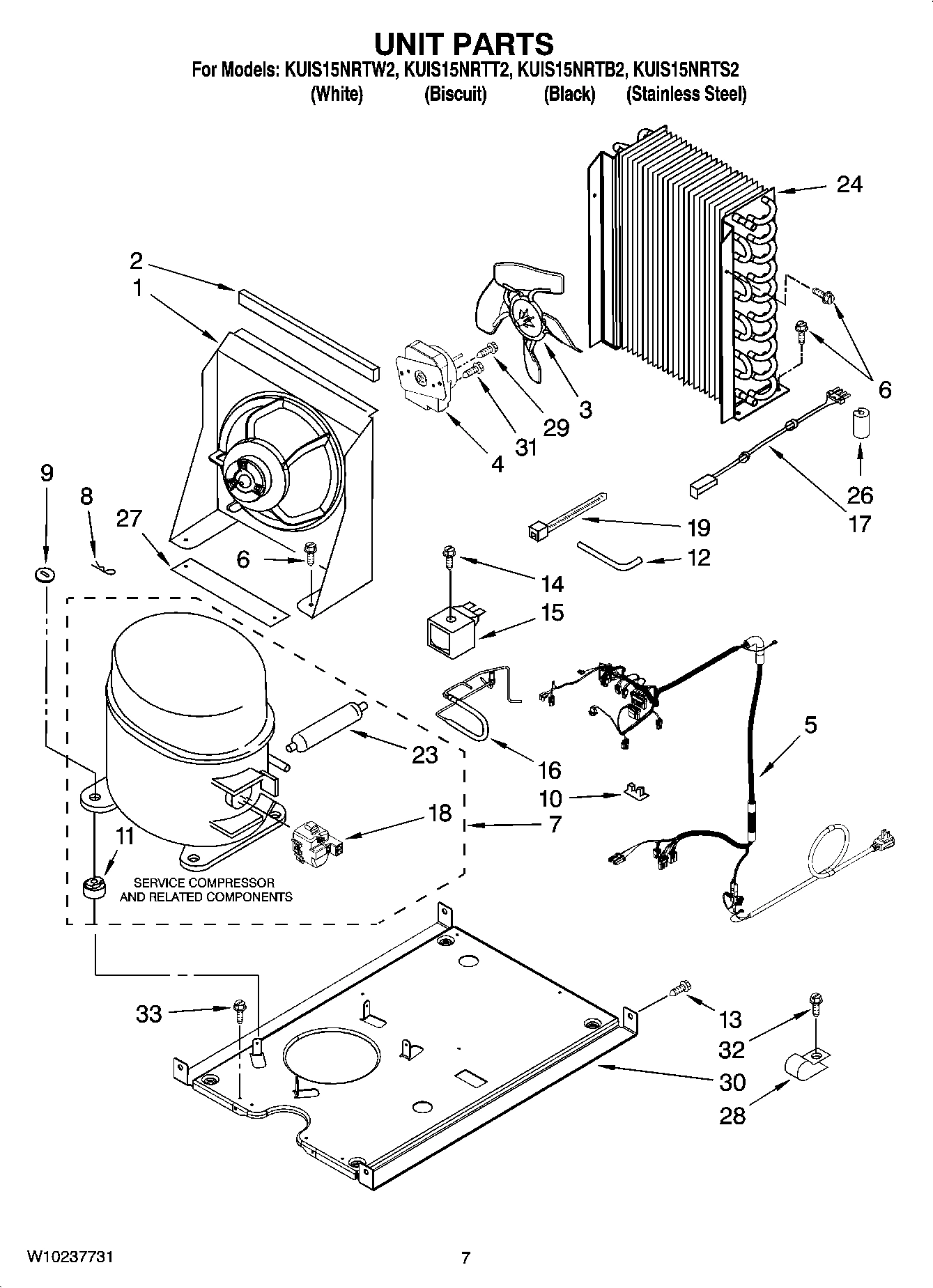

05 - UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

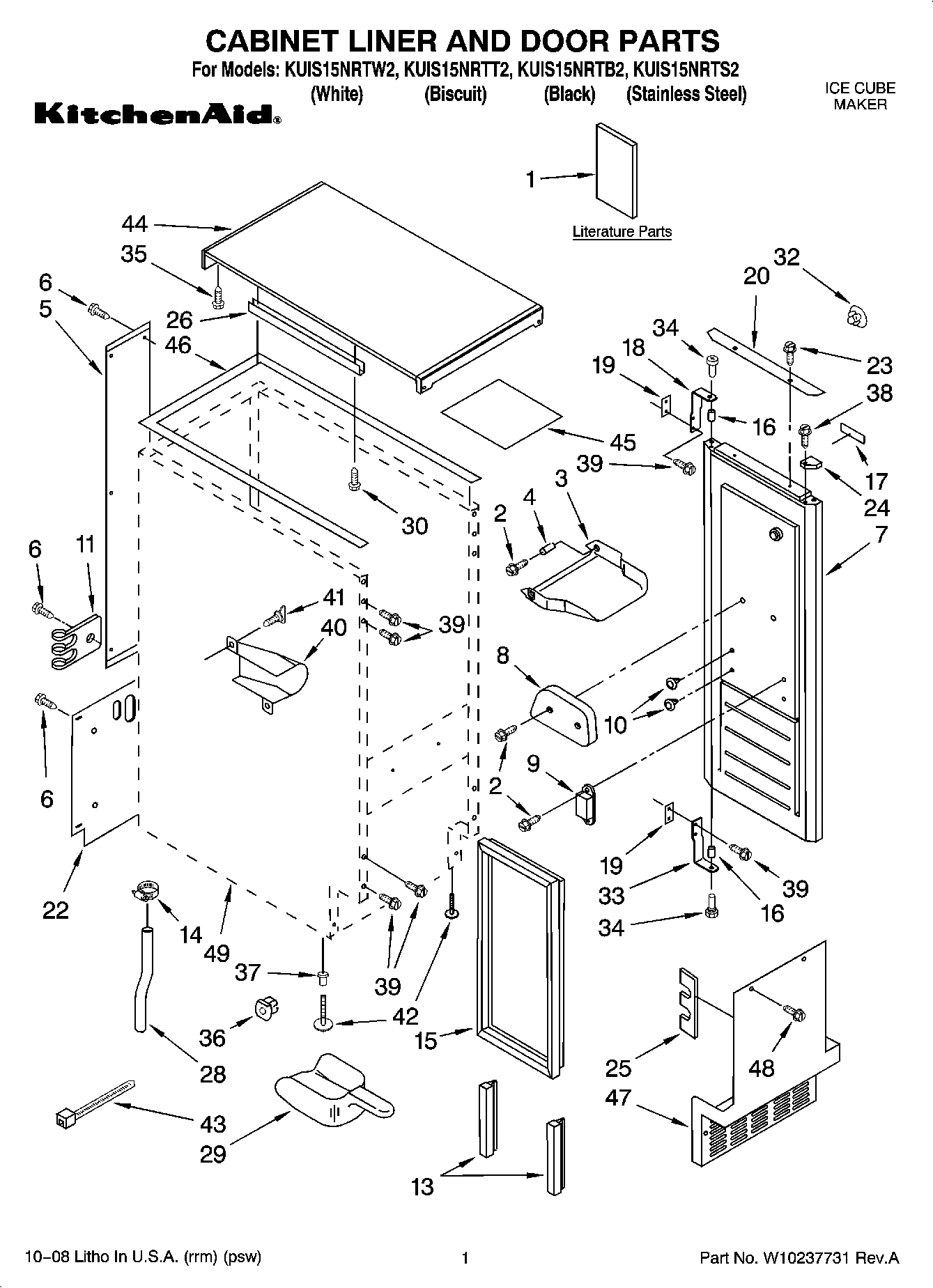

01 - CABINET LINER AND DOOR PARTS

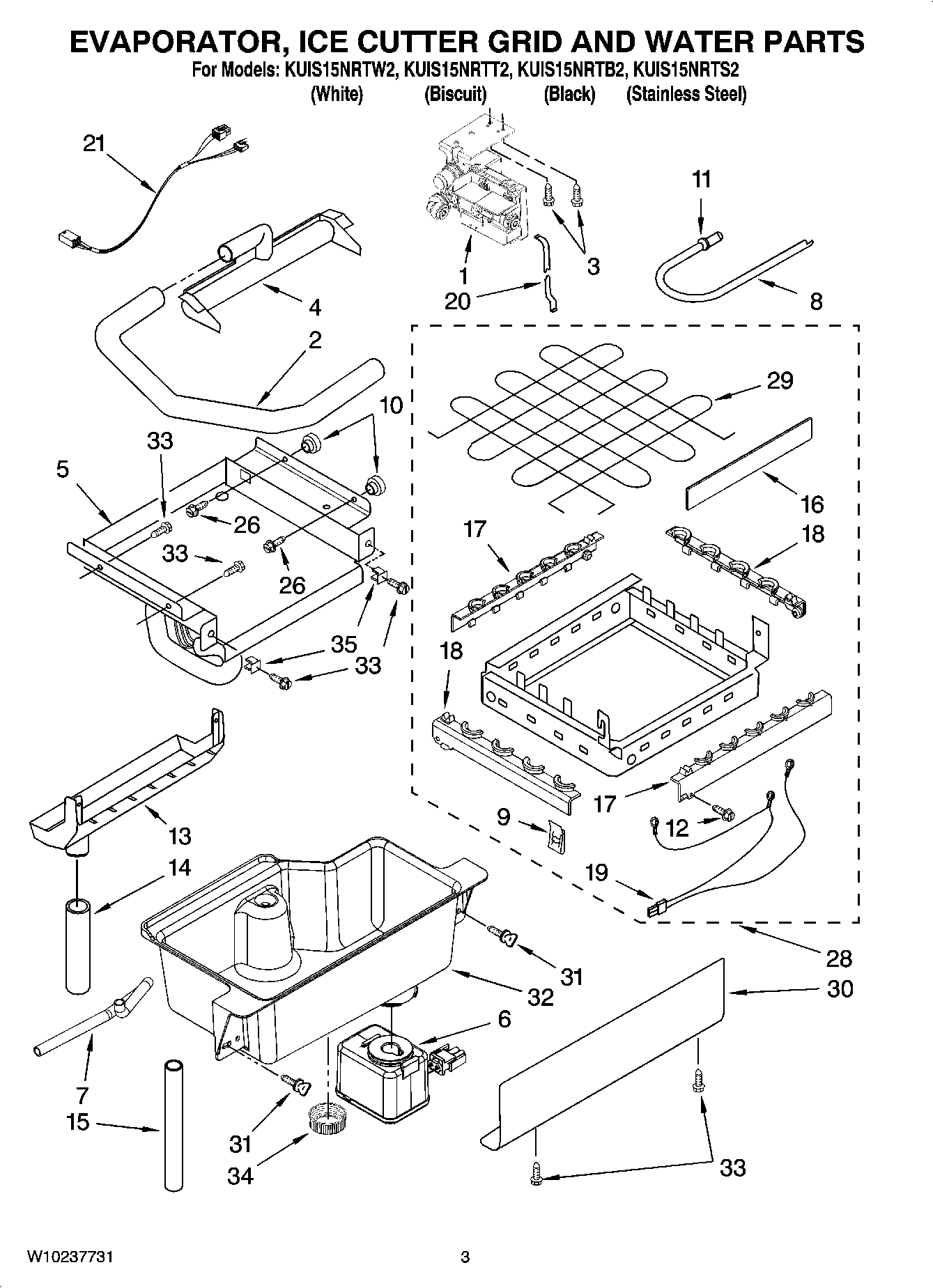

02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
Common parts from model Whirlpool KUIS15NRTS2 ICE CUBE MAKER
sealer, gum (22 pcs. 3/16`` x 7``) WPL 212643 Contact Us For Availability
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
3
Assembly, Switch (ALSO ORDER 4) WPL 2304122 Contact Us For Availability
3
Cover, Pump WPL 2185677 Contact Us For Availability
4
Overlay WPL 2313693 Contact Us For Availability
4
Spacer WPL 2185678 Contact Us For Availability
5
Wiring Harness, Complete Unit (Includes Power WPL W10209470 Contact Us For Availability
7
Wire Assy-Active Overlay Jumper WPL 2187585 Contact Us For Availability
7
TUBE, RESERVOIR PUMP WPL 2313851 Contact Us For Availability
8
Clip, Mounting WPL A201435 Contact Us For Availability
9
Pump Assembly WPL 2313702 Contact Us For Availability
9
Shim (4) WPL A201441 Contact Us For Availability
9
Nut, Speed WPL 488660 Contact Us For Availability
10
Spacer WPL 836667 Contact Us For Availability
11
Fastener, Pushnut WPL 2208539 Contact Us For Availability
13
Gasket, Bottom WPL 2217367 Contact Us For Availability
16
Sleeve, Hinge WPL 2185640 Contact Us For Availability
16
GUIDE, ICE GRID WPL 2313604 Contact Us For Availability
17
Nameplate (Grey) WPL W10046610 Contact Us For Availability
17
Bracket, Front and Rear WPL 2313603 Contact Us For Availability
19
Harness, Grid WPL 2185681 Contact Us For Availability
20
Handle, Door (White) WPL 2208492W Contact Us For Availability
20
TUBE WPL W10136146 Contact Us For Availability
20
Handle, Door (Black) WPL 2208492B Contact Us For Availability
23
Screw (Biscuit) WPL 8281187 Contact Us For Availability
23
Screw (White) WPL 8281188 Contact Us For Availability
24
Filler, Endcap Left Side (Black) WPL 2185655B Contact Us For Availability
24
Filler, Endcap Left Side (Biscuit) WPL 2185655T Contact Us For Availability
24
Filler, Endcap Left Side (White) WPL 2185655W Contact Us For Availability
24
FILLER, ENDCAP RIGHT SIDE (BLACK) WPL 2185656B Contact Us For Availability
24
(Filler, Endcap Right Side) (Biscuit) WPL 2185656T Contact Us For Availability
24
FILLER, ENDCAP RIGHT SIDE (WHITE) WPL 2185656W Contact Us For Availability
26
Channel, Wiring WPL 2185691 Contact Us For Availability
29
Screw WPL 8281197 Contact Us For Availability
30
Cover, Grid WPL 2185570 Contact Us For Availability
31
Thumbscrew WPL 8281228 Contact Us For Availability
33
Hinge, Bottom WPL 2185711 Contact Us For Availability
34
Pin, Hinge WPL 2185712 Contact Us For Availability
37
Nut, Leg Leveler WPL 3400240 Contact Us For Availability
38
Screw WPL 348689 Contact Us For Availability
40
Holder, Scoop WPL 2185927 Contact Us For Availability
44
Top (Black) WPL 2929700B Contact Us For Availability
44
Top (Biscuit) WPL 2929700T Contact Us For Availability
44
Top (White) WPL 2929700W Contact Us For Availability
45
Shield, Electrical WPL 2185690 Contact Us For Availability
47
Grill, Front (Biscuit) WPL 2185571T Contact Us For Availability
49
Cabine WPL ARI116749A Contact Us For Availability
× ![]()
