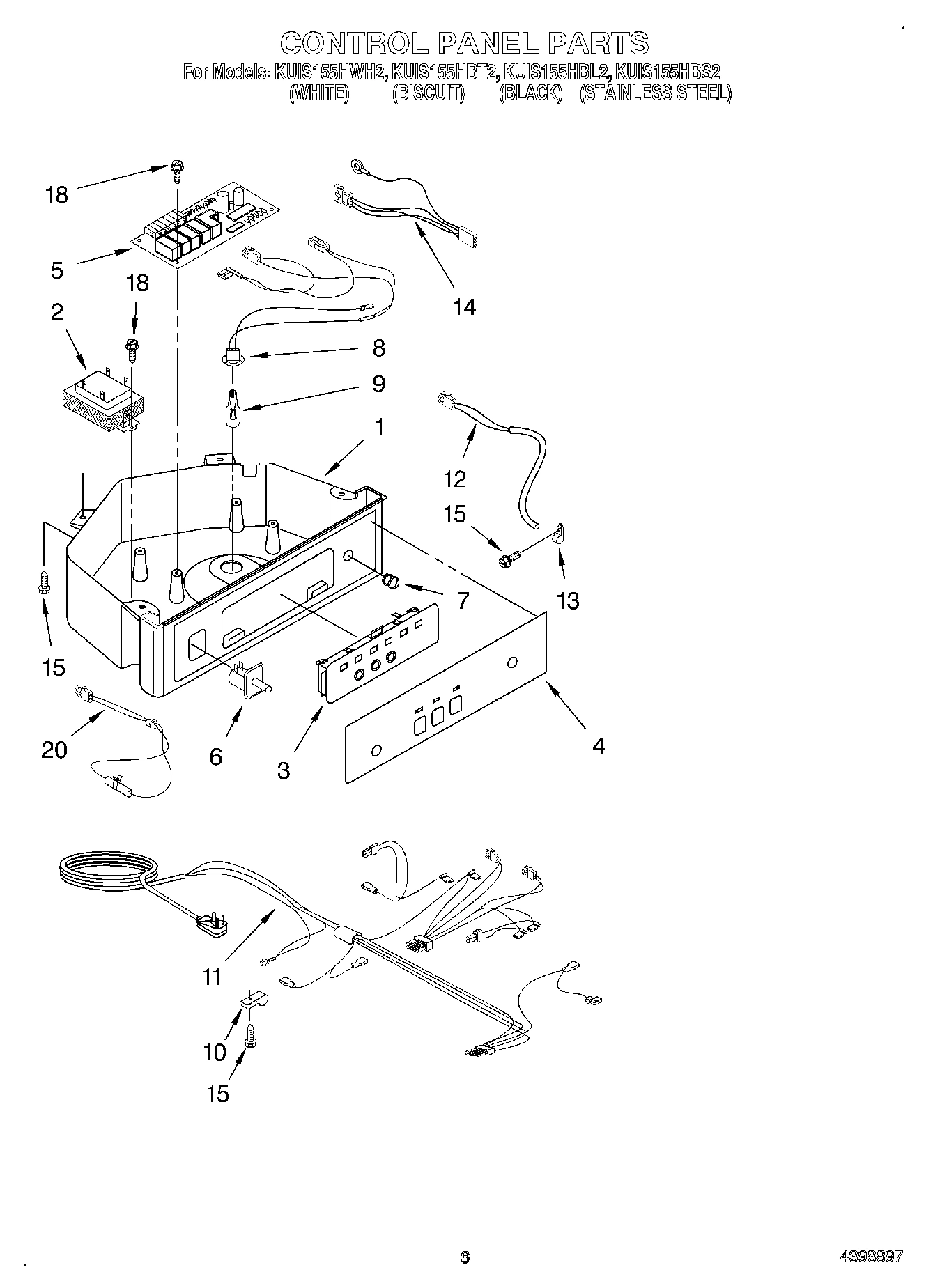

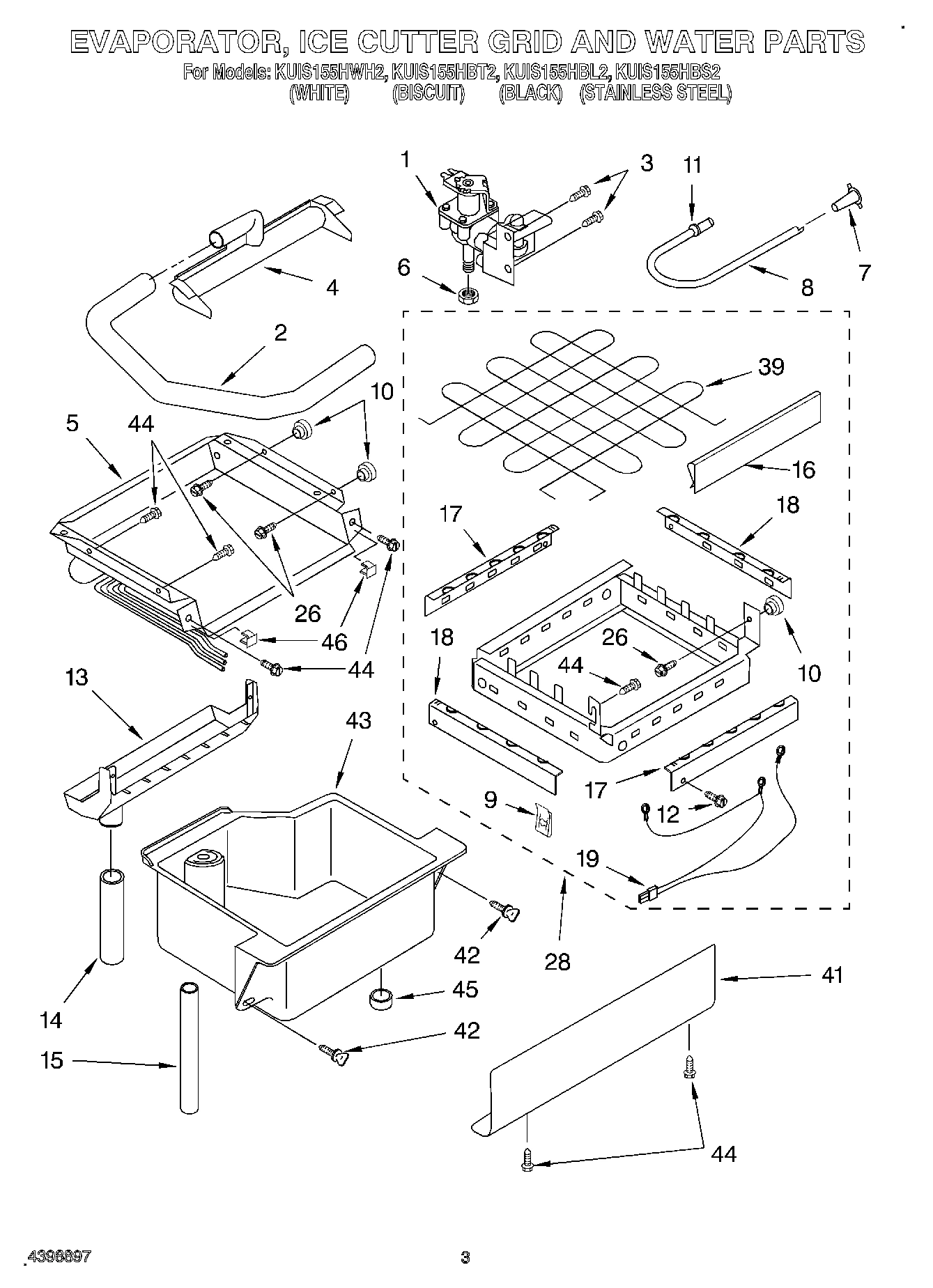

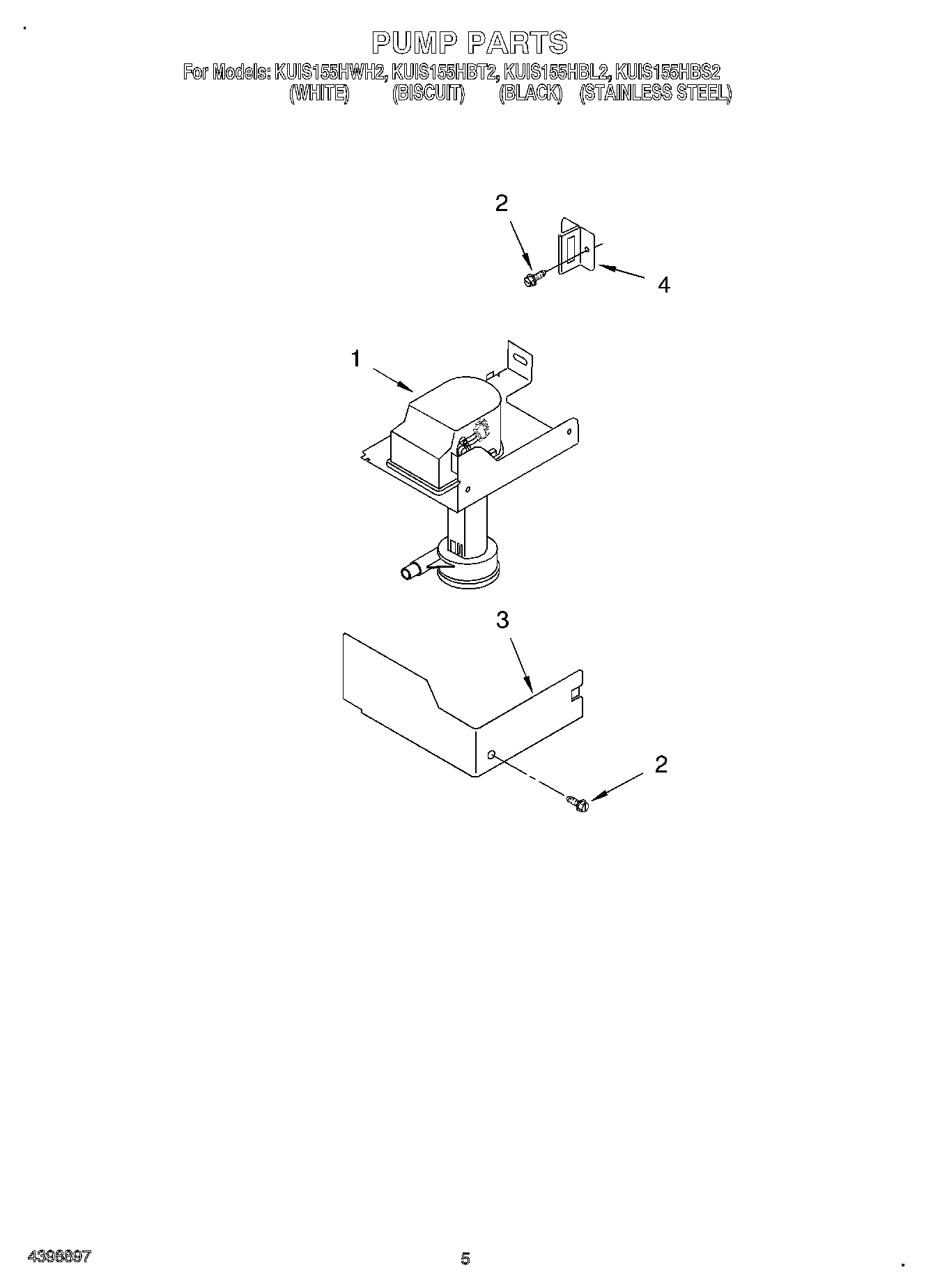

Model Whirlpool KUIS155HBS2 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

WP2185532 Whirlpool Refrigerator Bracket Backorder WPL WP2185532 $30.89

1

WP2217220 Whirlpool Recirculation Pump Assemb In Stock WPL WP2217220 $162.07

1

Box, Control WPL 2185738 Contact Us For Availability

2

2185675 Whirlpool Refrigerator Foam Pad Backorder WPL 2185675 $4.78

2

Transformer WPL 2185657 Contact Us For Availability

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $30.25

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

3

Blade, Fan WPL 2190685 Contact Us For Availability

3

Assembly, Switch (ALSO ORDER No.4) WPL 2185592 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $31.71

4

Bracket, Connector Assembly WPL 2185585 Contact Us For Availability

4

Overlay WPL 2208317W Contact Us For Availability

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $380.30

5

Wiring Harness, Complete Unit (See No.11 On C WPL ARI116581A Contact Us For Availability

5

P.C. Board WPL 6100499 Contact Us For Availability

6

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $5.42

7

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $4.52

7

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

7

Lens, LED WPL 2185694 Contact Us For Availability

8

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 $5.65

8

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.43

8

Wiring Harness Grid/ Light WPL 2185692 Contact Us For Availability

9

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $9.13

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

Bulb WPL 745362 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $11.58

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

CLAMP, POWER CORD WPL 2185960 Contact Us For Availability

11

2185965 Whirlpool Refrigerator Grommet Backorder WPL 2185965 $14.31

11

Fastener, Pushnut WPL 2208539 Contact Us For Availability

11

Wiring Harness, Complete Unit (Includes Power WPL 2187286 Contact Us For Availability

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $40.23

12

Tube, Process WPL 2185548 Contact Us For Availability

13

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $27.52

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $64.06

13

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $39.53

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

Screw WPL 489472 Contact Us For Availability

Wiring Harness, Main to Pump, WPL 2185703 Contact Us For Availability

15

WP2313890 Whirlpool Overflow Hose Backorder WPL WP2313890 $45.05

15

Coil, Solenoid WPL 759112 Contact Us For Availability

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $28.11

16

Valve, Body WPL 2208467 Contact Us For Availability

16

Guide-Ice, Grid WPL 2208566 Contact Us For Availability

17

Wiring Harness, Condenser Fan WPL 2187267 Contact Us For Availability

17

Bracket, Front and Rear WPL 2185615 Contact Us For Availability

18

8201791 Whirlpool Air Conditioner Spacer Backorder WPL 8201791 $8.99

18

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

18

Overload WPL 2183404 Contact Us For Availability

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $44.14

Handle, Door (White) WPL 2208492W Contact Us For Availability

Thermister, Ice Control WPL 2185680 Contact Us For Availability

Handle, Door (Black) WPL 2208492B Contact Us For Availability

Relay, Start WPL 2183410 Contact Us For Availability

21

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

24

8201810 Whirlpool Refrigerator Condenser Backorder WPL 8201810 $194.16

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

27

2217397 Whirlpool Foam Pad Backorder WPL 2217397 $30.65

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $40.68

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $153.80

28

Screw 10-32X15/16 WPL 3370389 Contact Us For Availability

29

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

30

Base, Unit WPL 2185511 Contact Us For Availability

31

Wheel WPL 302819 Contact Us For Availability

32

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

33

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $30.51

39

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $35.90

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $32.39

41

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $42.71

42

Thumbscrew WPL 681534 Contact Us For Availability

43

Reservoir, Water WPL 2185624 Contact Us For Availability

44

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

45

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $17.33

46

WP3400909 Whirlpool Refrigerator Nut In Stock WPL WP3400909 $2.51

47

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $84.13

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI116580A WPL ARI116580A Contact Us For Availability
